Kenmore 10652582202 refrigerator Parts

For Kenmore model 10652582202, the key to reading the model number is the prefix: the first three digits (here, 106) identify the manufacturer family, and the remaining digits identify the specific design and feature variations. We use the full model number to match the correct parts list and documentation.

On Kenmore side-by-side refrigerators like 10652582202, the model and serial number label is typically located inside the refrigerator compartment on an interior wall. Confirm the exact location and how it is formatted in the 10652582202 owner's manual.

• Look inside the fresh food (refrigerator) section first
• Check the side wall near the crisper area or upper shelves
• Write down the full model number and serial number exactly as shown
• Record the purchase date for service and parts history
• Use the complete model number when ordering parts (not just the 106 prefix)

Kenmore model numbers are usually easiest to interpret in two chunks: the prefix and the remainder.

Many refrigerator parts look similar but are not interchangeable across series. Using the full 10652582202 model number helps us match components like the ice maker, water inlet valve, and defrost parts to the correct wiring, mounting points, and water line routing.

• Correct fit for water system parts (valves, filter housing, tubing)
• Correct electrical match for controls and motors

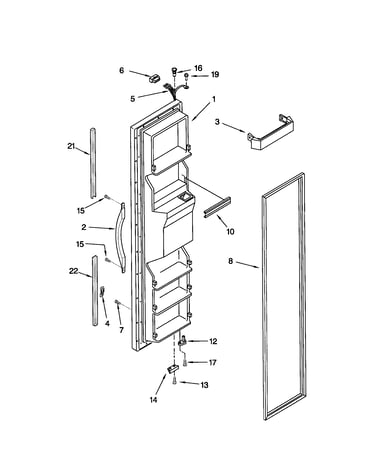

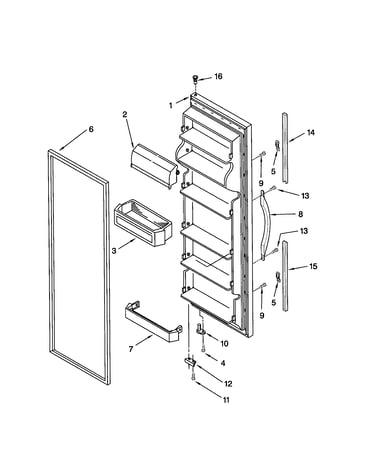

• Correct door and dispenser components
• Faster troubleshooting using model-specific diagrams

If you are diagnosing no ice or slow fill, the model number ensures you get the correct water valve for this platform, such as the refrigerator inlet valve W10408179 when it applies to your symptom and configuration.

Last updated: February 2026

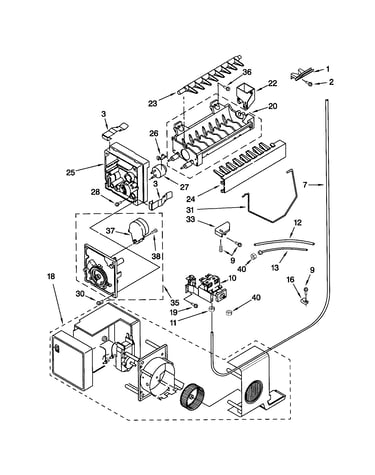

To replace the ice maker in your Kenmore 10652582202 side-by-side refrigerator, we turn the ice maker OFF, shut off water and power, remove the ice bin or bucket, swap the ice maker assembly, then restore power and water. Follow the 10652582202 owner's manual for your exact bin style and on/off control.

• Unplug the refrigerator or switch off the breaker.
• Shut off the household water supply to the refrigerator.
• Turn the ice maker OFF (wire shutoff arm up, or ON/OFF switch to OFF depending on style).
• Empty and remove the ice bin or door bucket.
• Put towels down; a small amount of water can spill.

1. Remove the ice bin or bucket.
2. Remove the ice maker mounting screws.
3. Disconnect the ice maker wiring harness connector.
4. Move any reusable pieces from the old unit if required (such as a shutoff arm or bracket).
5. Mount the new ice maker, reconnect the harness, and tighten screws.
6. Reinstall the bin or bucket fully; the dispenser will not work if it is not seated.
7. Turn water back on, restore power, and switch the ice maker ON.

For Kenmore 10652582202, the correct replacement is the ice maker assembly - refrigerator ice maker by whirlpool 4317943.

• Normal production: about 7 to 9 batches of ice per 24 hours.
• If equipped with maximum ice production: about 10 to 14 batches per 24 hours when set to MAX.
• If ice is slow, set the freezer control slightly colder in half-step increments and wait 24 hours between changes.

Turning the ice maker OFF and fully seating the bin or bucket prevents dispenser problems and helps the freezer maintain stable temperatures for consistent ice production.

Last updated: February 2026

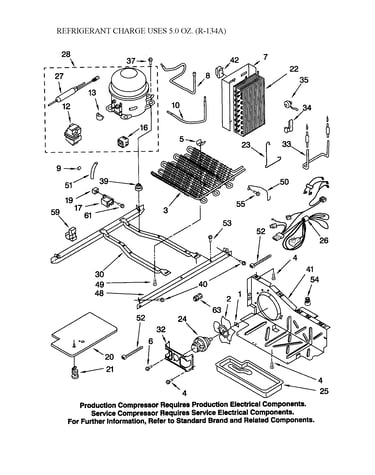

On Kenmore refrigerator model 10652582202, a bad compressor typically shows up as both sections warming while the unit keeps trying to run (often with repeated clicking) and temperatures never recover. Before condemning the compressor, we rule out airflow and defrost problems that mimic compressor failure; use the 10652582202 owner’s manual.

• Refrigerator and freezer both warm, even with long run times
• Repeated clicking every few minutes (start attempt, then it shuts off)
• Compressor is very hot after trying to start (use caution)
• No steady hum or vibration when it should be running
• Fans run, but cabinet temperatures do not improve

• Listen for the evaporator fan in the freezer; no airflow means poor cooling even with a good compressor
• Check for heavy frost on the freezer back wall (defrost failure blocks airflow)
• Clean the condenser area and confirm good airflow underneath/behind the unit
• Verify doors seal and close; air leaks cause long run times and warm temps
• Confirm controls are set correctly and the unit is not in a special mode; see the 10652582202 owner’s manual

• Refrigerator run capacitor WPW10662129 (helps the compressor start and run)
• Refrigerator thermostat WP2198202 (temperature control input)

A compressor replacement is a major sealed-system repair. Doing the airflow, frost, and start-circuit checks first prevents unnecessary cost and targets the real failure.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10652582202 are cooling issues, water or ice dispenser troubles, ice maker problems, leaks, and door-seal complaints. Many of these trace back to airflow restrictions, a clogged filter, a defrost-system fault, or a worn door gasket; the 10652582202 owner's manual covers model-specific checks.

• Not cooling or warm temperatures: dirty condenser coils, evaporator fan issues, defrost ice buildup, thermostat/control problems
• Ice maker not making ice: clogged/incorrectly installed water filter, water supply/shutoff valve issues, frozen fill path, ice jam at the ejector
• Water or ice leaking at the dispenser: air in water lines after filter change, ice stuck holding the chute door open, not holding the cup under the chute long enough
• Bad-tasting or smelly ice: old ice, new plumbing lines, odors transferring from unwrapped food, dirty bin
• Doors hard to open or not sealing: dirty or sticky gaskets, misalignment, worn gasket

1. Confirm the controls are set correctly (freezer too warm can stop ice production).
2. If you have a water filter, re-seat it and flush; a clogged or misinstalled filter commonly reduces water flow.
3. Inspect the dispenser chute for a stuck ice cube holding the trap door open.
4. Clean door gaskets with mild soap and water if they feel sticky.
5. If ice production is low after heavy use, allow 24 hours for recovery.

Cooling and ice maker complaints often share the same root cause: restricted airflow or restricted water flow. Fixing the underlying cause protects food temperatures, improves ice quality, and prevents nuisance leaks at the dispenser.

Last updated: February 2026

On Kenmore model 10652582202, the ER IF code points to an ice maker fan (ice fan) airflow problem. When the ice fan is blocked by frost or the fan is failing, the refrigerator can stop making ice properly and temperatures can drift until the airflow issue is corrected (see the 10652582202 owner's manual for control and troubleshooting guidance).

• Power reset: unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
• Ice buildup: look for frost or ice blocking vents around the ice maker area.
• Freezer temperature: confirm the freezer is set cold enough for ice production (typically near 0°F).
• Door seal and door closure: make sure the freezer door closes fully and seals all the way around.
• Airflow: avoid overpacking the freezer so air can circulate to the ice maker area.

If you confirm the ice maker itself is not cycling or you have no ice after airflow is restored, the ice maker assembly can also be part of the diagnosis.

• Ice maker assembly - refrigerator ice maker by whirlpool 4317943 (ice maker module that cycles and harvests cubes)

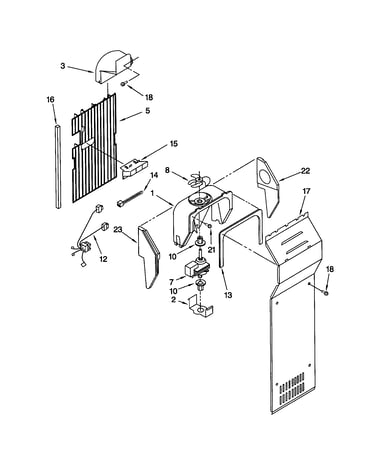

The ice fan moves cold air to the ice maker area. When airflow is restricted, the ice maker can stall, ice can melt and refreeze into clumps, and the freezer can run longer than normal.

Last updated: February 2026

Your Kenmore refrigerator model 10652582202 has a total capacity of about 21.9 cubic feet. This is the overall storage volume for both the fresh food (refrigerator) and freezer sections combined; exact usable space varies with shelves, bins, and the ice maker setup.

We recommend checking the product specifications section in the 10652582202 owner's manual. If your unit has different shelf or bin layouts, the “total volume” stays the same, but usable space can feel different.

• Look for “capacity,” “total volume,” or “cubic feet” in the specs pages
• Note whether an ice maker and ice bin are installed (they reduce usable freezer space)
• Compare your interior layout to the features diagrams
• Record your full model and serial number from the inside wall label for reference

Rated cubic feet is a standardized measurement; it does not mean every inch is easy to pack with food.

Even though cubic feet is about storage, these setup specs help the refrigerator run correctly:

• Allow about 1/2 inch clearance at the sides and top for ventilation
• Leave about 2 inches minimum near a fixed wall so doors can swing open
• Use a grounded 3-prong outlet on a 115V, 60 Hz supply (15 or 20 amp)

Knowing the 21.9 cu. ft. capacity helps when comparing refrigerators, planning food storage, and choosing organization parts (bins, pans, and shelves) that match how you use the refrigerator and freezer sections.

Last updated: February 2026

Most Kenmore refrigerators average 10 to 15 years of service life; with consistent care, many units can reach 15 to 20 years. For your Kenmore 10652582202 side-by-side refrigerator, following the maintenance and care steps in the 10652582202 owner's manual is the best way to maximize lifespan.

These are practical expectations for household refrigerators like the Kenmore 10652582202:

• Average: 10 to 15 years
• Well-maintained: 15 to 20 years
• Shortened lifespan: heavy use, poor airflow around the cabinet, dirty condenser area, or recurring cooling issues

The use and care section of the manual highlights routine cleaning and upkeep. These actions reduce strain on the compressor and help temperatures stay consistent:

• Keep the condenser area clean (dust buildup makes the refrigerator run longer)
• Clean sticky or dirty door gaskets so doors seal and open correctly
• Confirm doors close and align properly after moving or reinstalling doors
• Replace failed interior/dispenser bulbs as needed to avoid heat and visibility issues
• Address cooling or ice maker problems early instead of letting them cascade into bigger failures

If your refrigerator is in the 10 to 15 year range, we use these rules of thumb:

• One symptom, clear cause (good repair candidate): water not dispensing, no ice, warm fridge but freezer OK
• Multiple symptoms (needs diagnosis): warm temps plus frost buildup plus unusual noises
• Sealed system symptoms (higher-cost repair): poor cooling in both sections, long run times, or repeated compressor start issues

If you’re troubleshooting ice production specifically, the ice maker assembly 4317943 is a common replacement part for this model.

A refrigerator that runs longer than it should (often from dirty coils, poor door sealing, or airflow problems) puts extra load on the compressor and sealed refrigeration system. Reducing run time is one of the most effective ways to extend overall lifespan.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10652582202, the model and serial number label is located inside the refrigerator compartment on an inside wall. You can use that label to record the full model number and serial number for parts lookup and service. See the 10652582202 owner's manual.

• Open the fresh food (refrigerator) door, not the freezer door
• Check the inside side walls first (left and right)
• Look near the upper interior area where labels are easiest to read
• If you do not see it, scan the lower side wall near the crisper area
• Use a flashlight; labels can be faint or partially covered by shelves

The label typically includes both identifiers you need:

We use the exact model number to match the correct Kenmore 10652582202 side-by-side refrigerator parts (for example, an ice maker assembly, water inlet valve, or door gasket). Even small model-number differences can change which parts fit.

• Wipe the area gently with a damp cloth and dry it
• Take a close-up photo and zoom in
• Write the model and serial numbers down right away for future reference

Last updated: February 2026

Kenmore refrigerator model 10652582202 is made by Whirlpool. Kenmore model numbers that start with 106 are Whirlpool-built, and this model’s manual also references Whirlpool as the manufacturer for key replacement elements.

You can verify the model and serial information on the rating label inside the fresh food compartment, then match it to the documentation for this unit in the 10652582202 owner's manual.

• Look for the full model number: 10652582202
• Check the prefix: 106 indicates Whirlpool-built Kenmore refrigeration
• Record the serial number and purchase date for service history
• Use the manual’s parts and maintenance sections for model-specific guidance

Knowing Whirlpool built this Kenmore 106-series refrigerator helps ensure you select compatible components such as the ice maker, water inlet valve, and water filter housing.

These are typical indicators you are working with a Whirlpool-built Kenmore side-by-side:

• Model number begins with 106
• Whirlpool-style ice maker and dispenser layouts are common
• Whirlpool is referenced for certain replacement elements in the documentation

Whirlpool-built Kenmore models often share design families, so identifying the manufacturer reduces wrong-part returns and speeds up troubleshooting for ice maker, dispenser, and cooling issues.

Last updated: February 2026
