Amana ASI2275FRS00 side-by-side refrigerator Parts

The Amana ASI2275FRS00 is a full-size side-by-side refrigerator. For planning space, most units in this class are about 35 to 36 inches wide, 33 to 35 inches deep, and 68 to 71 inches tall; we recommend confirming your exact cutout and door-swing clearance before moving it in.

Quick sizing checklist (what to measure)

• Width: cabinet opening side-to-side (include trim)
• Height: floor to the lowest overhead cabinet or soffit
• Depth: from back wall to the front of the doors/handles
• Door swing: space for doors to open fully (especially near walls)
• Ventilation: a small gap behind and above for airflow

Typical size ranges for a 36-inch side-by-side

Measurement	Typical range	Why it varies
Width	35 to 36 in.	cabinet design and door thickness
Height	68 to 71 in.	hinge style and leveling legs
Depth	33 to 35 in.	handle style and door profile

Why it matters

A side-by-side that is even 1 inch too tall or too deep can prevent proper installation, reduce airflow around the compressor, and make doors hit nearby walls or cabinets. Measuring first also helps avoid kinks in the water line for the ice maker and dispenser.

If you are moving or reinstalling the refrigerator

• Turn off the water supply and disconnect the water line carefully.
• Protect flooring; side-by-sides are heavy and can gouge vinyl or wood.
• After reinstalling, check for leaks at the valve connection and behind the unit.
• If you need water-system parts, common fixes involve the refrigerator water inlet valve WPW10179146 or the refrigerator water tube W10823511.

You can also order replacement parts for Amana ASI2275FRS00 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Most Amana refrigerators, including side-by-side models like ASI2275FRS00, typically last 10 to 15 years with normal household use and basic maintenance. Keeping airflow and seals in good shape helps reduce strain on major components such as the compressor and cooling fans.

What affects lifespan the most

• Condenser cleanliness: Dusty coils make the compressor run hotter and longer.
• Door seal condition: Air leaks cause longer run times and frost issues.
• Airflow inside the cabinet: Overpacking blocks vents and warms sections.
• Ice and water system health: Leaks or low flow can create recurring service issues.
• Defrost performance: Frost buildup can reduce cooling and overwork the system.

Maintenance checklist (simple, high impact)

• Vacuum and brush the condenser area every 6 to 12 months.
• Confirm doors close firmly; clean the gasket and check for gaps.
• Keep vents clear in both compartments.
• Replace worn water system parts if you see leaking or weak dispensing (for example, a failing refrigerator water inlet valve WPW10179146).
• If you notice heavy frost or warm temps, check common defrost components such as the refrigerator defrost bi-metal thermostat WPW10225581.

Common “end-of-life” symptoms vs. fixable issues

Symptom	Often fixable?	Common area to check
Warm fridge, freezer OK	Yes	Evaporator airflow, frost buildup
No ice production	Yes	Ice maker, water supply
Constant running, poor cooling	Sometimes	Coils, seals, fans
Loud clicking, won’t start cooling	Sometimes	Start components, compressor system

Why it matters

A refrigerator that runs longer than it should uses more energy and wears out sealed-system parts faster. Routine cleaning and quick repairs to items like a water inlet valve, door cam, or evaporator fan components can add years of reliable service.

For model-specific replacement parts for Amana ASI2275FRS00, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

If your Amana ASI2275FRS00 side-by-side refrigerator freezer is not freezing, the most common causes are restricted airflow from frost buildup, a failed defrost component, an evaporator fan issue, or poor heat removal at the condenser. Restoring airflow and verifying the defrost and fan systems usually brings temperatures back to normal.

Quick checks we recommend first

• Confirm the freezer control is set to a normal mid-range setting (not “warm”).
• Make sure vents inside the freezer are not blocked by food packages.
• Check the door seal for gaps and confirm the door closes fully.
• Listen for the evaporator fan; it should run when the compressor is running (door switch closed).
• Look for heavy frost on the rear freezer panel (a strong sign of a defrost problem).
• Clean dust from the condenser area so the refrigerator can shed heat.

What the symptoms usually mean

What you notice	Most likely cause	What to do next
Heavy frost, weak airflow	Defrost system problem	Test/replace the defrost thermostat; inspect heater and wiring
Freezer warm, fridge also warming	Airflow or sealed system/compressor issue	Check fans and condenser cleanliness; then evaluate compressor operation
Fan noisy or not spinning	Evaporator fan blade/motor issue	Inspect for ice obstruction; replace damaged blade
Ice maker stopped too	Freezer not cold enough (below about 10°F)	Fix cooling first; then troubleshoot ice maker

Parts that commonly fix “not freezing” on this model

These are model-matched parts we often see involved when cooling drops off:

• Refrigerator defrost bi-metal thermostat WPW10225581 (opens/closes the defrost circuit based on evaporator temperature)

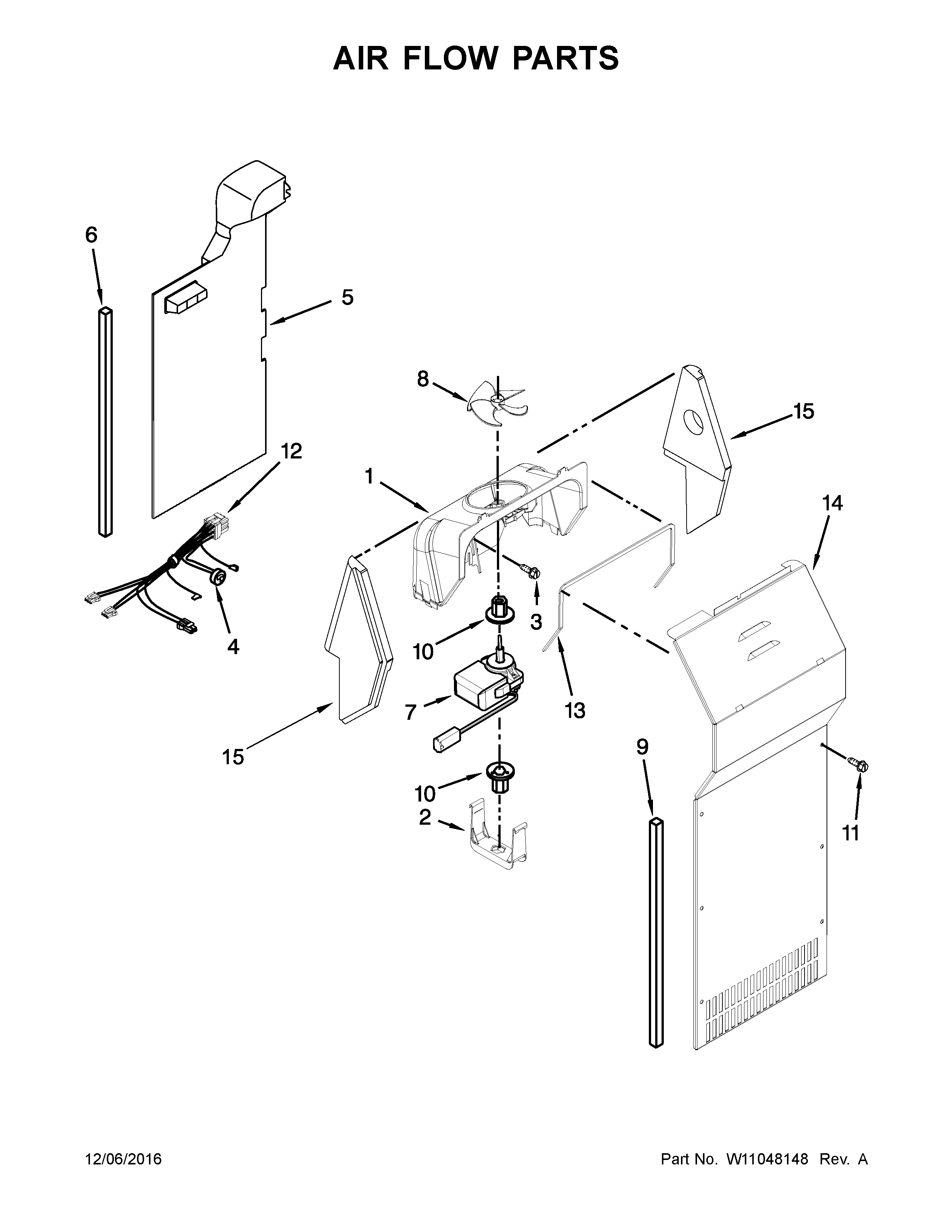

• Refrigerator evaporator fan blade WP2169142 (moves cold air across the evaporator and through the freezer)
• Refrigerator electronic control board WPW10366605 (can affect compressor, defrost timing, and fan operation)

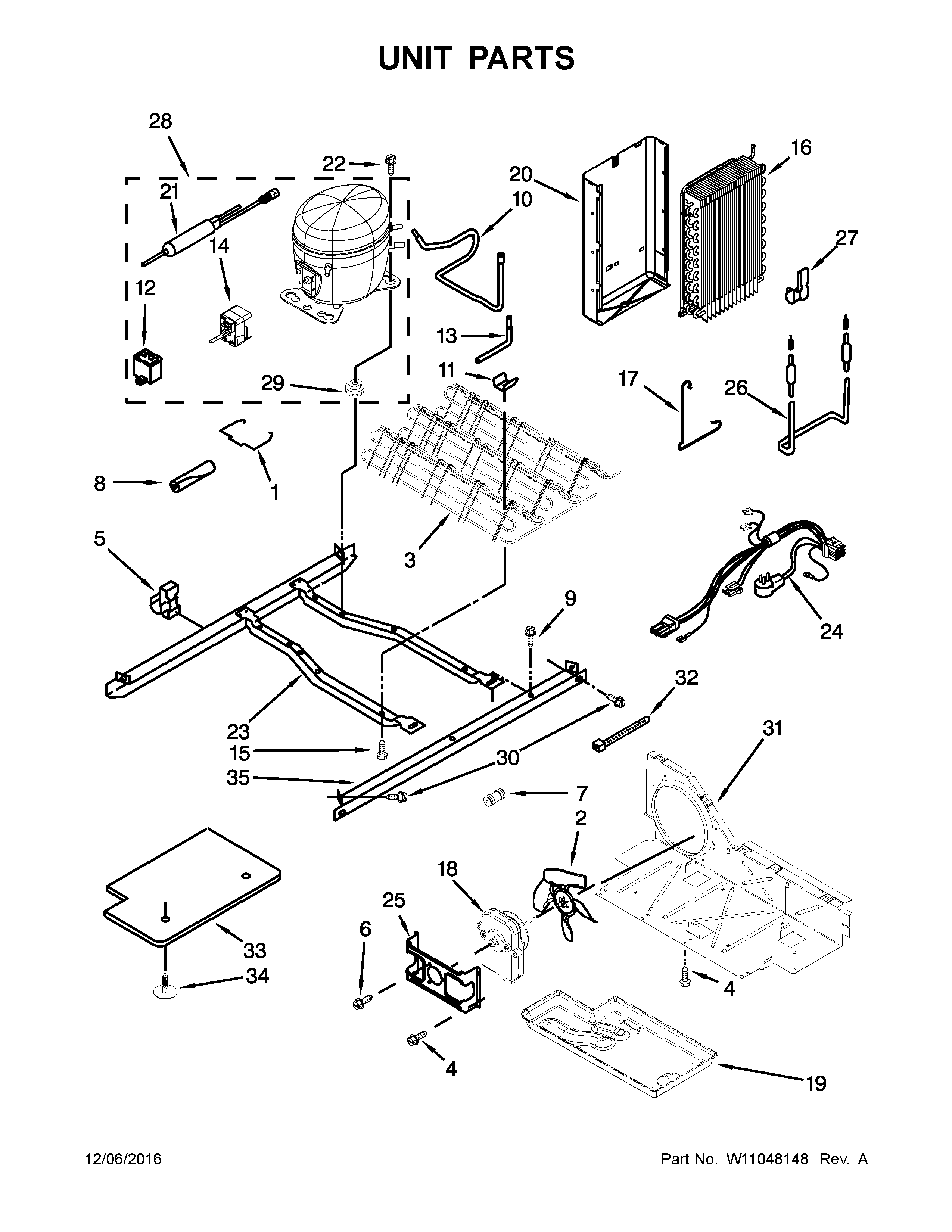

• Refrigerator compressor W10309988 (drives the sealed cooling system when running properly)

Why it matters

A freezer that is not freezing is usually an airflow and defrost issue first. If frost blocks the evaporator, the freezer temperature rises quickly and the refrigerator section often follows. Catching it early prevents food loss and reduces strain on the compressor.

Helpful DIY guidance

• Use our article how to fix your evaporator cooling fan to diagnose airflow problems.
• If you also have dispenser or ice issues, how to prevent water dispenser and ice maker problems helps reduce repeat failures.

You can order replacement parts for your ASI2275FRS00 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
