Whirlpool WRS315SDHM02 side-by-side refrigerator Parts

A common disadvantage of a side-by-side refrigerator like the Whirlpool WRS315SDHM02 is reduced usable width in each compartment. Wide platters, pizza boxes, and large produce trays can be harder to fit, and you may need more shelf organizing to keep fresh-food items easy to see and reach.

Common downsides you may notice

• Narrower shelves can limit wide items (party trays, sheet cakes, large leftovers).
• More bending and scanning for fresh-food items because storage runs top-to-bottom.
• Freezer space can feel tighter for bulky bags and boxes.
• Door bins can become crowded, which affects airflow and temperature consistency.
• If the refrigerator is not level, doors may not self-close smoothly (which can lead to warm spots).

Quick ways to reduce the drawbacks

We recommend these practical fixes for day-to-day usability:

• Group foods by zone (deli, dairy, drinks, leftovers) and keep “daily use” items at eye level.
• Use slim bins to prevent items from getting lost behind others.
• Avoid overpacking; leave space for air circulation.
• Keep the unit level so doors close easily; follow the leveling steps in the WRS315SDHM02 owner’s manual.

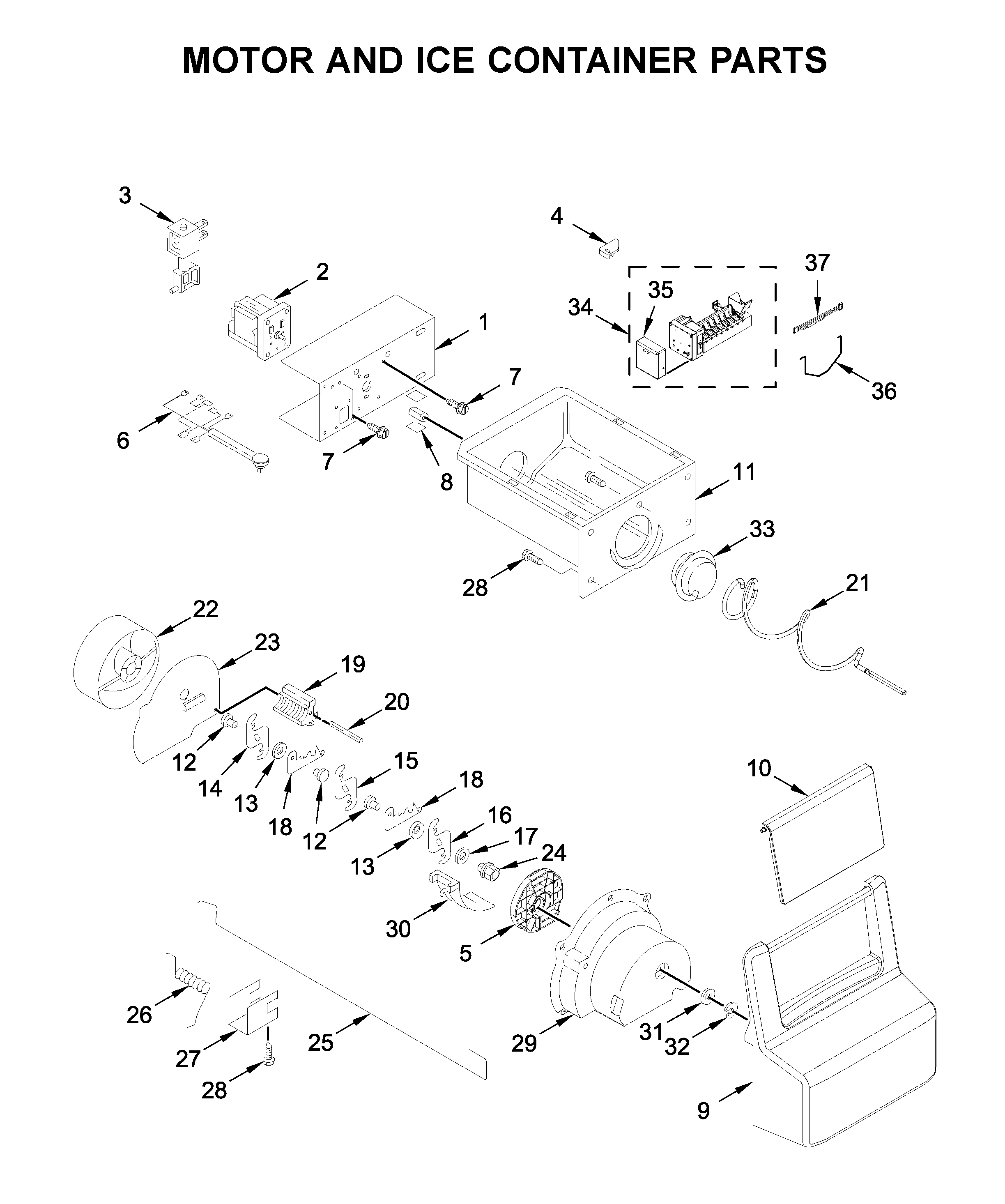

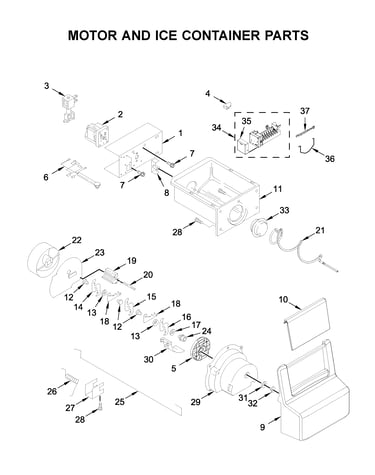

• If you use the ice maker, keep the ice bin seated correctly so it dispenses smoothly; the refrigerator ice container WPW10670845 is the matching bin for this model.

Side-by-side vs. French door: what changes

Feature	Side-by-side (WRS315SDHM02 style)	French door (typical)
Shelf width	Narrower	Wider
Frozen food access	Eye-level	Lower drawer
Organization style	Vertical zones	Wide shelves + drawers
Best for	Frequent freezer access	Wide platters and large fresh-food storage

Why it matters

Fit and access drive food waste and temperature stability. When items are crammed into narrow shelves or door bins, airflow drops and temperatures swing, which can shorten food life and increase frost or moisture issues.

Last updated: January 2026

If your Whirlpool WRS315SDHM02 dispenses water but won’t make ice, the most common causes are the ice maker being turned off, the freezer not cold enough, or restricted water flow to the ice maker (kinked line or a weak inlet valve). Use the WRS315SDHM02 owner's manual steps to confirm ice maker settings and water supply checks.

Quick checks that fix most “no ice” problems

• Confirm the ice maker is ON (wire shutoff arm down, or switch in ON position depending on version).
• Make sure the ice bin is installed fully and seated correctly.
• Verify the freezer temperature is set cold enough for ice production (target 0°F).
• Look for a kinked water supply line behind the refrigerator and straighten it.
• Confirm the household shutoff valve is fully open.
• If this is a new install or the water line was recently serviced, allow 24 hours for ice to start and up to 72 hours for full production; discard the first batches.

When water works but ice doesn’t: what’s different?

The dispenser can still work even when the ice maker side has a problem because the ice maker fill circuit is more sensitive to low flow, freezing, or an ice maker module issue.

Symptom	Most likely cause	What to do next
No ice at all	Ice maker turned off or bin not seated	Turn ice maker on; reseat bin
Small or hollow cubes	Restricted water flow	Check for kinks; verify shutoff valve fully open
Buzzing/clicking but no ice	Valve trying to fill ice maker	Test water flow; consider refrigerator water inlet valve WPW10179146
Ice maker cycles poorly	Ice maker assembly issue	Inspect and consider refrigerator ice maker assembly WPW10300022

Parts that commonly solve this on WRS315SDHM02

• Refrigerator water inlet valve WPW10179146 (weak valve can reduce fill to the ice maker)
• Refrigerator ice maker assembly WPW10300022 (failed module, thermostat, or internal mechanism)

Why it matters

Ice makers need consistent water flow and freezer temperatures to freeze and harvest cubes. When either drops (even slightly), you can still get drinking water but lose ice production or get hollow cubes.

Last updated: January 2026

The most common Whirlpool refrigerator problems are cooling complaints (too warm, running a lot, noisy operation) and ice maker or water dispenser issues. On the Whirlpool WRS315SDHM02, start with basic checks in the WRS315SDHM02 owner's manual before replacing parts.

Most common symptoms and what usually causes them

• Refrigerator or freezer too warm: blocked airflow, dirty condenser coils, door not sealing, evaporator fan issue, or a defrost problem.
• Runs constantly or seems loud: normal longer run times on efficient compressors, warm room conditions, frequent door openings, or airflow restrictions.
• No ice or slow ice production: ice maker turned off, water supply issue, frozen fill tube, or a weak inlet valve.
• Water dispenser slow or not dispensing: air in the line after filter changes, low house water pressure, kinked tubing, or a failing valve.
• Clicking or buzzing sounds: often normal when the water valve opens/closes to fill the ice maker or dispense water.

Quick checks we recommend first (before buying parts)

1. Confirm the unit has had 24 hours after installation or a major temperature change to stabilize.
2. Verify doors close fully and shelves/bins are not holding the door open.
3. Make sure vents inside both compartments are not blocked by food packages.
4. If the refrigerator is not connected to a water line, turn the ice maker off to prevent valve noise.
5. If water flow is weak after service, purge air from the dispenser line.

When a part is commonly involved

If basic checks do not fix the issue, these parts are frequent suspects on side-by-side refrigerators:

Symptom	Common part involved	Example part for WRS315SDHM02
No ice, no water, or intermittent fill	Water inlet valve	Refrigerator water inlet valve WPW10179146

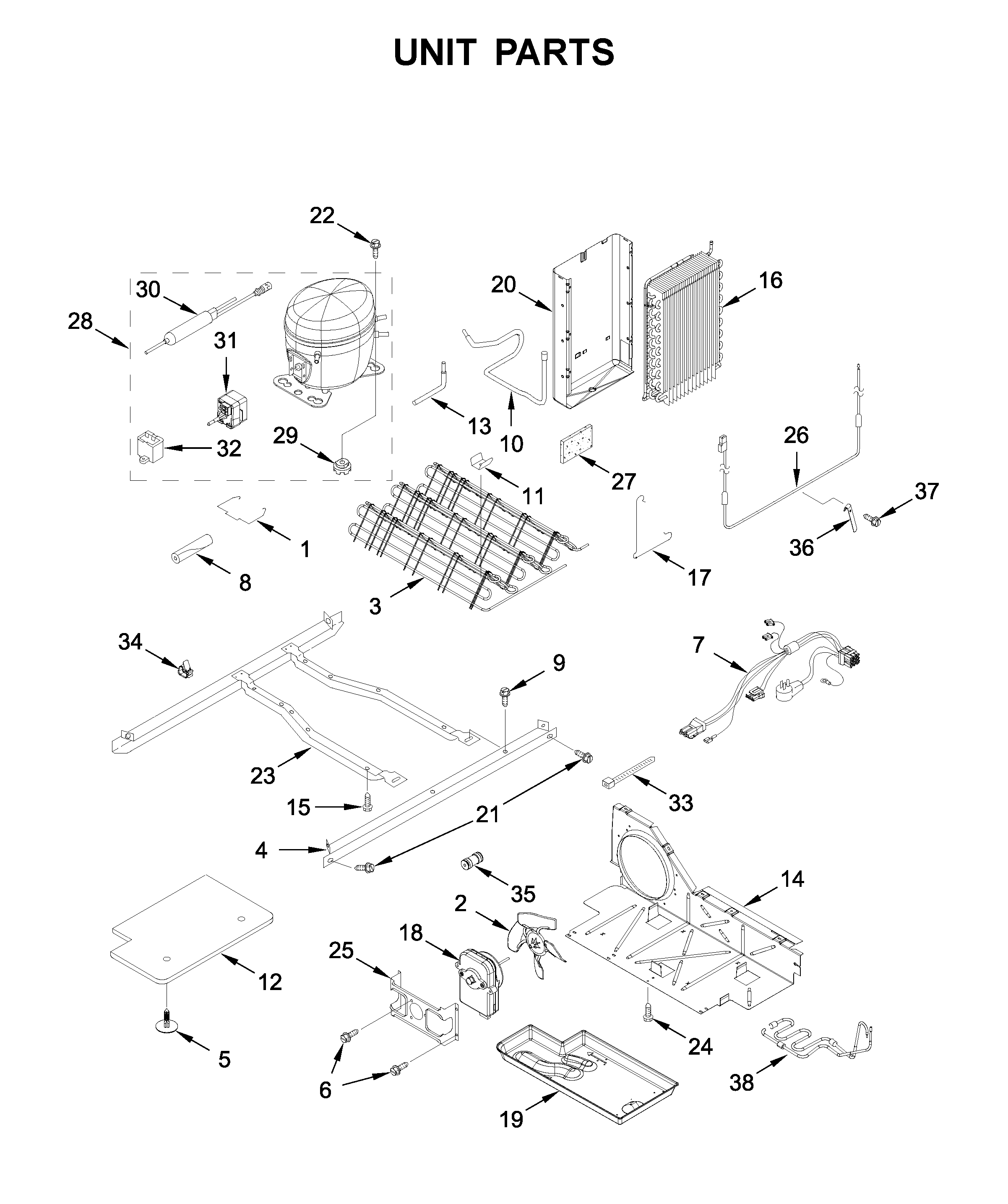

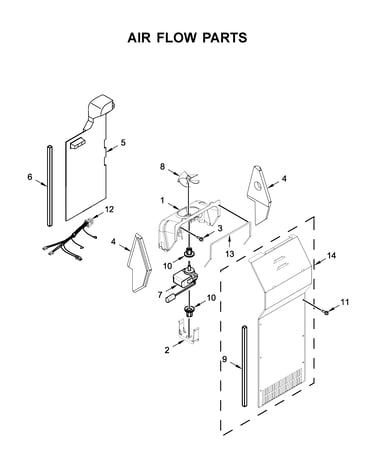

Warm temps, poor airflow, freezer frosts up	Evaporator fan motor	Refrigerator evaporator fan motor WP2315549
Ice maker not cycling or not harvesting	Ice maker assembly	Refrigerator ice maker assembly WPW10300022

Why it matters

Cooling and ice/water problems often share the same root causes: restricted airflow, unstable temperatures, or inconsistent water supply. Catching those early helps prevent food spoilage, ice clumps, and unnecessary part replacements.

Last updated: January 2026
