Model #SHE55M12UC/60 Bosch dishwasher

Here are the diagrams and repair parts for Bosch SHE55M12UC-60 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

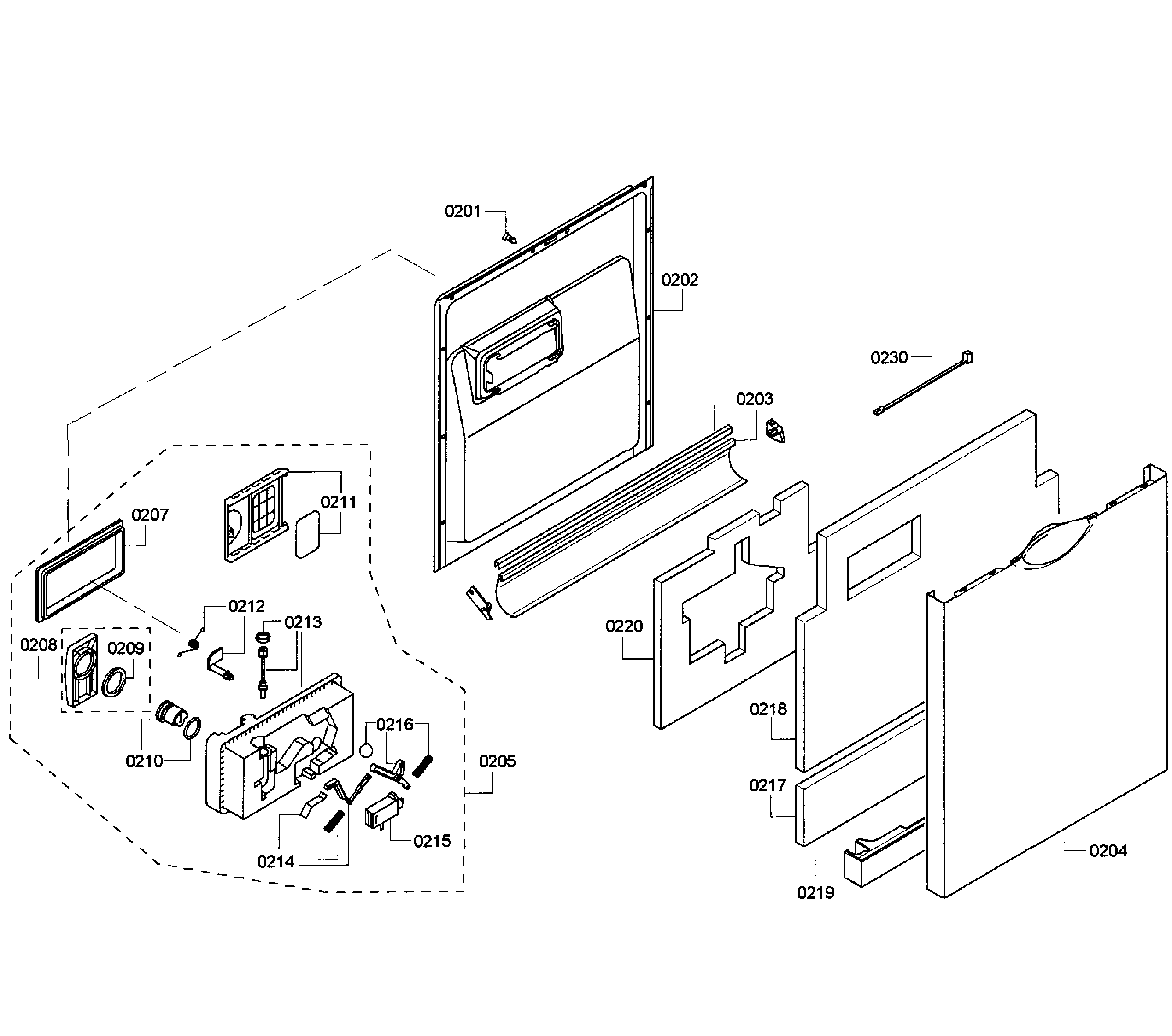

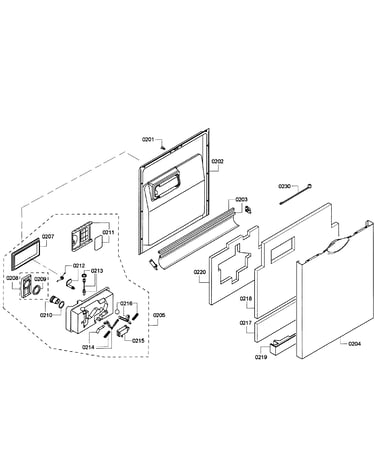

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 160 parts

    Holder

    #627

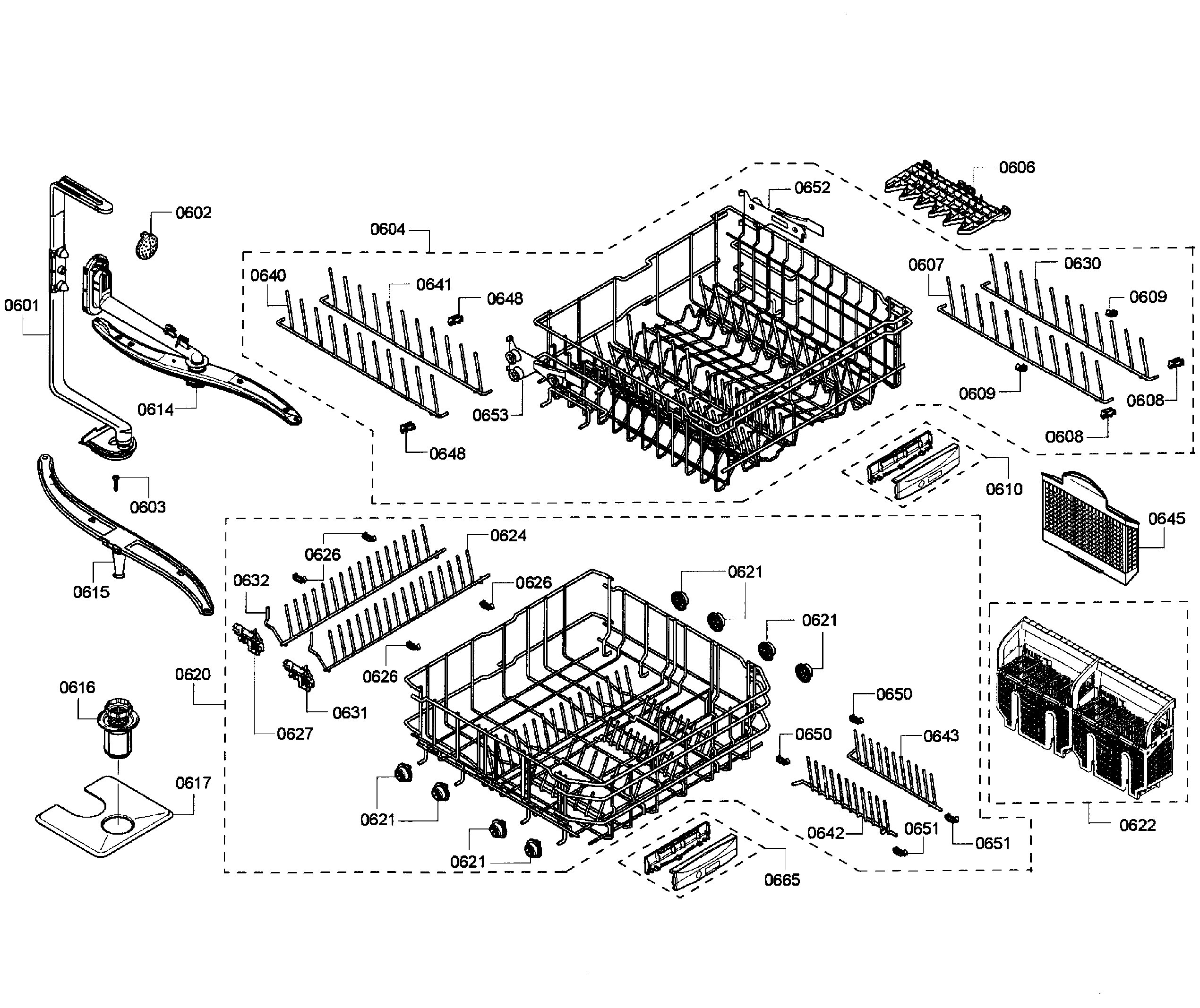

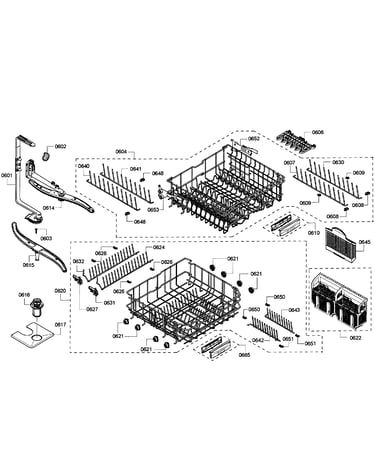

    Baskets Diagram

    Holder

    Part #611980
    This item is not returnable
    $4.08

    In Stock

    Dishwasher Drain Hose

    #526

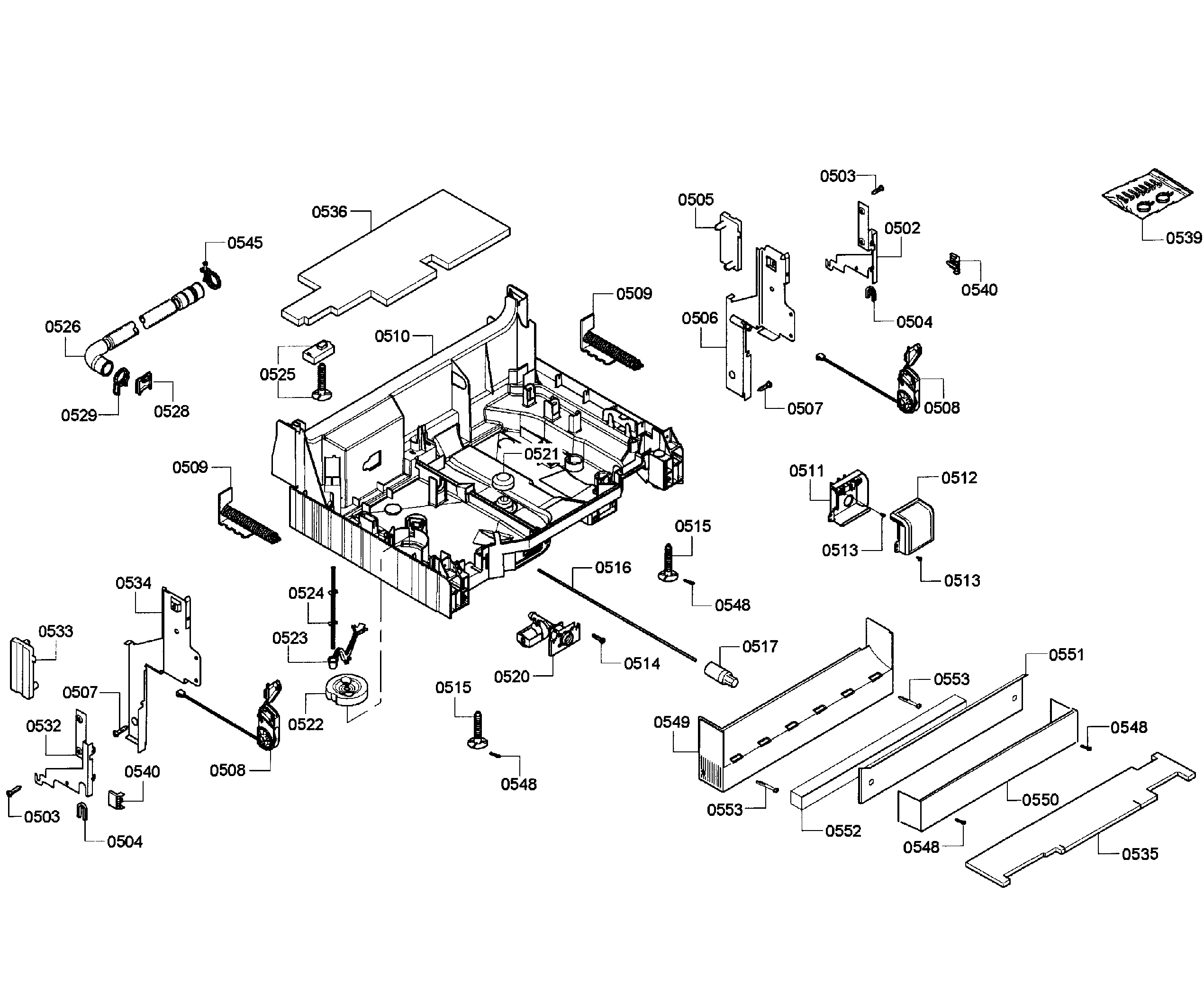

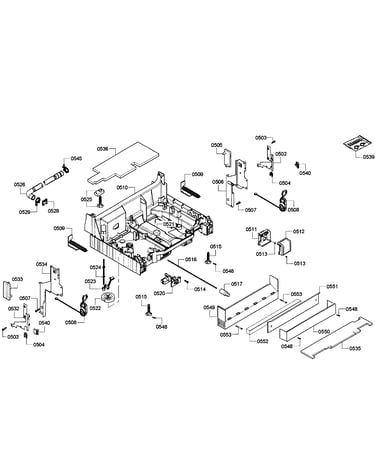

    Base assy Diagram

    $9.36

    In Stock

    Support

    #420

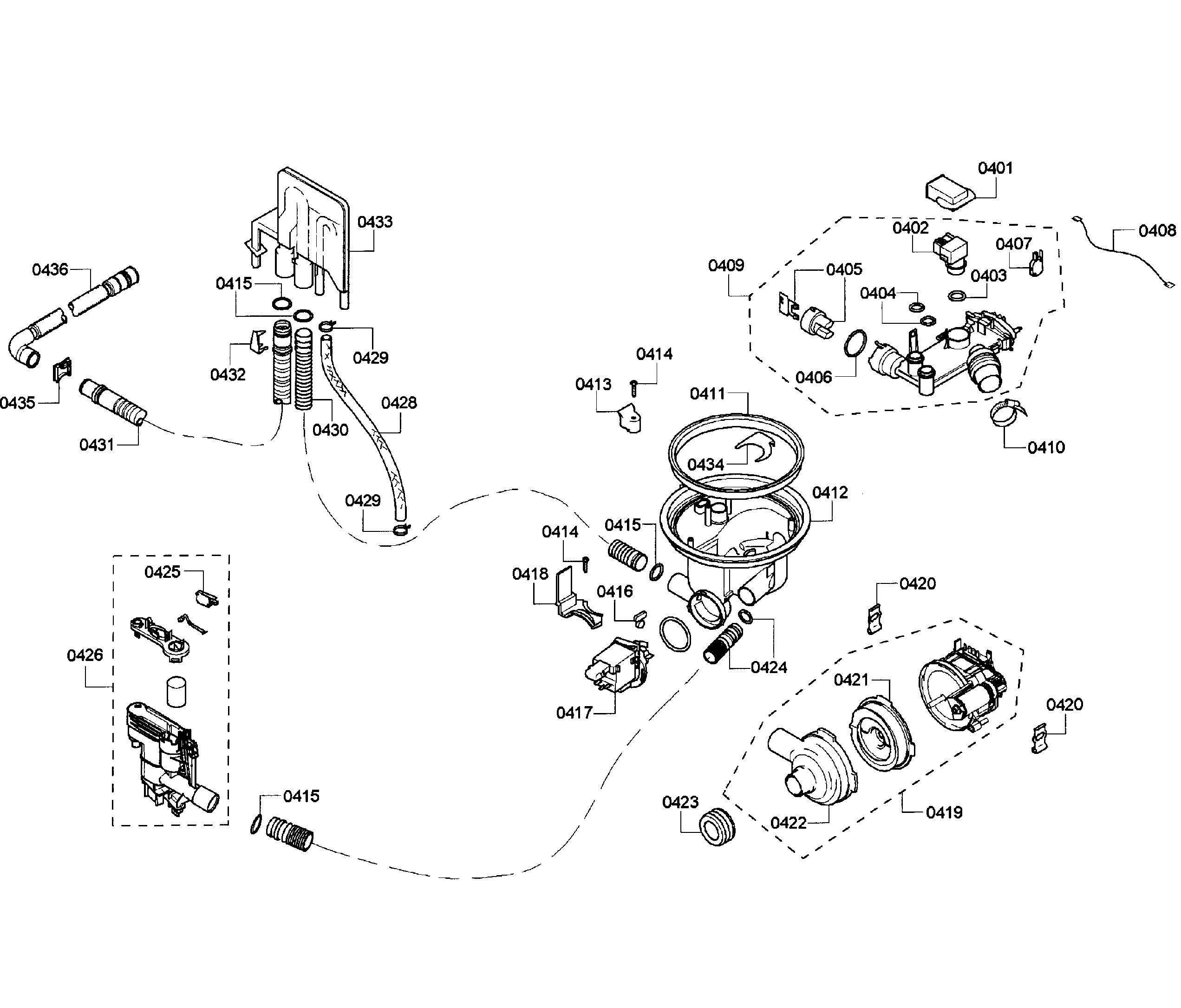

    Pump assy Diagram

    Support

    Part #171596
    This item is not returnable
    $3.13

    In Stock

    Dishwasher Tine Row Pivot Clip

    #626

    Baskets Diagram

    Dishwasher tine row pivot clip

    Part #00611981
    ?
    Manufacturer substitution
    This part replaces 611981. Substitute parts can look different from the original.
    This part replaces 611981
    This item is not returnable
    $2.29

    In Stock

    Dishwasher Control Panel

    #107

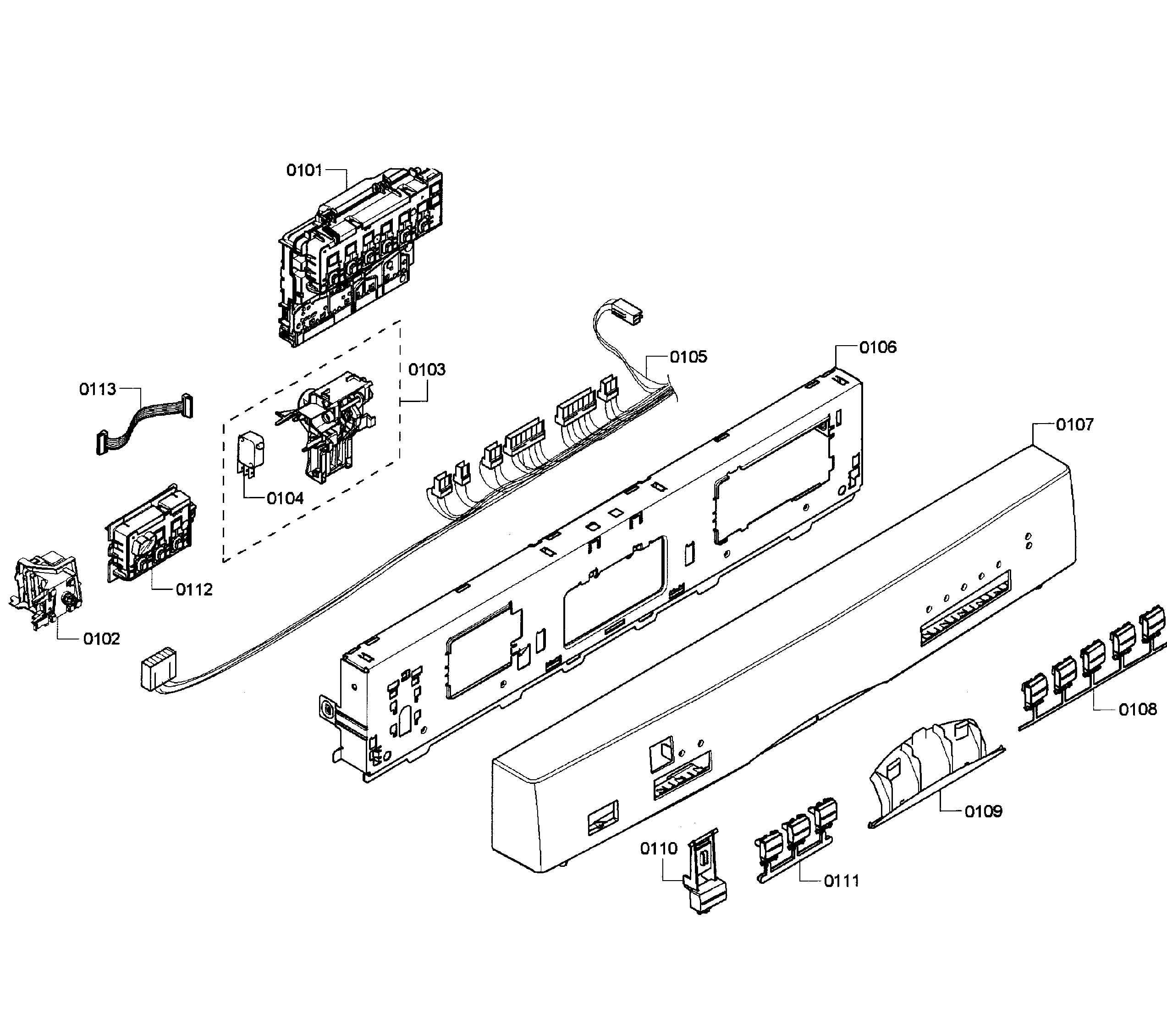

    Control panel Diagram

    Dishwasher control panel

    Part #00665886
    ?
    Manufacturer substitution
    This part replaces 665886. Substitute parts can look different from the original.
    This part replaces 665886
    $139.99

    In Stock

    Dishwasher Circulation Pump

    #419

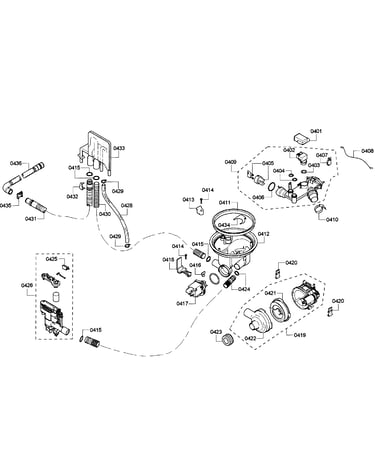

    Pump assy Diagram

    Dishwasher circulation pump

    Part #00442548
    ?
    Manufacturer substitution
    This part replaces 442548. Substitute parts can look different from the original.
    This part replaces 442548
    $301.99

    In Stock

    Dishwasher Dishrack Track Roller Assembly

    #308

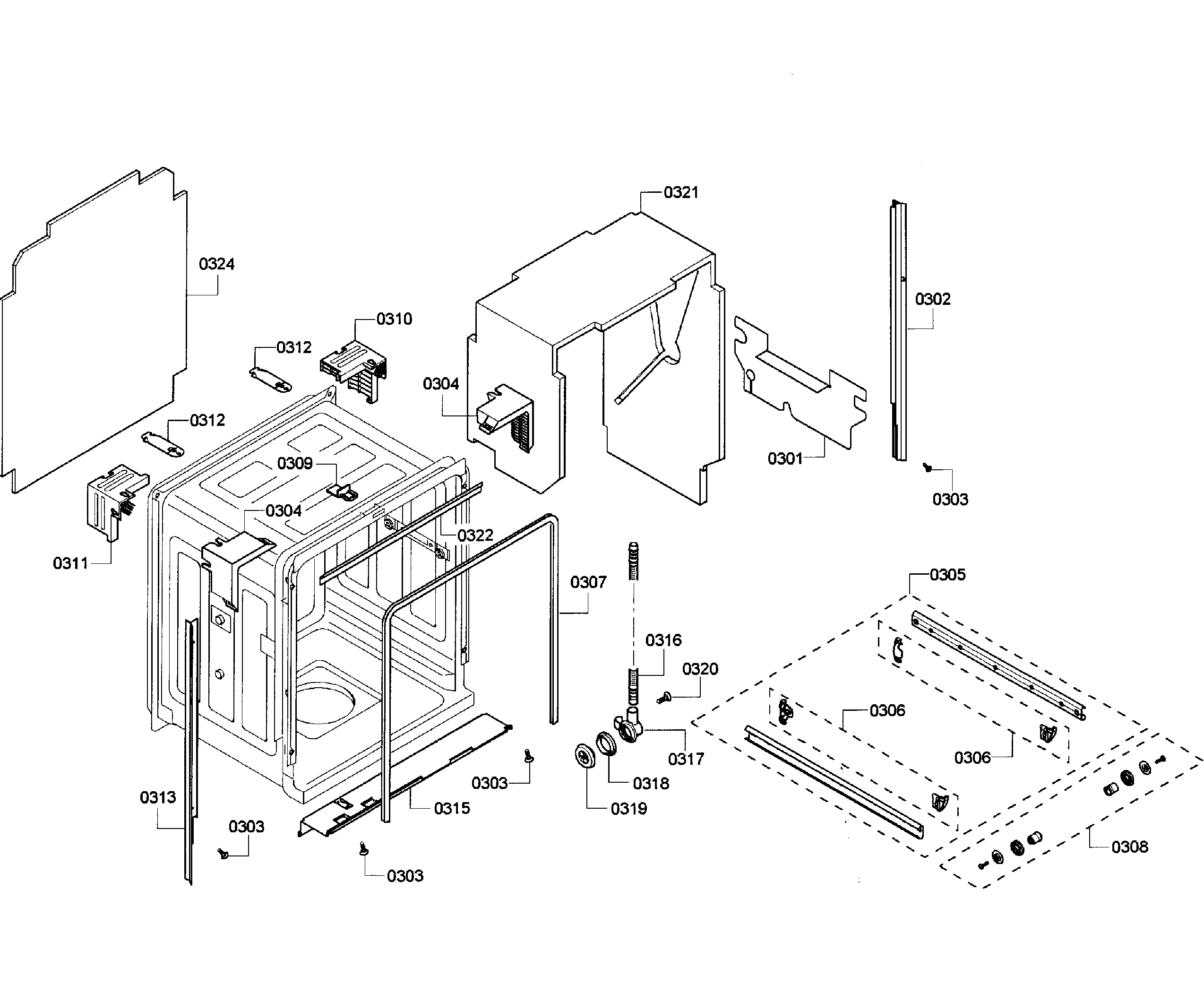

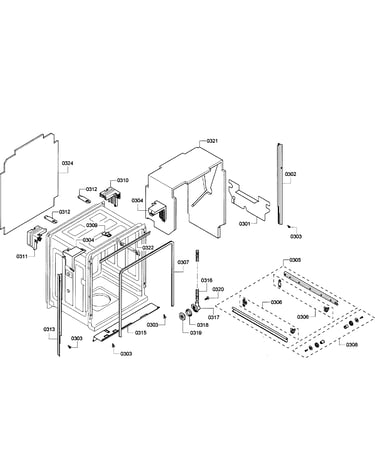

    Cabinet Diagram

    Dishwasher dishrack track roller assembly

    Part #00622193
    ?
    Manufacturer substitution
    This part replaces 622193. Substitute parts can look different from the original.
    This part replaces 622193
    $47.50

    In Stock

    Dishwasher Sump Mounting Support

    #413

    Pump assy Diagram

    Dishwasher sump mounting support

    Part #00165265
    ?
    Manufacturer substitution
    This part replaces 165265. Substitute parts can look different from the original.
    This part replaces 165265
    This item is not returnable
    $3.62

    Back Order

    Dishwasher Door Latch

    #103

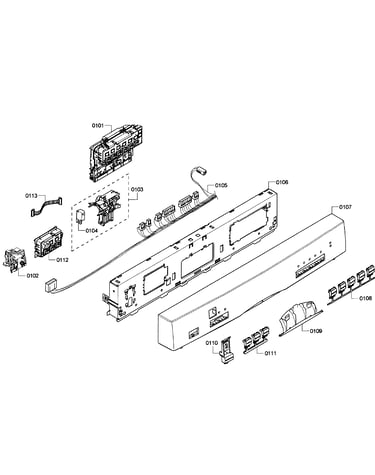

    Control panel Diagram

    Dishwasher door latch

    Part #00438026
    ?
    Manufacturer substitution
    This part replaces 438026. Substitute parts can look different from the original.
    This part replaces 438026
    $42.99

    In Stock

    Dishwasher Screw

    #507

    Base assy Diagram

    Dishwasher screw

    Part #00633945
    ?
    Manufacturer substitution
    This part replaces 188850. Substitute parts can look different from the original.
    This part replaces 188850
    This item is not returnable
    $5.79

    In Stock
