Craftsman 917259592 tractor Parts

For Craftsman riding lawn tractor model 917259592, add engine oil only until the dipstick reads FULL (not above). The exact crankcase capacity depends on the specific engine installed; use the capacity and oil type listed in the 917259592 owner's manual.

How to add the right amount (no overfill)

• Park the tractor on a level surface and shut the engine off.
• Let the engine cool for a few minutes so oil drains back to the sump.
• Pull the dipstick, wipe it clean, then reinsert fully.
• Add oil in small steps (a few ounces at a time).
• Recheck the dipstick each time; stop at the FULL mark.
• Tighten the dipstick/fill cap securely before starting.

Typical oil capacity range (for planning only)

Most front-engine riding mower engines used on tractors like the Craftsman 917259592 hold about 1.5 to 2.0 quarts (48 to 64 oz). Always treat the dipstick and the manual as the final authority.

Item	Typical value	Best practice
Common crankcase fill	1.5 to 2.0 qt	Verify in manual, then confirm on dipstick
Top-off amount when slightly low	2 to 8 oz	Add small amounts, recheck often
Oil check frequency	Before each use	Check on level ground

Why it matters

Low oil level causes rapid engine wear; overfilling can foam the oil and lead to smoking, leaks, and poor performance. Filling to the dipstick mark protects the engine and keeps starting and mowing consistent.

Last updated: February 2026

For the Craftsman front-engine lawn tractor on this page, the model number is 917259592. On the tractor itself, you can confirm it on the model plate under the seat; the engine has a separate model number listed on the engine blower housing (see the 917259592 owner's manual).

Where to find the model number on the mower

Use these quick checks to match the correct Craftsman parts and diagrams:

• Look under the seat for the tractor model plate (this is where 917259592 is listed).
• Check the engine blower housing for the engine model number (different from the tractor model).
• Match the deck size and configuration; this model is a 42-inch mower deck.
• Use the model number when ordering belts, blades, mandrel parts, and decals.
• If the label is worn, compare your deck and engine parts to the illustrated parts lists in the manual.

917259592 vs. other “Craftsman 42” models

Many Craftsman riding mowers use a 42-inch deck, so “Craftsman 42” by itself is not a unique identifier. Here is what to use instead:

What you’re identifying	What to look for	Example for this tractor
Tractor (mower) model	Model plate under seat	917259592
Engine model	Label on blower housing	Varies by engine
Deck parts	Deck section in parts list	42-inch deck components

Why it matters

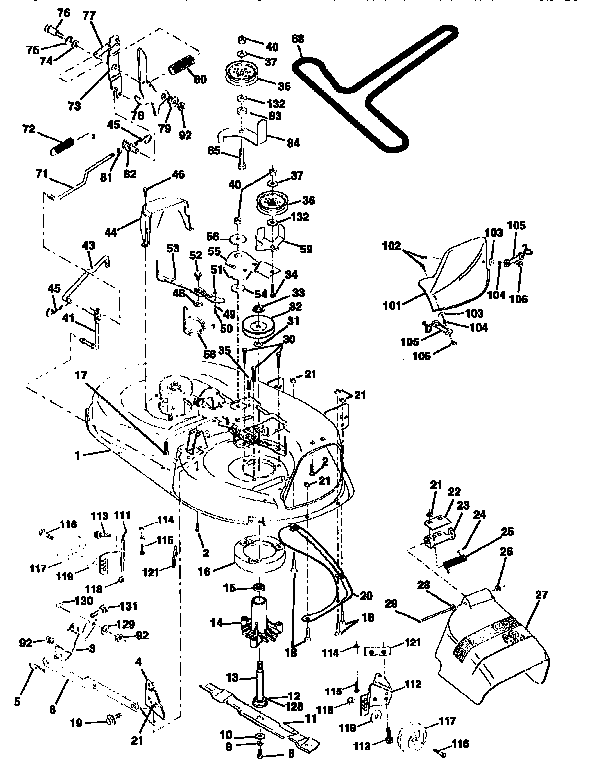

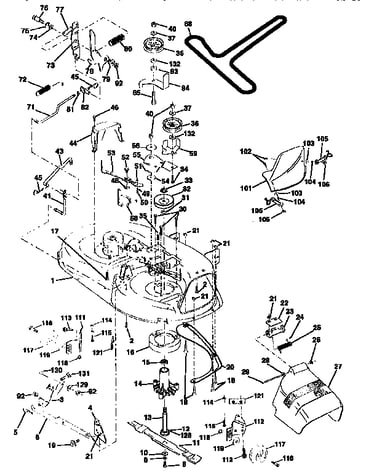

Using the correct model number prevents ordering the wrong blade drive belt, ground drive belt, or deck hardware. For example, the mower deck parts list for model 917259592 includes a specific mulching blade and deck components that can differ across other Craftsman 42-inch tractors.

Common model-matching part examples for this tractor

• Husqvarna lawn tractor mulching blade, 21-in 532134149 (deck blade selection)

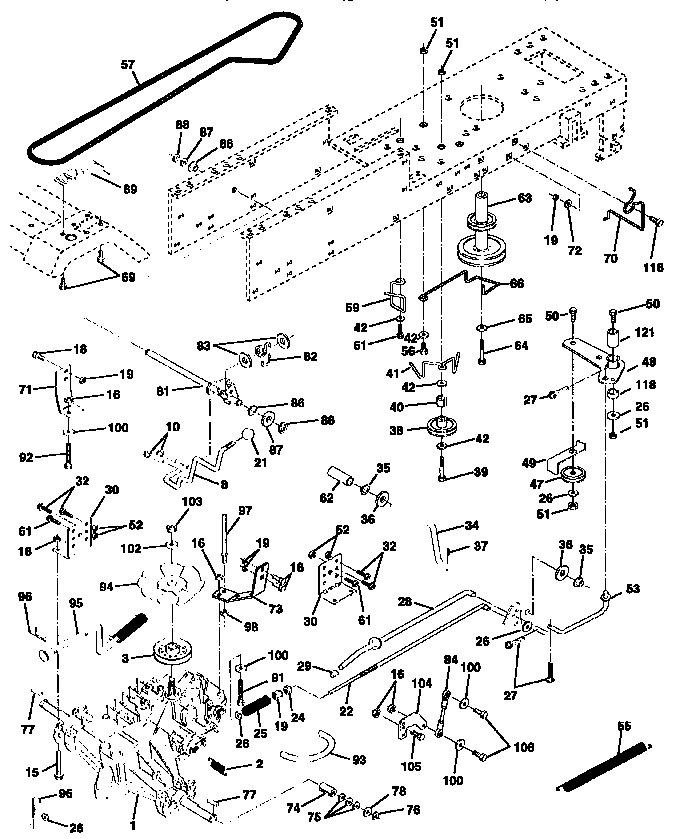

• Lawn tractor ground drive belt, 1/2 x 82-in 532140294 (transmission drive)
• Lawn tractor drive belt 532144200 (blade drive)

Last updated: February 2026

Craftsman model 917259592 was made across multiple production runs; the exact year for your specific tractor is identified by the serial number and date-of-purchase information on the plate under the seat. We use that ID plate to match the correct production timeframe and parts for your unit (not just the model family).

Where to find the build information

Check these spots on your Craftsman front-engine lawn tractor:

• ID plate under the seat (this is the primary location)
• Your sales receipt or service paperwork (often lists the purchase date)
• The owner documentation you kept with the tractor
• Any service tags added by a technician over the years

The manual for this model also notes that the model and serial numbers are found on a plate under the seat and recommends recording the serial number and date of purchase for future reference. See the 917259592 owner's manual.

How to use the serial number to pin down the year

Once you have the serial number, use it to narrow the production year by matching it to the correct parts breakdown and revisions.

• Write down the full serial number exactly as shown
• Record the date of purchase if it is printed or known
• Compare your tractor’s configuration (deck, steering, drive) to the parts diagrams
• Use the serial number when ordering wear items like belts and blades

Quick check: what the manual confirms vs what it does not

Item	What we can use	What it tells you
Model number	917259592	Identifies the tractor design family
Serial number (under seat)	Your unique ID	Pins down the production run and year
Date of purchase	Your paperwork	Helps confirm the timeframe

Why it matters

Craftsman tractors with the same model number can have running changes during production. Using the under-seat serial number helps ensure you get the right repair parts and specs, such as the correct deck components and drive belts.

Last updated: February 2026
