Model #KRFF302EBS01 Official KitchenAid bottom-mount refrigerator
Here are the diagrams and repair parts for KitchenAid KRFF302EBS01 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

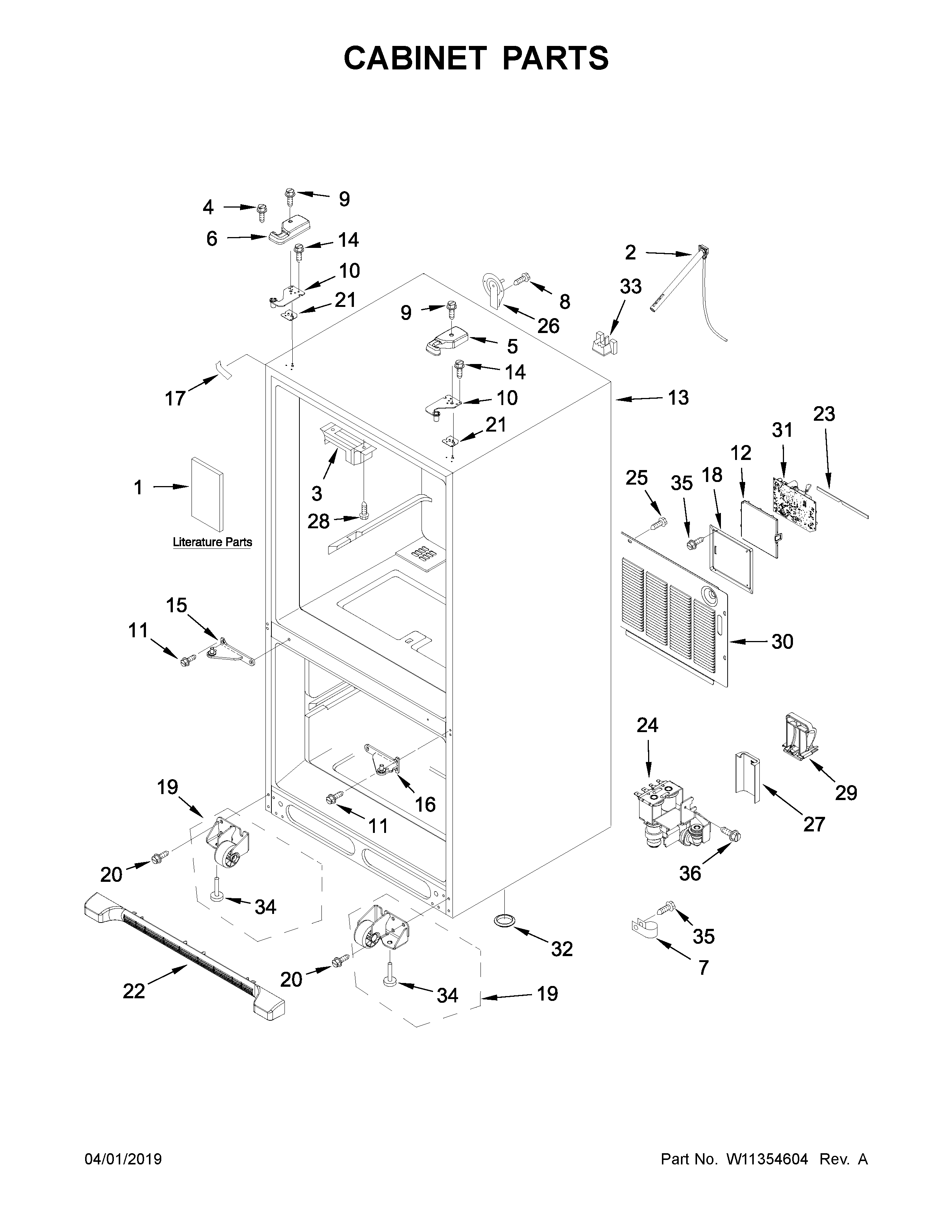

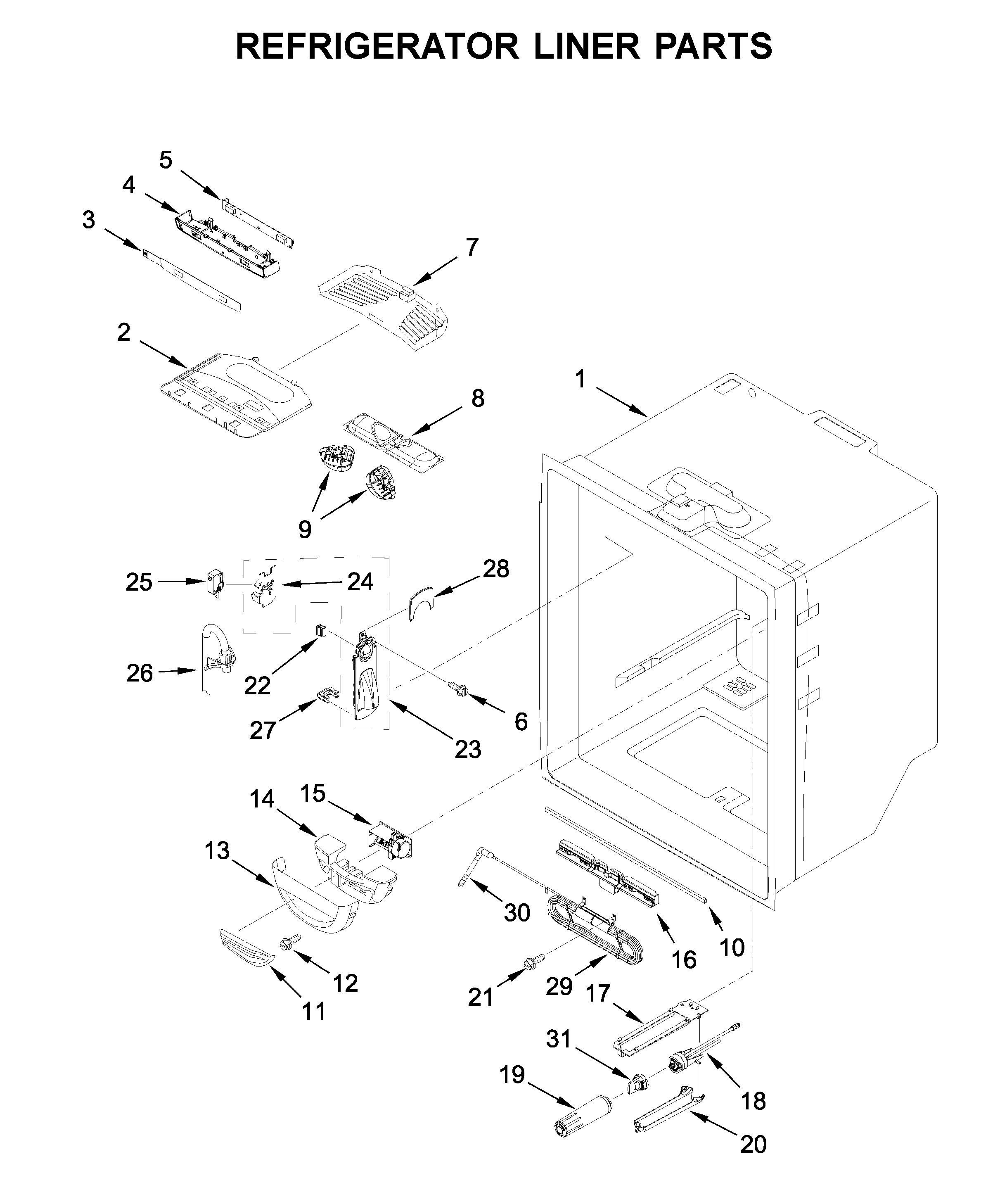

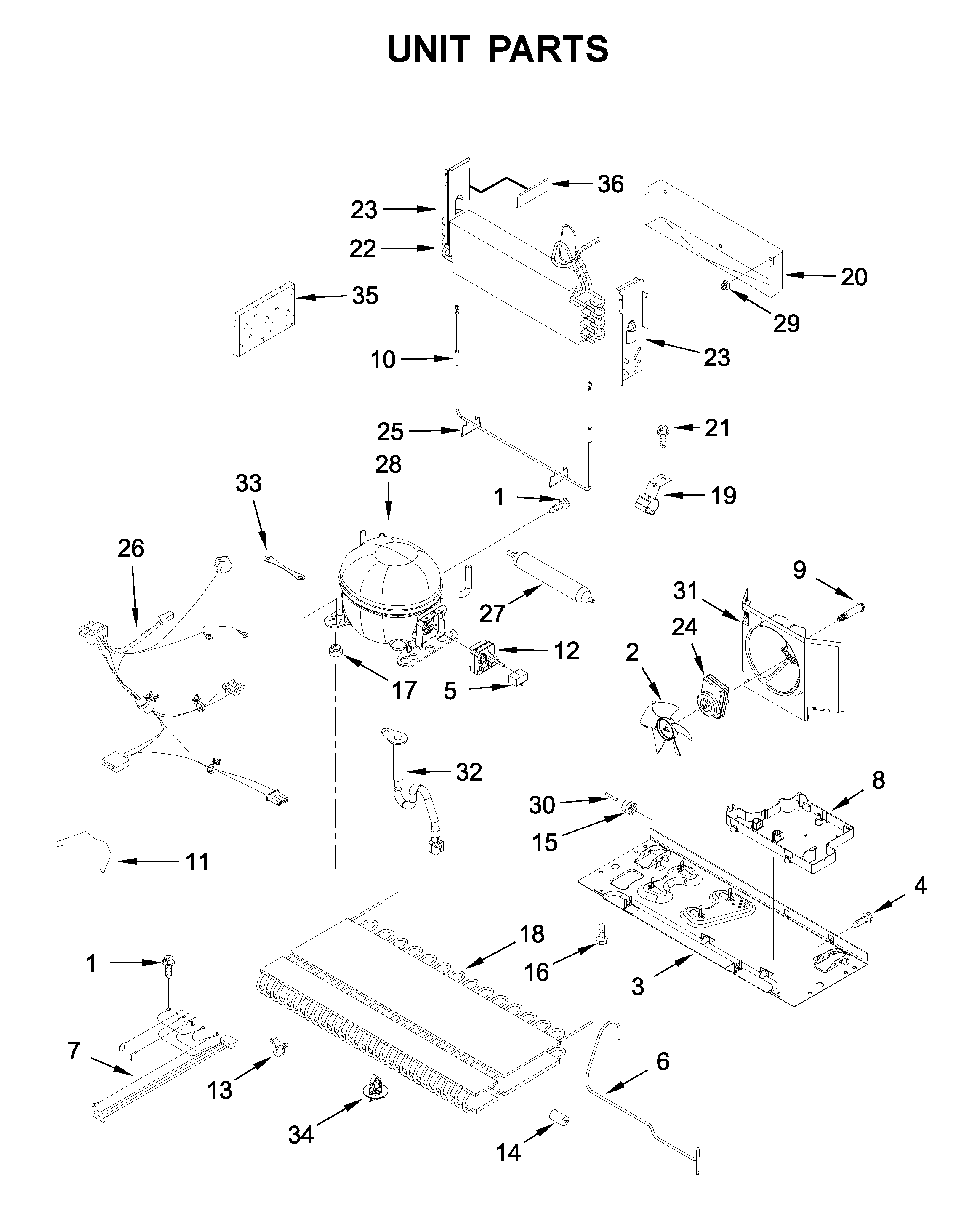

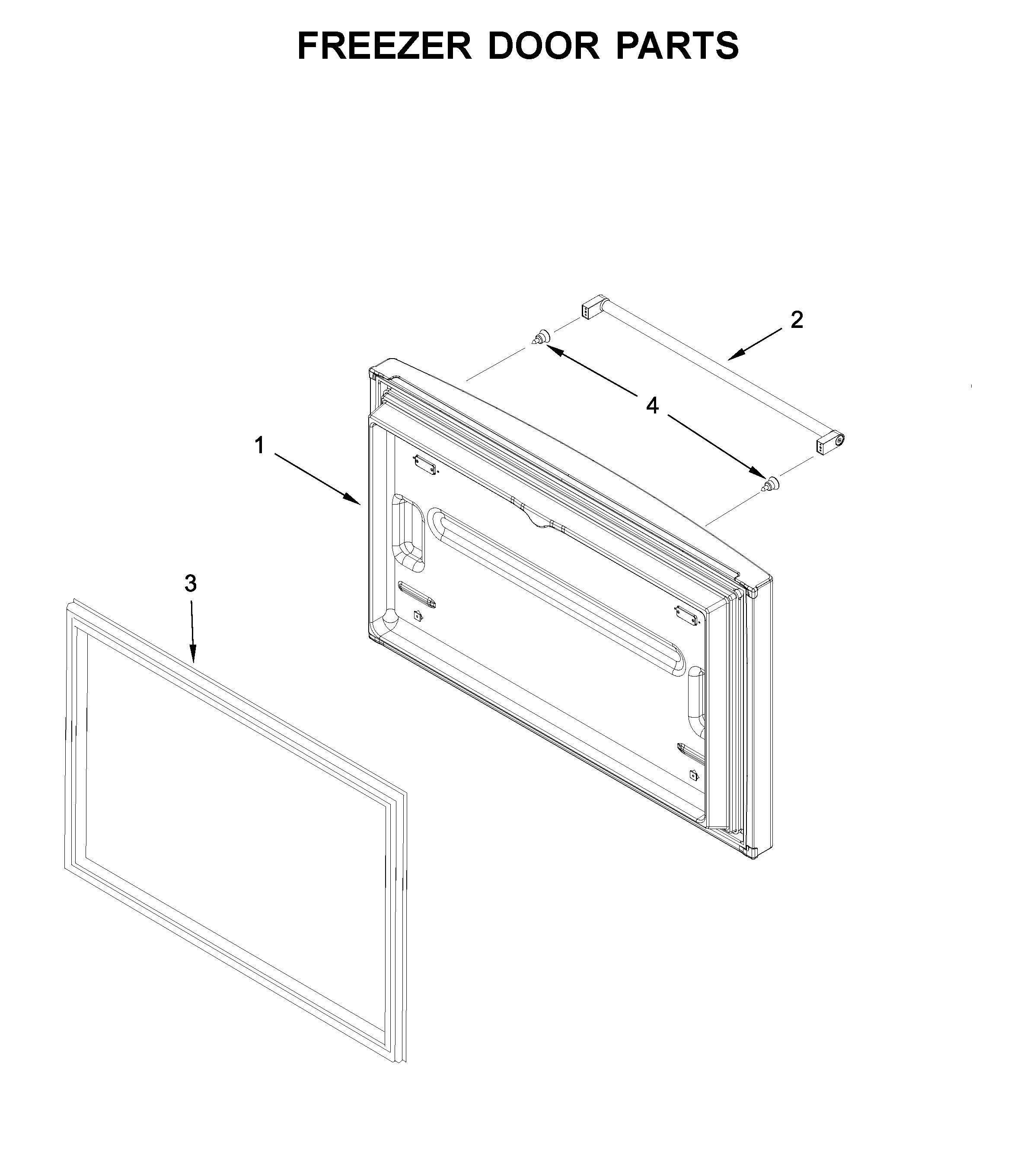

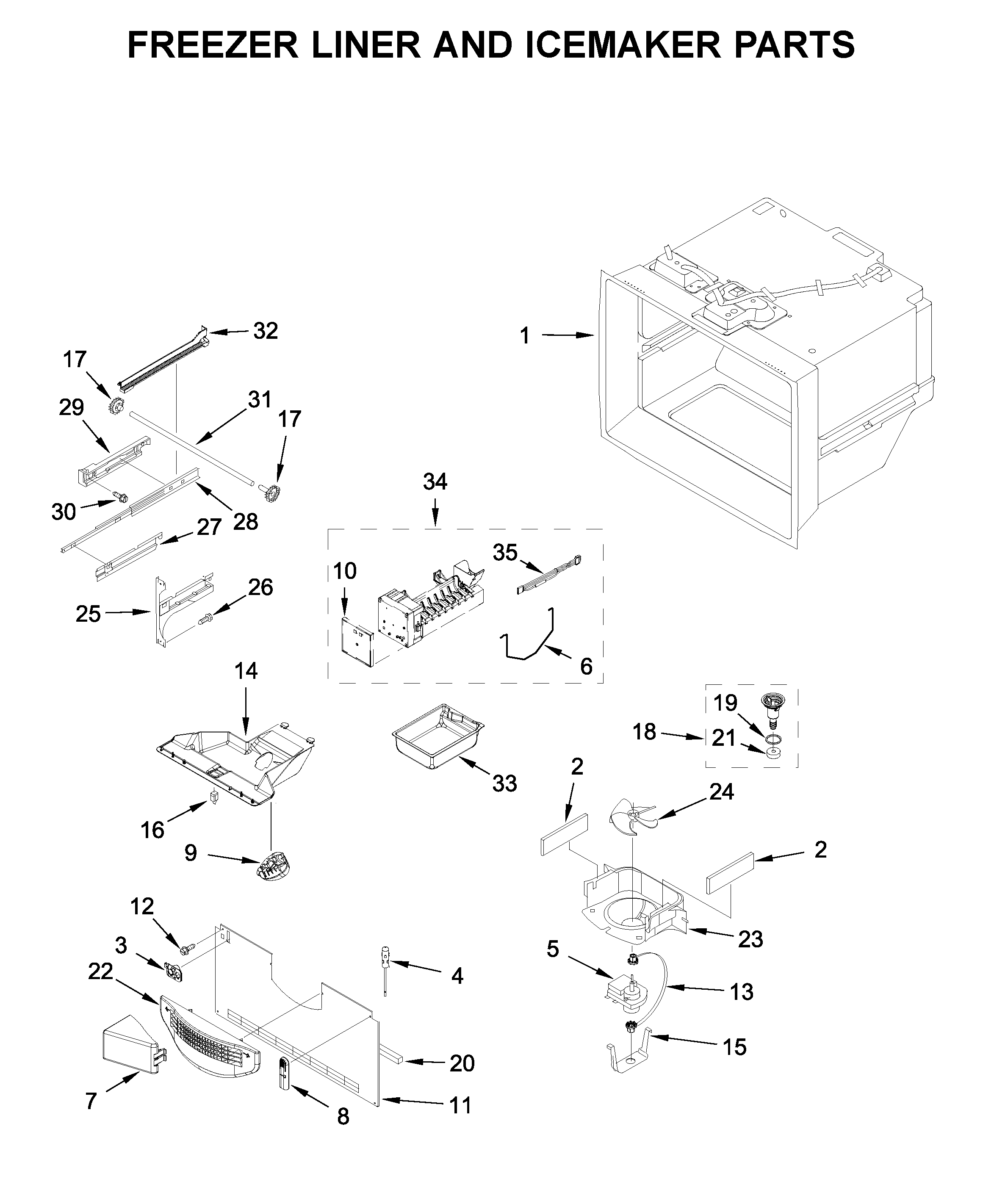

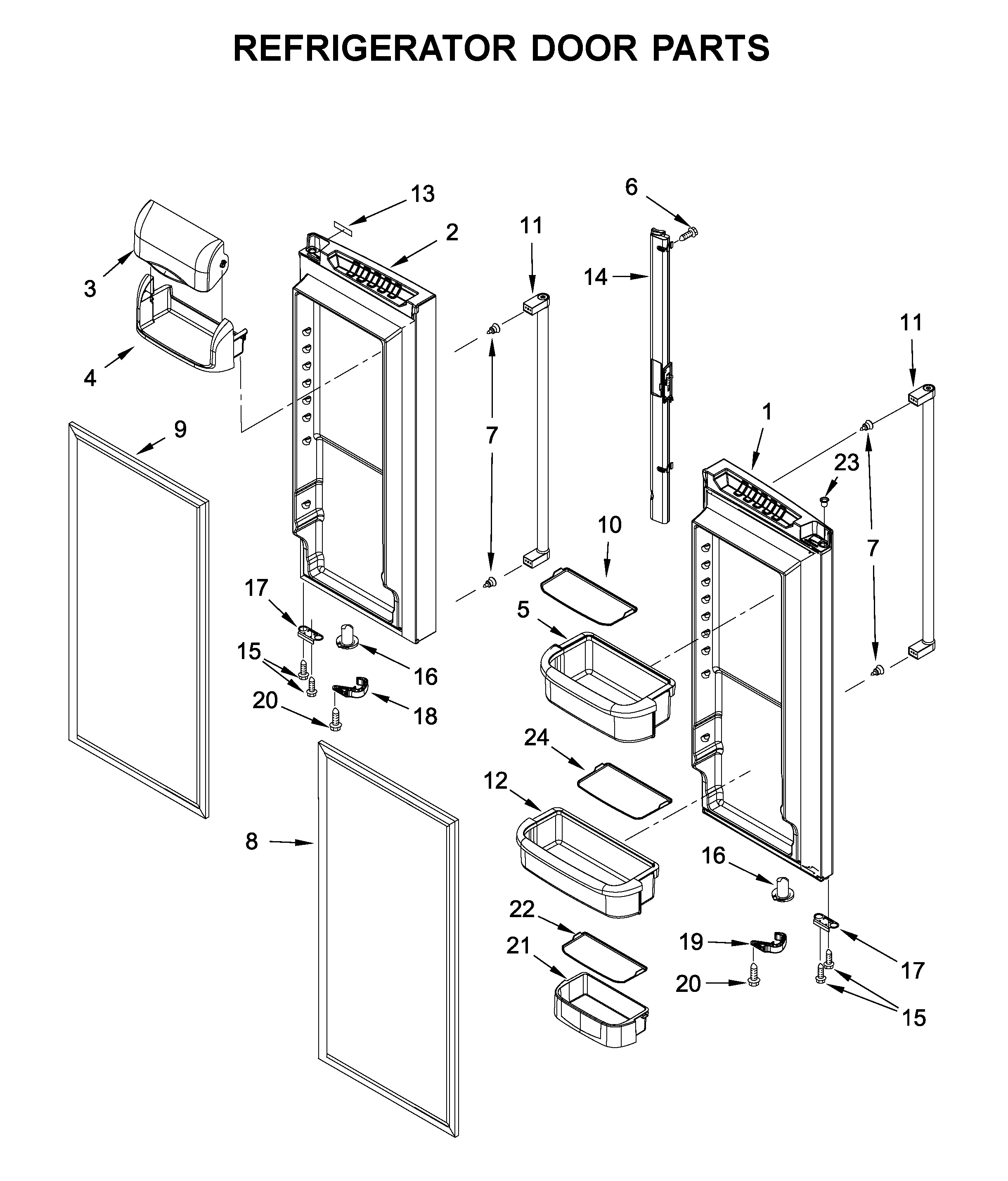

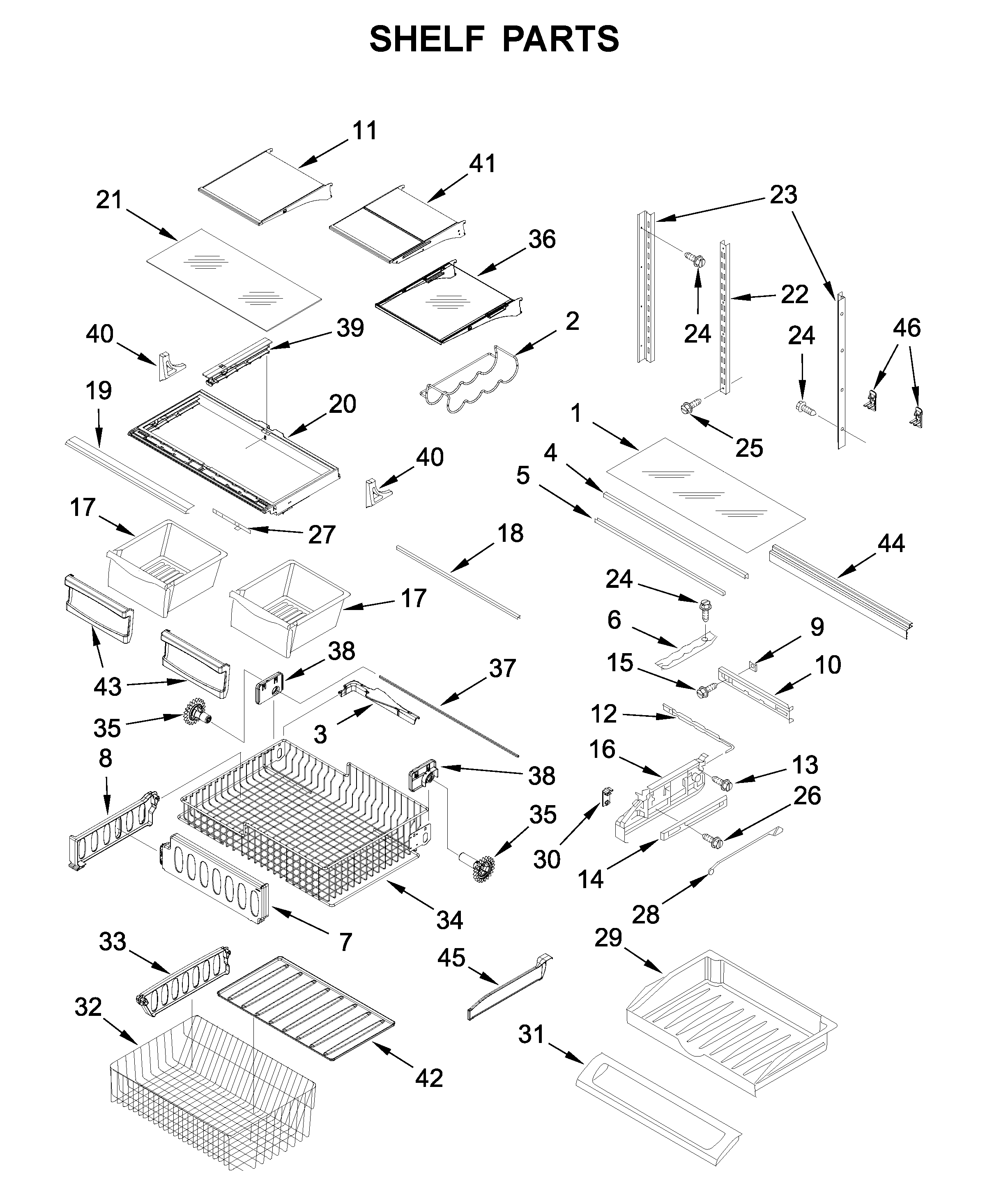

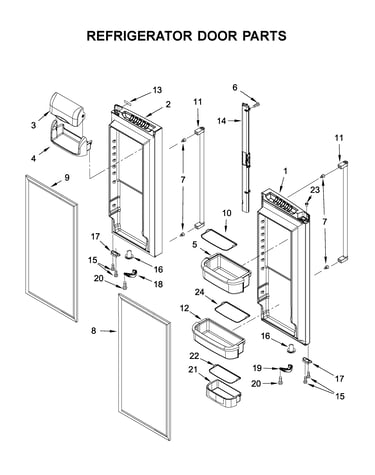

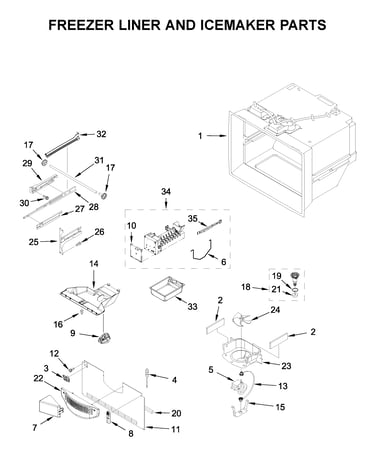

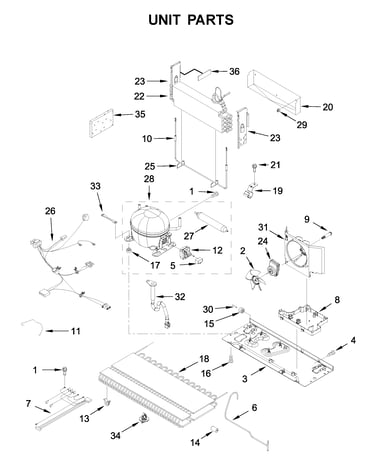

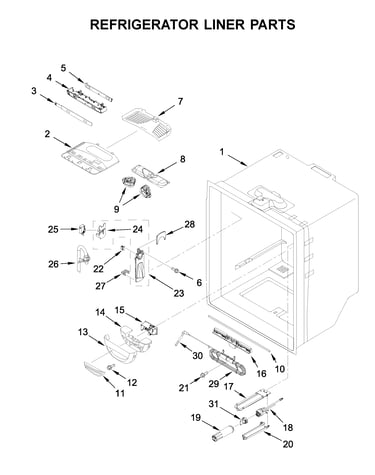

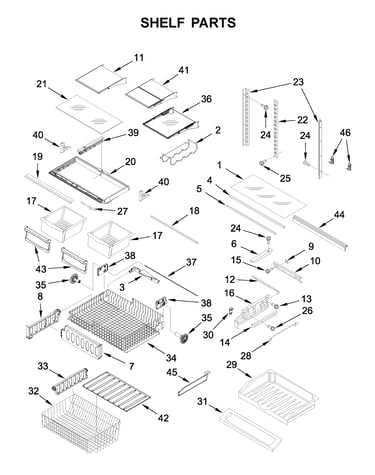

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 247 parts
See All Related Diagrams

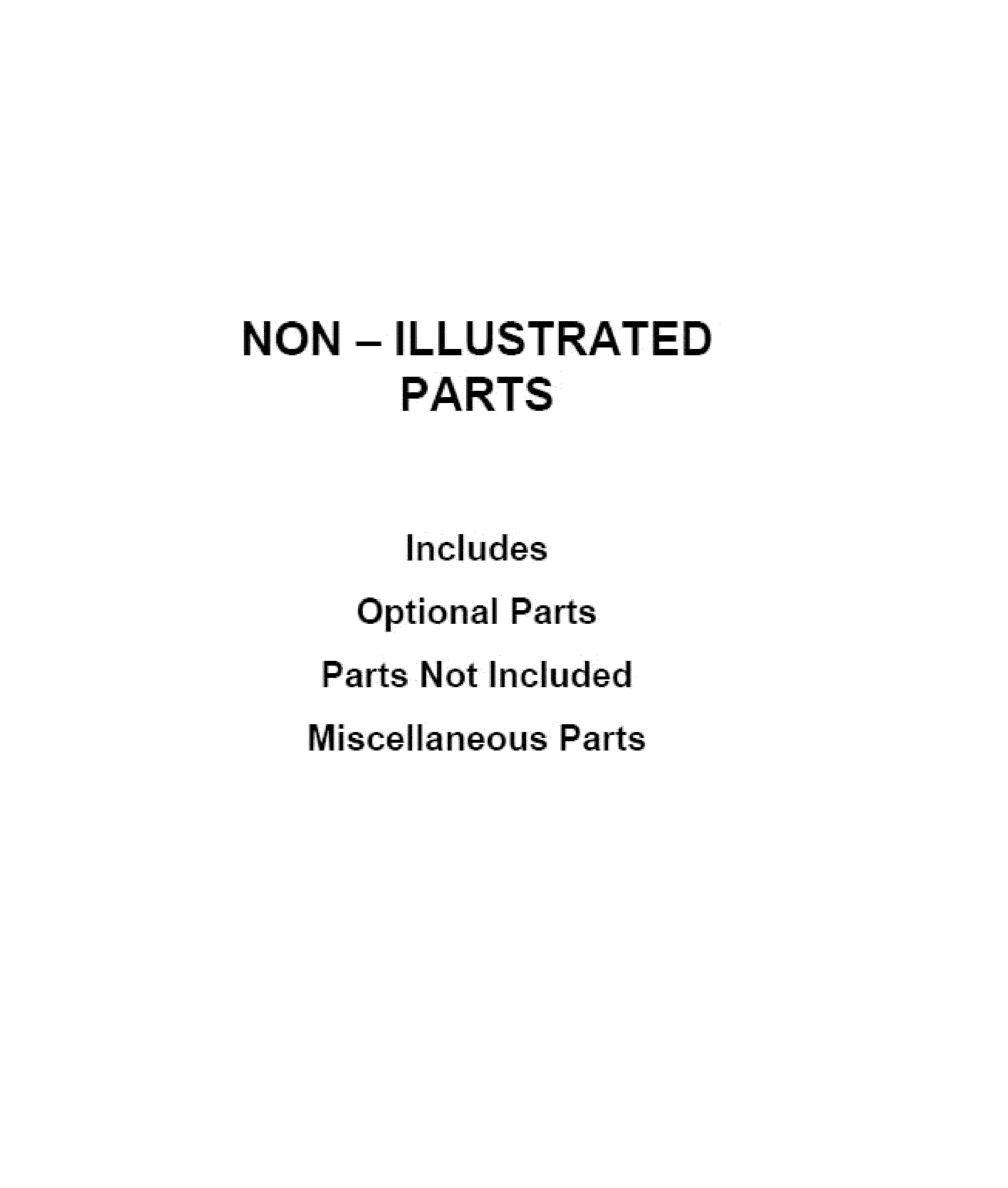

Optional parts Diagram
Recommended maintenance parts and accessories
Help your refrigerator run more efficiently by cleaning the condenser coils. It's easy and takes just a few minutes.
Replace the water valve that feeds water to the ice maker and water dispenser if it no longer controls the flow of water.
If the temperature in your refrigerator doesn't match the temperature you set, the problem could be the temperature control board—a service technician can give you a definite diagnosis. If the board is at fault, follow these steps to replace it yourself.
Discover how easy it is to replace the water filter in your KitchenAid refrigerator.
Get tips and advice on replacing the water filter in your LG refrigerator.
