LG DLGX5781WE dryer

LG DLGX5781WE dryer Parts

Here are the diagrams and repair parts for LG DLGX5781WE dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

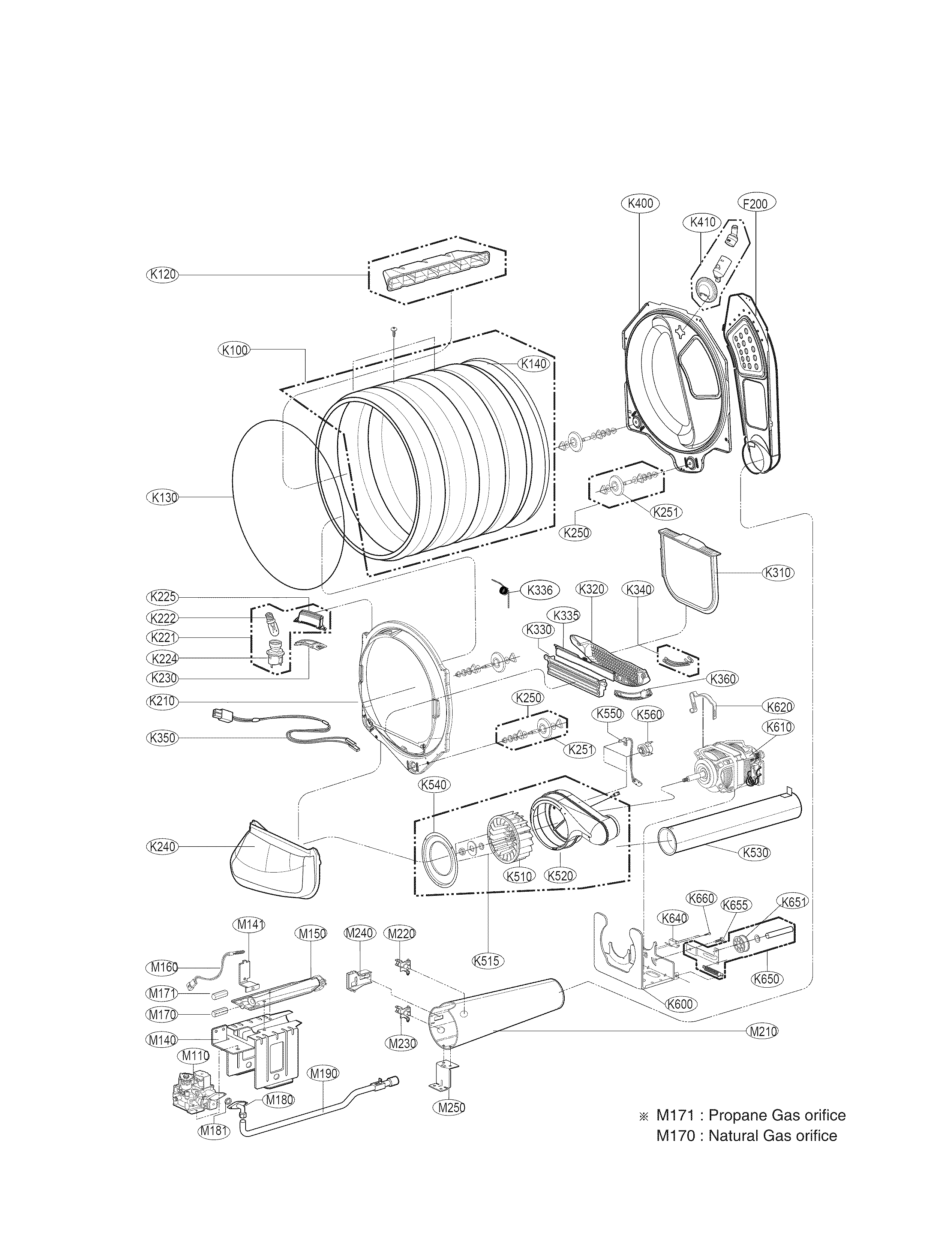

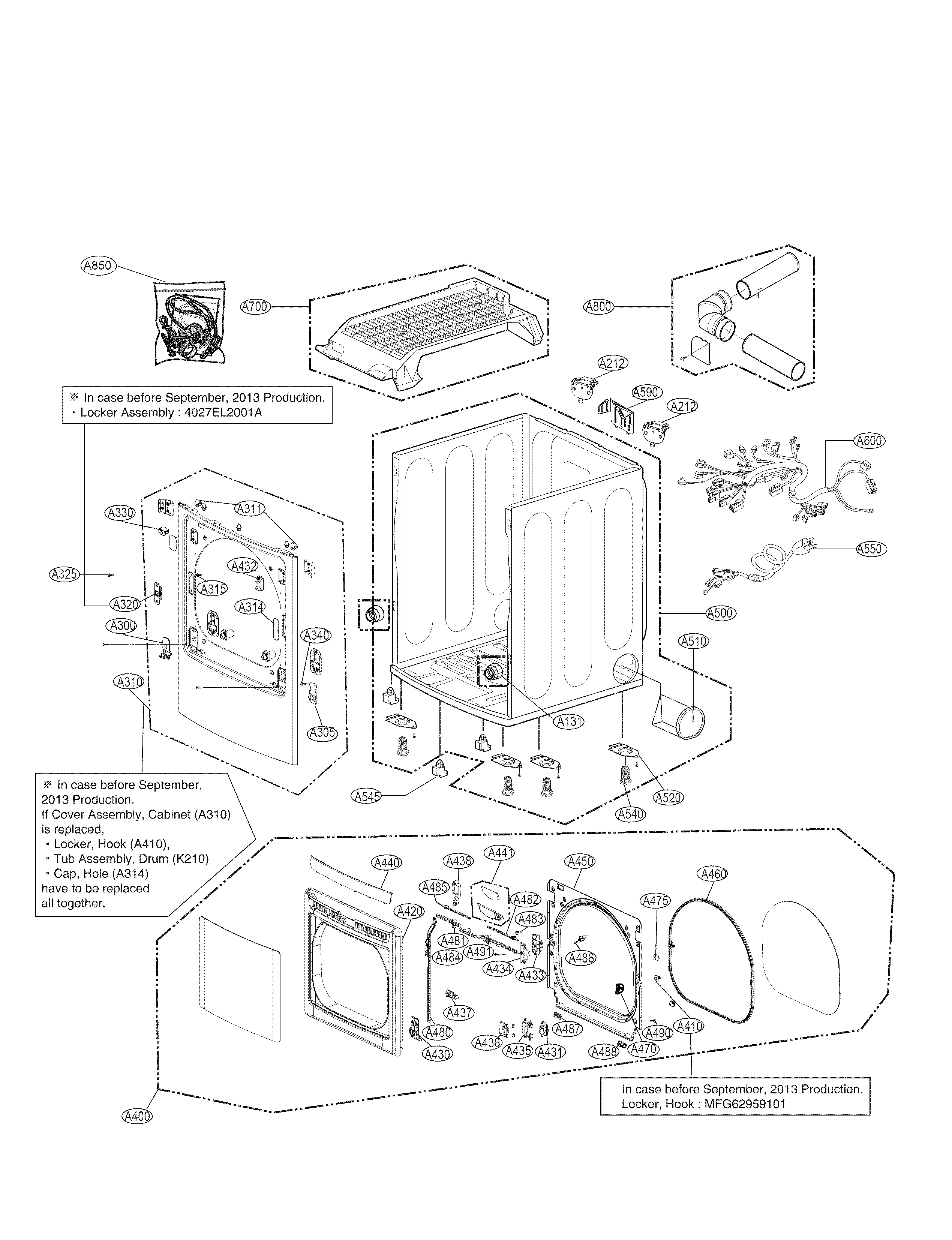

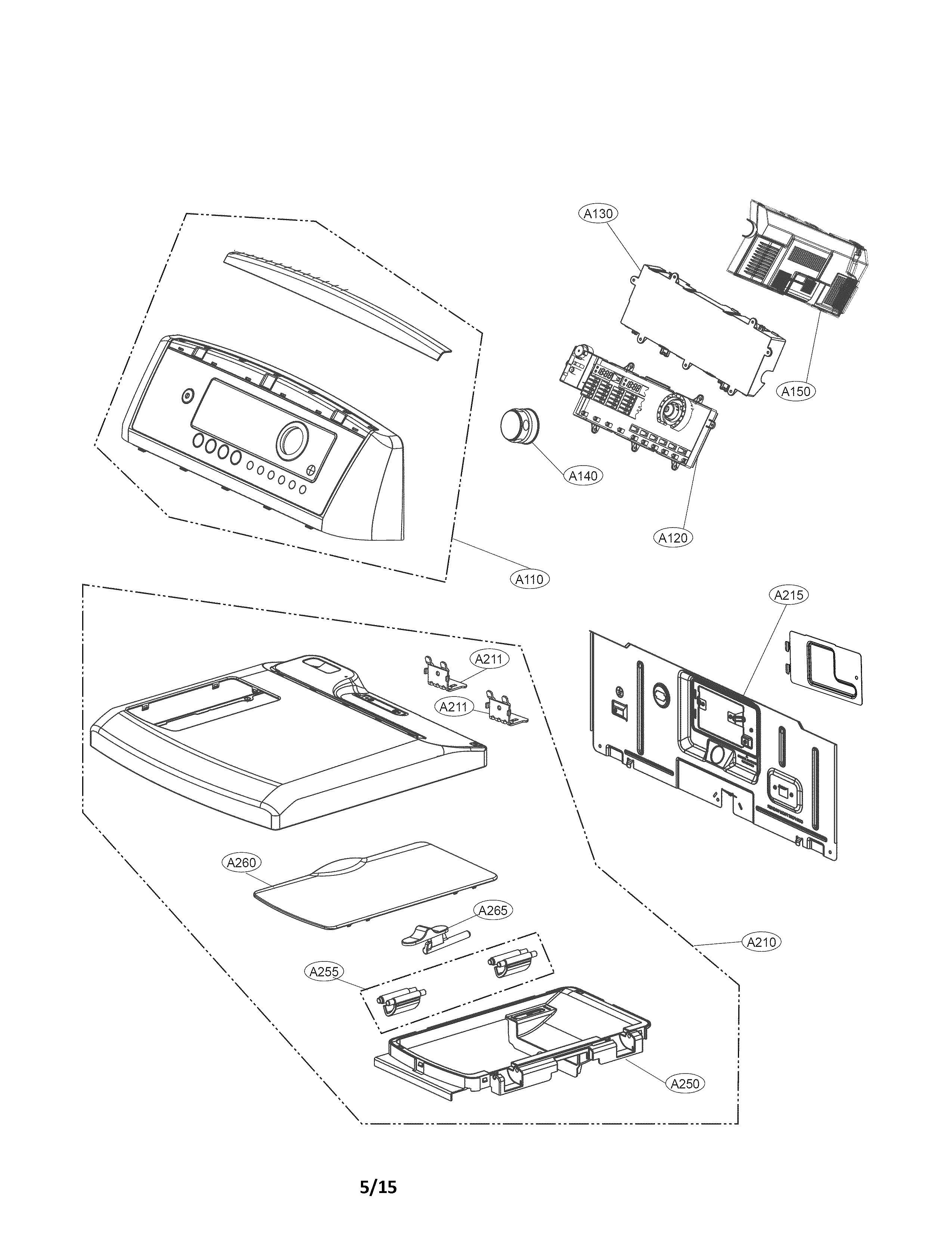

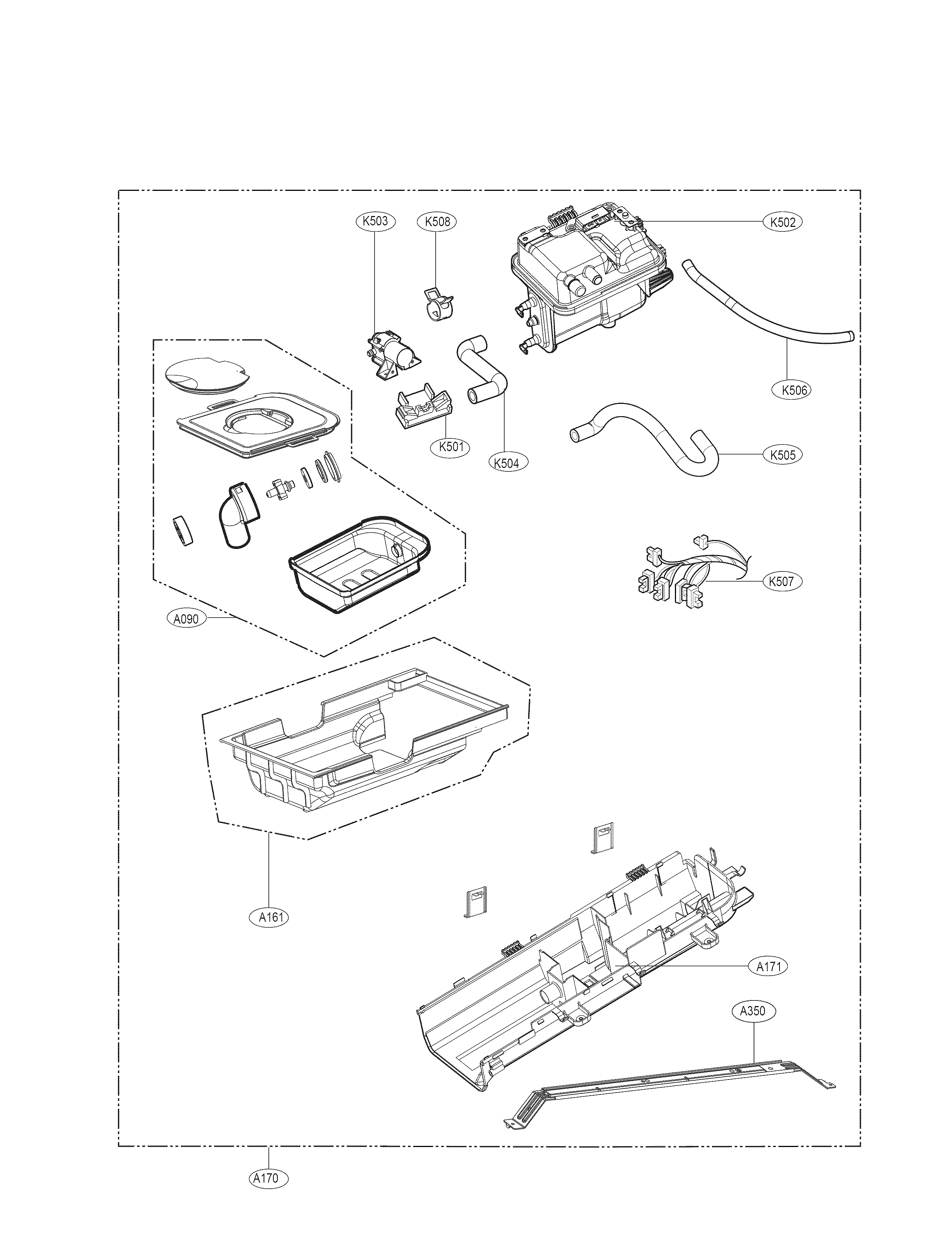

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for DLGX5781WE Dryer

LG Dryer DLGX5781WE FAQs

On the LG DLGX5781WE dryer, the “Clean Filter” message is a reminder, not a fault; it turns off when you press Start/Pause after you have checked and cleaned the lint filter. For exact display behavior and indicator meanings, follow the steps in the DLGX5781WE owner's manual.

Reset steps (DLGX5781WE)

  • Turn the dryer on.
  • Remove the lint screen and clean it completely.
  • Reinstall the lint screen fully (it should sit flat in the grille).
  • Press Start/Pause to begin a cycle; the Clean Filter reminder turns off.
  • If the reminder stays on, power the dryer off, then on, and press Start/Pause again.

If you are seeing a duct or airflow warning instead

LG dryers can also alert for restricted exhaust airflow (often shown as a Flow Sense style indicator). In that case, resetting the reminder is not the fix; you need to correct the airflow restriction.

  • Check the lint screen and lint screen opening for buildup.
  • Inspect the vent hose for kinks, crushing, or excessive length.
  • Clean lint from the blower area and exhaust outlet.
  • Confirm the exterior vent hood opens freely.

Quick comparison

What you see on the display What it means What to do
Clean Filter Routine reminder at power-on Clean filter, then press Start/Pause
Airflow/duct blockage indicator Exhaust restriction reducing airflow Clear venting and lint buildup

Why it matters

A clean lint filter and clear venting help your LG gas dryer dry faster, reduce overheating risk, and prevent nuisance shutdowns from high-limit temperature protection.

  • Use LG dryer error codes if the display shows an actual error code (not just the Clean Filter reminder).

Last updated: February 2026

On our LG DLGX5781WE dryer, the “Check filter” (Clean Filter) message is a normal reminder that appears when you power the dryer on. It is telling you to check and clean the lint screen before starting; the reminder turns off after you press Start/Pause.

What to do when you see “Check filter”

  • Pull out the lint screen and remove all lint.
  • If you use dryer sheets, wash the screen with warm water and a soft brush to remove residue, then dry it completely.
  • Reinstall the lint screen fully so it seats flat.
  • Start the cycle; the reminder should clear once Start/Pause is pressed.
  • If drying is slow, check the exhaust vent path for restrictions.

When it indicates a real problem

The reminder itself is normal, but you should troubleshoot airflow if you also notice long dry times, overheating, or a duct restriction indicator.

What you notice Most likely cause What to check first
Message shows at power-on only Normal “clean filter” reminder Clean lint screen, then start cycle
Message stays on during drying Lint screen clogged or airflow restricted Lint screen, then venting/duct run
Clothes take too long to dry Restricted exhaust flow Vent hose, wall cap, lint buildup

Why it matters

A clean lint screen and clear venting help the DLGX5781WE dry faster, run more efficiently, and reduce overheating conditions that can trip thermostats.

For the exact wording and display behavior, follow the DLGX5781WE owner’s manual.

Last updated: February 2026

On the LG DLGX5781WE sensor dry dryer, the filter is the lint filter located at the door opening (right at the front of the drum). Pull it straight up and out before starting a cycle, then reinstall it fully seated.

How to find and clean the lint filter

  • Open the dryer door and look along the front rim of the drum opening.
  • Grab the lint filter handle and pull the filter straight up.
  • Peel lint off the screen (front and back).
  • If residue is present, rinse with warm water and gently scrub with a soft brush; let it dry completely.
  • Reinstall the filter so it sits flat and fully down in its slot.

For diagrams and the exact location callouts for your model, use the DLGX5781WE owner's manual.

What the “Clean Filter” message means

Your dryer display shows a Clean Filter reminder when the dryer is turned on. It is a prompt to check the lint filter before the cycle starts; the reminder typically turns off after you press Start/Pause.

If drying is slow or the filter light comes on mid-cycle

A clogged lint filter or restricted venting can cause long dry times and airflow warnings.

  • Clean the lint filter and the filter housing opening.
  • Check the exhaust duct for kinks, crushing, or heavy lint buildup.
  • Keep the vent run as short and straight as possible.
  • If you see airflow restriction indicators, plan a vent cleaning soon.

Quick symptom guide

Symptom Most common cause What to do first
Clothes take too long to dry Restricted airflow Clean lint filter, then check venting
“Clean Filter” during cycle Filter nearly clogged Pause and clean lint filter
Airflow indicator stays on Duct too long or blocked Inspect and clean ductwork

Why it matters

A clean lint filter helps the DLGX5781WE dry faster, reduces overheating risk, and prevents nuisance airflow messages. It also helps protect key heating and airflow components like thermostats and the blower wheel.

Last updated: February 2026
