Kirkland SAWX650JQ0 washer Parts

A Kirkland SAWX650JQ0 washer is made up of a few main systems: filling (water inlet), washing (tub and agitator), draining (pump and hoses), spinning (drive and clutch), and controls (timer or switch). Knowing the common part names helps you match symptoms to the right replacement part.

Common washer parts and what they do

• Water inlet valve: lets hot and cold water into the washer (often tied to fill problems)
• Tub/basket (drum): holds the load and water
• Agitator: moves clothes through water and detergent
• Drain pump: pushes water out during drain

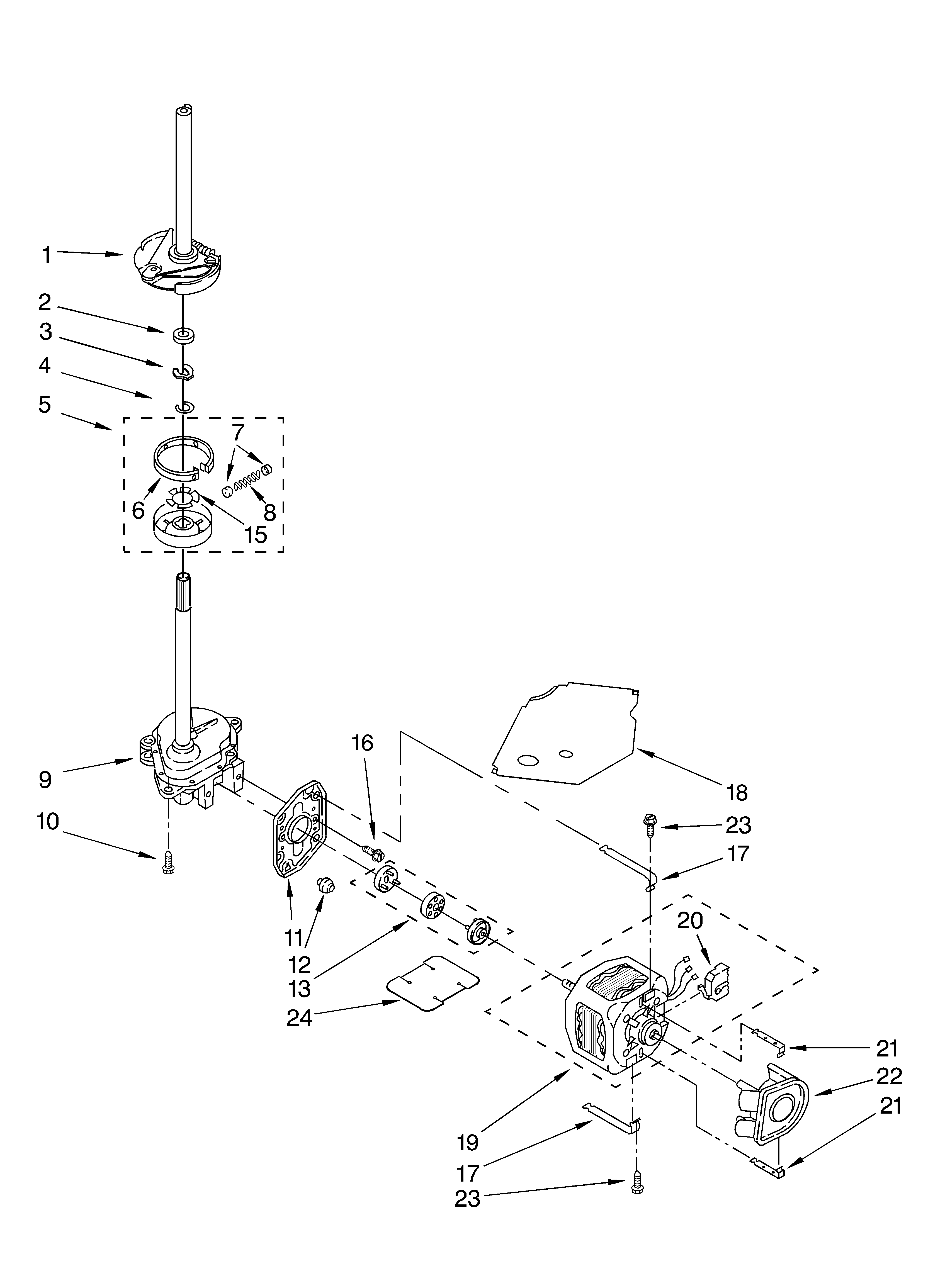

• Drive system: transfers motor power to agitation and spin

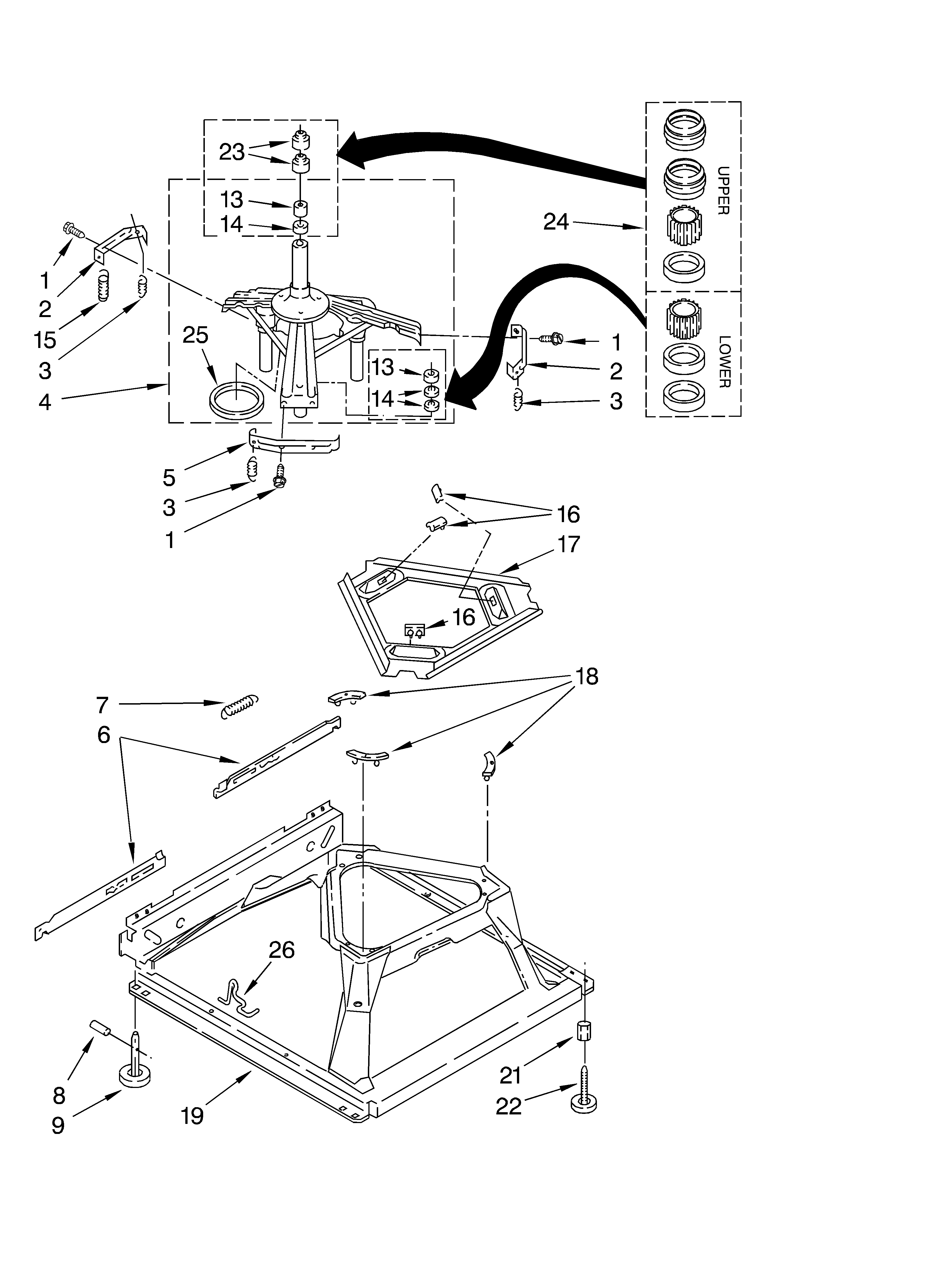

• Suspension: stabilizes the tub during spin
• Controls: timer, switches, and wiring that run the cycle

SAWX650JQ0 examples of part names you will see on our parts list

These are common names for this model’s replaceable parts:

Washer system	Example part name	Example part ID
Fill	Washer inlet valve	285805
Drain	Washer drain pump	WP3363394
Agitate/spin drive	Washer motor coupling	285753A
Agitate/spin drive	Clutch	285785
Vibration control	Washer suspension spring	WP63907

Quick symptom-to-part cheat sheet

• Won’t fill or fills slowly: inlet screens, hoses, or the washer inlet valve 285805
• Won’t drain: clogs in the drain path, or a failing washer drain pump WP3363394
• Agitates but won’t spin (or vice versa): coupling, clutch, or gear case components
• Loud grinding or oil leak under washer: gear case and related drive parts
• Excessive shaking: leveling, load balance, or suspension springs

Why it matters

Washer part names are more than labels; they point to the system that is failing. When you use the correct terms (drain pump, motor coupling, clutch, inlet valve), you can troubleshoot faster and order the right Kirkland SAWX650JQ0 washer parts the first time.

Last updated: February 2026

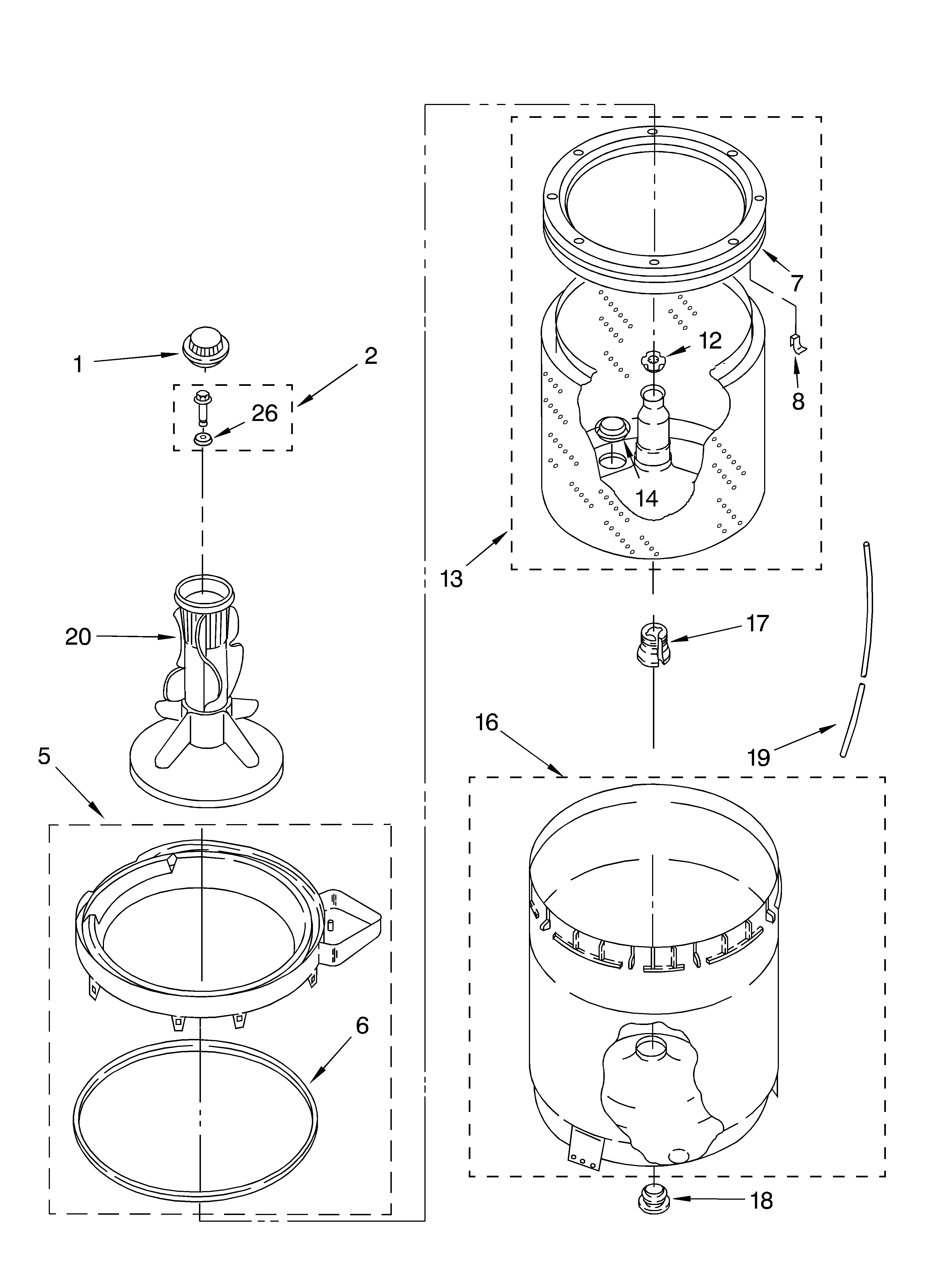

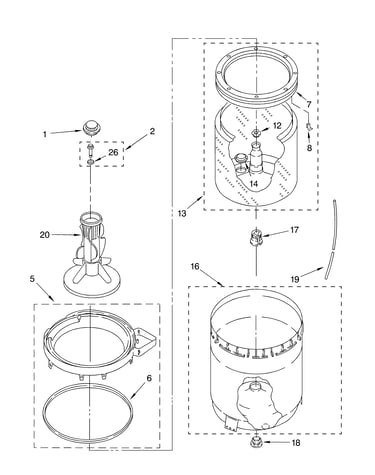

In the Kirkland SAWX650JQ0 washer, the inner drum is the moving basket that holds clothes and spins or agitates them in wash water; the outer drum (outer tub) stays still and holds the water so it can drain away at the right time.

Inner vs. outer drum: what each part does

• Inner drum (wash basket/drum): Holds laundry; moves during wash and spin.
• Outer drum (outer tub): Stationary water container around the inner drum.
• Gap between them: Lets water circulate and drain while keeping the cabinet dry.
• Drain path: Water leaves the outer tub through hoses and the drain system.

Quick comparison

Item	Other common name	Moves during cycle?	Main job
Inner drum	Wash basket (top-load), drum (front-load)	Yes	Tumble or agitate clothes and spin out water
Outer drum	Outer tub	No	Contain wash water and route it to the drain

How this relates to common washer problems

If the washer leaks, won’t drain, or makes grinding noises, the issue is often in the systems connected to the outer tub and drive components rather than the basket itself.

Common parts to check on SAWX650JQ0 include:

• Washer drain pump WP3363394 if water won’t drain or you hear a humming pump
• Washer tub gasket W10814296 if you see water leaking from the tub area
• Washer motor coupling 285753A if the motor runs but the basket does not move

Why it matters

Knowing which “drum” you mean helps you troubleshoot faster: the inner drum is about washing and spinning clothes, while the outer drum is about containing water and directing drainage. That distinction points you to the right parts and repair steps.

Last updated: February 2026

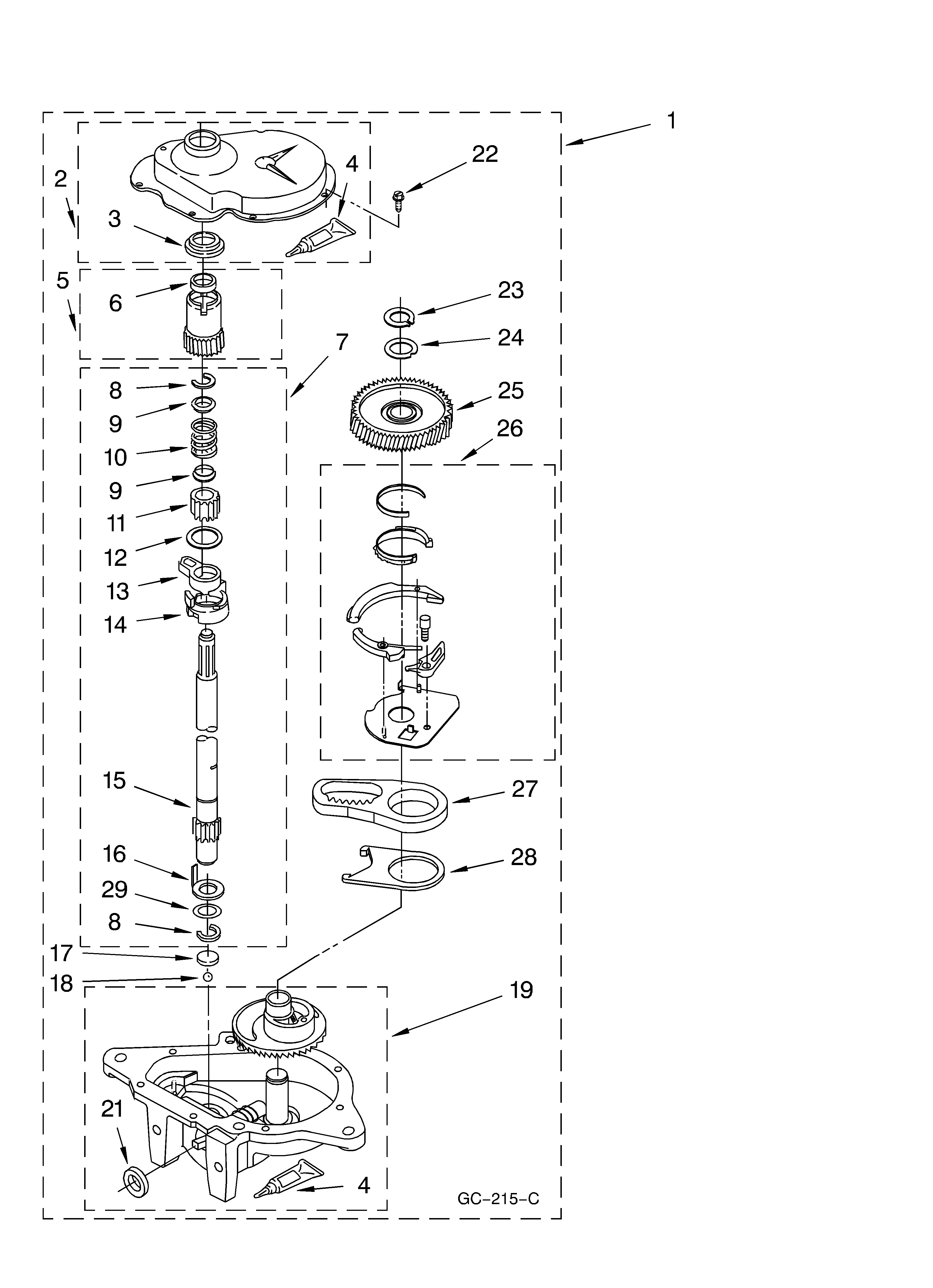

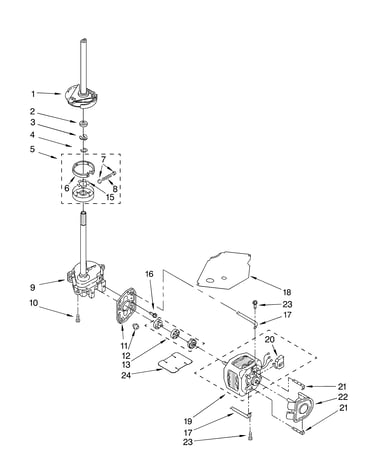

On the Kirkland SAWX650JQ0 washer, the most expensive repairs are typically major drive-system parts such as the gear case (transmission) or the drive motor; these parts can cost hundreds of dollars before labor, and they often drive the decision between repair and replacement.

Most expensive parts (and why)

These are the repairs that usually carry the highest total cost because the part itself is pricey and the job is labor-heavy:

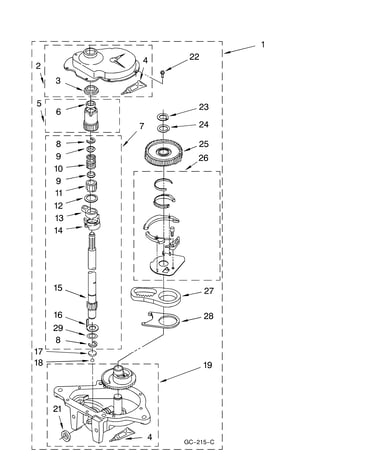

• Gear case / transmission: internal drive components, often the single biggest parts cost
• Drive motor: high-cost electrical component that requires significant disassembly

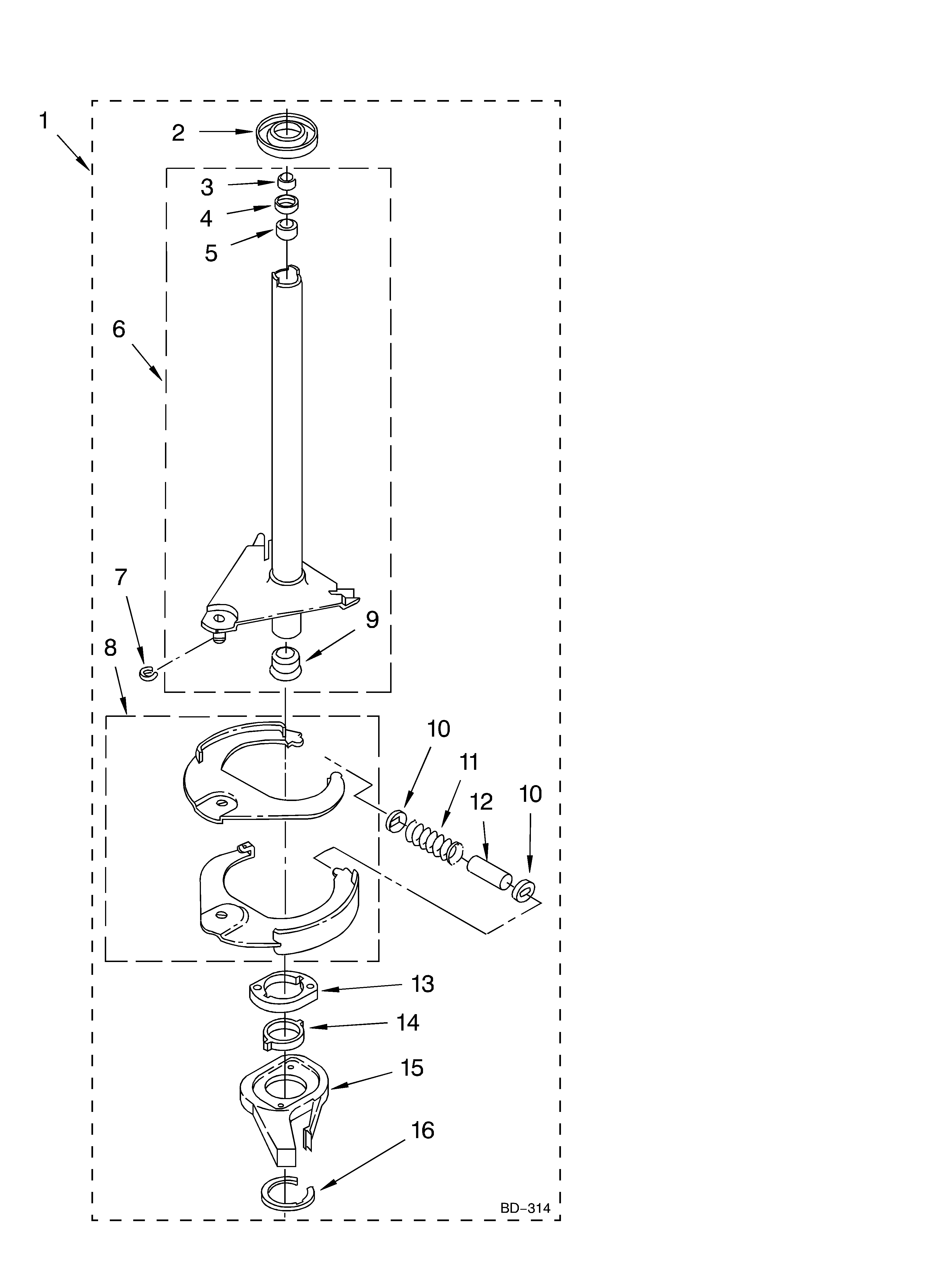

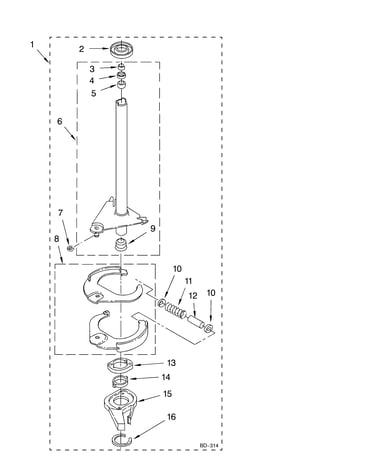

• Basket drive and drive tube: major spin-drive components that can be time-consuming to replace
• Timer or control components: can be expensive and may not solve the issue if misdiagnosed

For this model, examples of higher-cost parts include the gear 3360629 and the washer drive motor WP661600.

Quick cost comparison (parts only)

Actual totals vary by symptom and labor rates, but this shows why some repairs feel “expensive” fast.

Repair area	Example part for SAWX650JQ0	Why it adds up
Transmission/gear case	Gear 3360629	High part price; deep teardown
Motor	Washer drive motor WP661600	High part price; diagnosis matters
Controls	Washer timer WP3948852	Expensive part; may not be root cause

How we recommend deciding: repair vs replace

Use these checkpoints before ordering a high-dollar part:

• Confirm the symptom: no spin, no agitation, loud grinding, burning smell, or leaks
• Rule out common lower-cost causes first (coupling, pump, clutch, lid switch)
• Check for secondary damage (oil leaks from gear case, worn drive block, broken springs)
• Compare total repair cost (part + labor) to the washer’s age and condition
• If the washer won’t drain or spin, start with the drain path and pump before drive parts

A common lower-cost fix on direct-drive style washers is the washer motor coupling 285753A, which can fail and mimic a bad motor or transmission.

Why it matters

The “most expensive part” is often expensive because it sits at the center of the wash and spin system. Accurate troubleshooting prevents replacing a gear case or motor when a coupling, clutch, or drain pump is the real problem.

Last updated: February 2026

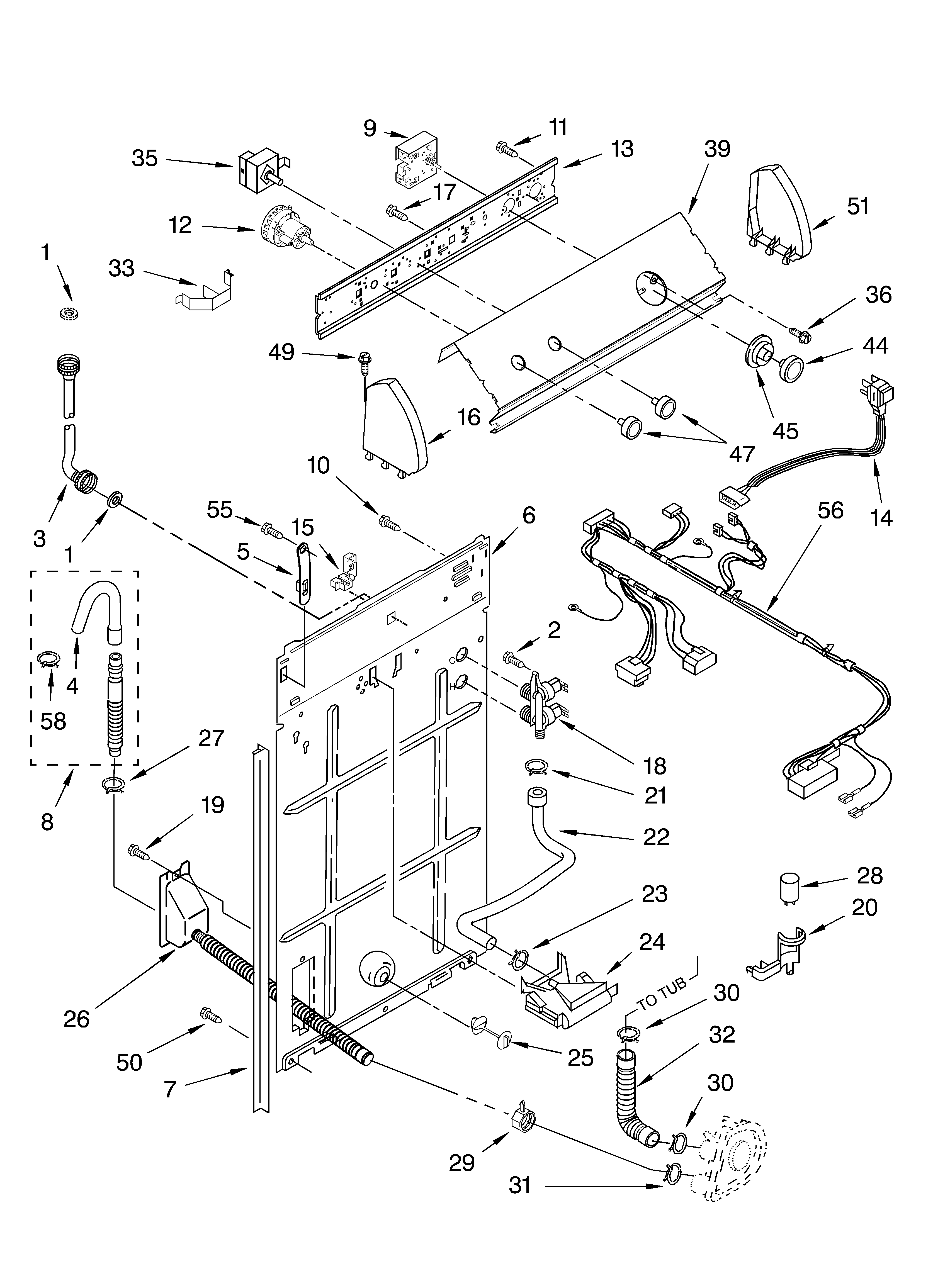

For the Kirkland SAWX650JQ0 washer, the most important “part” depends on what you mean by important: the control system runs the cycles, but the drive system and drain system do the physical work of washing and removing water. If one of these core systems fails, the washer cannot complete a cycle.

The 3 core systems that matter most

• Controls: timer or electronic control that sequences fill, agitate, drain, and spin
• Drive system: motor and power transfer parts that move the agitator and spin the basket
• Drain system: pump and hoses that remove water so the washer can spin-dry

Most important part by symptom

If your washer problem is...	The “most important” part to check first	What it affects
Won’t drain or won’t spin	Washer drain pump WP3363394	Draining, spin enable, end-of-cycle completion
Fills but won’t agitate or spin	Washer motor coupling 285753A	Transfers motor power to the transmission/drive
Spins weakly, slips, or makes burning/rubbing noises in spin	Clutch 285785	Basket spin engagement and speed
Won’t fill or fills incorrectly	Washer inlet valve 285805	Water entry, fill rate, hot/cold mixing

Quick checks we recommend before buying parts

• Confirm the washer drains freely: check the standpipe and drain hose for kinks or clogs.
• Listen for the pump running during drain; a loud hum with no drain points to a blockage or failed pump.
• If the motor runs but the tub does not move, inspect the motor coupling for cracks or stripped hubs.
• If the washer drains but struggles to reach spin speed, suspect a clutch or drive wear.
• If filling is slow or inconsistent, verify both supply valves are open and inlet screens are clear.

Why it matters

Washers are systems, not single parts. Controls tell the washer what to do, the drive system makes it happen, and the drain system finishes the cycle. Identifying which system matches your symptom prevents replacing the wrong part.

Helpful DIY guidance

For drain and spin symptoms, follow troubleshooting a top load washer that wont drain or spin video to narrow the issue to the pump, hose, or drive components.

Last updated: February 2026
