Frigidaire
Gas Wall Oven

Model # FGB24L2ECD Official Frigidaire gas wall oven

Here are the diagrams and repair parts for Official Frigidaire FGB24L2ECD gas wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

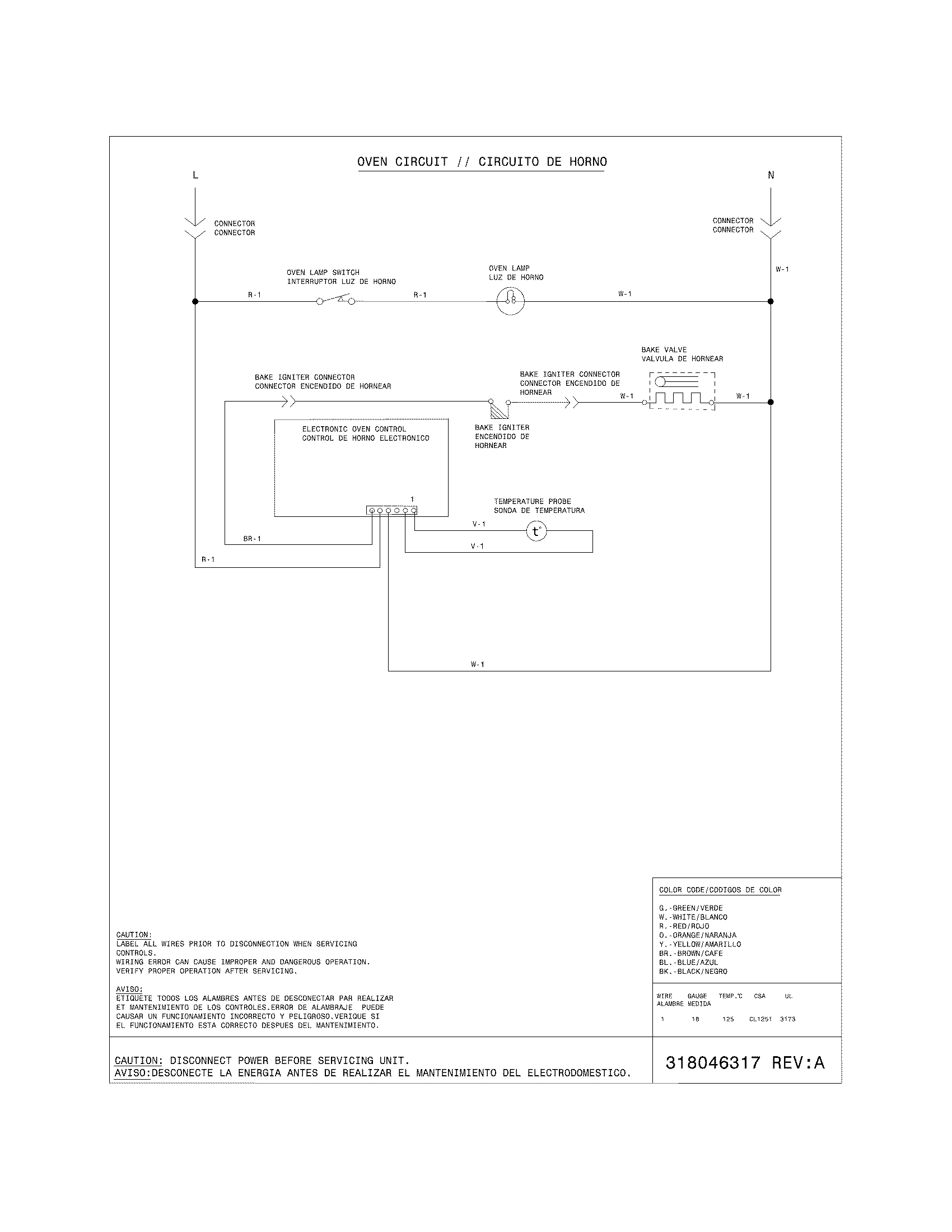

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Range Oven Temperature Sensor 318562500
#37

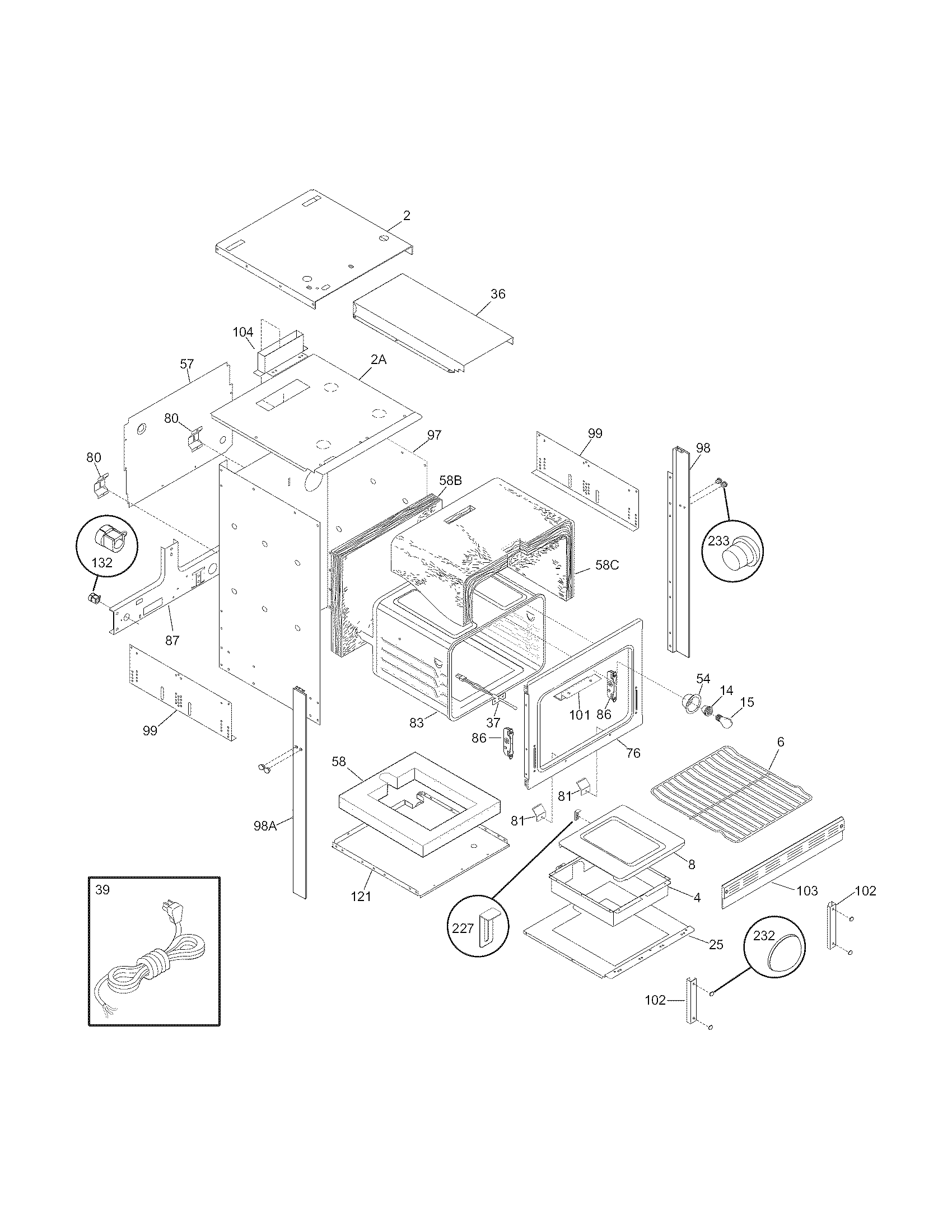

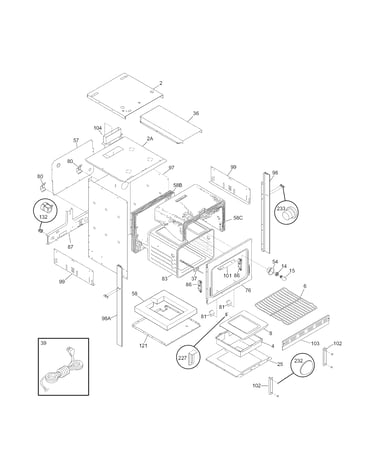

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$33.57 |
13% OFF Phone Price : $38.57
In Stock
Range Oven Burner Igniter (replaces 316428600, 5303308452, 5303308468, 7316428600, 7318177710) 318177710
#19

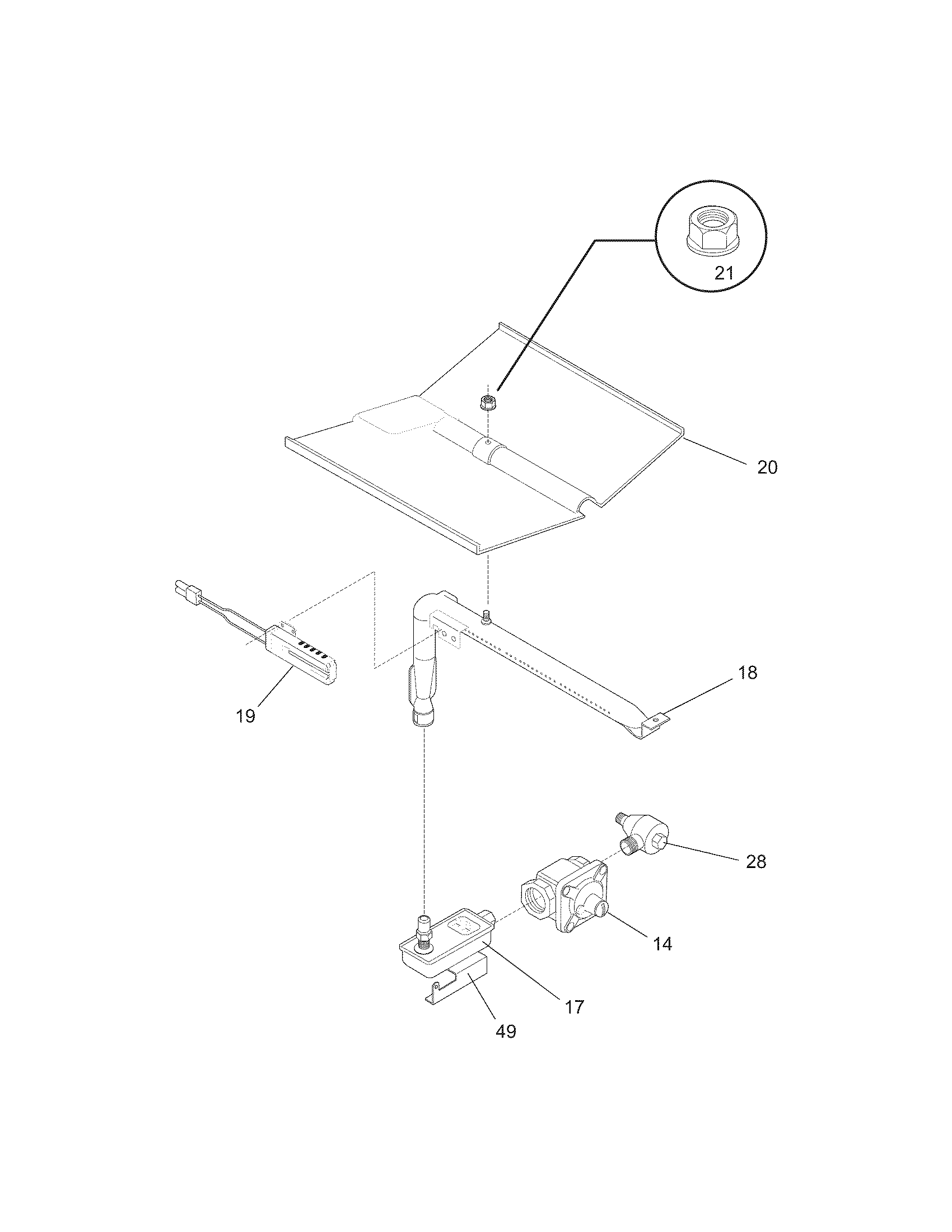

Burner diagram

Range oven burner igniter (replaces 316428600, 5303308452, 5303308468, 7316428600, 7318177710)

Part #318177710

BEST SELLER
$162.04 |
6% OFF Phone Price : $172.04
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Wall Oven Electronic Oven Control Overlay 318214401
#NI

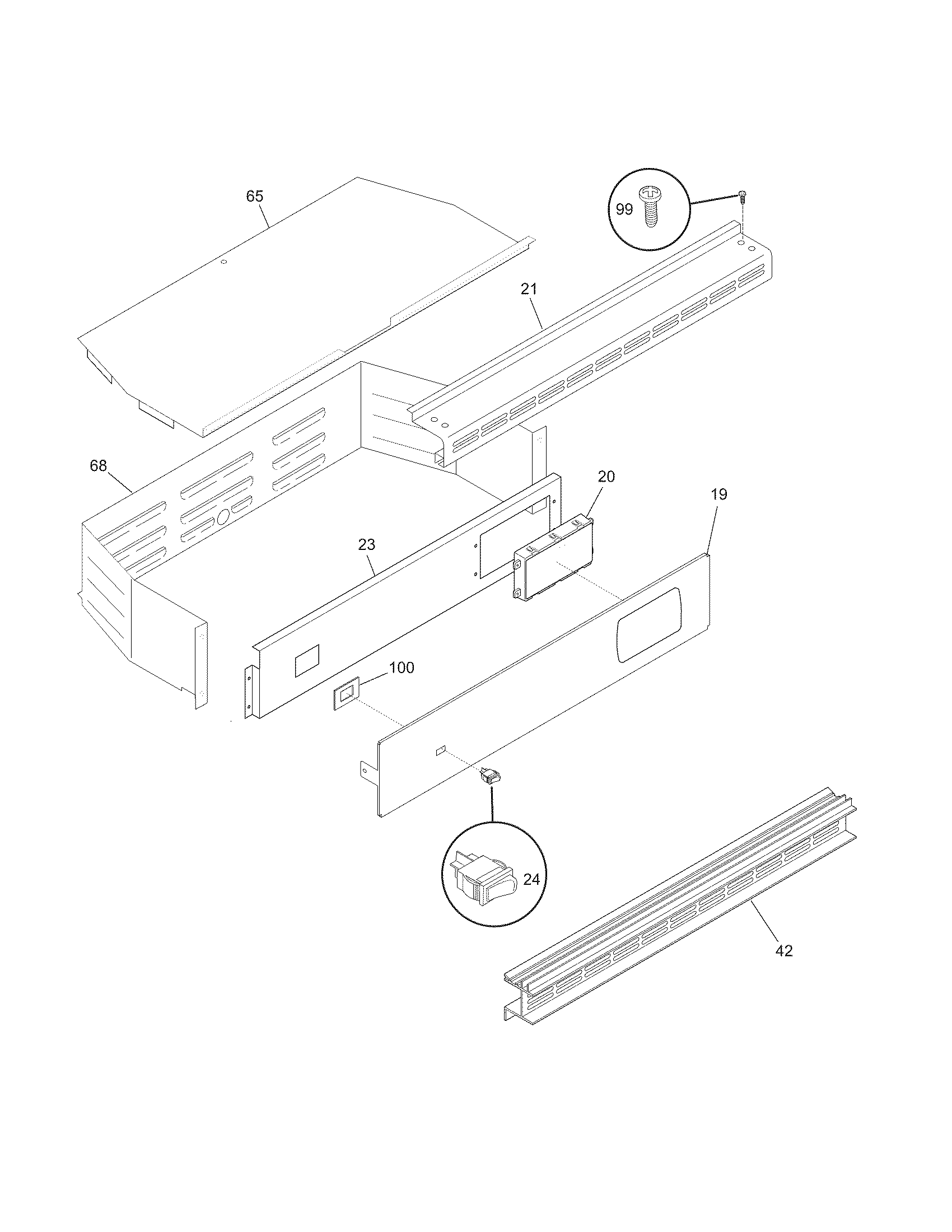

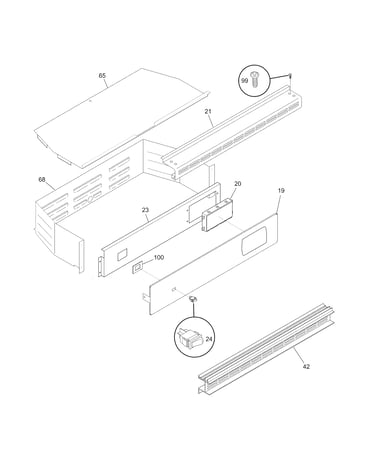

Control panel diagram

Wall oven electronic oven control overlay

Part #318214401

Replaced by #316220729

?
Manufacturer substitution
This part replaces 318214401. Substitute parts can look different from the original.
BEST SELLER
$31.82 |
14% OFF Phone Price : $36.82
In Stock
Light Switch 316005602
#24

Control panel diagram

Light switch

Part #316005602

Replaced by #5304527841

?
Manufacturer substitution
This part replaces 316005602. Substitute parts can look different from the original.
This item is not returnable
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Range Broil Pan 318126200
#46

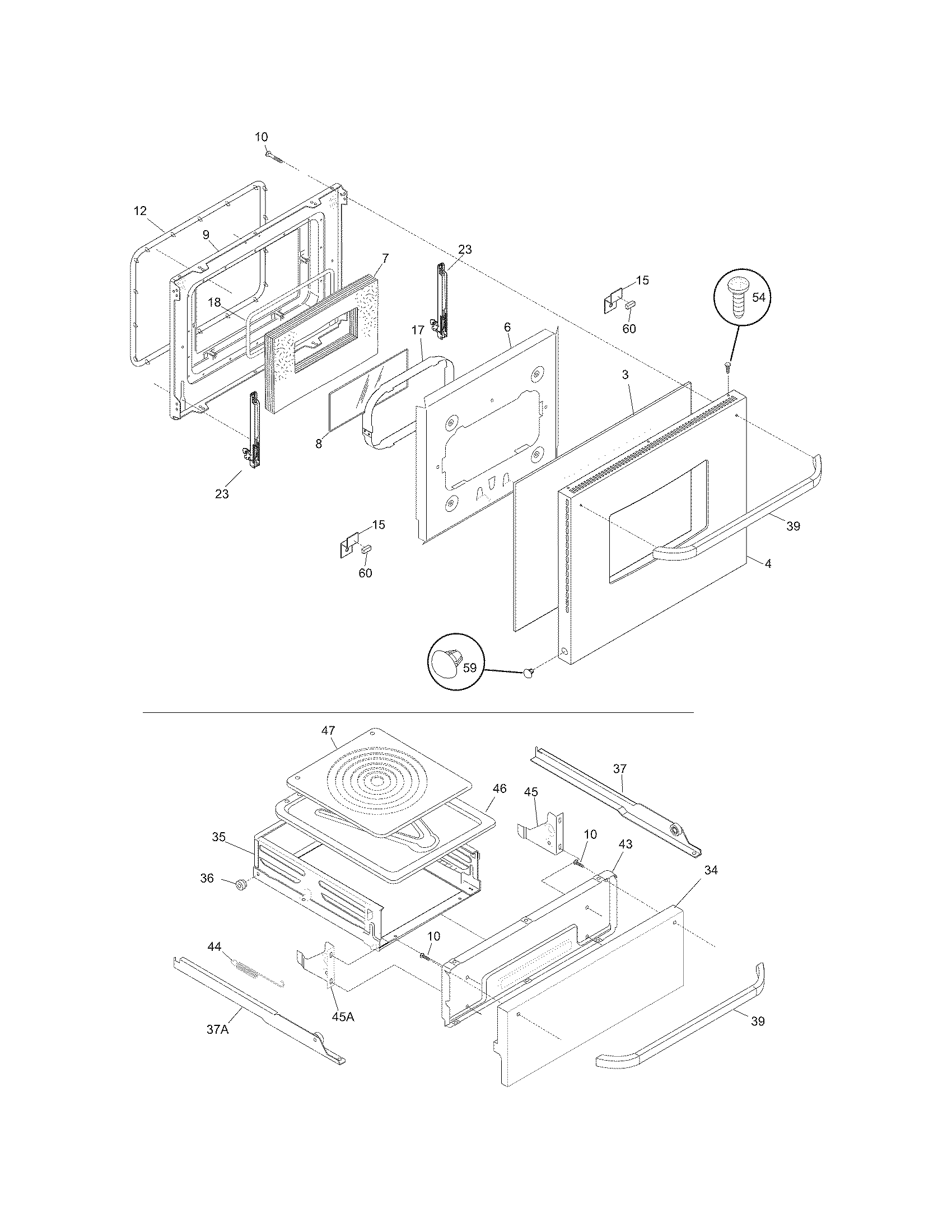

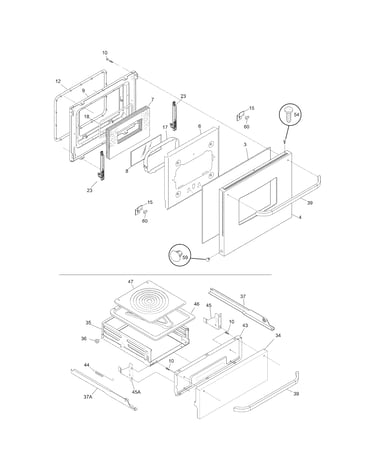

Door/drawer diagram

Range broil pan

Part #318126200

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 318126200. Substitute parts can look different from the original.
$59.77 |
8% OFF Phone Price : $64.77
In Stock
Range Broil Pan Insert 318126300
#47

Door/drawer diagram

Range broil pan insert

Part #318126300

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 318126300. Substitute parts can look different from the original.
$59.77 |
8% OFF Phone Price : $64.77
In Stock
Range Oven Light Socket (replaces 7318224000) 318224000
#14

Body diagram

Range oven light socket (replaces 7318224000)

Part #318224000

This item is not returnable
$64.33 |
7% OFF Phone Price : $69.33
In Stock
Range Screw 5303300265
#54

Door/drawer diagram

Range screw

Part #5303300265

This item is not returnable
$3.23
In Stock
Valve 5303295305
#28

Burner diagram

Valve

Part #5303295305

Replaced by #5303210156

?
Manufacturer substitution
This part replaces 5303295305. Substitute parts can look different from the original.
$198.87 |
5% OFF Phone Price : $208.87
In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why won't my wall oven broil?

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Read more

Why won't my wall oven bake?

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Read more

Why isn't my wall oven at the temperature I set?

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Read more

Why doesn't my wall oven work?

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Read more

Why won't my wall oven heat?

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
