Whirlpool LA5200XTW0 washer Parts

Name: Whirlpool LA5200XTW0 Parts | Diagrams | Sears PartsDirect
Brand: Whirlpool
SKU: LA5200XTW0
Availability: InStock

Here are the diagrams and repair parts for Whirlpool LA5200XTW0 washer, as well as links to manuals and error code tables, if available.

Error Codes

By Schematic

By Part

SELECT DIAGRAM

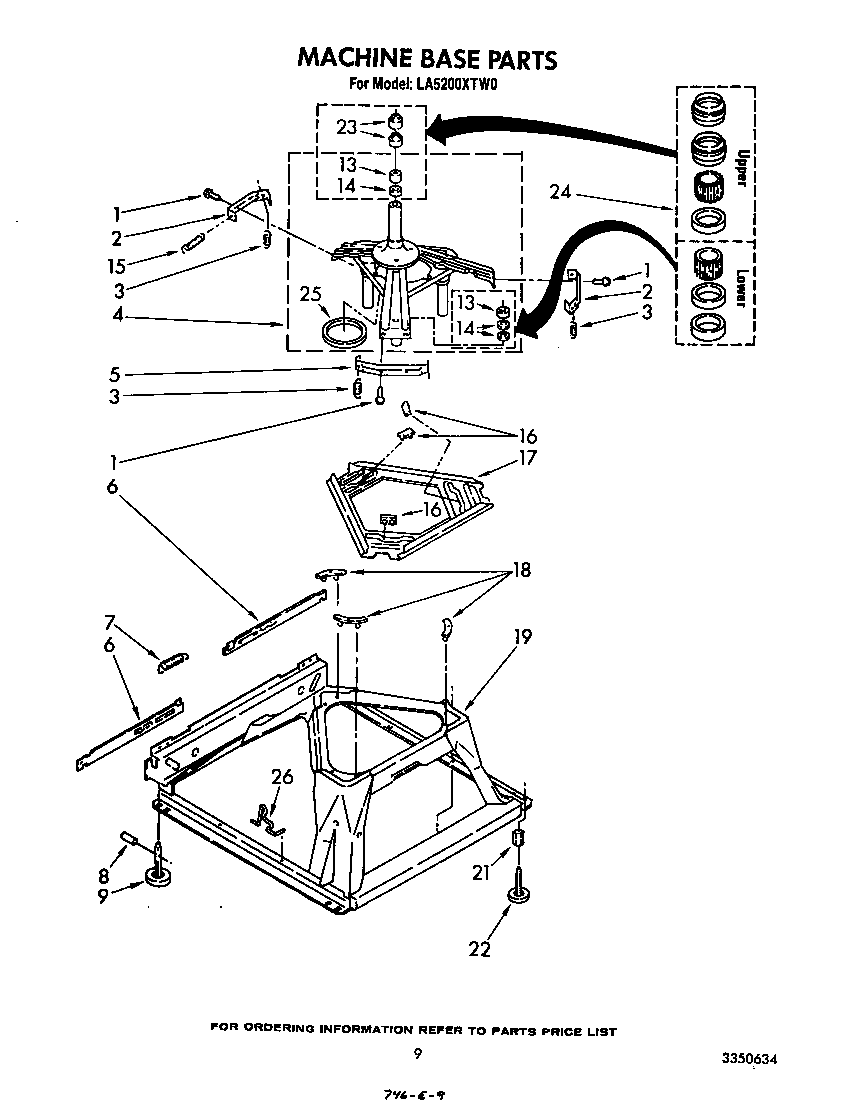

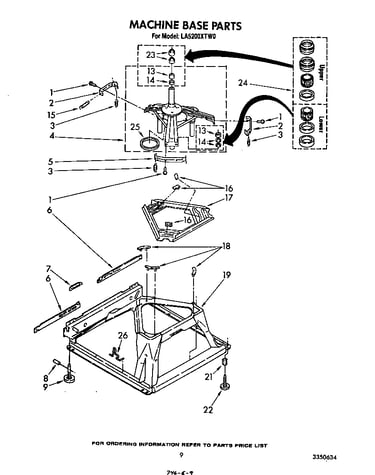

Browse Parts for LA5200XTW0 Washer

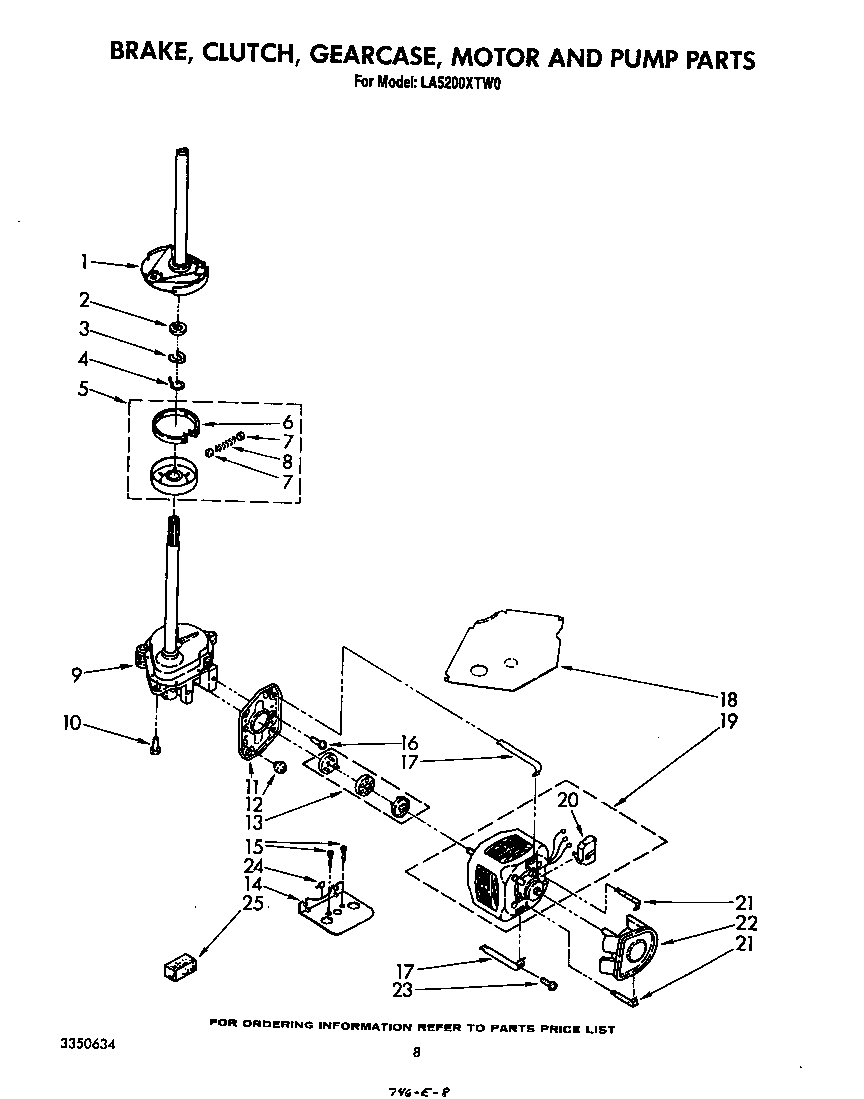

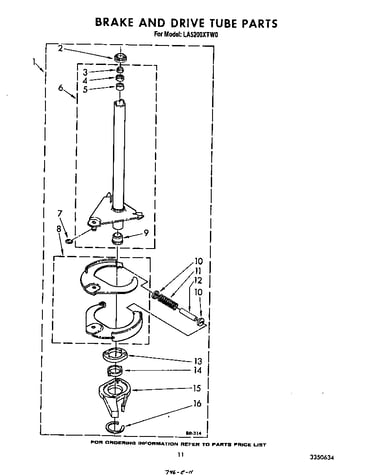

Brake, clutch, gearcase, motor and pump diagram
Clutch
Part #388949
Replaced by #285785
Manufacturer substitution
This part replaces 388949. Substitute parts can look different from the original.
In Stock
$20.00
23% OFF Phone Price : $26.00
Qty

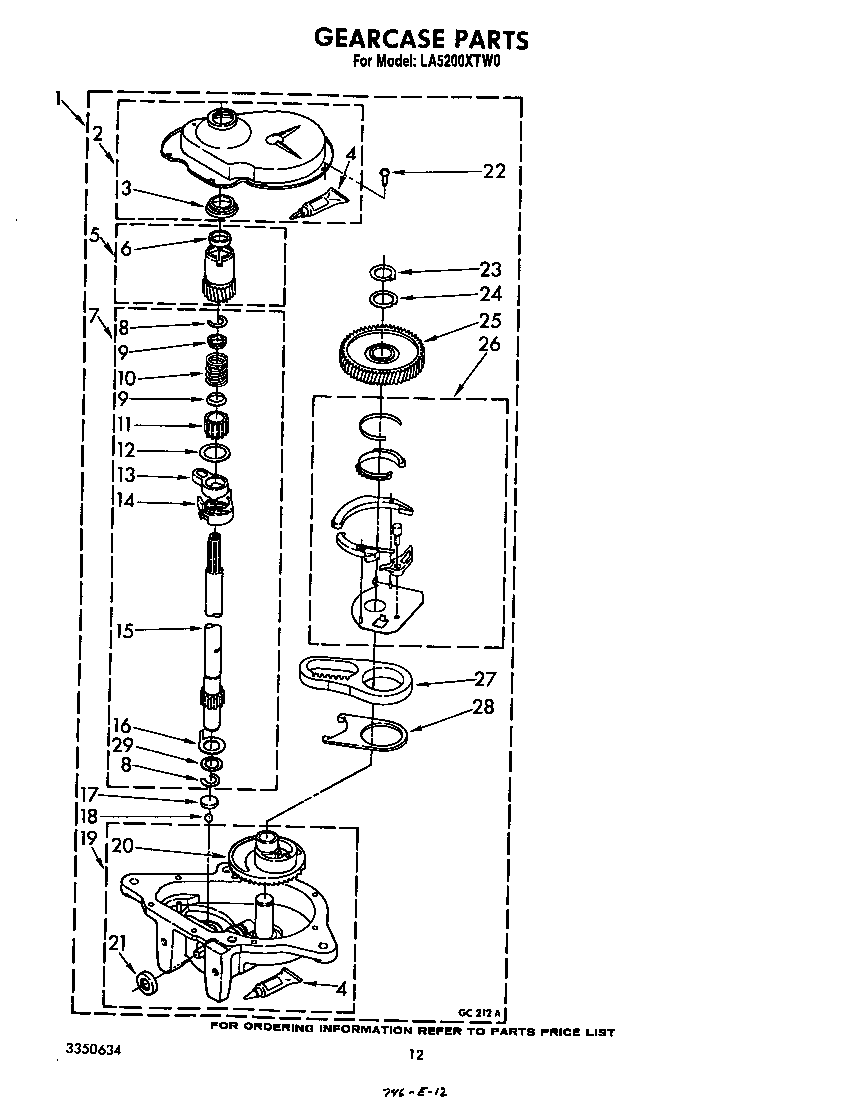

Gearcase diagram
Rack
Part #62534
Replaced by #3360629
Manufacturer substitution
This part replaces 62534. Substitute parts can look different from the original.
In Stock
$300.59
$12.00 OFF Phone Price : $312.59
Qty
Gear Case
Part #389246
Replaced by #3360629
Manufacturer substitution
This part replaces 389246. Substitute parts can look different from the original.
In Stock
$300.59
$12.00 OFF Phone Price : $312.59
Qty
Gearcase diagram
Pinion
Part #63320
Replaced by #3360629
Manufacturer substitution
This part replaces 63320. Substitute parts can look different from the original.
In Stock
$300.59
$12.00 OFF Phone Price : $312.59
Qty
Gearcase diagram
Actuator
Part #62621
Replaced by #3360629
Manufacturer substitution
This part replaces 62621. Substitute parts can look different from the original.
In Stock
$300.59
$12.00 OFF Phone Price : $312.59
Qty
Gearcase diagram
Gear
Part #62570
Replaced by #3360629
Manufacturer substitution
This part replaces 62570. Substitute parts can look different from the original.
In Stock
$300.59
$12.00 OFF Phone Price : $312.59
Qty
Brake, clutch, gearcase, motor and pump diagram

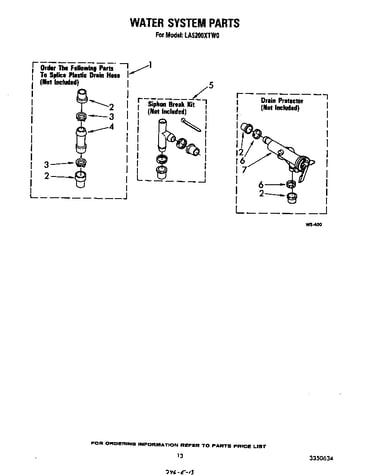

Water Pump
Part #3348015
Replaced by #WP3363394
Manufacturer substitution
This part replaces 3348015. Substitute parts can look different from the original.
In Stock
$38.65
13% OFF Phone Price : $44.65
Qty

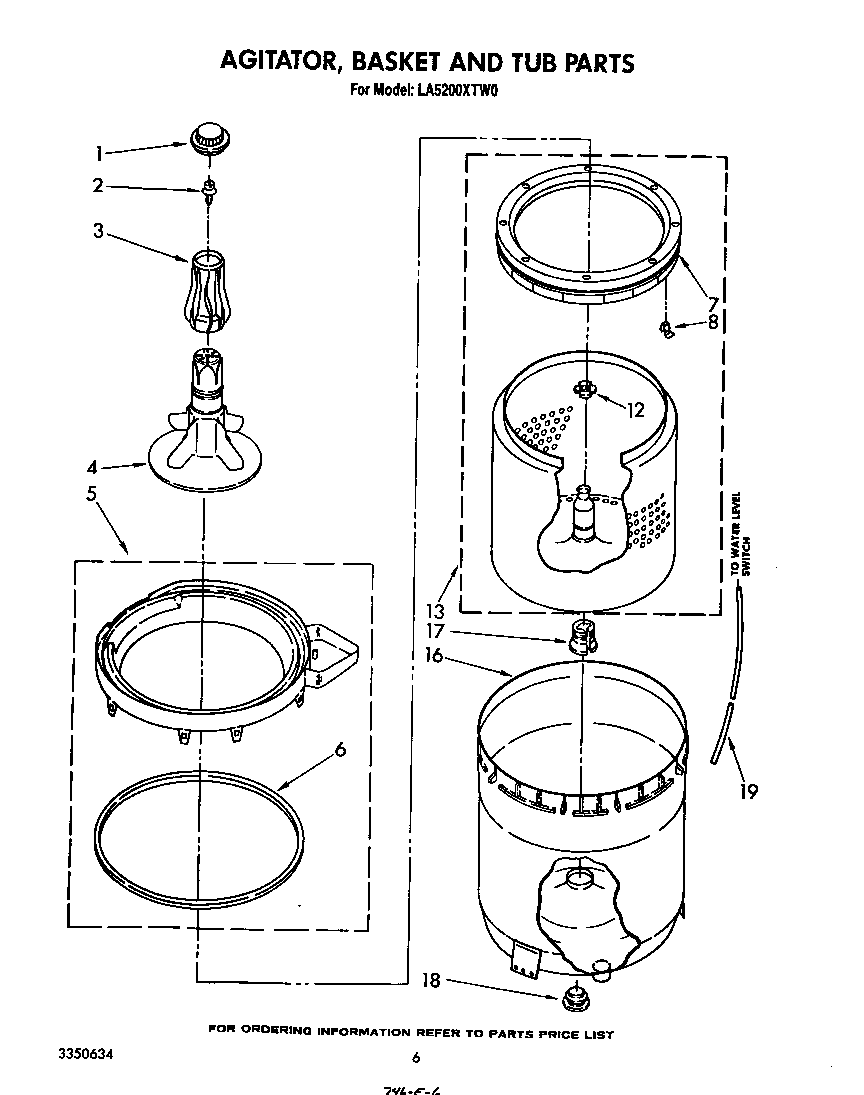

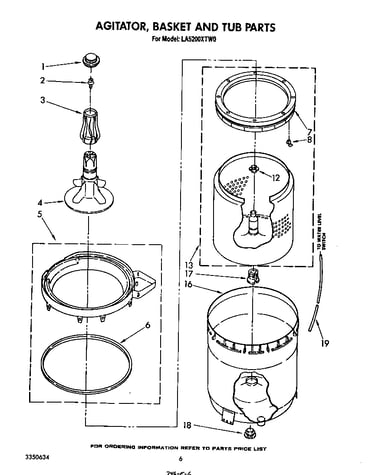

Agitator, basket and tub diagram
Washer Drive Block
Part #389140
Replaced by #WP389140
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
In Stock
$21.15
22% OFF Phone Price : $27.15
Qty
Basketdriv
Part #388951
Replaced by #W10820043
Manufacturer substitution
This part replaces 388951. Substitute parts can look different from the original.
In Stock
$133.76
8% OFF Phone Price : $145.76
Qty

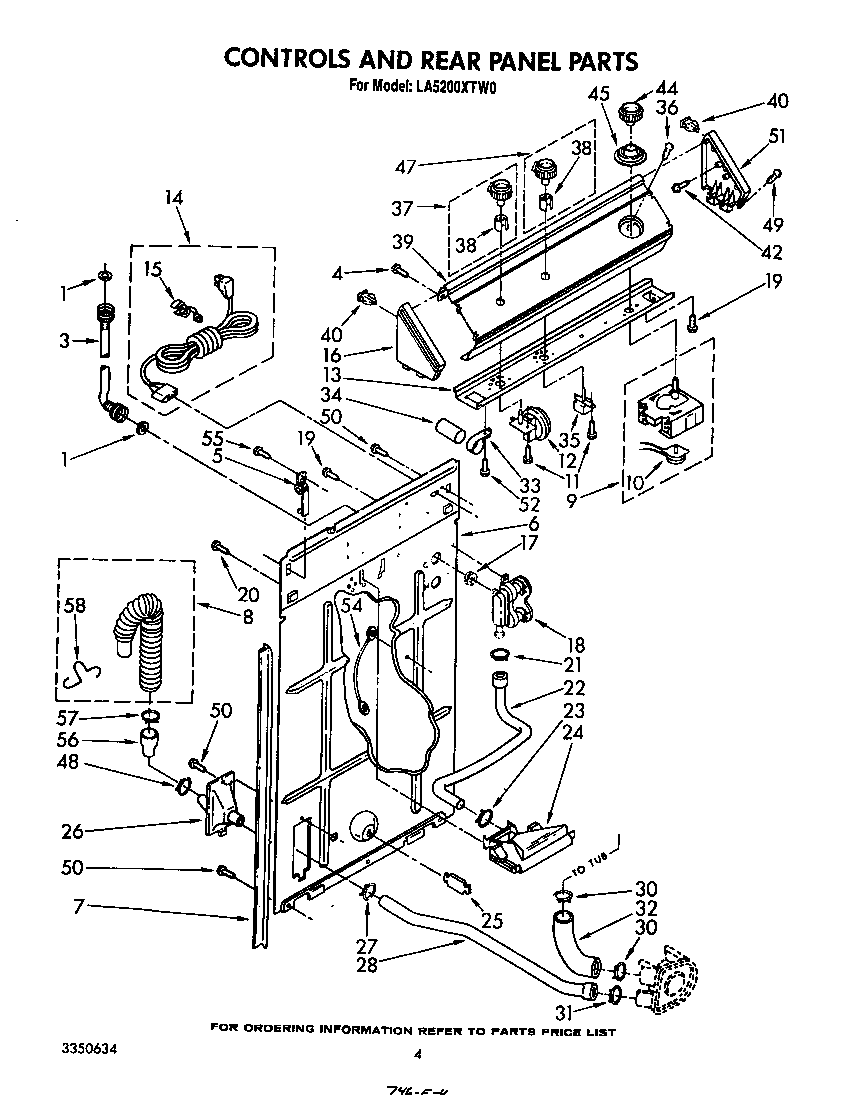

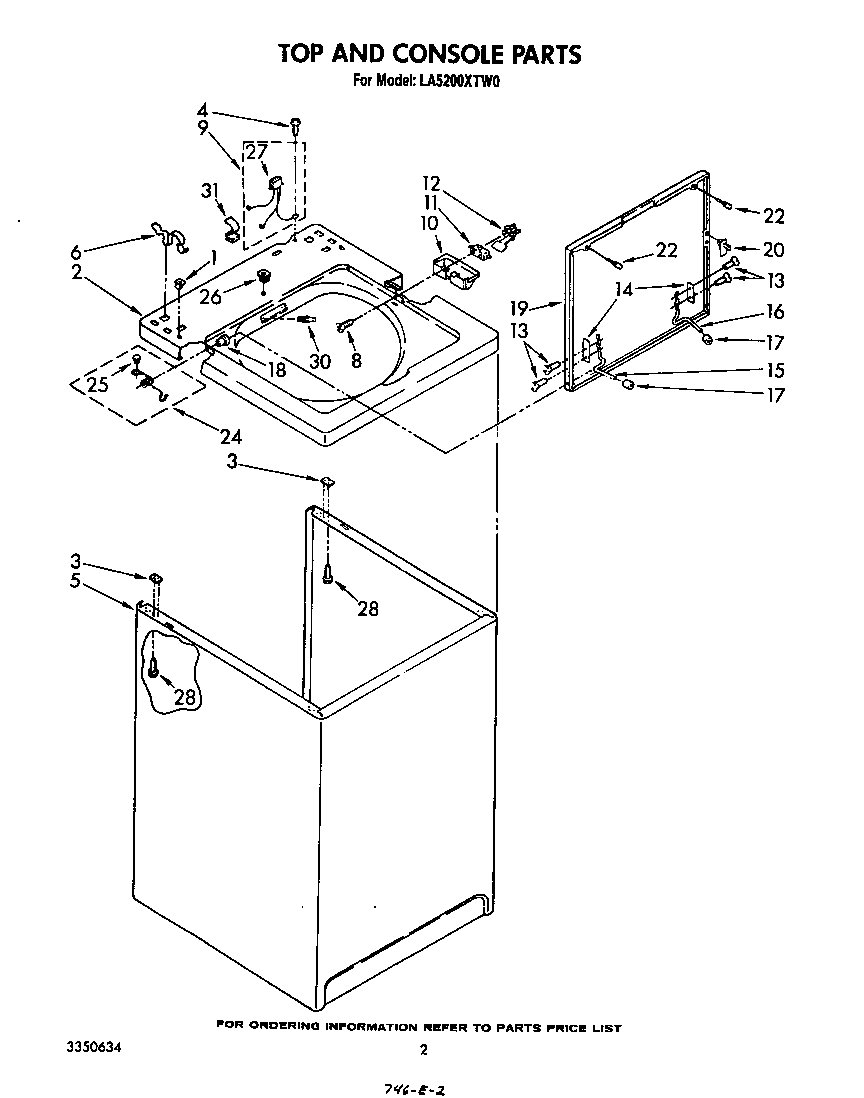

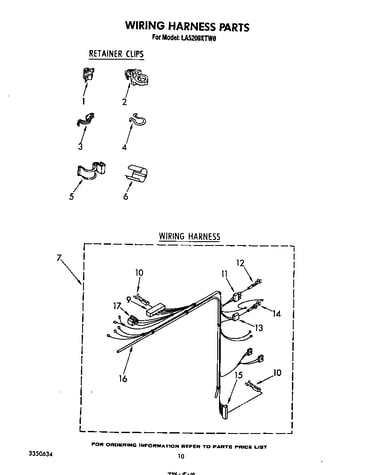

Controls and rear panel diagram
Valve
Part #358992
Replaced by #285805
Manufacturer substitution
This part replaces 358992. Substitute parts can look different from the original.
In Stock
$25.05
19% OFF Phone Price : $31.05
Qty
