Kenmore Elite
Washer

Model # 79631412310 Official Kenmore Elite washer

Here are the diagrams and repair parts for Official Kenmore Elite 79631412310 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Washer Washplate AGZ72909702
#K020

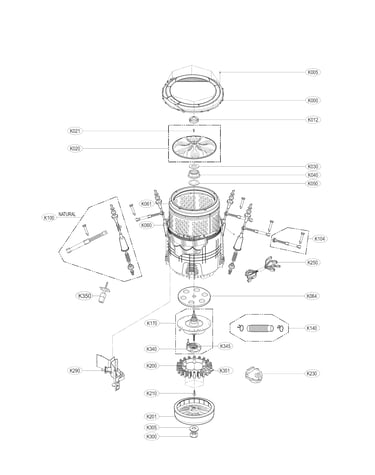

Tub parts diagram

Washer washplate

Part #AGZ72909702

Replaced by #AGZ72909711

?
Manufacturer substitution
This part replaces AGZ72909702. Substitute parts can look different from the original.
BEST SELLER
$168.02 |
6% OFF Phone Price : $178.02
In Stock
Washer Washplate AGZ72909701
#K020

Tub parts diagram

Washer washplate

Part #AGZ72909701

Replaced by #AGZ72909711

?
Manufacturer substitution
This part replaces AGZ72909701. Substitute parts can look different from the original.
BEST SELLER
$168.02 |
6% OFF Phone Price : $178.02
In Stock
Washer Washplate AGZ72909703
#K020

Tub parts diagram

Washer washplate

Part #AGZ72909703

Replaced by #AGZ72909711

?
Manufacturer substitution
This part replaces AGZ72909703. Substitute parts can look different from the original.
BEST SELLER
$168.02 |
6% OFF Phone Price : $178.02
In Stock
Washer Motor Rotor Position Sensor 6501KW2002A
#K351

Tub parts diagram

Washer motor rotor position sensor

Part #6501KW2002A

Replaced by #6501KW2002B

?
Manufacturer substitution
This part replaces 6501KW2002A. Substitute parts can look different from the original.
BEST SELLER
$35.77 |
12% OFF Phone Price : $40.77
In Stock
Washer Drain Pump (replaces Aha74333302) 5859EA1004G
#F080

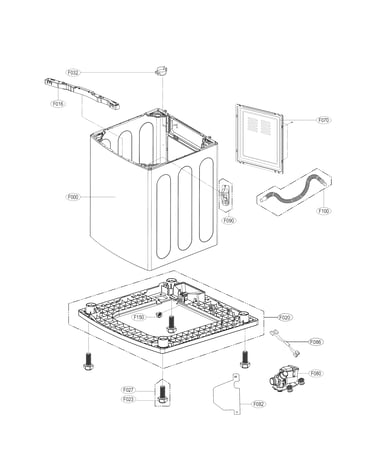

Out case parts diagram

Washer drain pump (replaces aha74333302)

Part #5859EA1004G

BEST SELLER
$120.66 |
8% OFF Phone Price : $130.66
In Stock
Washer Drive Shaft And Shifter Assembly 3661EA1009E
#K170

Tub parts diagram

Washer drive shaft and shifter assembly

Part #3661EA1009E

Replaced by #AEN73131403

?
Manufacturer substitution
This part replaces 3661EA1009E. Substitute parts can look different from the original.
BEST SELLER
$215.59 |
$10.00 OFF Phone Price : $225.59
In Stock
Washer Drain Hose (replaces 5251fa1699p, Aem73652901) AEM73213001
#K140

Tub parts diagram

Washer drain hose (replaces 5251fa1699p, aem73652901)

Part #AEM73213001

BEST SELLER
$37.29 |
12% OFF Phone Price : $42.29
In Stock
Washer Drive Motor (replaces 4417fa1994g) 4417EA1002Y
#K200

Tub parts diagram

Washer drive motor (replaces 4417fa1994g)

Part #4417EA1002Y

BEST SELLER
$179.46 |
5% OFF Phone Price : $189.46
In Stock
Washer Drain Hose MEJ62685201
#F100

Out case parts diagram

Washer drain hose

Part #MEJ62685201

Replaced by #AEM73732901

?
Manufacturer substitution
This part replaces MEJ62685201. Substitute parts can look different from the original.
BEST SELLER
$36.23 |
12% OFF Phone Price : $41.23
In Stock
Washer Water Inlet Valve 5221EA1008F
#A180

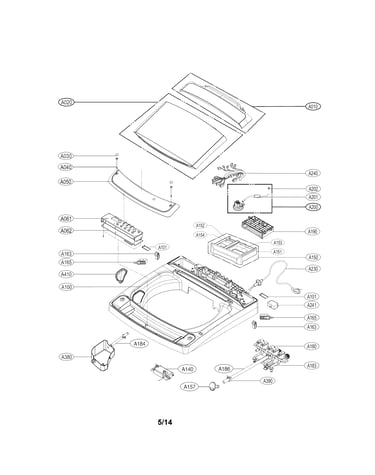

Top cover parts diagram

Washer water inlet valve

Part #5221EA1008F

BEST SELLER
$110.03 |
8% OFF Phone Price : $120.03
In Stock
