Model #KUIS18NNJB7 KitchenAid freestanding ice maker

Here are the diagrams and repair parts for KitchenAid KUIS18NNJB7 freestanding ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

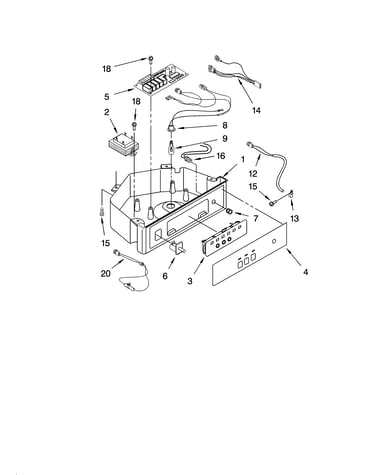

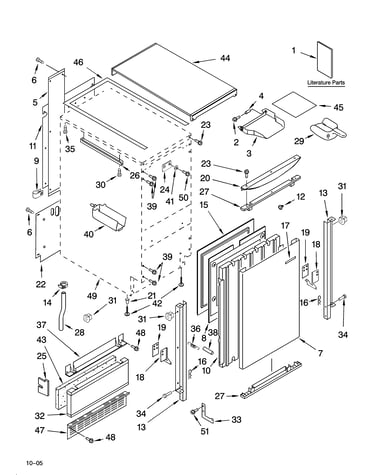

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 168 parts

    Whirlpool Freestanding Ice Maker Cleaner#NI

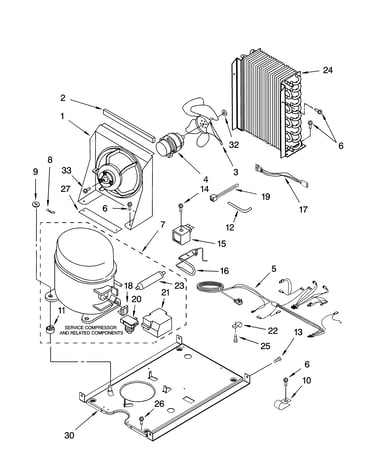

    Unit parts, optional parts Diagram

    Freestanding ice maker cleaner

    Part #8171307
    Replaced by #4396808
    ?
    Manufacturer substitution
    This part replaces 8171307. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    In Stock
    $18.59
    Refrigerator Water Tubing#8

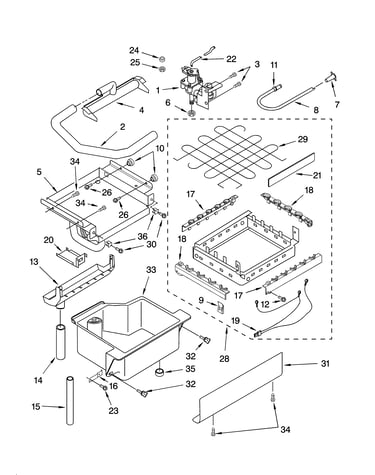

    Evaporator, ice cutter grid and water parts Diagram

    Water tube

    Part #2172593
    Replaced by #W10823511
    ?
    Manufacturer substitution
    This part replaces 2172593. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.19
    Refrigerator Condenser Fan Motor#4

    Unit parts, optional parts Diagram

    Condenser motor

    Part #2188537
    Replaced by #W10822259
    ?
    Manufacturer substitution
    This part replaces 2188537. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $126.09 |
    10% OFF
    MSRP: $140.00
    Ice Maker Cutter Grid#28

    Evaporator, ice cutter grid and water parts Diagram

    Cutter grid

    Part #2313601
    Replaced by #WP2313637
    ?
    Manufacturer substitution
    This part replaces 2313601. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $182.39 |
    9% OFF
    MSRP: $200.00
    Appliance Silicone Sealant#NI

    Unit parts, optional parts Diagram

    Cement

    Part #797403
    Replaced by #WP279368
    ?
    Manufacturer substitution
    This part replaces 797403. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $38.49 |
    21% OFF
    MSRP: $49.00
    Refrigerator Water Tube Fitting#6

    Evaporator, ice cutter grid and water parts Diagram

    Refrigerator water tube fitting

    Part #627018
    Replaced by #WP627018
    ?
    Manufacturer substitution
    This part replaces 627018. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.79
    Appliance Screw#6

    Unit parts, optional parts Diagram

    Appliance screw

    Part #304392
    Replaced by #WP489069
    ?
    Manufacturer substitution
    This part replaces 304392. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.99 |
    30% OFF
    MSRP: $4.30
    Refrigerator Screw#33

    Unit parts, optional parts Diagram

    Screw

    Part #489494
    Replaced by #WP8281196
    ?
    Manufacturer substitution
    This part replaces 489494. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.99
    Refrigerator Screw#26

    Unit parts, optional parts Diagram

    Screw

    Part #488500
    Replaced by #WP489128
    ?
    Manufacturer substitution
    This part replaces 488500. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.12
    Refrigerator Service Valve#NI

    Unit parts, optional parts Diagram

    Refrigerator service valve

    Part #978028
    This item is not returnable
    In Stock
    $14.69 |
    6% OFF
    MSRP: $15.55
