Whirlpool GI6FARXXB03 refrigerator Parts

Yes. A bottom-mount refrigerator like the Whirlpool GI6FARXXB03 is a great choice for many kitchens because fresh-food items sit at eye and waist level, while the freezer stays below. It is especially convenient if you access the refrigerator section more often than the freezer.

What “good” usually means with bottom-mount designs

Bottom-mount models are popular because they balance everyday comfort with storage flexibility.

• Less bending for fresh food, drinks, and leftovers
• Wide refrigerator shelves and door bins for daily items
• Freezer drawer storage that can be easier to organize than a top freezer
• Often a good fit for families who use the refrigerator section most
• Works well in tighter kitchens when door swing clearance is planned correctly

Installation and clearance tips (important for satisfaction)

A bottom-mount can feel “not good” if it is crowded into a tight space. For the Whirlpool GI6FARXXB03, our guidance is to follow the spacing and leveling instructions in the GI6FARXXB03 owner's manual.

Typical clearances called out for this model include:

Location	Recommended space
Each side and top	1/2 inch (1.25 cm)
Behind refrigerator	1 inch (2.54 cm)
Next to a fixed wall (door swing)	3 3/4 inches (9.5 cm)

When a bottom-mount is the best choice (and when it is not)

Bottom-mount is usually “best” when you prioritize fresh-food access and organization.

• Best for: frequent cooking, meal prep, families, and anyone who wants less bending
• Not ideal for: users who want the freezer at eye level, or kitchens with very limited door-swing clearance

Why it matters

Choosing the right layout affects daily comfort, food visibility (less forgotten food), and how well doors and drawers operate. Proper ventilation space and correct leveling also help the refrigerator cool efficiently and close smoothly.

Last updated: January 2026

On the Whirlpool GI6FARXXB03 bottom-mount refrigerator, we remove the bottom grille (base grille) by opening the doors, grasping the grille firmly, and pulling it straight toward you to release it. This gives access for cleaning and leveling adjustments; see the GI6FARXXB03 owner's manual.

Steps to remove the bottom grille

• Open both refrigerator doors for clearance.
• Place both hands near the left and right ends of the grille.
• Pull the grille straight toward you with steady, even force.
• If one side releases first, keep the grille level and continue pulling until the other side pops free.
• Set the grille aside where it will not get stepped on.

Before you start (recommended safety)

If you are removing the grille to clean the condenser area, we do this first:

• Unplug the refrigerator (or disconnect power).
• Use a soft brush vacuum attachment around the grille opening.
• Avoid bending tubing or wiring behind the grille.

What you can do once the grille is off

Task	What to do	Typical tool
Clean condenser area	Vacuum dust from the open areas and front surface	Vacuum with soft brush
Level the refrigerator	Turn the front leveling screws to adjust tilt	1/4-inch hex driver
Inspect for leaks	Look for water tracks near the front base	Flashlight

Why it matters

A properly seated base grille helps protect the condenser area from debris, and removing it periodically makes it easier to keep airflow clear. Clear airflow helps the compressor and condenser run efficiently and can reduce warm-temperature complaints.

Last updated: January 2026

A refrigerator with the freezer on the bottom is called a bottom-mount (also commonly called a bottom-freezer) refrigerator. Your Whirlpool GI6FARXXB03 is this style: fresh food on top, freezer storage in the lower section.

What “bottom-mount” means in everyday use

Bottom-mount designs put the refrigerator compartment at eye level and the freezer below, usually as a pull-out drawer. On GI6FARXXB03, the manual also references aligning the refrigerator door with the top of the freezer drawer during door and hinge work.

• Fresh food items are easier to reach because they are higher up
• The freezer is accessed from the lower compartment (often a drawer)
• Door alignment matters because the refrigerator door should sit evenly above the freezer drawer
• Moving or servicing the unit often takes two people due to weight and drawer handling

Quick comparison: common refrigerator styles

Style name	Freezer location	Typical access	Common benefit
Bottom-mount (bottom-freezer)	Bottom	Pull-out drawer or lower door	Fresh food at eye level
Top-freezer	Top	Swing door	Simple layout, often lower cost
Side-by-side	Left side	Swing door	Narrow door swing, easy freezer access

Why it matters

Knowing the style helps you choose the right parts and follow the right service steps. For example, bottom-mount models often involve freezer drawer removal and door alignment steps that are different from top-freezer refrigerators.

Helpful reference

• For door, hinge, and freezer drawer handling steps specific to Whirlpool GI6FARXXB03, use the GI6FARXXB03 owner’s manual.

Last updated: January 2026

The most common Whirlpool refrigerator problem is a cooling complaint: the refrigerator or freezer is warm, temperatures swing, or the unit runs constantly. On the Whirlpool GI6FARXXB03, we start with basic power and control checks from the GI6FARXXB03 owner's manual, then move to airflow, coil cleanliness, and ice maker or water system issues.

Most common symptoms we see

• Refrigerator section warm but freezer cold (airflow or damper issue)
• Freezer warm and ice cream soft (cooling system or airflow issue)
• Unit runs a lot or seems louder than normal (dirty coils, fan, or sealed-system strain)

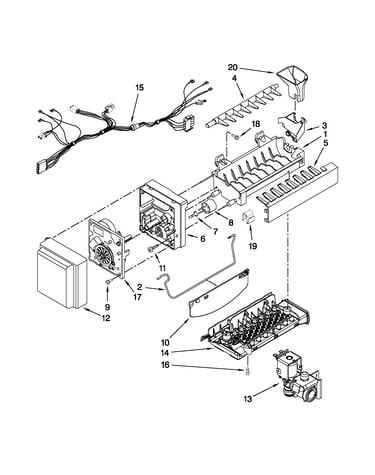

• Ice maker not making ice or dispenser issues (water supply, valve, filter path)
• Lights not working when the door opens (door switch or light circuit)

Quick checks that solve many “not cooling” calls

Before replacing parts, we recommend these practical steps:

• Confirm the controls are turned on and set correctly.
• Verify the outlet has power (test with a lamp) and reset the breaker if needed.
• Avoid extension cords; plug into a grounded 3-prong outlet.
• Make sure vents inside the fresh food and freezer sections are not blocked by food.
• Clean dust from the condenser area (a common cause of poor cooling and long run times).

Parts that commonly relate to these problems (when checks do not help)

If symptoms point to a failed component, these model-matched parts are common suspects:

Symptom	Likely area	Example model-matched part
Fresh food warm, freezer OK	Airflow/damper	Refrigerator damper control assembly WPW10196393
No water to ice maker/dispenser	Water supply/valve	Refrigerator inlet valve WPW10498990
Interior light issues	Door switch	Refrigerator light switch W11396033

Why it matters

Cooling and airflow problems can look like “the fridge is bad,” but they are often caused by simple power, airflow, or maintenance issues. Starting with the basics helps prevent unnecessary part replacement and gets temperatures back to normal faster.

Last updated: January 2026
