GE JSS16PD1AD electric range

GE JSS16PD1AD electric range Parts

Here are the diagrams and repair parts for GE JSS16PD1AD electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

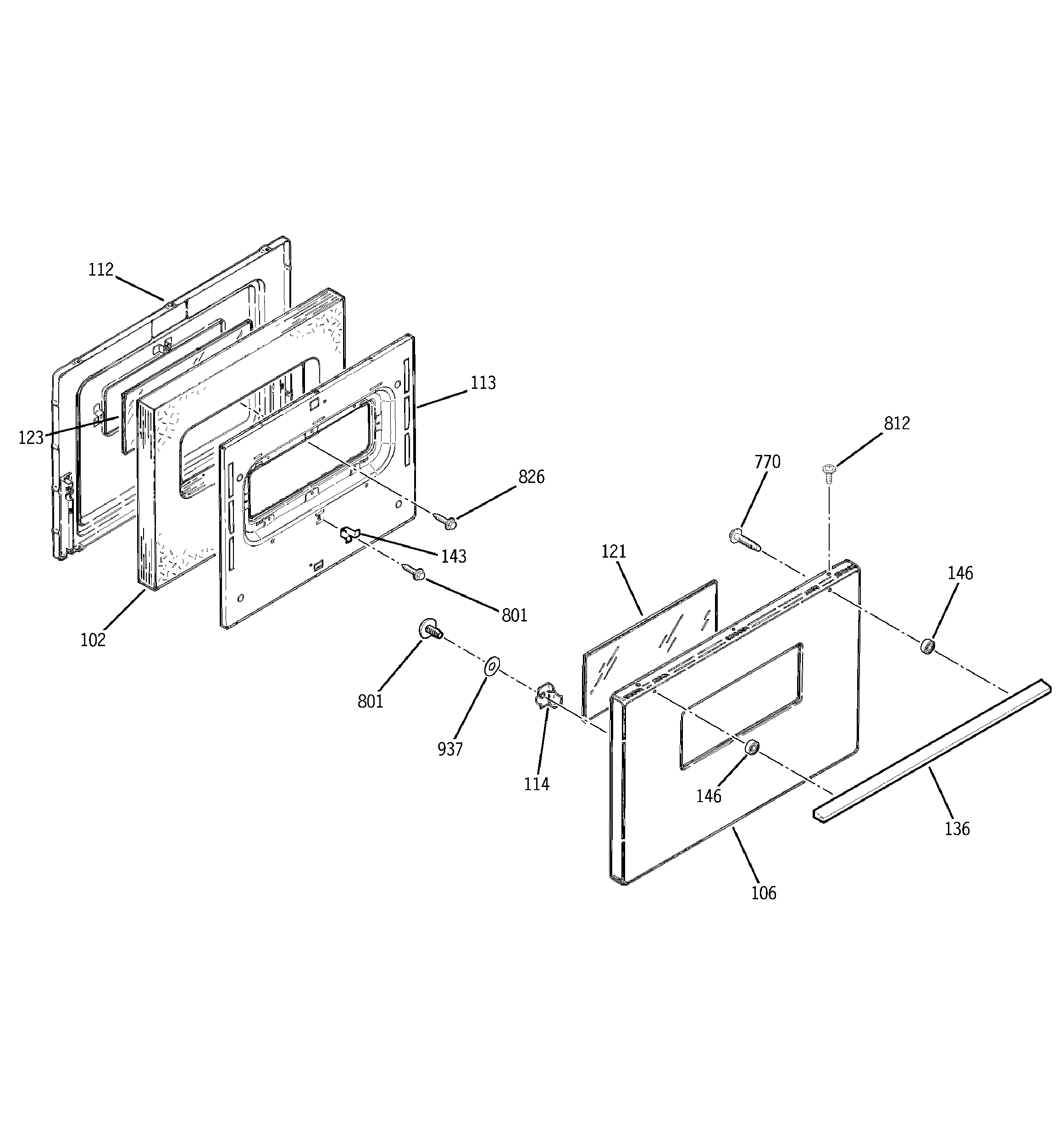

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JSS16PD1AD Ranges

  • G.e. Range Bake Element for GE JSS16PD1AD - Part WB44K5012

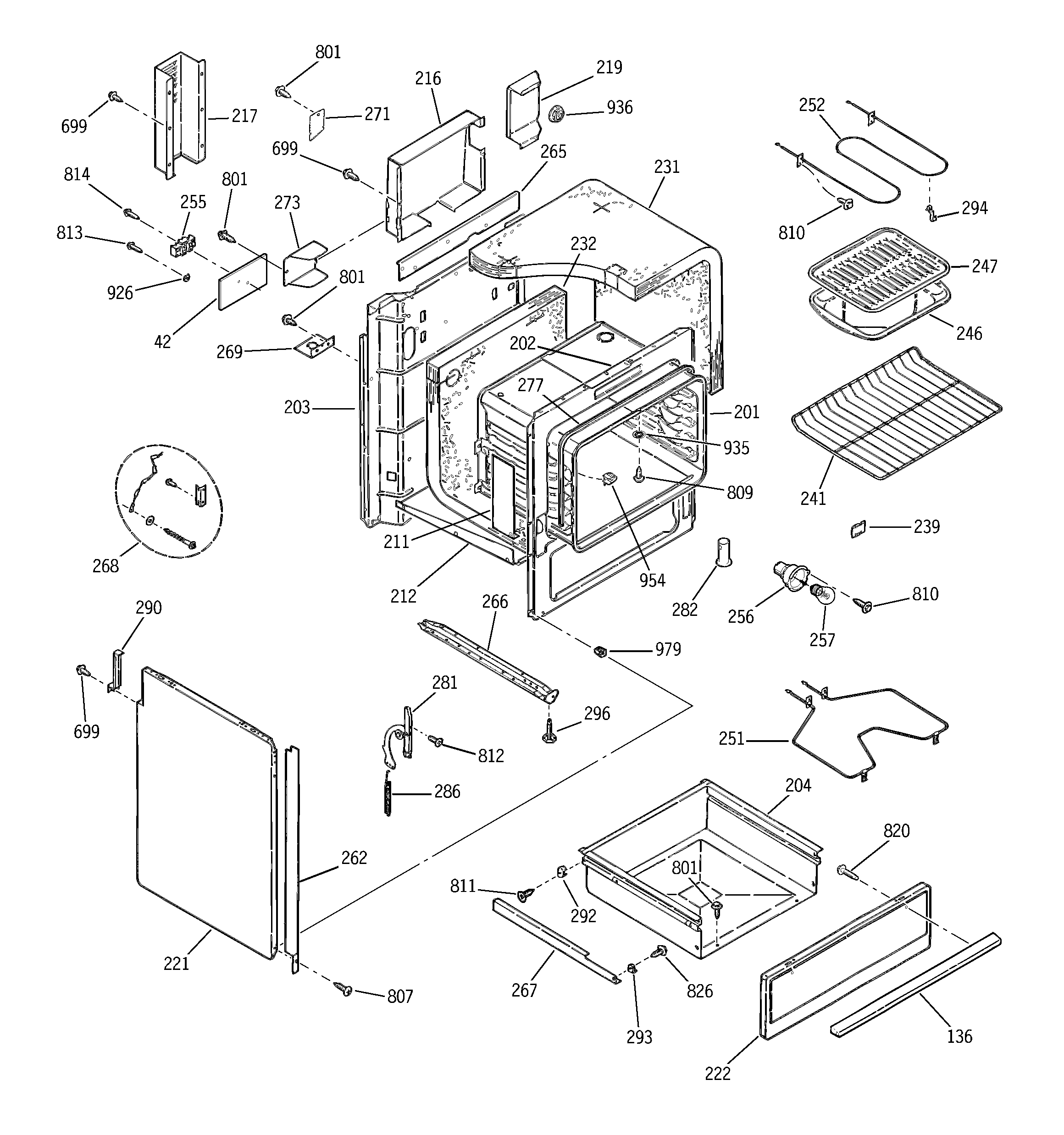

    Body parts diagram

    G.e. Range Bake Element

    Part #WB44K5012
    In Stock
    $49.52
    11% OFF Phone Price : $55.52Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Appliance Light Bulb, 40-watt for GE JSS16PD1AD - Part 40A15

    Body parts diagram

    Oven Lamp

    Part #WB08T10022

    Replaced by #40A15

    Info Icon
    Manufacturer substitution
    This part replaces WB08T10022. Substitute parts can look different from the original.
    In Stock
    $14.95
    12% OFF Phone Price : $16.95Info Icon
    Minus Item
    Qty
    Plus Item
  • Hotpoint Range Surface Element Receptacle for GE JSS16PD1AD - Part WB17T10006

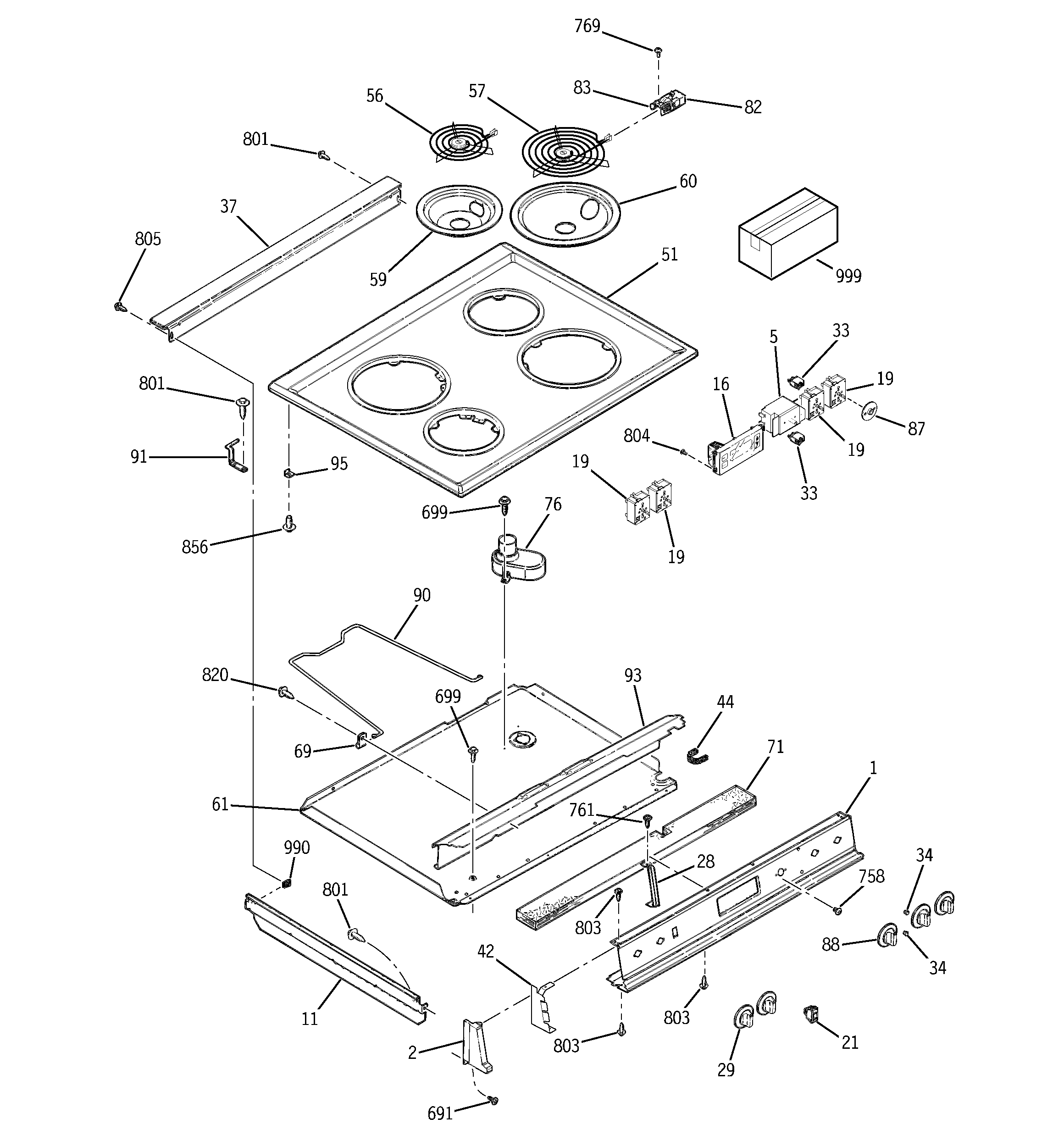

    Control panel & cooktop diagram

    Terminal Block

    Part #WB17T10001

    Replaced by #WB17T10006

    Info Icon
    Manufacturer substitution
    This part replaces WB17T10001. Substitute parts can look different from the original.
    In Stock
    $23.89
    20% OFF Phone Price : $29.89Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Range Drip Pan (chrome) for GE JSS16PD1AD - Part WB31T10010

    Control panel & cooktop diagram

    G.e. Range Drip Pan (chrome)

    Part #WB31T10010
    In Stock
    $18.69
    10% OFF Phone Price : $20.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Coil Surface Element, 8-in for GE JSS16PD1AD - Part WB30M2

    Control panel & cooktop diagram

    8" Surf Elem

    Part #WB30X5120

    Replaced by #WB30M2

    Info Icon
    Manufacturer substitution
    This part replaces WB30X5120. Substitute parts can look different from the original.
    In Stock
    $59.19
    9% OFF Phone Price : $65.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Hinge, Right for GE JSS16PD1AD - Part WB14X104

    Body parts diagram

    Hinge

    Part #WB14X0104

    Replaced by #WB14X104

    Info Icon
    Manufacturer substitution
    This part replaces WB14X0104. Substitute parts can look different from the original.
    In Stock
    $66.81
    8% OFF Phone Price : $72.81Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Coil Surface Element, 6-in for GE JSS16PD1AD - Part WB30M1

    Control panel & cooktop diagram

    Unit Asm 6"

    Part #WB30X5119

    Replaced by #WB30M1

    Info Icon
    Manufacturer substitution
    This part replaces WB30X5119. Substitute parts can look different from the original.
    In Stock
    $42.34
    12% OFF Phone Price : $48.34Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Control Switch for GE JSS16PD1AD - Part WB23K5027

    Control panel & cooktop diagram

    Range Surface Element Control Switch

    Part #WB23K5027
    In Stock
    $89.64
    27% OFF Was : $123.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JSS16PD1AD - Part WB1X1130

    Body parts diagram

    Screw, #10-32 X 17/32-in

    Part #WB01X1253

    Replaced by #WB1X1130

    Info Icon
    Manufacturer substitution
    This part replaces WB01X1253. Substitute parts can look different from the original.
    In Stock
    $9.86
    9% OFF Phone Price : $10.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JSS16PD1AD - Part WB1X1137

    Body parts diagram

    Screw

    Part #WB01X1137

    Replaced by #WB1X1137

    Info Icon
    Manufacturer substitution
    This part replaces WB01X1137. Substitute parts can look different from the original.
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
