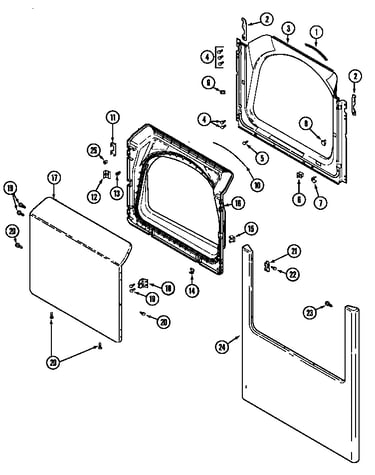

To remove the front panel on your Maytag MDE9806AYA dual-fuel dryer, unplug the dryer first, then remove the lower front mounting screws and release the top retaining clips so you can tilt the panel forward and disconnect the door switch wiring before lifting the panel off.

Before you start (safety and prep)

• Unplug the dryer from the wall outlet.

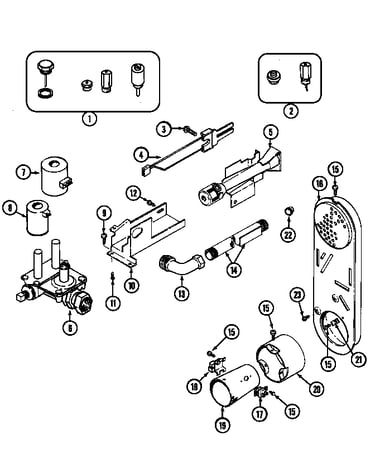

• If your MDE9806AYA is installed as a gas dryer, shut off the gas supply valve.
• Pull the dryer forward so you can access the lower front screws.
• Protect the floor with cardboard or a towel to prevent scratches.
• Have a container ready for screws.

Front panel removal steps (typical Maytag design)

1. Remove the lint screen (if it is in the top panel) and check for any screws under the lint screen housing.
2. Remove the two screws near the bottom of the front panel (common on many Maytag-built dryers).
3. Pull the bottom of the front panel slightly outward.
4. Release the top clips by lifting the panel up and out; if it is tight, use a putty knife to depress the spring clips.
5. Disconnect the door switch wire harness (note the connector orientation).
6. Lift the front panel off the cabinet and set it aside.

What you can inspect once the front is off

What you see	What it usually means	Common next step
Lint buildup in blower area	Airflow restriction, overheating risk	Vacuum lint, check venting
Worn belt or slack belt	Drum may not tumble	Replace belt, tumble WP33002535
Squealing or thumping rollers	Worn drum support rollers	Inspect/replace roller w/bea 12001541
No heat symptoms with good airflow	Possible safety device or control issue	Test dryer thermal fuse, 243-degree f WP307473

Why it matters

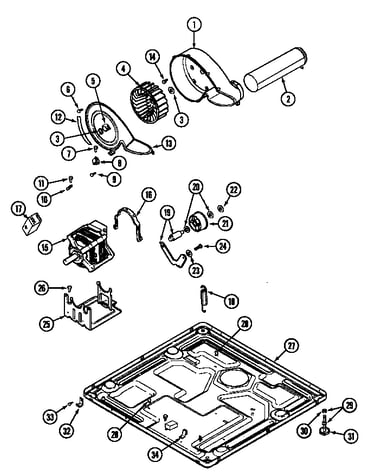

Removing the front panel is the fastest way to access the drum, belt, idler area, and blower housing on the MDE9806AYA, which helps us diagnose no-heat, no-tumble, and noise problems accurately.

Last updated: February 2026

A Maytag dryer typically lasts 13 years. For your Maytag MDE9806AYA dual-fuel dryer, regular airflow maintenance and timely replacement of wear parts (belt, rollers, thermostats, thermal fuse) are what most often determine whether it reaches or exceeds that average.

Typical lifespan ranges

Most dryers fall into a predictable range based on use and maintenance.

Usage pattern	Typical life expectancy	What usually limits life
Light (few loads/week)	15 to 18 years	Age-related wear, corrosion
Average (4 to 7 loads/week)	12 to 14 years	Belt, rollers, heat control parts
Heavy (daily loads)	8 to 12 years	Motor wear, drum support wear, overheating

What helps a Maytag dryer last longer

We see the biggest lifespan gains when customers focus on airflow and drum support.

• Clean the lint screen every load; replace a damaged screen such as the dryer lint filter WP33001808.
• Keep the vent run short and clear; restricted venting overheats the heater and safety devices.
• Stop squealing or thumping early by servicing drum support parts like the roller w/bea 12001541 and belt.
• Avoid overdrying; excessive heat time accelerates wear on thermostats and seals.
• Level the dryer; vibration increases stress on rollers, idler, and drum bearing surfaces.

Parts that commonly affect “end of life” symptoms

If the dryer still runs but performance is poor, these parts are frequent fixes on MDE9806AYA:

• No heat or intermittent heat: operating thermostat such as thermostat WP3387134 or heater assembly.
• Dryer won’t run: safety devices like the dryer thermal fuse, 243-degree f WP307473 (often triggered by poor venting).
• Loud rumble or thump: drum support roller, drum bearing kit, blower wheel.
• Long dry times: lint filter, vent restriction, blower wheel, rear seal.

Why it matters

A dryer’s “life expectancy” is usually limited by overheating from restricted airflow or mechanical wear in the drum support system. Fixing those early often costs far less than replacing the dryer and restores safe, efficient drying.

Last updated: February 2026

On your Maytag MDE9806AYA dryer, we find the information you need (model and serial tag, plus the data used to match parts) on the appliance identification label, most often on the door opening or the cabinet frame just inside the door. Use that model number to look up the correct part number.

Where to look on the dryer

Check these common label locations first:

• Door opening: on the cabinet frame just inside the door
• Inside the door: along the door edge or inner panel area
• Back panel: near the power cord or gas connection area
• Side panel: near the rear edge of the cabinet
• Lower front area: behind the toe panel or near the lint duct opening (on some builds)

How to use the label to get the right part number

The label usually shows a model number and serial number. For parts ordering, the model number is the key.

What you see	What it’s used for	Example for this dryer
Model number	Matches the correct parts list	MDE9806AYA
Serial number	Identifies production run details	Varies
Gas type or electrical info	Helps confirm configuration	Varies

Quick tips to avoid ordering the wrong part

• Write the model number exactly as shown (letters and numbers matter)
• If the label is worn, take a clear photo and zoom in
• Match the part by name and ID from the parts list, not by appearance alone
• If you are replacing a common wear item, confirm it is listed for MDE9806AYA

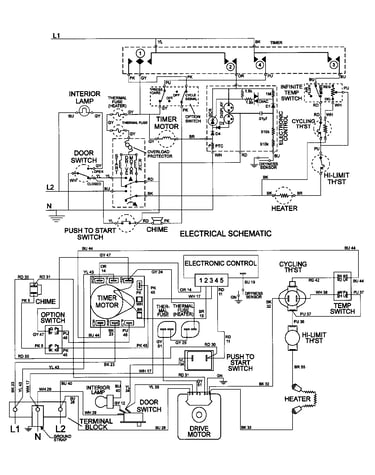

• For electrical troubleshooting before buying parts, use a meter test process like how to use a multimeter to test electrical parts video

Example: what a “part number” looks like on Sears PartsDirect

Once you have the model number, you can identify the correct replacement part. For example, a common heating safety part for this dryer is the dryer thermal fuse, 243-degree f WP307473.

Why it matters

Maytag dryers often have similar-looking components across models, but mounting points, temperature ratings (thermostat/thermal fuse), and electrical connectors can differ. Using the MDE9806AYA model tag prevents mismatches and repeat repairs.
