LG
Bottom-Mount Refrigerator

Model # LFX25975SW/00 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LFX25975SW-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |

Refrigerator Filter Dryer 5851JA2007E
#317A

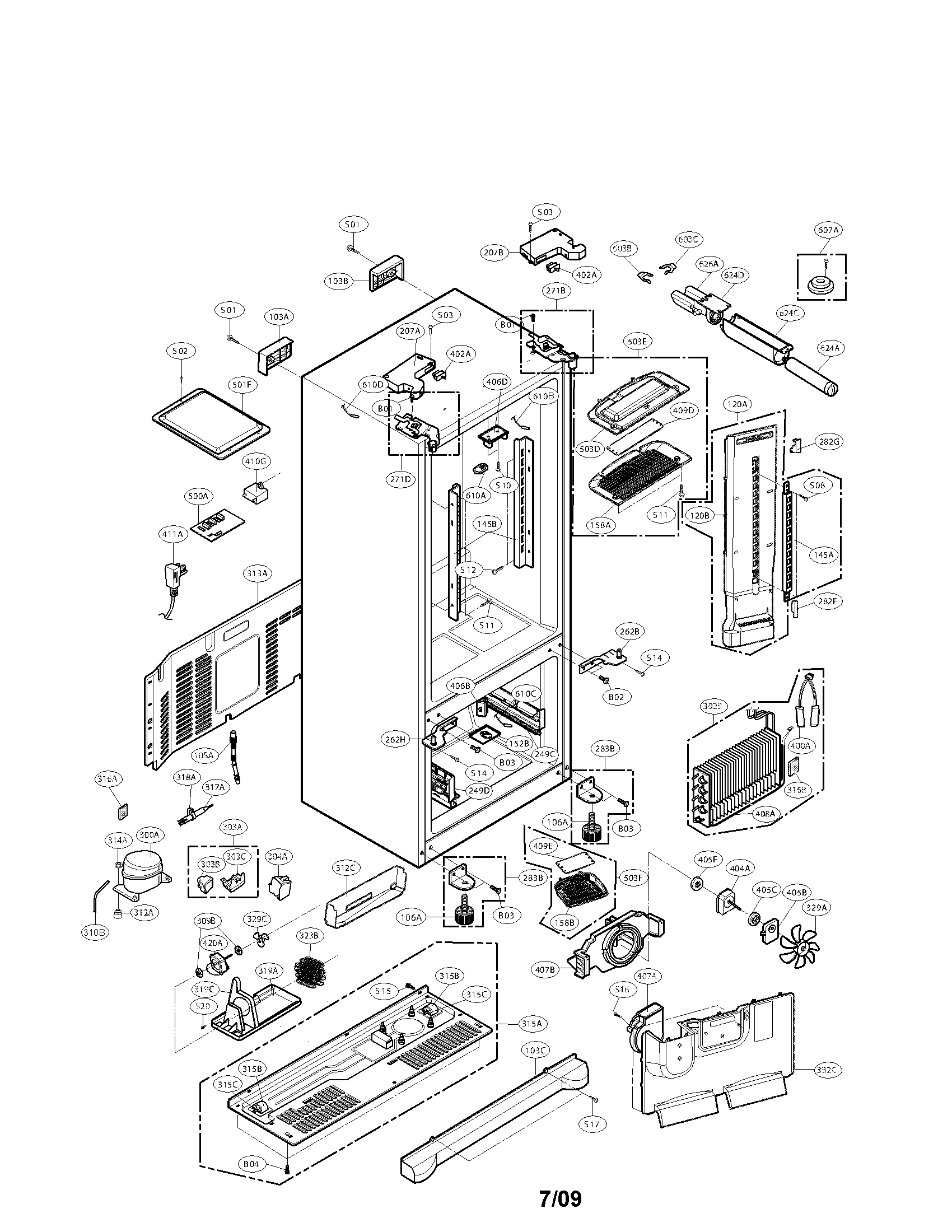

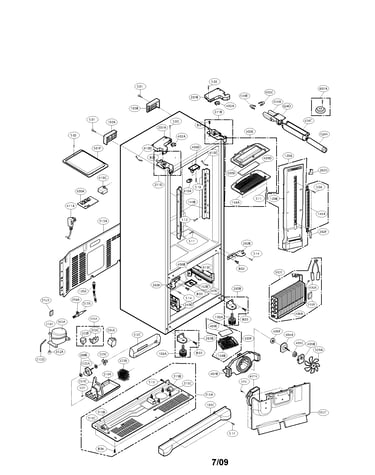

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007E

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007E. Substitute parts can look different from the original.
BEST SELLER
$69.25
7% OFF Phone Price : $74.25
In Stock
Refrigerator Door Switch 6600JB1010K
#406B

Case parts diagram

Refrigerator door switch

Part #6600JB1010K

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1010K. Substitute parts can look different from the original.
BEST SELLER
$21.73
19% OFF Phone Price : $26.73
In Stock
Refrigerator Water Filter 5231JA2006A
#624A

Case parts diagram

Refrigerator water filter

Part #5231JA2006A

Replaced by #5231JA2006F

?
Manufacturer substitution
This part replaces 5231JA2006A. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Refrigerator Water Tubing 5210JA3004U
#616F

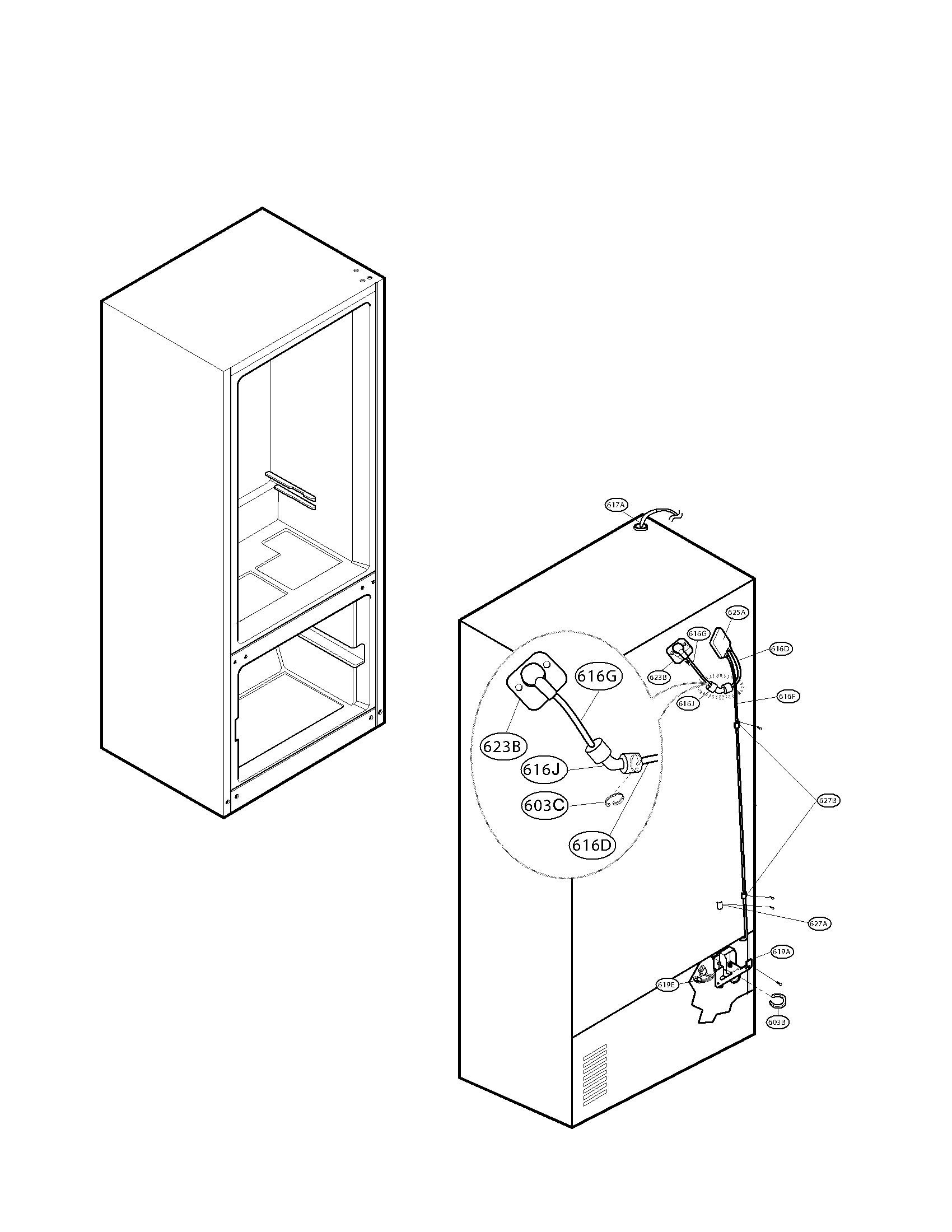

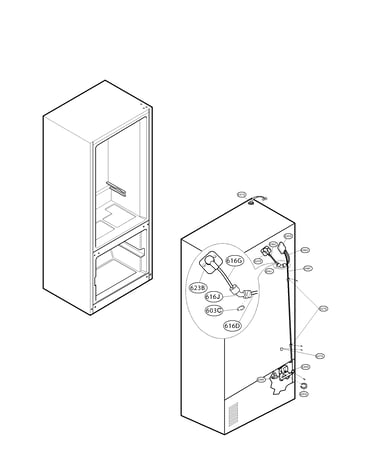

Ice maker parts diagram

Refrigerator water tubing

Part #5210JA3004U

Replaced by #MJU62070602

?
Manufacturer substitution
This part replaces 5210JA3004U. Substitute parts can look different from the original.
BEST SELLER
$14.64
12% OFF Phone Price : $16.64
In Stock
Refrigerator Freezer Basket Support Rail, Left 4932JA1010A
#145M

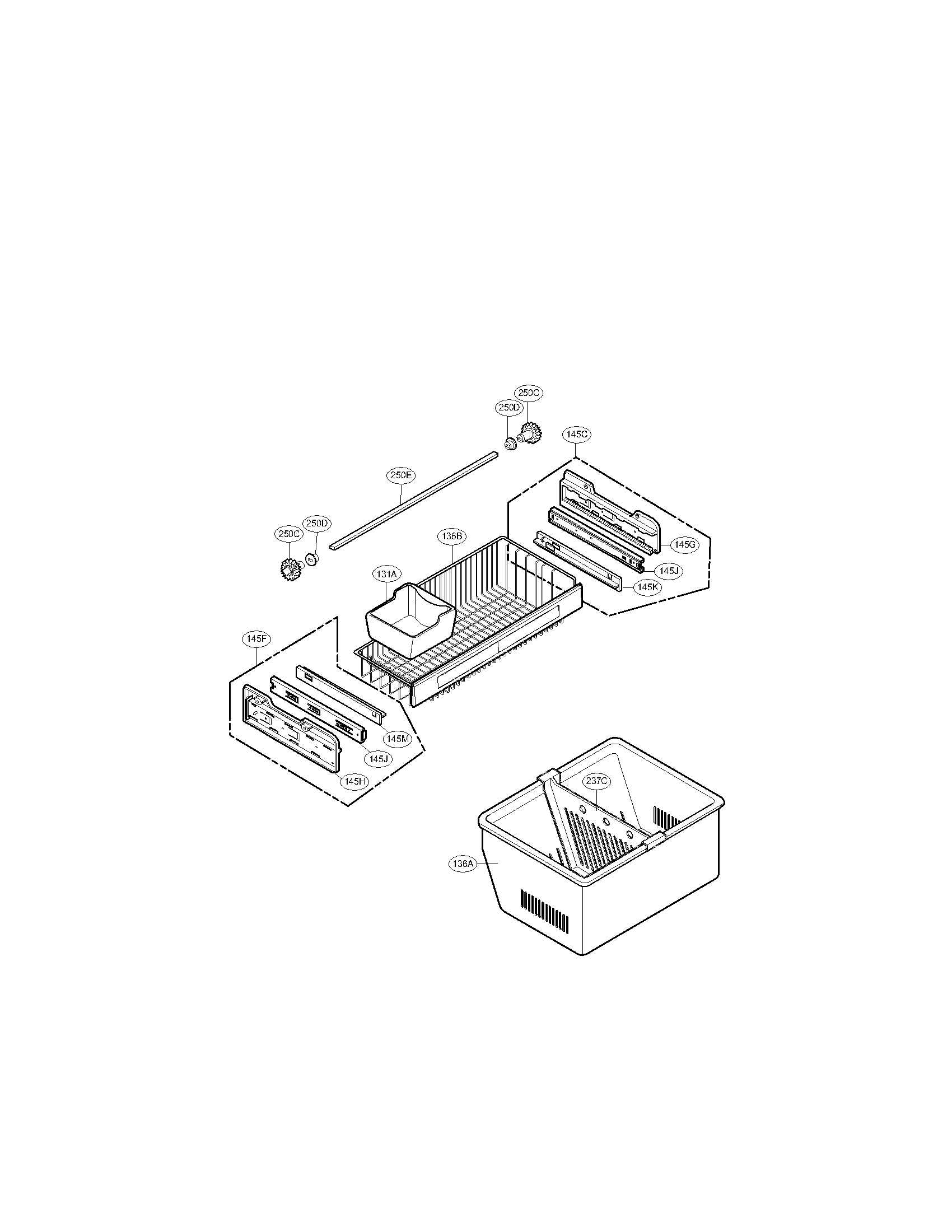

Freezer parts diagram

Refrigerator freezer basket support rail, left

Part #4932JA1010A

BEST SELLER
$11.39
15% OFF Phone Price : $13.39
In Stock
Refrigerator Ice Maker Kit (replaces 5989jb0001a) AEQ36756901
#600A

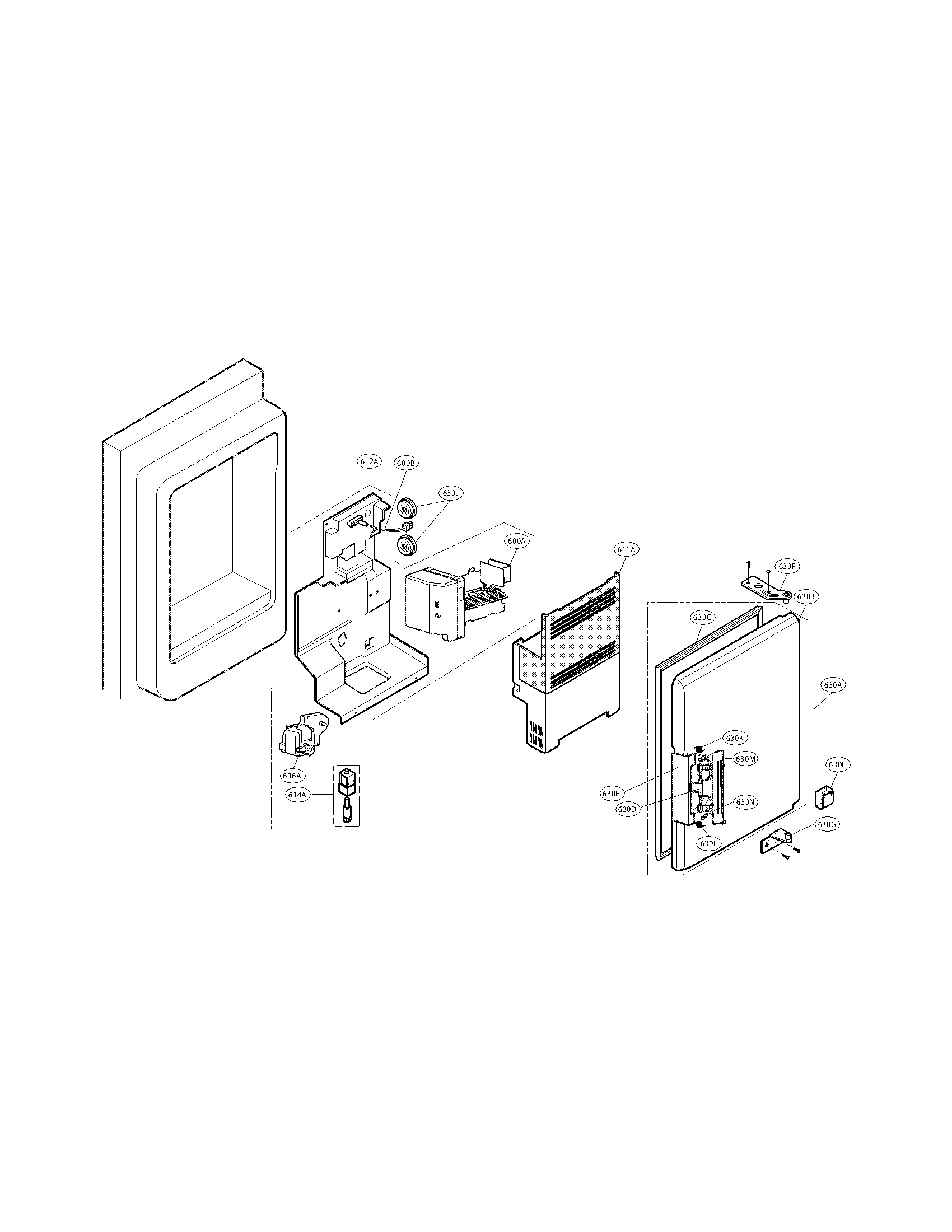

Ice bank parts diagram

Refrigerator ice maker kit (replaces 5989jb0001a)

Part #AEQ36756901

BEST SELLER
$198.10
5% OFF Phone Price : $208.10
In Stock
Refrigerator Door Basket AAP36817401
#241D

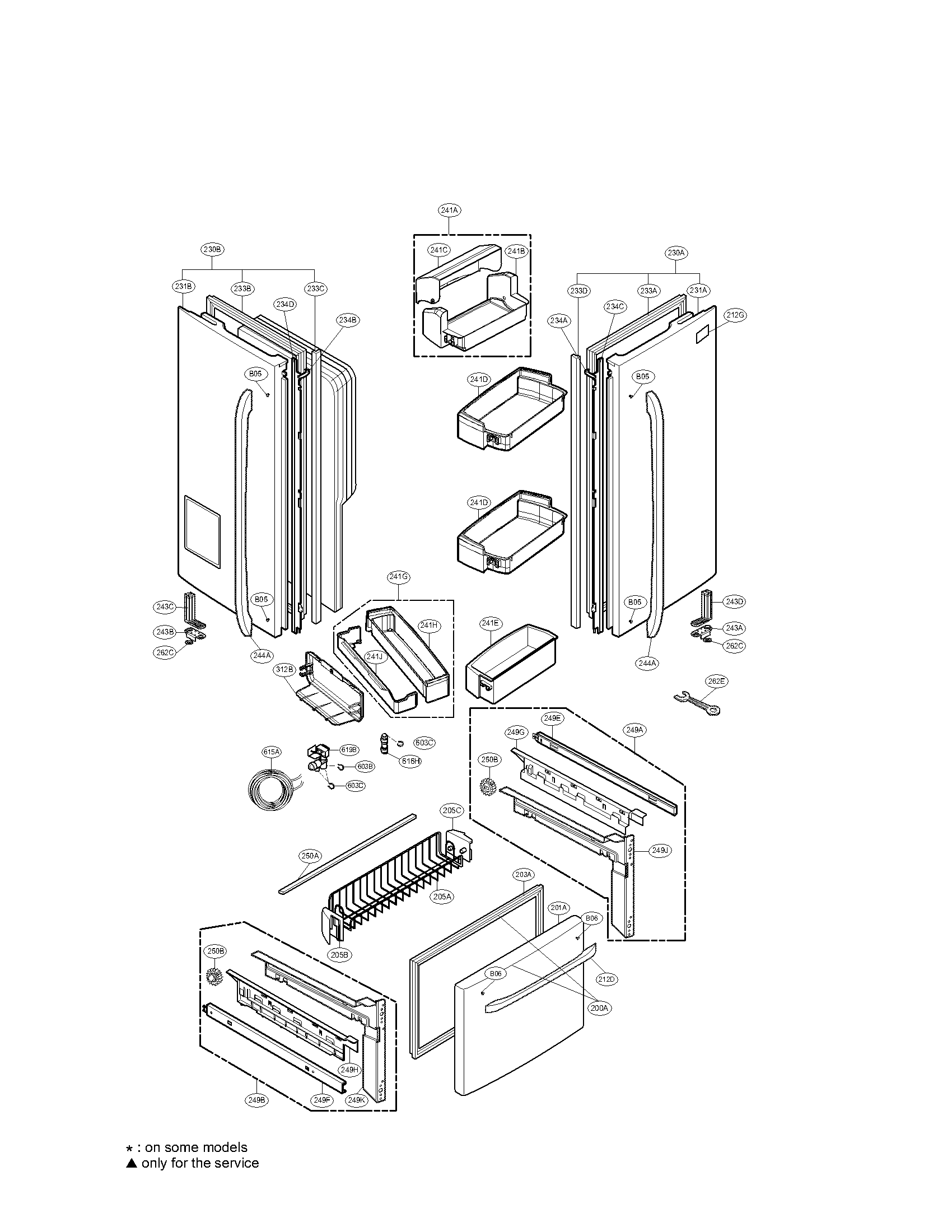

Door parts diagram

Refrigerator door basket

Part #AAP36817401

Replaced by #AAP73871501

?
Manufacturer substitution
This part replaces AAP36817401. Substitute parts can look different from the original.
BEST SELLER
$37.36
12% OFF Phone Price : $42.36
In Stock
Refrigerator Water Inlet Valve 5221JA2011J
#619A

Ice maker parts diagram

Refrigerator water inlet valve

Part #5221JA2011J

Replaced by #MJX41178908

?
Manufacturer substitution
This part replaces 5221JA2011J. Substitute parts can look different from the original.
BEST SELLER
$44.90
10% OFF Phone Price : $49.90
In Stock
Refrigerator Tray AJP36700901
#145D

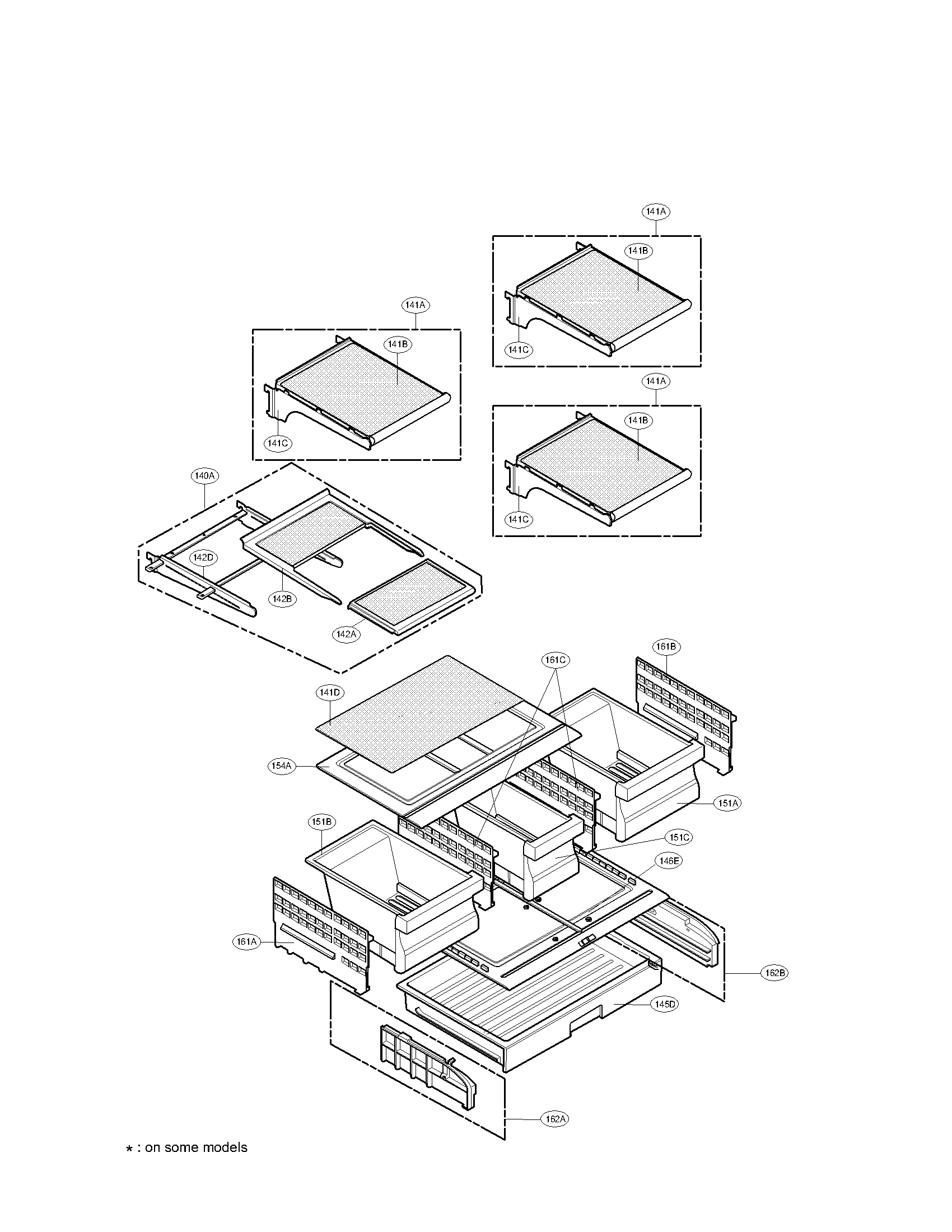

Refrigerator parts diagram

Refrigerator tray

Part #AJP36700901

Replaced by #AJP73874601

?
Manufacturer substitution
This part replaces AJP36700901. Substitute parts can look different from the original.
BEST SELLER
$90.24
5% OFF Phone Price : $95.24
In Stock
Refrigerator Evaporator Fan Motor (replaces 4681jb1027v, 4681jk1004e, Eau52096201, Eau60694512) 4681JB1027C
#404A

Case parts diagram

Refrigerator evaporator fan motor (replaces 4681jb1027v, 4681jk1004e, eau52096201, eau60694512)

Part #4681JB1027C

BEST SELLER
$84.57
6% OFF Phone Price : $89.57
In Stock

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…
