Kenmore
Room Air Conditioner

Model # 58072066200 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58072066200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Capacitor 6120AR2359V
#2-B

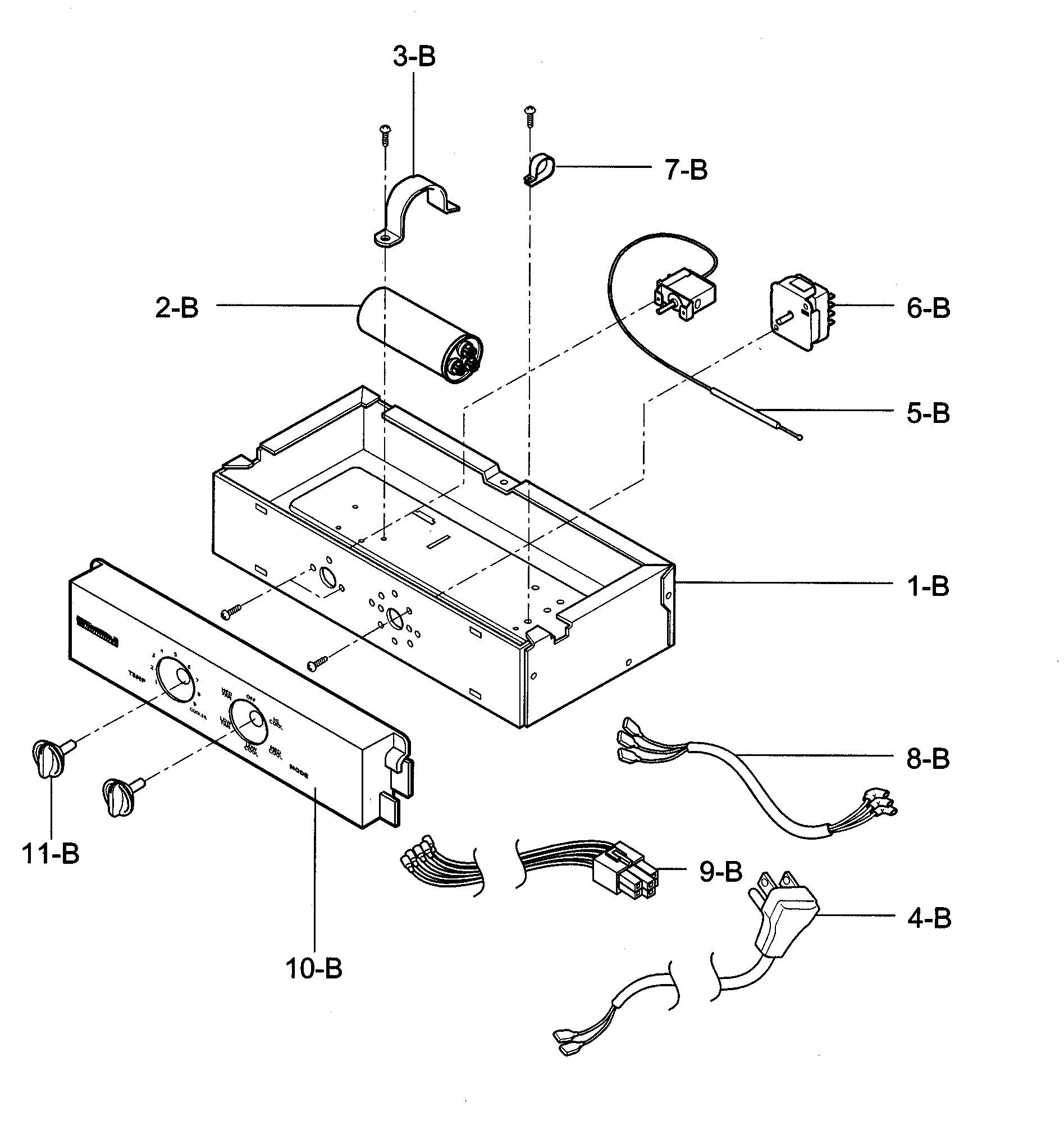

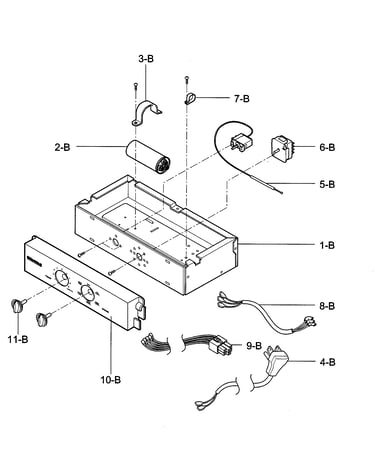

Control box assy diagram

Capacitor

Part #6120AR2359V

Replaced by #0CZZA20005B

?
Manufacturer substitution
This part replaces 6120AR2359V. Substitute parts can look different from the original.
$29.57 |
14% OFF Phone Price : $34.57
In Stock
Overload 6750U-L060A
#6-D

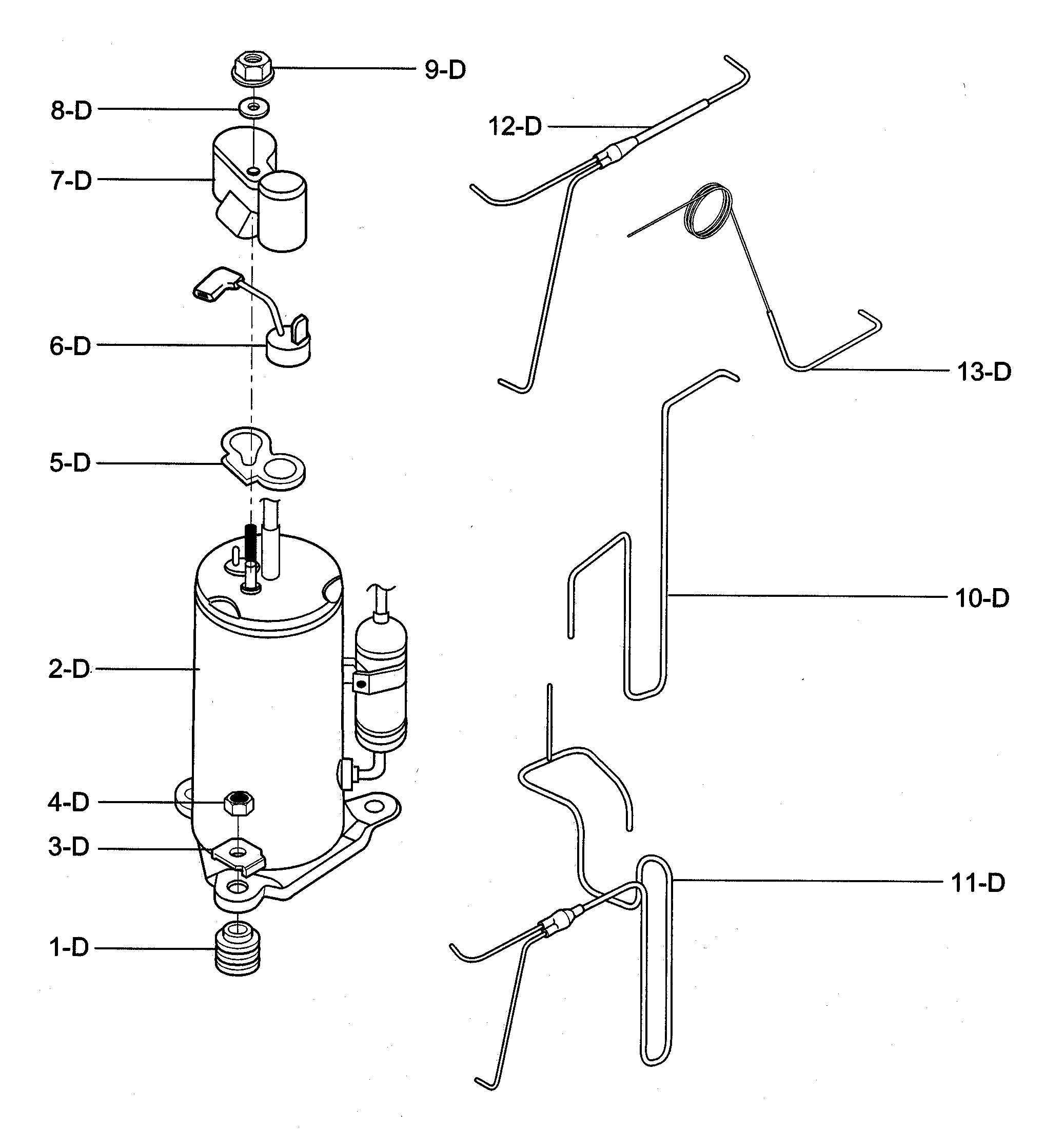

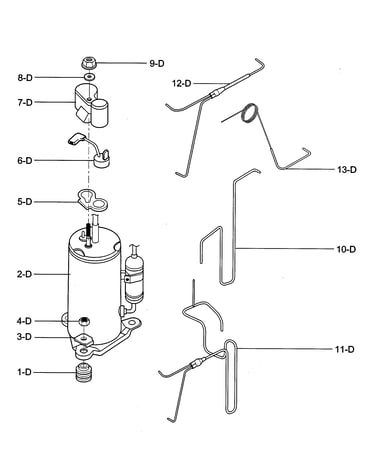

Compressor parts diagram

Overload

Part #6750U-L060A

$46.60
In Stock
Louvr Vert 4758A20017B
#6-A

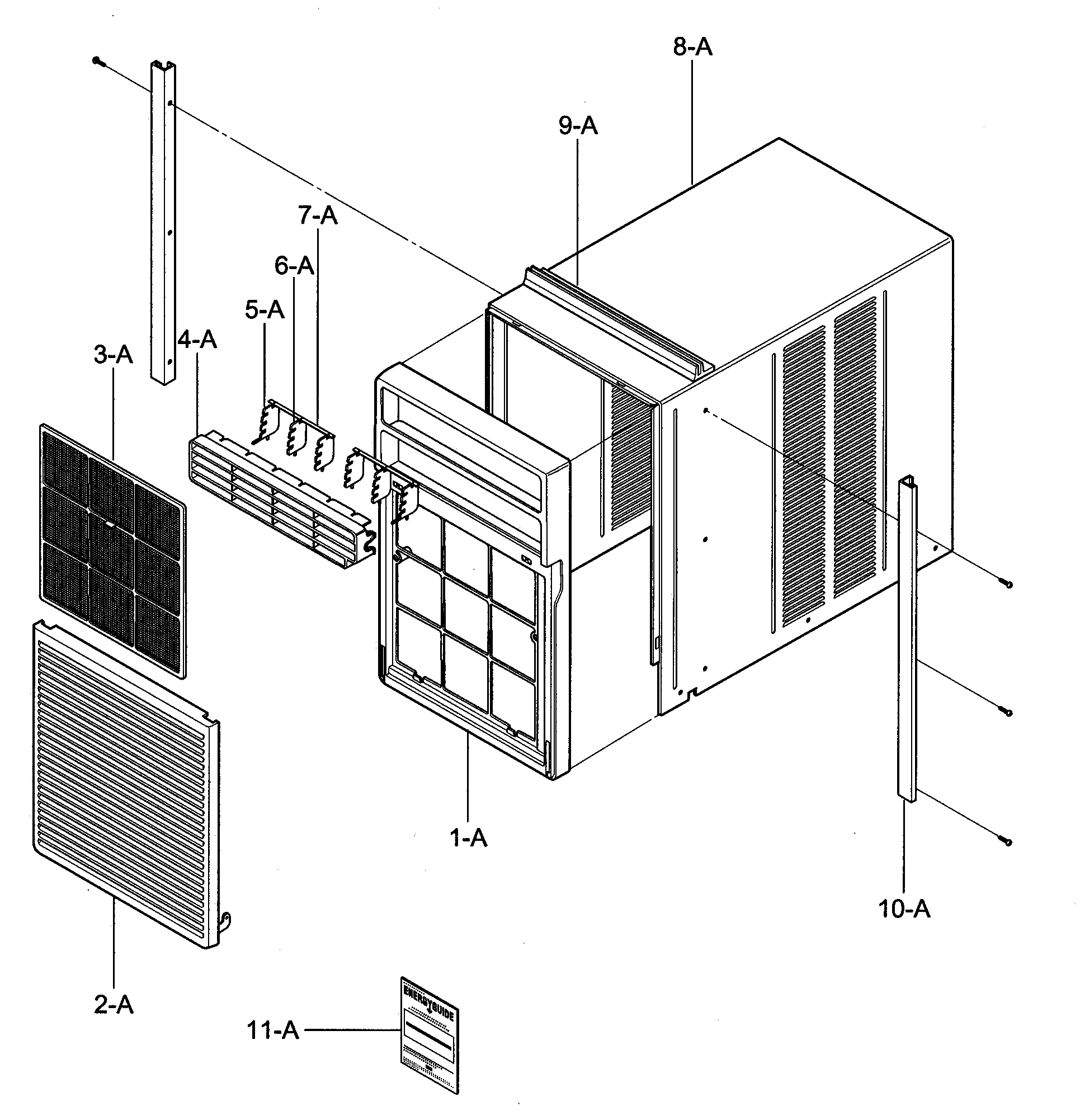

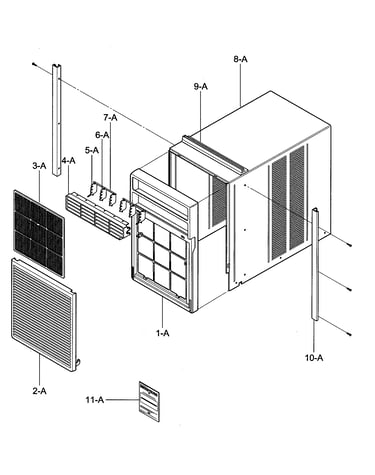

Cabinet/front grille assy diagram

Louvr vert

Part #4758A20017B

This item is not returnable
$3.99
In Stock
Room Air Conditioner Window Lock Bracket 4H01785B
#7-E

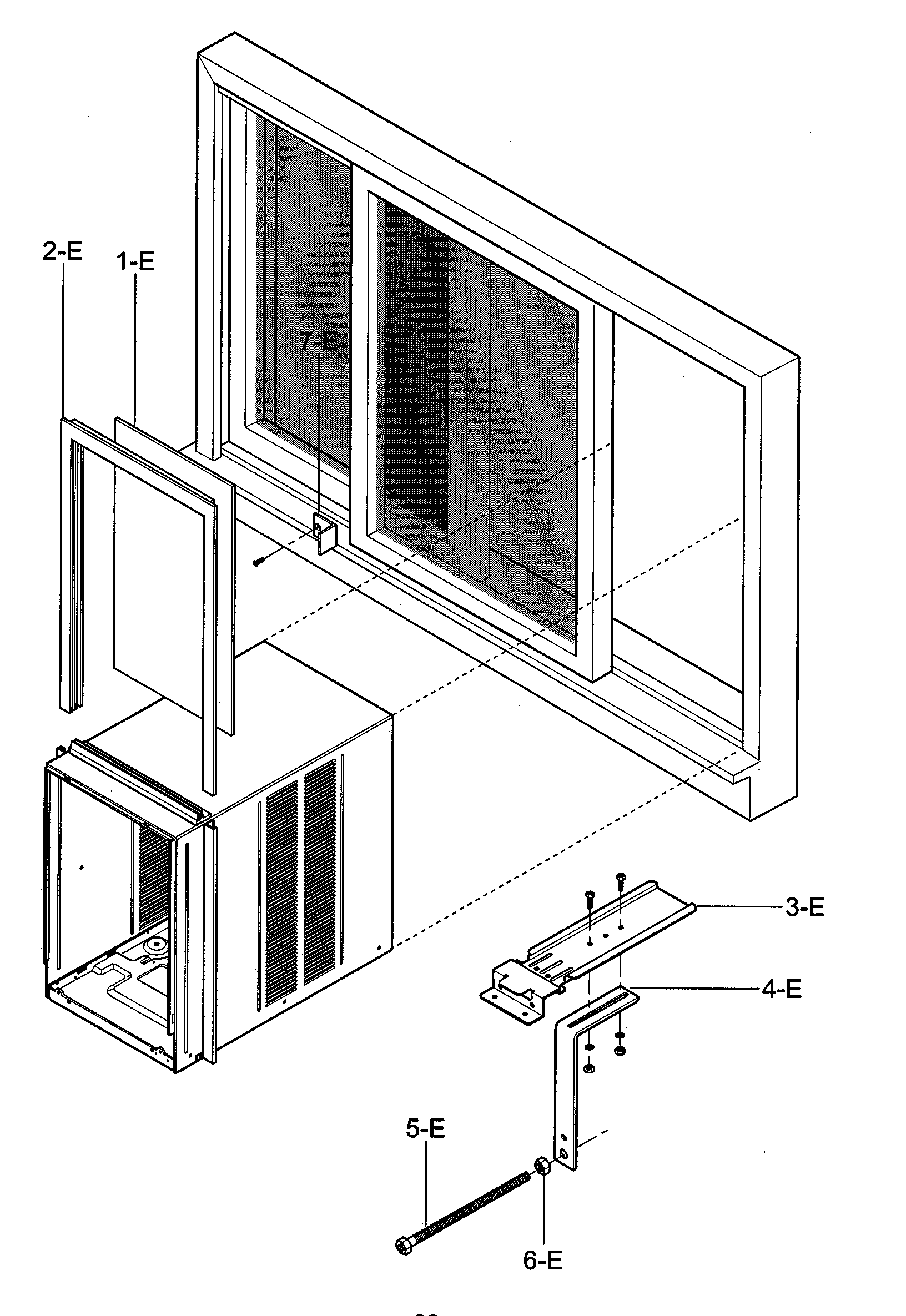

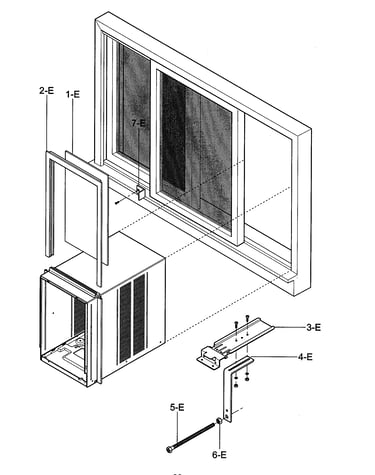

Installation kit parts diagram

Room air conditioner window lock bracket

Part #4H01785B

This item is not returnable
$4.06 |
20% OFF Phone Price : $5.06
In Stock
Rotary Switch 2H00598E
#6-B

Control box assy diagram

Rotary switch

Part #2H00598E

$27.47
In Stock
Motor Mount 4960A20034A
#17-C

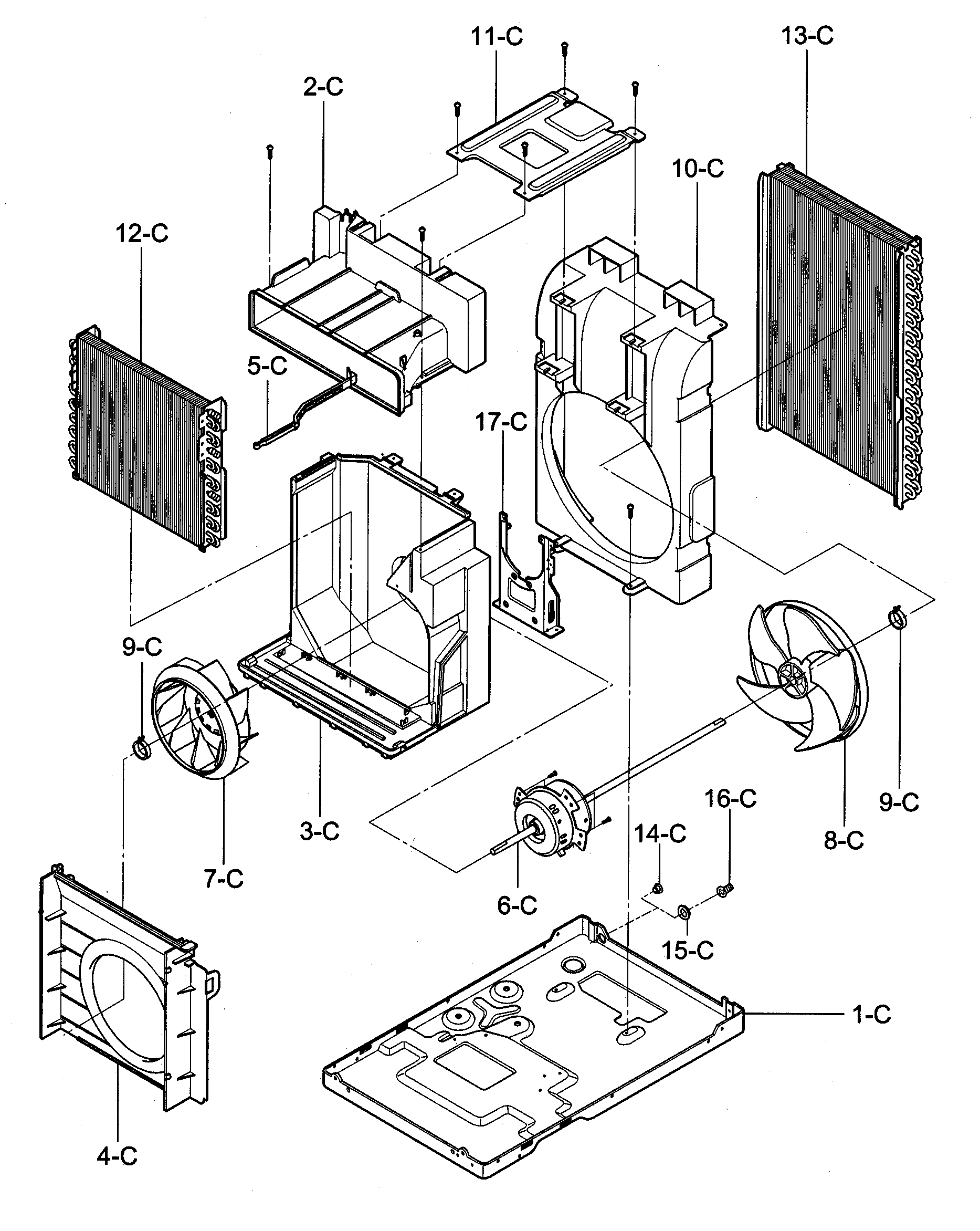

Air handling/cycle parts diagram

Motor mount

Part #4960A20034A

This item is not returnable
$24.09
In Stock
Brace 4800A20001A
#11-C

Air handling/cycle parts diagram

Brace

Part #4800A20001A

$10.60
In Stock
Room Air Conditioner Drain Pipe Rubber Washer 4H01029D
#15-C

Air handling/cycle parts diagram

Room air conditioner drain pipe rubber washer

Part #4H01029D

This item is not returnable
$2.83
In Stock
Holder Piece 4H01254A
#7-B

Control box assy diagram

Holder piece

Part #4H01254A

This item is not returnable
$4.51
In Stock
Link 4520A30036A
#7-A

Cabinet/front grille assy diagram

Link

Part #4520A30036A

This item is not returnable
$4.51
In Stock
