Model # 116C85PBPK0V022 Official Kenmore powermate jr. vacuum attachment

Here are the diagrams and repair parts for Official Kenmore 116C85PBPK0V022 powermate jr. vacuum attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |

Vacuum Powermate Jr. Belt 8192011
#7

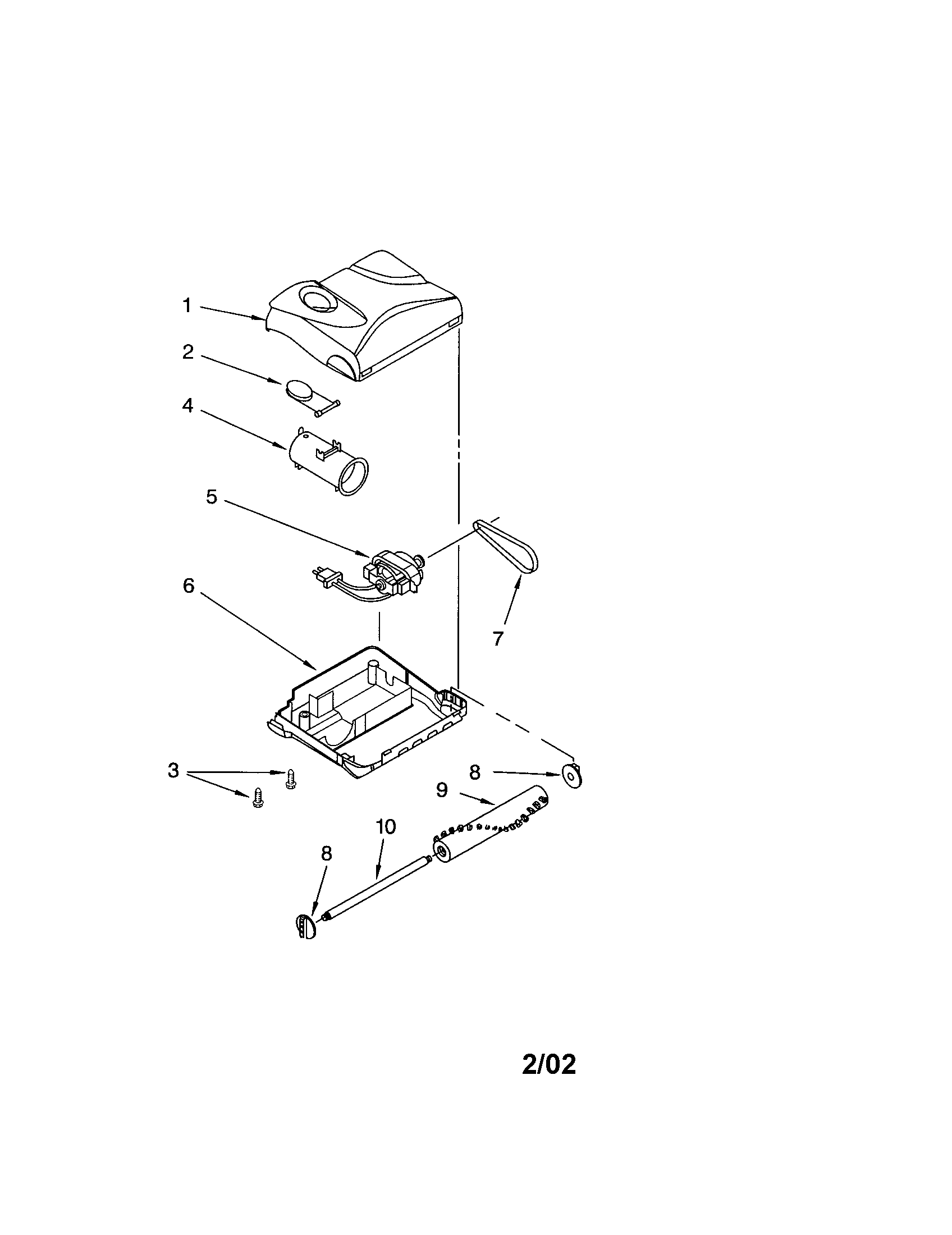

Power mate (jr) diagram

Vacuum powermate jr. belt

Part #8192011

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Base (gray) 8192007
#6

Power mate (jr) diagram

Nozzle base (gray)

Part #8192007

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Jr. Nozzle Cover 8192006
#1

Power mate (jr) diagram

Vacuum powermate jr. nozzle cover

Part #8192006

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
#5

Power mate (jr) diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Intake Tube 8192008
#4

Power mate (jr) diagram

Intake tube

Part #8192008

The manufacturer no longer makes this part, and there's no substitute part

Agitator (silver) 8192017
#10

Power mate (jr) diagram

Agitator (silver)

Part #8192017

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Jr. Beater Bar 8192013
#9

Power mate (jr) diagram

Vacuum powermate jr. beater bar

Part #8192013

The manufacturer no longer makes this part, and there's no substitute part

Power-matejr 8192005
#NI

Power mate (jr) diagram

Power-matejr

Part #8192005

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368551
#3

Power mate (jr) diagram

Vacuum screw

Part #4368551

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar End Cap 8192016
#8

Power mate (jr) diagram

Vacuum beater bar end cap

Part #8192016

The manufacturer no longer makes this part, and there's no substitute part
