Kenmore Elite 79574405910 bottom-mount refrigerator Parts

For Kenmore Elite model 79574405910, the exact cubic-foot capacity is listed on the model’s specification information in the 79574405910 owner’s manual. If you are estimating capacity yourself, we calculate cubic feet by measuring the usable interior space (not the outside cabinet size) and converting cubic inches to cubic feet.

How to calculate cubic feet (quick method)

Use this formula for each compartment (fresh food and freezer), then add them together:

• Measure interior width, height, and depth in inches
• Multiply: width × height × depth = cubic inches
• Divide by 1,728 to convert to cubic feet
• Repeat for the freezer section and add both results

Example conversion table

What you measure	Example value	What it means
Interior volume	34,560 cubic inches	Raw interior space
Convert to cubic feet	34,560 ÷ 1,728 = 20.0	Compartment capacity

Important measuring tips (so your number is accurate)

Measuring the outside cabinet (like overall depth and height) can overstate capacity because it includes insulation, walls, and non-usable space. For the best estimate:

• Measure inside wall to inside wall, not door-to-back with bins removed
• Measure depth to the rear interior panel, not into air vents
• Keep shelves in place; measure the usable space you can actually load
• Calculate fresh food and freezer separately; bottom-mount freezers vary a lot
• If you have a door-in-door or “Grab-N-Go” style compartment, measure it as part of the fresh food section

Why it matters

Cubic-foot capacity helps you choose the right replacement refrigerator, compare models fairly, and understand storage expectations. It also helps when selecting organization accessories and planning airflow around items for consistent cooling.

Last updated: February 2026

Common problems on the Kenmore Elite 79574405910 bottom-mount refrigerator include no cooling or warm temperatures (often tied to control settings, demo mode, airflow restrictions, or defrost issues), ice maker not producing ice, and water dispensing problems. Our troubleshooting steps in the 79574405910 owner's manual help you narrow the cause fast.

Most common symptoms we see

• Refrigerator or freezer not cooling: controls set to OFF, unit in demo mode, or unit currently in a defrost cycle
• Refrigerator or freezer too warm: blocked air vents, frequent door openings, or hot room conditions
• Ice maker not making ice: ice maker not turned ON, freezer not cold enough (needs about 15°F or below to start making ice)
• Slow or no water dispensing: low water pressure, kinked supply line, or a valve issue
• Leaks at water connections: loose compression nut/ferrule or tubing connection problems

Quick checks before replacing parts

1. Confirm the temperature controls are ON and set correctly (demo mode can leave lights on but stop cooling).
2. Wait 30 minutes if you suspect a defrost cycle; temperatures can rise slightly during defrost.
3. Allow up to 24 hours after installation or moving the refrigerator for temperatures to stabilize.
4. Make sure packages are not blocking interior air vents.
5. Verify household water supply meets typical requirements for this model (potable water, 20 to 120 psi).

Parts that commonly solve these issues

If troubleshooting points to a failed component, these are frequent fixes for this model:

Symptom	Common part to check	Example model-specific part
No water or weak water flow	Water inlet valve	Refrigerator water inlet valve AJU75632502

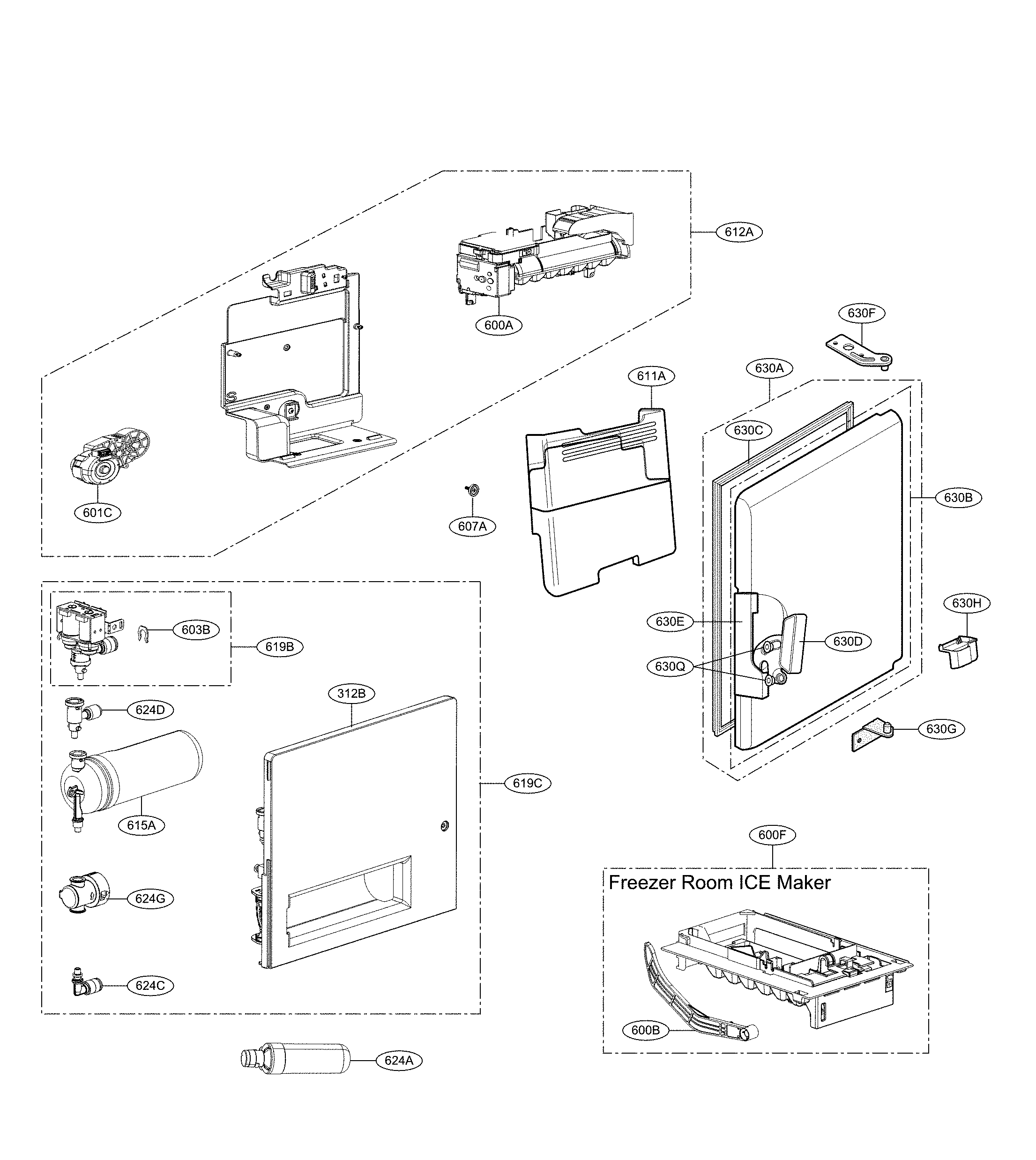

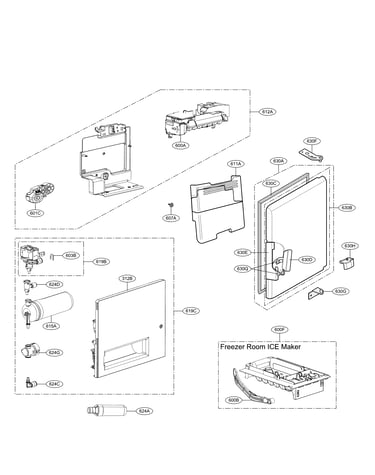

Ice maker not producing ice	Ice maker assembly	Ice maker assembly (AEQ72909602) - refrigerator ice maker part by lg AEQ72909602
Bad taste/odor or low flow after time	Water filter	Genuine Kenmore refrigerator water filter 9980 AGF80300805

Why it matters

Cooling and ice/water issues often start as simple setup or airflow problems; fixing those first prevents unnecessary part replacement. When a part is truly failing (like an inlet valve or ice maker assembly), matching the correct Kenmore model number (79574405910) helps ensure proper fit and performance.

Last updated: February 2026

Most Kenmore Elite refrigerators, including model 79574405910, typically last 12 to 15 years with normal household use. Consistent cleaning, good airflow around the cabinet, and keeping the doors sealing tightly help you reach the upper end of that range.

Typical lifespan and what affects it

A refrigerator’s life is mostly determined by how hard the sealed system and fans have to work to hold temperature.

• Kitchen conditions: high room temps and tight built-ins increase run time
• Condenser cleanliness: dust buildup makes the compressor work harder
• Door seal condition: air leaks cause longer run times and frost issues
• Ice maker and dispenser use: heavy use adds wear to valves and motors
• Power quality: frequent outages or surges can stress controls

Quick maintenance checklist (best ROI)

We recommend these habits for Kenmore Elite bottom-mount units:

• Keep 2 to 3 inches of clearance for ventilation where the manual specifies
• Clean dust from the condenser area every 6 to 12 months
• Confirm doors close on their own and sit level (no rocking)
• Replace the water filter on schedule to protect water flow and ice production
• Set temps to typical targets: 37°F fresh food, 0°F freezer

Common “end-of-life” symptoms vs. fixable issues

Symptom	Often fixable?	Common next step
Warm fridge/freezer, compressor runs a lot	Sometimes	Clean condenser area; check airflow and seals
Water dispenser slow, ice small/hollow	Yes	Replace genuine Kenmore refrigerator water filter 9980 AGF80300805
Heavy frost, temps swing	Sometimes	Check defrost components like refrigerator defrost sensor assembly 6615JB2005R
Loud clicking, won’t cool	Sometimes	Sealed system diagnosis by a technician

Why it matters

If your 79574405910 is approaching year 12+, preventive maintenance can delay expensive sealed-system wear. The use and care details and clearances in the 79574405910 use and care guide are the best reference for model-specific care and operating recommendations.

Last updated: February 2026

On Kenmore Elite refrigerator model 79574405910, the model and serial number are printed on an identification label inside the fresh food (refrigerator) compartment, on the interior liner. Use the exact model number from that label when ordering parts or checking specifications in the 79574405910 owner's manual.

Common places to check first

We recommend checking these spots in order because they are the most common on bottom-mount refrigerators:

• Inside the refrigerator compartment on a side wall (interior liner)
• Near the crisper drawers (often on the wall just above or beside them)
• On the ceiling area inside the refrigerator compartment
• On the left or right wall behind bins or drawers (you may need to slide a drawer out)
• On the door frame area (open the refrigerator door and look along the inner frame)

What the label looks like and what to write down

The identification label typically includes both a model number and a serial number.

Item on the label	Why it matters	Example format
Model number	Ensures parts diagrams and replacement parts match your exact unit	795.7440# style family, or full model like 79574405910
Serial number	Helps confirm production details for service and compatibility	Letters and numbers

Why it matters

Kenmore Elite 795-series refrigerators can look similar across multiple versions, but parts like the water filter, ice maker, door gasket, and control components can vary by model. Using the exact model number from the interior label prevents ordering the wrong part and helps match the correct diagrams and troubleshooting steps.

Last updated: February 2026

Water leaking from the bottom of your Kenmore Elite 79574405910 bottom-mount refrigerator is usually caused by a clogged defrost drain that overflows into the base, or a leak in the water supply line, tubing, or inlet valve feeding the ice maker and dispenser. Use the 79574405910 owner's manual for access and safety steps.

Quick checks we recommend first

• Unplug the refrigerator before inspecting behind panels or near wiring.
• Pull the unit forward and look for water at the rear lower area (often points to the water line or inlet valve).
• Check the freezer floor for a thin sheet of ice (often points to a defrost drain issue).

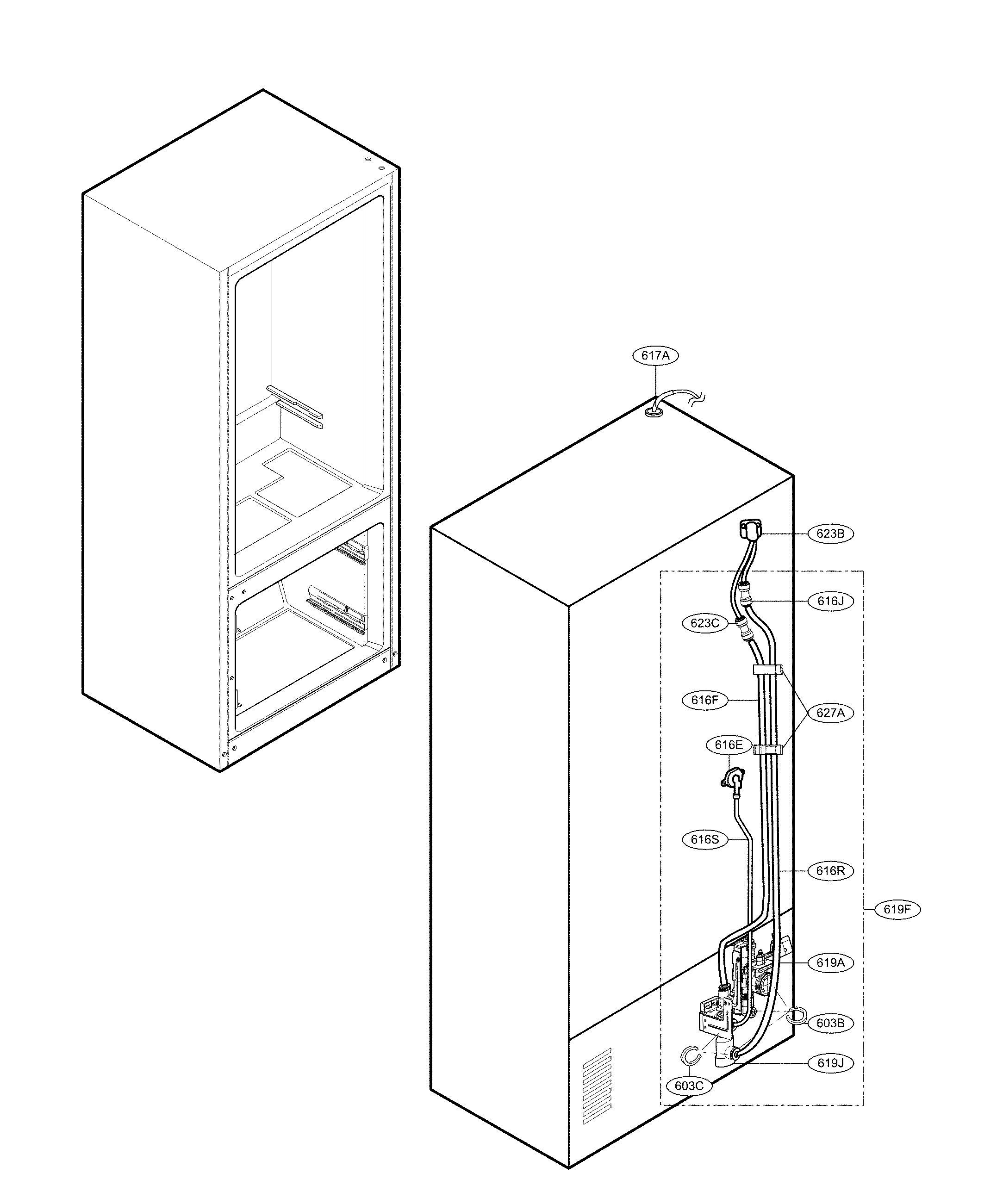

• Inspect the water line connection at the back for drips or a loose fitting.
• If the leak happens only when dispensing water or making ice, focus on the water circuit.

Most common causes and what to do

What you notice	Most likely cause	What we do next
Water appears after a defrost cycle; ice on freezer floor	Defrost drain clogged or frozen	Clear the drain path and flush with warm water
Water only when using dispenser or ice maker	Cracked/loose tubing or fitting	Inspect tubing and connections; replace damaged fitting
Slow leak at back of fridge even when not dispensing	Water inlet valve seeping	Check valve body and outlets; replace valve if leaking
Water near door area; moisture around seal	Door not sealing well	Inspect gasket for gaps, tears, or warping

Parts that commonly fix bottom leaks on this model

If inspection points to a failed water component, these model-matched parts are common fixes:

• Refrigerator water tube fitting 4932JA3002C if a push-to-connect joint is dripping
• Refrigerator water inlet valve AJU75632502 if the valve is leaking or not shutting off
• Refrigerator water inlet valve MJX64471402 if your unit uses this valve style/port layout
• Refrigerator door gasket, right ADX72930461 if warm air leaks are causing excess frost and drain overflow

Why it matters

A small leak can turn into floor damage and can also create ice buildup that blocks airflow, leading to warm temperatures in the freezer or fresh food section.

Last updated: February 2026

When the bottom of your Kenmore Elite 79574405910 is not getting cold, the most common causes are blocked air vents, a door that is not sealing, or settings such as Demo Mode that stop cooling. Start by restoring airflow and confirming the controls are set correctly using the 79574405910 owner's manual.

Quick checks that fix most “warm bottom” complaints

• Clear air vents in both the refrigerator and freezer; rearrange food so air can circulate.
• Confirm the unit is cooling (not in Demo Mode); Demo Mode keeps lights and display on but disables cooling.
• Give temperatures time to stabilize; after installation or major changes, cooling can take up to 24 hours.
• Reduce long door openings; frequent openings push warm, humid air into the cabinet.
• Check the door seal for gaps, tears, or areas that do not grip the cabinet.

What to check next (in order)

1) Airflow and loading

Bottom-mount refrigerators rely on ducted airflow. If vents are blocked by packages, bins, or frost, the lower area can warm up.

2) Controls and operating conditions

Use the control panel to verify cooling is enabled and the temperatures are set normally. Also confirm the refrigerator is used within typical indoor conditions (not in a very hot space).

3) Door sealing and alignment

A poor seal lets warm air sink and collect in the lower section, which can make the bottom feel noticeably warmer.

Symptom	Most likely cause	Best first action
Top is cooler, bottom is warm	Blocked vents or restricted airflow	Clear vents; avoid overpacking
Whole fresh-food section warm	Demo Mode, recent install, long door openings	Disable Demo Mode; wait 24 hours; limit openings
Warm with moisture/condensation	Door not sealing	Inspect gasket; clean sealing surfaces

Parts that commonly relate to this problem

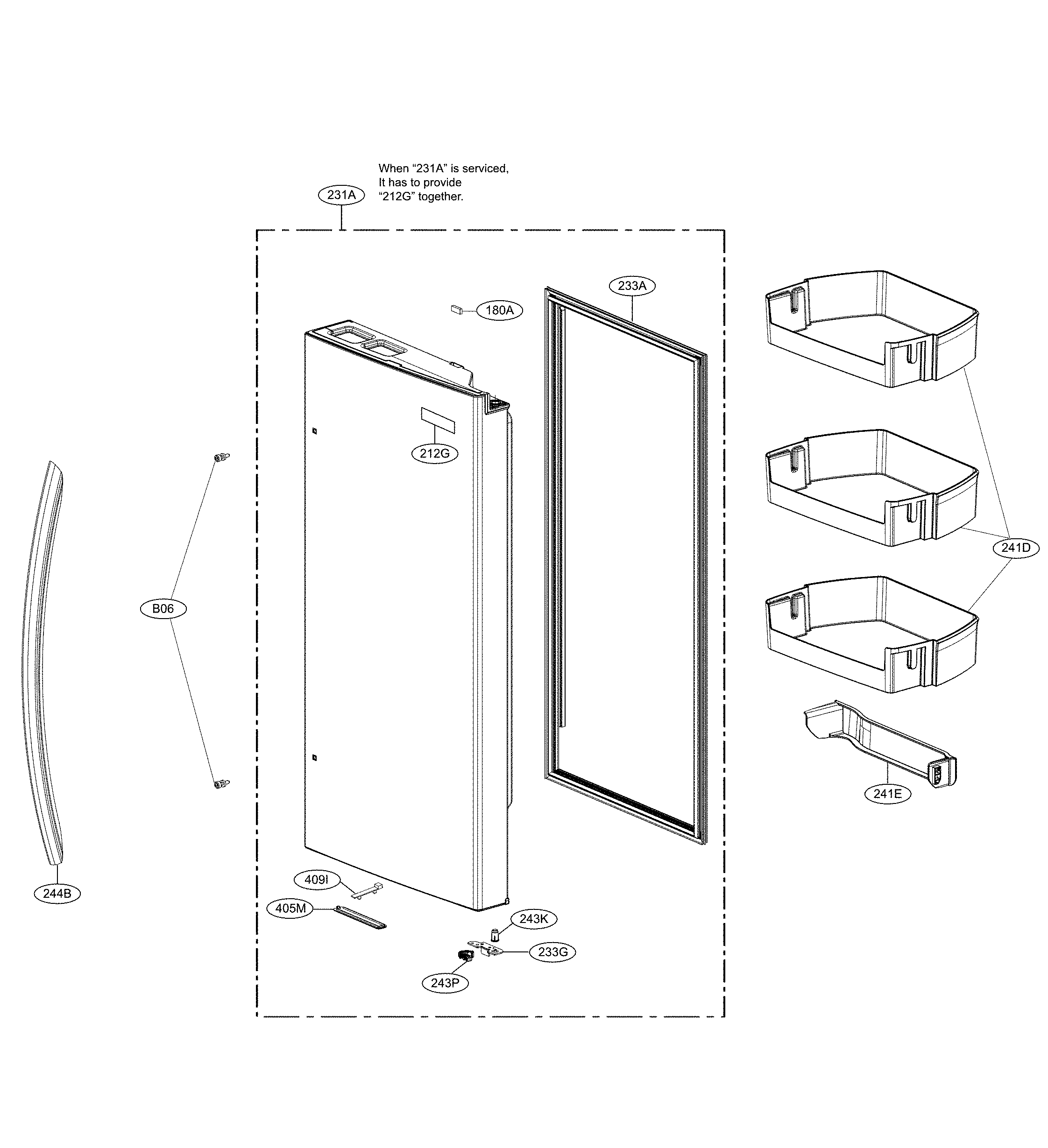

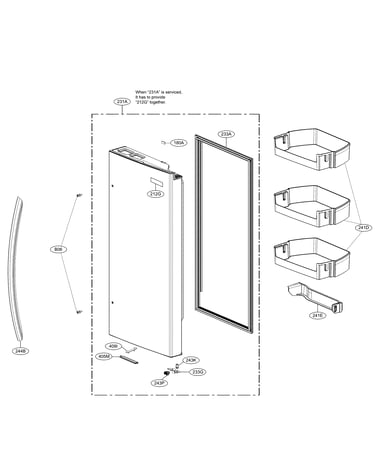

If you find the right-side fresh-food door is not sealing, replacing the gasket is a common fix.

• Refrigerator door gasket, right ADX72930461

Why it matters

Warm temperatures at the bottom can push food above safe storage temperatures and also force the compressor to run longer, increasing energy use and wear.

Last updated: February 2026
