Kenmore
Electric Range

Model # 9114624198 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 9114624198 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

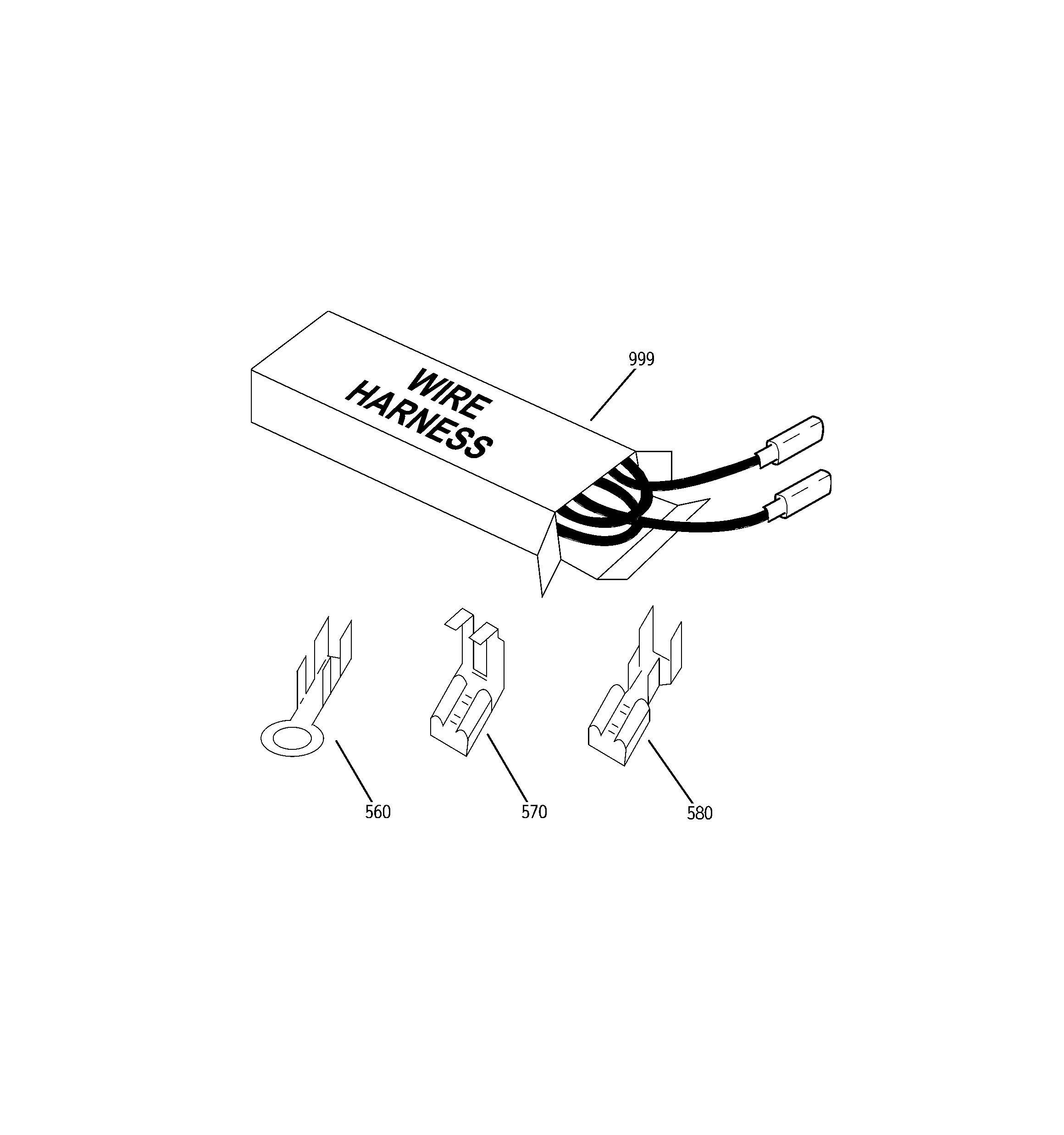

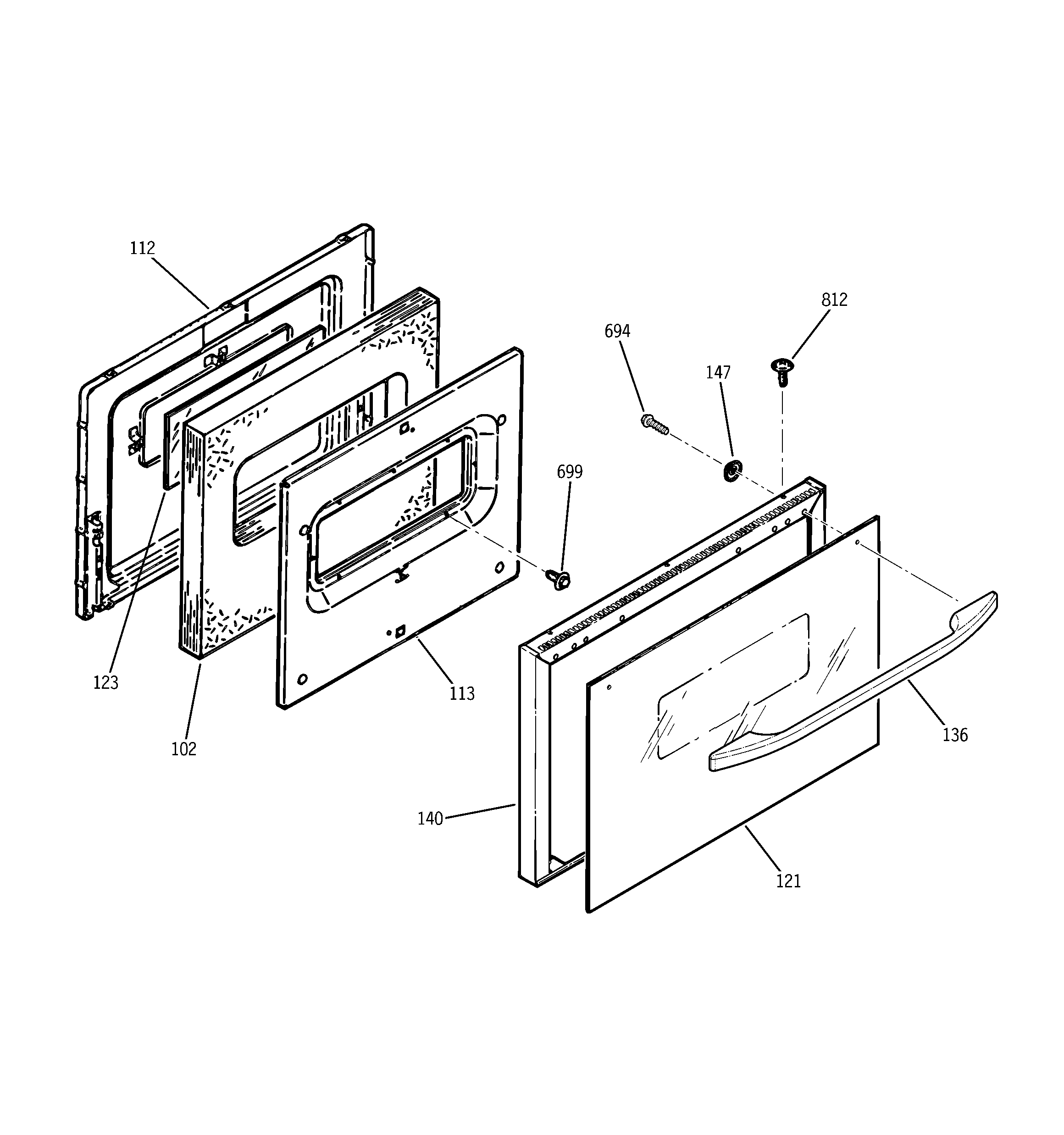

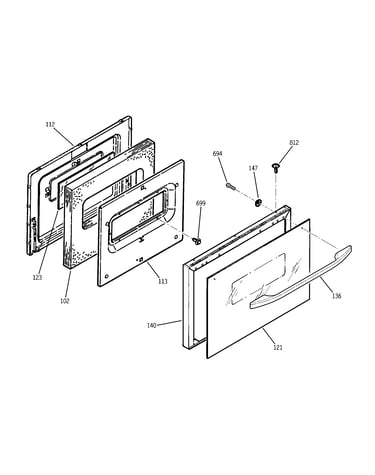

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Range Bake Element (replaces 325883, 340521, 8029, Wb44k5012e) WB44K5012
#251

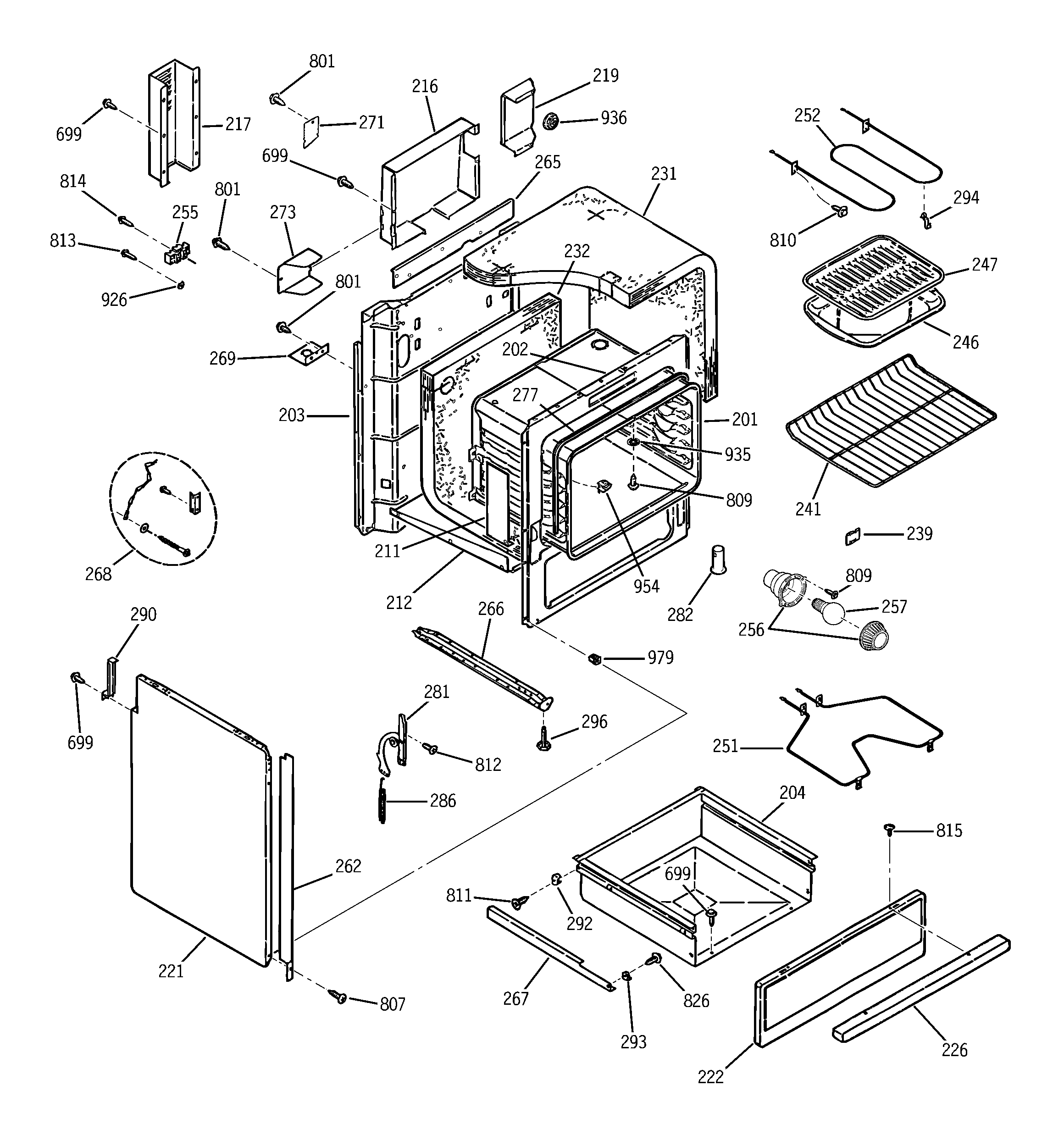

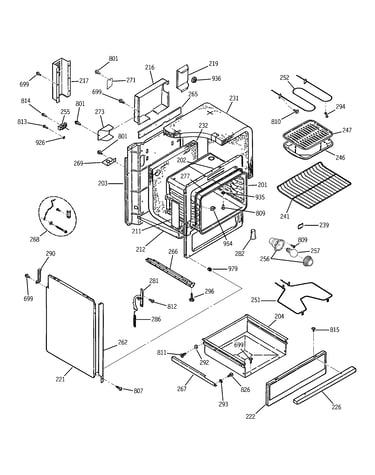

Body parts diagram

Range bake element (replaces 325883, 340521, 8029, wb44k5012e)

Part #WB44K5012

BEST SELLER
$50.38 |
9% OFF Phone Price : $55.38
In Stock
Terminal Block WB17T10001
#82

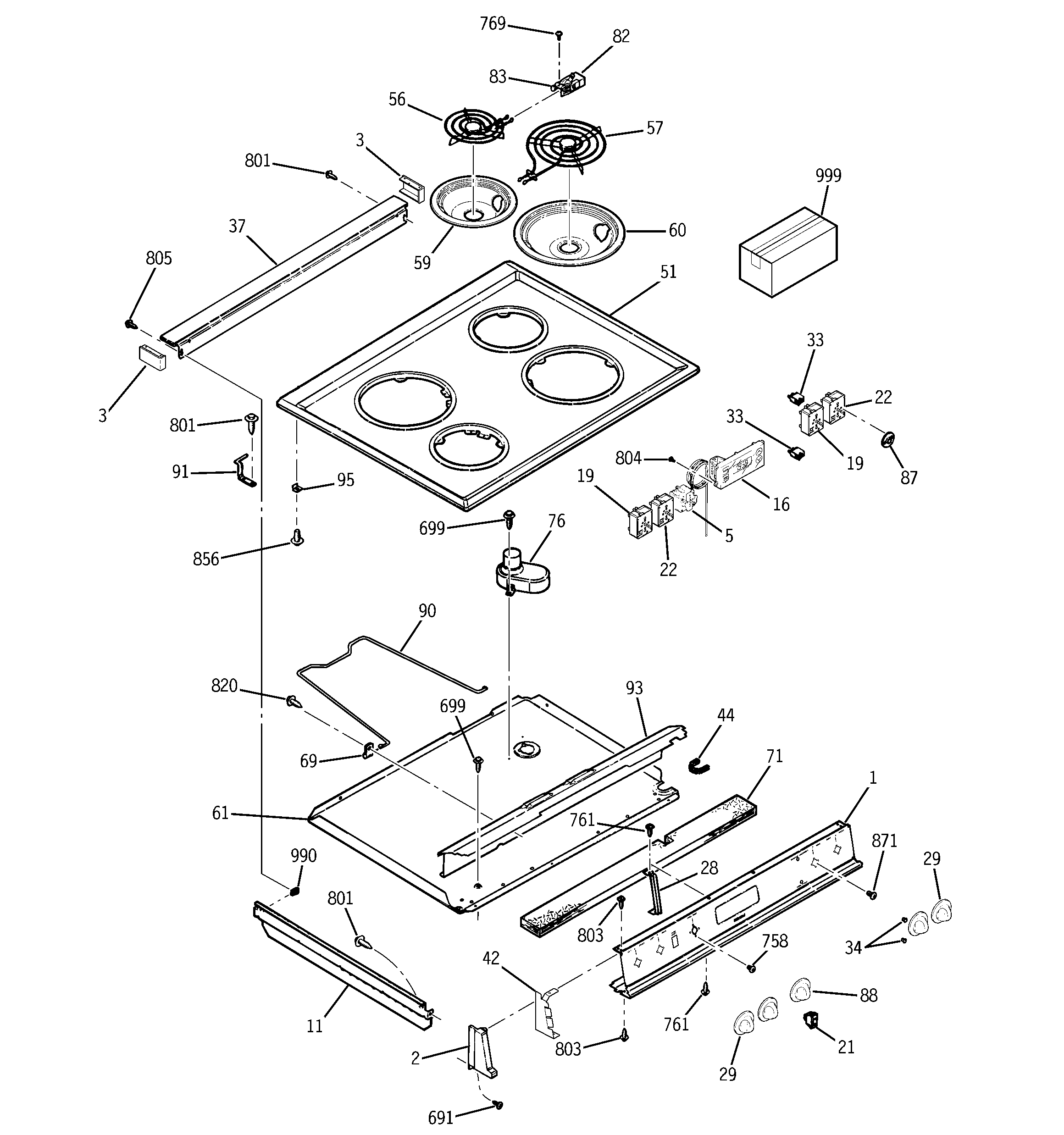

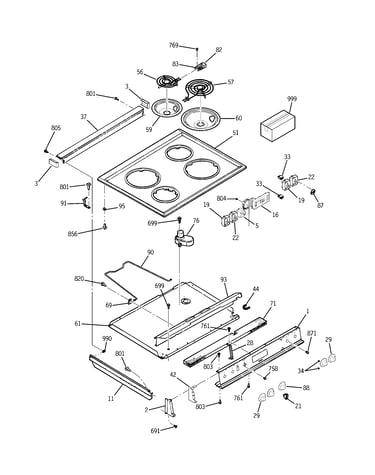

Control panel & cooktop diagram

Terminal block

Part #WB17T10001

Replaced by #WB17T10006

?
Manufacturer substitution
This part replaces WB17T10001. Substitute parts can look different from the original.
BEST SELLER
$22.36 |
18% OFF Phone Price : $27.36
In Stock
Range Drip Pan (replaces Wb32t10008, Wb32x10015) WB31T10010
#59

Control panel & cooktop diagram

Range drip pan (replaces wb32t10008, wb32x10015)

Part #WB31T10010

BEST SELLER
$20.23 |
20% OFF Phone Price : $25.23
In Stock
Range Coil Surface Element, 8-in (replaces Wb30t10028) WB30T10071
#57

Control panel & cooktop diagram

Range coil surface element, 8-in (replaces wb30t10028)

Part #WB30T10071

BEST SELLER
$72.37 |
6% OFF Phone Price : $77.37
In Stock
Broilunt 240 WB44X0232
#252

Body parts diagram

Broilunt 240

Part #WB44X0232

Replaced by #WB44X232

?
Manufacturer substitution
This part replaces WB44X0232. Substitute parts can look different from the original.
BEST SELLER
$57.55 |
8% OFF Phone Price : $62.55
In Stock
Range Coil Surface Element WB30T10075
#56

Control panel & cooktop diagram

Range coil surface element

Part #WB30T10075

Replaced by #WB30K10002

?
Manufacturer substitution
This part replaces WB30T10075. Substitute parts can look different from the original.
BEST SELLER
$66.33 |
7% OFF Phone Price : $71.33
In Stock
Hinge WB14X0103
#281

Body parts diagram

Hinge

Part #WB14X0103

Replaced by #WB14X103

?
Manufacturer substitution
This part replaces WB14X0103. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
12% OFF Phone Price : $43.22
In Stock
Hinge WB14X0104
#281

Body parts diagram

Hinge

Part #WB14X0104

Replaced by #WB14X104

?
Manufacturer substitution
This part replaces WB14X0104. Substitute parts can look different from the original.
BEST SELLER
$32.83 |
13% OFF Phone Price : $37.83
In Stock
Range Surface Element Control Switch WB23K5027
#22

Control panel & cooktop diagram

Range surface element control switch

Part #WB23K5027

$83.43 |
6% OFF Phone Price : $88.43
Back Order
Control WB23M0024
#19

Control panel & cooktop diagram

Control

Part #WB23M0024

Replaced by #WB23M24

?
Manufacturer substitution
This part replaces WB23M0024. Substitute parts can look different from the original.
$85.06 |
6% OFF Phone Price : $90.06
In Stock
