Model #UT-10655 Homelite chainsaw

Here are the diagrams and repair parts for Homelite UT-10655 chainsaw, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

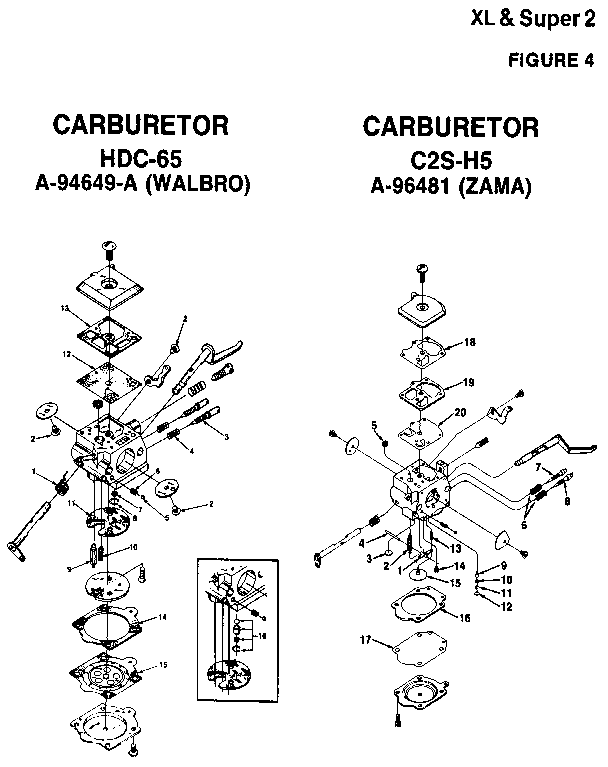

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 122 parts

Washer

#26

Figure 2 Diagram

Washer

Part #83002
This item is not returnable
$2.81

In Stock

Hex Nut, 8-pack

#27

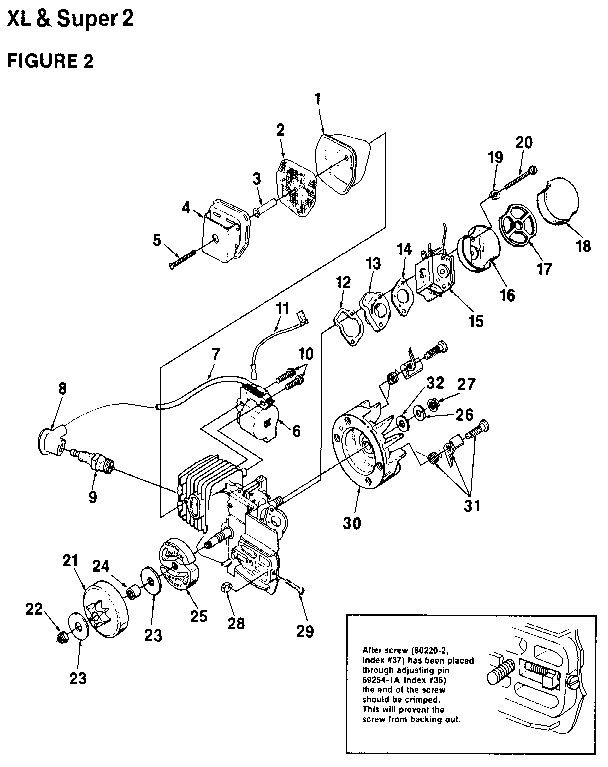

Figure 2 Diagram

Hex nut, 8-pack

Part #STD541131
?
Manufacturer substitution
This part replaces 81117. Substitute parts can look different from the original.
This part replaces 81117
This item is not returnable
$2.31

In Stock

Pump Body

#7

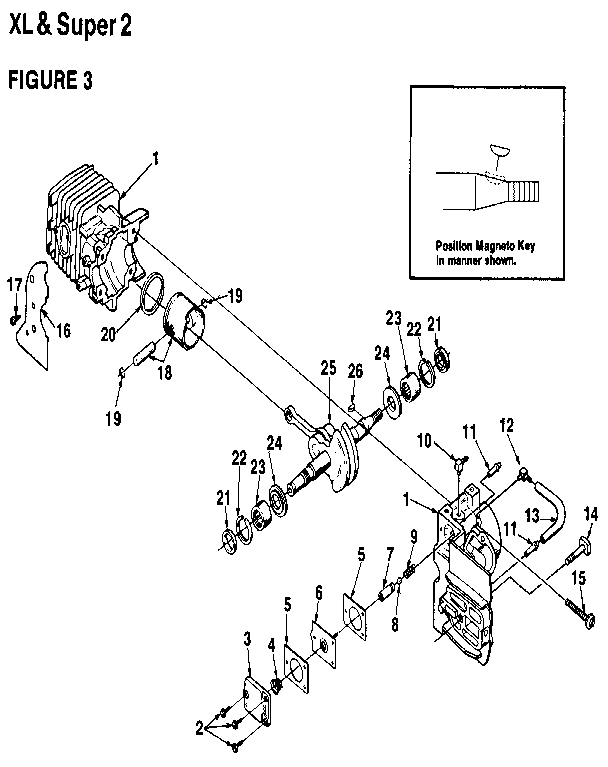

Figure 3 Diagram

Pump body

Part #693431
?
Manufacturer substitution
This part replaces 69343-1. Substitute parts can look different from the original.
This part replaces 69343-1
$12.81 |
29% OFF MSRP:$18.00

In Stock

Nut

#20

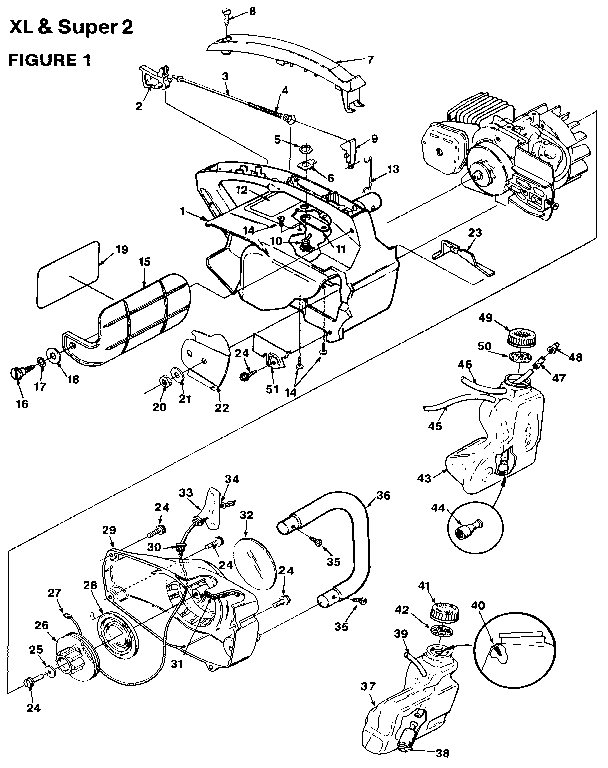

Figure 1 Diagram

Nut

Part #81065-2

The manufacturer no longer makes this part, and there's no substitute part

Guide Bar

#22

Figure 1 Diagram

Guide bar

Part #04440
?
Manufacturer substitution
This part replaces 69360-1. Substitute parts can look different from the original.
This part replaces 69360-1
This item is not returnable
$5.82

In Stock

Nut

#22

Figure 2 Diagram

Nut

Part #81112

The manufacturer no longer makes this part, and there's no substitute part

Chainsaw Guide Bar Adjuster Pin

#28

Figure 2 Diagram

Chainsaw guide bar adjuster pin

Part #692542
?
Manufacturer substitution
This part replaces 69254-1A. Substitute parts can look different from the original.
This part replaces 69254-1A
$13.62 |
37% OFF MSRP:$21.76

In Stock

Lawn & Garden Equipment Nut

#5

Figure 1 Diagram

Lawn & garden equipment nut

Part #UP04146
?
Manufacturer substitution
This part replaces 72084-A1. Substitute parts can look different from the original.
This part replaces 72084-A1
This item is not returnable
$3.26

In Stock

Lawn & Garden Equipment Engine Spark Plug

#9

Figure 2 Diagram

Lawn & garden equipment engine spark plug

Part #DJ7Y
?
Manufacturer substitution
This part replaces 96169-S. Substitute parts can look different from the original.
This part replaces 96169-S
This item is not returnable
$4.98

In Stock

Flat Washer

#32

Figure 2 Diagram

Flat washer

Part #631049001
?
Manufacturer substitution
This part replaces 84065. Substitute parts can look different from the original.
This part replaces 84065
This item is not returnable
$2.16

In Stock
