GE
Dryer

Model # DDE4000GBL Official GE electric dryer

Here are the diagrams and repair parts for Official GE DDE4000GBL electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |

Knob Clip WE01X0980

#41

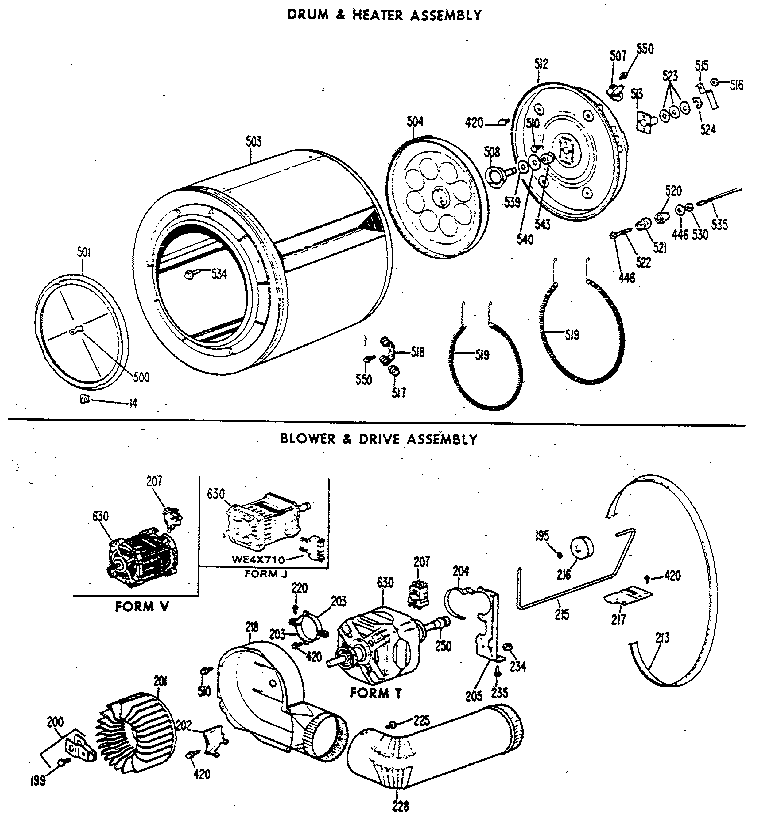

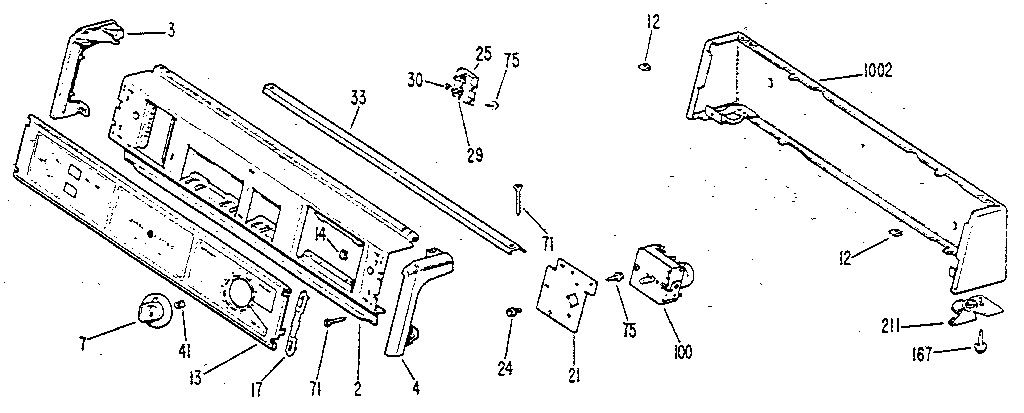

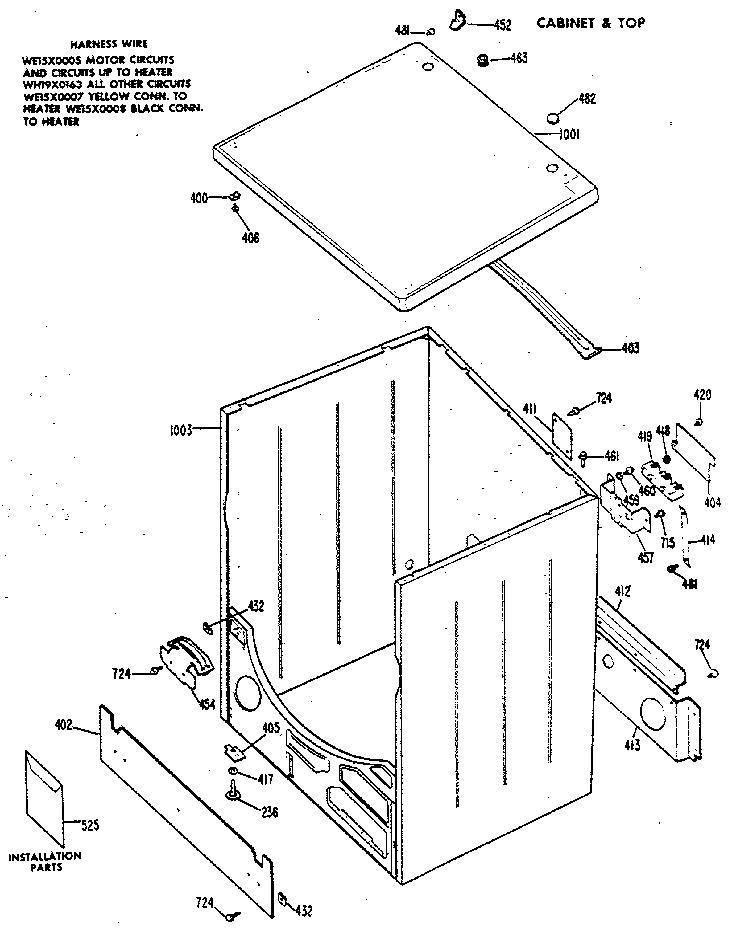

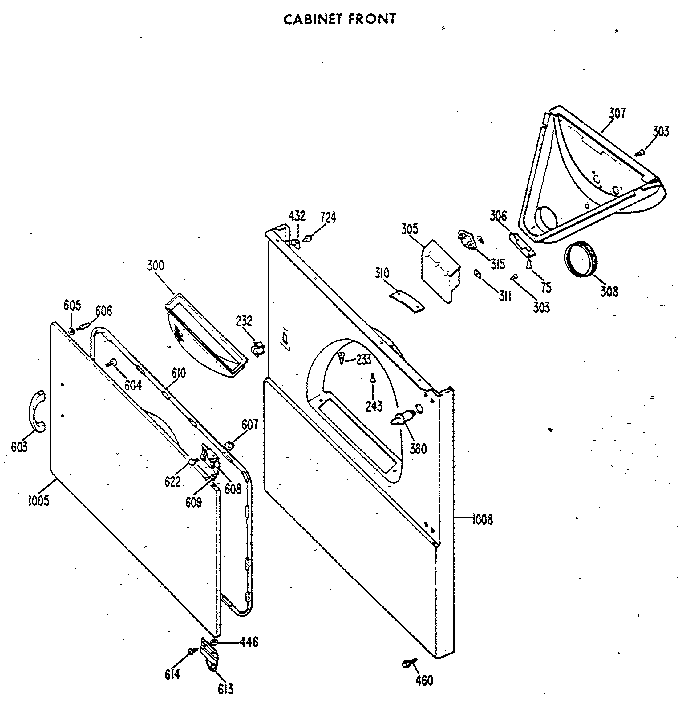

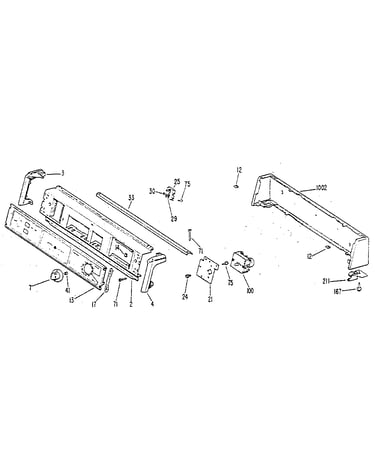

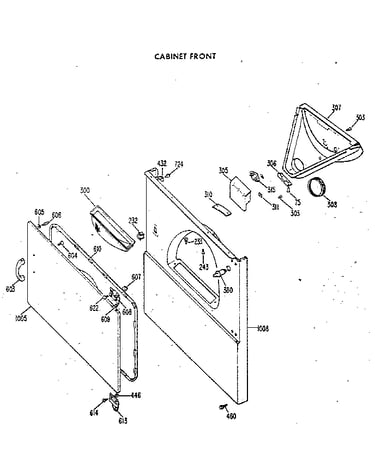

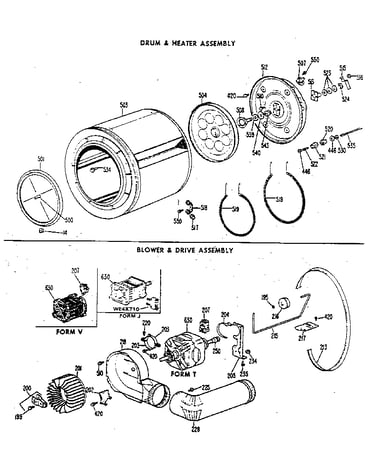

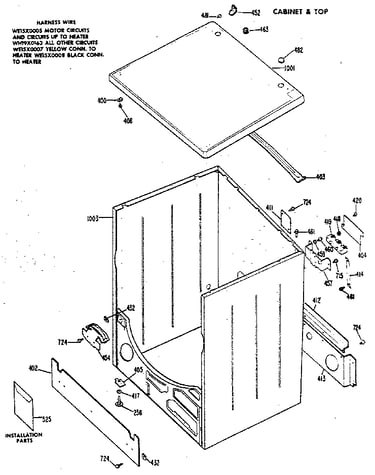

All parts diagram

Knob clip

Part #WE01X0980

Replaced by #WH01X10106

?
Manufacturer substitution
This part replaces WE01X0980. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.79
13% OFF Phone Price : $7.79
In Stock
Latch Clip WE01X1032

#232

All parts diagram

Latch clip

Part #WE01X1032

Replaced by #WE1M1011

?
Manufacturer substitution
This part replaces WE01X1032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.55
16% OFF Phone Price : $12.55
In Stock
Dryer Drive Belt WE12X0082

#213

All parts diagram

Dryer drive belt

Part #WE12X0082

Replaced by #WE12X10014

?
Manufacturer substitution
This part replaces WE12X0082. Substitute parts can look different from the original.
BEST SELLER
$20.46
20% OFF Phone Price : $25.46
In Stock
Sleeve Bearing WE03X0037

#543

All parts diagram

Sleeve bearing

Part #WE03X0037

Replaced by #WE3X75

?
Manufacturer substitution
This part replaces WE03X0037. Substitute parts can look different from the original.
This item is not returnable
$6.82
13% OFF Phone Price : $7.82
In Stock
Thermostat WE04X0584

#507

All parts diagram

Thermostat

Part #WE04X0584

Replaced by #WE4X584

?
Manufacturer substitution
This part replaces WE04X0584. Substitute parts can look different from the original.
This item is not returnable
$18.44
10% OFF Phone Price : $20.44
In Stock
Dryer Level Screw WE02X0229

#236

All parts diagram

Dryer level screw

Part #WE02X0229

Replaced by #WE1M642

?
Manufacturer substitution
This part replaces WE02X0229. Substitute parts can look different from the original.
This item is not returnable
$7.92
11% OFF Phone Price : $8.92
In Stock
Shft-brkt As WE03X0039

#508

All parts diagram

Shft-brkt as

Part #WE03X0039

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03X0039. Substitute parts can look different from the original.
$78.61
6% OFF Phone Price : $83.61
In Stock
Closure Plate WE01X0461

#513

All parts diagram

Closure plate

Part #WE01X0461

Replaced by #WE1X461

?
Manufacturer substitution
This part replaces WE01X0461. Substitute parts can look different from the original.
$35.99
12% OFF Phone Price : $40.99
In Stock
Screw WZ05X0158

#461

All parts diagram

Screw

Part #WZ05X0158

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WZ05X0158. Substitute parts can look different from the original.
$34.63
13% OFF Phone Price : $39.63
In Stock
Felt Seal WE09X0038

#308

All parts diagram

Felt seal

Part #WE09X0038

Replaced by #WE9X38

?
Manufacturer substitution
This part replaces WE09X0038. Substitute parts can look different from the original.
$29.10
15% OFF Phone Price : $34.10
In Stock
