Replacing the engine on a Craftsman riding mower like model 917289903 typically costs $800 to $2,500 total (engine plus labor), depending on horsepower, crankshaft type, and whether you do the work yourself. In many cases, major drive or deck issues can be fixed for far less than an engine swap.

What makes the price go up or down

• Engine type and specs: vertical-shaft single-cylinder vs V-twin, and matching crankshaft diameter/length.
• Labor vs DIY: shop labor often adds several hours for removal, transfer parts, and setup.
• Extra parts you may need: new belts, pulleys, wiring repairs, fuel line, or battery.
• Root cause: if the old engine failed from low oil, overheating, or impact damage, related components may also need attention.
• Availability: exact-fit engines and mounting hardware can cost more than “universal” replacements.

Typical cost ranges (parts and labor)

Scenario	What you pay for	Typical total cost
DIY engine replacement	Engine + small parts	$500 to $1,500
Shop replacement	Engine + labor + setup	$1,000 to $2,500
Repair instead of replace	Belt, pulley, electrical, tune-up	$50 to $400

Before you replace the engine, check these common “no power / won’t move / won’t mow” causes

The 917289903 manual troubleshooting points to several issues that can look like an engine problem but are not:

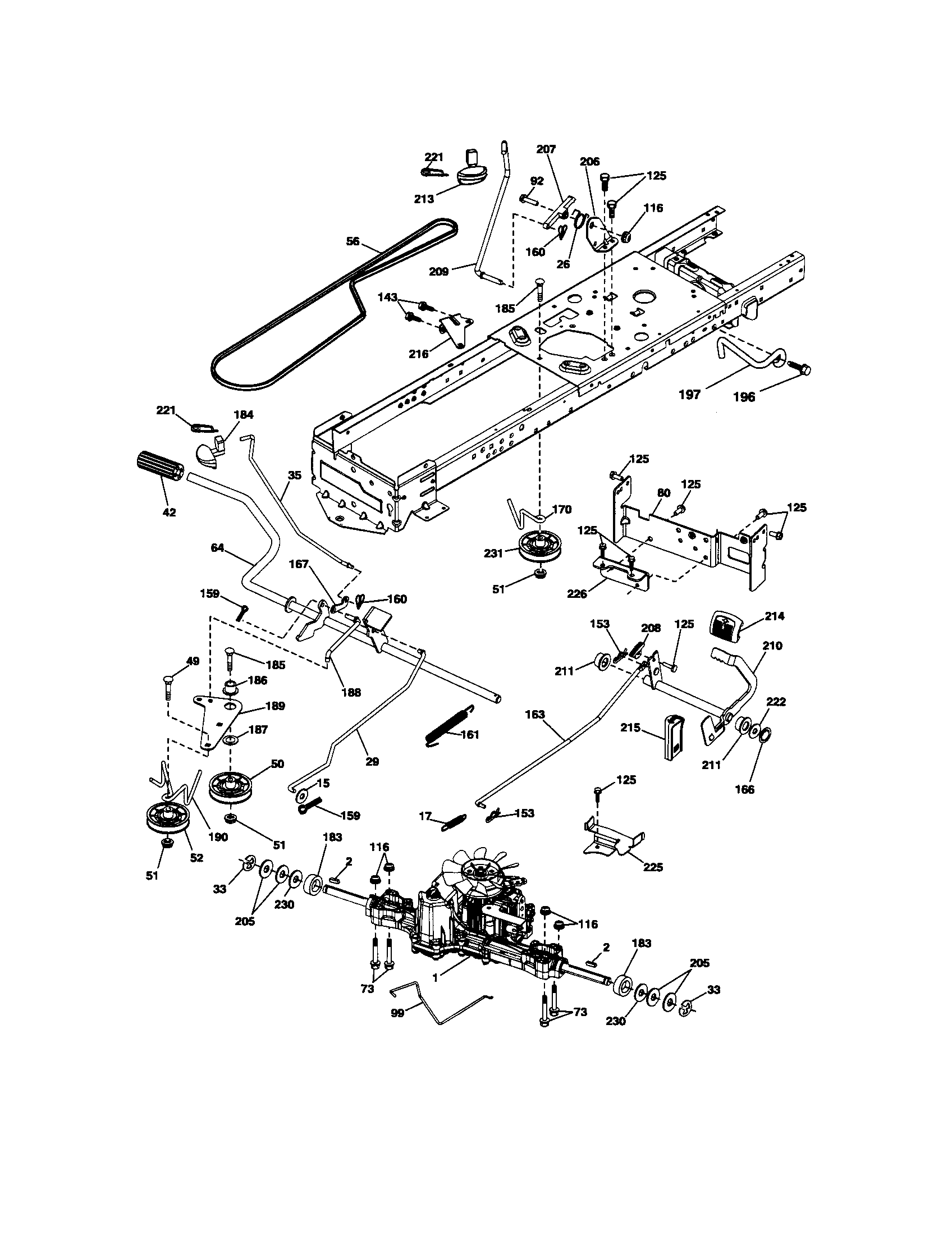

• Worn or damaged drive belt (tractor will not move well)
• Worn or damaged mower drive belt (blades will not spin well)
• Frozen idler pulley or frozen blade mandrel (belt squeal, burning smell, poor cutting)

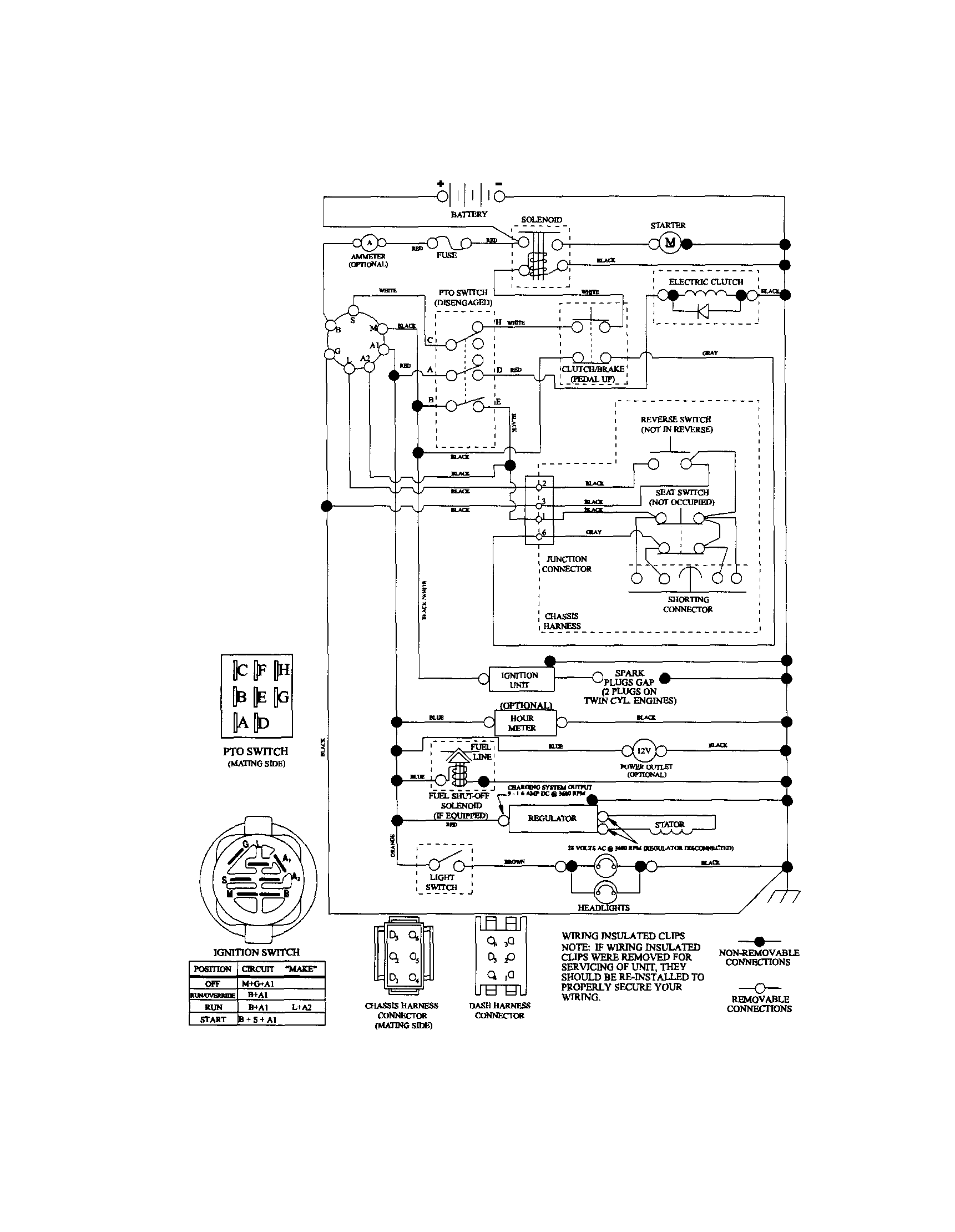

• Safety switch or wiring problems (no crank, intermittent running)

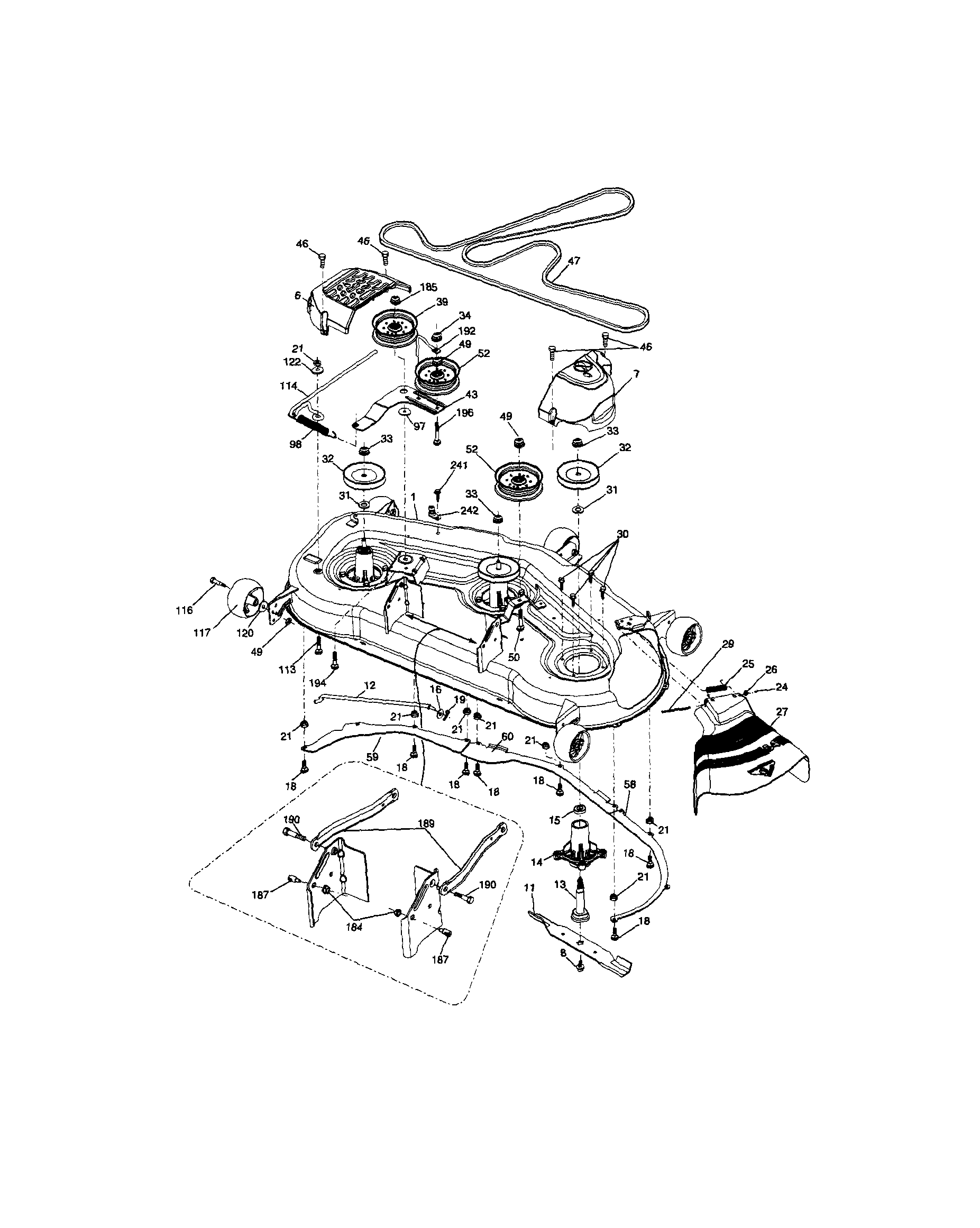

If your mower deck is binding or the belt keeps coming off, a worn mandrel assembly is a common fix; see the lawn tractor mandrel housing 587819701.

Why it matters

An engine swap only pays off when the rest of the tractor (transaxle, deck, steering, frame) is in solid shape. If the real issue is a belt, pulley, PTO switch, or a seized mandrel, repairing that system restores performance at a fraction of the cost.

For model-specific maintenance intervals, adjustment procedures, and troubleshooting steps, use the 917289903 owner’s manual.

Last updated: February 2026

For Craftsman riding mower model 917289903, the model number is typically on the tractor’s ID label on the frame under the seat area (often easiest to see with the seat tipped forward). Use that full model number to match the correct parts list and diagrams in the 917289903 owner's manual.

Where to find the model number on a Craftsman riding mower

Check these common locations first:

• On the frame under the seat (seat pan area)
• On the underside of the seat itself
• Near the rear fender or frame rail close to the seat mount
• On a label plate near the transmission tunnel (between your feet)

How to “look it up” once you find it

Use the exact characters from the label (letters, numbers, and dots) and keep it in uppercase.

• Enter the full model number (example format: 917.28990 or 917289903)
• Match the model to the correct product type (front-engine lawn tractor, YT4500 style)
• Use the parts diagrams to identify assemblies like belts, pulleys, and mandrels
• If you are replacing a wear item, confirm the part by diagram position, not just by description

Quick example: model number vs. part identifiers

What you have	Example	What it’s used for
Model number	917289903	Identifies the exact tractor and parts breakdown
Part ID	592855201	Identifies a specific replacement part listing
Part name	Ground drive or blade drive belt	Describes what the part does

Why it matters

Craftsman tractors can look similar across years, but small changes affect belt routing, deck hardware, and electrical parts. Using the correct model number helps you avoid ordering the wrong drive belt, PTO switch, or mandrel components.

If you are troubleshooting a no-start or no-crank issue while you have the seat up, the lawn tractor starter solenoid 582042802 is one common electrical part to check after confirming the model number.

Last updated: February 2026

On Craftsman riding equipment like model 917289903, the serial number format is not universal across all years and factories. The most reliable way to decode your tractor’s serial number is to match it to the identification section and production code guidance in the 917289903 owner's manual.

Where to find the serial number on a riding tractor

Most Craftsman lawn tractors place the model and serial information on a sticker or plate in one of these spots:

• Under the seat pan (lift the seat and look on the frame)
• On the rear fender pan near the seat
• On the frame rail near the engine
• Near the transaxle area on the frame
• Under the hood on the chassis (less common)

How serial numbers are commonly structured (what to look for)

Many Craftsman serial numbers include a mix of letters and numbers that can indicate build plant, sequence, and sometimes a date code. If you see a 6-digit number that looks like a date, it is often interpreted as:

• MM = month
• DD = day
• YY = year

Quick example

Serial snippet	Interpreted as	Meaning
072811	MMDDYY	July 28, 2011
031520	MMDDYY	March 15, 2020

Steps we recommend to decode it correctly

• Write down the full serial number exactly as shown (include letters, dashes, and spaces).
• Confirm the model number is 917289903 on the same tag.
• Compare the serial format to the identification guidance in the 917289903 owner's manual.
• If the serial includes letters, treat them as meaningful (do not drop them).
• If you are ordering parts, use the model number first; serial is usually secondary for parts lookup.

Why it matters

Serial number decoding helps confirm the production run and can prevent ordering the wrong belt, PTO switch, or electrical parts when a model has mid-year changes.

Last updated: February 2026

Yes; for Craftsman model 917289903, an engine replacement is worth it when the tractor’s deck, steering, and drive system are still strong and the total engine repair cost stays under about half the price of a comparable replacement mower. If multiple major systems are worn out, replacement does not pay off.

Quick decision checklist

• The frame and controls are solid; safety switches function.
• The mower deck is structurally sound (no severe rust-through).
• The tractor drives forward and reverse without slipping or grinding.
• You can get the correct engine and any required mounting hardware.
• Total cost (engine, labor, fluids, small parts) stays under ~50% of replacement cost.

What to check before you buy an engine

Use the 917289903 owner’s manual to confirm maintenance and troubleshooting steps, then inspect these common issues that can mimic “bad engine” symptoms:

• Overheating risk: Keep the grass screen and cooling fins clean; blocked airflow causes engine damage.
• Fuel delivery: Old fuel or a clogged in-line fuel filter can cause stalling and hard starting.
• Deck load: Heavy grass buildup under the deck can bog the engine and reduce cut quality.

Cost and condition guide

What you find	What it usually means	Best move
Engine is weak but tractor drives well	Good candidate for engine swap	Replace engine
Deck and drive both need major work	Costs stack quickly	Replace tractor
Starts intermittently only	Often electrical, not engine	Diagnose starting circuit

Parts that commonly get replaced during diagnosis

• Lawn tractor starter solenoid 582042802 when cranking is inconsistent
• Switch.pto 582107601 when blades will not engage reliably
• Lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in 592855201 when belts are cracked, glazed, or stretched

Why it matters

An engine swap can restore dependable mowing, but only if the rest of the 917289903 platform is still serviceable. Checking cooling, fuel delivery, and the drive and deck systems first prevents spending engine money on a tractor that will immediately need bigger repairs.

Last updated: February 2026

If you’re using a Craftsman riding mower like model 917289903, the fastest way to identify exactly what you have is to match the model number and product identification label on the tractor to the information in the 917289903 owner’s manual. That model corresponds to a Craftsman front-engine lawn tractor (YT4500 series).

Where to find the model number on your tractor

On Craftsman riding mowers, the model and serial information is typically on a product identification label located in an easy-to-check spot on the chassis.

• Look under the seat area (often on the underside of the seat or on the frame beneath it)
• Check the rear fender pan area near the seat mount
• Wipe off dirt and grass buildup so the numbers are readable
• Write down the full model number and serial number exactly as shown
• Use the full model number (not just the series name) when ordering parts

What the model number tells you

The model number is the key to getting the right Craftsman parts, diagrams, and maintenance specs (belts, blades, electrical parts, and deck components).

What you’re checking	What to record	Why it matters
Model number	917289903 (example)	Matches the correct parts list and diagrams
Serial number	As printed on label	Helps confirm production run details
Deck size / features	54 in deck, electric start (typical for this manual)	Helps confirm configuration

Quick confirmation tip (common mismatch)

If your label shows 917.28990 (with a dot), that is the same model family formatting you’ll see in the operator’s manual; it still maps to the 917289903 model page for parts lookup.

Why it matters

Using the exact Craftsman model number prevents wrong-part returns, especially for high-variation items like a ground drive belt, PTO switch, or mandrel components such as the lawn tractor mandrel housing 587819701.

Last updated: February 2026

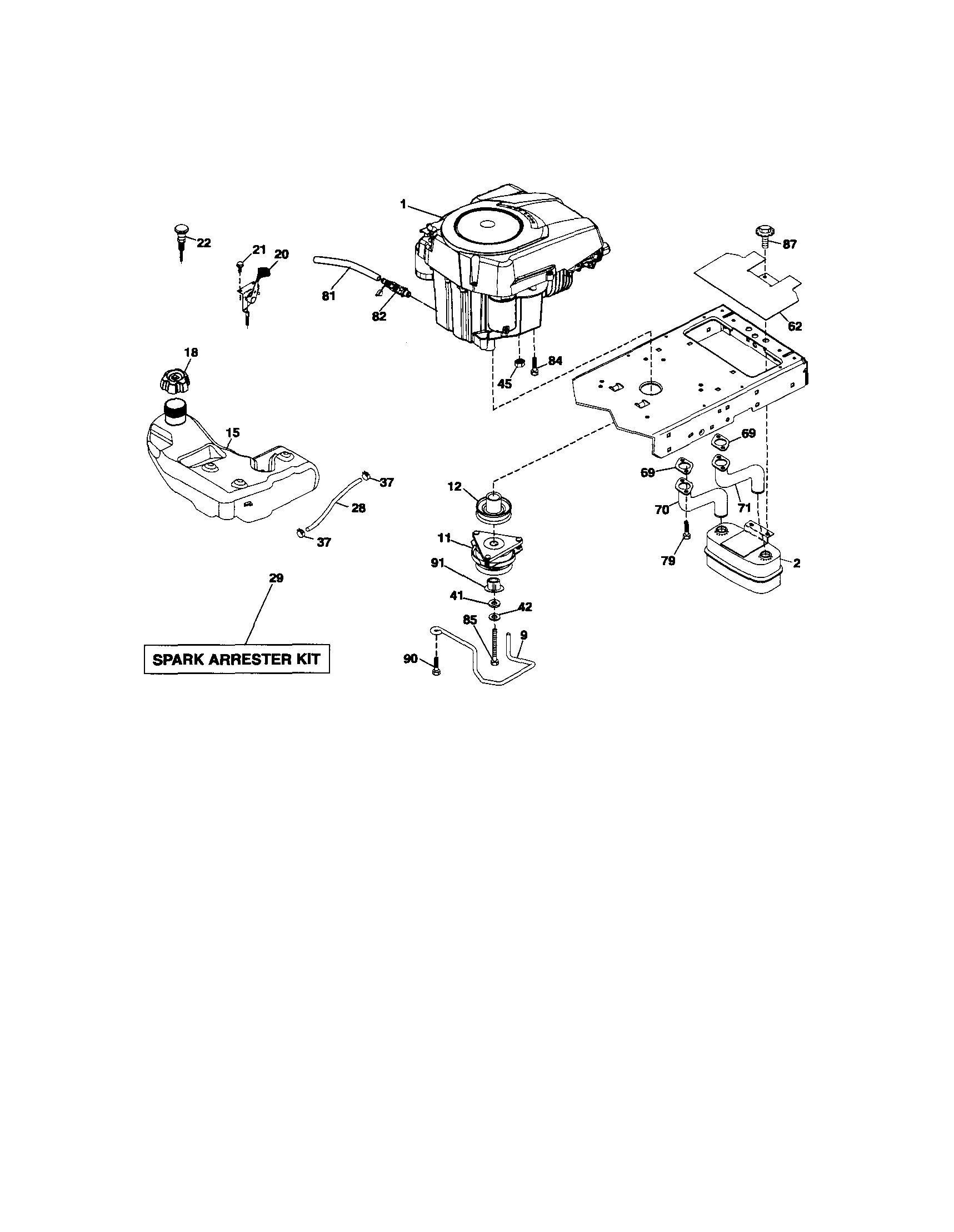

Craftsman uses engines from multiple manufacturers depending on the product line and year. For the Craftsman lawn tractor model 917289903, the engine brand is identified on the engine itself (ID/emissions label) and referenced in the 917289903 owner's manual.

What you will typically see on Craftsman riding tractors

Across Craftsman riding mowers and lawn tractors, these engine brands are the most common:

• Briggs & Stratton
• Kohler
• Kawasaki
• Tecumseh (older equipment)
• Honda (more common on some walk-behind equipment than tractors)

How to confirm the engine brand on model 917289903

Check the engine, not just the hood decal. Use these quick steps:

• Locate the engine ID tag on the blower housing, valve cover, or near the starter
• Write down the engine model and spec/type numbers from the tag
• Check the emissions label on the engine shroud; it often lists the manufacturer
• Compare what you find to the specifications and maintenance sections in the 917289903 owner's manual
• Use the tractor model number 917289903 when ordering tractor chassis parts (belts, pulleys, steering parts)

Engine brand vs. tractor brand: what changes

Item you are replacing	Usually matched to	Examples
Tune-up parts	Engine make and engine model	Spark plug, air filter, oil filter, fuel filter
Electrical starting parts	Tractor wiring plus engine starter system	Battery cables, starter, solenoid
Mower deck drive parts	Tractor and deck configuration	Deck belt, mandrel, idler pulleys

Why it matters

The Craftsman model number tells us the tractor platform, but the engine manufacturer and engine model determine the correct maintenance parts and many engine repair parts. Confirming the engine ID first prevents wrong-part returns and no-start issues after service.

Last updated: February 2026

Craftsman model 917289903 is a front-engine lawn tractor (YT4500 series). The model number identifies the tractor family and configuration, but the exact build year is tied to the tractor’s date of purchase and the product ID label on the machine. Use the 917289903 owner's manual to match your tractor’s label information to the correct production timeframe.

How to find the year on your tractor

Check these common locations on Craftsman riding mowers:

• Under the seat on the frame or fender pan (most common)
• On the rear frame near the hitch plate/drawbar area
• Near the engine compartment on the chassis rail
• Inside the hood area on the frame (less common)
• On paperwork from the original purchase (receipt, warranty registration)

What to record from the ID label

Write down these items exactly as shown; they are what we use to narrow the year:

• Model number: 917289903
• Serial number (sometimes called product number)
• Date code (if listed)
• Engine model and type (Briggs & Stratton or Kohler info plate)

Quick guide: what each number tells you

Item on label	What it helps identify	Why it matters
Model number (917289903)	Tractor platform and parts family	Ensures correct diagrams and parts fit
Serial number	Production run and revision	Separates early vs. late changes
Purchase date	Warranty start date	Often the best “year” reference for owners

Why it matters

Craftsman 917-series tractors were produced across multiple years with running changes. Knowing the exact year (or at least the serial range) prevents ordering the wrong belt, PTO switch, or deck hardware.

Parts that commonly vary by production run

• Deck drive and ground drive belt routing and length
• PTO switch style and connector
• Mandrel (spindle) housing and pulley stack-up
• Idler pulley bracket geometry

If you are troubleshooting a deck or drive issue while identifying the year, the lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in 592855201 is one of the most commonly replaced wear items on this model family.
