Bosch SHE3AR76UC/21 dishwasher Parts

A Bosch dishwasher typically lasts 10 to 15 years. For your Bosch SHE3AR76UC, consistent cleaning, correct loading, and fixing small issues early (like slow draining or leaks) are what most often determine whether you land closer to 10 years or push past 15.

Typical lifespan and what affects it

Most dishwashers wear out from a mix of heat, detergent chemistry, and moving-water abrasion. These factors have the biggest impact:

• Water quality (hard water speeds up mineral buildup)
• How often you run it (daily use wears pumps and seals faster)
• Filter and spray arm maintenance (clogs strain the circulation system)
• Door sealing and alignment (leaks shorten the life of electrical parts)
• Drain performance (standing water accelerates odor and corrosion)

Maintenance that extends life (high impact)

We recommend these habits for Bosch dishwashers like the SHE3AR76UC:

• Clean the filter area regularly and remove debris from the sump
• Run a monthly cleaning cycle (dishwasher cleaner or approved method)
• Keep spray arm holes clear so wash pressure stays strong
• Use rinse aid as needed to reduce spotting and improve drying
• Address slow draining quickly; a struggling drain system overworks the pump

When a repair makes sense vs replacement

A dishwasher can still be worth repairing in the 10 to 15 year window, especially if the tub is sound and the issue is isolated.

Symptom	Common cause	Example part on this model page
Not draining, water left in bottom	Drain restriction or failing pump	Dishwasher drain pump 00611332
Leaking at the door	Worn or deformed gasket	Dishwasher door seal 00645141
Won’t start or stops mid-cycle	Door latch not securing	Dishwasher door lock 00630783

Why it matters

Knowing the expected lifespan helps you decide whether to invest in a repair now or plan for replacement later. On a Bosch unit, keeping the drain path clear and preventing leaks protects the control board, wiring, and motor system.

For model-specific care and cleaning intervals, follow the owner's manual. If you need to source replacement parts beyond the ones listed above, we also offer model-based search on Sears PartsDirect.

Last updated: February 2026

Yes. 21-inch dishwashers are made, but they are less common than standard 24-inch and compact 18-inch models. For fit planning, we recommend confirming the exact cutout width, height, and depth for your Bosch dishwasher model using the owner's manual.

What “21-inch dishwasher” usually means

Most shoppers mean one of these:

• A built-in dishwasher designed for a roughly 21-inch wide opening (uncommon)
• A compact built-in (more often 18-inch wide)
• A portable or countertop dishwasher (varies by design)

Because cabinet openings and door clearances vary, the best approach is to measure your space and match it to the dishwasher’s published installation dimensions.

How to measure your opening (so you buy the right size)

Measure in inches and check for obstructions (trim, pipes, shutoff valve):

• Width: inside cabinet opening at the front and back
• Height: floor to underside of countertop
• Depth: cabinet face to back wall (include hose and cord routing space)
• Door clearance: room for the door to open fully without hitting an island or adjacent cabinet

Quick size comparison

Dishwasher type	Typical width	Best for
Standard built-in	24 in.	Most kitchens
Compact built-in	18 in.	Small kitchens, apartments
“21-inch” niche sizes	Around 21 in.	Non-standard cutouts

Why it matters

A dishwasher that is even 1 inch off can cause installation problems (binding door, gaps at the sides, or difficulty leveling). Confirming the cutout dimensions first helps you avoid returns and ensures proper draining and sealing.

Parts and help for your Bosch SHE3AR76UC

If you are keeping your current Bosch SHE3AR76UC and just need it working correctly, we stock common repair parts like the dishwasher drain pump 00611332 and dishwasher door seal 00645141. You can also search by model number on Sears PartsDirect to find additional parts and diagrams.

Last updated: February 2026

Yes, repairing a Bosch dishwasher like model SHE3AR76UC is usually worth it when the unit is under about 10 years old and the problem is limited to one failed part (such as a drain pump, door lock, or inlet valve). Use the SHE3AR76UC owner's manual to confirm symptoms and reset steps before buying parts.

Quick decision checklist

• If the dishwasher is under 10 years old, repairs typically make sense.
• If the repair is one clear failure, it is usually cost-effective.
• If the dishwasher has multiple symptoms (leaks plus no-drain plus no-heat), replacement is often the better value.
• If the tub is damaged or the unit has chronic leaking, repairs rarely pay off.
• If the repair cost is under about 50% of the price of a comparable new dishwasher, repairing is the better choice.

Common repairs that are often worth it on SHE3AR76UC

These are frequent, straightforward fixes where replacing a single component restores normal operation:

• Not draining: check for clogs; replace the dishwasher drain pump 00611332 if the pump hums, binds, or will not run.
• Won’t start: confirm the door is latching; a failed dishwasher door lock 00630783 can prevent the cycle from beginning.
• Not filling: verify the water supply is on; a faulty dishwasher water inlet valve 00633970 can stop filling.
• Leaking at the door: inspect the gasket; replace the dishwasher door seal 00645141 if torn, flattened, or loose.

Repair vs replace: simple comparison

Situation	Usually repair	Usually replace
One symptom, one part failure	Yes	No
Multiple major parts suspected (pump + control + heater)	Sometimes	Yes
Unit is under 10 years old	Yes	Sometimes
Unit is over 10 years old	Sometimes	Often

Why it matters

A targeted repair keeps a quality Bosch dishwasher running, avoids the cost and hassle of a full replacement, and often solves performance issues (no-drain, no-fill, won’t-start) with a single part and basic troubleshooting.

For model-specific troubleshooting steps and any displayed fault indicators, use Bosch dishwasher error codes. You can order replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common problems we see with Bosch dishwashers like model SHE3AR76UC are maintenance-related: a dirty filter area or clogged spray arms that cause poor cleaning, plus drainage issues from a blockage or a weak drain system. Start with cleaning and inspection using the SHE3AR76UC owner's manual.

Most common symptoms and what they usually mean

• Dishes come out dirty or gritty: filter area needs cleaning, spray arms are blocked, or water is not heating well.
• Standing water in the bottom: drain path is restricted, the drain pump is weak, or the check valve is sticking.
• Won’t start or stops mid-cycle: door isn’t latching, control is not sensing a closed door, or a control issue is present.
• Leaks at the door: door seal is worn, dirty, or not seating evenly.
• Detergent cup not opening: dispenser is sticking or blocked by loading.

Quick checks we recommend first (before replacing parts)

• Clean the filter area and remove any glass, labels, or food debris.
• Spin and rinse the spray arms; clear clogged jet holes.
• Confirm the sink drain and garbage disposer inlet are clear (a common hidden restriction).
• Check that the drain hose has a proper high loop and is not kinked.
• Make sure the door closes firmly and the latch engages every time.

Parts that commonly solve these problems on SHE3AR76UC

If cleaning and hose checks do not fix the issue, these model-matched parts are frequent fixes:

Symptom	Common fix	Model-matched part
Not draining, water left in tub	Replace drain pump	Dishwasher drain pump 00611332
Backflow or dirty water returning	Replace check valve	Dishwasher check valve 00611320
Won’t start, door won’t latch	Replace door lock	Dishwasher door lock 00630783
Leaks at the door edge	Replace door seal	Dishwasher door seal 00645141
Not filling or fills slowly	Replace inlet valve	Dishwasher water inlet valve 00633970

Why it matters

Most “common Bosch dishwasher problems” start as airflow, water-flow, or drain-flow restrictions. Fixing the root cause (cleaning, proper hose routing, and a solid door latch) prevents repeat clogs, odor, and pump strain.

For model-specific fault patterns, we also use the Bosch dishwasher error codes guide to match symptoms to the right repair.

If you need to order parts beyond the list shown for SHE3AR76UC, we recommend searching by model number on Sears PartsDirect.

Last updated: February 2026

In a Bosch dishwasher like model SHE3AR76UC, the most commonly replaced parts are the ones that handle draining, filling, sealing, latching, and dispensing. These parts wear from normal use, hard-water buildup, and heat, and they directly affect cleaning, drying, and leak prevention (see the owner's manual).

Commonly replaced dishwasher parts (and what they do)

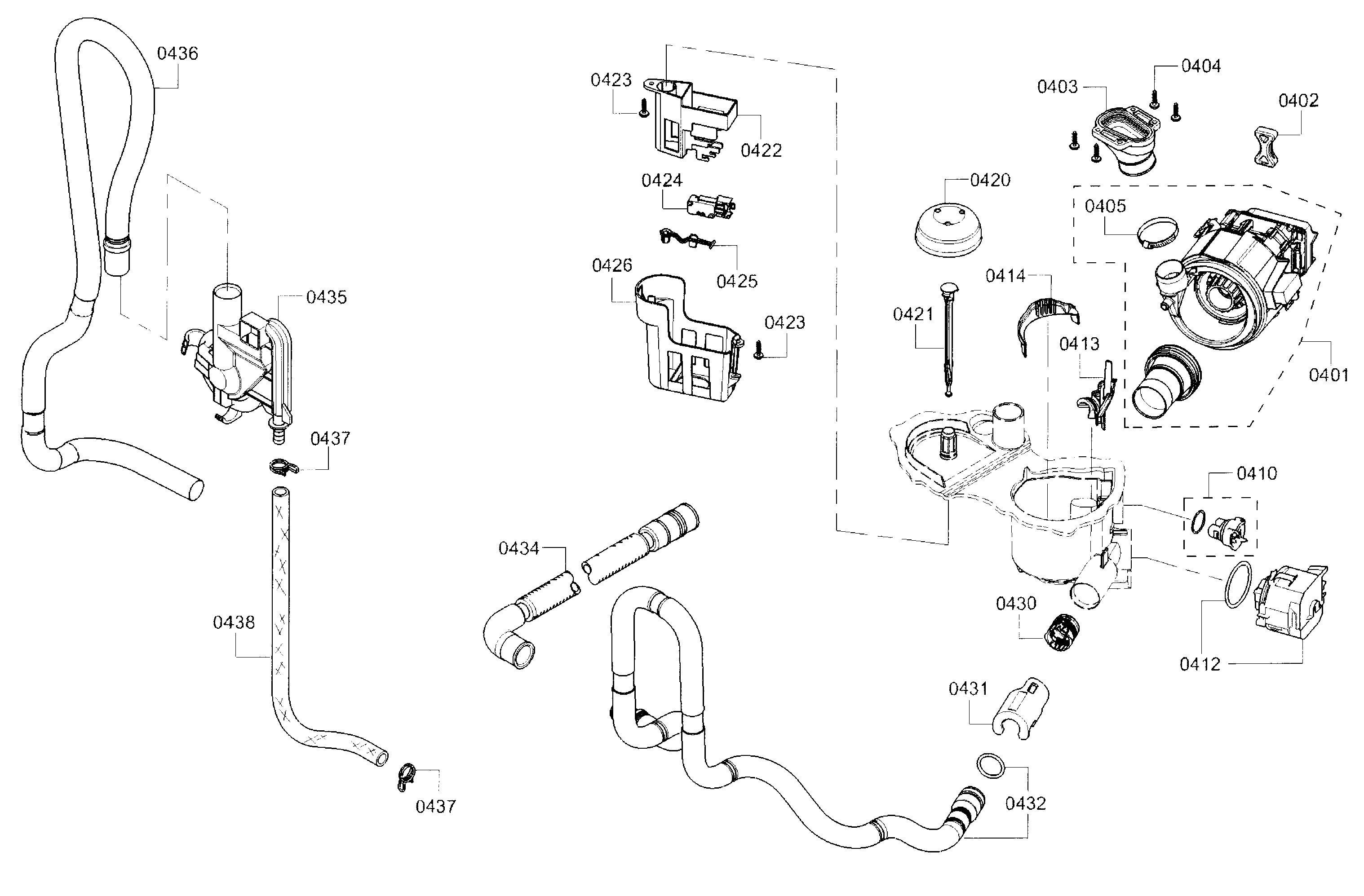

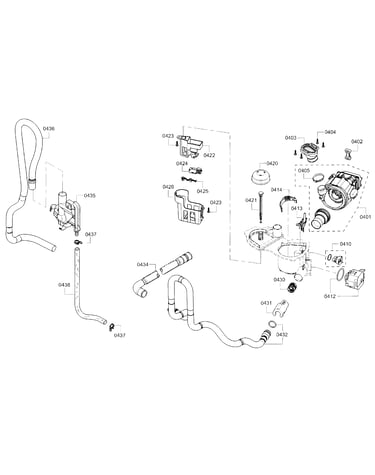

• Drain components: move water out of the tub; clogs and wear can cause standing water (example: dishwasher drain pump 00611332).
• Door latch and lock: keeps the door securely closed so the unit can run (example: dishwasher door lock 00630783).

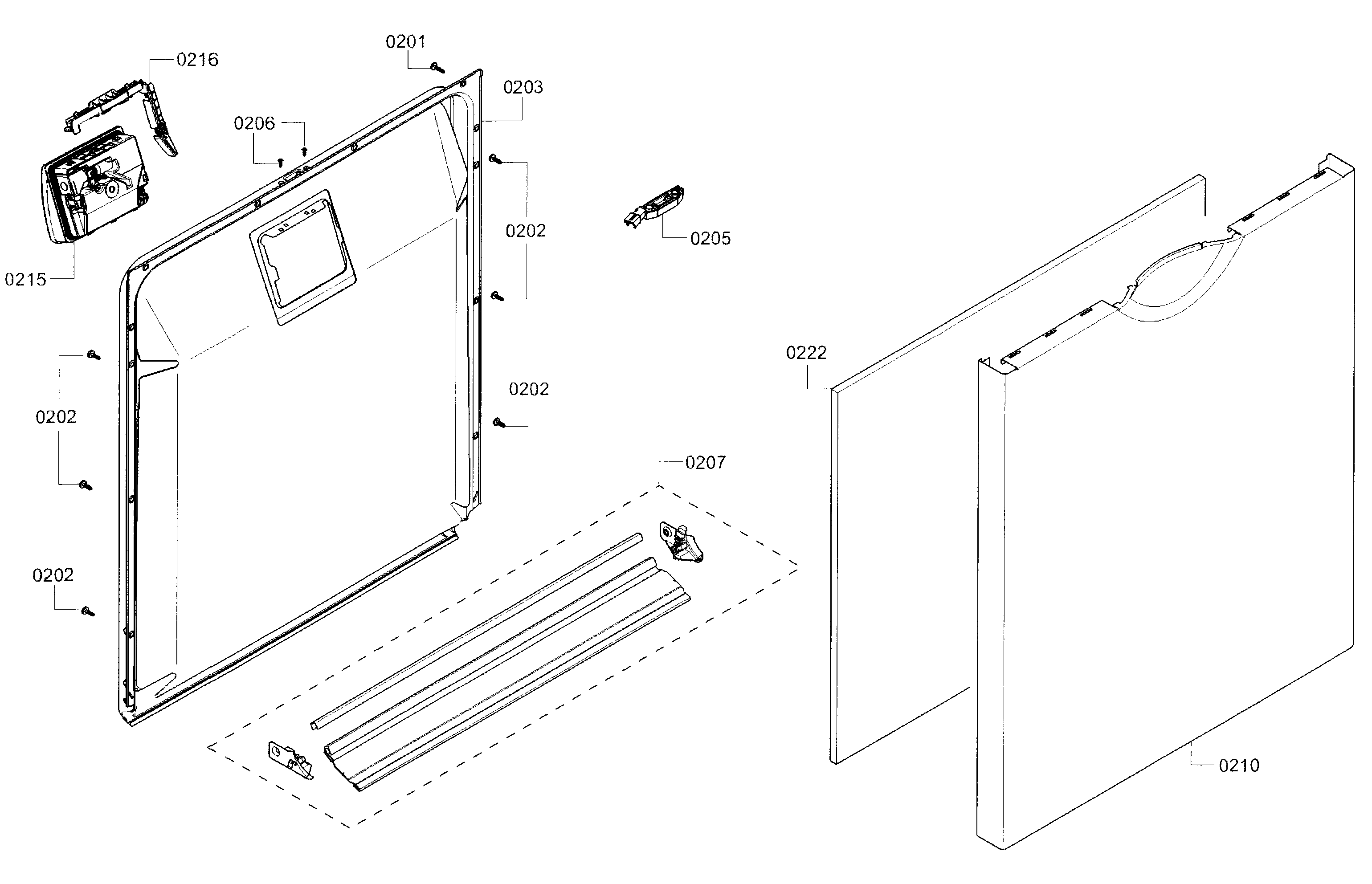

• Door seal: prevents leaks around the door opening (example: dishwasher door seal 00645141).
• Water inlet valve: controls water entering the dishwasher; failures can cause no-fill or overfill (example: dishwasher water inlet valve 00633970).
• Detergent dispenser: releases detergent at the right time; sticking can leave soap unused (example: dishwasher detergent dispenser assembly 00645208).

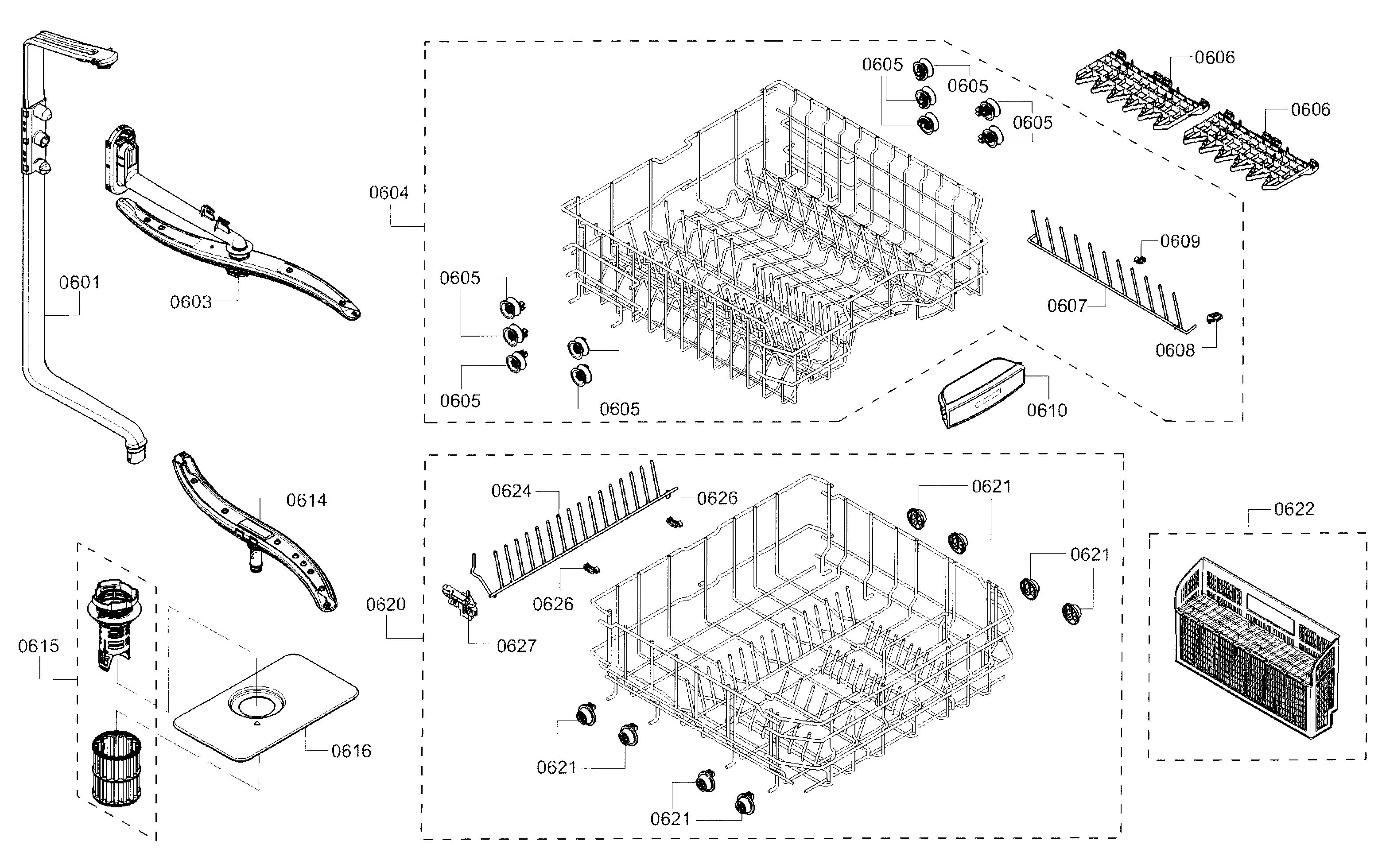

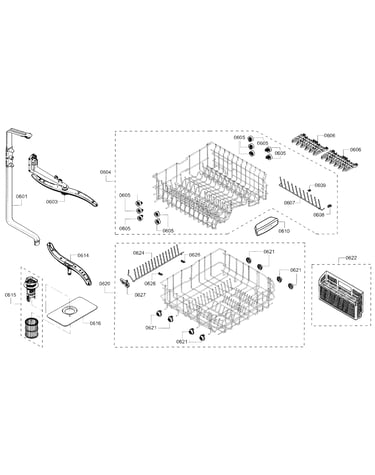

• Rack hardware: rollers and clips wear or break, making racks hard to slide (example: dishwasher dishrack roller, lower 00611475).

Quick symptom-to-part guide

Symptom	Common parts to check	What you may notice
Won’t drain	Drain pump, drain hose, check valve	Water left in bottom, gurgling, slow drain
Leaks at door	Door seal, door lock	Drips at corners, wet floor in front
Won’t fill	Water inlet valve	Hums but no water, cycle stops early
Detergent not dispensing	Detergent dispenser	Tablet still in cup, poor cleaning
Poor cleaning results	Circulation system, sensors, spray path	Grit on dishes, cloudy glassware

Why it matters

Dishwashers rely on a sealed wash chamber, correct water level, and reliable draining. When a high-wear part (like a pump, valve, or seal) starts failing, it can turn into repeat cycle issues, odors, or leaks.

Helpful troubleshooting resource

If your dishwasher is showing a code or flashing lights, we use the Bosch dishwasher error codes guide to match the code to the most likely system (drain, fill, heating, or control).

You can order replacement parts for your Bosch SHE3AR76UC from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
