KitchenAid KUDC03FTSS2 dishwasher Parts
Here are the diagrams and repair parts for KitchenAid KUDC03FTSS2 dishwasher, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

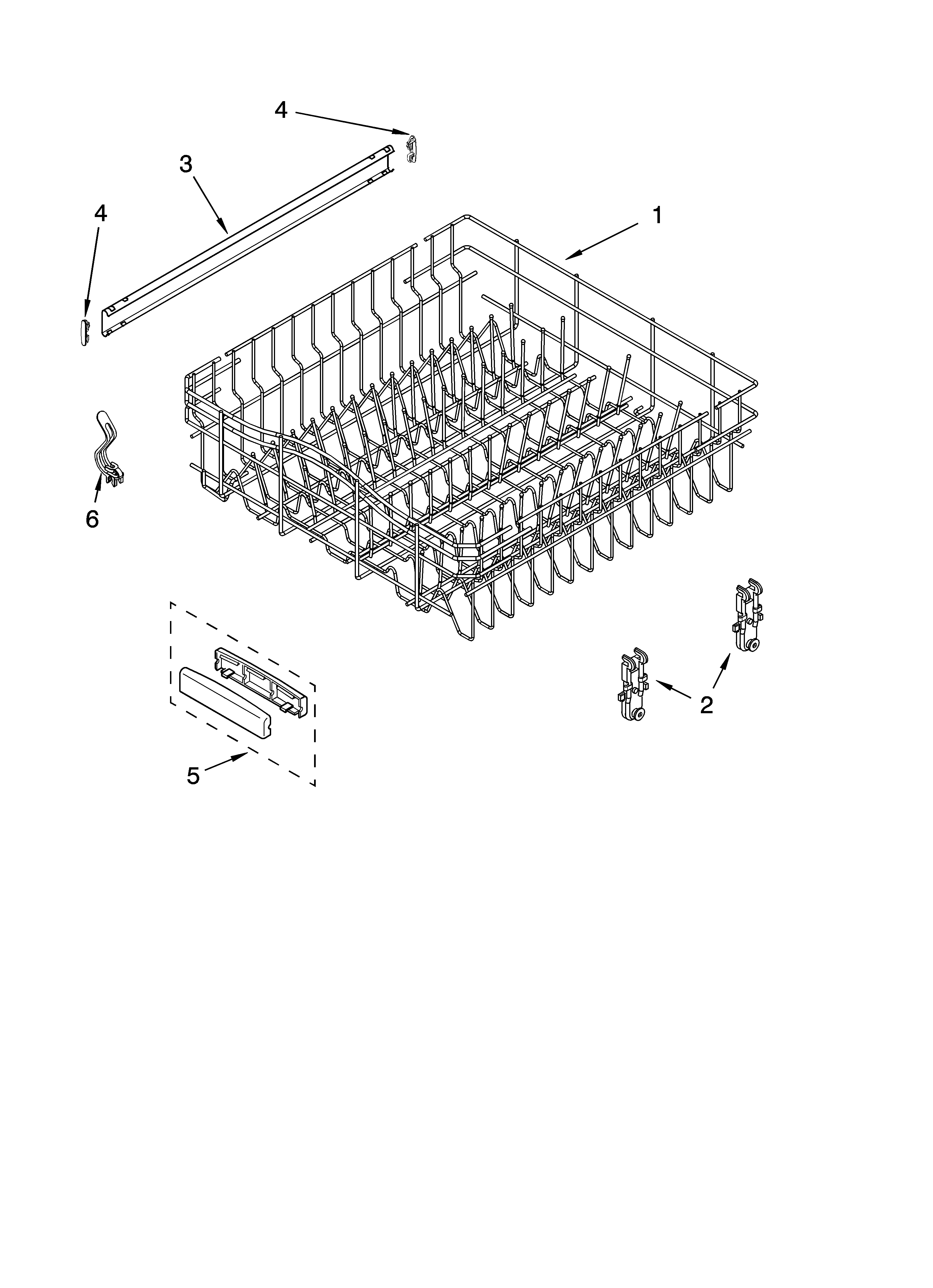

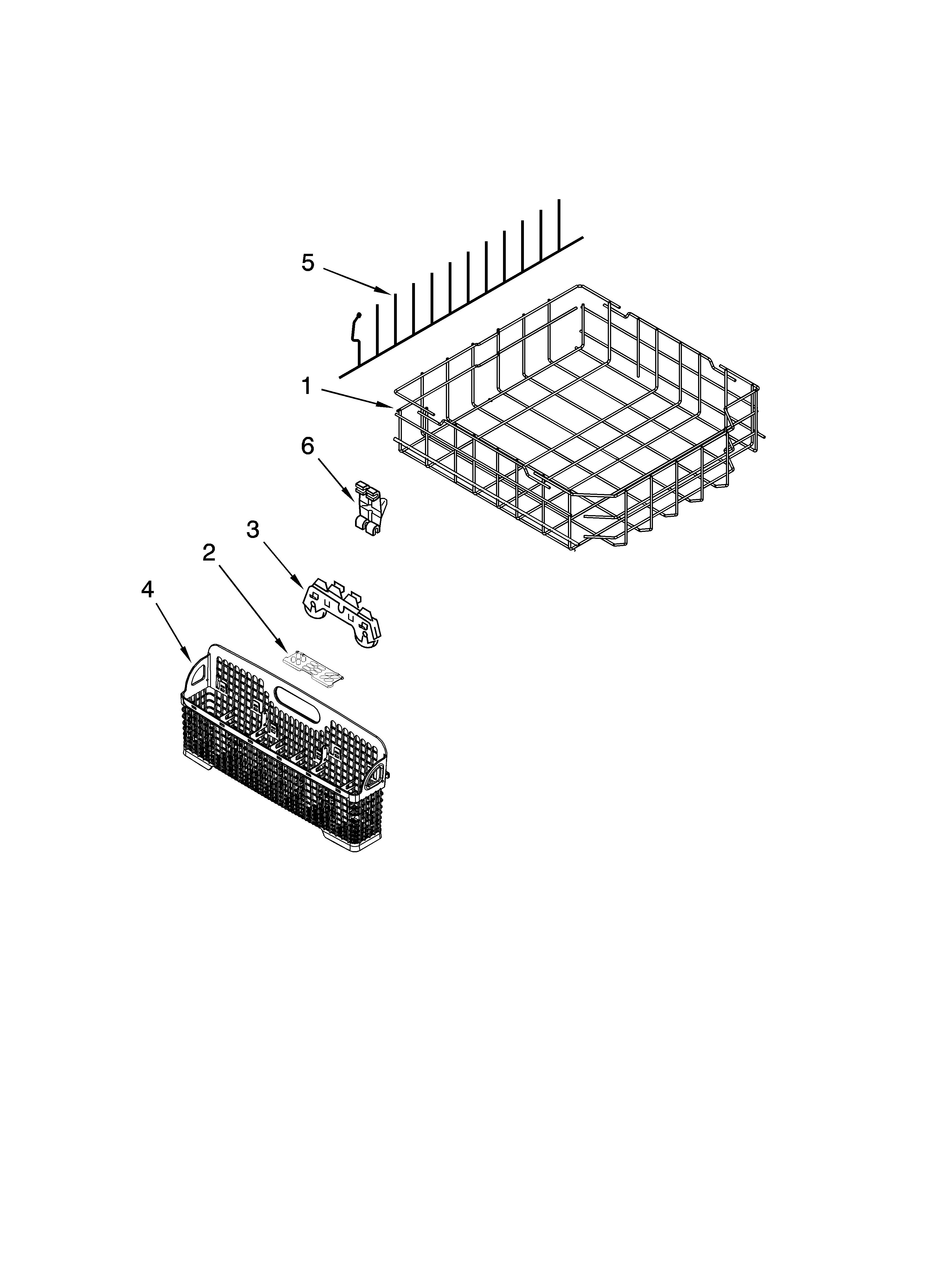

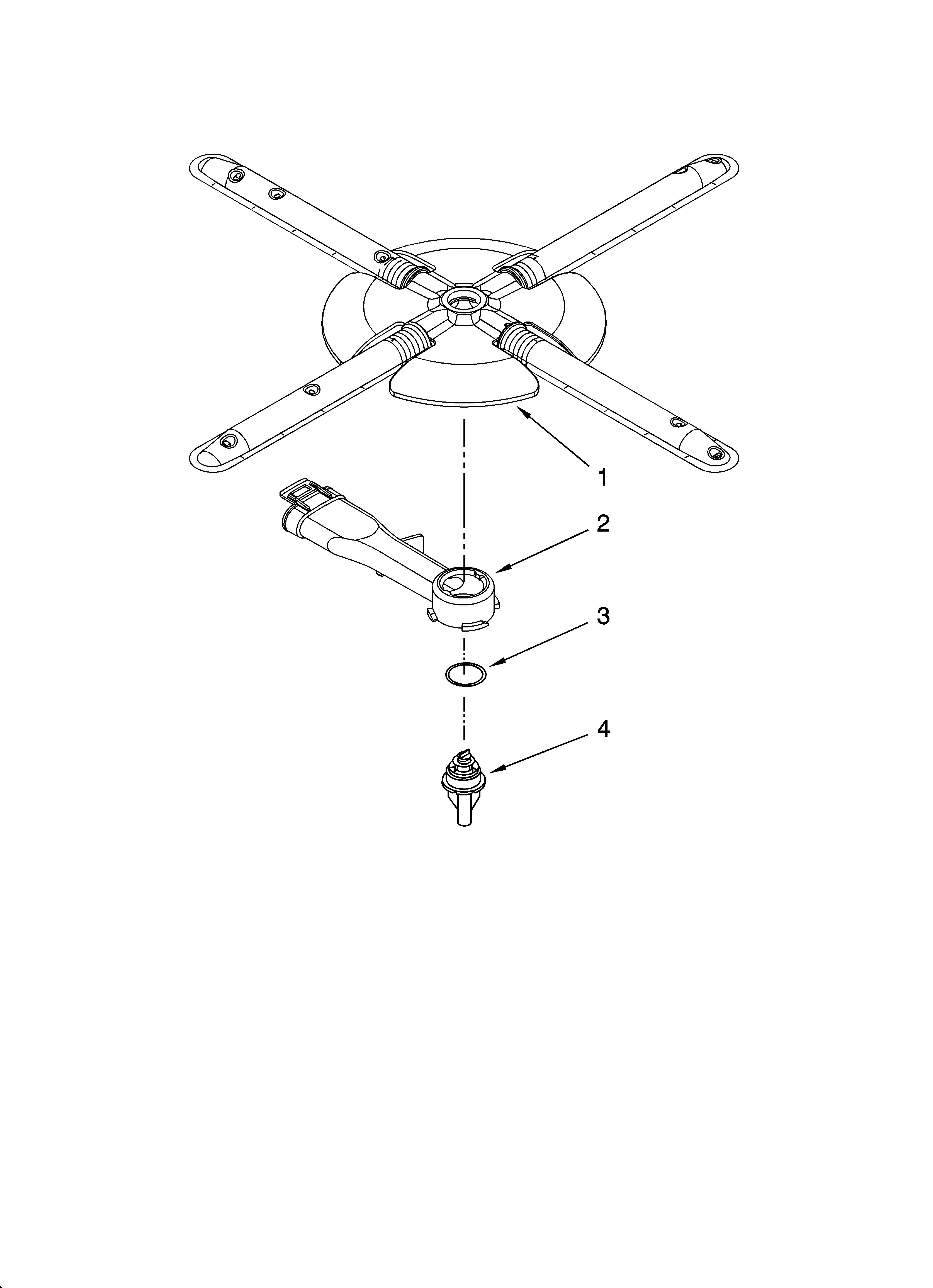

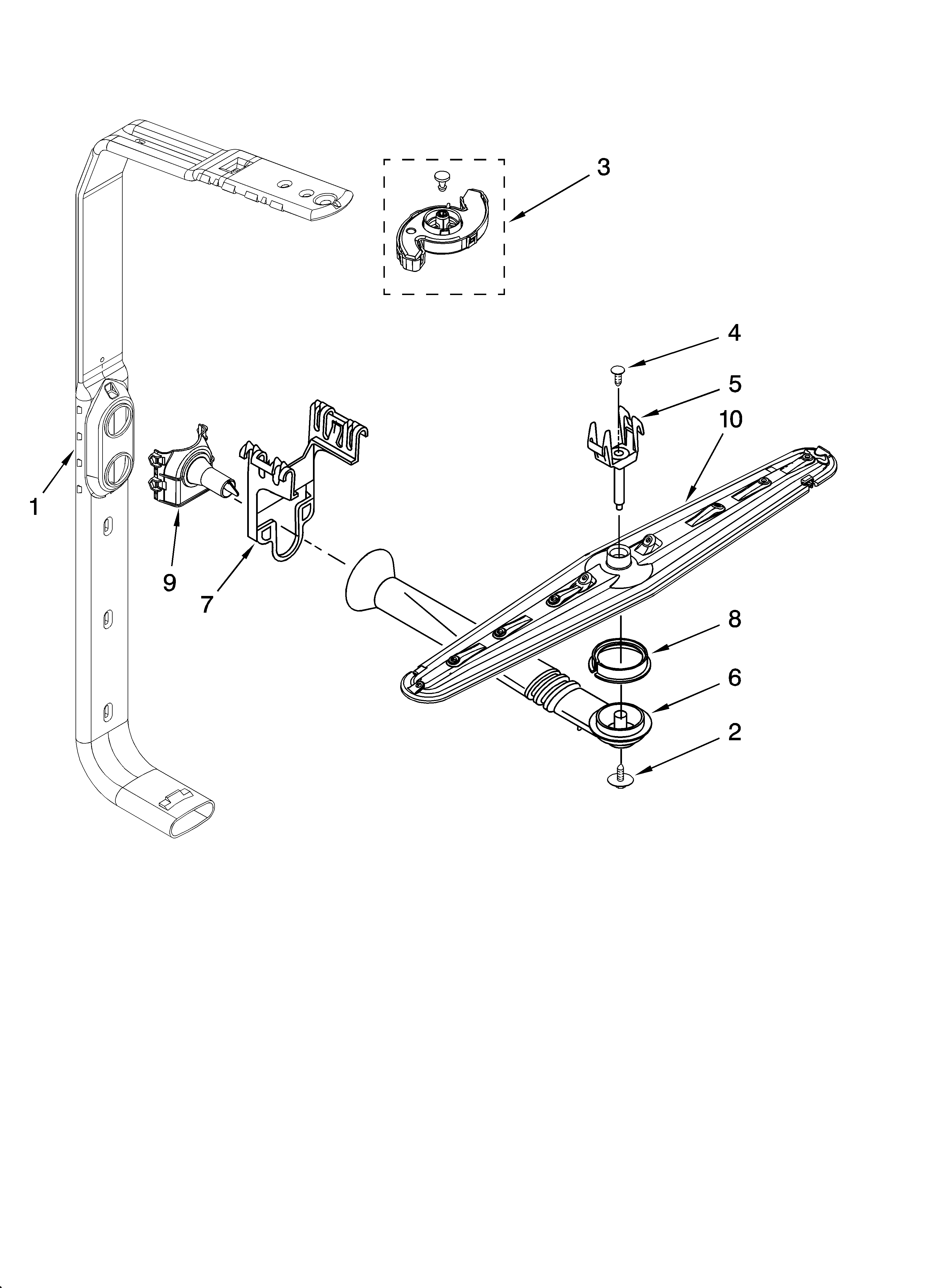

SELECT DIAGRAM
Browse Parts for KUDC03FTSS2 Dishwasher

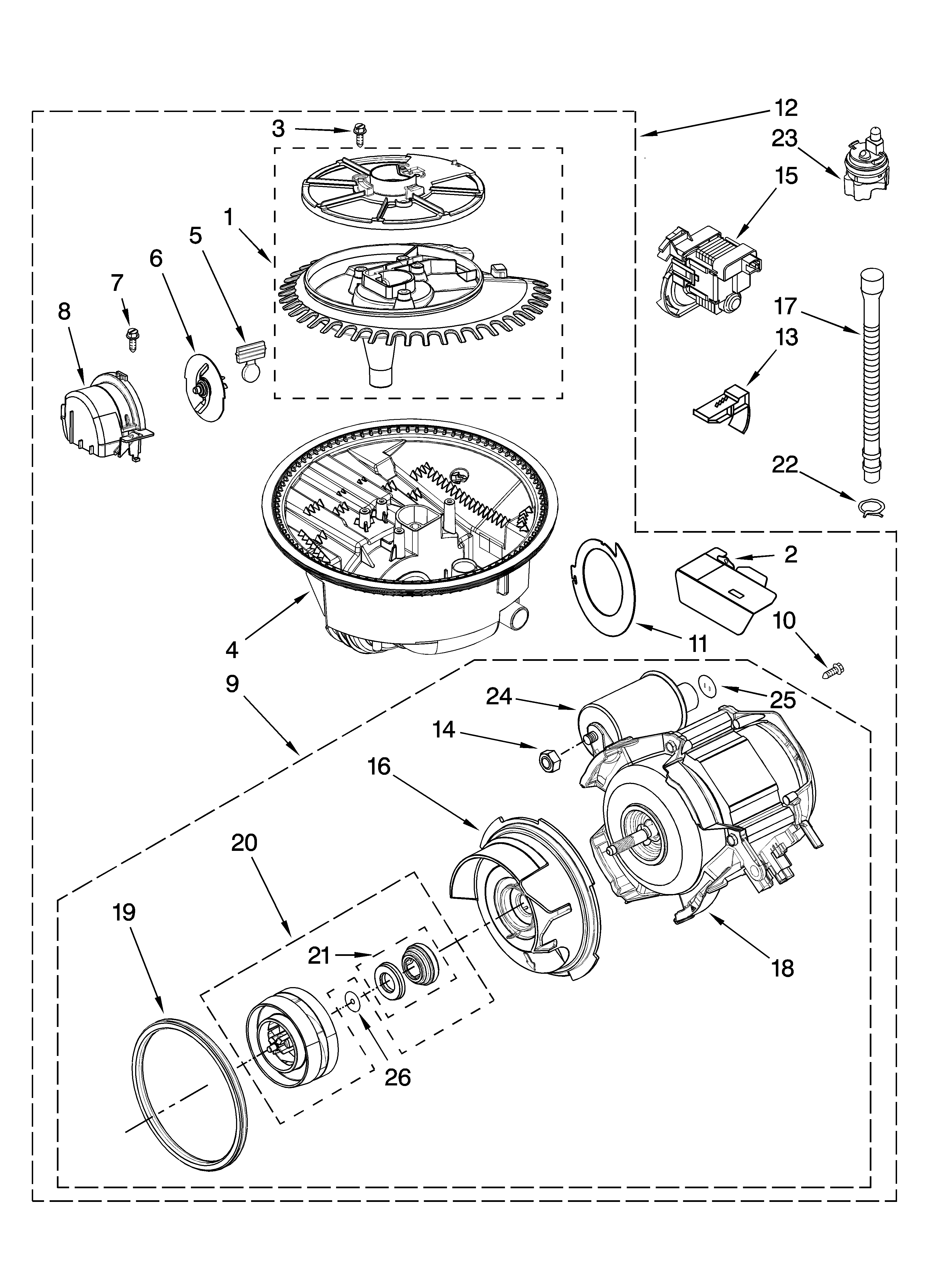

Pump and motor parts diagram
Pump Motor
Part #8535759Replaced by #WPW10757217
Manufacturer substitutionThis part replaces 8535759. Substitute parts can look different from the original.In Stock$179.046% OFF Phone Price : $191.04
Qty

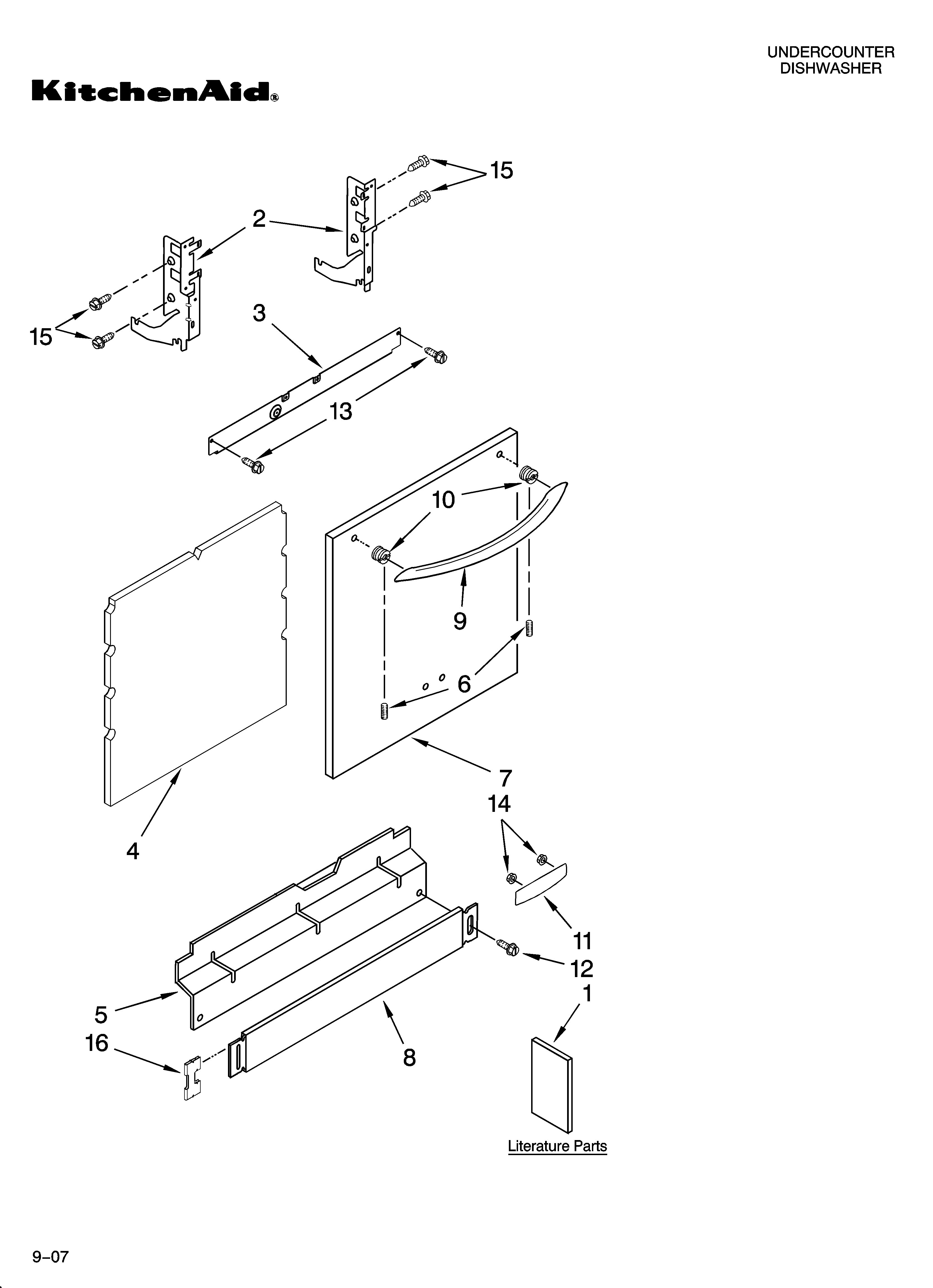

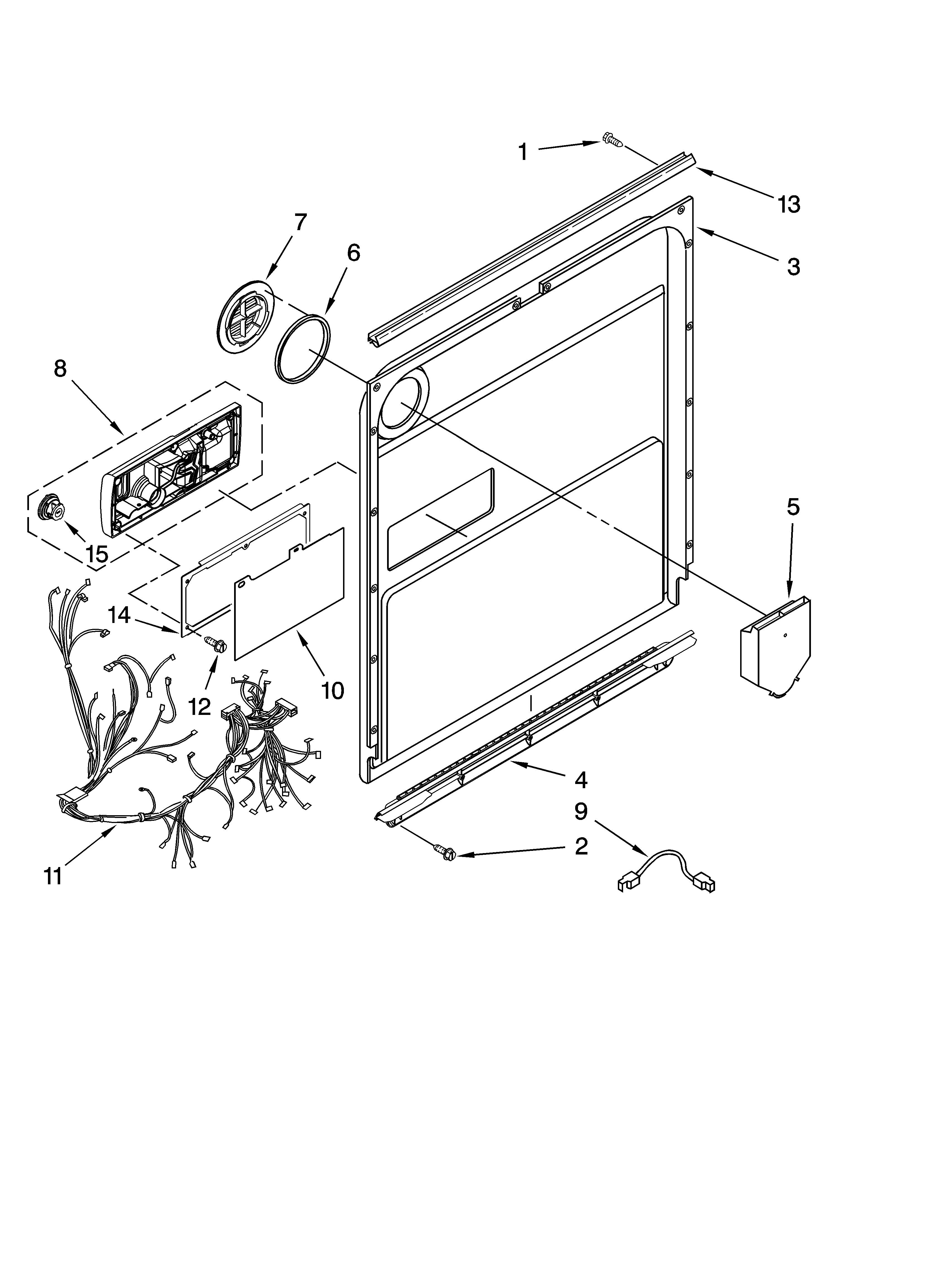

Door and latch parts diagram
Dishwasher Dispenser
Part #W10077882Replaced by #WPW10199696
Manufacturer substitutionThis part replaces W10077882. Substitute parts can look different from the original.In Stock$137.148% OFF Phone Price : $149.14QtyFill, drain and overfill parts diagram

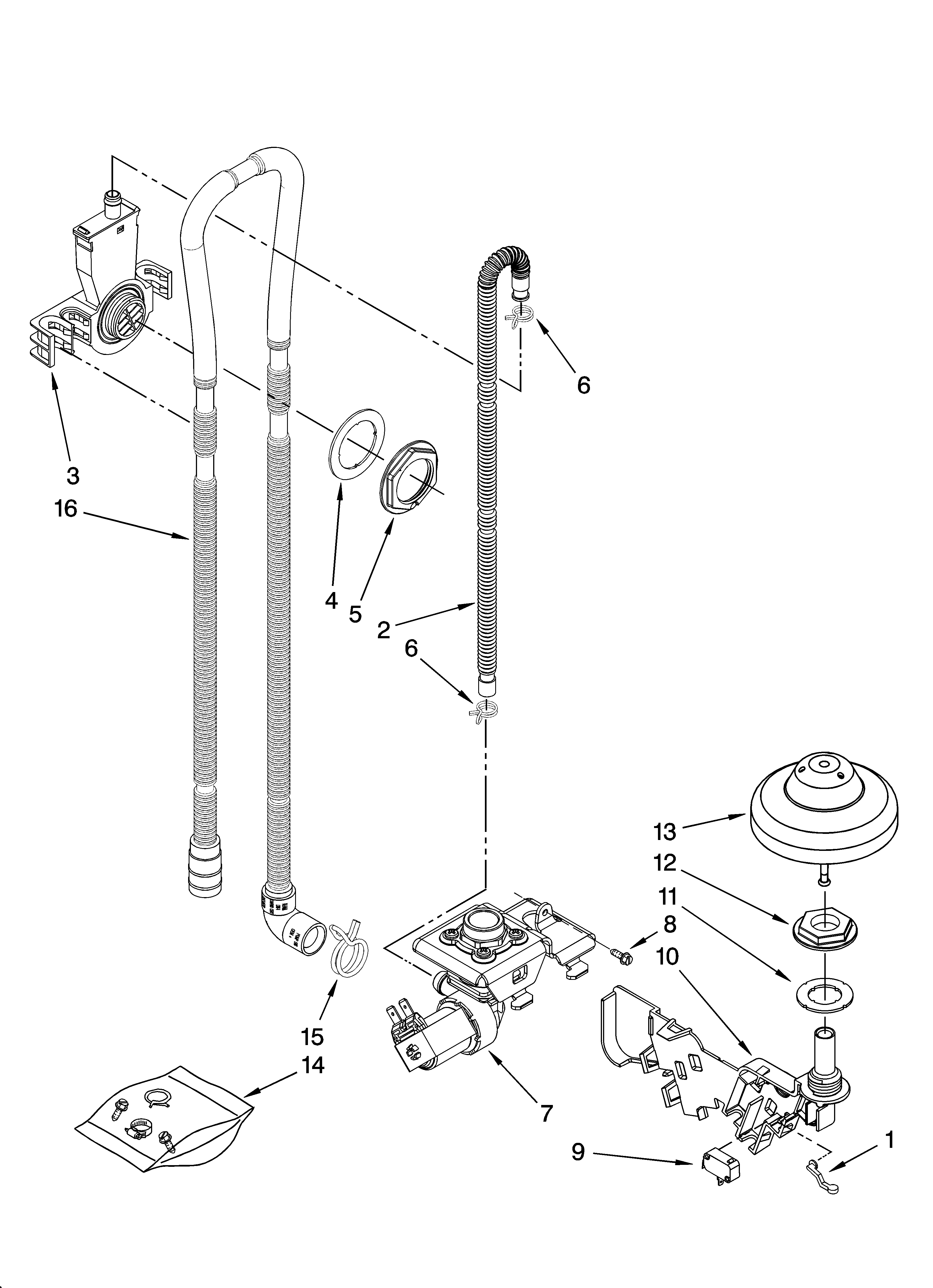

Dishwasher Water Inlet Tubing
Part #8531412Replaced by #W10878507
Manufacturer substitutionThis part replaces 8531412. Substitute parts can look different from the original.In Stock$60.319% OFF Phone Price : $66.31QtyDoor and latch parts diagram
Dishwasher Vent Gasket
Part #8269259Replaced by #WP8269259

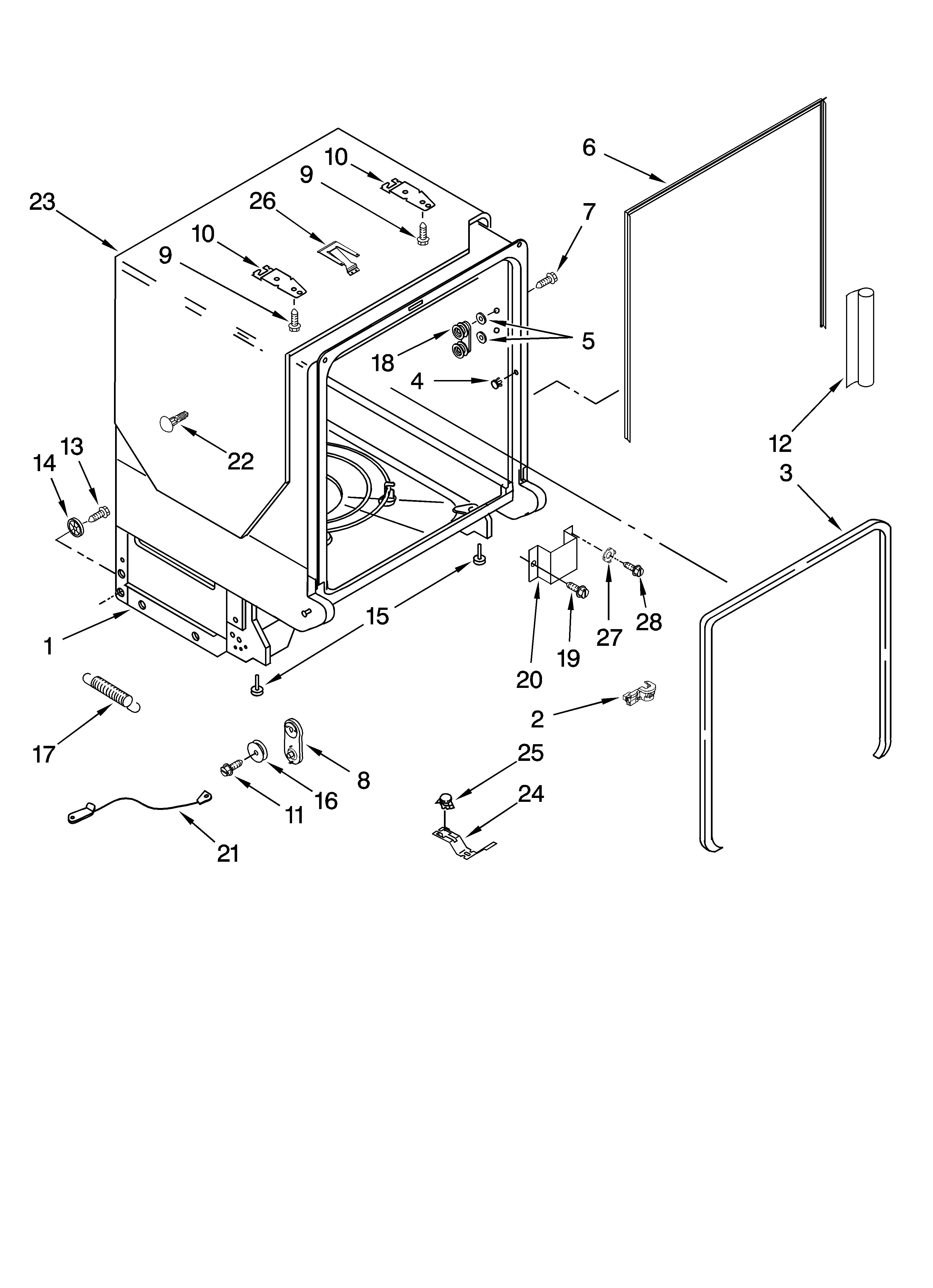

Manufacturer substitutionThis part replaces 8269259. Substitute parts can look different from the original.In Stock$36.4014% OFF Phone Price : $42.40QtyTub and frame parts diagram
Dishwasher Door Spring
Part #8270020Replaced by #WP8270020

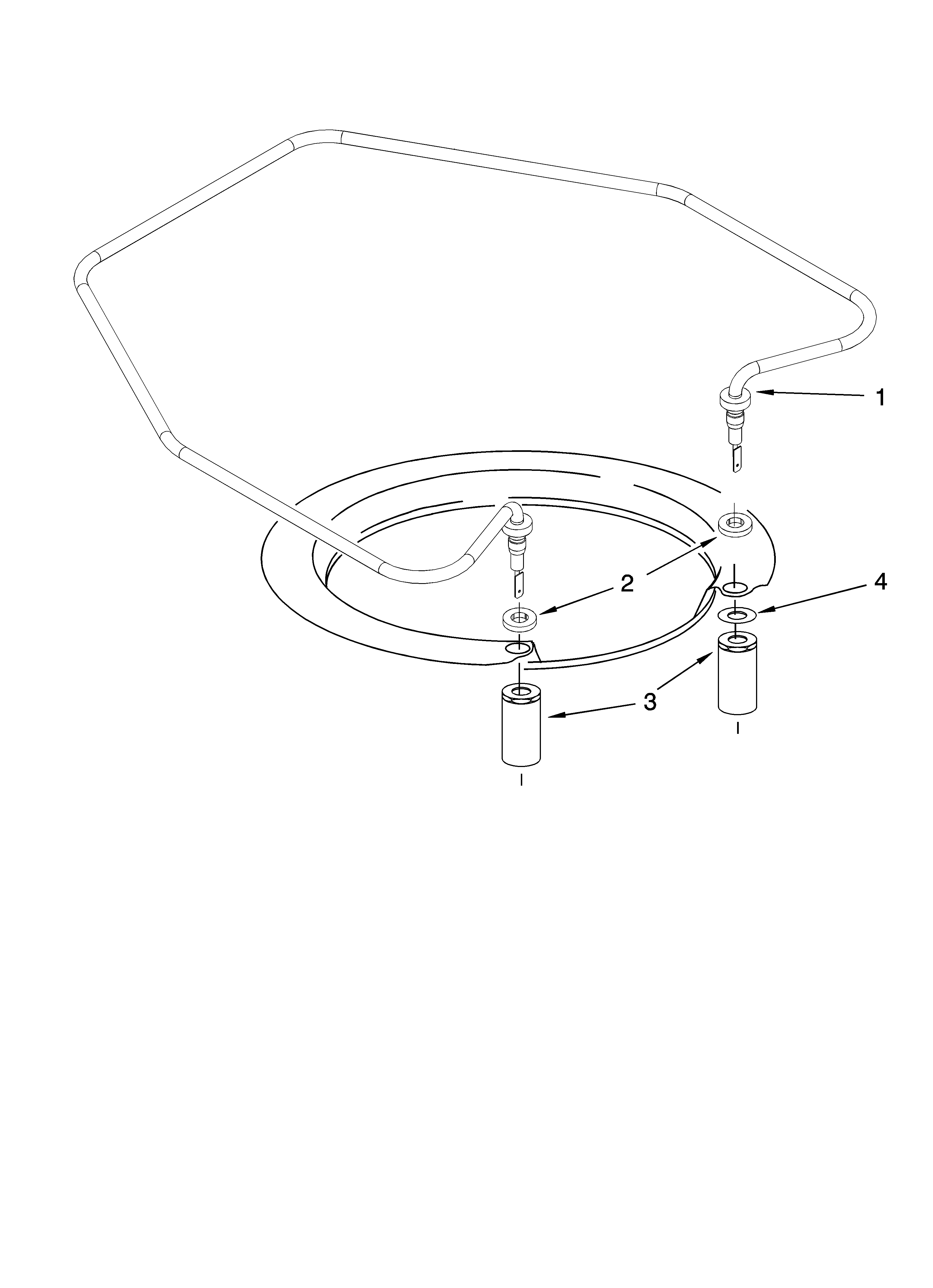

Manufacturer substitutionThis part replaces 8270020. Substitute parts can look different from the original.In Stock$24.8519% OFF Phone Price : $30.85QtyHeater parts diagram
Heater Element
Part #8537057Replaced by #WPW10082892
Manufacturer substitutionThis part replaces 8537057. Substitute parts can look different from the original.In Stock$45.4312% OFF Phone Price : $51.43QtyPump and motor parts diagram
Dishwasher Chopper Assembly
Part #W10083957Replaced by #W10083957V
Manufacturer substitutionThis part replaces W10083957. Substitute parts can look different from the original.In Stock$33.3915% OFF Phone Price : $39.39QtyTub and frame parts diagram
Dishwasher Door Seal
Part #W10112096Replaced by #W11196317

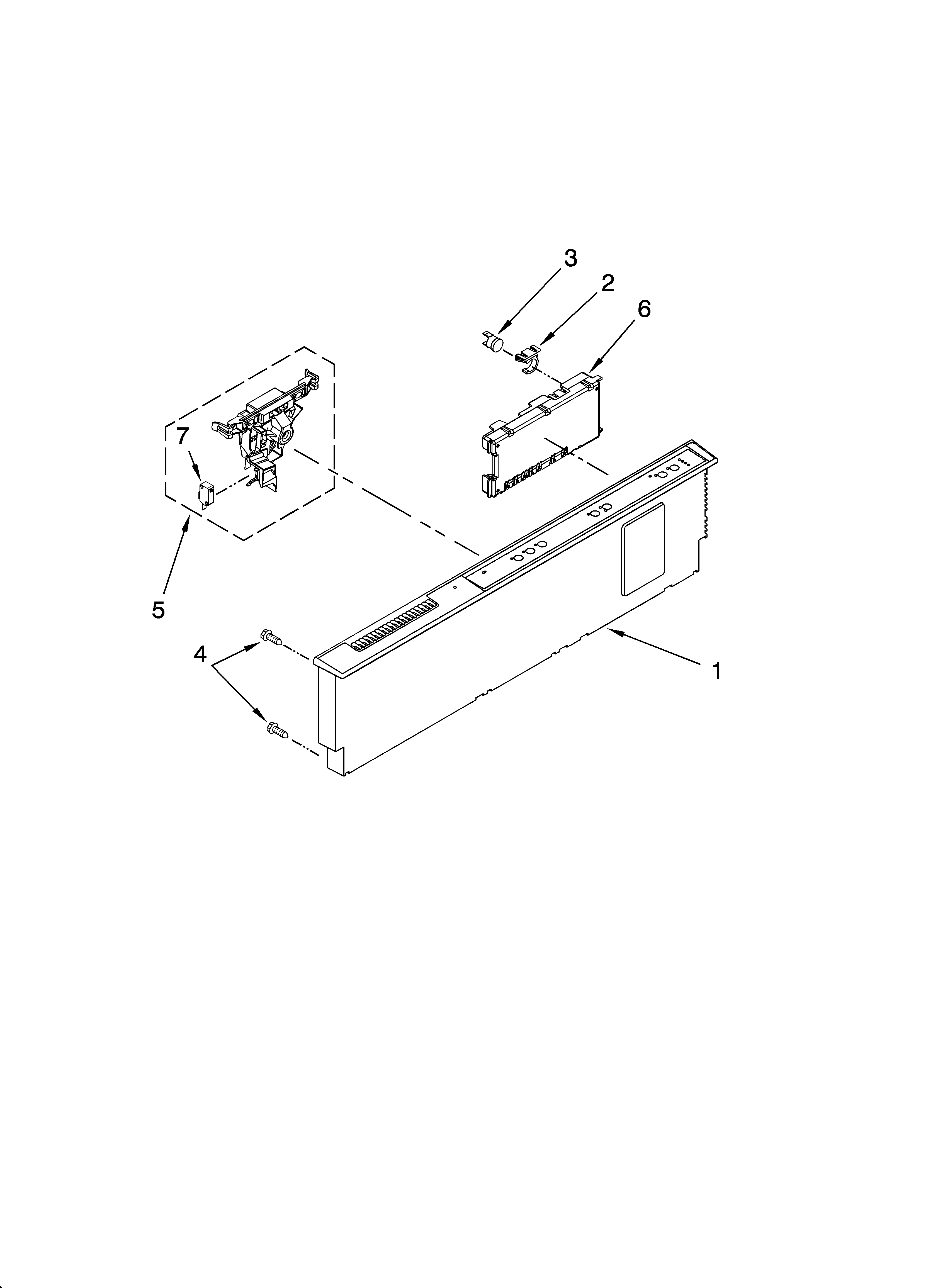

Manufacturer substitutionThis part replaces W10112096. Substitute parts can look different from the original.In Stock$71.168% OFF Phone Price : $77.16QtyControl panel parts diagram
Dishwasher Door Latch
Part #W10077360Replaced by #WPW10404412
Manufacturer substitutionThis part replaces W10077360. Substitute parts can look different from the original.In Stock$69.758% OFF Phone Price : $75.75QtyHeater parts diagram
Dishwasher Heating Element Rubber Washer
Part #717273Replaced by #WP717273
Manufacturer substitutionThis part replaces 717273. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2416% OFF Phone Price : $6.24Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Danby Appliance Touch-up Paint, 0.6-oz (white)
In Stock
$8.46
11% OFF Phone Price : $9.46
Qty
Dishwasher Moisture Barrier Kit
Part #4396277
This item is not returnable
In Stock
$22.17
21% OFF Phone Price : $28.17
Qty
Appliance Touch-up Paint, 0.6-oz (black)
Part #72032
This item is not returnable
In Stock
$11.08
15% OFF Phone Price : $13.08
Qty
Most common symptoms to help you fix your dishwashers
Choose a symptom to see related dishwasher repairs.
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, contro…
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…
Main cause: damaged rack height adjuster…
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…
Most common repair guides to help fix your dishwashers
These step-by-step repair guides will help you safely fix what’s broken on your dishwasher.
How to replace a dishwasher door latch assembly
If the dishwasher door doesn't click shut, a broken door latch is a likely cause. Follow these instructions to replace i…
Repair time and Difficulty
30 minutes or less
How to replace a dishwasher thermal fuse
A completely dead control panel often indicates that the thermal fuse on the electronic control board is blown; follow t…
Repair time and Difficulty
15 minutes or less
How to replace a dishwasher control panel
Learn how to replace a dishwasher control panel. Learn which tools and parts you need and get step-by-step instructions.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your dishwashers
Use the advice and tips in these articles and videos to get the most out of your dishwasher.
Your dishwasher’s secret weapon? A turbidity sensor. Find out what it does, how it boosts wash quality, and what to do i…
Find out why your dishes are still wet even after the dishwasher cycle has finished.…
It only takes a few minutes to get your dishrack sliding easily again.…
