Bottom-Mount Refrigerator

Model #LRBC22544WW Official LG refrigerator

Here are the diagrams and repair parts for LG LRBC22544WW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

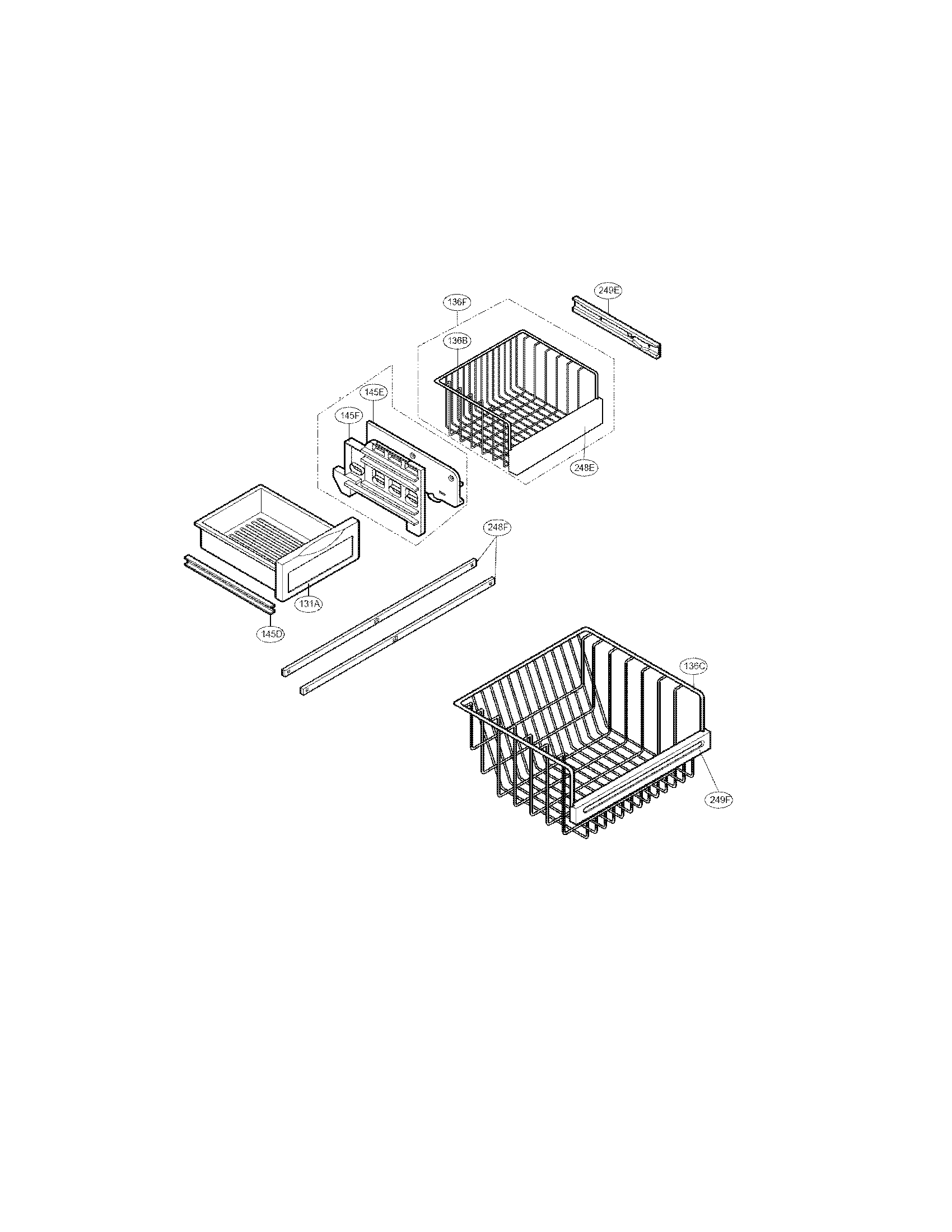

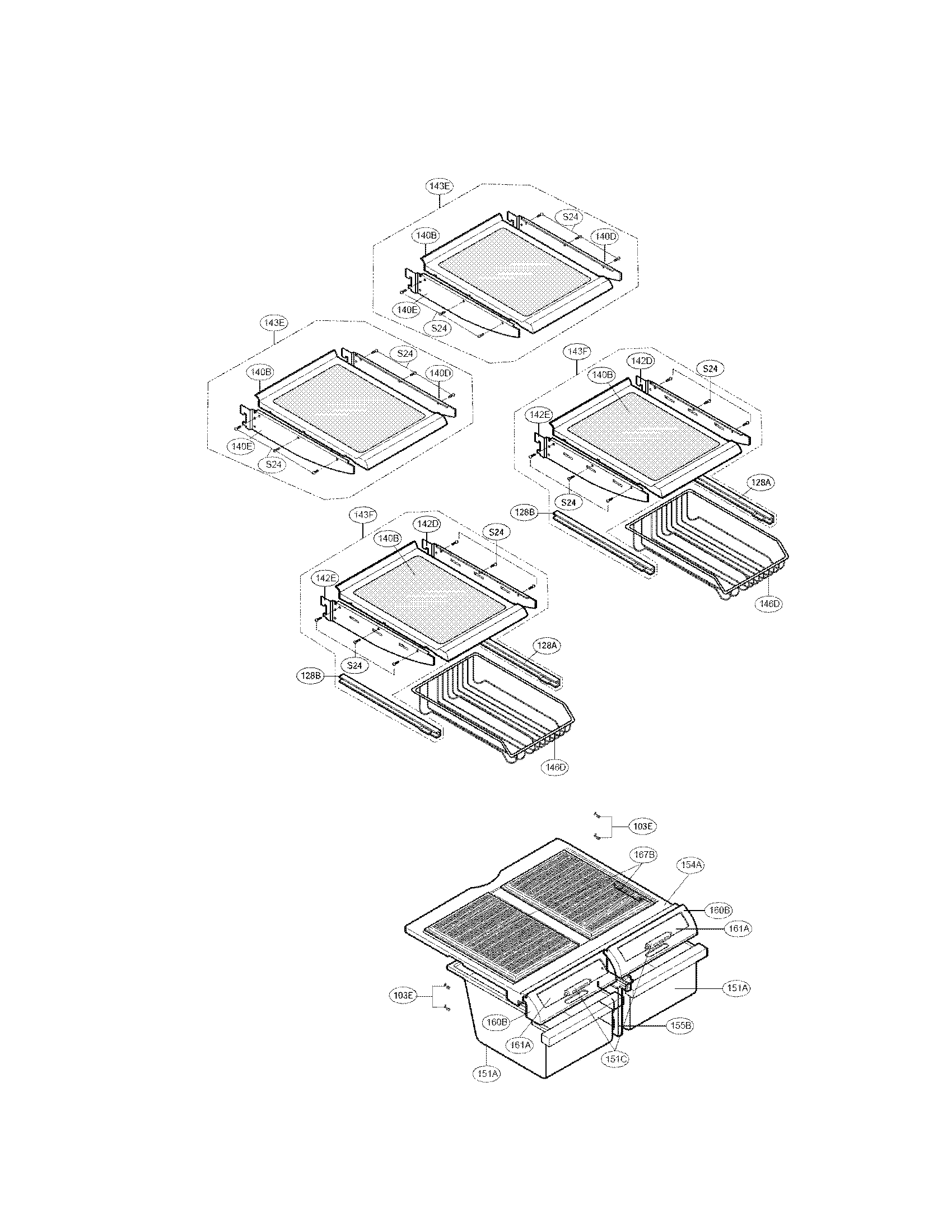

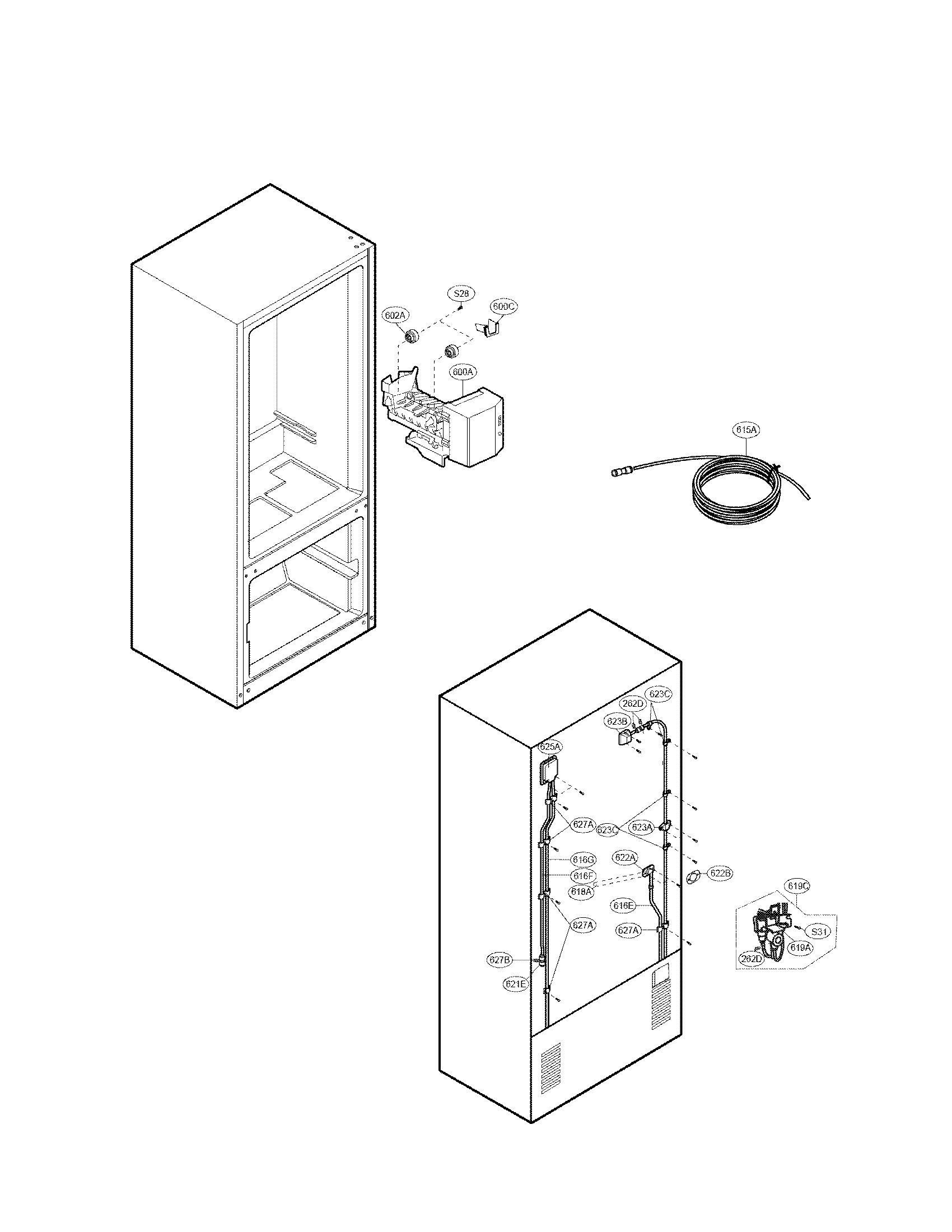

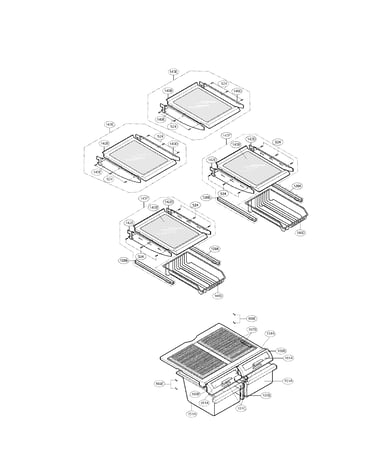

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

Showing 10 of 175 parts

Refrigerator Door Switch (replaces 6600JB1004A)#406B

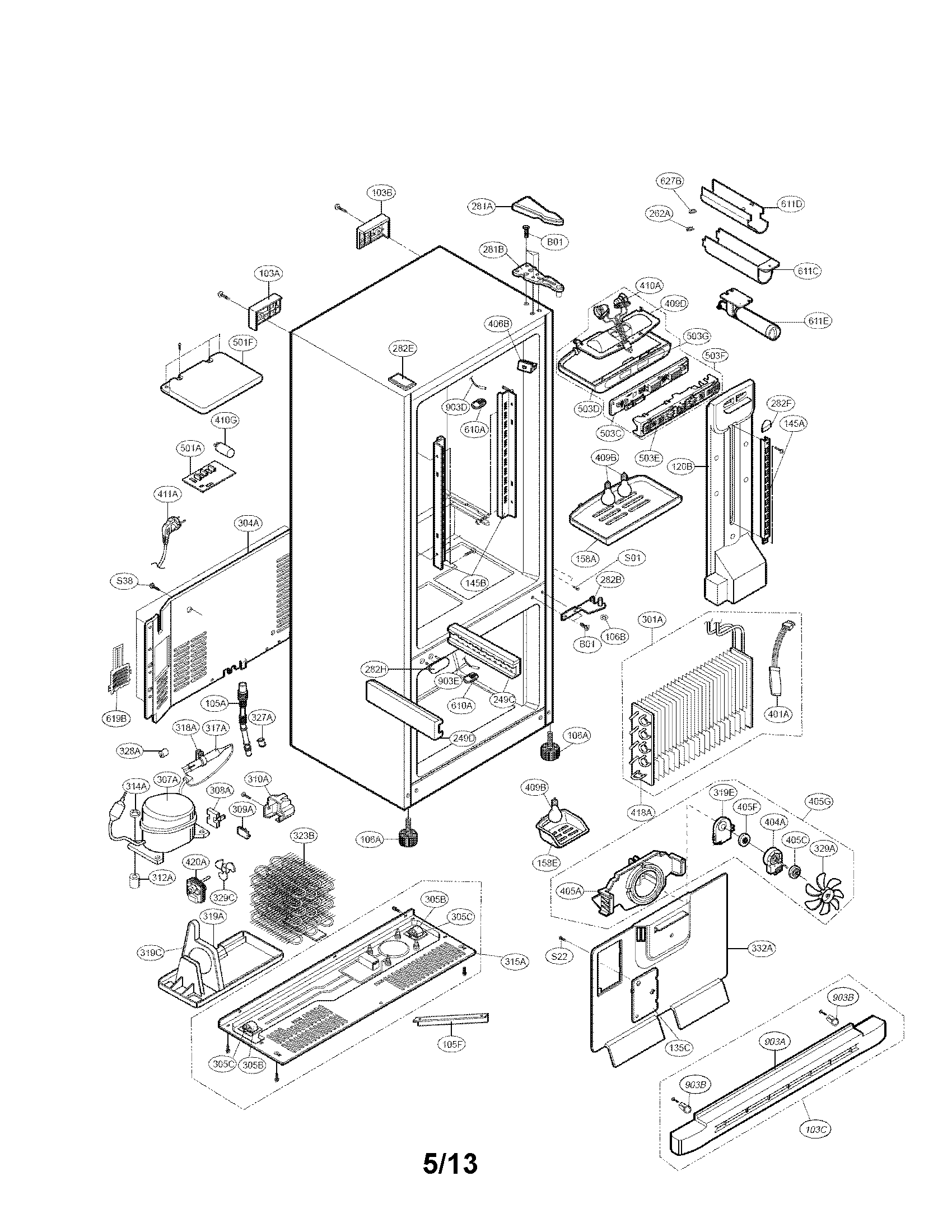

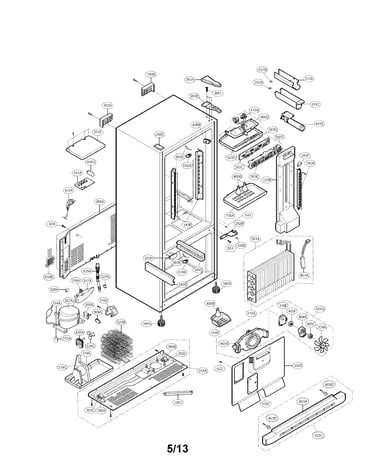

Case parts Diagram

In Stock
$13.69 |
8% OFF
Phone Price: $14.80
Refrigerator Door Hinge Bushing#286A

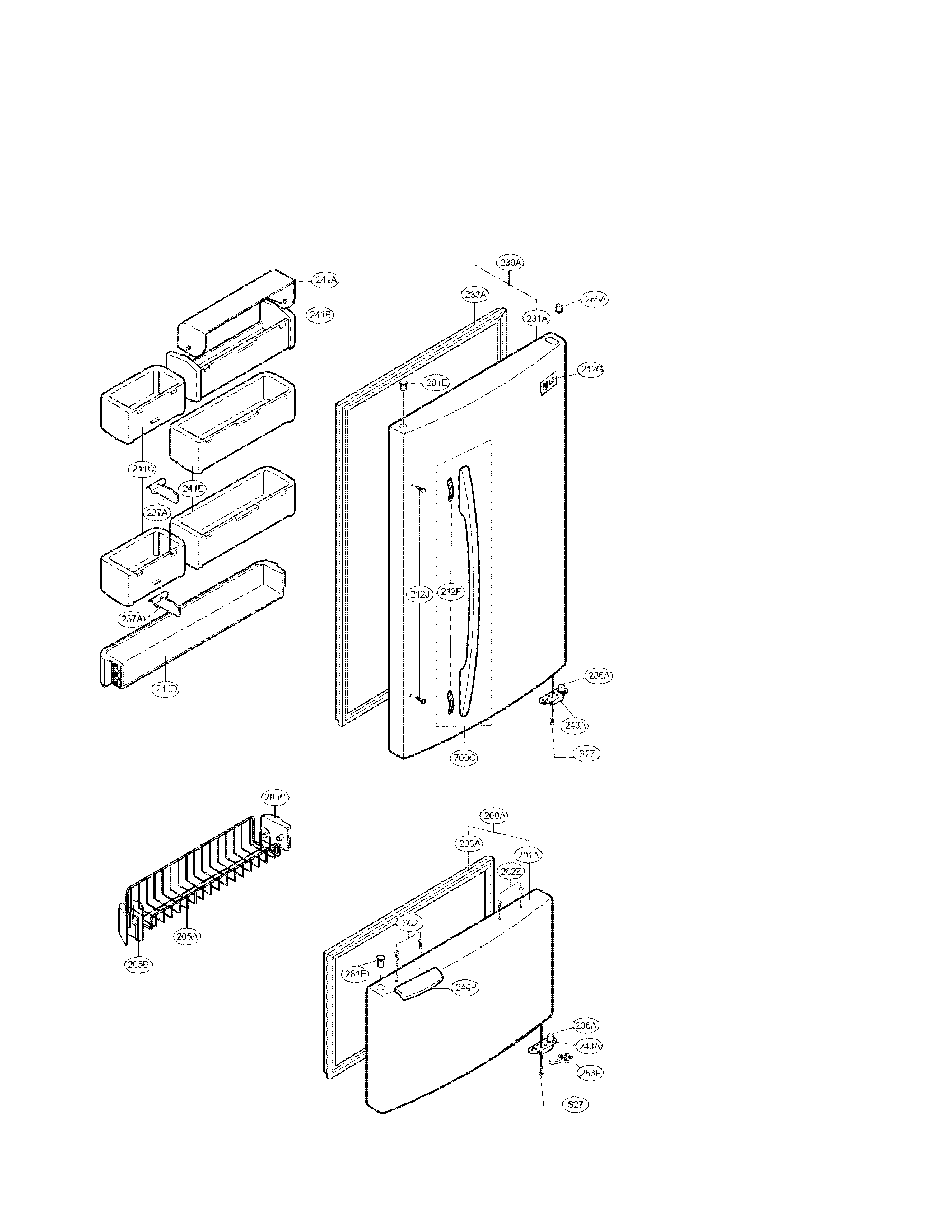

Door parts Diagram

Refrigerator door hinge bushing

Part #4984JJ3003A
In Stock
$7.97 |
7% OFF
Phone Price: $8.58
Refrigerator Filter Dryer#317A

Case parts Diagram

Refrigerator drier assembly

Part #5851JJ2002F
Replaced by #ADH73150210
Manufacturer substitution
This part replaces 5851JJ2002F. Substitute parts can look different from the original.
In Stock
