Kenmore 10657757790 refrigerator Parts

To clean the condenser coils on your Kenmore side-by-side refrigerator model 10657757790, we unplug the refrigerator, remove the base grille, vacuum the coils with an extended attachment, then reinstall the grille and restore power. Cleaning dusty coils helps the refrigerator cool efficiently and run quieter.

Steps to clean the condenser coils

• Unplug the refrigerator (or disconnect power at the breaker).
• Open both doors.
• Remove the base grille (toe grille) at the bottom front.
• Vacuum the condenser coils using a vacuum with an extended attachment.
• Clean until dust and pet hair are removed from the coil area.
• Reinstall the base grille by aligning the support tabs with the metal clips and snapping it into place.
• Plug the refrigerator back in.

How often we recommend cleaning

Coils should be vacuumed when dusty or dirty. In many homes, that means about every other month, especially if you have pets or the refrigerator sits in a high-dust area.

Home condition	Typical coil cleaning frequency
Pets, heavy dust, high traffic kitchen	Every 1 to 2 months
Average home	Every 3 to 6 months
Low dust environment	1 to 2 times per year

Why it matters

Dirty condenser coils restrict heat transfer, which makes the compressor and fans work harder. That can lead to longer run times, warmer temperatures, and higher energy use. Keeping coils clean is one of the simplest maintenance steps to prevent cooling problems.

Helpful related guidance

• For model-specific grille removal and general care steps, follow the 10657757790 owner's manual.
• If you are ordering maintenance or replacement items for this refrigerator, use the parts list for model 10657757790 first; you can also search by model on Sears PartsDirect.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10657757790, the model number is printed on the model and serial number label on the side wall inside the fresh food (refrigerator) compartment. This label also lists the serial number, which you may need when ordering parts or checking service information.

Where to look (fast checklist)

• Open the refrigerator (fresh food) door
• Look along the inside side wall (not the back wall)
• Check near the crisper and meat drawer area where labels are commonly placed
• Use a flashlight; the label can be easy to miss in low light
• Write down both the model and serial numbers exactly as shown

What the label typically includes

Item on label	What it’s used for	Example for this unit
Model number	Matching parts and diagrams	10657757790
Serial number	Identifying production details	Varies by unit
Electrical ratings	Basic specs for service	Varies by unit

Why it matters

We use the exact model number to match the correct Kenmore refrigerator parts and diagrams for your configuration (shelves, ice maker, dispenser parts, and cooling components). Even small model-number differences can change which parts fit.

After you find it

• Use the model number to select parts from the list for this refrigerator
• If you’re replacing the ice maker, match using the model number first, then the part listing (for example, ice maker assembly - refrigerator ice maker by whirlpool 4317943)
• Keep a photo of the label for future reference
• For additional model-based searches beyond this parts list, use Sears PartsDirect

For the diagram and label location reference, see the 10657757790 owner's manual.

Last updated: February 2026

For Kenmore model 10657757790, the exact cubic-foot capacity is listed on the model’s specification information in the Owner's manual. The most reliable way to confirm capacity on the appliance itself is to read the model and serial number label inside the refrigerator compartment and match it to the specs for your exact model.

Fast ways to find your refrigerator’s cubic feet

Use these options in order; they prevent mix-ups with similar Kenmore 106-series models.

• Check the model and serial number label inside the refrigerator (the manual shows its location).
• Look up the specifications section in the Owner's manual for model 10657757790.
• If you are comparing sizes for a cabinet opening, also confirm required clearances (side, top, and door swing) in the manual.
• If your unit has an ice maker and water line, allow extra rear space for the water line connection.

What “cubic feet” means (and why it can be confusing)

Cubic feet is the refrigerator’s internal storage volume. It is not the same as exterior width or height, and it can vary even among refrigerators that look identical from the outside.

Why it matters

• Kitchen fit and airflow: Proper ventilation and door swing clearance help cooling performance.
• Storage planning: Helps you compare usable space between side-by-side models.
• Parts accuracy: Matching the exact model number reduces ordering the wrong shelves, bins, or ice maker parts.

Quick reference: capacity vs. what you are measuring

If you need...	Use this	Where to find it
Storage volume (cu. ft.)	Model-specific specs	Owner's manual
Fit in the opening	Exterior dimensions + required clearances	Owner's manual
Replacement parts	Exact model number 10657757790	Parts list for this model or Sears PartsDirect

Related tip for this model

If you are troubleshooting ice production while checking specs, the ice maker is a common capacity-related feature to confirm. For this model, we list the Ice maker assembly - refrigerator ice maker by whirlpool 4317943 as an available replacement part.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10657757790, a “not cooling” problem is usually caused by lost airflow (blocked vents or a failed fan), incorrect temperature control settings, or a defrost system issue that lets frost choke the evaporator. Use the troubleshooting steps in the 10657757790 owner's manual to narrow it down fast.

Quick checks we recommend first (no parts needed)

• Confirm the refrigerator has power and the interior lights come on.
• Make sure the temperature controls were not accidentally changed.
• Check both compartments for blocked air vents; food packages can stop cold air from moving between sections.
• Close doors firmly and check for gaps that let warm air leak in.
• Allow time after loading groceries; adding a lot of food can temporarily raise temperatures.

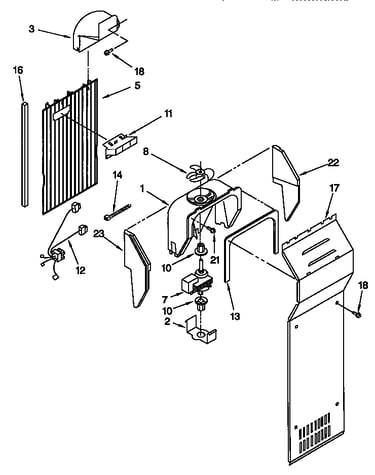

Airflow problems that stop cooling

Your refrigerator depends on steady air circulation between the freezer and fresh food sections. When vents are blocked, the temperature controls cannot regulate properly.

Common airflow-related causes:

• Vents blocked by items like soda cases, cereal boxes, or bread
• Evaporator fan not moving air (often you stop hearing the normal fan sound)
• Frost buildup on the evaporator from a defrost problem

If you suspect the fan is the issue, the refrigerator evaporator fan blade WP2169142 is one of the model-matched parts we list for this refrigerator.

Defrost and control issues to consider

If the freezer back wall is heavily frosted or airflow is weak, the defrost system is a prime suspect.

Here is a simple symptom-to-likely-cause guide:

What you notice	What it usually points to	What to do next
Freezer cold, fridge warm	Blocked return/upper vent or weak evaporator airflow	Clear vents; check for fan noise
Heavy frost on freezer back panel	Defrost system not clearing frost	Inspect defrost components
Temps drift warmer over days	Control/thermostat or defrost timing issue	Verify settings; test controls

Model-matched parts that can relate to these symptoms include the refrigerator defrost bi-metal WPW10225581 and the refrigerator thermostat WP2198202.

Why it matters

When airflow is blocked or frost builds up, the freezer may still feel cold while the refrigerator side warms up. Catching the cause early helps prevent food spoilage and reduces strain on the compressor and fan motors.

Ordering the right parts

We list model-specific replacement parts for 10657757790 on this page. For broader model lookups and ordering, use Sears PartsDirect.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10657757790 are poor cooling (often airflow or defrost related), water leaks, ice maker not making ice, and unusual noises. Many issues trace back to dirty condenser coils, doors not sealing, or a failing fan or defrost component.

Quick checks we recommend first

• Make sure the doors close fully and are not being held open by bins or food packages.
• Clean the condenser coils; dirty coils make the compressor run longer and cool worse.
• Confirm temperature controls are set correctly; allow 24 hours after changes.
• If the ice maker is new or recently turned on, allow 24 to 72 hours for normal production.
• Verify the water shut-off valve is fully open if the dispenser or ice maker is weak.

Common symptoms and the most likely causes

Symptom	Most common cause	What to do next
Not cooling well	Dirty condenser coils, evaporator airflow problem, defrost ice buildup	Clean coils; listen for evaporator fan; check for frost buildup
Motor runs a lot	Doors opened often, controls set too cold, dirty coils, gasket leak	Reduce door openings; adjust controls; clean coils; inspect gasket
Ice maker not producing	Freezer not cold enough, shut-off arm off, water valve closed, jam	Set freezer colder; lower arm; open valve; clear jam
Too little ice	New install, heavy use, valve not fully open, clogged filter	Wait 72 hours; allow recovery time; open valve fully; service filter
Noisy operation	Normal operating sounds, fan issue, vibration	Compare to normal sounds; check for rattles; inspect fan area

Model-specific parts that often solve these problems

If troubleshooting points to a failed component, these are common fixes for this Kenmore 10657757790 platform:

• Cooling and airflow: refrigerator evaporator motor 4389144, refrigerator evaporator fan blade WP2169142
• Defrost-related cooling loss: refrigerator defrost bi-metal WPW10225581
• Ice maker issues: ice maker assembly 4317943
• Temperature control complaints: refrigerator thermostat WP2198202

Why it matters

Refrigerators depend on steady airflow and tight door seals. When coils are dirty or a door gasket leaks, the compressor runs longer, temperatures drift, ice production drops, and food quality can suffer.

Helpful DIY guidance

For model-family troubleshooting steps and display diagnostics, use Kenmore 106 model refrigerator error codes. For model-specific care, control settings, and troubleshooting charts, follow the owner's manual.

Last updated: February 2026
