Kenmore 66513229N414 dishwasher Parts

Your Kenmore dishwasher model number is printed on the model and serial number label inside the door area. On Kenmore model 66513229N414, that label is typically on the inner door frame or along the tub opening; you’ll see a number that starts with 665.

• Open the dishwasher door and look along the left or right inner door frame.
• Check the top edge of the tub opening (around the rim).
• Look on the tub wall just inside the door.
• If the label is hard to see, wipe the area with a damp cloth and use a flashlight.
• Write down the full model number and the serial number exactly as shown.

The label usually includes both a model number and a serial number. For parts lookup and troubleshooting, the model number is the key.

• Check the side of the door itself (near the hinges).
• Look for a label on the front frame behind the toe kick area.
• If the dishwasher was recently installed, confirm the model from your paperwork and compare it to the label once located.
• Use the model list shown in the 66513229N414 owner’s manual to confirm you’re in the right family of Kenmore 665 models.

Kenmore 665 dishwashers often share similar-looking racks, spray arms, and pumps, but parts can differ by revision. Using the exact model number helps us match the right items the first time, such as the dishwasher rack adjuster W10712395 if you’re repairing rack height or roller issues.

Last updated: February 2026

Yes. We still support replacement parts for Kenmore dishwashers, including model 66513229N414, by matching parts to your exact model number and symptom (leaking, not draining, poor cleaning, door not latching). Many common wear items and repair parts remain available.

Use the model number 66513229N414 and confirm the part’s location and fitment in the 66513229N414 owner’s manual. For installation-related items (water line, drain routing, electrical), follow the 66513229N414 installation guide.

• Match by model number first, not just brand name.
• Compare the part ID and description, not only the part name.
• Check whether the issue is mechanical (rack, wheels, latch) or water-flow related (valve, pump, hose).
• If multiple versions exist, verify by the diagram position and mounting style.
• Replace related wear items together when it prevents repeat failures (example: rack adjusters plus rail stops).

These are examples of parts available for this model that cover frequent problems:

Dishwashers are model-specific for mounting points, electrical connectors, and water routing. Using the exact 66513229N414 model match helps prevent ordering a part that looks similar but does not fit, leaks, or triggers repeat problems.

Last updated: February 2026

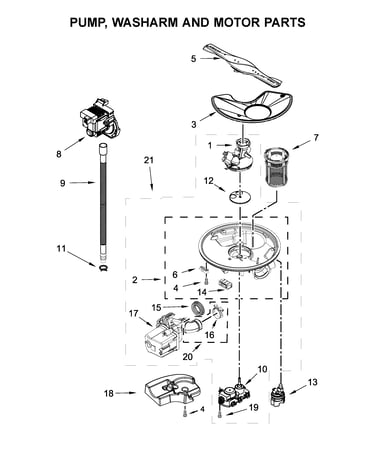

On Kenmore dishwasher model 66513229N414, the lower spray arm installs by seating it on the wash hub at the bottom of the tub and locking it in place so it spins freely without wobble. After installation, run a quick rinse to confirm strong spray and proper rotation.

• Turn off power at the breaker; do not work around the sump area with power on.
• Shut off the water supply if you will be removing the dishwasher from the cabinet.

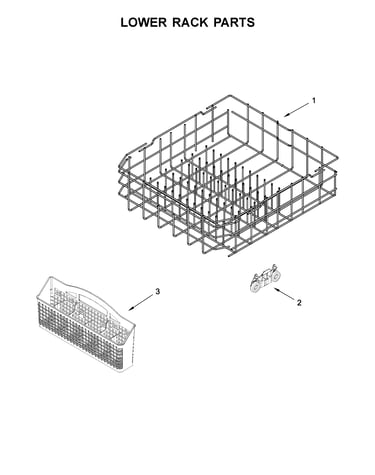

• Pull out the lower rack for clear access to the bottom spray arm.
• Place a towel in the bottom of the tub to catch small parts (a good habit during any dishwasher work).

For model-specific diagrams and part locations, use the 66513229N414 owner's manual.

1. Remove the lower rack and set it aside.
2. Remove the old spray arm:

• If it has a center retaining nut or cap, turn it counterclockwise to remove.
• If it uses a snap/lock style retainer, release the retainer and lift the arm straight up.

3. Clean the mounting area (wash hub) so the new arm seats flat.
4. Install the spray arm:

• Set the spray arm onto the hub.
• Reinstall the retainer (nut, cap, or clip) and tighten until snug (do not overtighten).

5. Spin test: rotate the arm by hand; it must turn smoothly and not hit the heating element or rack.

• Confirm the spray arm holes are not clogged with seeds, labels, or glass.
• Make sure tall items are not blocking the arm’s rotation.
• Verify the filter area is clean and seated correctly.
• If you see weak spray plus standing water, check for a drain issue (pump, hose, or blockage).

The lower spray arm is the main wash action for the bottom rack. If it is not locked onto the hub correctly or cannot rotate freely, water coverage drops and you will see stuck-on soil, cloudy glasses, and detergent not fully dissolving.

Last updated: February 2026

Yes, repairing a Kenmore dishwasher like model 66513229N414 is usually worth it when the problem is a common wear item (rack parts, latch, drain hose, inlet valve) and the repair cost stays well below the price of a replacement; it is less worthwhile when you’re facing multiple major leaks or a high-cost motor/pump repair.

• Repair it if the dishwasher still cleans well and you’re fixing one clear issue (leak, won’t drain, door won’t latch, rack won’t roll).
• Repair it if the fix is a single part replacement and the tub is in good shape (no cracks, severe rust, or repeated flooding).
• Consider replacing if you have multiple symptoms at once (won’t fill, won’t wash, won’t drain) and the unit is older.
• Consider replacing if the repair involves a major assembly and labor is high.
• Always check coverage; Kenmore dishwashers commonly include a one-year limited warranty when installed and maintained per instructions in the 66513229N414 owner’s manual.

These are frequent, targeted fixes on 665-series Kenmore dishwashers:

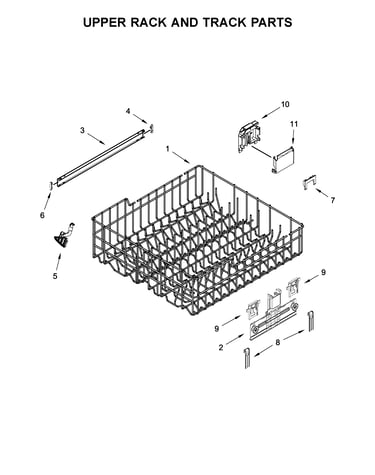

• Upper rack not adjusting or falling: dishwasher rack adjuster W10712395

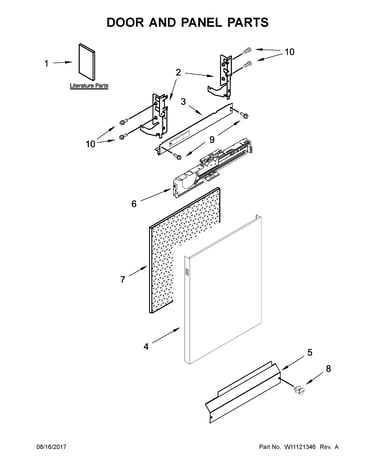

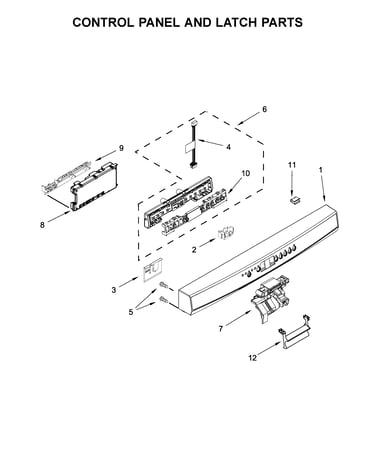

• Door won’t stay closed: dishwasher door latch WPW10653840
• Not filling or filling slowly: dishwasher water inlet valve W11175771
• Not draining or leaving water: dishwasher drain pump W10876537 or a drain hose issue
• Leaks at the door bottom: dishwasher door seal, lower W10909089

A dishwasher is designed for years of dependable operation, but normal use still leads to wear and occasional repairs. Fixing a single failed component restores cleaning and drying performance without the cost and hassle of replacing the entire appliance.
