Model # 11097591240 Official Kenmore gas dryer

Here are the diagrams and repair parts for Official Kenmore 11097591240 gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

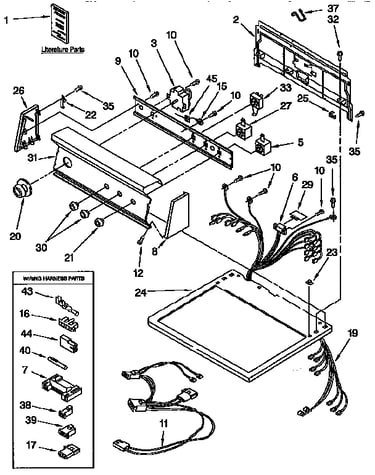

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 168 parts  |
Dryer Door Latch Kit (replaces 2003, 3392538, 3398175, 8208)
#58

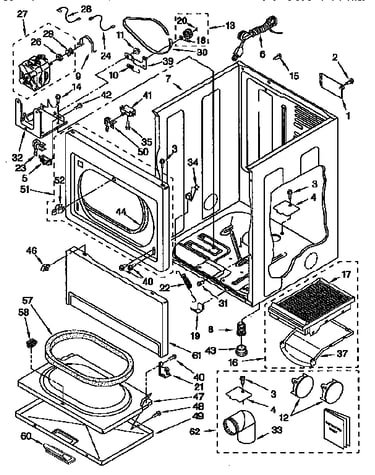

Cabinet diagram

Catch

Part #3398175

Replaced by #279570

?
Manufacturer substitution
This part replaces 3398175. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.64 |
72% OFF MSRP : $13.00
In Stock
Dryer Door Latch Kit (replaces 2003, 3392538, 3398175, 8208)
#52

Cabinet diagram

Strike

Part #696144

Replaced by #279570

?
Manufacturer substitution
This part replaces 696144. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.64 |
72% OFF MSRP : $13.00
In Stock
Dryer Idler Pulley (replaces W10547287, W10547290)
#39

Cabinet diagram

Bracket

Part #3388674

Replaced by #W10837240

?
Manufacturer substitution
This part replaces 3388674. Substitute parts can look different from the original.
BEST SELLER
$19.42 |
19% OFF MSRP : $24.00
In Stock
Dryer Operating Thermostat (replaces 3387134)
#42

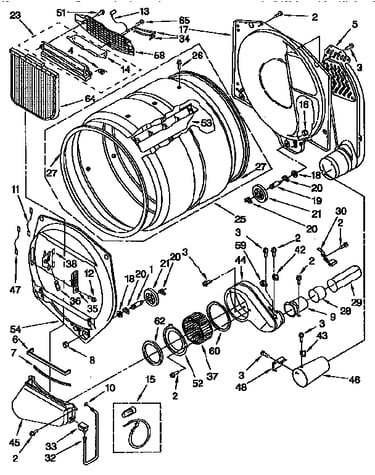

Bulkhead diagram

Dryer operating thermostat

Part #3387134

Replaced by #WP3387134

?
Manufacturer substitution
This part replaces 3387134. Substitute parts can look different from the original.
BEST SELLER
$20.79 |
19% OFF Phone Price : $25.79
In Stock
Dryer Drum Support Roller (replaces W10314173)
#21

Bulkhead diagram

Support

Part #3401846

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces 3401846. Substitute parts can look different from the original.
BEST SELLER
$16.98 |
11% OFF Phone Price : $18.98
In Stock
Dryer Thermal Fuse, 195-degree F (replaces 3390719)
#59

Bulkhead diagram

Dryer thermal fuse

Part #3390719

Replaced by #WP3390719

?
Manufacturer substitution
This part replaces 3390719. Substitute parts can look different from the original.
BEST SELLER
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Dryer Moisture Sensor (replaces 3387223)
#34

Bulkhead diagram

Dryer moisture sensor

Part #3387223

Replaced by #WP3387223

?
Manufacturer substitution
This part replaces 3387223. Substitute parts can look different from the original.
BEST SELLER
$7.61 |
12% OFF Phone Price : $8.61
In Stock
Dryer Drum Seal Kit (replaces 697694, W10116343, W10166807, W10521118)
#27

Bulkhead diagram

Seal

Part #3403265

Replaced by #280114

?
Manufacturer substitution
This part replaces 3403265. Substitute parts can look different from the original.
BEST SELLER
$34.09 |
20% OFF MSRP : $42.57
In Stock
Laundry Appliance Door Switch Kit (replaces 279347, 347207, 89556)
#41

Cabinet diagram

Switch

Part #3392266

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 3392266. Substitute parts can look different from the original.
BEST SELLER
$16.65 |
50% OFF MSRP : $33.00
In Stock
Dryer Tri-Ring Retainer (replaces W10512946)
Dryer tri-ring retainer

Part #690997

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces 690997. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.82 |
30% OFF MSRP : $8.30
In Stock
