To hard reset the Kenmore Elite dishwasher model 66513122K701, we use the control reset procedure: press CANCEL/DRAIN twice to reset the control, then reselect a cycle and press START/RESUME. For exact button locations and timing, follow the steps in the 66513122K701 owner's manual.

Hard reset steps (control reset)

• Open the door slightly to stop the cycle; wait for spraying to stop.
• Open the door fully.
• Press CANCEL/DRAIN twice to reset the control.
• Select the new wash cycle and options.
• Close the door firmly and press START/RESUME.

If the dishwasher still will not respond

These checks fix most “dead control” situations after a reset:

• Make sure Control Lock is off (press and hold HEATED DRY for 3 seconds to toggle).
• Confirm the door is closed tightly and latched.
• Check the home breaker or fuse.
• Verify the water supply valve is turned on.
• If the unit has power but keeps acting erratically, inspect the dishwasher’s internal fuse.

Symptom after reset	Most likely cause	What to do next
Buttons do nothing	Control Lock is on	Hold HEATED DRY 3 seconds
Starts then stops	Door not latching	Reclose door; press START/RESUME
No lights, no sound	Power issue or blown fuse	Check breaker; consider fuse W10258275

Why it matters

A proper hard reset clears the control’s current cycle logic so the dishwasher can drain (if needed) and start fresh. It also helps you separate a simple control issue from power, door latch, or component problems.

Last updated: January 2026

A small amount of water in the bottom of your Kenmore Elite dishwasher model 66513122K701 can be normal between cycles, but standing water that never drains usually points to a drain restriction or a failing drain component. Start with the filter and drain path, then move to the drain hose and pump.

What to check first (fast, no parts)

• Cancel/drain the cycle (if your model has that option) and listen for the drain motor running.
• Remove and clean the filter area; food debris here is the most common cause.
• Check the sink drain/disposer connection where the dishwasher drain hose ties in; clear any blockage.
• Look for a kinked, crushed, or sagging drain hose under the sink.
• If you hear a hum but water does not move, check the pump area for a jam.

For model-specific access steps and safety notes, follow the 66513122K701 owner's manual.

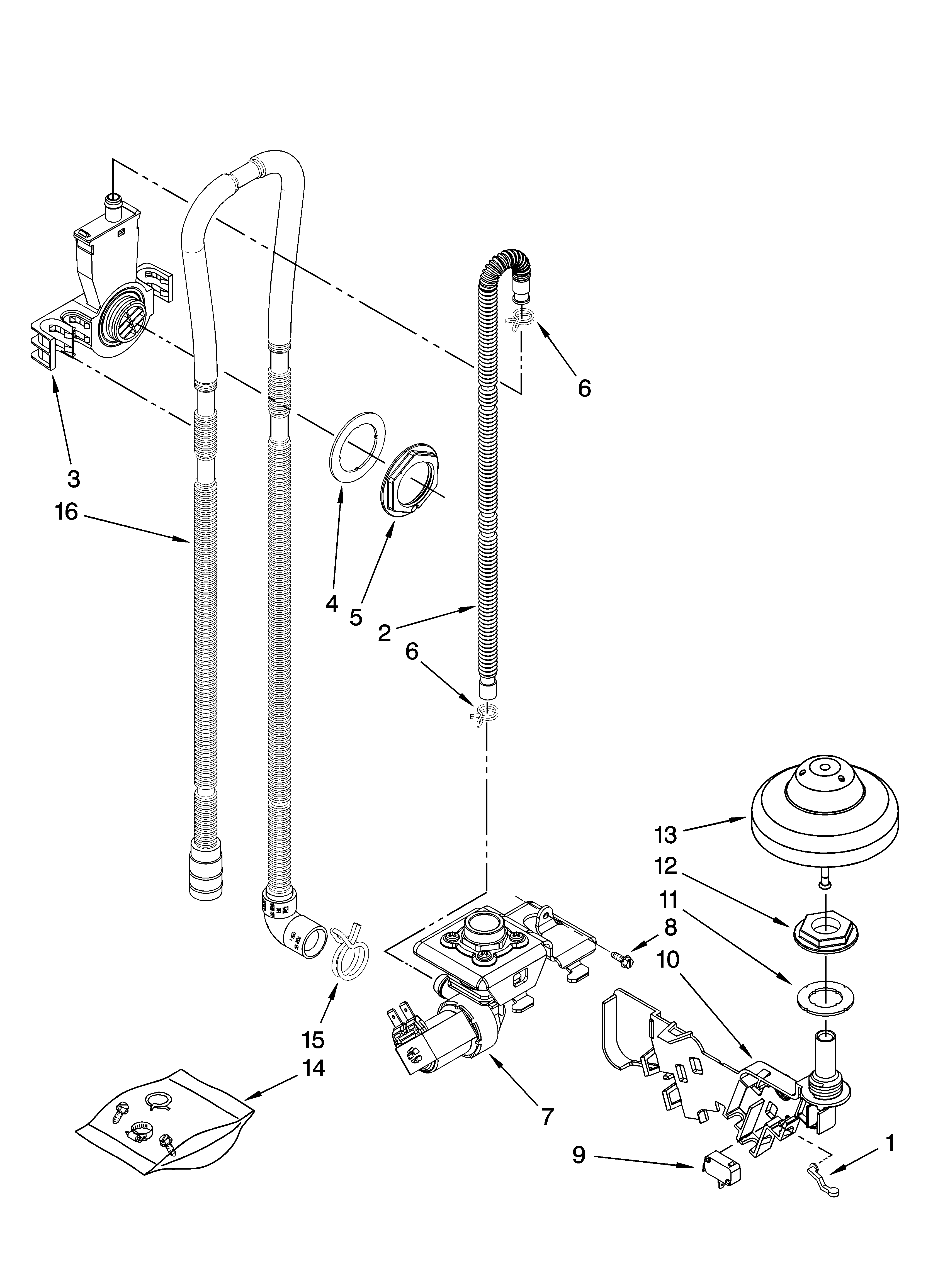

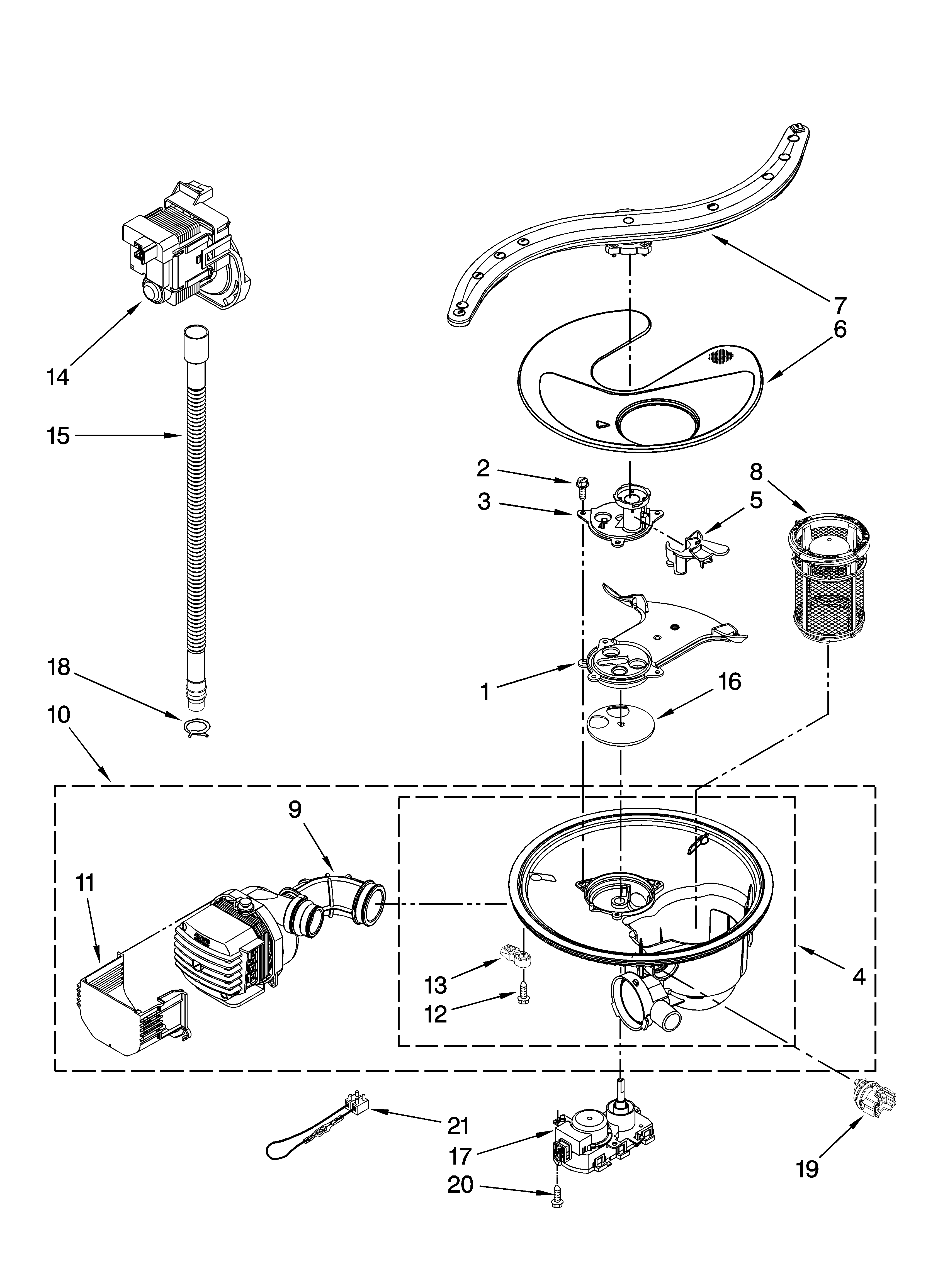

Drain system parts that commonly cause standing water

If cleaning and hose checks do not fix it, these parts are the most likely culprits on a dishwasher drain system:

Symptom	Most likely cause	Common related part for 66513122K701
Hums but does not drain	Pump impeller jammed or pump failing	Dishwasher drain pump WPW10348269
Drains slowly	Partial clog in hose or air gap/high loop issue	Dishwasher drain hose routing/connection
Intermittent draining	Loose debris moving around sump area	Filter and sump cleaning

Why it matters

Standing water can lead to odor, poor wash results, and re-depositing food soil onto dishes. It can also mask a slow-drain problem that gets worse over time.

Helpful tips to prevent it from coming back

• Scrape (do not pre-wash) heavy food soil off dishes before loading.
• Run hot water at the sink until it is hot before starting a cycle (many dishwashers clean best with 120°F incoming water).
• Clean the filter area regularly if you wash lots of starchy foods (rice, pasta) or labels.
• Avoid overloading so spray arms can rotate freely.

If you recently installed the dishwasher or changed plumbing, confirm the drain hose routing and connection details in the 66513122K701 installation guide.

Last updated: January 2026

On the Kenmore Elite 66513122K701 dishwasher, error code F2E2 points to a keypad or user interface (control panel) communication problem with the main electronic control. The most common causes are a stuck key, moisture in the console, or a loose wiring connection between boards.

What to try first (quick reset and keypad check)

• Press Cancel/Drain to clear the cycle, then power the dishwasher OFF for 1 minute and back ON.
• Wipe the console dry; moisture can make keys act “pressed.”
• Press each key once; if one feels stuck or does not “click,” that often triggers F2E2.
• If the code returns immediately, the issue is usually in the control panel or its connection.

Troubleshooting steps we recommend

1. Cut power at the breaker.
2. Open the door and inspect the console area for signs of moisture or residue.
3. Check the wiring harness connections between the user interface and the main control (reseat connectors firmly).
4. Restore power and run a short cycle to see if the code returns.

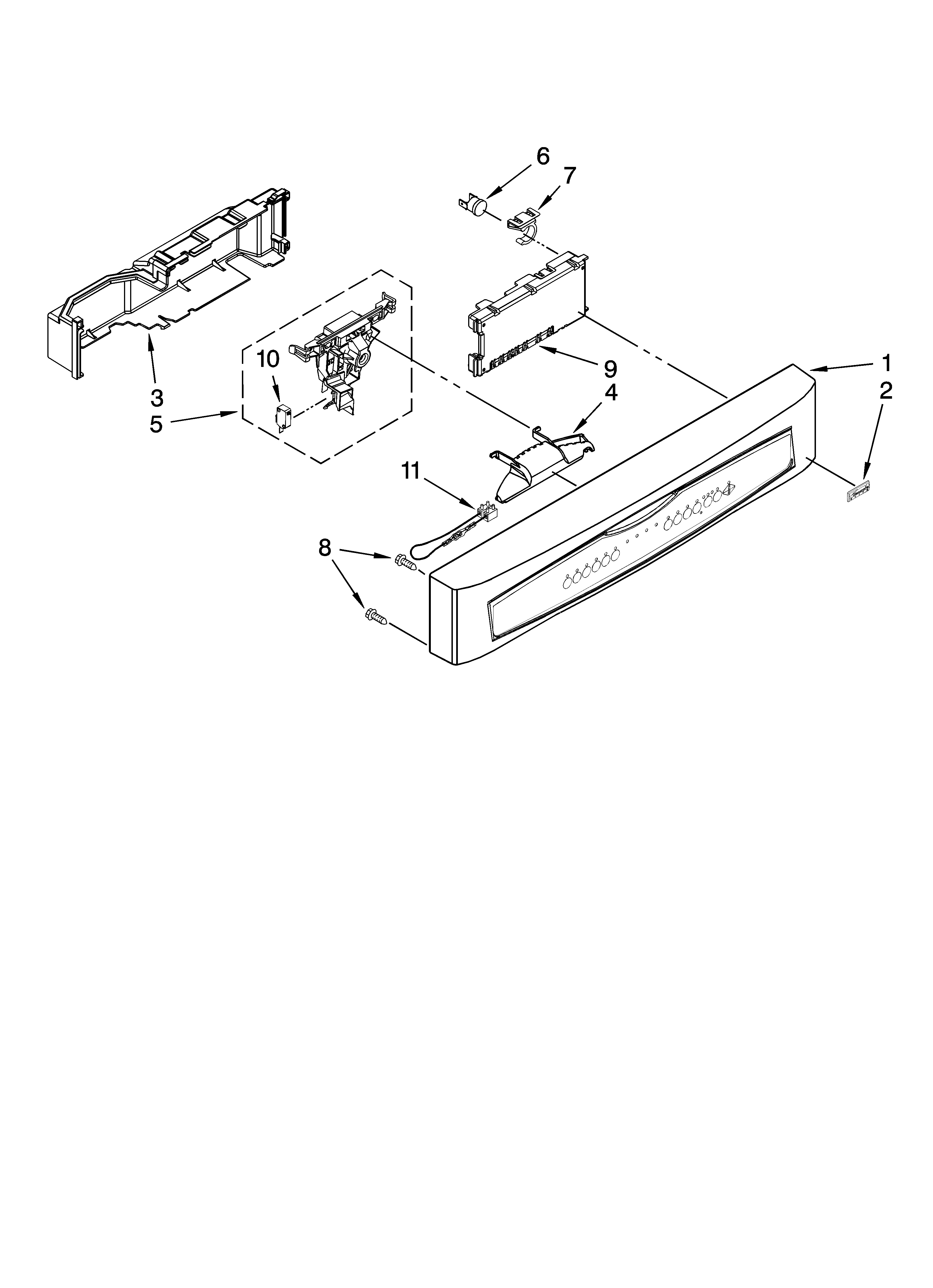

Parts that commonly relate to F2E2

Symptom	Most likely area	What it means
Code returns right away	Console/keypad	A key is stuck or the user interface is failing
Code appears intermittently	Wiring/connection	Loose plug, vibration, or moisture-related issue
Random behavior plus other issues	Main control	Control not reading inputs correctly

If you find damaged wiring or the console is unresponsive, replacement is often the fix. For this model, the console assembly is typically the control panel, and the main board is the electronic control (for example, dishwasher electronic control WPW10285178 is the main control board used on this platform).

Why it matters

F2E2 can prevent the dishwasher from starting or finishing cycles because the main control cannot reliably read your button presses. Fixing it restores normal cycle selection, drying options, and reliable operation.

Helpful reference

Use the 66513122K701 owner’s manual for control panel operation details and cycle/option behavior, which helps confirm whether the keypad is responding normally.

Last updated: January 2026

Many Kenmore dishwashers are designed to run quietly, and some Kenmore Elite models are rated around the high-40s dBA range, which is typically quiet enough for open kitchens. For your Kenmore Elite 66513122K701, confirm the exact sound rating and cycle options in the 66513122K701 owner's manual.

What “quiet” means for a dishwasher

Dishwasher noise is usually measured in dBA (decibels). Lower numbers are quieter.

• 55 dBA and up: clearly audible in most kitchens
• 50 to 54 dBA: moderate, similar to light conversation in the next room
• 44 to 49 dBA: quiet, often a soft “whoosh” during wash
• 43 dBA and lower: very quiet, often hard to notice

Quick reference table

dBA range	What you’ll notice	Best fit for
55+	noticeable wash and drain sounds	closed kitchens, daytime runs
50 to 54	audible but not disruptive	most homes
44 to 49	low background sound	open floor plans
43 and under	minimal sound	running at night, open kitchens

What affects noise on the 66513122K701

Even a quiet Kenmore Elite dishwasher can sound louder if something is off.

• Drain system noise: a kinked hose or a struggling pump can increase sound during drain
• Spray arm contact: tall items can cause clicking if the spray arm hits dishes
• Loose mounting: an unanchored unit can vibrate against cabinets
• Loading issues: lightweight plastics can rattle and amplify normal wash sounds
• Hard food debris: can make grinding noises if it reaches the sump area

How to make your dishwasher run quieter

We recommend these practical checks first:

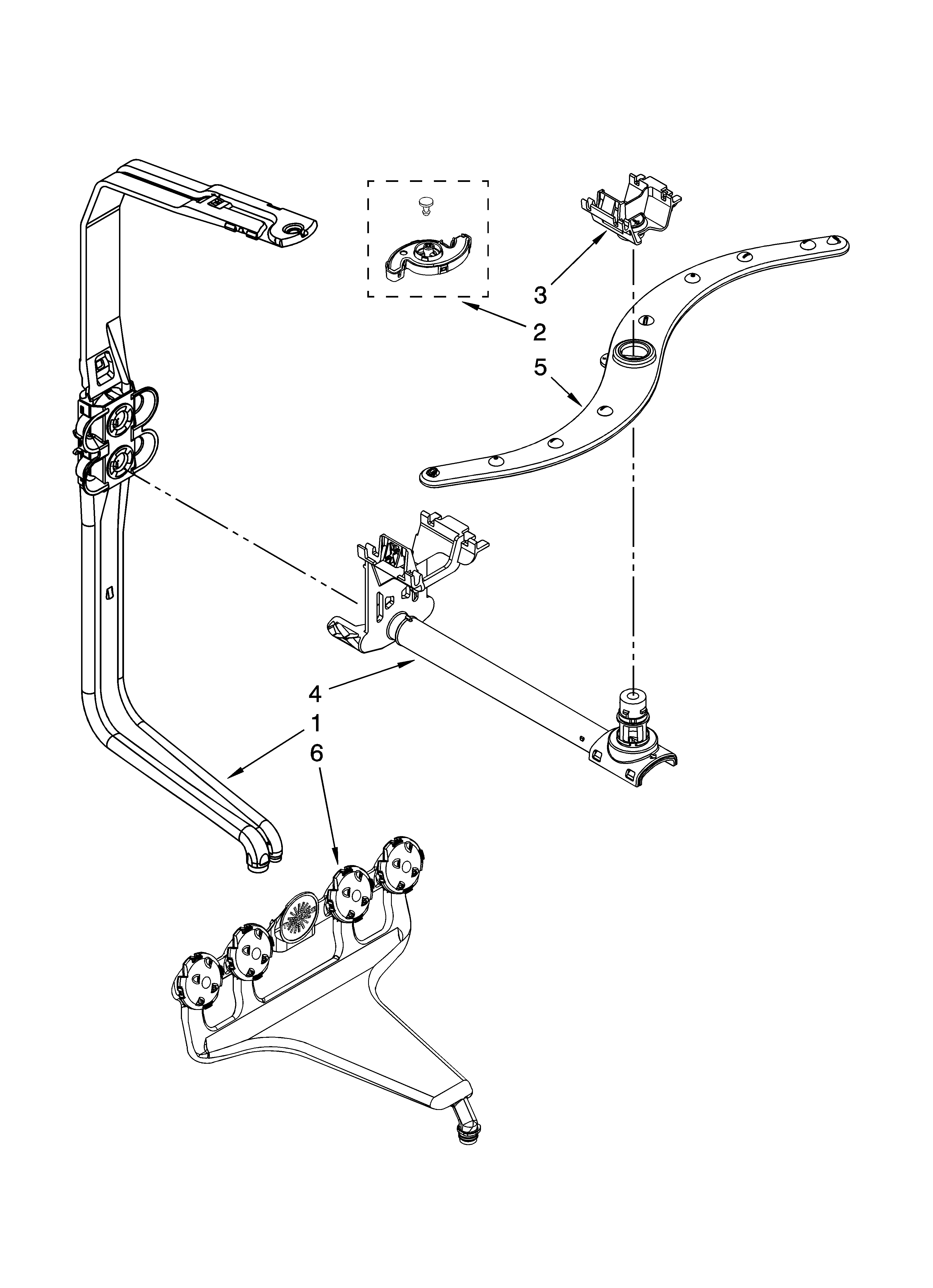

• Make sure nothing blocks or contacts the spray arm; consider the dishwasher spray arm WPW10491331 if yours is cracked or wobbling
• Load dishes so they do not touch each other; avoid metal-on-metal contact
• Verify the dishwasher is secured and leveled per the 66513122K701 installation guide
• Clean the filter area regularly to reduce strain and noise during circulation
• If noise is mainly during draining, inspect the drain hose routing and clamps

Why it matters

A dishwasher that suddenly gets louder often points to vibration, a loading issue, or a developing drain or wash component problem. Catching it early can prevent poor cleaning, leaks, or a no-drain situation.
