Whirlpool WRF532SMHZ01 bottom-mount refrigerator Parts

Yes. A bottom-mount refrigerator like the Whirlpool WRF532SMHZ01 is a great choice for most kitchens because it keeps fresh-food items at eye level, reduces bending, and typically offers wide shelves and easy access to everyday groceries.

Why many people prefer bottom-mount designs

Bottom-mount (freezer-on-bottom) refrigerators are built around how most households use a fridge day to day: the refrigerator compartment gets opened far more often than the freezer.

• Fresh food is easier to reach because it sits higher
• Less bending for produce drawers, deli items, and beverages
• Freezer drawer storage is usually deep and well organized
• French door and bottom-freezer layouts often fit wide platters well
• Good choice for families who use the refrigerator section most

Trade-offs to consider

Bottom-mount models are not “better” for every home. These are the most common downsides.

• Freezer items sit lower, so you bend more when using the freezer
• Freezer drawers can feel heavy when fully loaded
• Some bottom-mount designs cost more than basic top-freezer models
• They need proper clearance for airflow and door swing

Installation and clearance basics (what matters most)

For the WRF532SMHZ01, proper spacing and room temperature help performance and efficiency.

Item	Typical requirement for this model type	Why it matters
Side and top clearance	About 1/2 inch	Ventilation and stable cooling
Rear clearance	About 1 inch	Airflow and water line space (if equipped)
Room temperature	55°F to 110°F (preferred 60°F to 90°F)	Better cooling and lower energy use

For the exact placement and clearance guidance for your unit, follow the owner's manual.

Why it matters

Choosing the right refrigerator style affects comfort, food organization, and energy use. Bottom-mount models usually improve everyday convenience because the most-used compartment (fresh food) is the easiest to access.

Last updated: February 2026

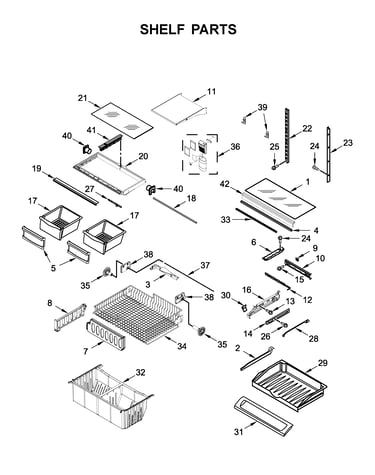

Yes. On your Whirlpool WRF532SMHZ01 bottom-mount refrigerator, you can replace broken or missing shelves and door bins by matching the replacement to your exact model and shelf location, then sliding or snapping the new piece into the existing supports.

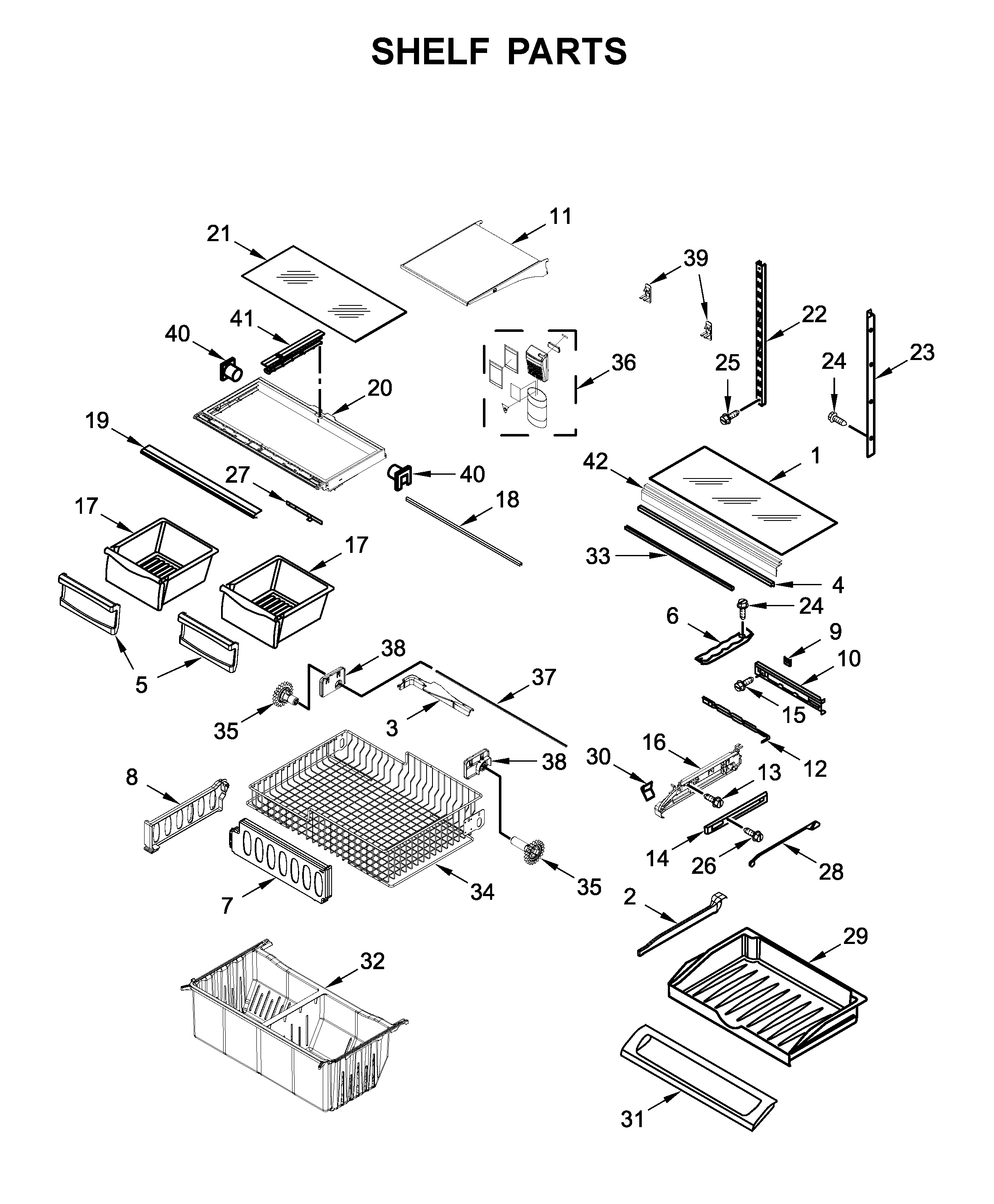

What you can replace on this model

Common replaceable shelf and storage parts include:

• Glass shelf inserts (the glass panel itself)
• Complete shelf assemblies (frame plus glass, depending on design)

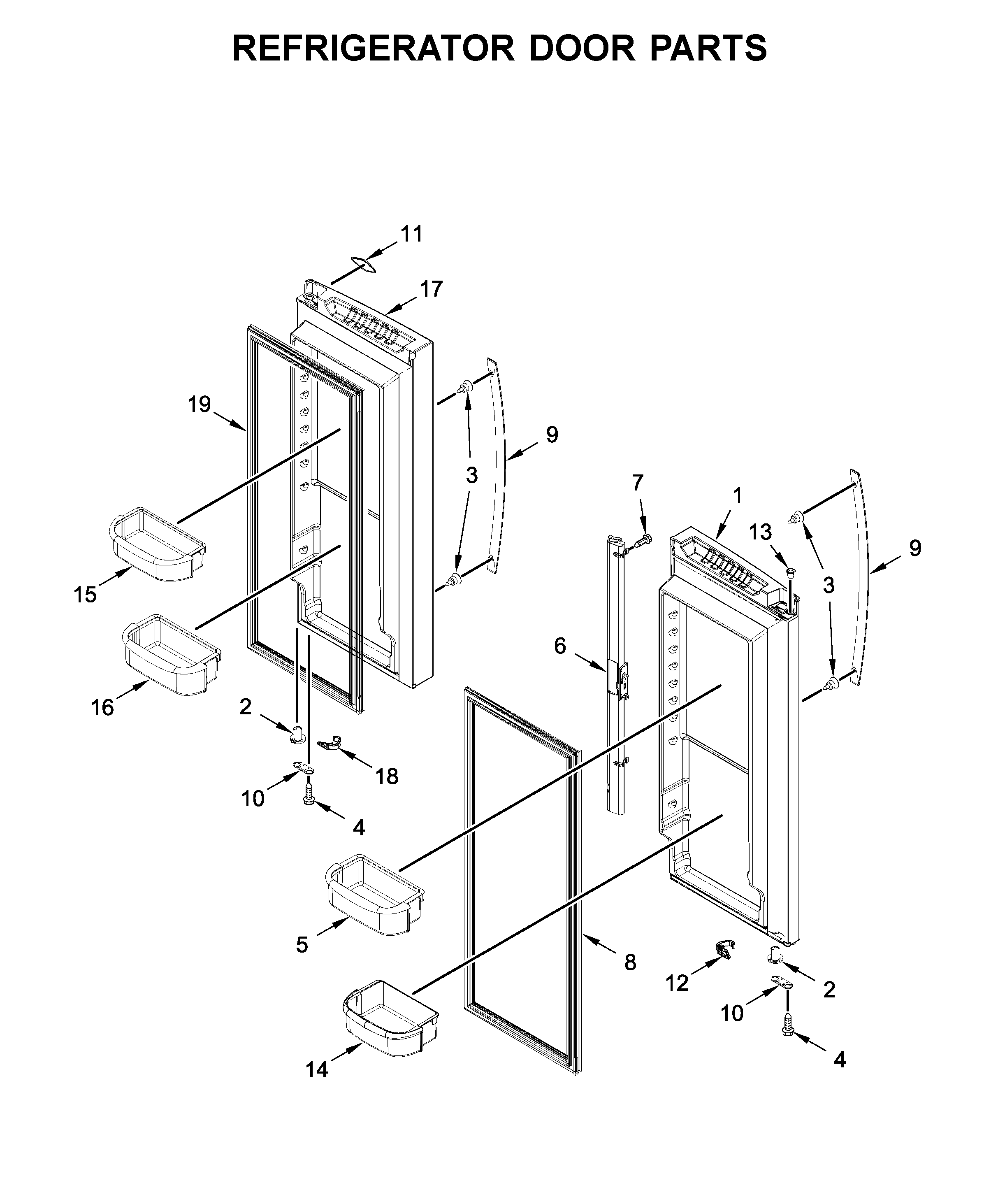

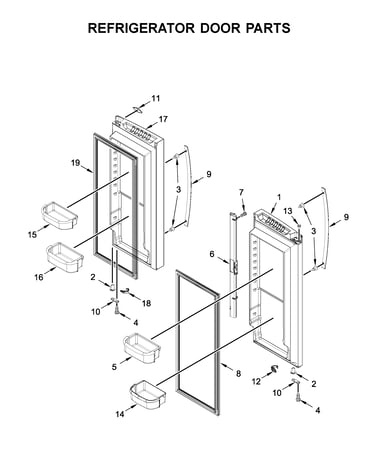

• Door bins and gallon bins
• Crisper drawers and drawer rails
• Freezer baskets (upper) and slide rails

If you are replacing a door bin, a common match for this model is the refrigerator door gallon bin WPW10289497.

Safe removal and handling tips (especially for glass)

The WRF532SMHZ01 uses heavy tempered glass shelves. To avoid breakage and injury:

• Use both hands when removing glass shelves and covers
• Avoid bumping the shelf edges on door liners or shelf supports
• Do not wash a cold glass shelf with warm water (sudden temperature change can crack it)
• Set the shelf on a towel or flat padded surface while you work
• Reinstall by aligning the shelf with the side rails, then sliding it fully into place

Quick part matching guide

Use this checklist to make sure the replacement fits the first time:

• Confirm the full model number: WRF532SMHZ01
• Identify the shelf location (upper, middle, deli area, crisper cover, door)
• Compare mounting style (tabs, hooks, rails, or slide tracks)
• Match color/finish for door bins and trim (gray vs. clear)
• Verify left vs. right orientation when applicable

What is broken?	Typical replacement	Example part on this model page
Door bin cracked	Door bin / gallon bin	WPW10289497
Crisper not sliding right	Drawer slide rail / support rail	WPW10235370 or WPW10671238
Shelf glass shattered	Glass shelf	WPW10165870

Why it matters

A correctly fitting shelf or bin keeps airflow paths open, prevents food from blocking vents, and reduces stress on the door liner and shelf supports. Replacing damaged shelving also helps prevent spills and repeat breakage.

For shelf removal, handling, and placement details specific to your refrigerator configuration, follow the owner's manual.

Last updated: February 2026

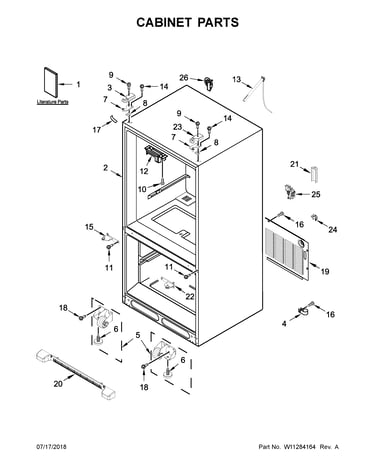

On a Whirlpool WRF532SMHZ01 bottom-mount refrigerator, the “bottom part” most people mean is the compressor area (the sealed-system components that circulate refrigerant). The bottom front also includes the base grille and leveling/roller area used for door alignment and closing.

What you can find at the bottom (and what it does)

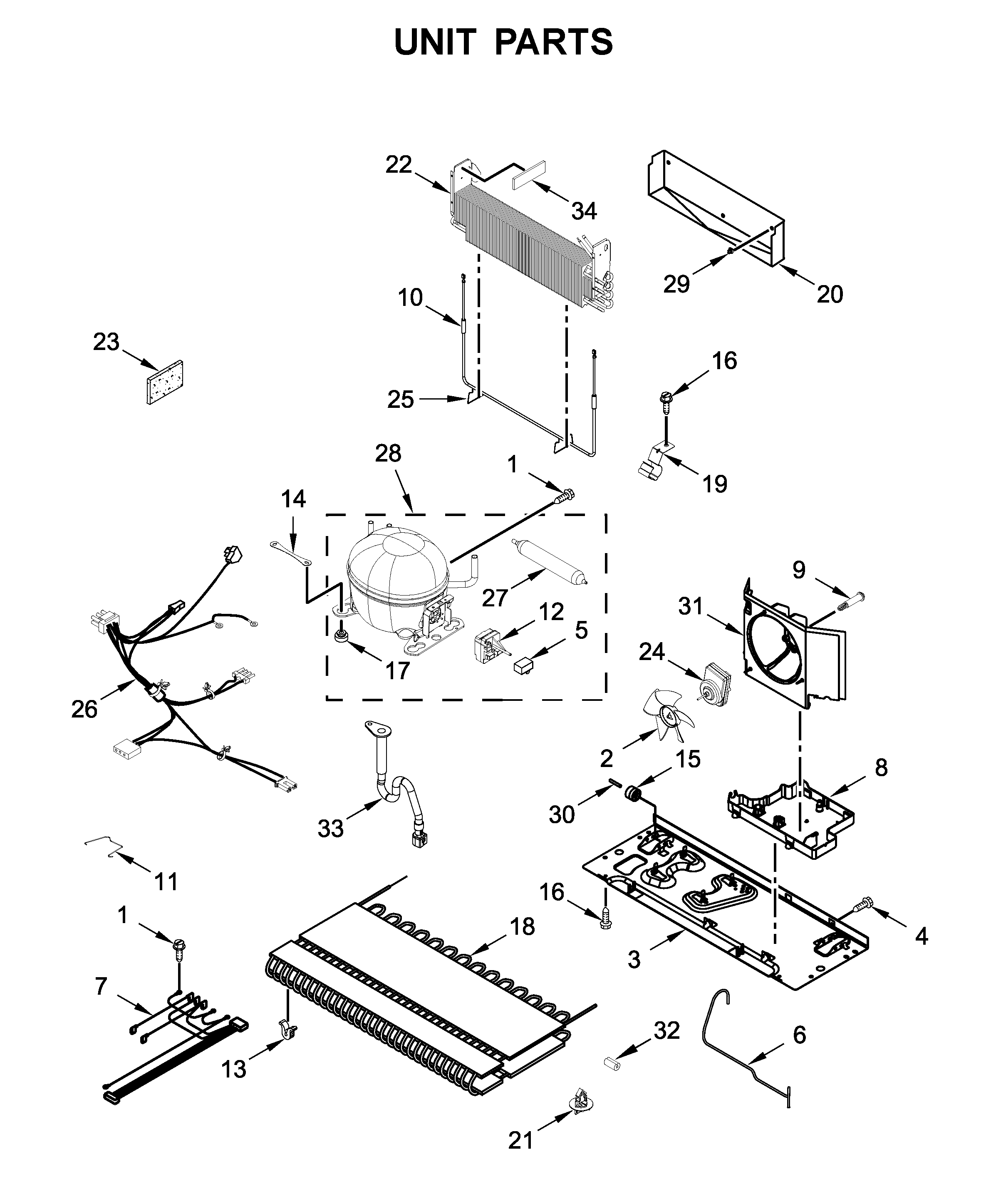

• Compressor area (rear or bottom): pumps refrigerant through the sealed system to create cooling.
• Condenser and condenser fan area: removes heat from the refrigerant so the refrigerator can cool properly.

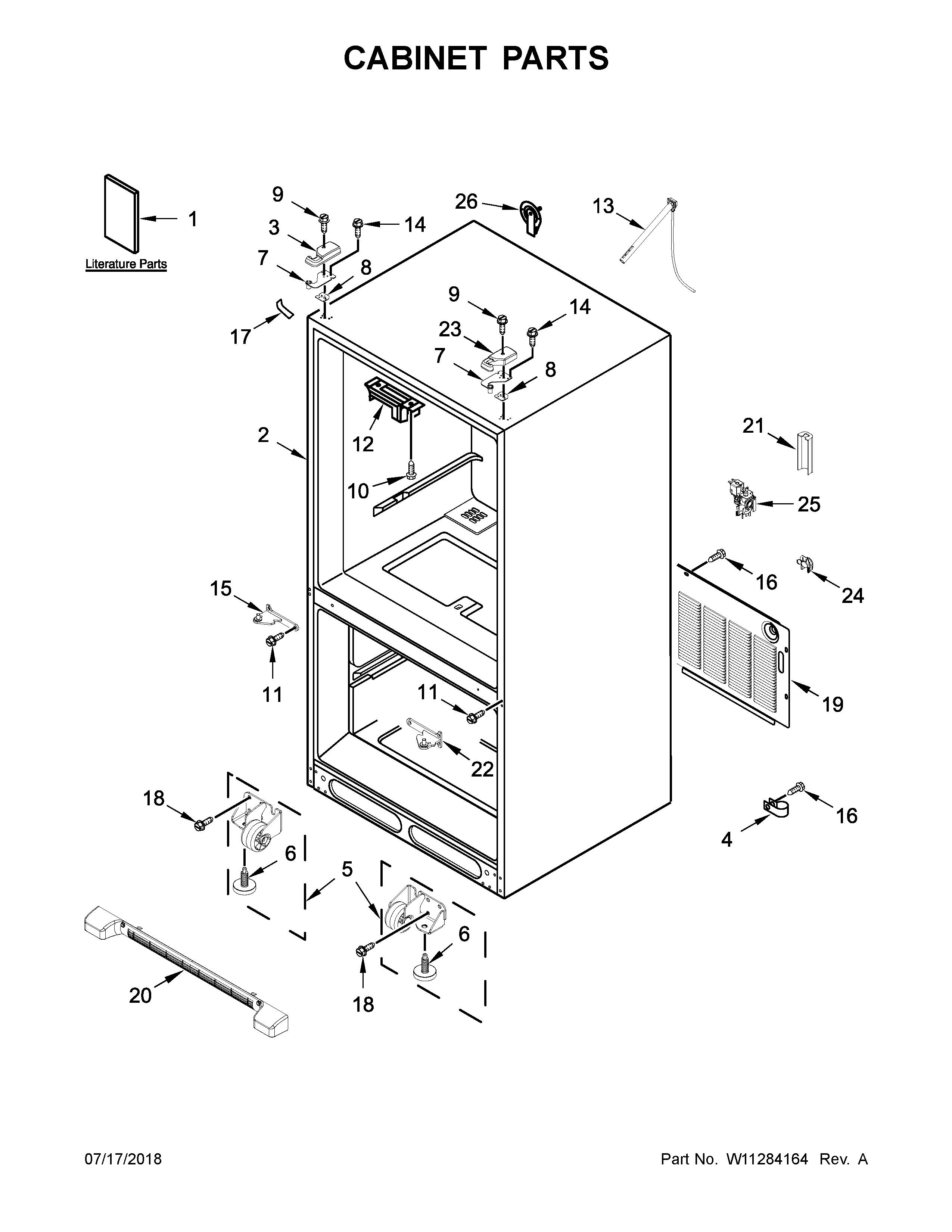

• Base grille (front bottom): covers the leveling screws and roller assemblies.
• Leveling screws/rollers: used to tilt and level the cabinet so doors close correctly.
• Bottom hinge area: supports the refrigerator door(s) and is involved in door removal and alignment.

Quick guide: “bottom part” terms

If you mean...	Common name	Where you’ll access it
The cooling “motor” that hums	Compressor	Back/bottom of cabinet
The vented cover at the very bottom front	Base grille	Front bottom
The adjustment points for door closing	Leveling screws/rollers	Behind base grille
The pivot point for the door	Bottom hinge	Lower door side

Why it matters

Using the right name helps you get the right repair steps and parts. For example, door closing issues usually point to the base grille and leveling screws, while cooling problems often involve the compressor, condenser, or fan motors.

Model-specific tip for WRF532SMHZ01

For door closing and alignment, we follow the steps in the WRF532SMHZ01 owner's manual, which explains removing the base grille and adjusting the leveling screws to help the doors close easier.

Last updated: February 2026

The most common Whirlpool refrigerator problem is a cooling complaint (fresh food too warm, freezer too warm, or temperature swings). On the Whirlpool WRF532SMHZ01, the most frequent root causes are airflow and heat-exchange issues (dirty condenser area, blocked vents, doors not sealing) and fan or defrost-related problems.

What to check first (fast, no tools)

• Confirm the controls are turned on and set to normal temperatures (not “coldest”).
• If it is a new install or was recently unplugged, allow a full 24 hours to cool completely.
• Make sure doors close fully and nothing is holding them open.
• Avoid overpacking; blocked vents can stop cold air from circulating.
• Verify the outlet has power and the cord is firmly plugged in.

For model-specific operating checks and control settings, use the owner's manual.

Common symptoms and the most likely causes

Symptom	Most common cause	Parts that often relate
Fridge warm, freezer OK	Airflow restriction or evaporator fan issue	Refrigerator evaporator motor W11024089, refrigerator evaporator fan blade WP2169142
Freezer warm, fridge warm	Condenser airflow/heat removal problem	Refrigerator condenser fan motor W11613295
Frost buildup, warming over time	Defrost system problem	Refrigerator defrost heater WP12729128
Moisture, warm spots near door	Door gasket not sealing	Whirlpool refrigerator door gasket, left (gray) W10830283, Whirlpool refrigerator door gasket, right (gray) W10830162

Why it matters

Cooling problems usually start small (long run times, mild warming, soft ice) and then turn into food-safety issues. Addressing airflow, door sealing, and defrost performance early helps the compressor and control system run normally and prevents repeat temperature swings.

When “running all the time” is normal

This model can run longer than older refrigerators because it uses a high-efficiency compressor and fans. It may run even longer in a warm room, after loading groceries, or when doors are opened often.

Helpful DIY guidance

• Use our how to fix your evaporator cooling fan steps when you suspect weak airflow or unusual fan noise.
• If you see a code or flashing display, use Whirlpool refrigerator error codes to narrow the problem quickly.

Last updated: February 2026
