Frigidaire FGHS2631PF2 refrigerator Parts

To hard reset your Frigidaire FGHS2631PF2 refrigerator, we recommend doing a full power reset: unplug the unit (or switch the breaker off) for 5 minutes, then restore power and allow the controls to reboot. This clears many temporary control glitches without changing normal temperature settings.

Safe hard reset steps (recommended)

• Unplug the refrigerator from the wall outlet; if you cannot access the plug, turn the circuit breaker off.
• Wait 5 minutes (this lets the control board fully power down).
• Restore power.
• Wait 1 to 2 minutes for the display and dispenser controls to come back on.
• Give cooling time to stabilize; normal operation can take several hours.

For model-specific control and display behavior, follow the reset and alarm guidance in the FGHS2631PF2 manual.

Control panel reset vs. power reset

Some Frigidaire refrigerators support a button-based control reset, but the exact button combination varies by control style and model series. For FGHS2631PF2, a power reset is the most reliable “hard reset” method when you are unsure of the correct key sequence.

Reset type	What it does	Best for
Power reset (unplug/breaker)	Reboots the main control and user interface	Blank display, beeping, odd behavior
Control panel reset (buttons)	Resets the user interface logic (varies by model)	Minor display glitches, stuck options

If the issue comes back after the reset

A repeating problem usually points to a component or condition the control is reacting to. Check these common causes:

• Door not sealing or door left ajar (warm air triggers alarms)
• Temperatures set too warm or vents blocked by food
• Dirty condenser area restricting airflow
• Ice and water dispenser issues (air in the line, low water flow)
• Intermittent control/display problems; the dispenser UI can be involved

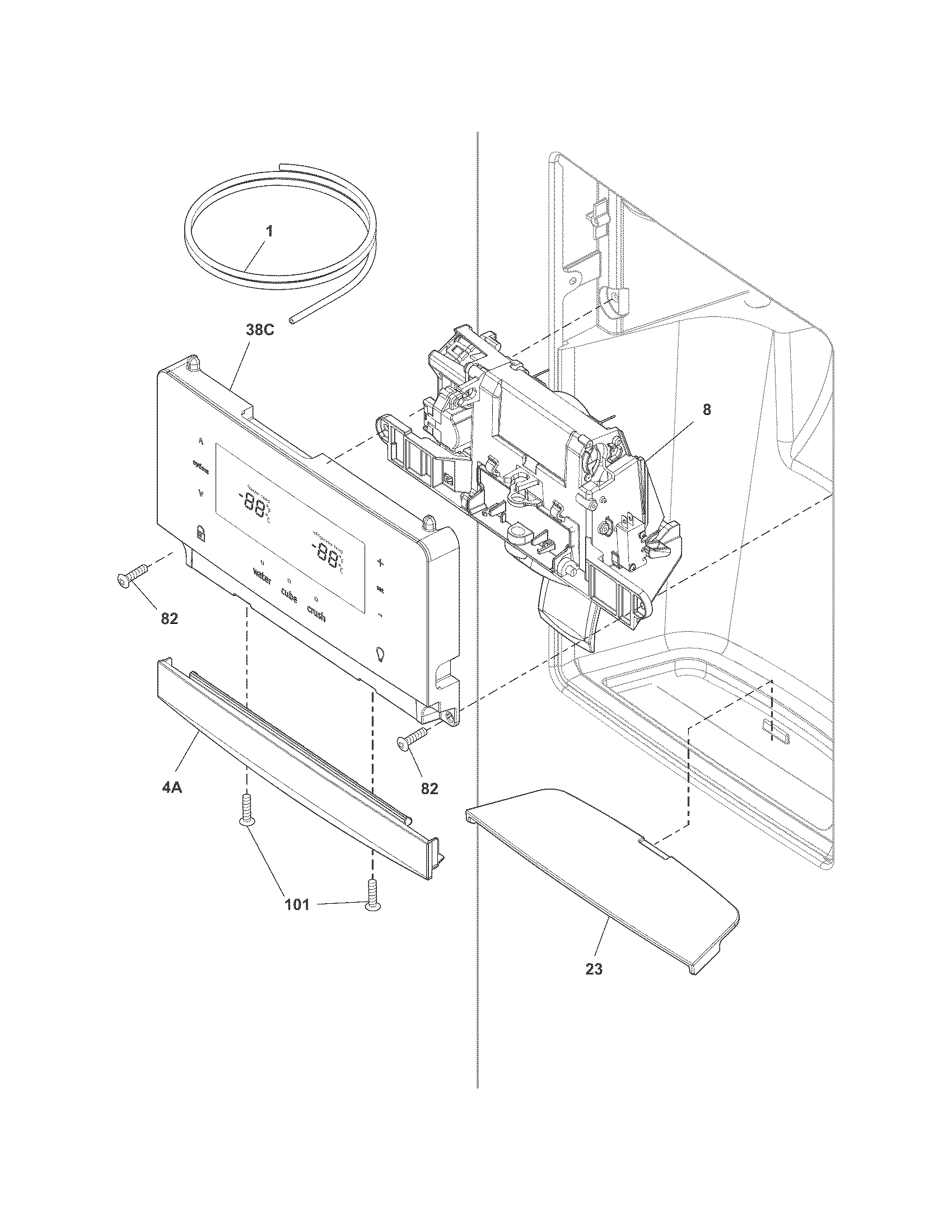

If the display or dispenser buttons are unresponsive after a reset, the refrigerator user interface 5304527931 is a common part involved in dispenser control operation.

Why it matters

A proper hard reset can quickly clear false alarms and temporary electronic “lockups,” helping you avoid unnecessary part replacement and getting your FGHS2631PF2 back to normal cooling and dispensing.

Last updated: January 2026

For the Frigidaire FGHS2631PF2 side-by-side refrigerator, the most common issues we see are cooling performance problems (warm fridge, frost buildup, or uneven temps) and ice maker or water dispenser troubles. Many start with airflow restrictions, dirty condenser coils, or a clogged water filter.

Quick checks we recommend first

• Confirm the temperature settings and give the unit 24 hours to stabilize after changes (see the FGHS2631PF2 user manual).
• Make sure vents inside the fresh food and freezer sections are not blocked by food packages.
• Clean dust from the condenser area and verify the condenser fan is running.
• Check doors close fully and seals are making full contact.
• If water or ice is slow, replace the water filter and purge air from the line.

Common symptoms and likely causes

Symptom	Most likely cause	What to check next
Fridge warm, freezer OK	Restricted airflow or damper issue	Evaporator fan area, air passages, damper movement
Frost buildup in freezer	Door not sealing or defrost issue	Gaskets, defrost heater/thermostat
No ice or small cubes	Water supply or valve/filter restriction	Filter, inlet valve, supply pressure
Water dispenser slow	Clogged filter or air in line	Replace filter, purge line

Parts that often solve the “most common” issues

If troubleshooting points to a maintenance or water-supply restriction, these model-compatible parts are common fixes:

• Refrigerator water filter ULTRAWF (part ID ULTRAWF): improves flow and ice quality when clogged.

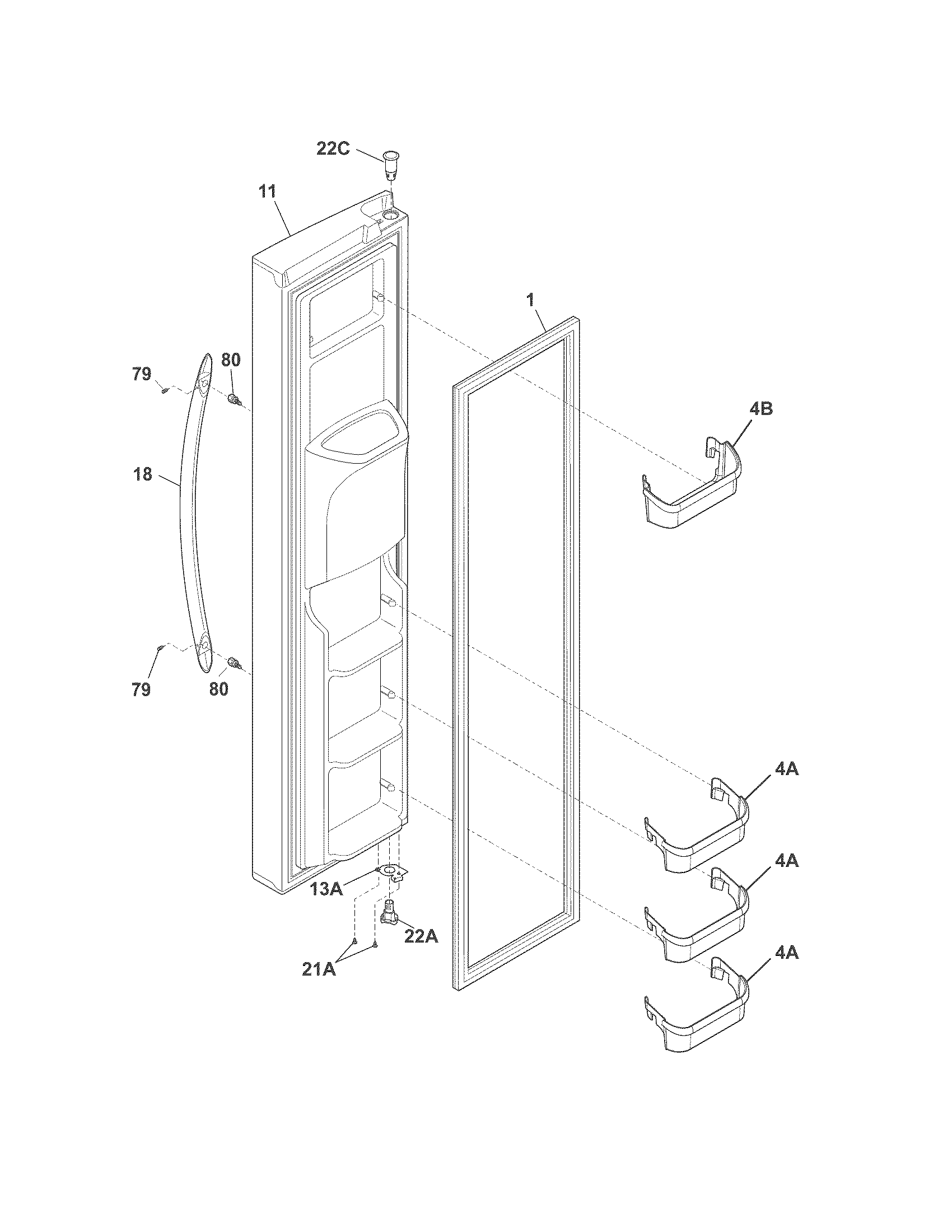

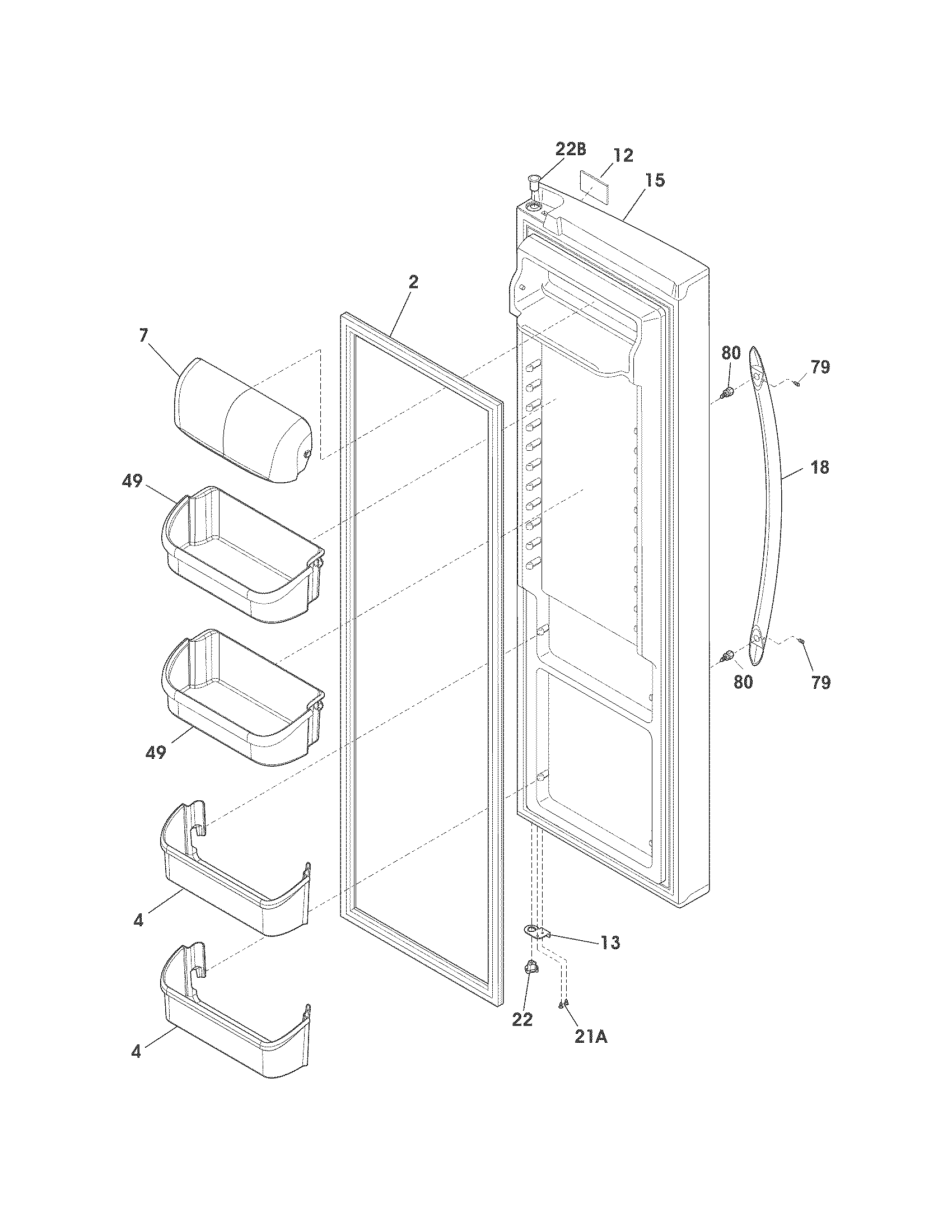

• Refrigerator door gasket (white) 241786013 (part ID 241786013): helps stop warm air leaks that cause frost and long run times.

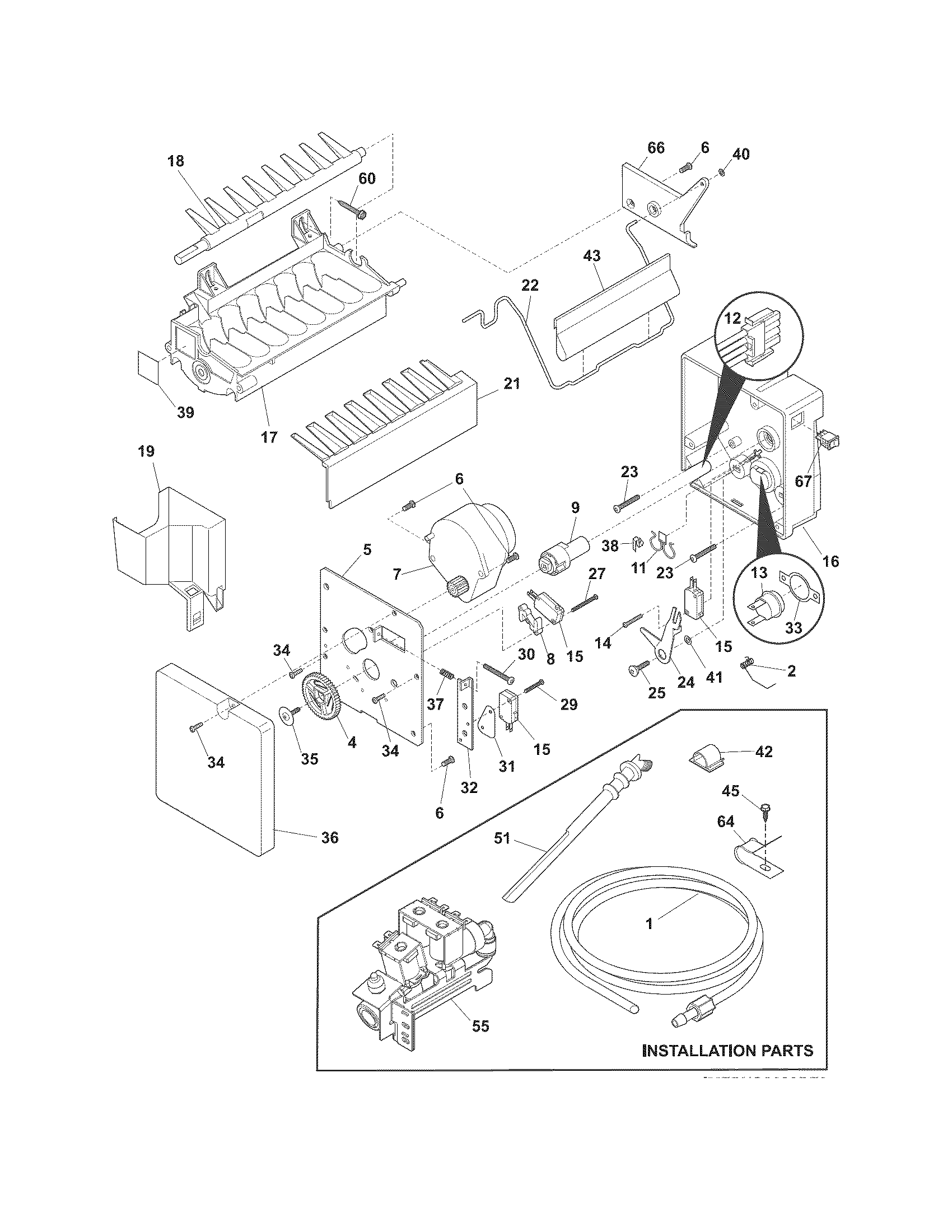

• Frigidaire refrigerator water inlet valve assembly 242252702 (part ID 242252702): helps when the ice maker or dispenser is not getting water.

Why it matters

Cooling and ice maker complaints often share the same root causes: poor airflow, heat not being rejected at the condenser, or restricted water flow. Catching these early helps protect food quality and reduces compressor run time.

Last updated: January 2026

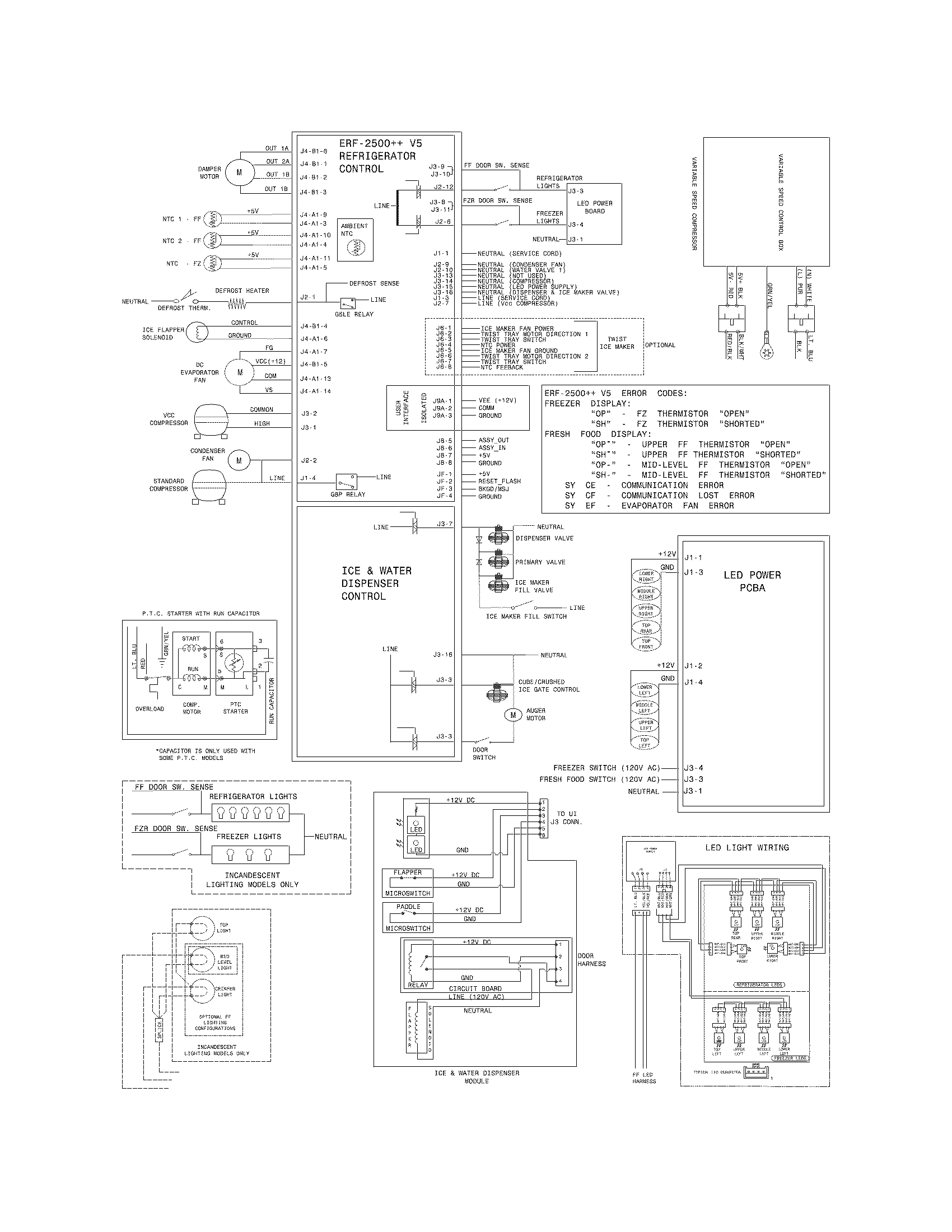

On a Frigidaire FGHS2631PF2 refrigerator, an EF-related code (often shown as SY EF or 5Y EF) points to a problem in the evaporator fan circuit, meaning the evaporator fan is not running correctly or the control is not sensing it properly. Use the FGHS2631PF2 manual for model-specific diagnostics and access steps.

What to check first (safe, quick checks)

• Power reset: unplug the refrigerator (or switch off the breaker) for 5 minutes, then restore power.
• Make sure air vents are not blocked by food packages in the freezer or fresh food section.
• Check for heavy frost on the freezer back wall; frost can stop airflow and overload the fan.
• Confirm both doors close fully and seal tightly.
• Listen for the evaporator fan: it typically runs when the compressor is running and the door switch is closed.

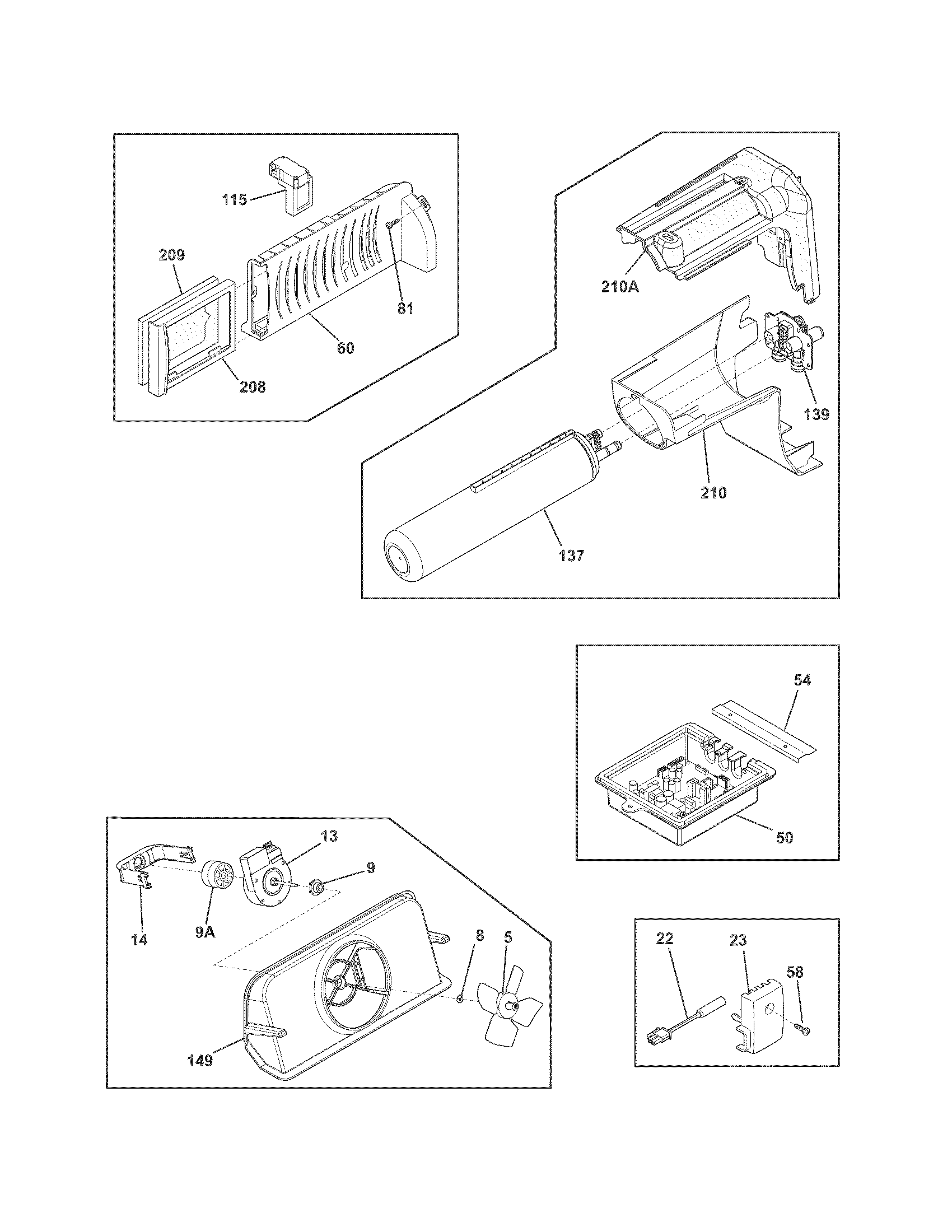

Parts commonly involved with an EF (fan) issue

If the EF code returns after basic checks, these components are common suspects on this model family:

• Evaporator fan motor (fan not spinning, noisy, or intermittent)
• Fan blade (cracked, rubbing ice, or slipping)
• Wiring harness or loose connector at the fan or control
• Main electronic control board (fan power or feedback issue)

For a compatible fan blade used with this model, see the refrigerator evaporator fan blade 5308000010.

Symptom-to-cause guide

What you notice	Most likely cause	What we recommend
Freezer cold but fridge warm	Weak/no airflow from freezer	Check for frost buildup and fan operation
Loud buzzing or ticking in freezer	Fan blade hitting ice	Defrost/clear ice; inspect fan blade
EF code comes and goes	Loose connection or failing motor	Inspect connectors; consider fan motor replacement
Heavy frost on freezer panel	Defrost system problem	Check defrost heater/thermostat circuit

Why it matters

The evaporator fan moves cold air through the freezer and into the fresh food section. When the fan circuit fails, temperatures can rise, food can spoil faster, and the refrigerator may run longer than normal.

For more help interpreting display codes, use our Frigidaire refrigerator error codes reference.
