Jenn-Air JCB2389GRS side-by-side refrigerator Parts

For a Jenn-Air side-by-side refrigerator like model JCB2389GRS, the model number is printed on the appliance’s rating label. On most units, you can find that label inside the fresh food compartment on a side wall or near the ceiling, or on the frame behind the door.

Where to look on a side-by-side refrigerator

Check these common rating-label locations first:

• Inside the refrigerator section on the left or right interior wall
• On the ceiling area inside the refrigerator section
• On the door frame (the cabinet frame visible when you open the doors)
• Behind the crisper drawers (look along the lower side walls)
• On the back exterior panel (less common, but possible)

What you should write down

To get the right diagrams and replacement parts, record the full identification details:

• Model number (example: JCB2389GRS)
• Serial number (helps match production changes)
• Type code or engineering code (if shown)
• Any suffix letters or digits after the model number

Model number vs. serial number

Use this quick guide so you do not mix them up:

Item	What it’s used for	What it looks like
Model number	Identifies the exact refrigerator design for parts lookup	Letters and numbers (JCB2389GRS)
Serial number	Identifies your specific unit and build date range	Longer string, often numbers only or mixed

Why it matters

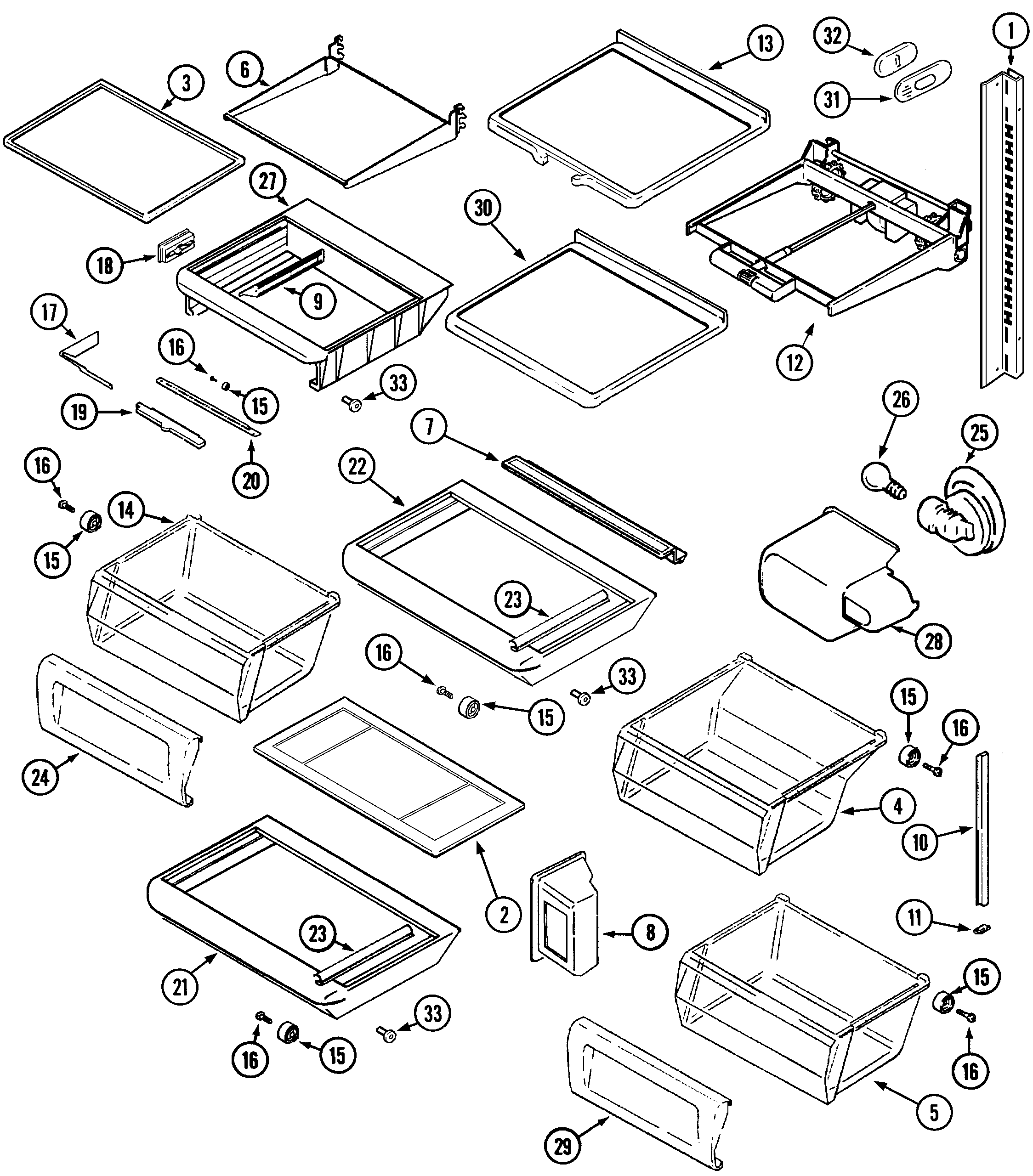

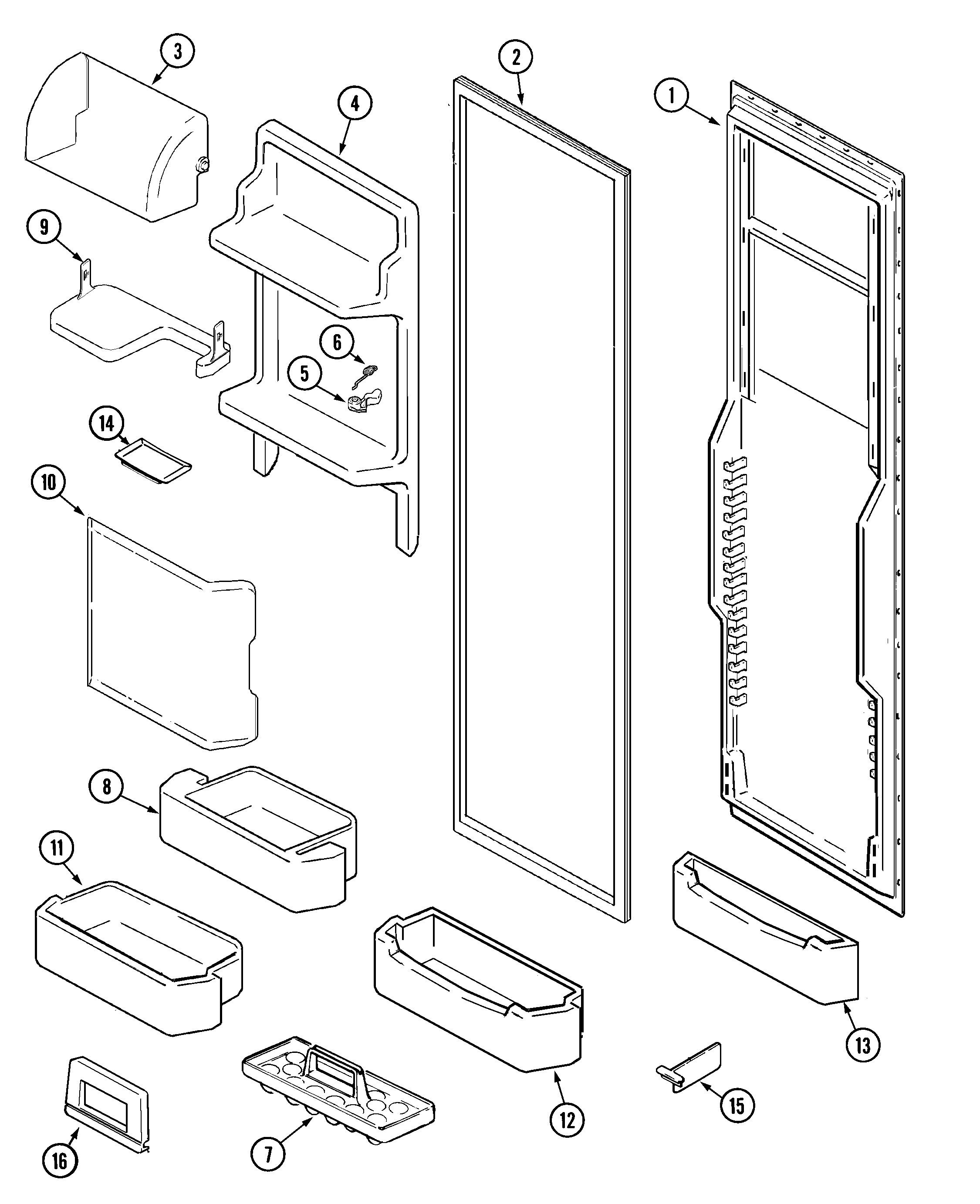

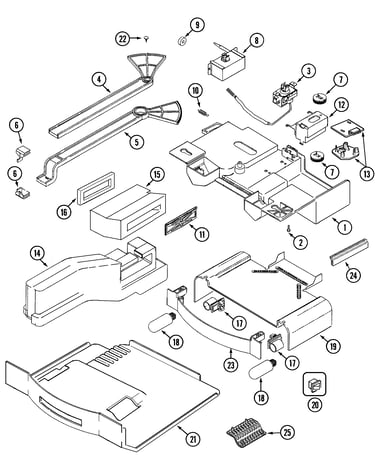

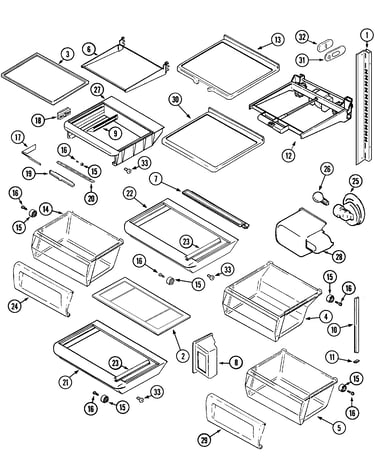

Jenn-Air refrigerators can have small design changes during a production run. Using the exact model number and serial number helps us match the correct shelves, door bins, ice maker parts, water filter housing parts, and electronic controls.

If the label is hard to read

• Take a clear photo with the door open and the light on
• Wipe the label gently with a damp cloth (do not scrub)
• Use your phone’s zoom to confirm each character

For more help identifying the correct number format, use how to find your appliance model number (and what it means for parts).

Last updated: March 2026

The most common problems we see on the Jenn-Air JCB2389GRS side-by-side refrigerator involve cooling performance, ice maker and water dispenser issues, and frost or airflow restrictions. These symptoms usually trace back to airflow blockages, dirty condenser coils, door sealing problems, or a failing fan, defrost, or water supply component.

Common symptoms and what they usually point to

• Refrigerator warm, freezer OK (or vice versa): restricted airflow, evaporator fan issue, or damper problem

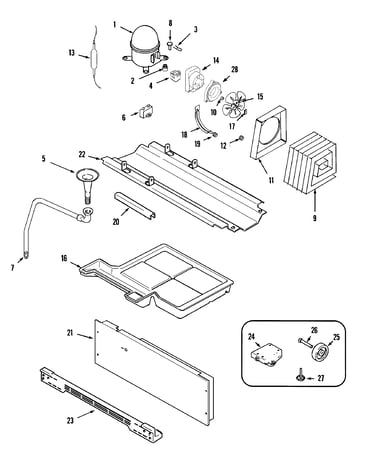

• Both sections warm: dirty condenser coils, condenser fan problem, or sealed system/compressor issue
• Frost buildup on freezer back wall: defrost system problem (heater, thermostat, control) or door left ajar

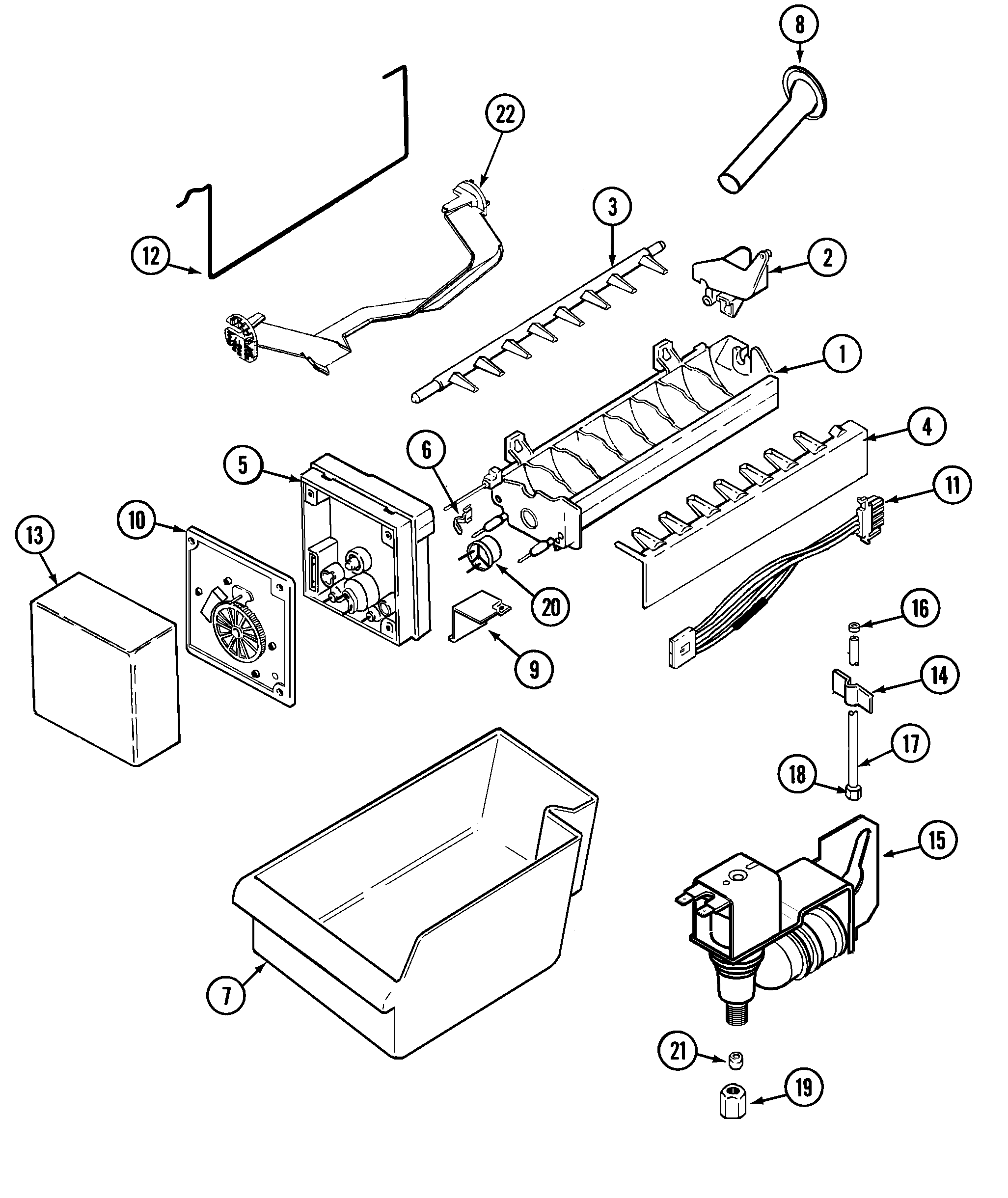

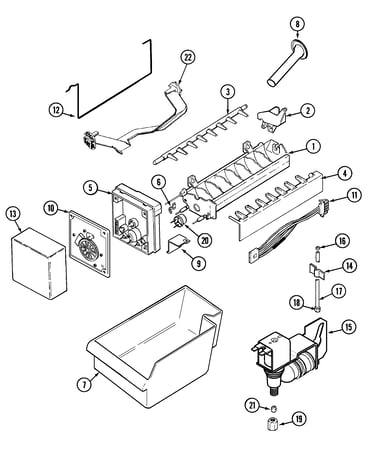

• Ice maker not making ice: water supply shutoff, clogged filter, frozen fill tube, or ice maker module issue
• Water dispenser slow or not dispensing: clogged filter, kinked line, frozen reservoir line, or inlet valve issue
• Noisy operation: evaporator fan, condenser fan, or ice maker noise

Quick checks we recommend first (no tools)

• Confirm the temperature settings; most side-by-sides run best around 0°F freezer and 37°F fresh food.
• Make sure vents are not blocked by food packages; airflow issues cause uneven temps.
• Inspect door gaskets for gaps, tears, or debris; poor sealing drives frost and warm temps.
• Clean condenser coils (typically behind the toe grille or rear panel); dust buildup reduces cooling.
• Verify the household water supply valve is fully open and the water line is not kinked.

Troubleshooting guide by symptom

Symptom	Most likely area	What to do next
Frost on freezer panel	Defrost system or door seal	Check gasket seal; look for heavy ice restricting the evaporator area
Warm temps after coil cleaning	Fans or sealed system	Listen for evaporator and condenser fan operation; check for steady compressor run
Ice maker stopped	Water supply or ice maker	Check fill tube for ice; confirm water flow at dispenser
Slow water	Filter or frozen line	Replace filter if overdue; check for freezing in the fresh food section

Why it matters

On the JCB2389GRS, airflow and heat exchange drive everything: when coils are dirty, vents are blocked, or a fan is weak, temperatures drift, frost builds, and the ice maker and dispenser performance drops.

Helpful DIY resources

• Use our guide on must have tools for appliance repair if you plan to test fans, switches, or electrical parts.
• Review are diy appliance repairs safe before opening panels or working near wiring.

Last updated: March 2026

A Jenn-Air JCB2389GRS side-by-side refrigerator typically lasts 13 years. You can often extend that lifespan by keeping the condenser area clean, maintaining good door seals, and fixing cooling or ice-maker issues early before they strain the compressor.

Typical lifespan and what affects it

Most side-by-side refrigerators reach their full service life when these conditions are kept in check:

• Stable power supply (avoid frequent outages or loose outlets)
• Clean condenser coils and good airflow around the cabinet
• Tight door gaskets that prevent warm-air leaks
• Correct temperatures (about 37°F fresh food and 0°F freezer)
• Ice maker and water system kept from leaking or freezing up

Quick maintenance schedule (simple but effective)

Task	How often	Why it helps
Vacuum/brush condenser area	Every 6 months	Reduces compressor run time and heat stress
Check door seal “paper test”	Every 6 months	Prevents warm air infiltration and frost
Confirm temps with a thermometer	Monthly	Avoids overworking the sealed system
Clear/inspect drain for clogs	Yearly	Prevents water leaks and ice buildup

Signs your refrigerator is nearing end-of-life

These symptoms often show up as a unit approaches the end of its typical lifespan:

• Compressor runs almost constantly but temps still rise
• Repeated warm-freezer events or heavy frost returns quickly
• Loud clicking/humming that changes with cooling cycles
• Water leaks that keep coming back after cleaning the drain
• Ice maker stops working along with cooling performance changes

Why it matters

A refrigerator that is running inefficiently uses more electricity and puts extra wear on major components like the compressor, evaporator fan, and defrost system. Catching airflow, sealing, and drainage problems early is the easiest way to protect the core cooling system.

For general DIY safety and planning before you start any checks or repairs, use our guide: are diy appliance repairs safe.

Last updated: March 2026
