Model #3621A Eureka vacuum cleaner

Here are the diagrams and repair parts for Eureka 3621A vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 29 parts

    Vacuum Wheel

    #9

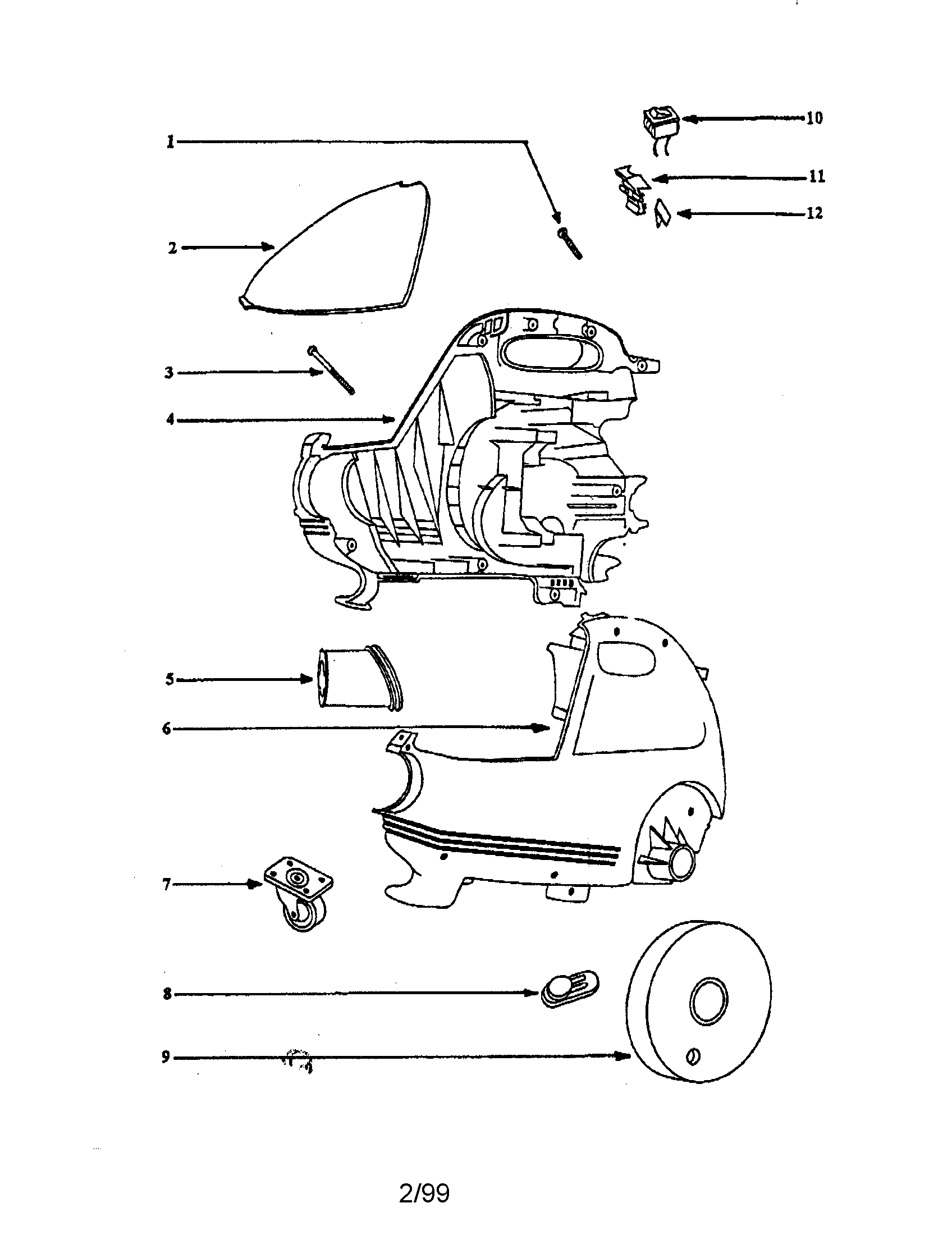

    Base Diagram

    Vacuum wheel

    Part #14762-1

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Motor Safety Filter

    #5

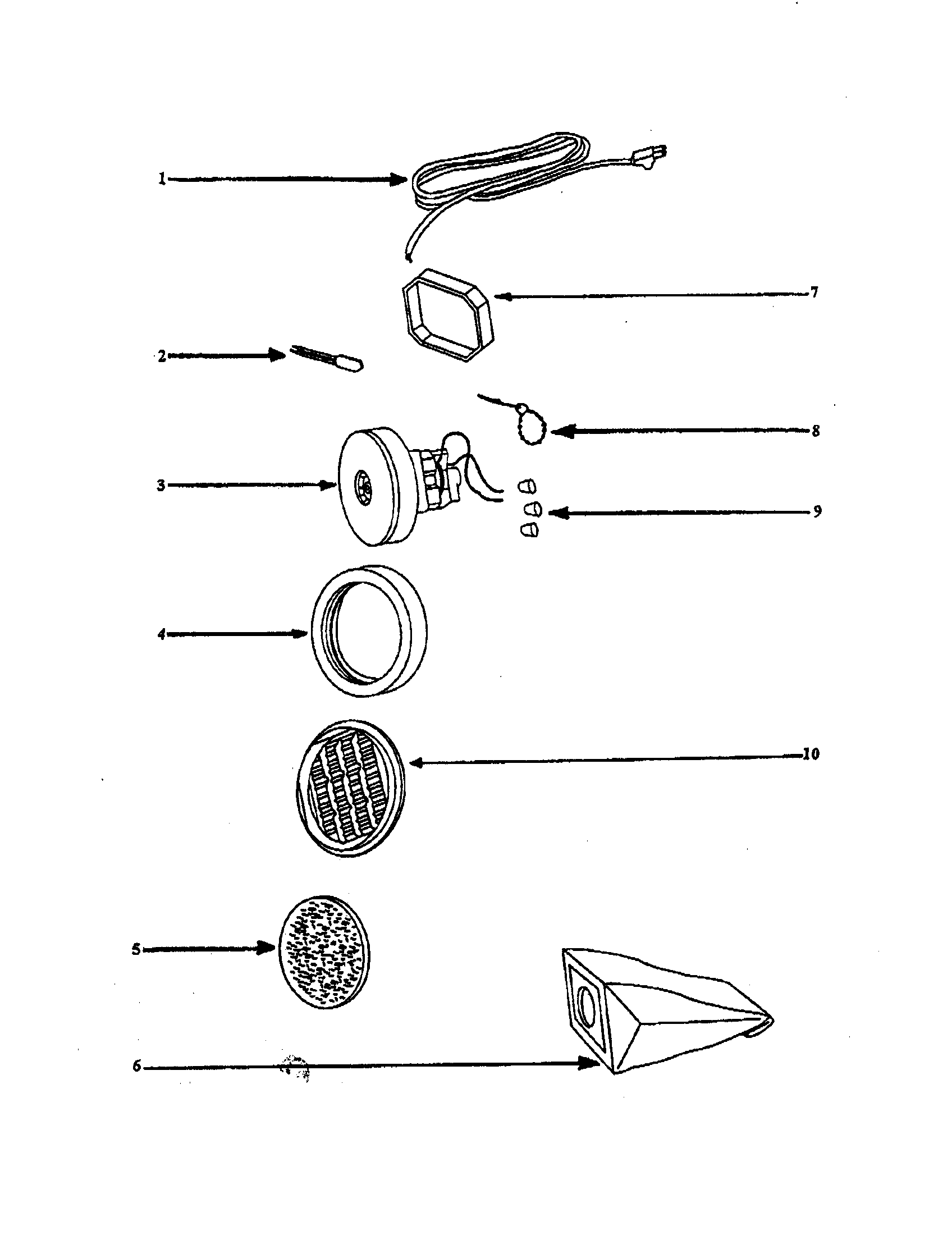

    Motor Diagram

    Vacuum motor safety filter

    Part #38333

    The manufacturer no longer makes this part, and there's no substitute part

    Plate Hose

    #5

    Base Diagram

    Plate hose

    Part #27281-1

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Wand

    #5

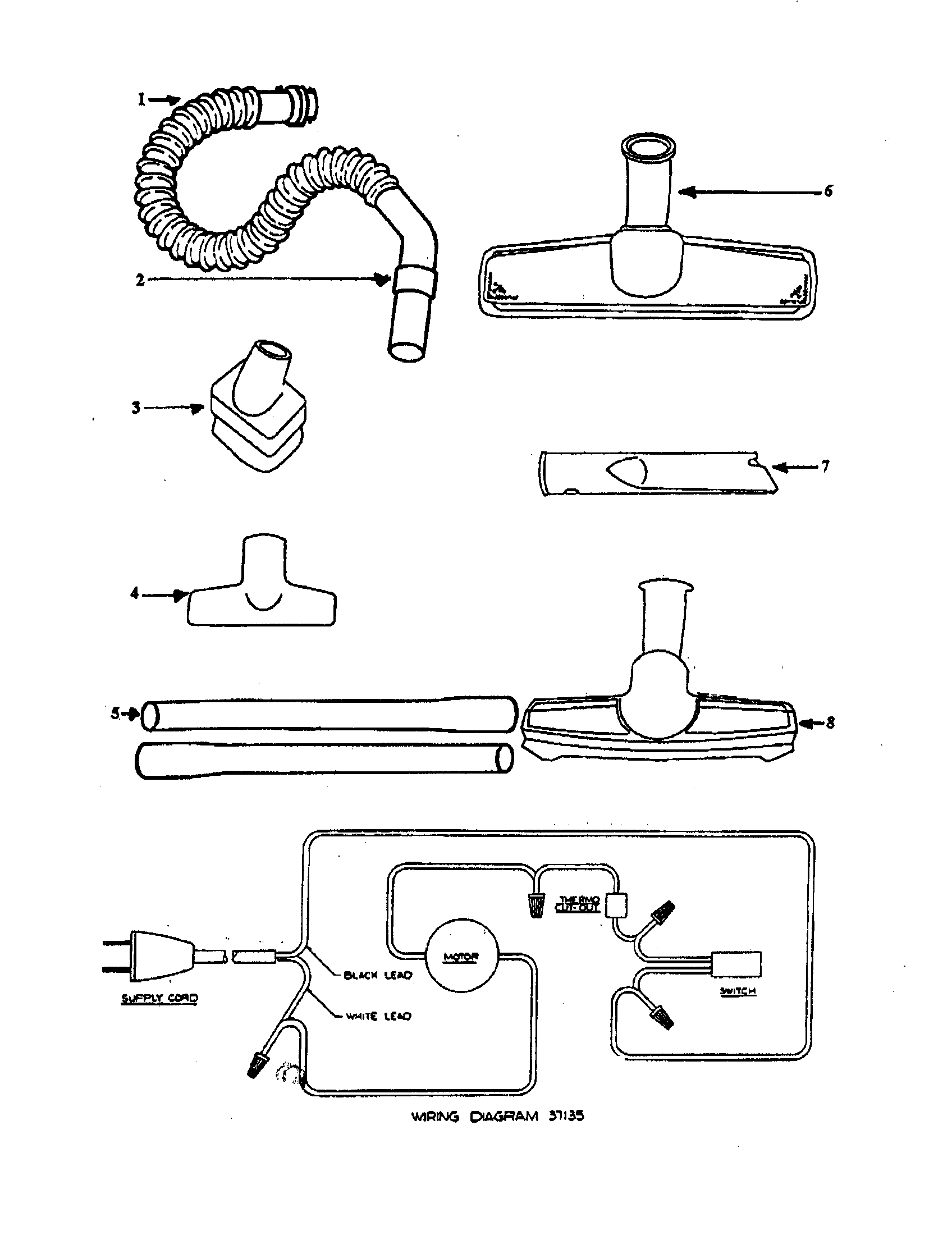

    Wiring diagram 37135 Diagram

    Vacuum wand

    Part #14070-3

    The manufacturer no longer makes this part, and there's no substitute part

    Spring-lat

    #12

    Base Diagram

    Spring-lat

    Part #57867

    The manufacturer no longer makes this part, and there's no substitute part

    Bleeder

    #2

    Wiring diagram 37135 Diagram

    Bleeder

    Part #37653-3

    The manufacturer no longer makes this part, and there's no substitute part

    Plate

    #10

    Motor Diagram

    Plate

    Part #14757-1

    The manufacturer no longer makes this part, and there's no substitute part

    Latch Cover

    #11

    Base Diagram

    Latch cover

    Part #38280-1

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #3

    Base Diagram

    Screw

    Part #53197-2

    The manufacturer no longer makes this part, and there's no substitute part

    Thermostat

    #2

    Motor Diagram

    Thermostat

    Part #56146

    The manufacturer no longer makes this part, and there's no substitute part
