What are the disadvantages of a bottom freezer refrigerator?
Bottom-freezer refrigerators like the GE CYE22TSHDSS keep fresh food at eye level, but the tradeoffs are mostly about freezer access and maintenance: you bend more to reach frozen items, deep drawers can hide food, and drain or defrost issues can show up as frost or water if doors do not seal well (see the owner's manual).
- More bending for freezer use: The freezer is low, so frequent ice or frozen-food access means more crouching.

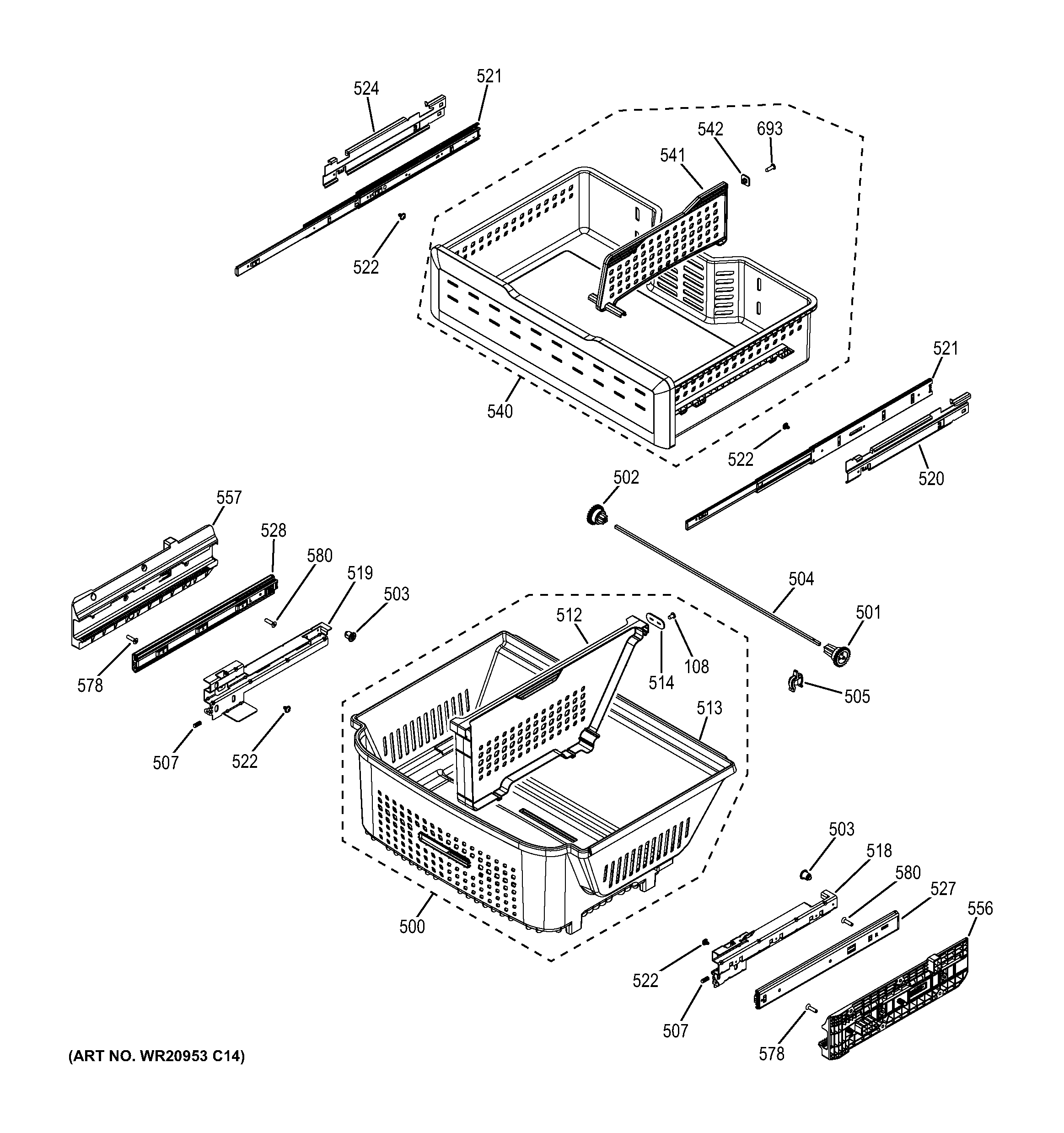

- Deep drawer organization: Items stack and slide; small packages can get buried.
- Heavier lifting: Large frozen items often come out of a low drawer, which is harder on backs and knees.
- More door-open time: Digging through drawers can keep the freezer open longer, which can increase frost.
- Potential for frost if the door is not sealing: Frost inside the freezer is a common symptom when the door is left open or not sealing properly.
Some complaints are really setup or sealing problems, not the freezer location itself.
| Symptom | What it often points to | What we check first |
|---|---|---|
| Frost buildup in freezer | Door not sealing or door left ajar | Look for packages blocking closure; inspect gasket contact |
| Water or ice around freezer area | Drain or defrost-related icing | Clear visible ice; confirm doors close fully |
| Uneven door gaps | Door alignment or floor not level | Follow the alignment steps in the manual |

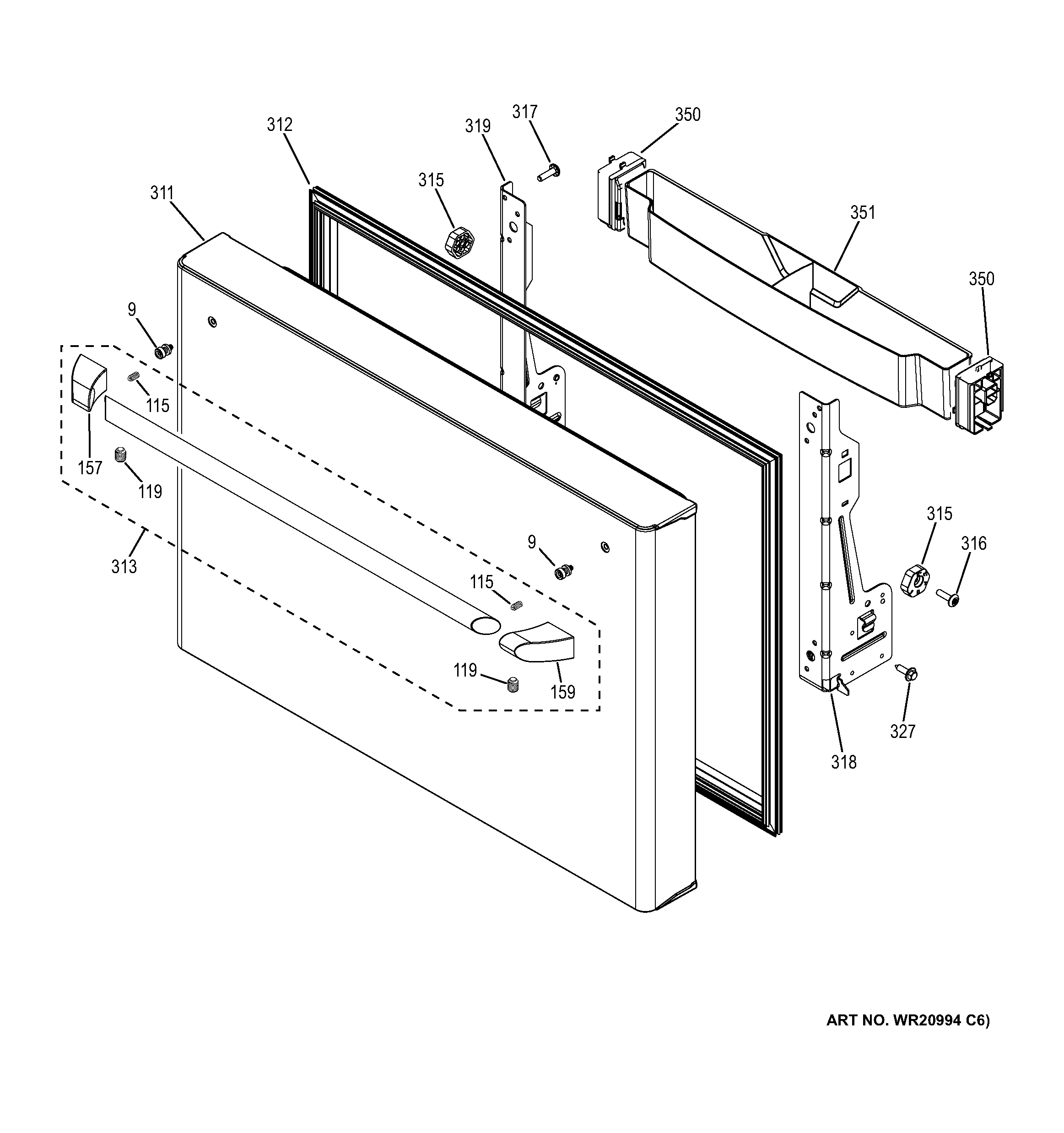

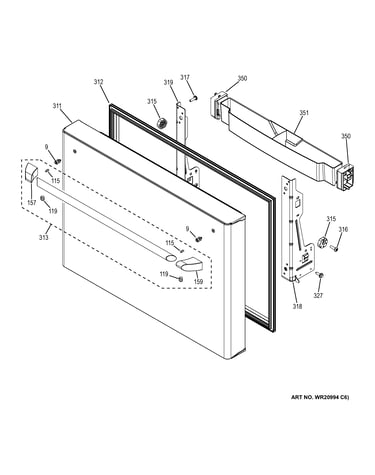

If you see frost and the door is not sealing well, replacing a worn gasket can help; the refrigerator freezer door gasket WR14X36194 is a common fix for sealing problems on this model.
A bottom-mount design is great for fresh-food convenience, but freezer drawers reward good organization and a tight door seal. When the freezer stays open longer or does not seal, you can get frost, temperature swings, and more frequent defrosting.
- Refrigerator freezer door gasket WR14X36194 for sealing and frost issues

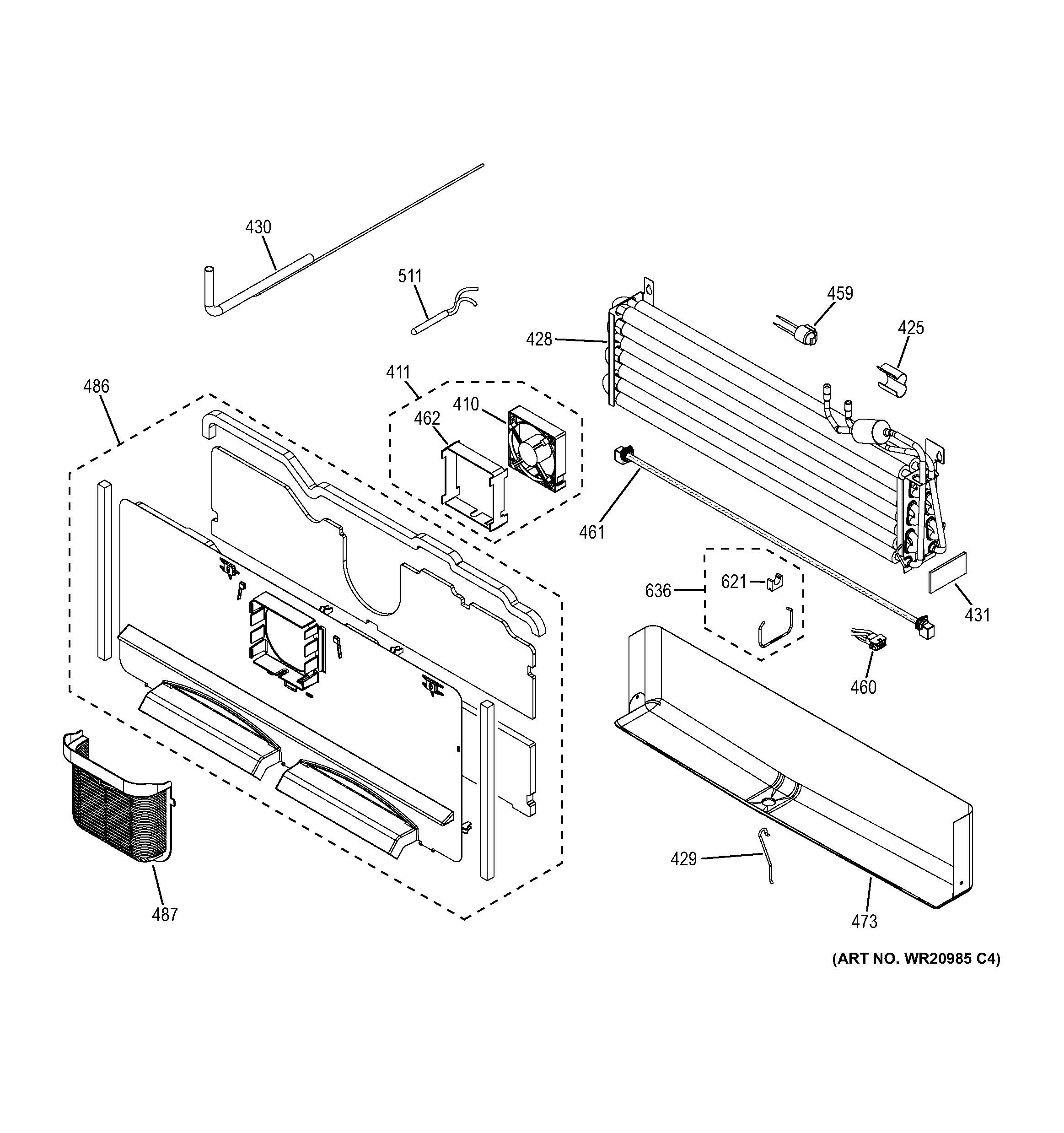

- Refrigerator defrost bi-metal thermostat WR50X10108 when defrost control symptoms appear
- Refrigerator defrost heater WR51X10132 if the unit is not clearing frost properly
- Refrigerator evaporator fan motor assembly WR60X35205 if airflow is weak or noisy
- You can also search parts by model on Sears PartsDirect
Last updated: February 2026

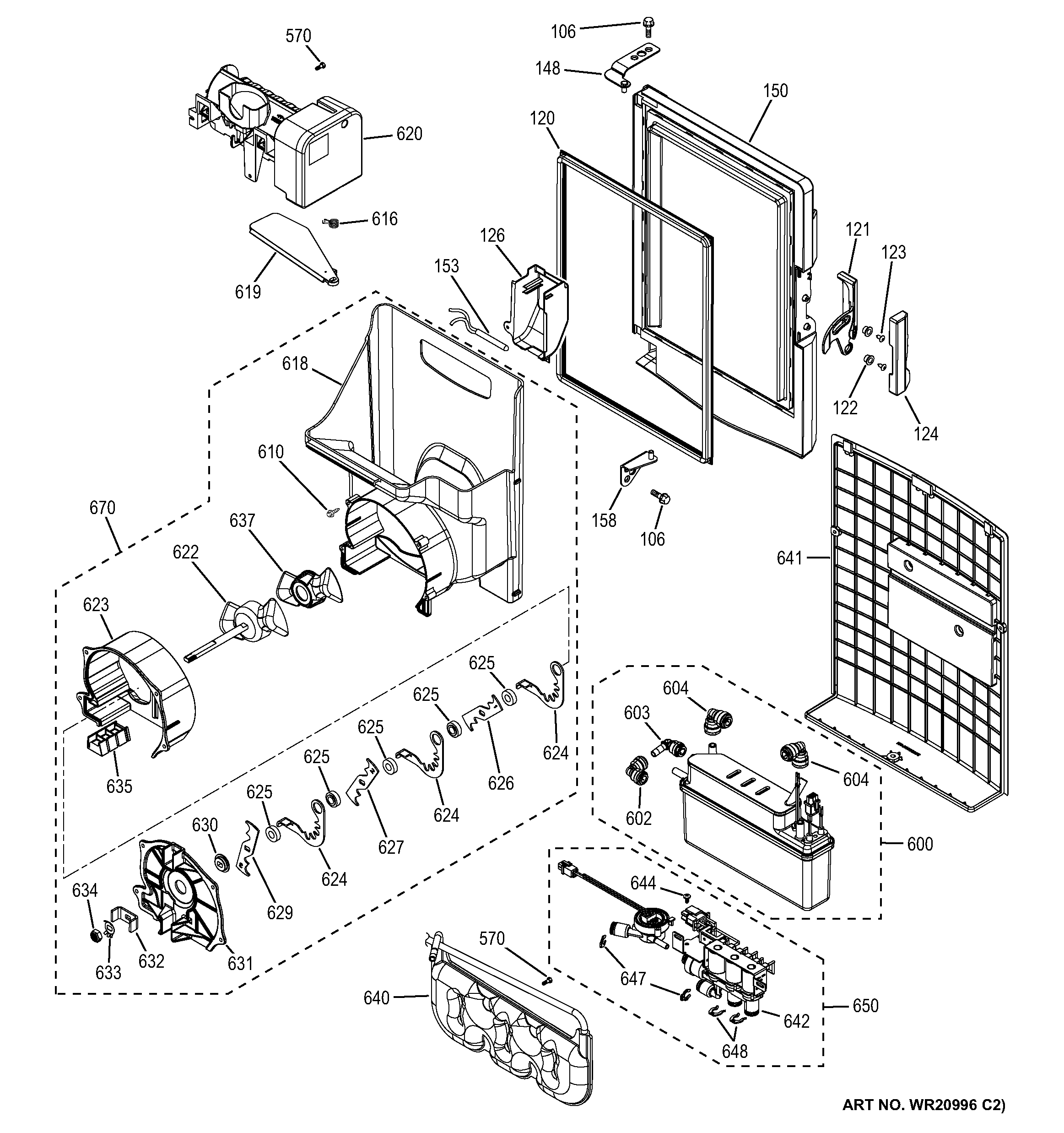

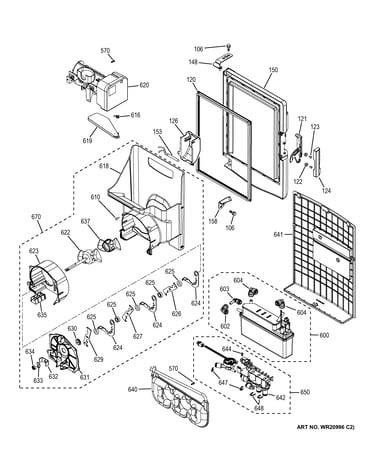

What is the most common problem with GE refrigerators ice maker?
The most common ice maker problem we see on GE refrigerators like model CYE22TSHDSS is no ice or slow ice production caused by a water supply issue (clogged filter, air in the water line, or a restricted shutoff valve). Freezer temperature that is too warm can also stop ice production.
- Confirm the ice maker is turned ON.
- Make sure the freezer is cold enough; ice makers typically struggle when the freezer is above 10°F.
- If the water filter is new, run dispenser water for 5 minutes (about 2 gallons) to purge air.
- If water flow is weak, replace the filter and ensure it locks in fully.
- Check the household shutoff valve and supply line for restrictions.
For model-specific operating details and control settings, use the CYE22TSHDSS owner's manual.
| Symptom | Most likely cause | What to do first |
|---|---|---|
| No ice at all | Ice maker switched off | Turn ice maker on, wait 24 hours |
| Small or hollow cubes | Filter restriction or RO system interaction | Replace filter or use bypass plug if applicable |
| Slow ice production | Air in line or low water flow | Purge water for 5 minutes, check shutoff valve |
| Ice clumps or jams | Freezer temp too warm or bin issues | Set colder, clear bin and chute |
If your troubleshooting points to filtration or water flow, these model-matched parts are commonly replaced:
- GE refrigerator water filter RPWFE (clogged or overdue filters are a top cause of low flow)
- Water inlet valve issues can also cause no-fill symptoms; if you’re diagnosing valve problems, start with our guide: how to diagnose a faulty refrigerator water inlet valve
An ice maker depends on steady water pressure and correct freezer temperature. When flow is restricted (filter, air in the line, supply valve) the ice maker may not fill properly, leading to no ice, slow production, or poor cube quality.
If you need to order replacement parts for GE CYE22TSHDSS, we list model-specific parts on this page, and you can also search by model number on Sears PartsDirect.
Last updated: February 2026
What's better, top mount or bottom mount fridge?
A bottom-mount refrigerator like the GE CYE22TSHDSS is better when you want everyday items at eye level and more freezer organization; a top-mount is better when you want the simplest layout and typically the lowest purchase and repair costs. The “better” choice depends on how you shop and use the freezer.
| Feature | Top-mount (freezer on top) | Bottom-mount (freezer drawer) |
|---|---|---|
| Fresh food access | More bending | Less bending; most-used items are higher |
| Freezer organization | Basic shelf/bin | Better separation with baskets and pull-outs |
| Space needs | Often a bit less depth/complexity | Often deeper; needs drawer clearance |
| Complexity | Simpler; fewer moving parts | More parts in the freezer drawer/rails |
| Best for | Budget, simplicity | Convenience, organization |
- Bottom-mount if you use the refrigerator section most and want easier access to produce, deli items, and beverages.
- Top-mount if you want a straightforward design and you do not mind bending for fresh food.
- Bottom-mount if you like freezer baskets that help separate meats, frozen meals, and bulk items.
- Top-mount if you want a lighter door setup (no large freezer drawer to pull out).
Bottom-mount models need enough room to move the cabinet in and to open the freezer drawer fully. For the GE CYE22TSHDSS, our best practice is to confirm your opening and clearances using the owner's manual.
Typical checks before you choose:
- Measure cabinet opening width and doorway width.
- Confirm clearance for air circulation at the sides, top, and back.
- Confirm the freezer drawer can open without hitting an island, wall, or baseboard.
Choosing the right mount style affects daily comfort (bending and reach), how well you can organize frozen foods, and whether the refrigerator fits your kitchen without door or drawer interference.
If you are shopping parts for your current refrigerator, you can order replacement parts for the GE CYE22TSHDSS from the parts list for this model, or search by model number on Sears PartsDirect.
