Kenmore 79094339703 electric range Parts

For Kenmore electric range model 79094339703, the model and serial number are printed on the serial plate located on the right side of the oven front frame, inside the storage or warmer drawer compartment. Use that label to match parts and manuals exactly.

Where to look on model 79094339703

1. Pull the range forward slightly if needed for access.
2. Open the storage drawer or warmer drawer (depending on your configuration).
3. Look on the right side of the oven front frame for the serial plate.
4. Record both the model number and serial number for future reference.

If you need a picture of the label location and the exact wording used in the Product Record section, check the owner's manual.

What to write down (and why)

• Model number (example format: 790.xxxx) to ensure parts fit your exact range.
• Serial number to help identify production variations.
• Date of purchase for your records.
• Any suffixes or color identifiers shown on the tag.

Quick guide: common label locations on ranges

Even though 79094339703 uses the drawer-area serial plate, these are other common places customers check:

Appliance type	Common model tag locations
Freestanding electric range	Drawer compartment, oven door frame
Slide-in range	Oven door frame, side trim area
Wall oven	Door frame, side trim behind the door

Why it matters

Using the exact model number prevents ordering the wrong Kenmore range parts (like a bake element, surface element control switch, or oven temperature sensor) and speeds up troubleshooting.

Last updated: February 2026

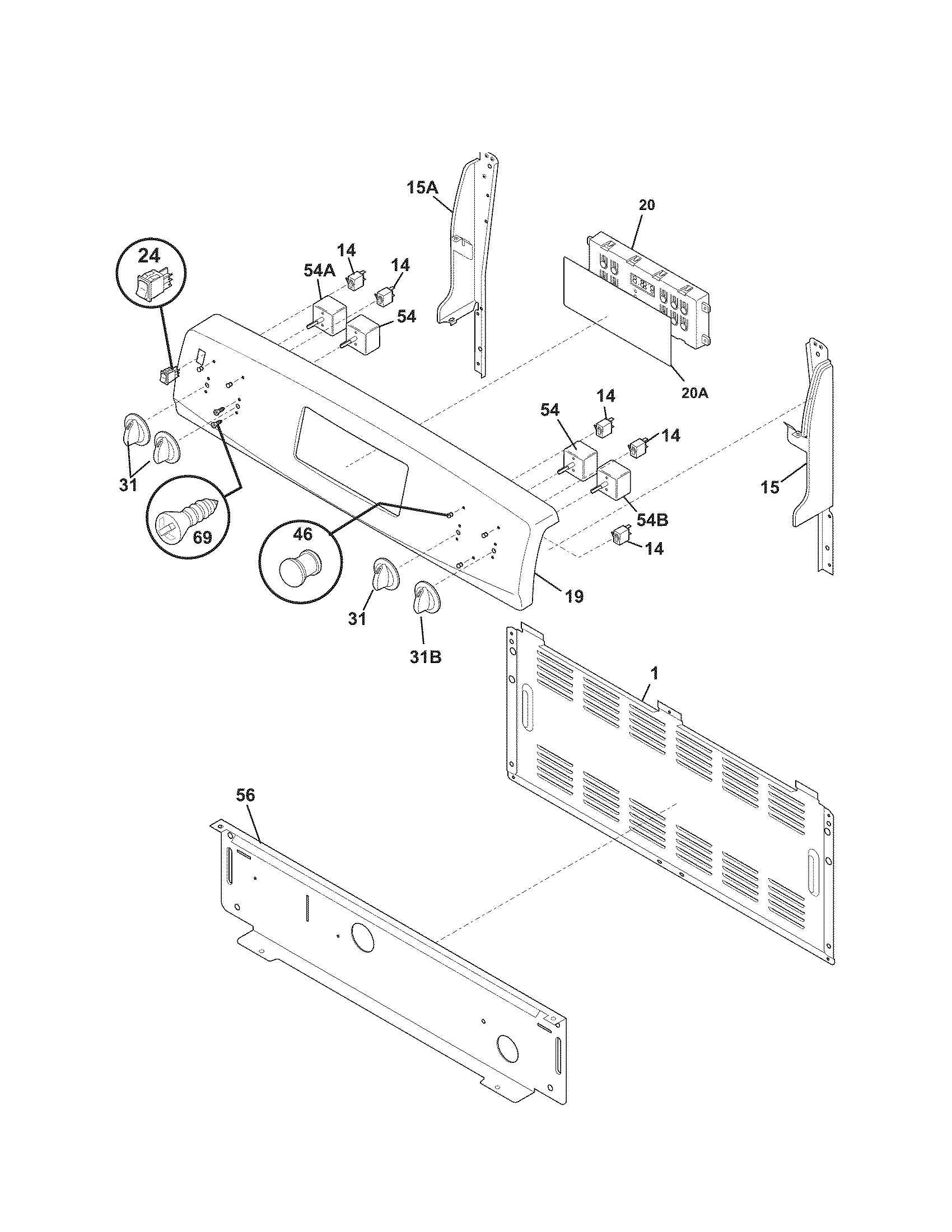

To replace the oven control board on your Kenmore electric range model 79094339703, we disconnect power, access the control area, move each wire connector to the matching terminal on the new board, reconnect the ribbon cable, then reassemble and restore power. Use the wiring diagram and access steps in the owner's manual.

Before you start (safety and prep)

• Turn off the range at the circuit breaker; confirm the display is off.
• Let the oven cool completely.
• Take a clear photo of the wire locations before removing anything.
• Label connectors with tape so each one returns to the same spot.
• Avoid pulling on wires; pull on the connector body.

Replacement steps (typical for this Kenmore 79094339703)

1. Shut off power at the breaker.
2. Access the control area (usually from the back of the control panel or rear cover, depending on configuration).
3. Disconnect the ribbon cable from the old board by releasing the connector lock, then sliding the ribbon out.
4. Transfer wire connectors one at a time from the old board to the new board (match terminal positions exactly).
5. Reconnect the ribbon cable fully and lock the connector.
6. Reinstall the rear/control cover, making sure no wires are pinched.
7. Restore power and test Bake, Broil, and the clock.

Quick checks after installation

What you see	What it usually means	What to do
Display is blank	No power to control	Recheck breaker, terminal connections, and harness plugs
Buttons do not respond	Ribbon cable not seated/locked	Reseat ribbon cable and lock connector
Oven heats but temps seem off	Calibration offset	Use the temperature adjustment steps in the owner's manual

Why it matters

The control board manages oven temperature regulation, timing, and user inputs. A loose ribbon cable or a connector on the wrong terminal can cause dead display symptoms, incorrect heating, or error codes.

Last updated: February 2026

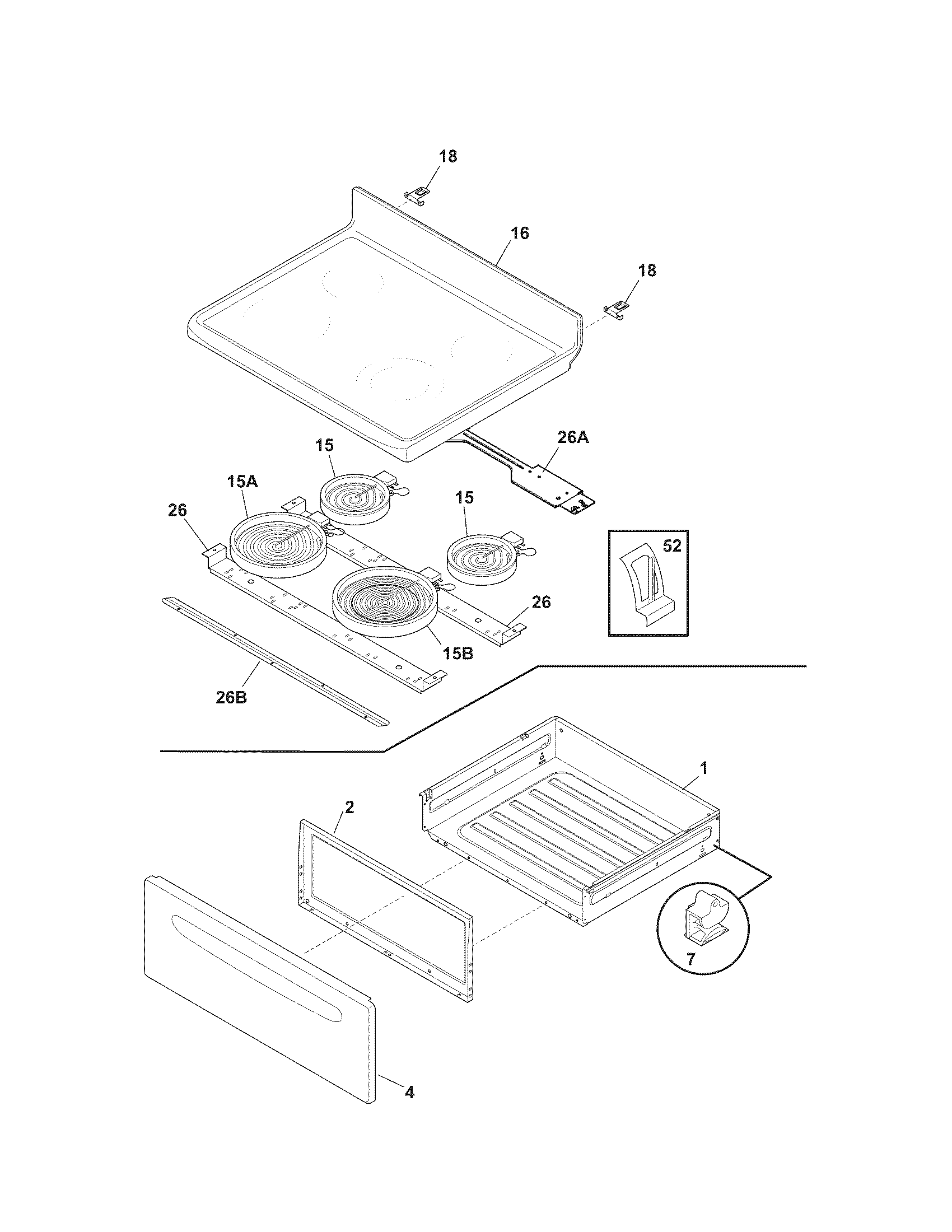

To remove the top (main top) on your Kenmore electric range model 79094339703, we typically disconnect power, remove the fasteners that secure the main top, then lift the top up and slide it forward while supporting the wiring underneath. Use the steps and diagrams in the owner's manual for your exact access points.

Before you start (safety first)

• Turn all surface controls to OFF.
• Shut off power at the breaker (ranges use 240V).
• Let the cooktop cool completely.
• If you have a ceramic-glass cooktop and it is cracked, do not use or disassemble it; electric shock risk.
• Protect the finish; place a towel or cardboard on nearby surfaces.

Steps to remove the main top

1. Disconnect power at the breaker.
2. Pull the range forward a few inches so you can access rear screws (if needed).
3. Remove the mounting screws that secure the main top to the frame (commonly found under the front lip, at the backguard area, or under the control panel area depending on configuration).
4. Lift the main top from the front edge; use a helper if the top is heavy.
5. Support the top (do not let it hang by wires). If a wire harness limits movement, note routing and connectors before separating.
6. Slide the top forward and off once all fasteners and any retaining tabs are released.

What you may need

Item	Why it helps
Phillips screwdriver or nut driver	Removes main-top mounting screws
Work gloves	Protects hands from sharp sheet metal
Painter’s tape + marker	Labels wire harness connections
Towel/cardboard	Prevents scratches on the cooktop and trim

Why it matters

Removing the main top is the first step for common repairs like replacing a radiant element, a surface element control switch, or repairing a damaged wire harness. Correctly supporting and labeling wiring prevents miswiring and repeat failures.

Last updated: February 2026

If your Kenmore electric range model 79094339703 isn’t getting hot, the most common causes are a failed bake element, a failed broil element (some models use it to help preheat), a bad oven temperature sensor, or a control problem. Start with a basic power check, then test the heating components.

Quick checks first (no parts yet)

• Confirm the range has full power (electric ovens typically need both legs of a 240V supply; a partially tripped breaker can leave lights working but no heat).
• Make sure you are using Bake (not Delay Start, Sabbath, or a timed setting that is not running).
• If the control is beeping and showing an F code, clear it by pressing STOP/CLEAR, then retry Bake.
• Preheat for 10 to 15 minutes and verify the oven is actually trying to heat.
• If the oven was recently in Self-Clean, let it cool completely and try again.

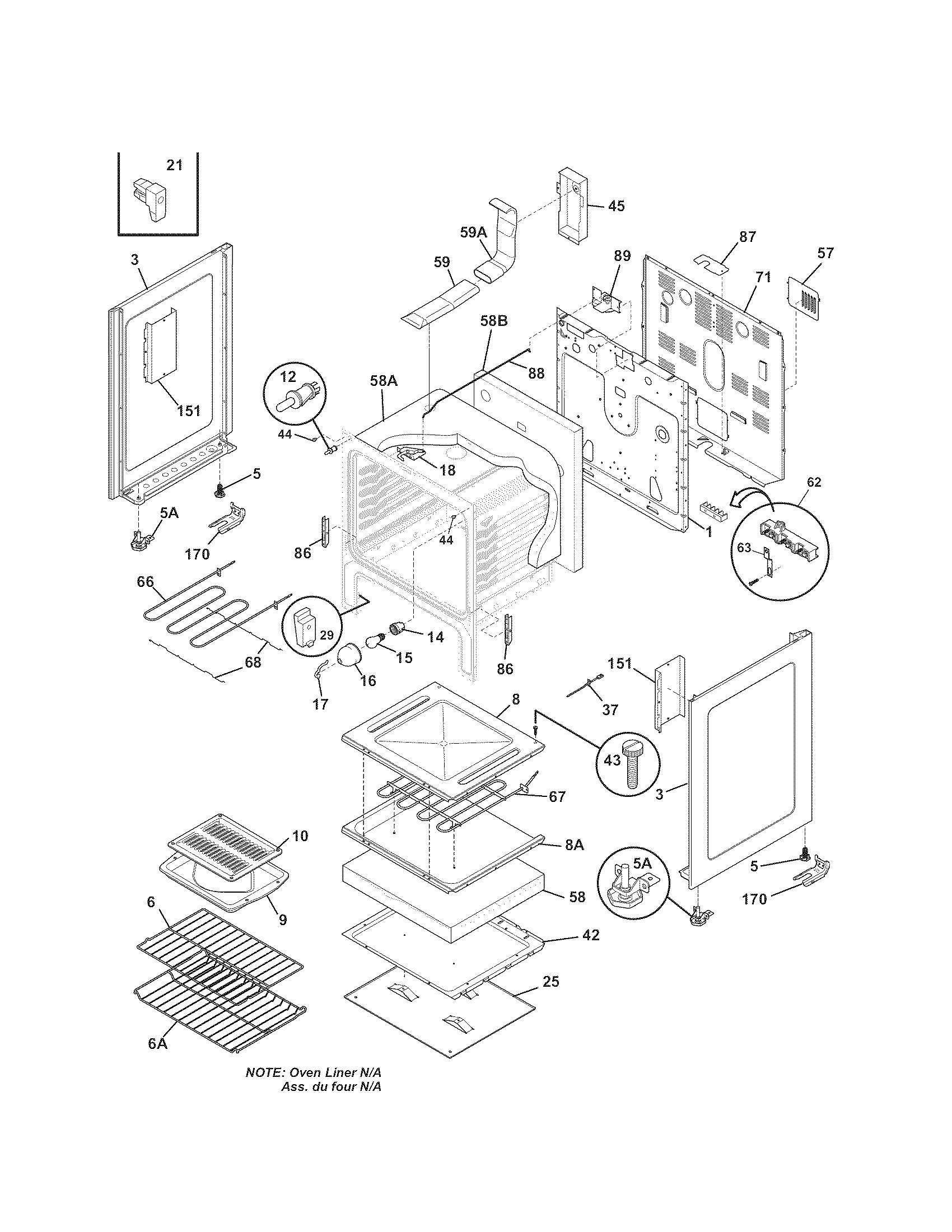

Parts that most often cause “no heat” on an electric oven

If the oven does not heat at all, these are the first components we check on this model:

• Bake element: look for blisters, cracks, or a spot that has burned through; replace if damaged.
• Broil element: if it will not glow/heat, baking performance can suffer on some cycles.
• Oven temperature sensor: if it reads incorrectly, the control may limit or stop heating.

Helpful model-matched parts from this page:

• Frigidaire range bake element 316413800
• Frigidaire range broil element 316203301
• Frigidaire range oven temperature sensor 316490000

Troubleshooting guide (what to test and what it means)

What you observe	Most likely cause	What we recommend
No heat in Bake or Broil	Power supply issue or control issue	Check breaker, then inspect wiring and terminal connections
Broil works, Bake does not	Failed bake element	Inspect and ohm-test bake element
Bake works, Broil does not	Failed broil element	Inspect and ohm-test broil element
Heats sometimes, temps are erratic	Temperature sensor drifting	Test sensor resistance at room temp and replace if out of spec

Why it matters

Running the oven when it is not heating correctly can lead to undercooked food, long preheat times, and extra stress on the control and wiring. Fixing the root cause (element, sensor, or power) restores safe, consistent baking.

Where to find model-specific steps

For control settings, error-code behavior, and “before you call” checks, use the 79094339703 owner's manual.

Last updated: February 2026
