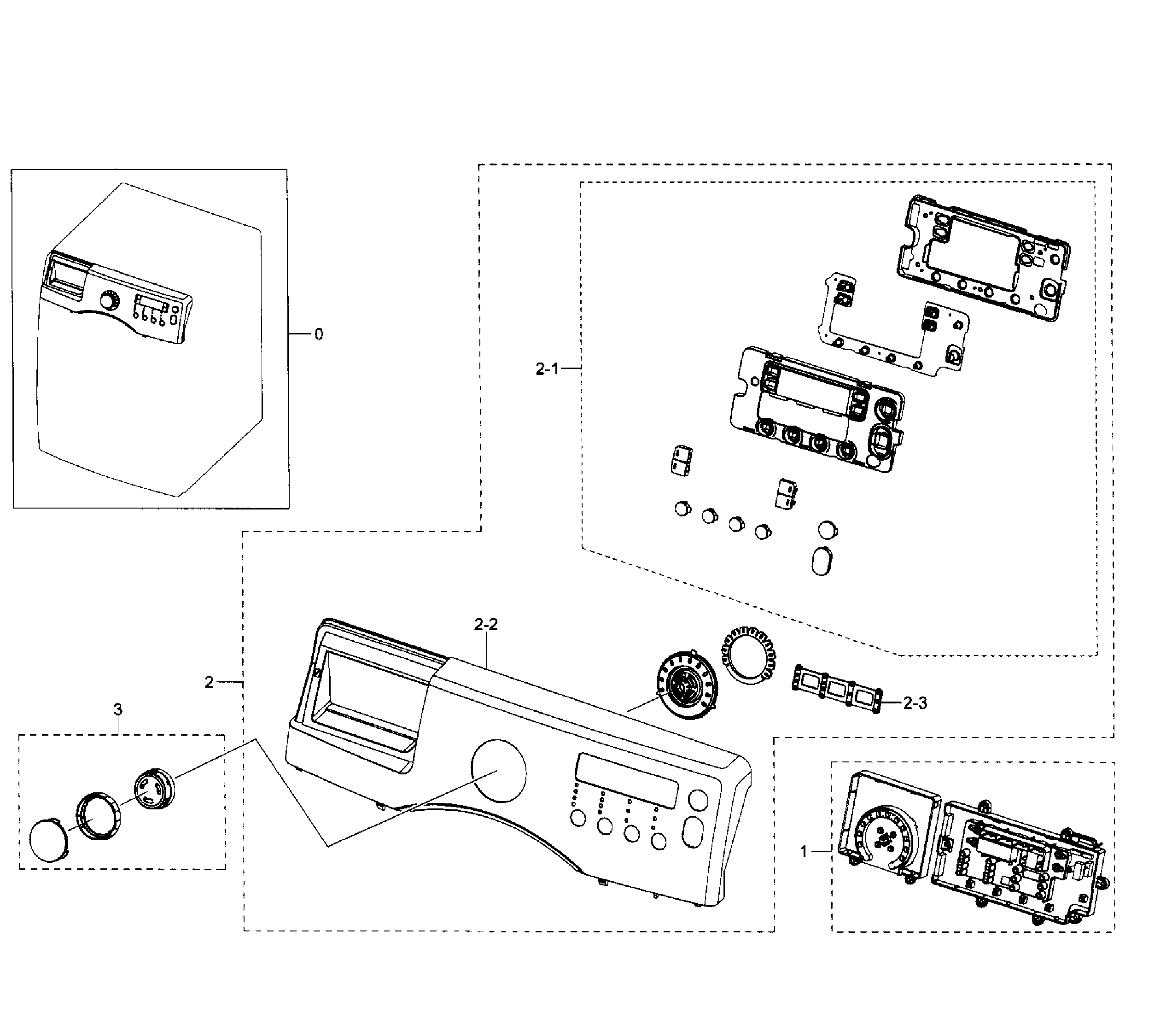

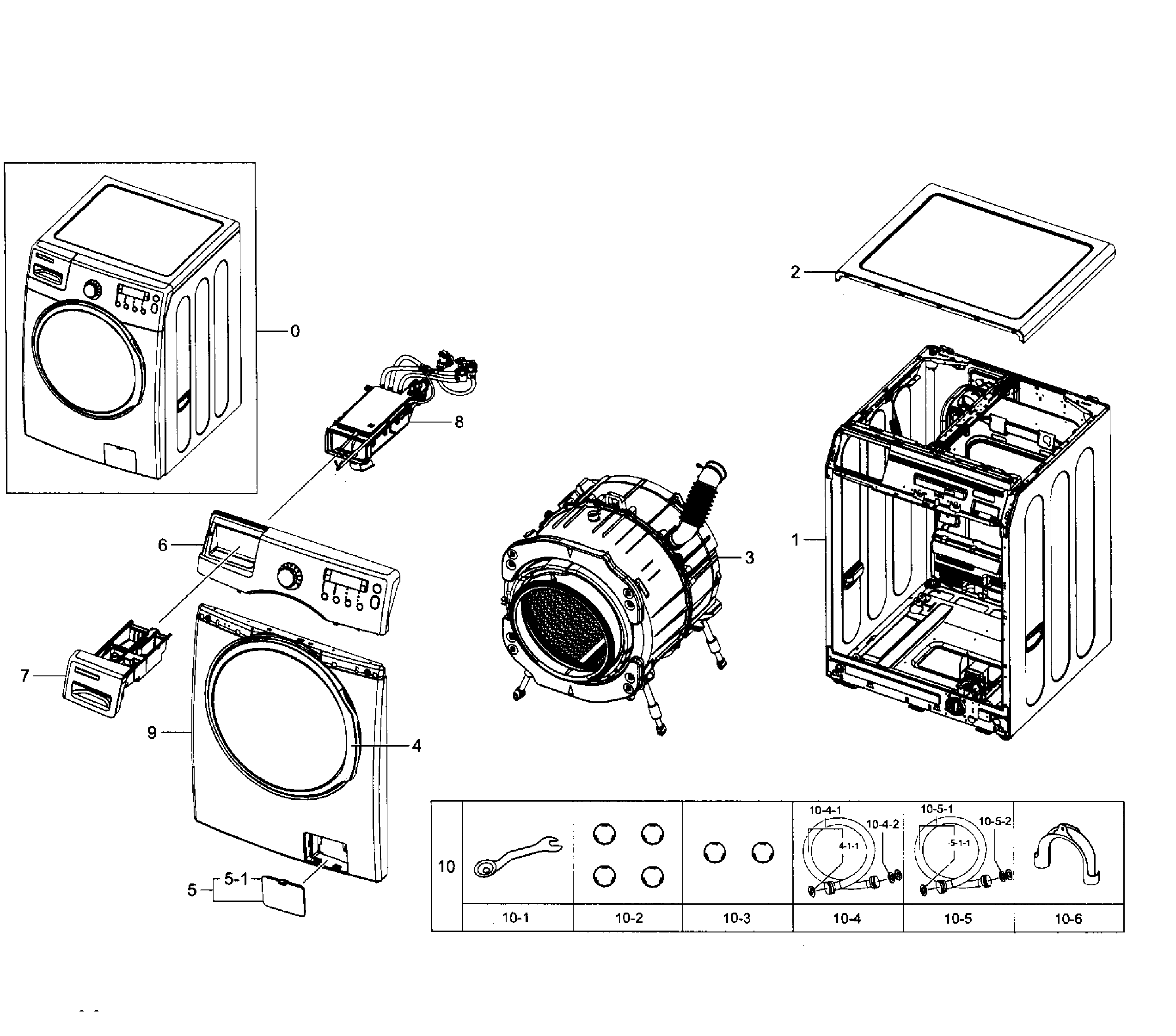

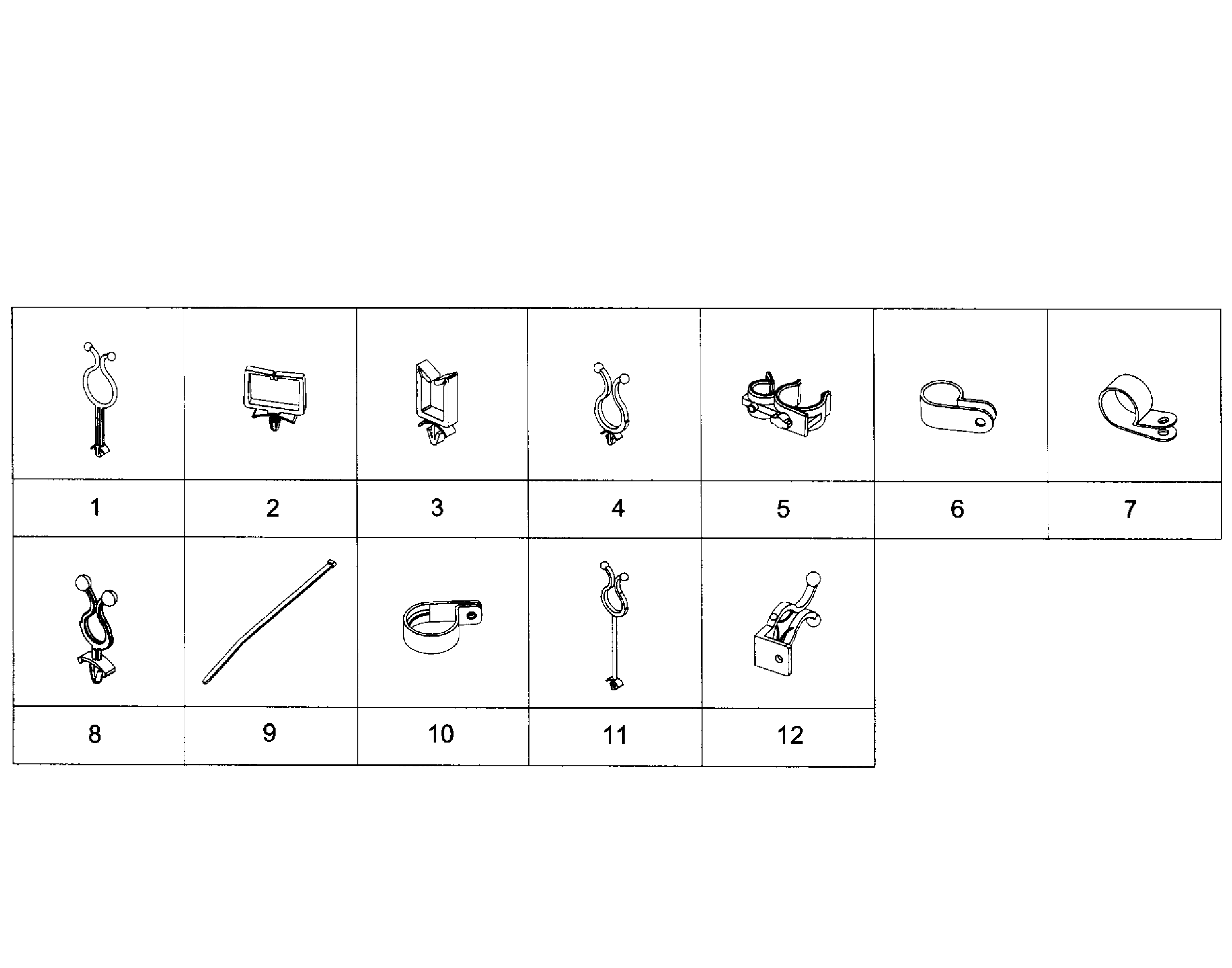

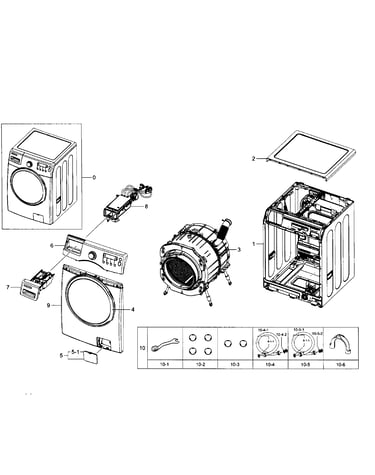

Model #WF350ANW/XAA-01 Samsung washer

Here are the diagrams and repair parts for Samsung WF350ANW-XAA-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

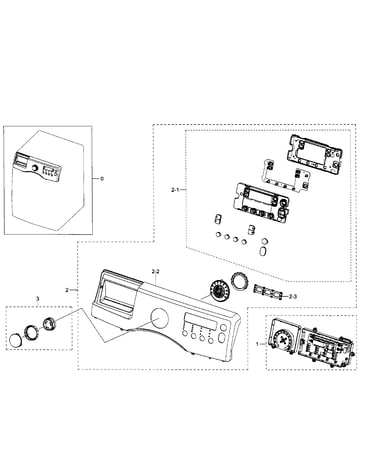

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 182 parts

    Washer Door Boot Spring Clamp

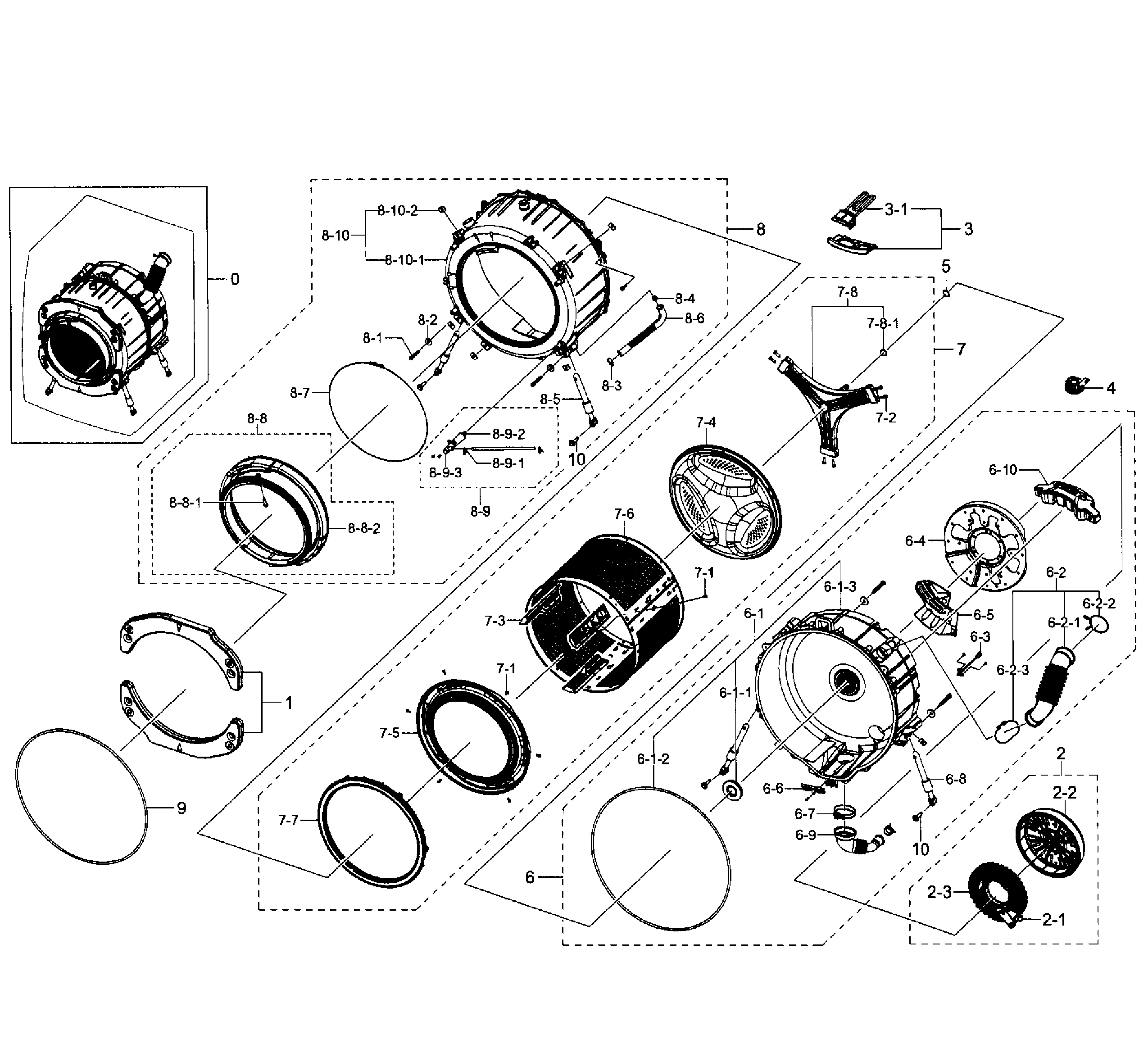

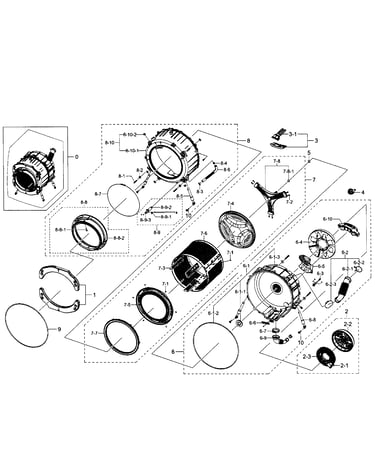

    Tub-drum Diagram


    In Stock

    Washer Shock Absorber


    Tub-drum Diagram

    Washer shock absorber

    Part #DC66-00470B

    In Stock

    Washer Shock Absorber


    Tub-drum Diagram

    Washer shock absorber

    Part #DC66-00470A

    In Stock

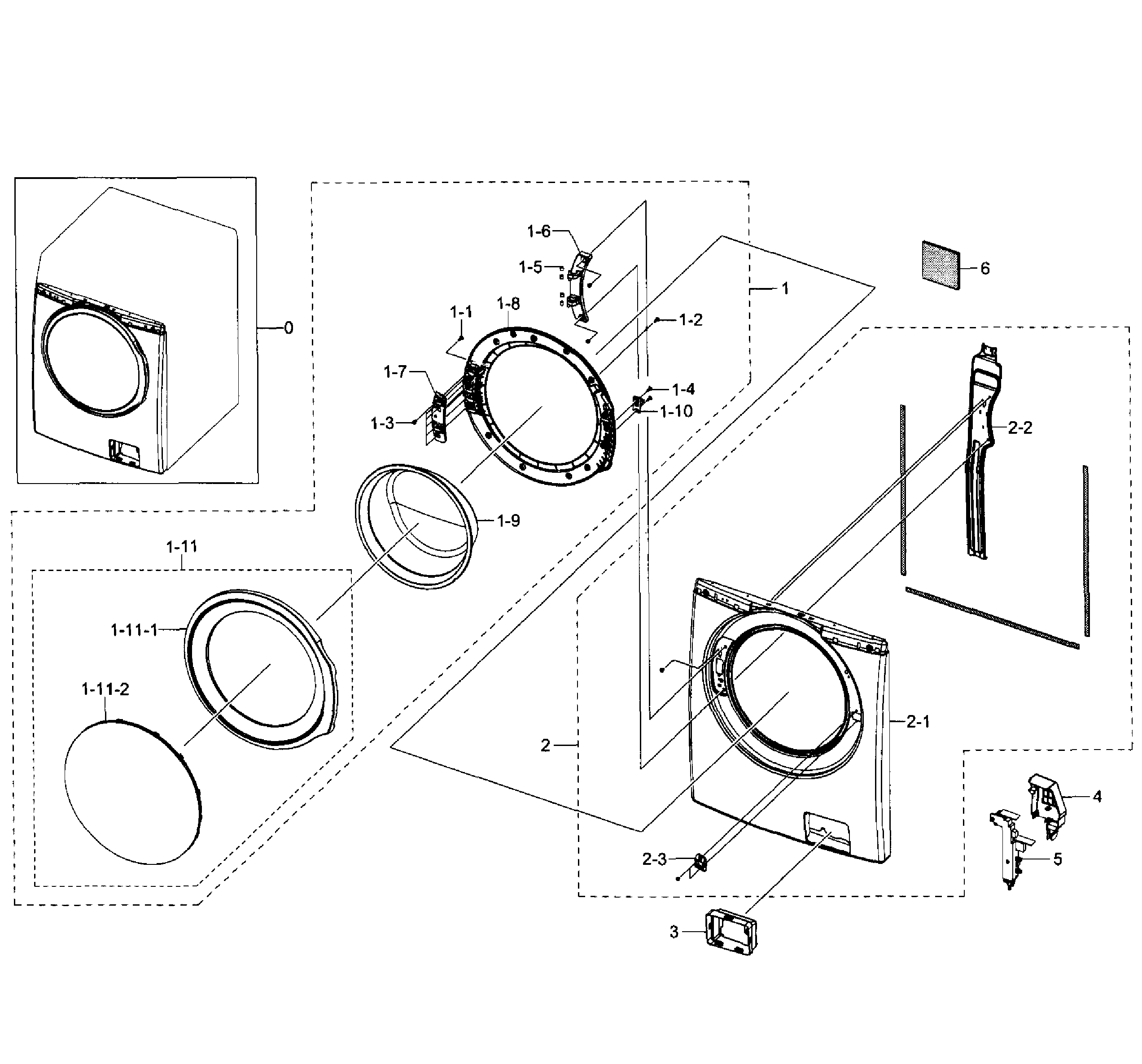

    Washer Door Lock

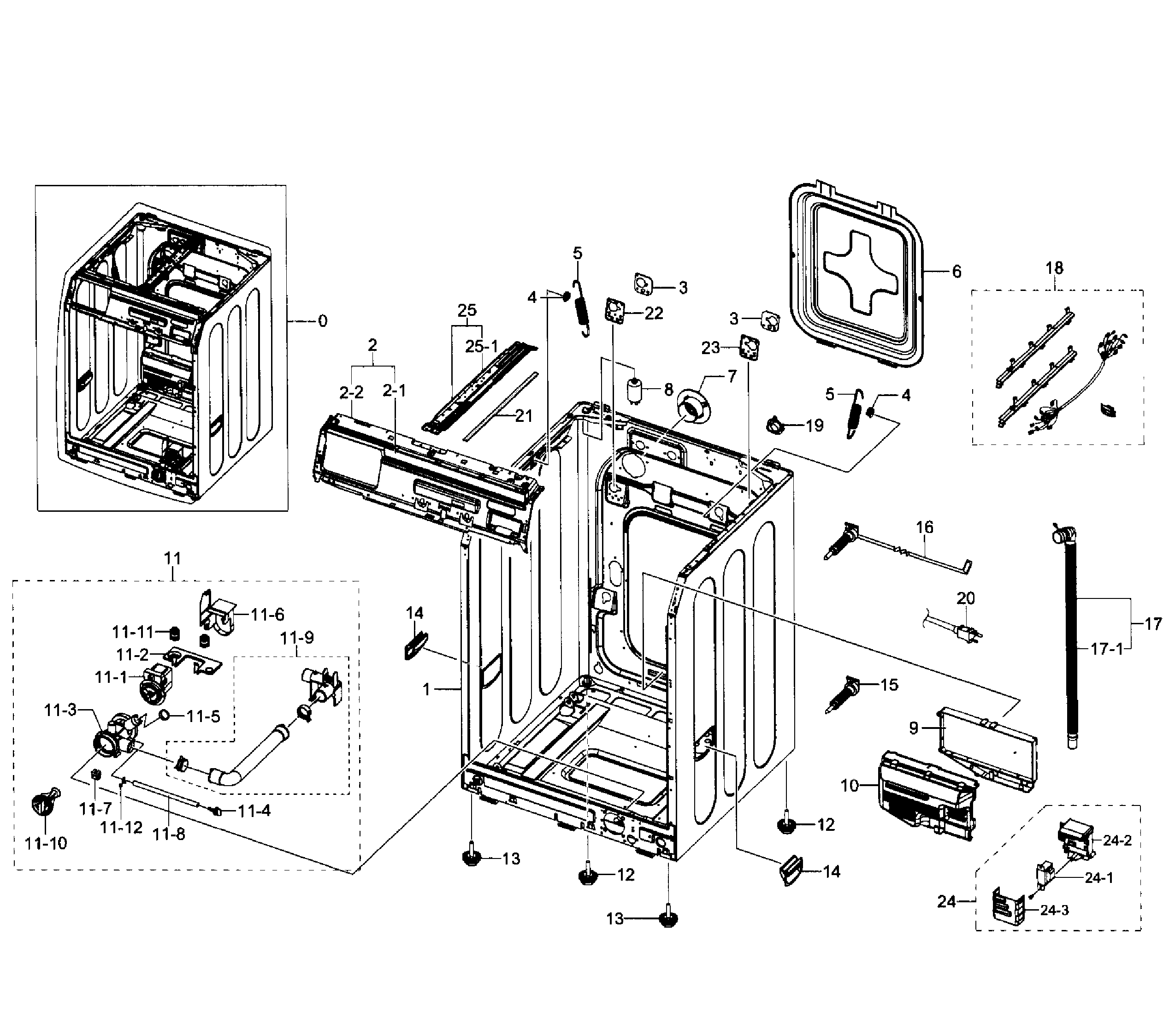

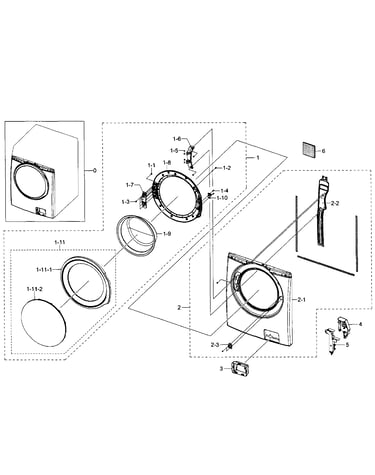

    Frame Diagram

    Washer door lock

    Part #DC64-00519B

    In Stock

    Washer Water Inlet Valve

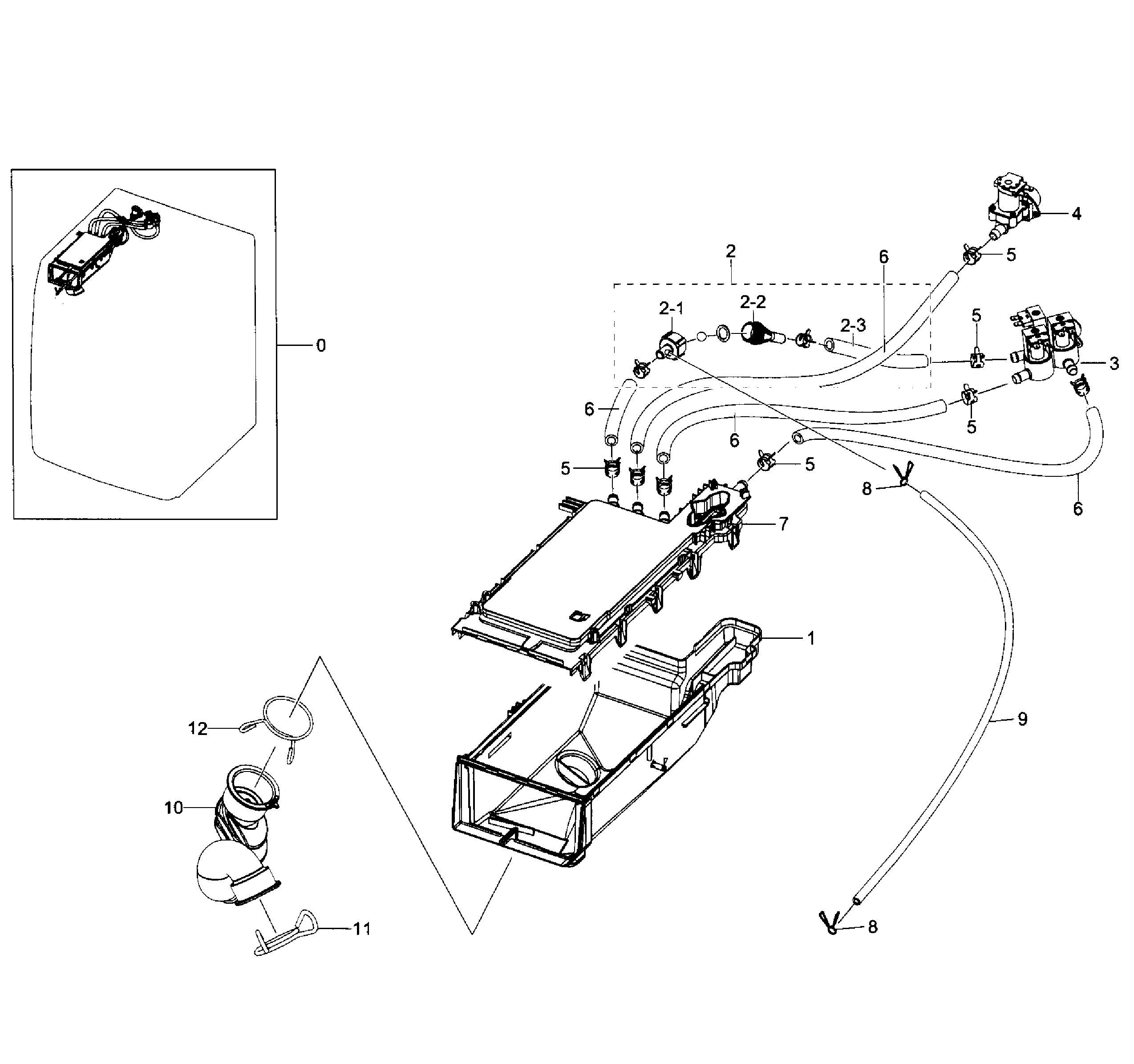

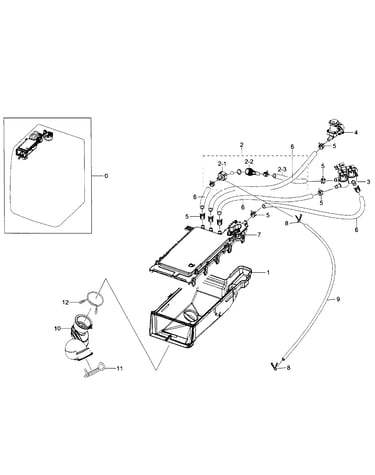

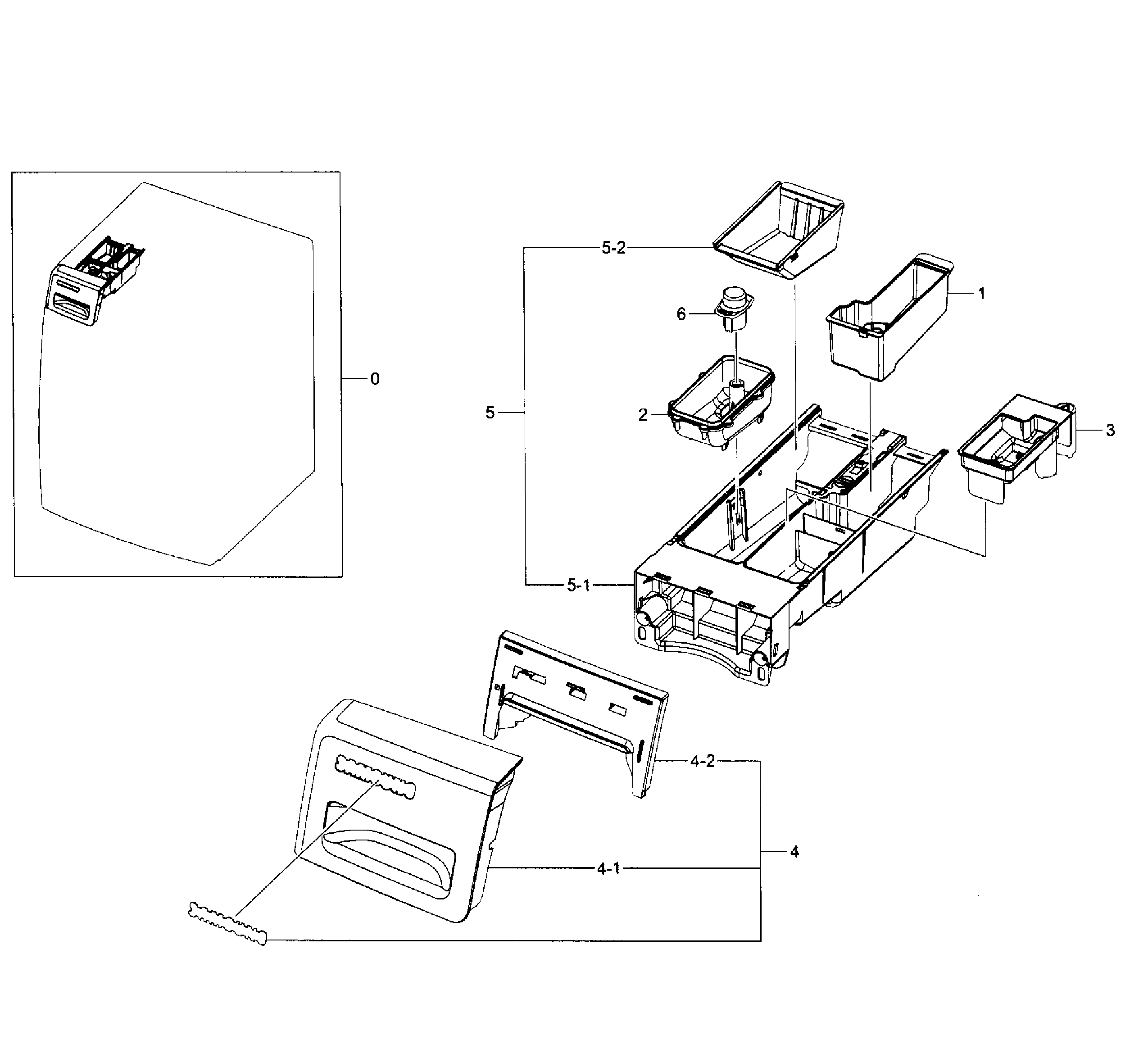

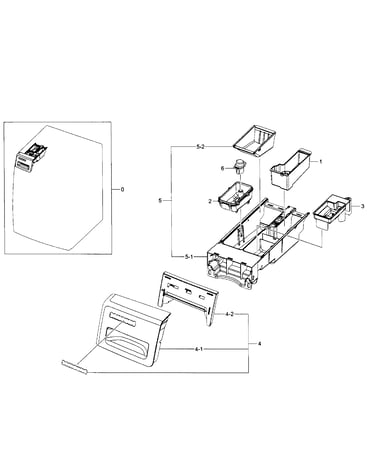

    Housing drawer Diagram

    Washer water inlet valve

    Part #DC62-30314K

    In Stock

    Washer Drive Motor


    Tub-drum Diagram

    Washer drive motor

    Part #DC31-00111A

    In Stock

    Washer Motor Rotor Position Sensor


    Tub-drum Diagram


    In Stock

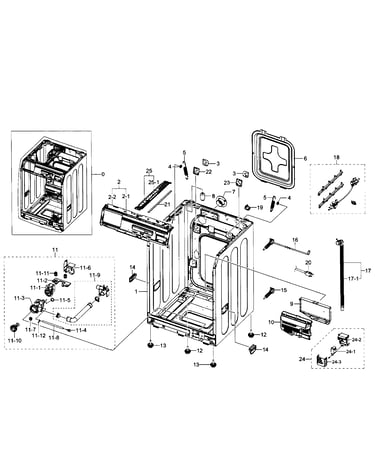

    Washer Drain Pump Check Valve


    Frame Diagram

    Washer drain pump check valve

    Part #DC62-00264A
    This item is not returnable

    In Stock

    Washer Drain Pump


    Frame Diagram

    Washer drain pump

    Part #DC96-01700A

    In Stock

    Washer Drain Hose


    Frame Diagram

    Washer drain hose

    Part #DC97-15273A

    In Stock
