Model # LGV7646AW0 Official Whirlpool dryer

Here are the diagrams and repair parts for Official Whirlpool LGV7646AW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

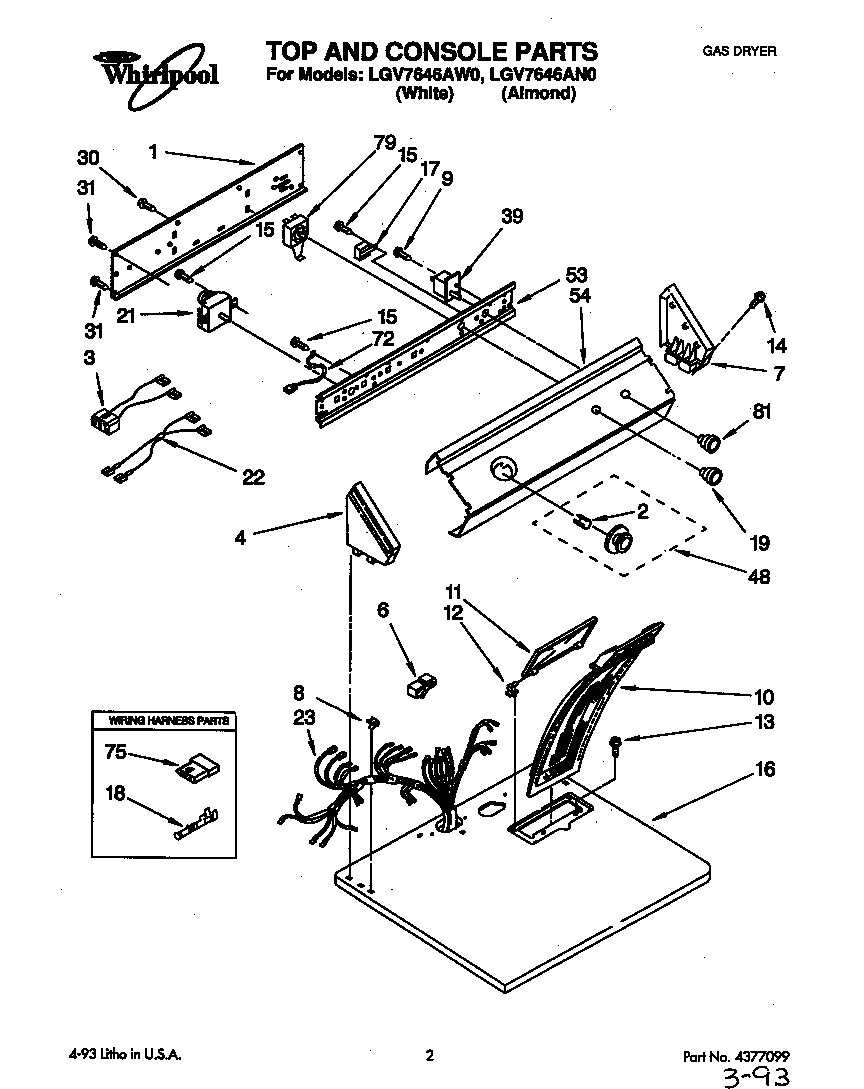

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 171 parts  |

Dryer Drum Belt (replaces 2008, 31531589, 349533, 53-1512, 8210, W10127457, W10131364)
#56

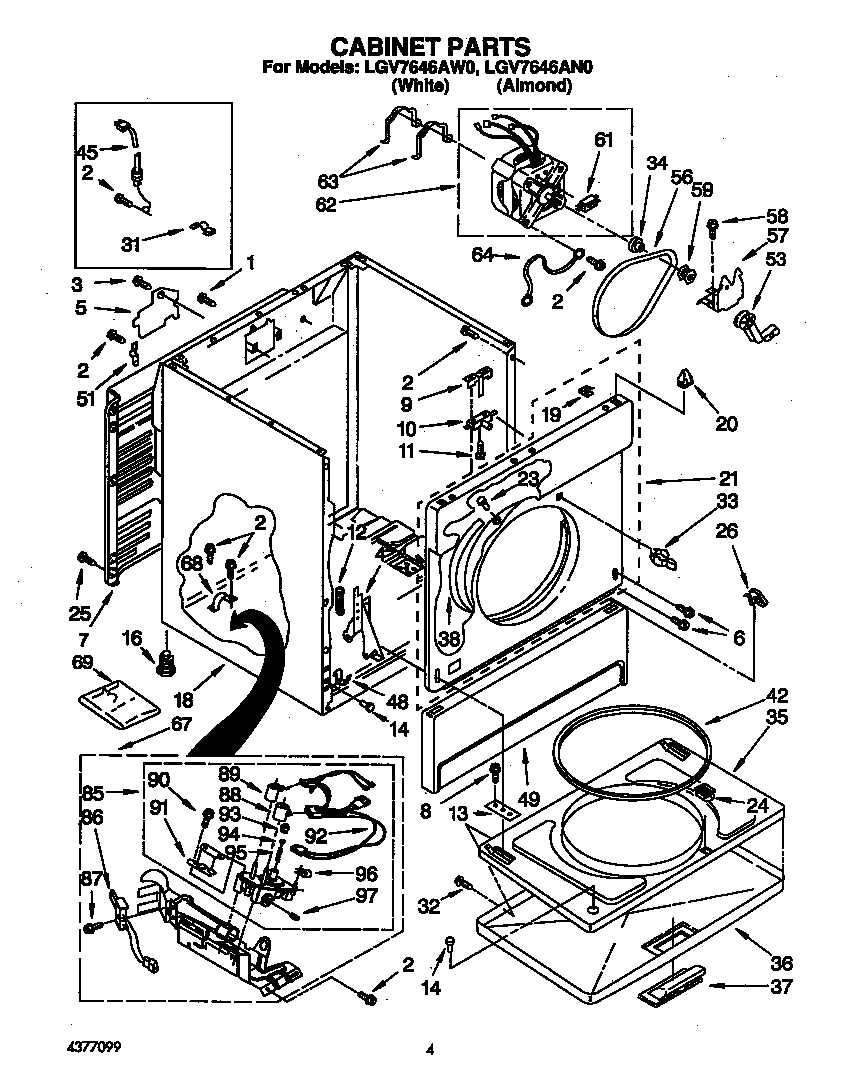

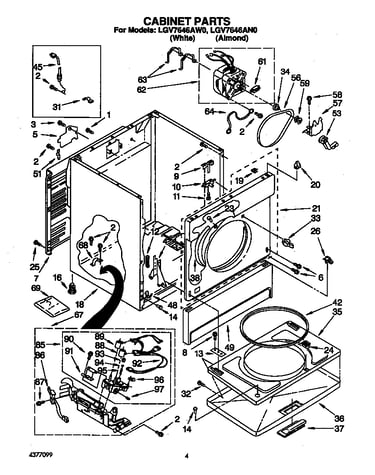

Cabinet diagram

Drum belt

Part #660996

Replaced by #341241

?
Manufacturer substitution
This part replaces 660996. Substitute parts can look different from the original.
BEST SELLER
$14.19
12% OFF Phone Price : $16.19
In Stock
Dryer Thermal Fuse, 195-degree F (replaces 3392519)
#6

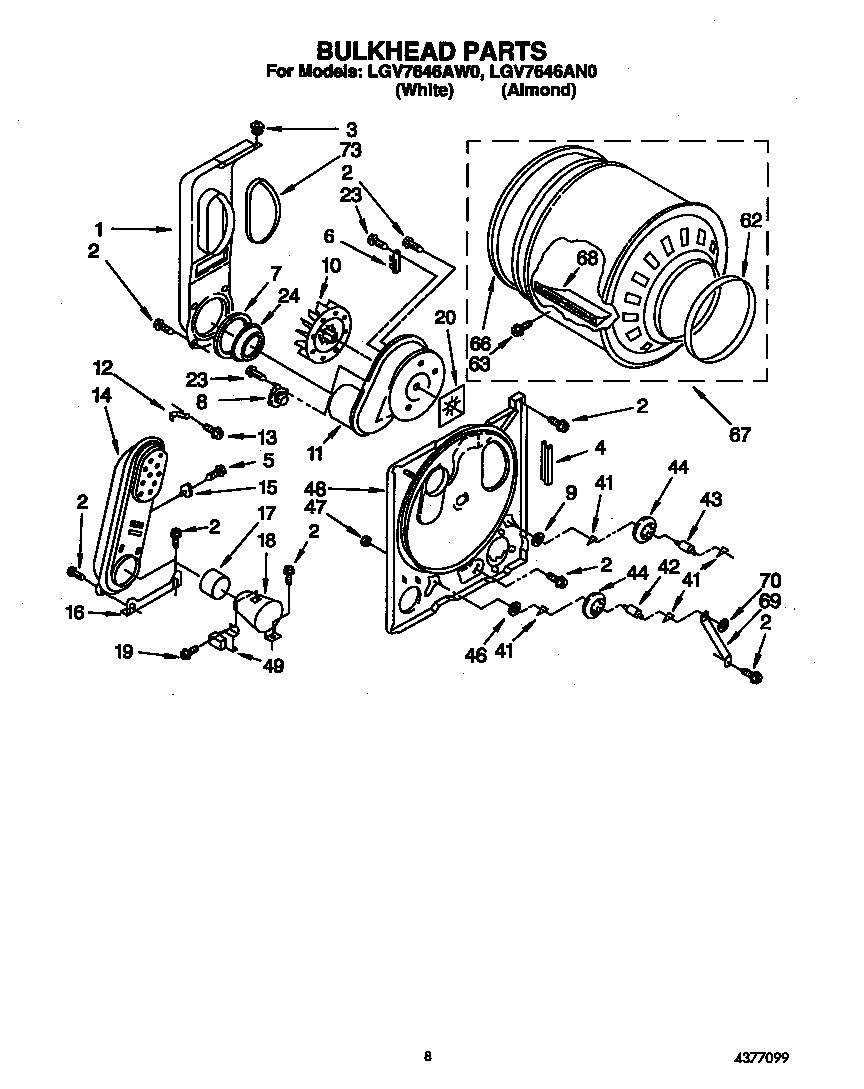

Bulkhead diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$19.62
9% OFF Phone Price : $21.62
In Stock
Dryer Door Latch Kit (replaces 2003, 3392538, 3398175, 8208)
#24

Cabinet diagram

Catch

Part #690081

Replaced by #279570

?
Manufacturer substitution
This part replaces 690081. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.53
73% OFF MSRP : $13.00
In Stock
Dryer Door Latch Kit (replaces 2003, 3392538, 3398175, 8208)
#33

Cabinet diagram

Strike

Part #696144

Replaced by #279570

?
Manufacturer substitution
This part replaces 696144. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.53
73% OFF MSRP : $13.00
In Stock
Dryer Drum Support Roller Kit (replaces 26000349241, 3397590, 8170)
#44

Bulkhead diagram

Support

Part #3389901

Replaced by #349241T

?
Manufacturer substitution
This part replaces 3389901. Substitute parts can look different from the original.
BEST SELLER
$19.79
10% OFF Was : $21.99
In Stock
Dryer Idler Pulley (replaces 691366, W10612905)
#53

Cabinet diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$14.31
12% OFF Phone Price : $16.31
In Stock
Dryer Operating Thermostat (replaces 3387134)
#8

Bulkhead diagram

Thermostat

Part #3387139

Replaced by #WP3387134

?
Manufacturer substitution
This part replaces 3387139. Substitute parts can look different from the original.
BEST SELLER
$25.66
16% OFF Phone Price : $30.66
In Stock
Dryer Drive Motor (replaces 2019, 3388235, 349588, 3980069, 661654, 8066206, 8066207, 8115, 8538262, 8539555, W10194250, W10366770, W10396029, W10396032, W10448892)
#62

Cabinet diagram

Drive motor

Part #3391886

Replaced by #279827

?
Manufacturer substitution
This part replaces 3391886. Substitute parts can look different from the original.
BEST SELLER
$98.37
9% OFF Phone Price : $108.37
In Stock
Dryer Drive Motor (replaces 2019, 3388235, 349588, 3980069, 661654, 8066206, 8066207, 8115, 8538262, 8539555, W10194250, W10366770, W10396029, W10396032, W10448892)
#61

Cabinet diagram

Dryer motor switch

Part #3388235

Replaced by #279827

?
Manufacturer substitution
This part replaces 3388235. Substitute parts can look different from the original.
BEST SELLER
$98.37
9% OFF Phone Price : $108.37
In Stock

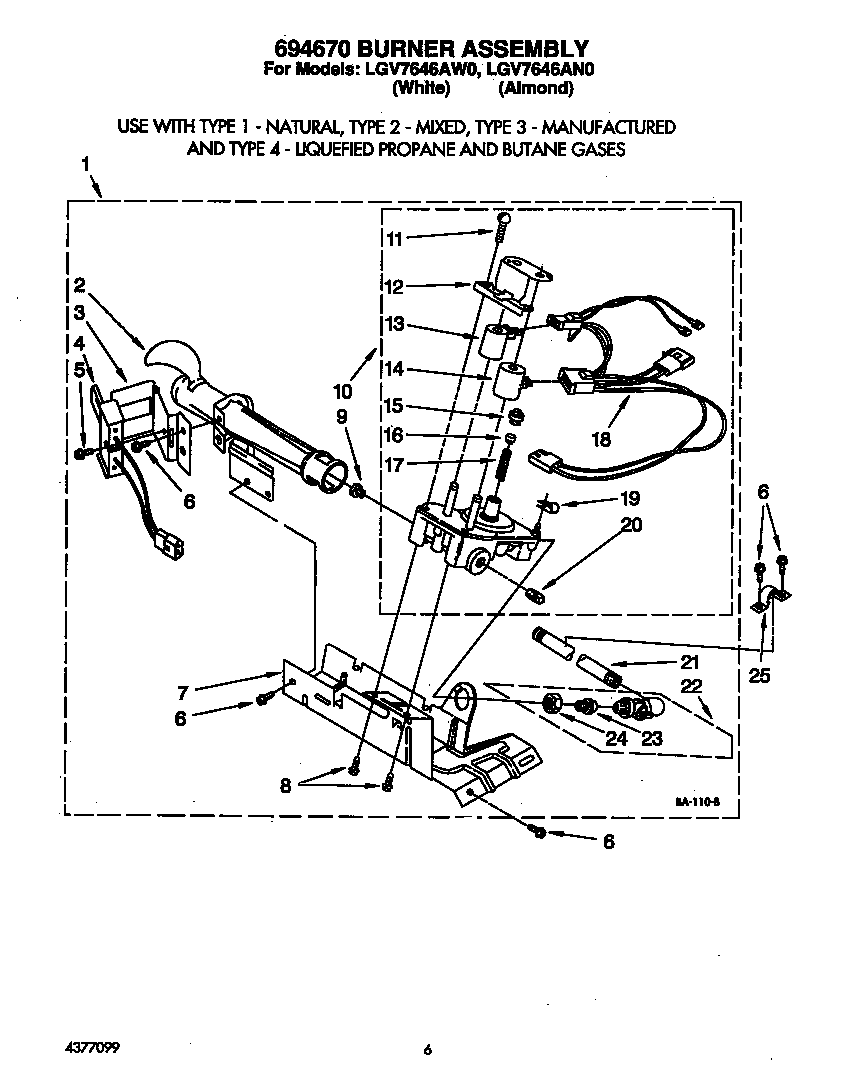

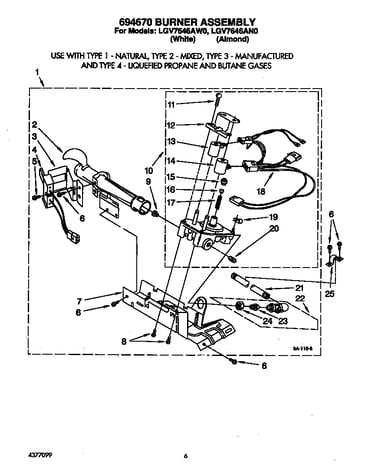

Dryer Burner Igniter Kit (replaces 685211, 8113)
Dryer igniter

Part #660991

Replaced by #279311

?
Manufacturer substitution
This part replaces 660991. Substitute parts can look different from the original.
BEST SELLER
$27.67
33% OFF MSRP : $41.00
In Stock
