Model # WTMC3321US/03 Official Bosch dryer

Here are the diagrams and repair parts for Official Bosch WTMC3321US-03 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

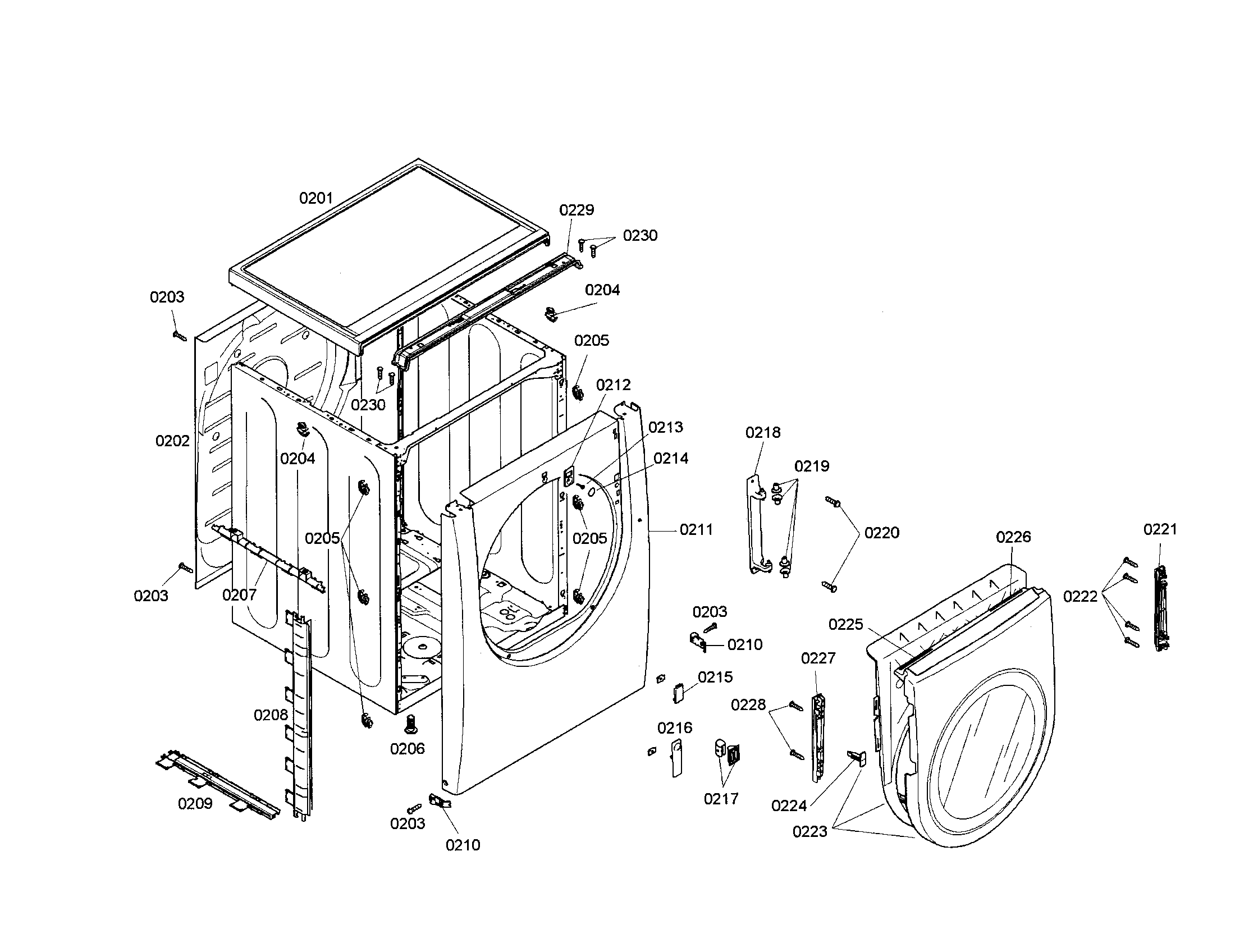

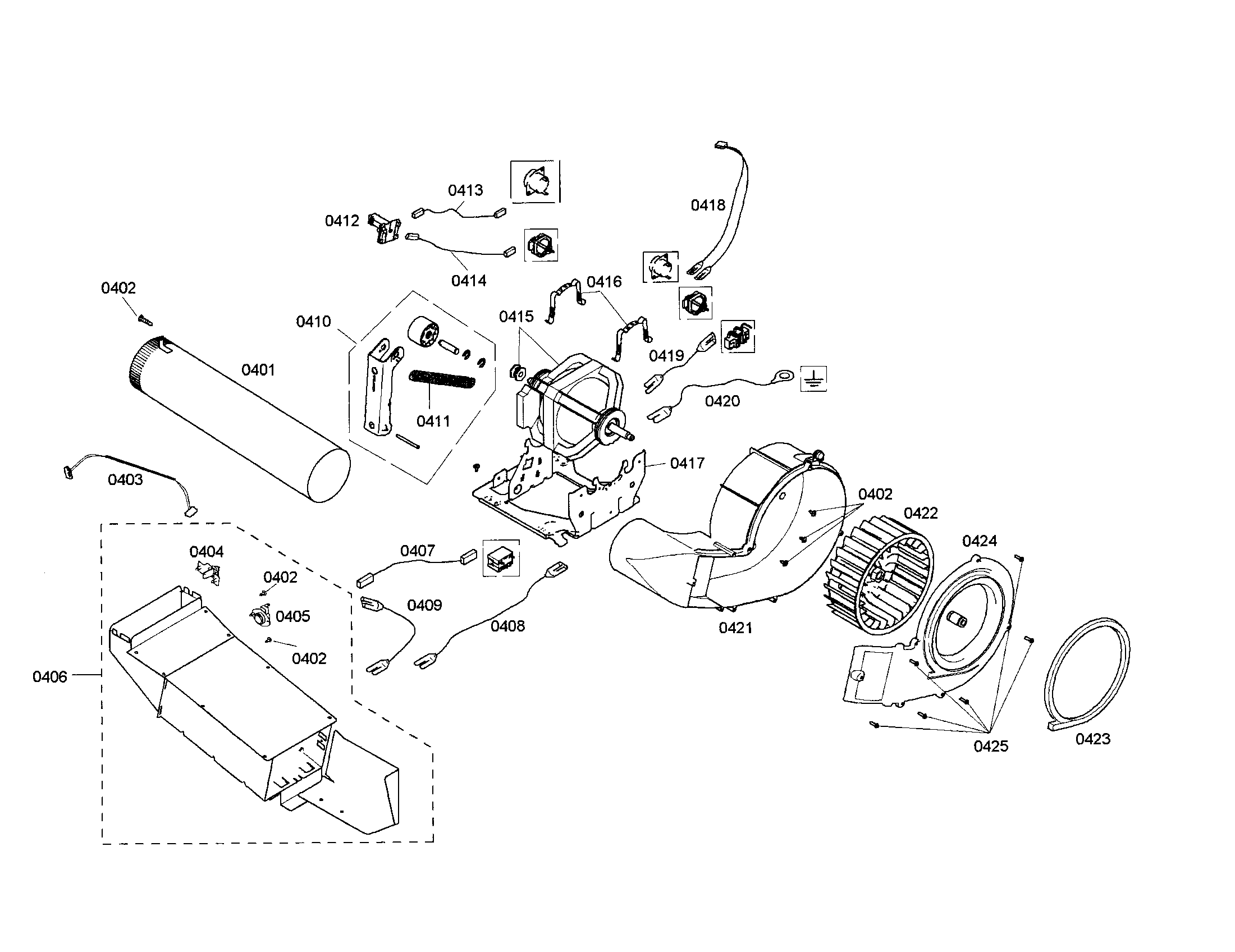

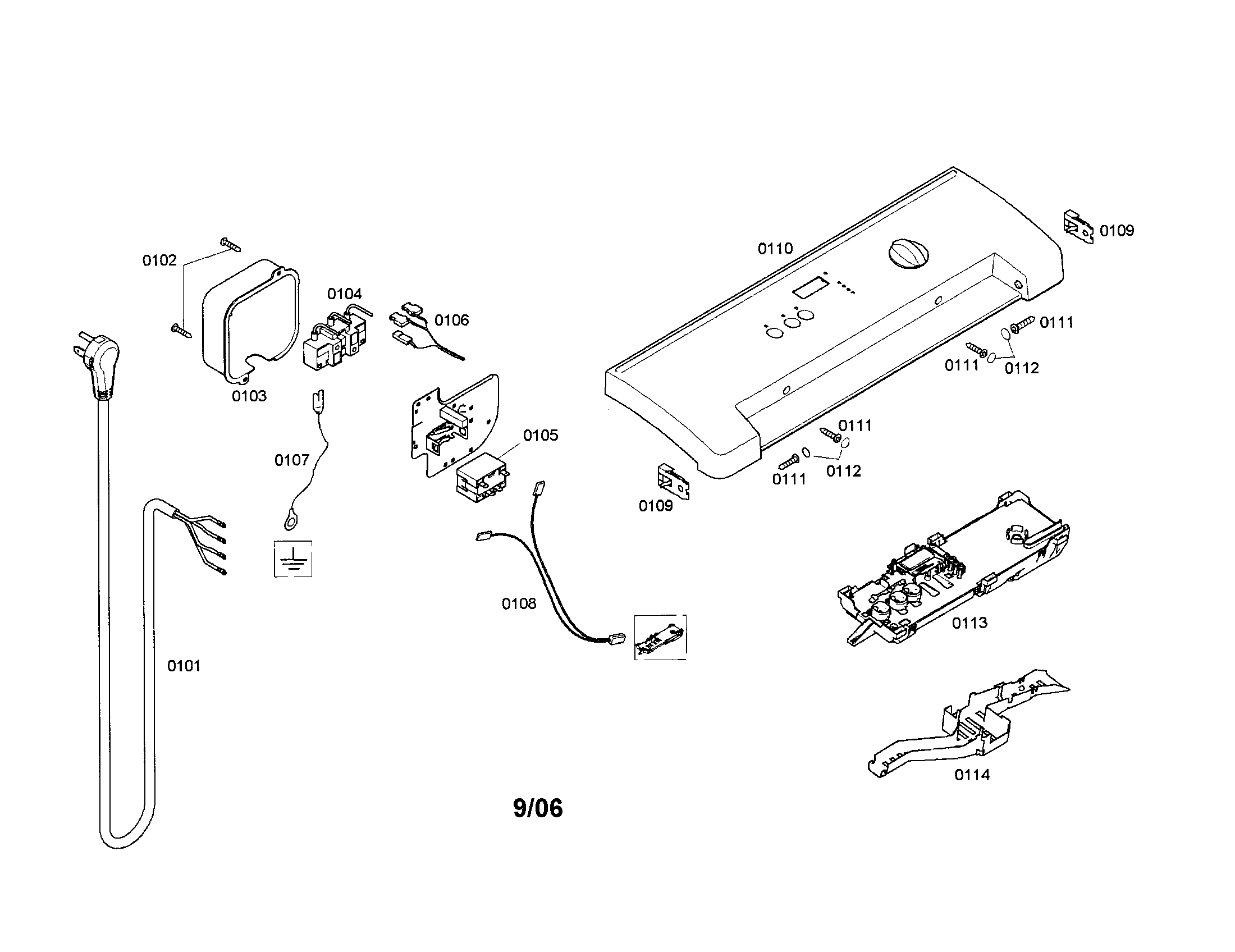

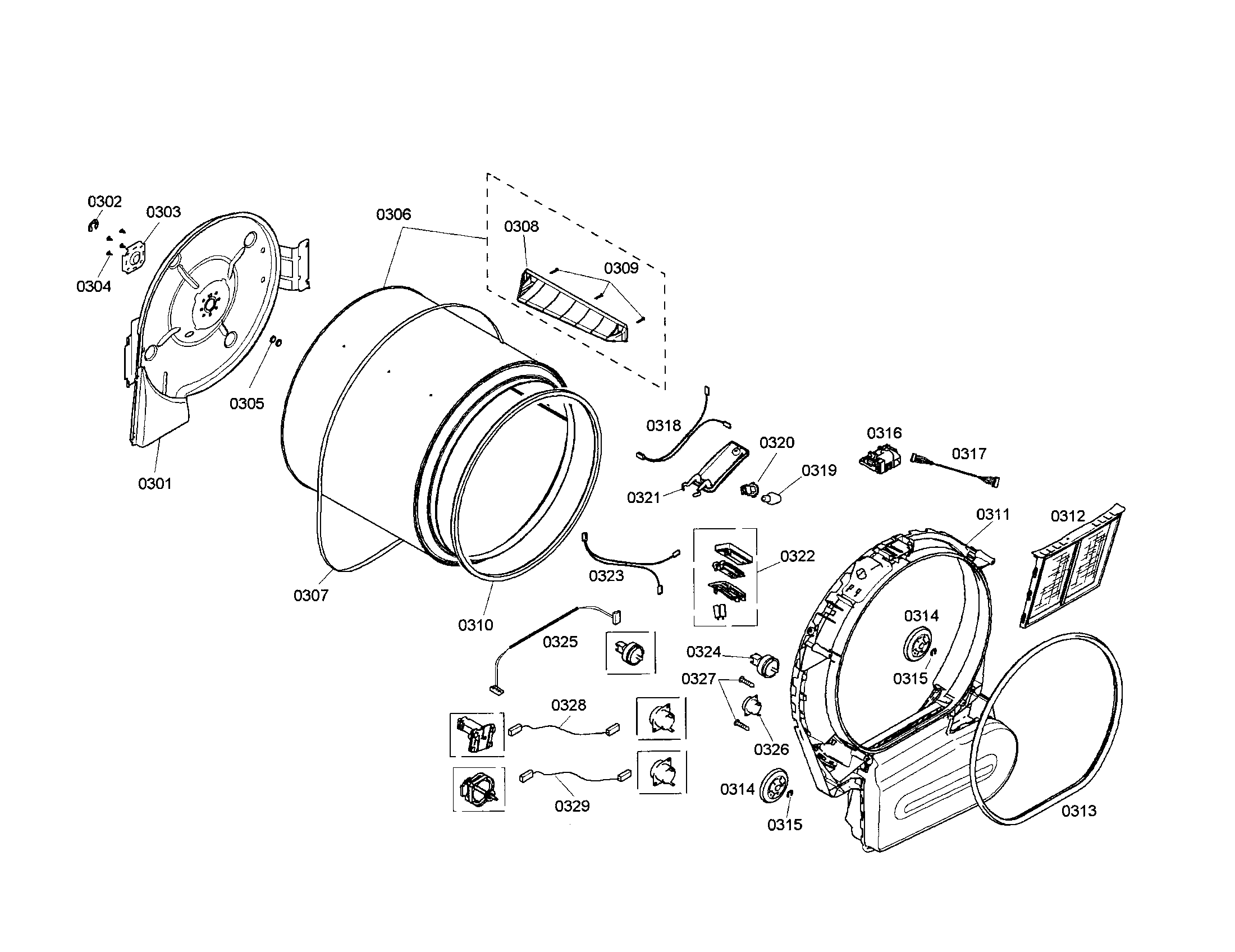

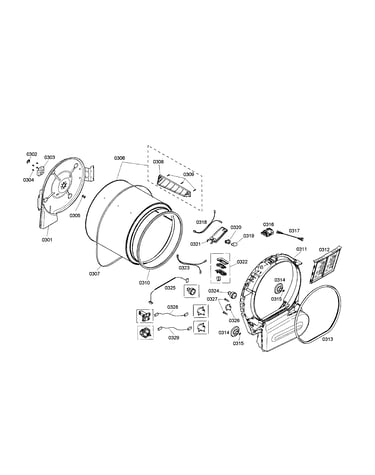

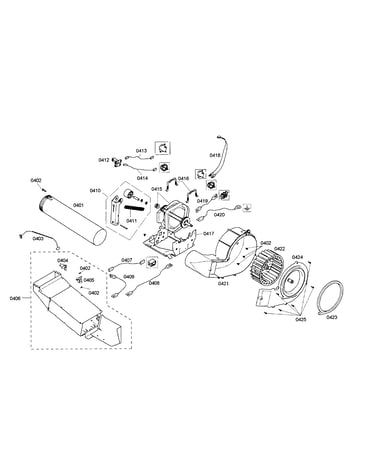

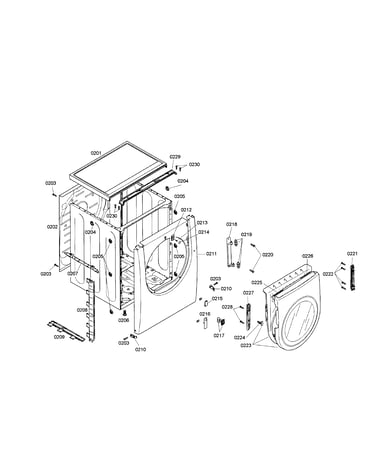

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

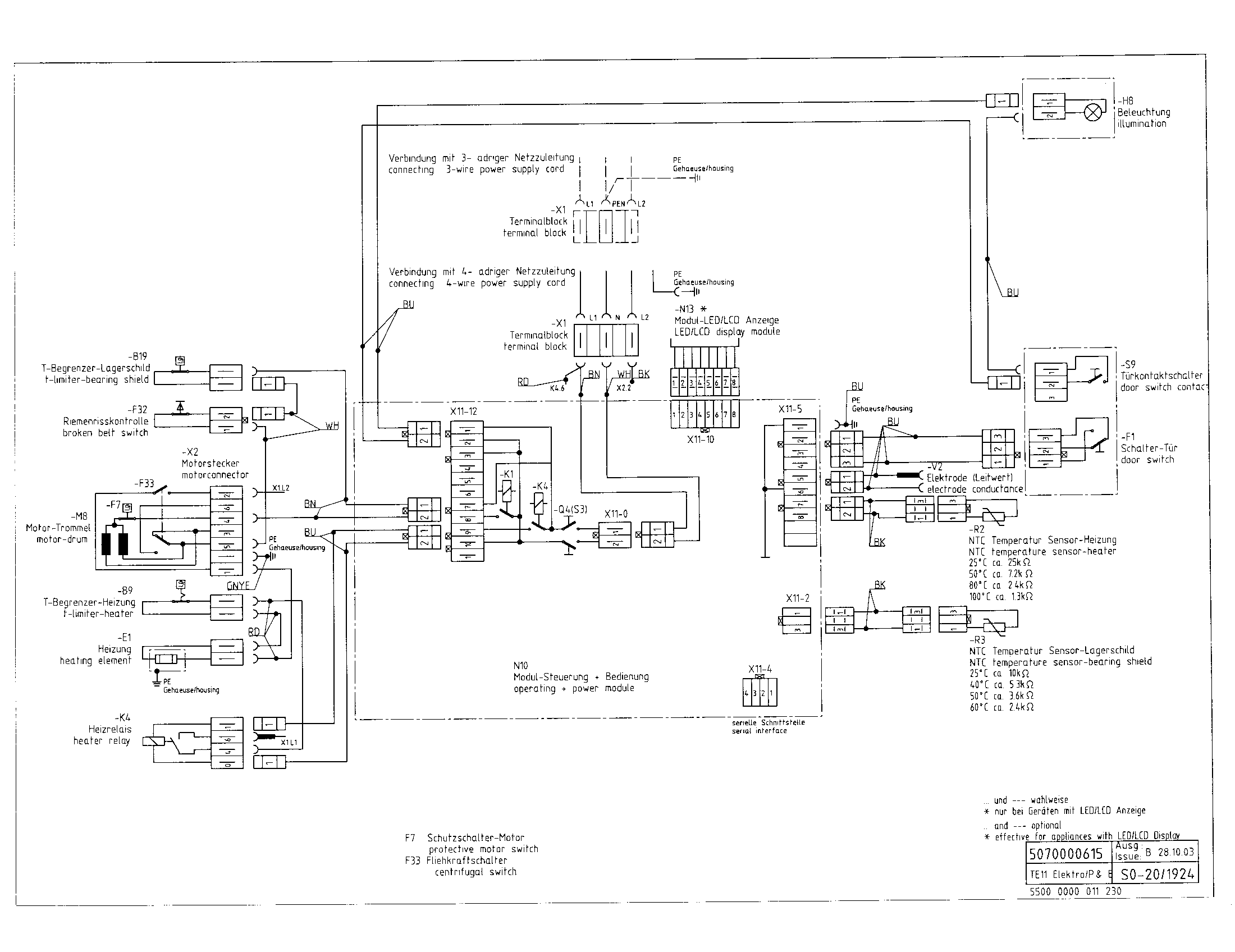

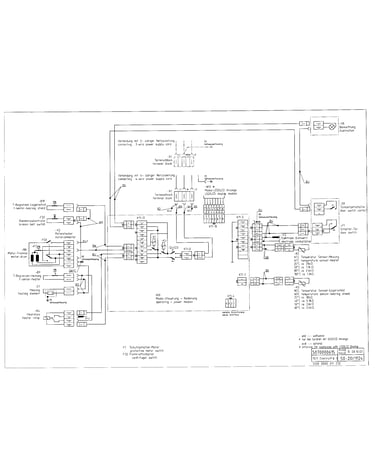

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 94 parts  |
Dryer Lint Screen

#312

All parts diagram

Dryer lint screen

Part #436476

Replaced by #00436476

?
Manufacturer substitution
This part replaces 436476. Substitute parts can look different from the original.
$26.59 |
16% OFF Phone Price : $31.59
In Stock
Dryer Door Hinge (replaces 491647)

#218

All parts diagram

Dryer door hinge

Part #491647

Replaced by #00491647

?
Manufacturer substitution
This part replaces 491647. Substitute parts can look different from the original.
$35.89 |
12% OFF Phone Price : $40.89
In Stock
Dryer Rear Bearing

#303

All parts diagram

Bearing

Part #491607

Replaced by #00618931

?
Manufacturer substitution
This part replaces 491607. Substitute parts can look different from the original.
This item is not returnable
$26.59 |
16% OFF Phone Price : $31.59
In Stock
Dryer Drum Support Roller (replaces 422200)

#314

All parts diagram

Dryer drum support roller

Part #422200

Replaced by #00422200

?
Manufacturer substitution
This part replaces 422200. Substitute parts can look different from the original.
$38.99 |
11% OFF Phone Price : $43.99
In Stock
Dryer Door Strike (replaces 491673)

#224

All parts diagram

Door latch

Part #491673

Replaced by #00491673

?
Manufacturer substitution
This part replaces 491673. Substitute parts can look different from the original.
$54.79 |
8% OFF Phone Price : $59.79
In Stock
Dryer Drum Lamp

#319

All parts diagram

Dryer drum lamp

Part #422173

This item is not returnable
$20.34
Back Order
Dryer Thermistor (replaces 00154166)

#324

All parts diagram

Ntc

Part #154166

Replaced by #10010119

?
Manufacturer substitution
This part replaces 154166. Substitute parts can look different from the original.
$34.11
In Stock
Dryer Belt Switch and High-Limit Thermostat Wire Harness (replaces 421685)
Dryer belt switch and high-limit thermostat wire harness

Part #421685

Replaced by #00421685

?
Manufacturer substitution
This part replaces 421685. Substitute parts can look different from the original.
$89.07
In Stock
Cap Cover

#216

All parts diagram

Dryer cover

Part #424036

Replaced by #00424036

?
Manufacturer substitution
This part replaces 424036. Substitute parts can look different from the original.
This item is not returnable
$5.66
In Stock
Laundry Appliance Screw

#220

All parts diagram

Screw

Part #422243

Replaced by #00422243

?
Manufacturer substitution
This part replaces 422243. Substitute parts can look different from the original.
This item is not returnable
$3.69
In Stock
