GE
Bottom-Mount Refrigerator

Model #PFCS1NFZCSS GE bottom-mount refrigerator

Here are the diagrams and repair parts for GE PFCS1NFZCSS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 229 parts

    GE Refrigerator Water Filter

    #264

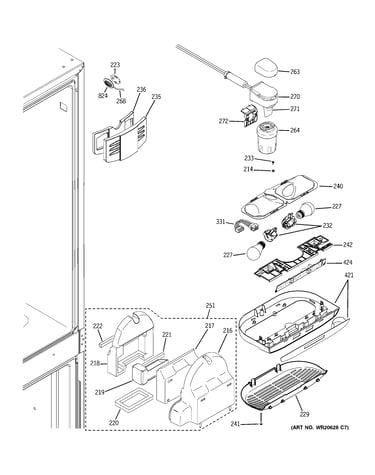

    Fresh food section Diagram

    Ge refrigerator water filter

    Part #MWF

    Get free shipping with Automatic Reorder

    $49.99

    In Stock

    Refrigerator Water Inlet Valve Assembly

    #800

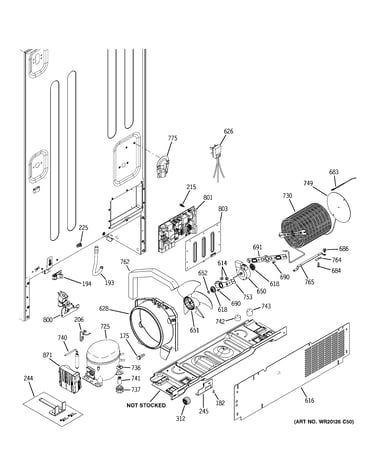

    Machine compartment Diagram

    $46.25

    In Stock

    Refrigerator Shelf Support

    #123

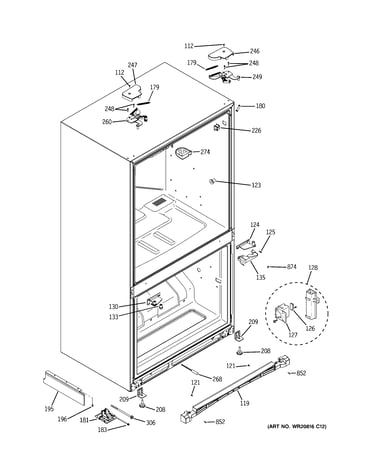

    Case parts Diagram

    Refrigerator shelf support

    Part #WR02X12187
    This item is not returnable
    $3.09

    In Stock

    Refrigerator Drain Tube

    #193

    Machine compartment Diagram

    Refrigerator drain tube

    Part #WR02X11426
    $7.69

    In Stock

    Refrigerator Upper Freezer Basket Slide Rail, Left

    #22

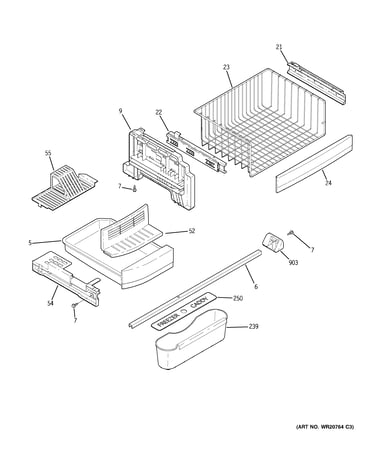

    Freezer shelves Diagram

    $31.47

    In Stock

    Refrigerator Freezer Basket Support Beam

    #6

    Freezer shelves Diagram

    $20.84

    In Stock

    Refrigerator Door Bin

    #50

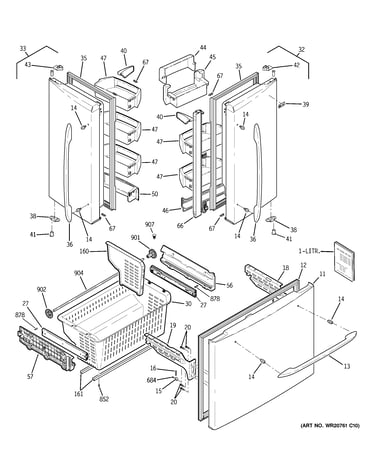

    Doors Diagram

    Refrigerator door bin

    Part #WR17X12830
    $23.36

    In Stock

    Grommet

    #198

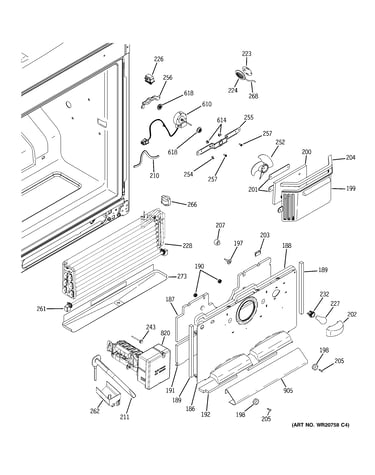

    Freezer section Diagram

    Grommet

    Part #WR02X10678
    This item is not returnable
    $2.49

    In Stock

    Refrigerator Crisper Drawer Cover Glass Insert

    #90

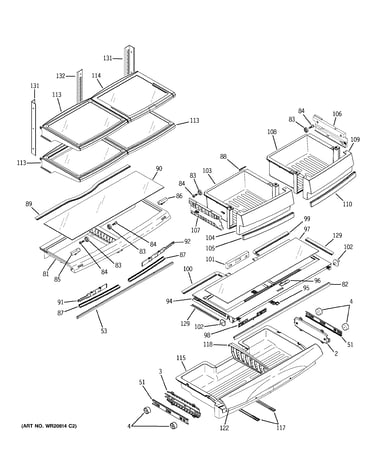

    Fresh food shelves Diagram

    $17.43

    In Stock

    Refrigerator Temperature Sensor Cover

    #224

    Freezer section Diagram

    Refrigerator temperature sensor cover

    Part #WR02X10647
    This item is not returnable
    $5.49

    In Stock

    Symptoms common to all refrigerators

    Choose a symptom to see related refrigerator repairs.

    Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
    Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
    Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
    Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
    Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
    Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
    Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
    Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, co
