Model # FDG336RBS0 Official Frigidaire 27" gas dryer - 5995253555

Here are the diagrams and repair parts for Official Frigidaire FDG336RBS0 27" gas dryer - 5995253555, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

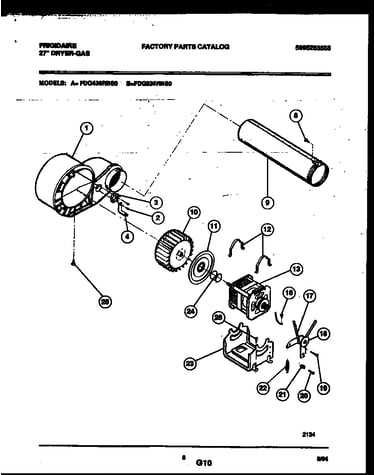

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |

Dryer Drum Bearing (replaces 5303281008, Q000143951, WQ143951)
#13

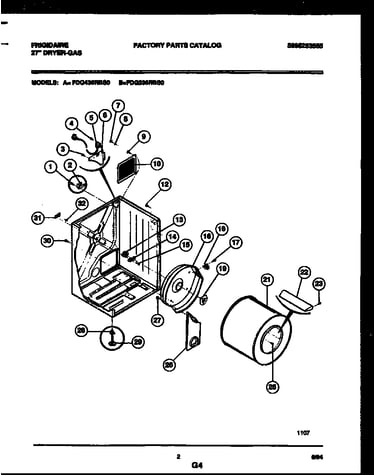

Cabinet and component parts diagram

Bearing

Part #5303281008

Replaced by #131825900

?
Manufacturer substitution
This part replaces 5303281008. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.59
15% OFF Phone Price : $6.59
In Stock
Dryer Felt and Glide Kit (replaces 131154800, 5303211431, 5303293943, 5303912549, 5303937123, F141811-000)
#34

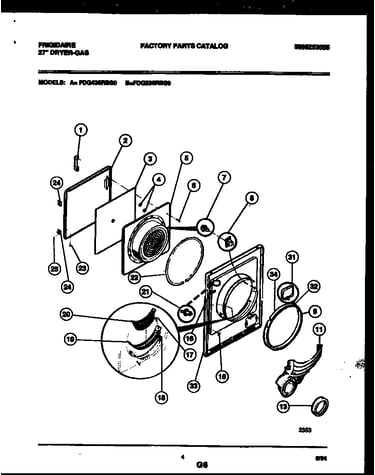

Door parts diagram

Glide

Part #131154800

Replaced by #5303937139

?
Manufacturer substitution
This part replaces 131154800. Substitute parts can look different from the original.
BEST SELLER
$40.06
11% OFF Phone Price : $45.06
In Stock
Dryer Drum Bearing Bracket (replaces 131724300)
#14

Cabinet and component parts diagram

Bracket

Part #5303281023

Replaced by #131724301

?
Manufacturer substitution
This part replaces 5303281023. Substitute parts can look different from the original.
BEST SELLER
$13.29
13% OFF Phone Price : $15.29
In Stock
Dryer Valve Coil Kit (replaces 5303307291, 5303307292, 75303307291, 75303307292, F140570-300, F140570-400, Q000622601, Q000622602, WQ622601, WQ622602)
#29

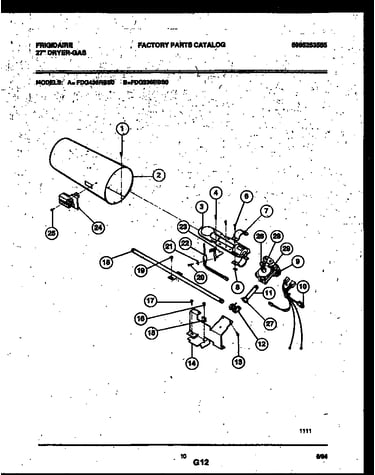

Burner, igniter and valve diagram

Coil

Part #5308015680

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5308015680. Substitute parts can look different from the original.
$37.09
12% OFF Phone Price : $42.09
In Stock
Dryer Valve Coil Kit (replaces 5303307291, 5303307292, 75303307291, 75303307292, F140570-300, F140570-400, Q000622601, Q000622602, WQ622601, WQ622602)

#NI

All parts diagram

Coil

Part #5300622602

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5300622602. Substitute parts can look different from the original.
$37.09
12% OFF Phone Price : $42.09
In Stock
Dryer Radiant Sensor (replaces 000078913, 000600651, 00078913, 00635993, 078913-000, 08001684, 08015393, 08015688, 3281135, 600651, 75303281135, 78913, F000078913, F078913-000, F78913, FL00078913, Q000600651, WQ600651)
#24

Burner, igniter and valve diagram

Dryer radiant sensor (replaces 000078913, 000600651, 00078913, 00635993, 078913-000, 08001684, 08015393, 08015688, 3281135, 600651, 75303281135, 78913, f000078913, f078913-000, f78913, fl00078913, q000600651, wq600651)

Part #5303281135

$53.99
8% OFF Phone Price : $58.99
In Stock
Range Screw
#32

Door parts diagram

Screw

Part #3281066

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 3281066. Substitute parts can look different from the original.
This item is not returnable
In Stock
Dryer Top Panel Clip
#9

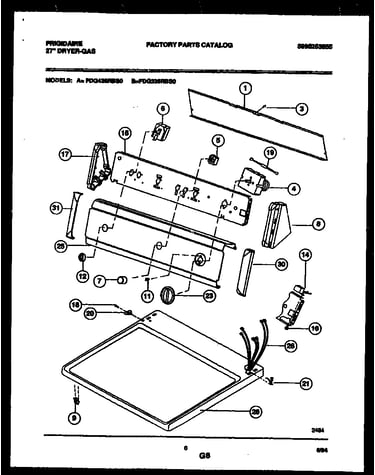

Console and control parts diagram

Dryer top panel clip

Part #3205821

In Stock
Dryer Cabinet Clip
#15

Door parts diagram

Dryer cabinet clip

Part #5303281074

This item is not returnable
$17.79
10% OFF Phone Price : $19.79
In Stock
Washer Screw
#15

Cabinet and component parts diagram

Screw

Part #5303281033

Replaced by #131205400

?
Manufacturer substitution
This part replaces 5303281033. Substitute parts can look different from the original.
$13.39
13% OFF Phone Price : $15.39
In Stock
