On a Whirlpool WFG535S0JZ1 gas range, an F5E1 display is treated as an electronic control error. Start by clearing the code with Cancel/Off; if it returns, power-cycle the range and then follow the error-code guidance in the WFG535S0JZ1 owner’s manual.

What to do right away

• Press Cancel/Off once to clear the display.
• Wait 30 seconds; try Bake and set a temperature.
• If the code comes back, turn off power at the breaker (or unplug) for 1 minute, then restore power.
• If you smell gas at any point: do not try to light the appliance; follow the gas-safety steps in the WFG535S0JZ1 installation guide.

Why you might see an F5E1-style control error

On this model, the manual explains that when the display shows a letter followed by a number, you should clear it and, if it reappears, service is typically needed. Common triggers include:

• A stuck or unresponsive keypad on the control panel
• A temporary power glitch or power interruption
• Loose wiring connection at the control (after moving/cleaning)
• Heat or moisture affecting the control area

Quick checks (safe, no disassembly)

Check	What you’re looking for	What to do
Control response	Beeps, delayed response, random inputs	Power-cycle; try again after it cools down
Recent power event	Flashing time, outage, breaker trip	Reset clock; then retest Bake
Heat buildup	Code appears after long bake	Let range cool; ensure vents are not blocked

When a part is likely involved

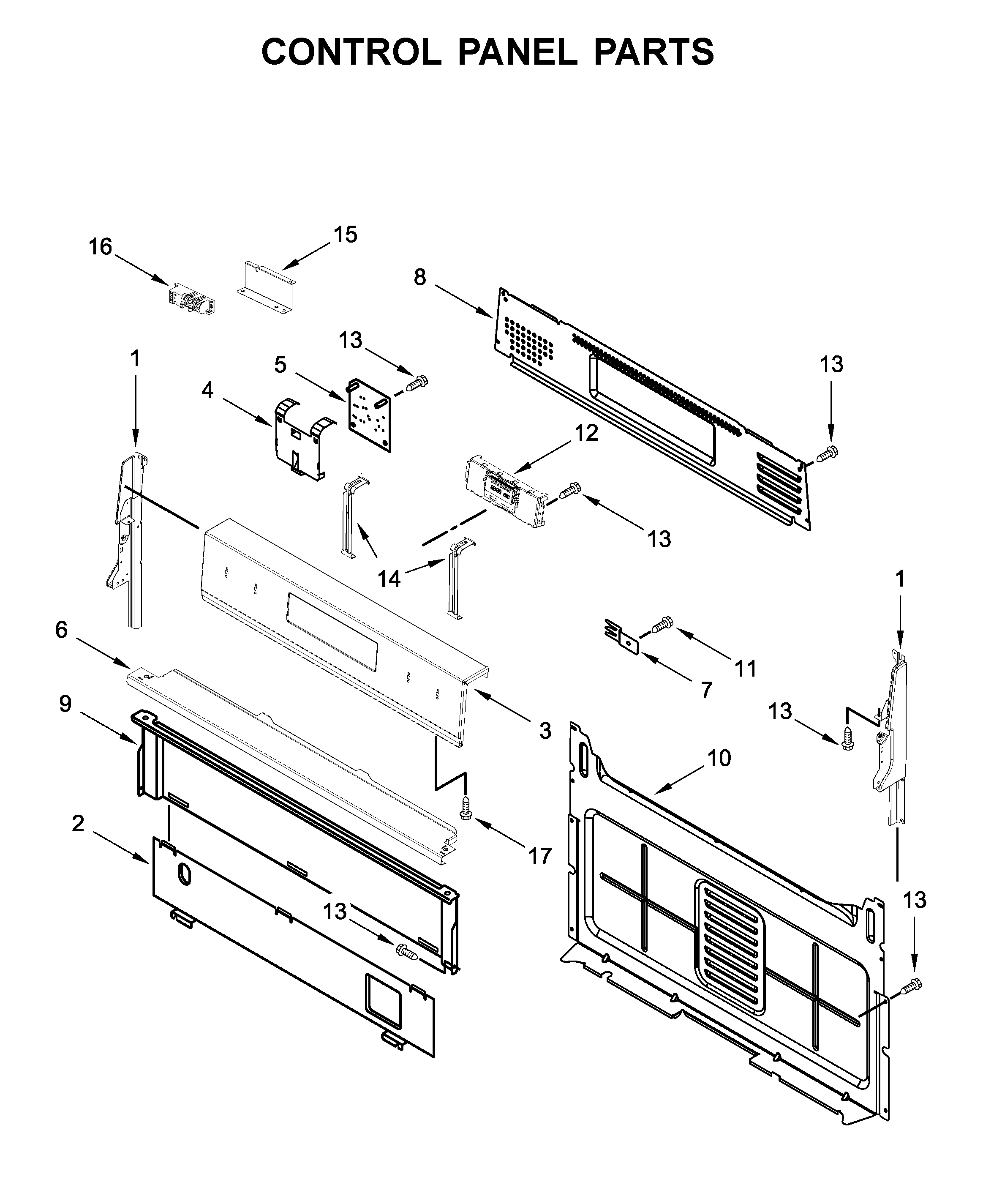

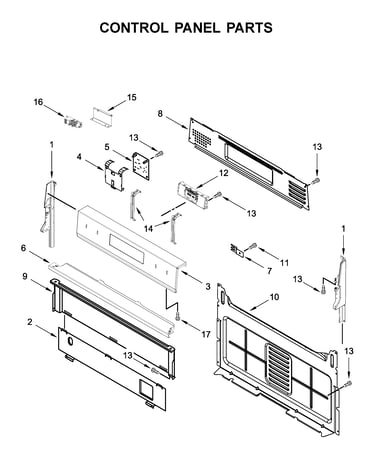

If the code returns immediately after a reset, the issue is usually in the user interface or electronic control system. On this model, the electronic control is a common suspect; see electronic control (black) W11258611 if you’re comparing replacement options.

Why it matters

An active control error can disable oven functions or cause unreliable temperature control. Clearing the code and confirming normal operation helps you avoid interrupted cooking and prevents repeated resets.

Last updated: January 2026

On the Whirlpool WFG535S0JZ1 gas range, a burner usually will not ignite when the knob is not held in the LITE position long enough, the burner ports are wet or clogged, or there is air in the gas line (common after installation). Follow the lighting steps in the WFG535S0JZ1 installation guide.

Quick checks (most common fixes)

• Push in and turn the knob to LITE; keep it there until the burner lights (sparking continues only while the knob is on LITE).
• If the range was just installed or the gas was shut off, light a surface burner to purge air in the gas line.
• Dry the burner area after cleaning or spills; moisture in ports can prevent ignition.

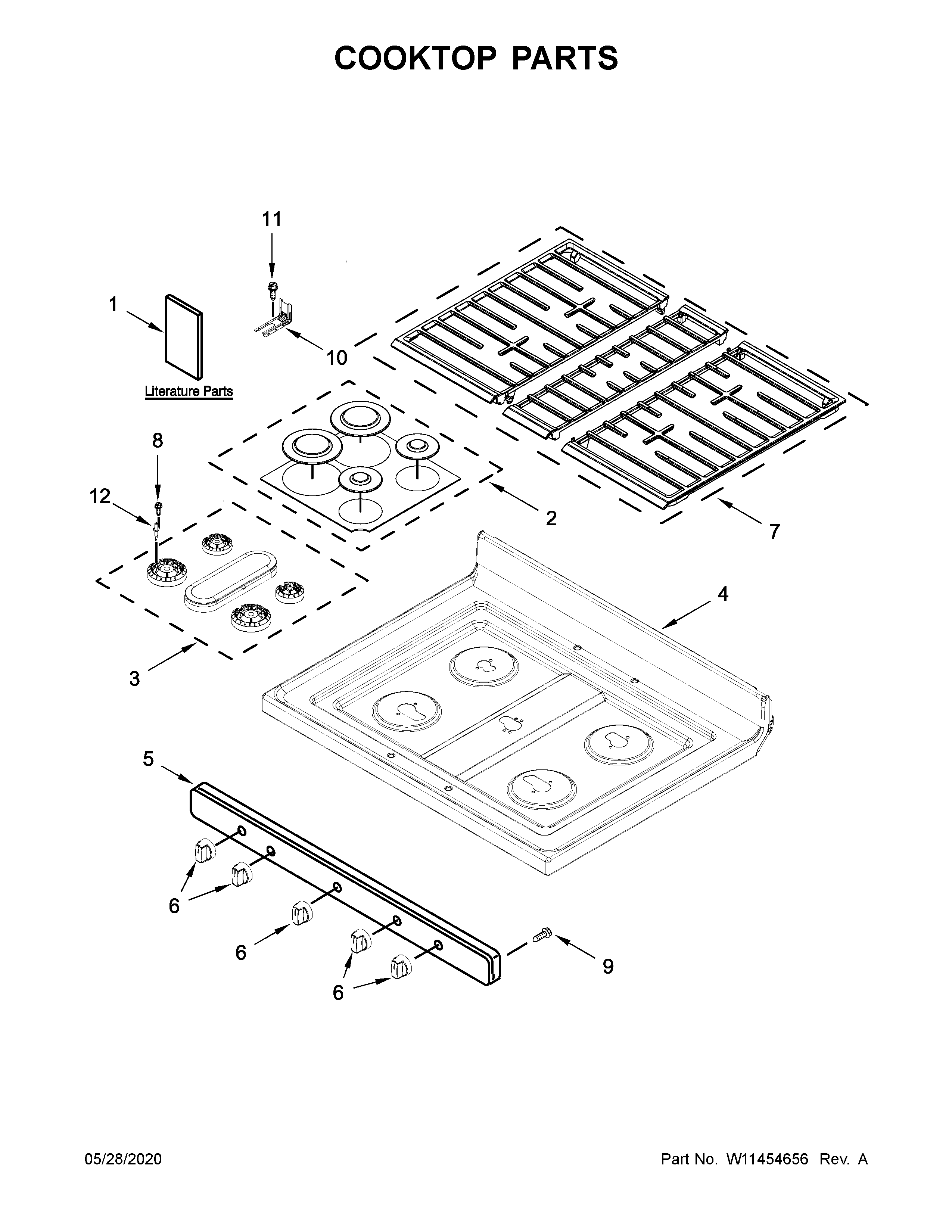

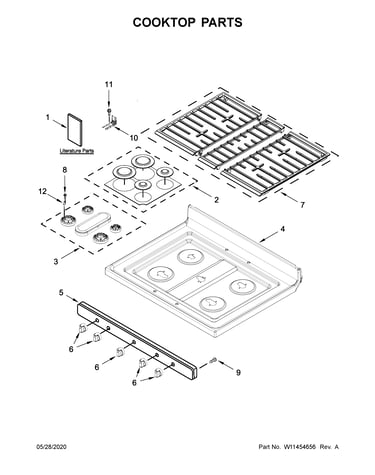

• Make sure burner caps and grates are seated correctly and centered.
• If you hear clicking but no flame, clean the burner ports gently (use a soft brush or toothpick, not a drill bit).
• If you smell gas, follow the safety instructions in the WFG535S0JZ1 installation guide and stop troubleshooting.

What “normal” ignition looks like

The igniters can click several times until the flame is detected. Use this as a quick reference:

What you notice	What it usually means	What to do
Clicking and burner lights in a few seconds	Normal operation	No action needed
Clicking but no flame	Wet/clogged ports, cap misaligned, or no gas flow	Dry, clean, reseat cap, confirm gas is on
First light takes longer than usual	Air in gas line	Keep knob on LITE longer; try another burner

When a part may be the cause

If the burner never lights and you have confirmed gas supply and proper knob use, an ignition component can be failing.

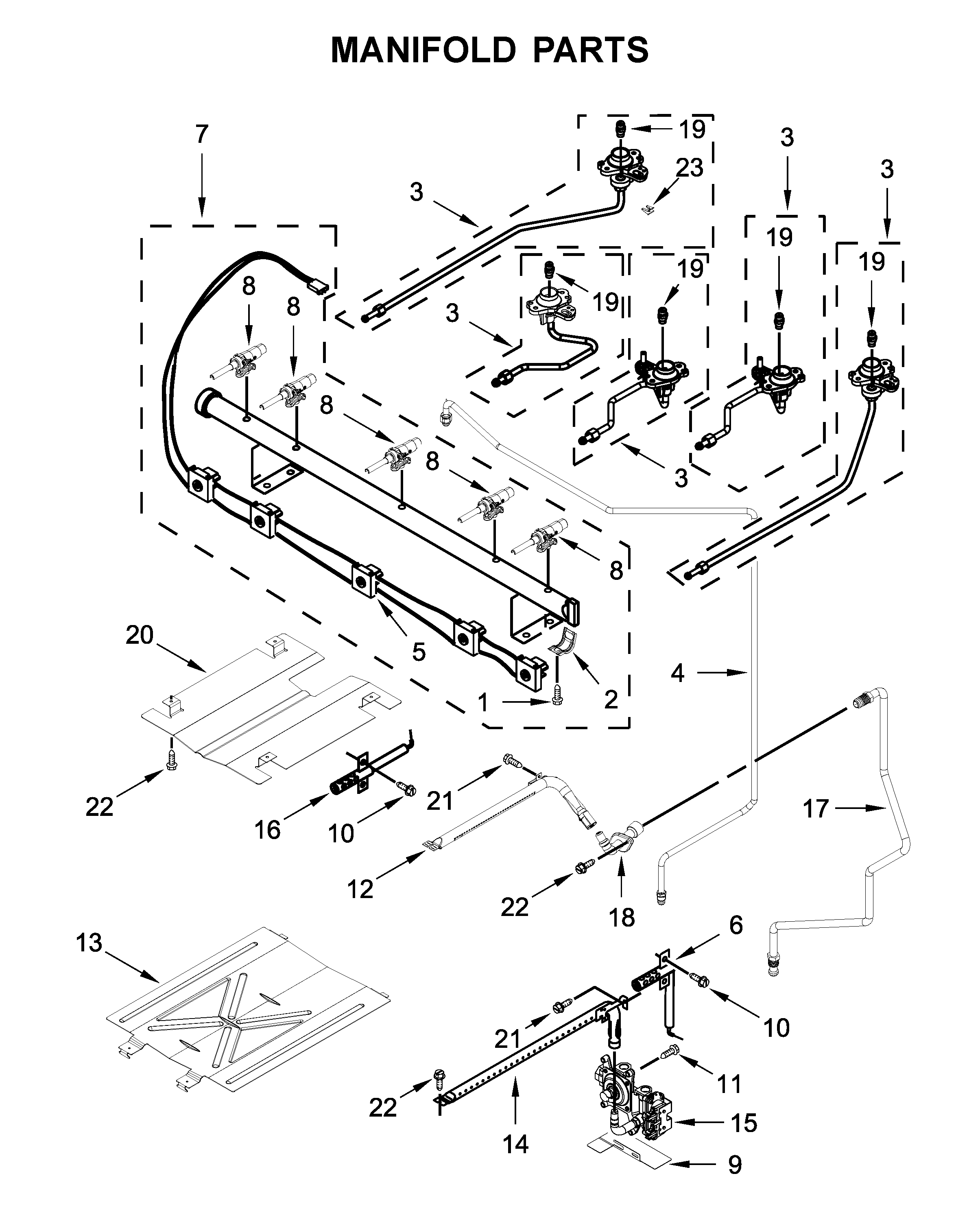

• For cooktop ignition issues that affect multiple burners, a spark module is a common suspect (example: spark module (red) WPW10475149).

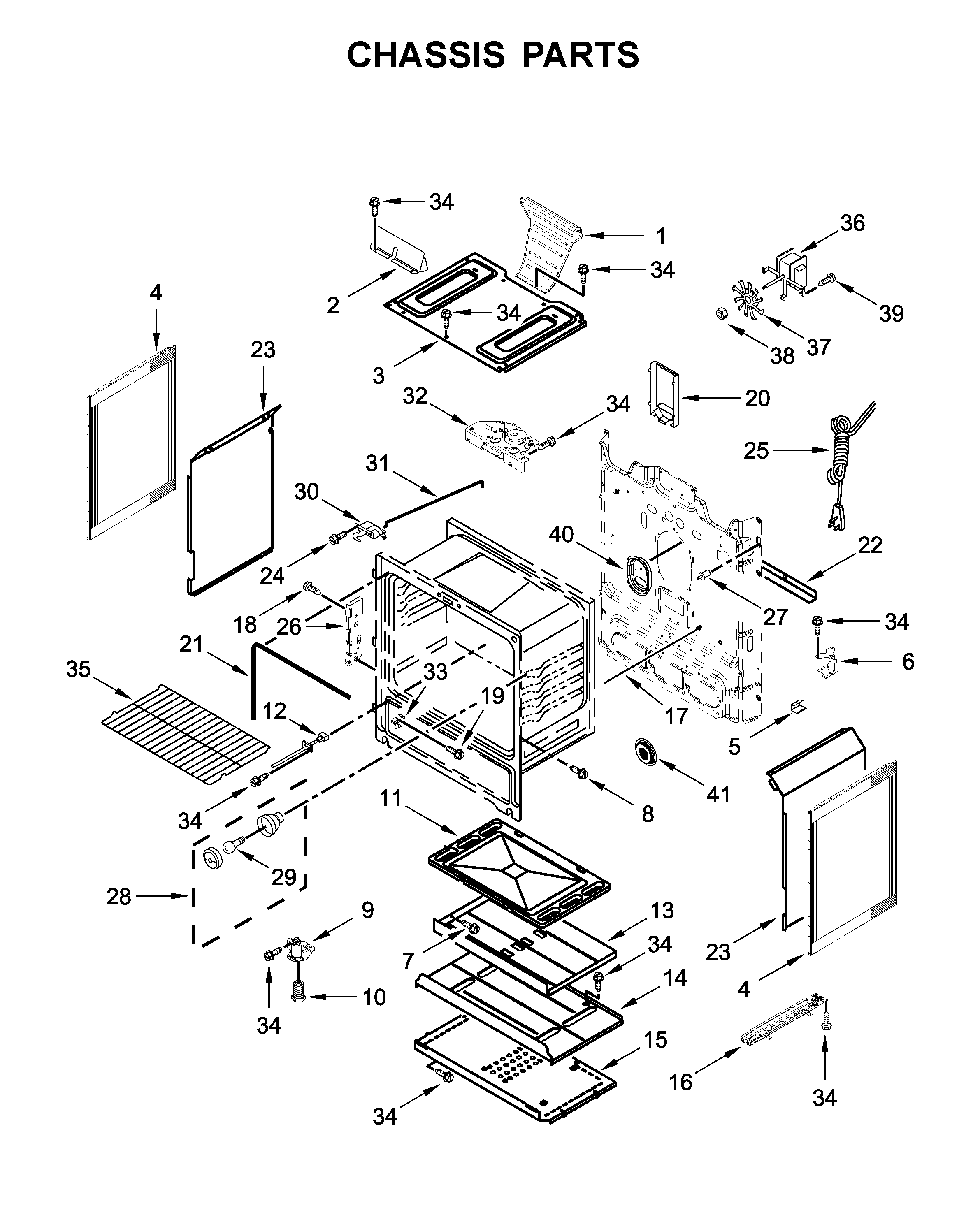

• For oven ignition problems (bake/broil not lighting), the oven igniter is a common wear item (example: range oven burner igniter WPW10333842).

Why it matters

A burner that will not ignite can indicate a simple alignment or cleaning issue, but it can also point to an ignition or gas-supply problem. Correct ignition protects cooking performance and helps prevent unsafe gas buildup.

Last updated: January 2026

Yes. Whirlpool is a strong, reliable brand for gas stoves, and the Whirlpool WFG535S0JZ1 gas range is built for everyday cooking with practical features, straightforward controls, and widely available replacement parts when normal wear items (like igniters, knobs, or door hardware) eventually need service. For model-specific operation and care details, use the WFG535S0JZ1 user instructions manual.

What “good brand” means in real-world use

Most owners judge a gas range brand by ignition reliability, oven temperature consistency, and how easy it is to maintain. With Whirlpool ranges like WFG535S0JZ1, we typically see a good balance of performance and long-term serviceability.

Common strengths:

• Consistent burner ignition and normal igniter clicking during lighting
• Practical oven features and clear safety guidance (including anti-tip requirements)
• Good parts availability for common repairs (igniters, spark modules, door hinges, seals)
• Straightforward cleaning and maintenance routines

Common frustrations (typical across many brands):

• Heavy grates and cooktop parts take time to clean
• Electronic controls can feel less “simple” than older mechanical designs
• Ignition issues can develop if ports are clogged or an igniter is weakening

Quick self-check: is your range operating normally?

These behaviors are considered normal on many Whirlpool gas ranges:

• Repeated clicking while a burner lights (igniters click until flame is detected)
• A brief “woosh/poof” sound when bake or broil ignites

If performance is not normal, start here:

• Confirm the gas shut-off valve is fully on (the manual points to the installation instructions for this)
• Verify power to the range (outlet, breaker, fuse)
• Clean burner ports and caps so the flame can light quickly
• If the oven won’t light or takes too long, inspect the igniter circuit and connections

Parts that most often affect performance

If you are troubleshooting ignition or usability issues on WFG535S0JZ1, these parts are commonly involved:

Symptom	Often-related part	Example from available parts
Burners click but don’t light consistently	Spark module	Spark module (red) WPW10475149
Oven won’t heat or heats inconsistently	Oven burner igniter	Range oven burner igniter WPW10333842

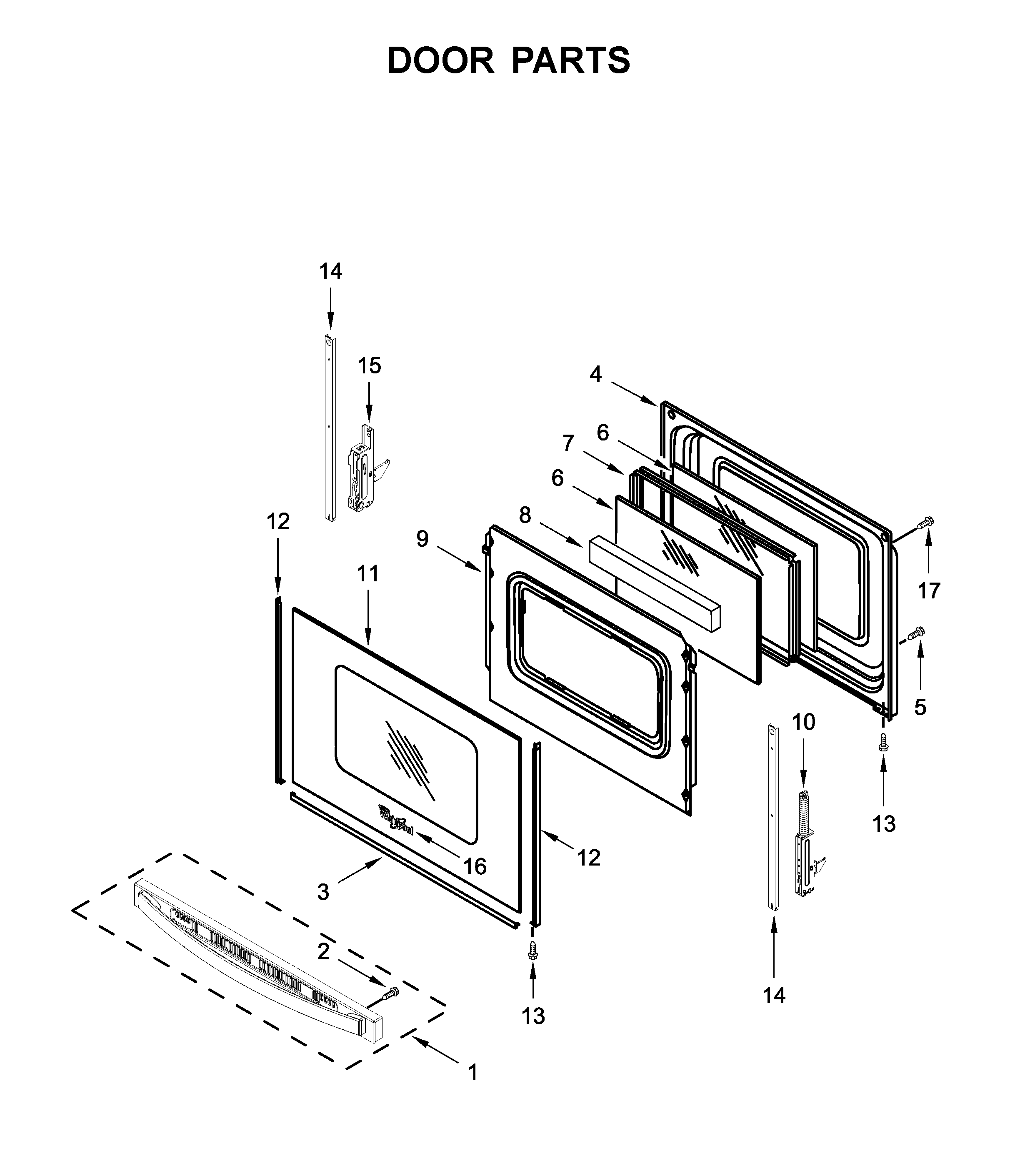

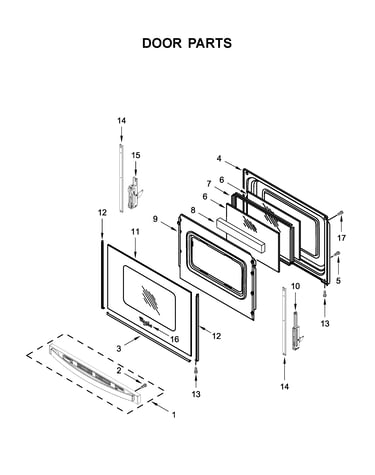

Oven door won’t close/seal well	Door hinge or door seal	Range oven door hinge WPW10299224, door seal W11542153

Why it matters

A “good” gas stove is one you can cook on confidently and keep safe over time. Following the safety and operating guidance in the manual, plus replacing wear parts when symptoms show up, helps your Whirlpool range stay dependable for years.

Last updated: January 2026

A Whirlpool gas range like model WFG535S0JZ1 lasts 15 years with normal household use. Consistent cleaning, keeping burners lighting properly, and fixing small issues early (slow ignition, loose door hardware, worn seals) helps you reach that service life.

Typical lifespan and what affects it

These factors have the biggest impact on how long a gas stove lasts:

• Cooking frequency (daily use wears igniters, knobs, and door hardware faster)
• Spill cleanup (acidic spills and baked-on grease damage finishes and components)
• Ignition performance (slow lighting strains the ignition system)
• Oven door alignment and sealing (heat loss causes longer preheat and uneven baking)
• Ventilation and routine care (helps protect controls and wiring)

Quick care checklist to help it reach 15 years

We recommend these habits for Whirlpool gas ranges:

• Clean spills after the range is cool; soap, water, and a soft cloth are a safe first step
• Keep burner ports clear so flames stay even and blue
• If a burner does not light, confirm power and gas are on before assuming a part failed
• Avoid slamming the oven door; it stresses hinges and can affect door seal contact
• Follow the manufacturer steps for self-clean and cooling before wiping or servicing

For model-specific cleaning, operation, and troubleshooting, use the WFG535S0JZ1 owner's manual.

Common wear items and what they do

These parts often get replaced over the life of a range:

Part type	What you notice when it wears	Example part for WFG535S0JZ1
Oven igniter	Oven takes longer to ignite or will not heat	Range oven burner igniter WPW10333842
Door hinge	Door sags, will not close smoothly, heat leaks	Range oven door hinge WPW10299224
Door seal	Heat loss, longer preheat, uneven baking	Door seal W11542153

Why it matters

A range that lights quickly, seals well, and stays clean runs more efficiently, bakes more evenly, and avoids the small-problem-to-big-repair cycle that shortens appliance life.
