Jenn-Air JFC2290VEM8 refrigerator Parts

A bottom-mount refrigerator like model JFC2290VEM8 keeps the fresh-food section at eye and waist level, so we reach everyday items with less bending. The freezer stays below in a pull-out drawer, which helps organize frozen foods and reduces cold-air loss during quick access.

Key advantages you will notice day to day

• Easier access to fresh foods (produce, drinks, leftovers) because the refrigerator compartment is on top
• Less bending for the items you use most often
• Better freezer organization with a drawer and baskets (items are less likely to get buried)
• Faster “grab and go” from the refrigerator section, which helps temperature stability
• Good fit for kitchens where the refrigerator door swing needs planning (hinge-side clearance matters)

Installation and space planning tips (bottom-mount specific)

Bottom-mount designs often need a little planning for ventilation and door swing. For JFC2290VEM8, we follow the clearances and temperature guidance in the JFC2290VEM8 owner’s manual.

What to plan for	Typical guidance for this model type	Why it helps
Side and top clearance	About 1/2 inch to 1 inch	Supports airflow and efficient cooling
Rear clearance	About 1 inch	Helps condenser airflow and protects water line routing
Hinge-side clearance	About 2 1/2 inches minimum	Allows the door to open fully
Room temperature	55°F to 110°F (preferred 60°F to 90°F)	Improves performance and reduces energy use

Why it matters

Because we open the refrigerator section far more than the freezer, putting fresh food on top reduces strain and helps keep temperatures steadier. That can support food freshness and overall cooling performance.

Last updated: January 2026

A bottom-mount refrigerator like the Jenn-Air JFC2290VEM8 is usually better for everyday convenience because fresh foods sit at eye level and the freezer is in a pull-out drawer. A top-mount is often the better pick if you want a simpler layout and typically lower purchase and repair costs.

Quick comparison: top mount vs. bottom mount

Feature	Top mount (freezer on top)	Bottom mount (freezer drawer)
Fresh food access	More bending	Less bending, easier daily access
Freezer access	Easy reach	Drawer style, good visibility
Organization	Basic shelves	Often more bins, baskets, dividers
Energy use	Often slightly lower	Often slightly higher
Repair complexity	Typically simpler	Typically more components in drawer system

How to choose for your kitchen and habits

• Choose bottom mount if you use the refrigerator section most and want less bending for produce, dairy, and leftovers.
• Choose top mount if you prioritize a straightforward design and usually want the lowest overall cost.
• If you store lots of frozen foods, compare how you like drawer baskets versus shelves.
• If you have tight clearance next to a wall, confirm door swing space and hinge-side clearance.
• If you want an ice maker, plan for extra space behind the unit for the water line connection.

Model-specific notes for JFC2290VEM8

The JFC2290VEM8 is designed for indoor household use and needs ventilation clearance around the cabinet for proper cooling. We also recommend keeping the factory temperature set points when you first install it, then adjusting only after the refrigerator has fully cooled.

• Ventilation clearance: allow space on the sides/top and behind the refrigerator.
• Room temperature: best performance is typically in normal indoor ranges.
• Cooling time: allow about 24 hours to reach stable temperatures before fully loading groceries.

For the exact clearances, door behavior, and control settings for this model, use the JFC2290VEM8 owner's manual.

Why it matters

Choosing the right mount style affects daily comfort (how often you bend), how well you can organize groceries, and long-term ownership costs (energy use and service complexity). Matching the layout to how your household eats and shops prevents frustration later.

Last updated: January 2026

Most Jenn-Air refrigerators typically last 12 to 20 years. For your JENN-AIR JFC2290VEM8 bottom-mount refrigerator, lifespan depends most on condenser cleanliness, door seal condition, and how hard the sealed system and ice maker work over time; routine care helps it reach the upper end of that range.

Typical lifespan and what affects it

We see these factors make the biggest difference in real-world refrigerator life:

• Condenser coil cleanliness (dust buildup makes the compressor run hotter and longer)
• Door gasket seal quality (warm air leaks increase run time and frost)
• Ice maker and water system use (more cycling means more wear)
• Ventilation and room temperature (tight cabinets and hot rooms shorten life)
• Power quality (surges and frequent outages stress control boards)

Quick care checklist to extend life

Use this simple routine to keep a JFC2290VEM8 running efficiently:

• Vacuum and brush the condenser area every 6 to 12 months
• Keep food packages from blocking interior air vents
• Confirm doors close fully and do not “bounce” back open
• Replace the water filter on schedule (or use a bypass if you are not filtering)
• Set temperatures to typical targets: 37°F fresh food, 0°F freezer

Common “age-related” parts and what they do

These are parts that often come up as refrigerators get older; replacing the right one can be a cost-effective way to extend service life.

Symptom	Likely system involved	Example part for JFC2290VEM8
Warm refrigerator, freezer OK	Air circulation	Refrigerator evaporator fan motor WPW10128551

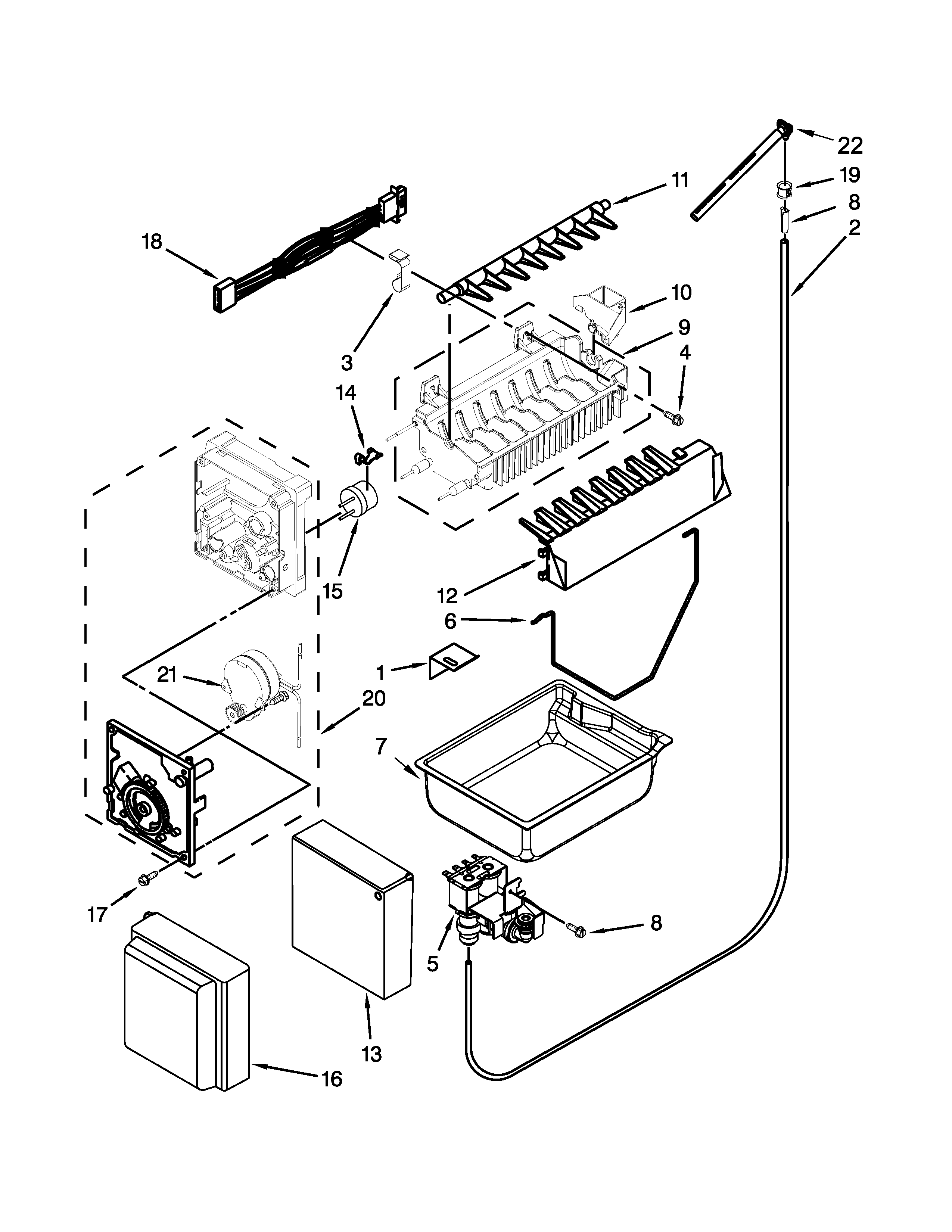

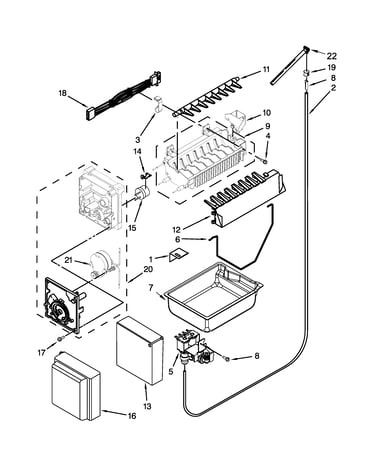

No ice or slow ice	Ice maker system	Refrigerator ice maker assembly W10884390
Water dispenser weak/no water	Water supply/valve	Refrigerator water inlet valve assembly WPW10420083
Frost buildup, poor cooling	Defrost system	Refrigerator defrost bi-metal WP627985

Why it matters

A refrigerator that is running longer than normal to hold temperature uses more energy and puts extra wear on high-cost components like the compressor and control boards. Basic airflow, sealing, and cleaning habits are the easiest way to protect those parts.

For model-specific use and care guidance (including troubleshooting steps), follow the JFC2290VEM8 owner's manual.

Last updated: January 2026

Common problems we see on the Jenn-Air JFC2290VEM8 bottom-mount refrigerator include warm temperatures (fridge warm or freezer warm), ice maker not making ice, water leaks, and unusual noises. Many issues trace back to airflow restrictions, door sealing problems, or failed components like the evaporator fan motor or water inlet valve.

Most common symptoms and what they usually point to

• Fridge warm, freezer cold: blocked air vents, evaporator fan not moving air, frost buildup on the evaporator
• Both sections warm: dirty condenser coils, condenser fan or compressor problems, control settings off
• Ice maker not working: water supply issue, inlet valve problem, ice maker assembly failure
• Water leaking: clogged/iced drain, loose water line connection, inlet valve seepage
• Noisy operation: fan blade hitting ice, worn fan motor, items vibrating against the cabinet

Quick checks we recommend first (before replacing parts)

• Confirm the refrigerator is plugged into a grounded outlet and the controls are turned on.
• Allow 24 hours after installation or major temperature changes for temperatures to stabilize.
• Make sure food packages are not blocking interior air vents.
• Check doors close fully and the gasket seals all the way around.
• If water or ice is involved, confirm the unit is connected to a cold water supply.

Parts that commonly solve these problems

If your symptoms match, these model-compatible parts are often involved:

Symptom	Likely area	Example model-compatible part
Fridge warm or noisy airflow	Evaporator airflow	Refrigerator evaporator fan motor WPW10128551
Ice maker not making ice	Ice maker module/assembly	Refrigerator ice maker assembly W10884390
No water to dispenser/ice maker or slow fill	Water supply control	Refrigerator water inlet valve assembly WPW10420083

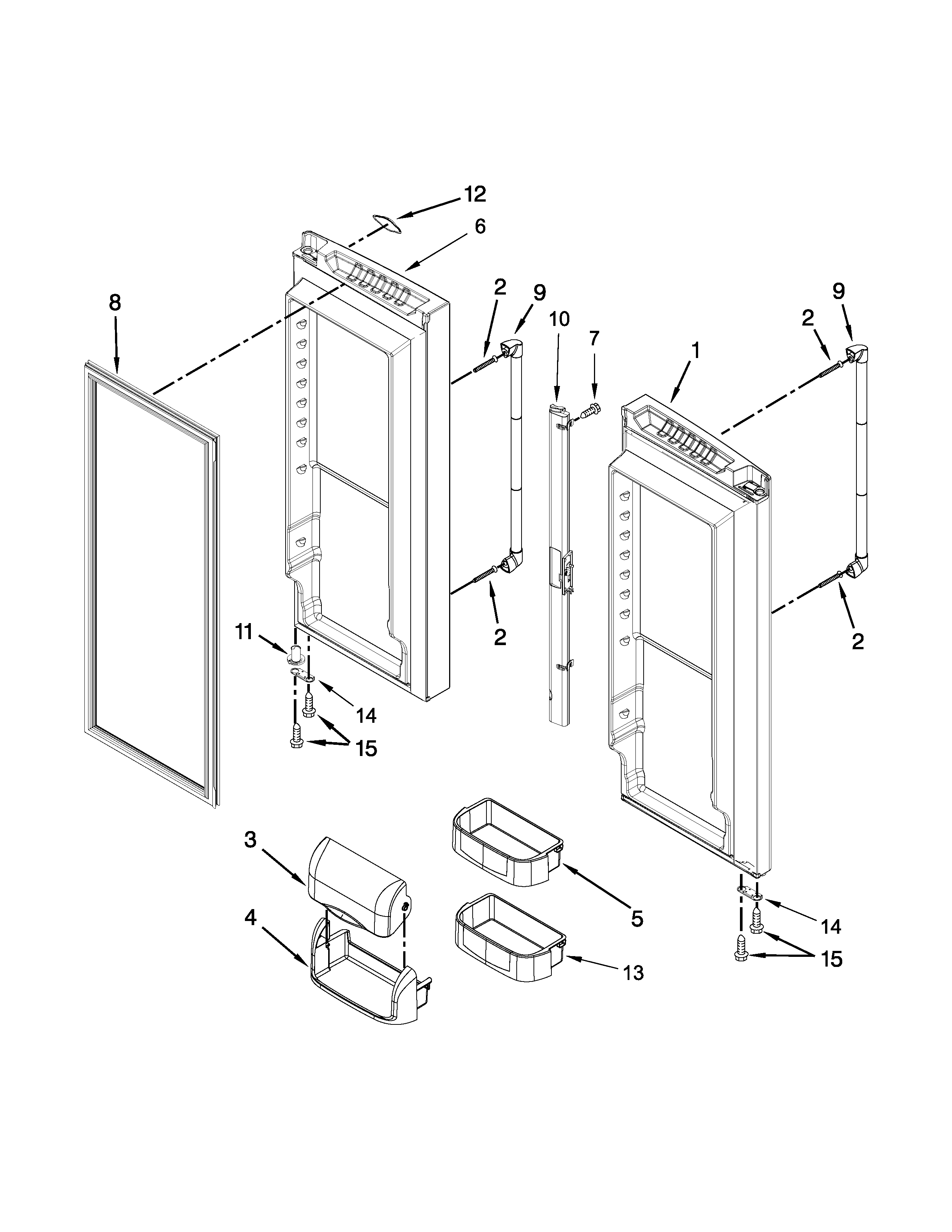

Door not sealing, moisture or frost	Door sealing	Whirlpool refrigerator door gasket (gray) W10443320

Why it matters

Cooling, ice, and leak complaints often start as small airflow or sealing issues. Catching them early helps protect food temperatures, reduces frost buildup, and prevents water damage in and under the refrigerator.

For model-specific operating details and troubleshooting steps (including power and lighting guidance), use the JFC2290VEM8 owner's manual.

Last updated: January 2026
