Model # PAVT234AWW Official Maytag washer

Here are the diagrams and repair parts for Official Maytag PAVT234AWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

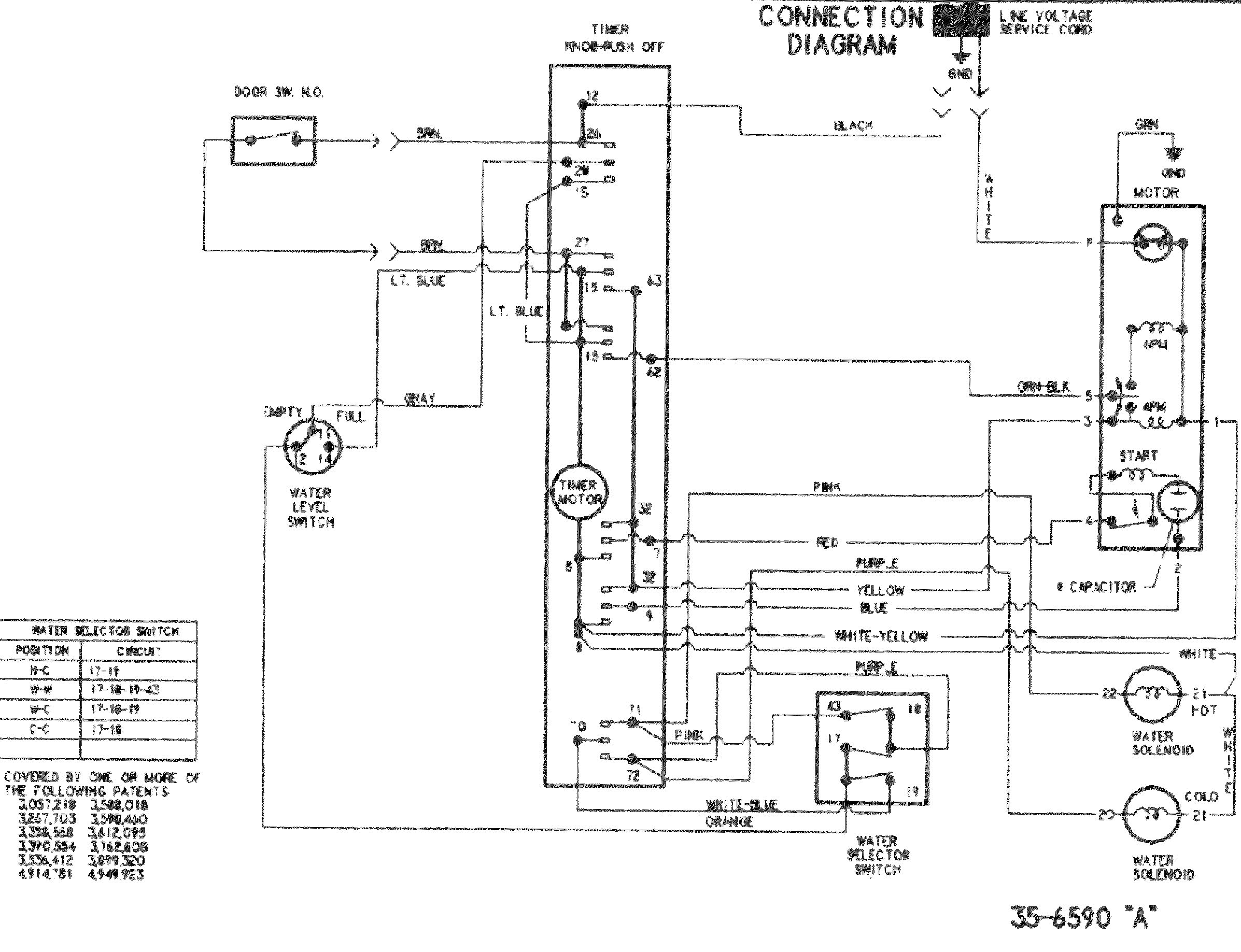

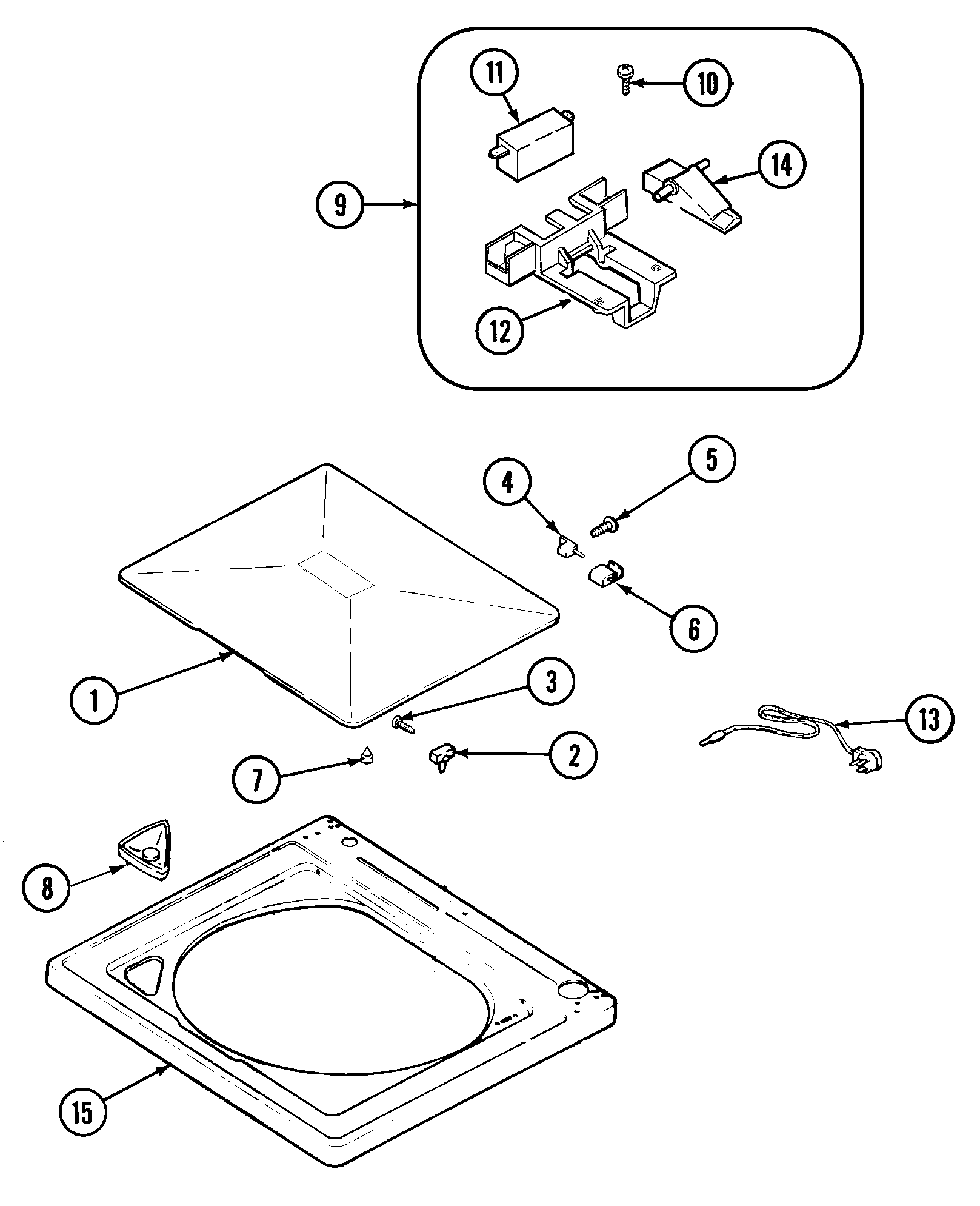

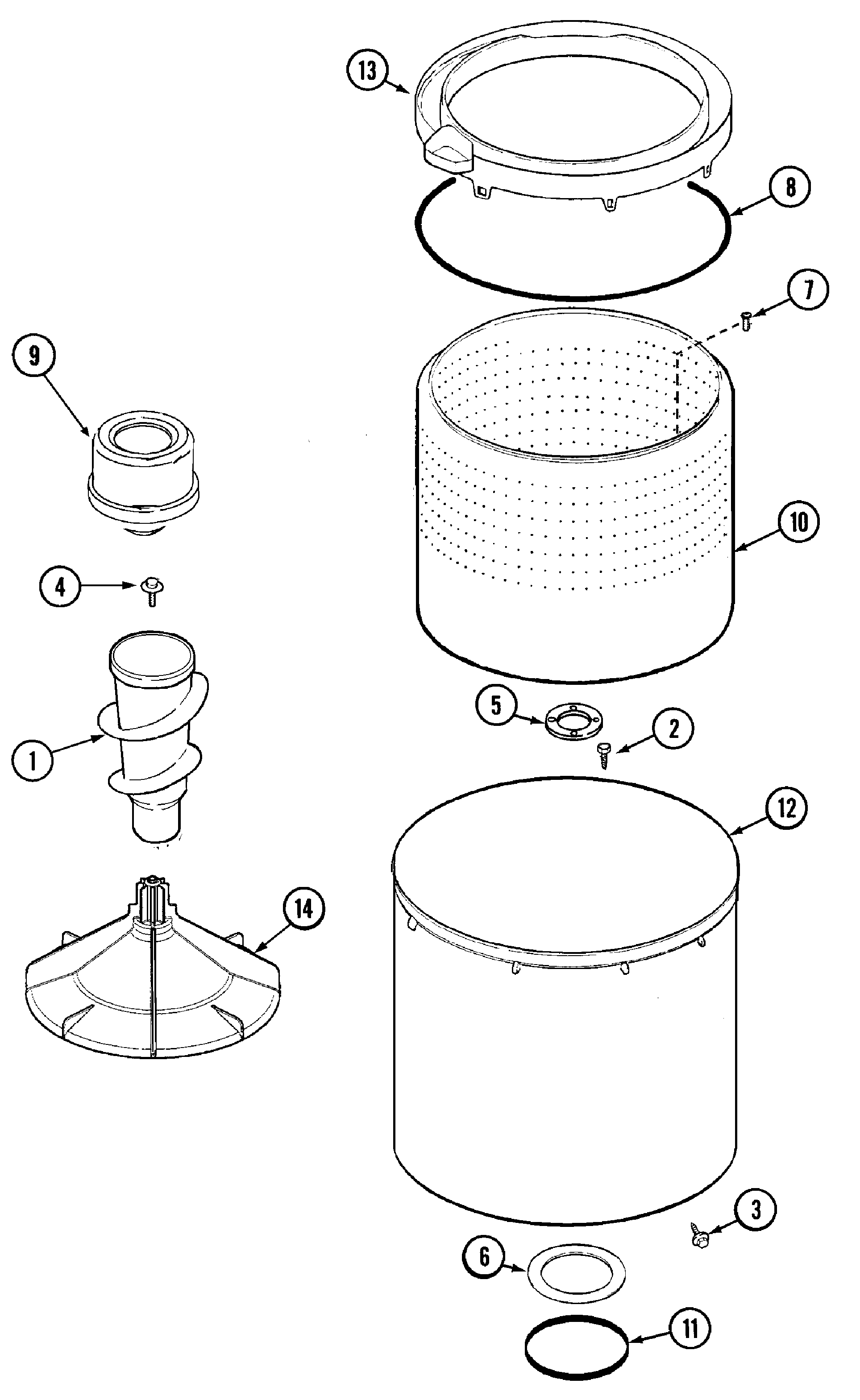

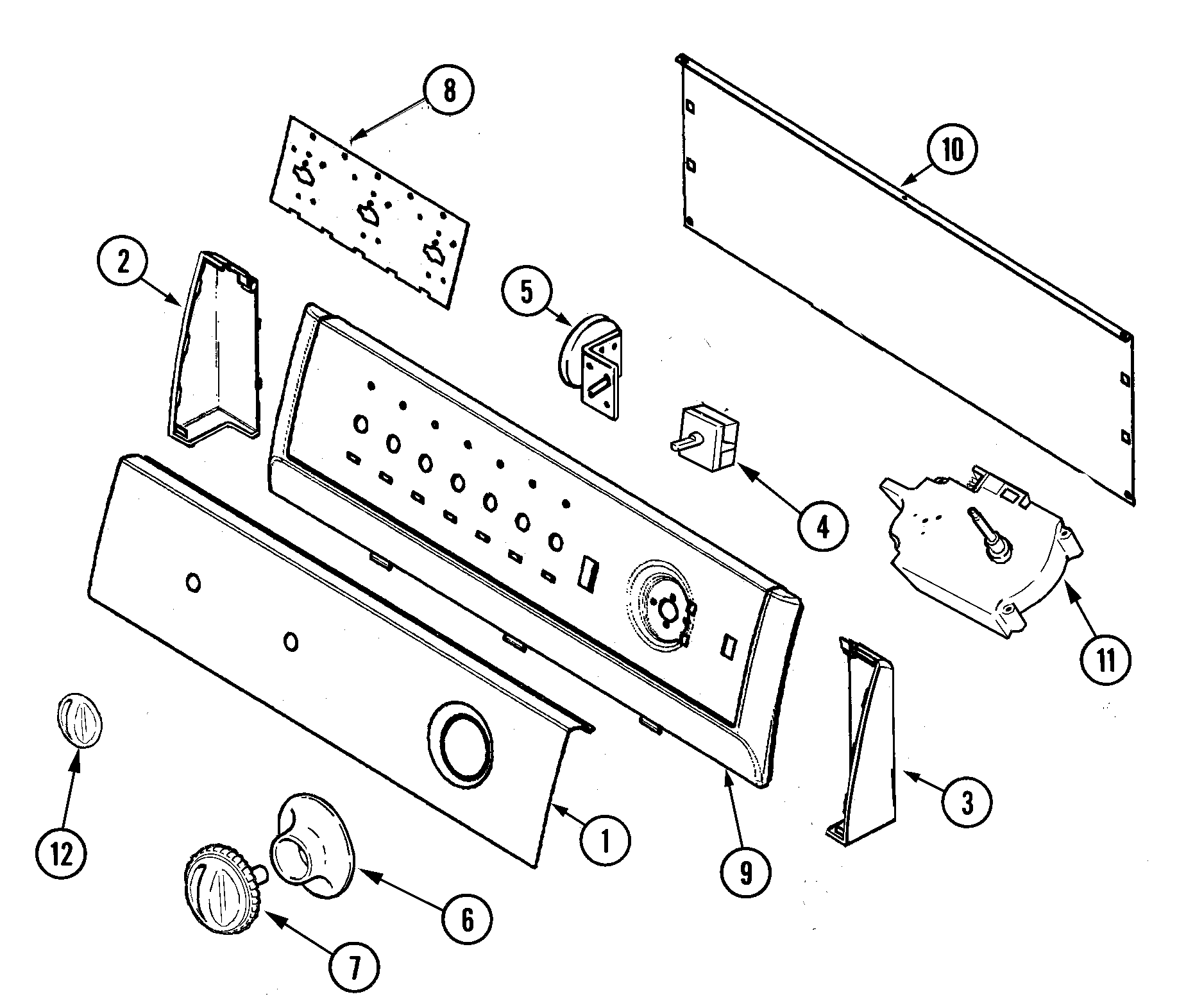

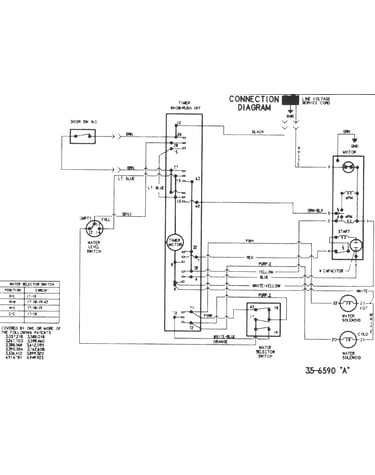

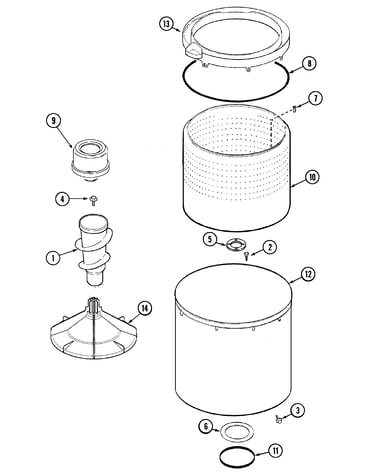

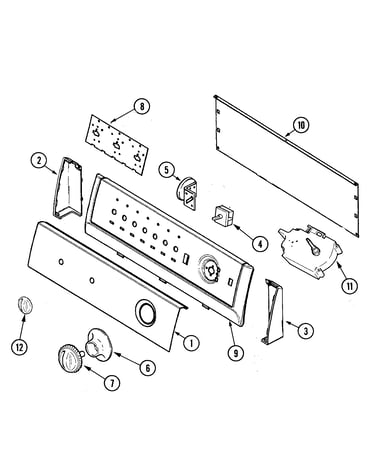

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |

Clamp, Pressure Switch Hose 25-7796
#21

Cabinet diagram

Clamp, pressure switch hose

Part #25-7796

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7796. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
69% OFF MSRP : $14.00
In Stock
Hose Clamp 25-7867
#18

Cabinet diagram

Hose clamp

Part #25-7867

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7867. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
69% OFF MSRP : $14.00
In Stock
Washer Drive Belt 21352320
#30

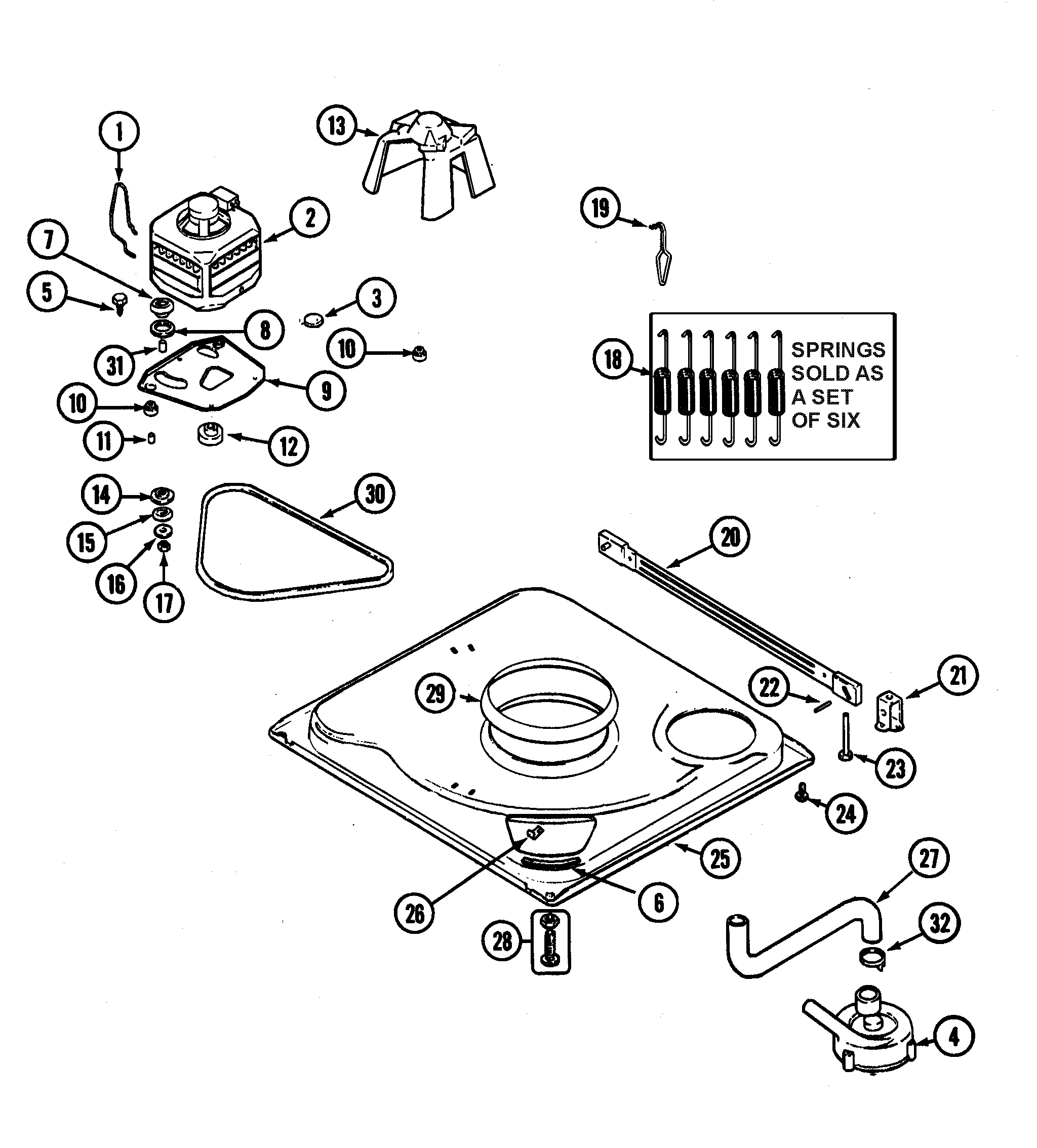

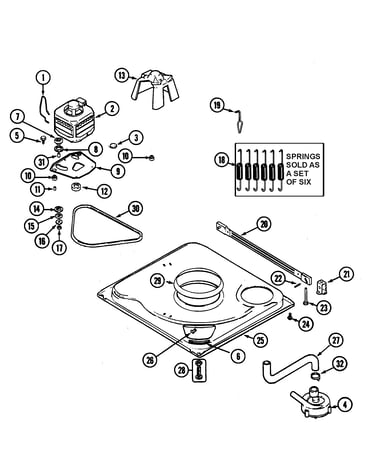

Base diagram

Washer drive belt

Part #21352320

Replaced by #WP21352320

?
Manufacturer substitution
This part replaces 21352320. Substitute parts can look different from the original.
BEST SELLER
$15.14
50% OFF MSRP : $30.00
In Stock
Pump 21001873
#4A

Base diagram

Pump

Part #21001873

Replaced by #WP35-6780

?
Manufacturer substitution
This part replaces 21001873. Substitute parts can look different from the original.
BEST SELLER
$105.65
9% OFF Phone Price : $115.65
In Stock
Screw, Suppo 25-7828
#24

Base diagram

Screw, suppo

Part #25-7828

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 25-7828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.99
11% OFF Phone Price : $8.99
In Stock
Washer Pulley And Thrust Bearing Kit (replaces 12001797, 12500036, 22004258, 22004259, La-2007) 12002213
Washer pulley and thrust bearing kit (replaces 12001797, 12500036, 22004258, 22004259, la-2007)

Part #12002213

BEST SELLER
$41.09
19% OFF MSRP : $51.00
In Stock
Cam Replacem LA-2007
#4

Transmission diagram

Cam replacem

Part #LA-2007

Replaced by #12002213

?
Manufacturer substitution
This part replaces LA-2007. Substitute parts can look different from the original.
BEST SELLER
$41.09
19% OFF MSRP : $51.00
In Stock
Pulley 12001797
#3

Transmission diagram

Pulley

Part #12001797

Replaced by #12002213

?
Manufacturer substitution
This part replaces 12001797. Substitute parts can look different from the original.
BEST SELLER
$41.09
19% OFF MSRP : $51.00
In Stock
Thrust Brg K 12500036
#22

Transmission diagram

Thrust brg k

Part #12500036

Replaced by #12002213

?
Manufacturer substitution
This part replaces 12500036. Substitute parts can look different from the original.
BEST SELLER
$41.09
19% OFF MSRP : $51.00
In Stock
Washer Drive Motor 21001506
#12

Base diagram

Washer drive motor

Part #21001506

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001506. Substitute parts can look different from the original.
BEST SELLER
$141.69
21% OFF MSRP : $180.00
In Stock
