Model #MED6000XR0 Official Maytag dryer
Here are the diagrams and repair parts for Maytag MED6000XR0 dryer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

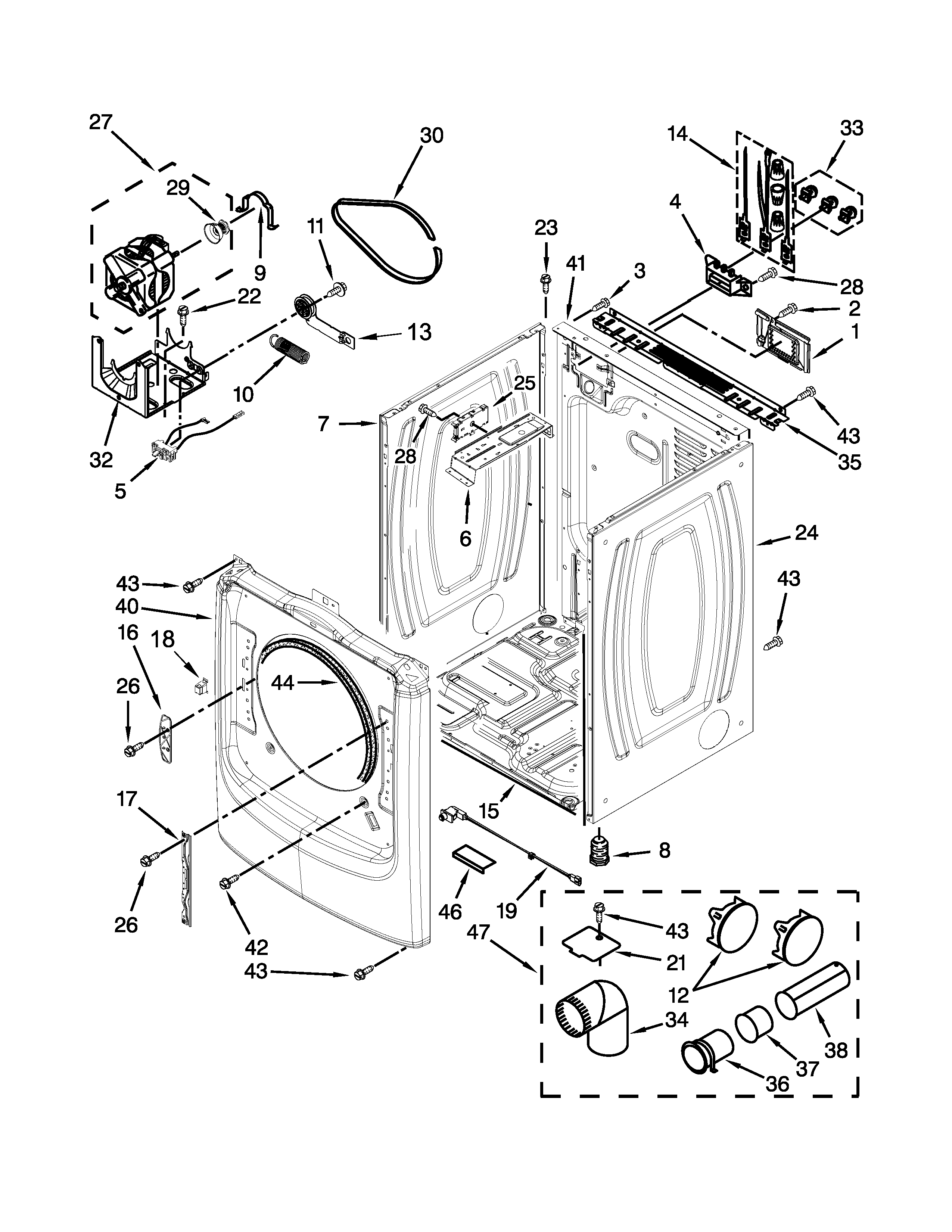

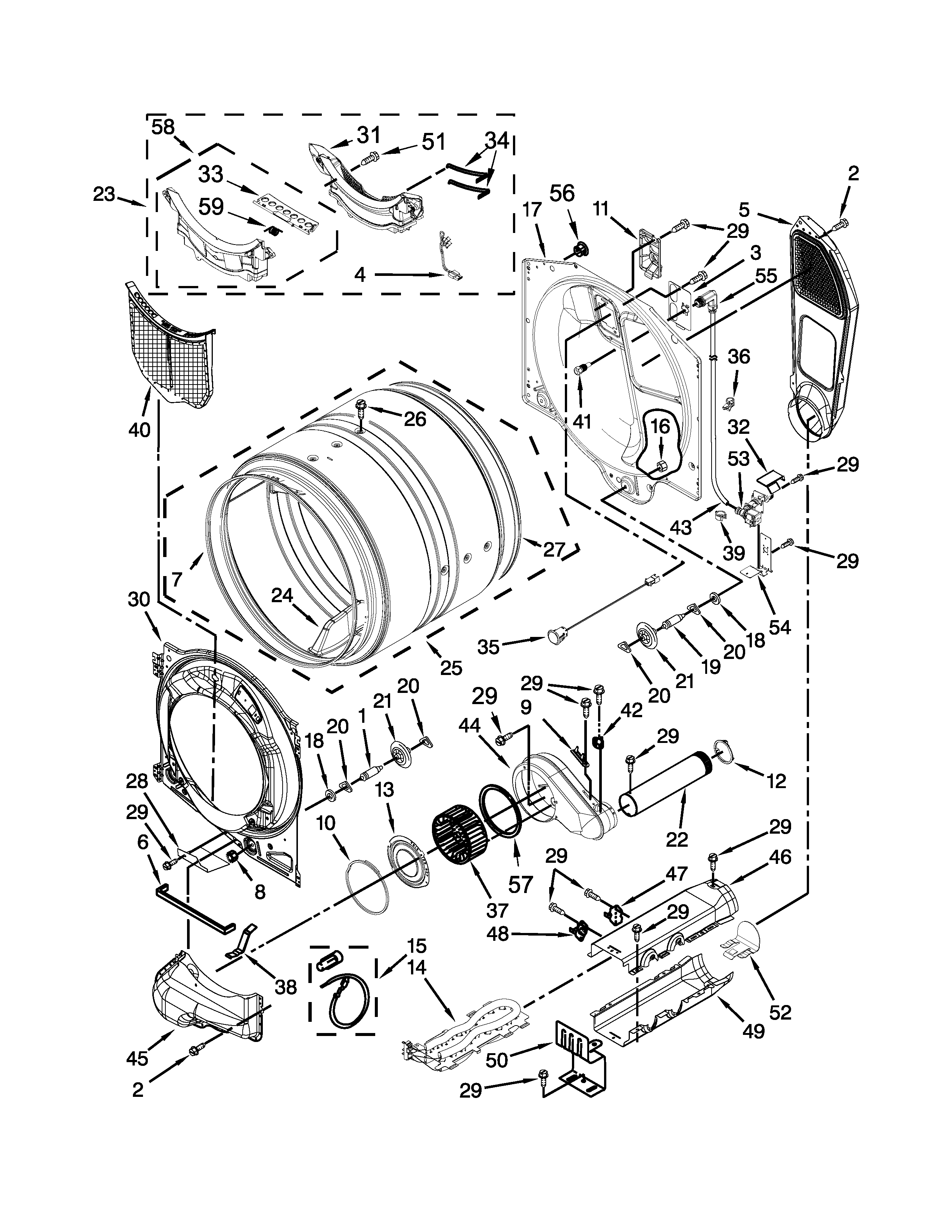

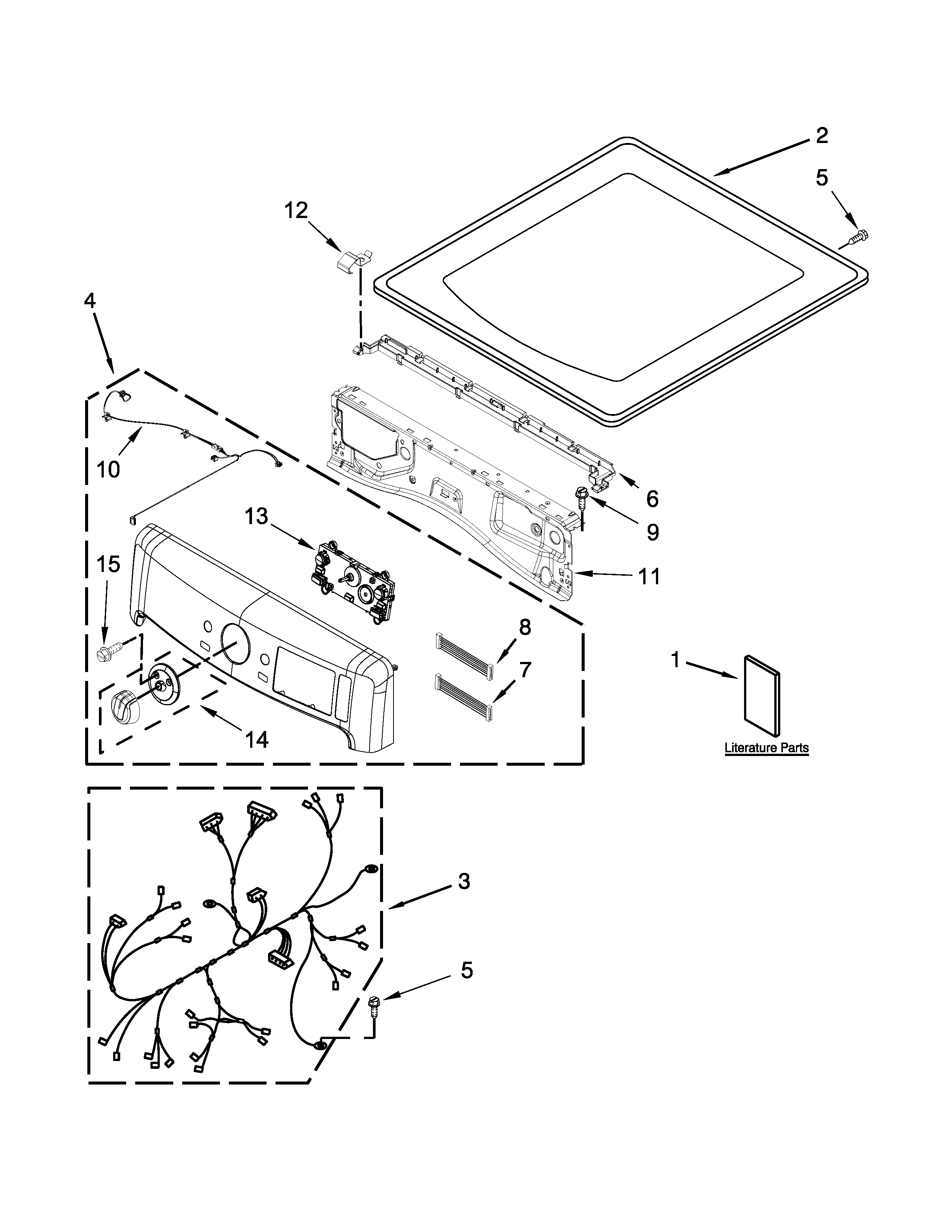

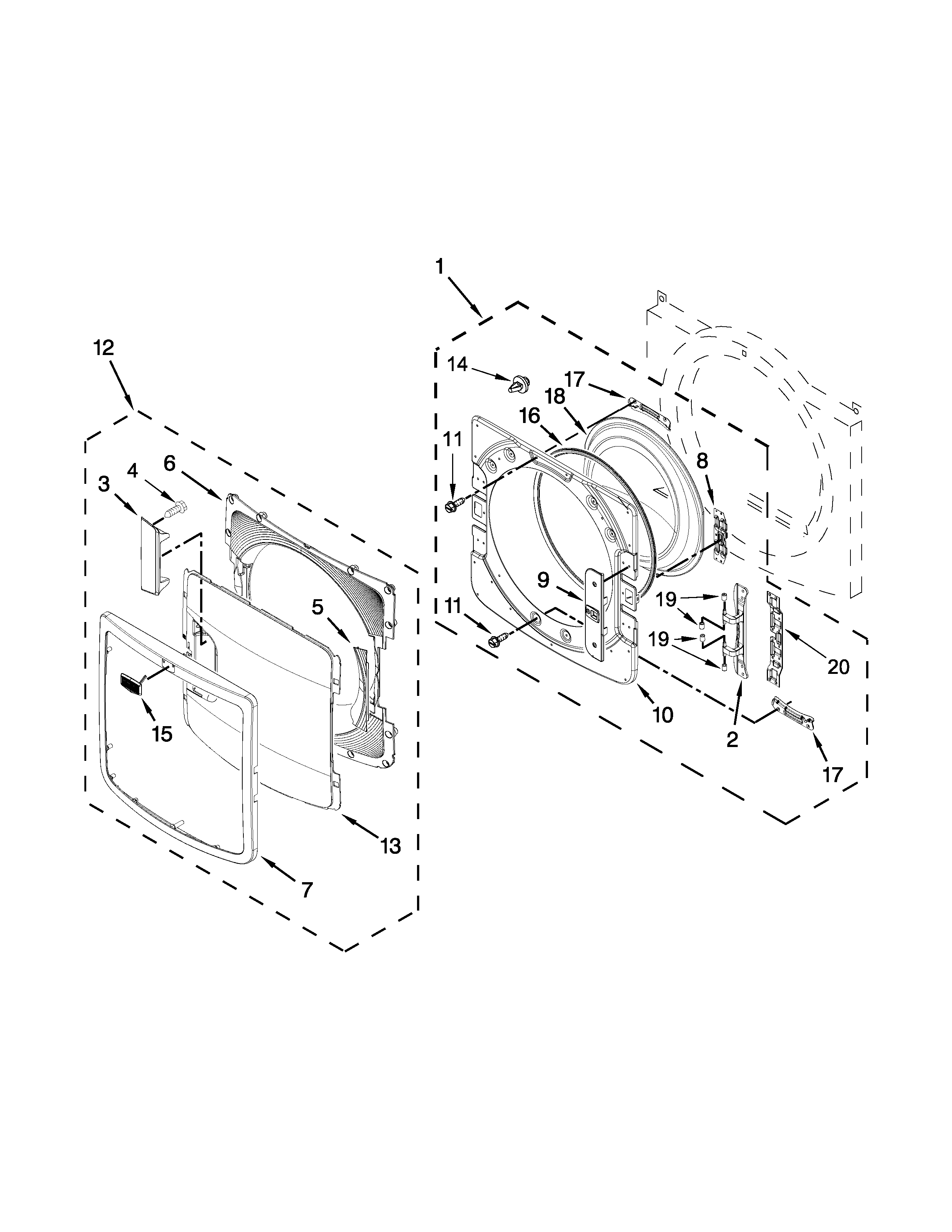

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 165 parts
Dryer thermal fuse
Part #3392519
Replaced by #WP3392519
?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
In Stock
$15.46 |
11% OFF
Phone Price: $17.46
Dryer repair kit
Part #80047
Replaced by #4392067
?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
In Stock
$68.28 |
7% OFF
Phone Price: $73.28
Dryer idler pulley
Part #W10547287
Replaced by #W10837240
?
Manufacturer substitution
This part replaces W10547287. Substitute parts can look different from the original.
In Stock
$21.28 |
19% OFF
Phone Price: $26.28
Dryer drum support roller
Part #W10314171
Replaced by #WPW10314173
?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
In Stock
$18.20 |
10% OFF
Phone Price: $20.20
Dryer heating element
Part #8544771
Replaced by #WP8544771
?
Manufacturer substitution
This part replaces 8544771. Substitute parts can look different from the original.
In Stock
$102.08 |
9% OFF
Phone Price: $112.08
Dryer heating element wire kit
Part #279457
In Stock
$8.09 |
11% OFF
Phone Price: $9.09
Dryer support roller tri-ring washer
Part #W10512946
Replaced by #WPW10512946
?
Manufacturer substitution
This part replaces W10512946. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.82 |
30% OFF
MSRP: $8.30
In Stock
$8.29 |
11% OFF
Phone Price: $9.29
In Stock
$15.69 |
11% OFF
Phone Price: $17.69
Recommended maintenance parts and accessories
In Stock
$15.69 |
11% OFF
Phone Price: $17.69
In Stock
$37.19 |
12% OFF
Phone Price: $42.19
In Stock
$23.48 |
29% OFF
MSRP: $33.00
Symptoms common to all dryers
Main causes: bad timer or electronic control board, door switch failure
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: damaged door strike, worn door catch
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
Repair guides common to all dryers
If your dryer thumps or squeals, replace the drum support roller to restore quiet to your home.
Repair difficulty
Time required
90 minutes or less
The thermistor senses the air temperature in the dryer. If your dryer overheats or doesn't heat at all, the thermistor could be the problem.
Repair difficulty
Time required
30 minutes or less
The idler pulley exerts pressure keeps the drive belt tight so it can rotate the drum. A worn idler pulley squeals or squeaks when the dryer is running. Follow these instructions to replace it.
Repair difficulty
Time required
90 minutes or less
Articles and videos common to all dryers
Get advice on simple DIY fixes for appliances that you can safely do on your own.
Learn how to replace a Maytag dryer heating element
Learn how to decipher symbols so you can buy the right part for your problem.
