Model #JES9750AAS Jenn-Air electric slide-in range

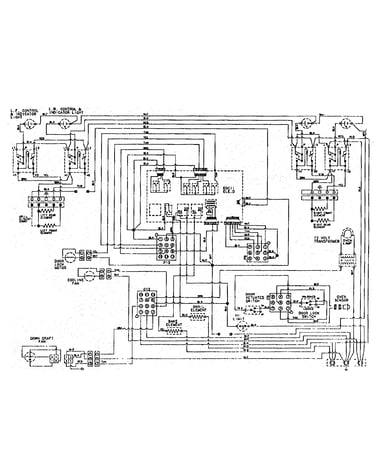

Here are the diagrams and repair parts for Jenn-Air JES9750AAS electric slide-in range, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 171 parts
#16A

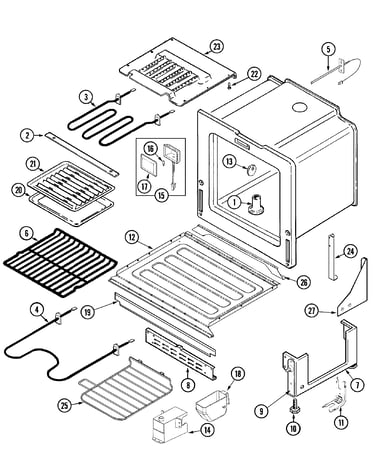

Oven/base Diagram
Range oven light bulb
In Stock
#3
Oven/base Diagram
Range broil element
In Stock
#23

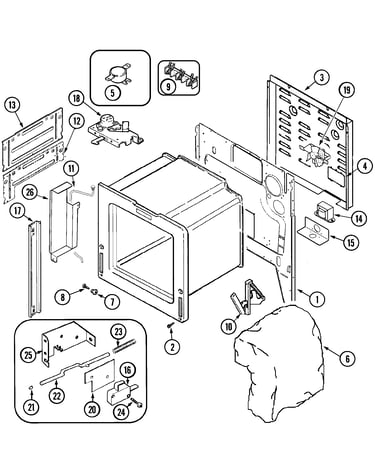

Body Diagram
Range oven door switch spring
In Stock
#30B

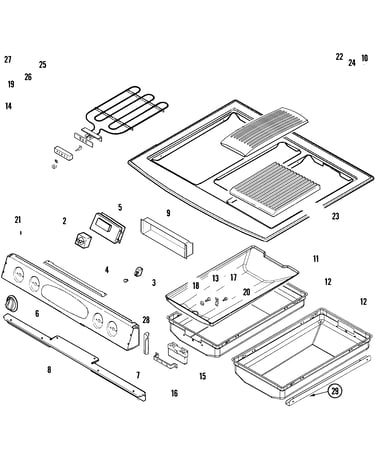

Control panel/top assy Diagram
Cook guide
In Stock
#2A
Oven/base Diagram
Range screw
In Stock
#7

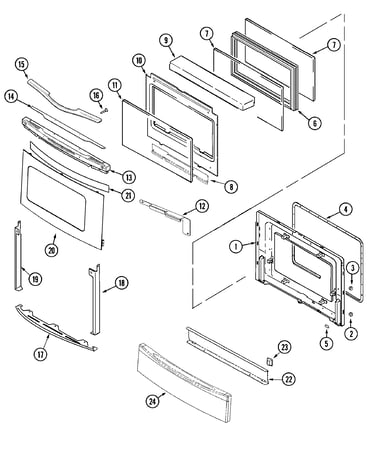

Door/access panel (stl) Diagram
Range oven door inner glass
In Stock
#21

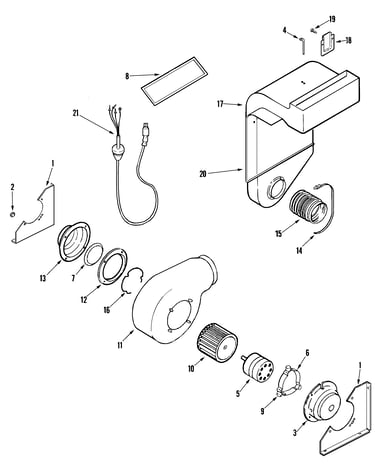

Blower assembly (plenum) Diagram
Power cord
In Stock
#19
Blower assembly (plenum) Diagram
In Stock
#22
Control panel/top assy Diagram
Range downdraft vent grille
In Stock
#18B
Body Diagram
Range screw, #8ab x 3/8-in (black)
In Stock
