Kenmore 41797912701 stacked laundry center Parts

For Kenmore stacked laundry center model 41797912701, the most common problems are no-drain or leaking in the washer section, and no-heat, long dry times, or noisy tumbling in the dryer section. Many of these issues trace to wear parts, airflow restrictions, or a failing switch, thermostat, or belt.

Common washer issues (bottom unit)

• Washer will not drain or drains slowly: often linked to a failing drain pump or a restriction in the drain path.
• Water leaking: commonly caused by a loose or damaged drain hose, tub ring issues, or oversudsing.
• Won’t spin or spins poorly: frequently tied to a worn drive belt or spin bearing wear.
• Excessive vibration: usually load balance, leveling, or worn bearings.

Model-matched parts we see used for these symptoms:

• Pump 137221600
• Electrolux washer drain hose 134592700
• Electrolux washer drive belt 134511600
• Electrolux washer spin bearing 3204405

Common dryer issues (top unit)

• No heat or shuts off on heat: often caused by an open thermal limiter or a failed high-limit thermostat.
• Takes too long to dry: usually restricted airflow (lint screen, ducting, or internal lint buildup) and can also involve heater housing or thermostats.
• Squealing, scraping, or thumping: commonly worn drum bearing, drum glide, or felt seal.
• Won’t start: can be a door catch/strike issue or a failing start switch or timer.

Model-matched parts we see used for these symptoms:

• Dryer thermal limiter 134120900
• Kelvinator dryer high-limit thermostat 3204267
• Dryer lint filter 5304516871
• Dryer drum bearing 131825900
• Dryer drum glide 137513300
• Laundry center dryer rotary start switch 134399700

Quick checks before replacing parts

• Unplug the laundry center; verify the breaker is on and the cord is secure.
• Clean the lint screen every load; confirm the vent exhaust is strong.
• Check for kinks or clogs in the drain hose and standpipe.
• Run a small test load; note whether the washer drains, spins, and whether the dryer heats.

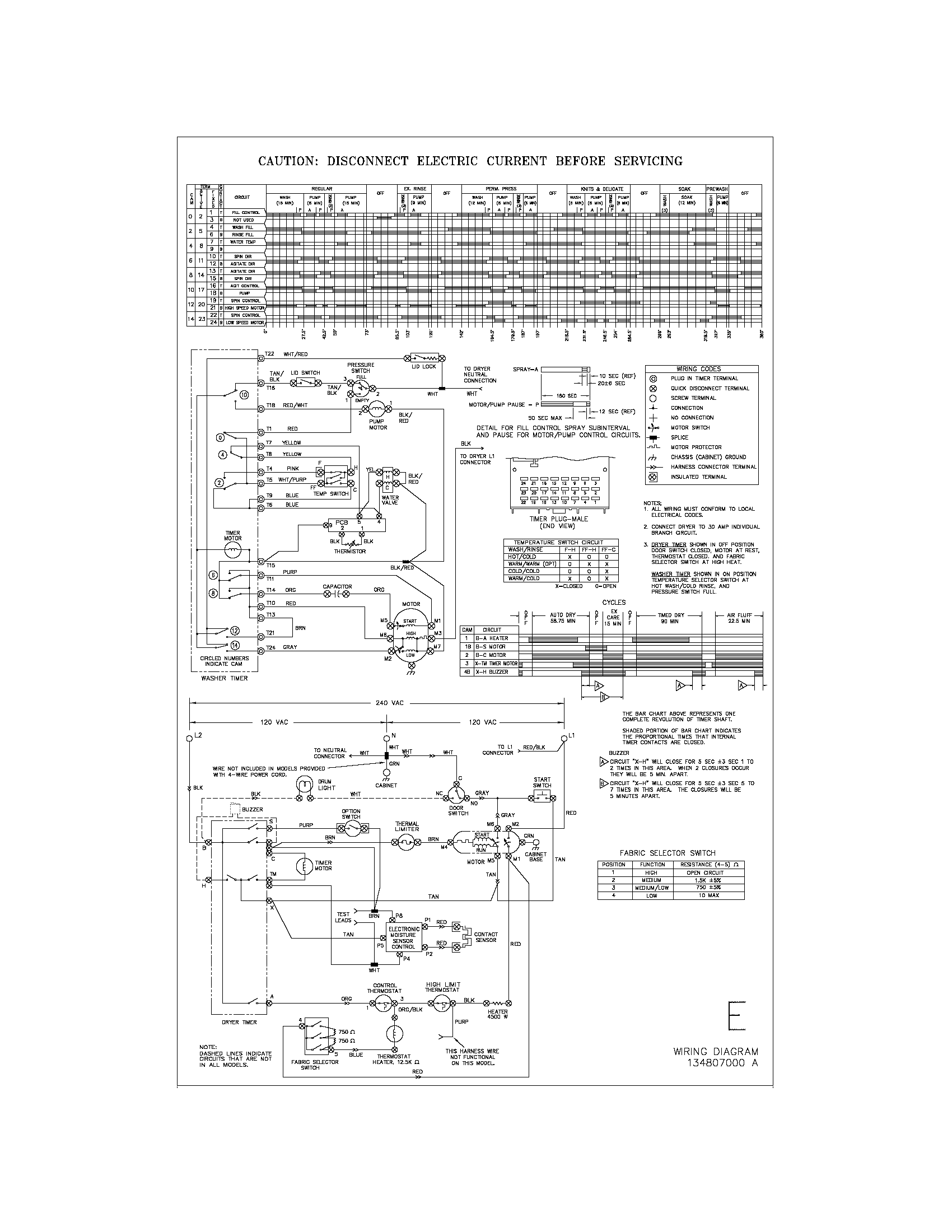

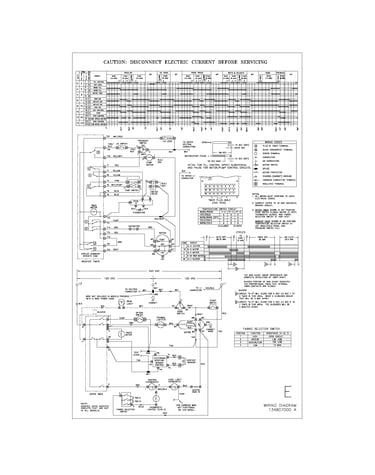

• Use the wiring diagram and troubleshooting steps in the owner's manual.

Symptom-to-part cheat sheet

Symptom	Most common area	Parts often involved
Washer won’t drain	Drain system	Pump, drain hose
Washer won’t spin	Drive system	Drive belt, spin bearing
Dryer no heat	Heating safety	Thermal limiter, high-limit thermostat
Dryer noisy	Drum support	Drum bearing, drum glide, felt

Why it matters

Catching airflow restrictions, drain problems, and worn drum support parts early helps prevent repeat shutdowns, water damage, and secondary failures (like overheated thermostats or damaged bearings).

Last updated: March 2026

The average lifespan of the Kenmore 41797912701 stacked laundry center is about 13 years with normal household use and routine maintenance. Keeping airflow clear in the dryer and preventing washer drain issues are the two biggest factors that help this unit reach its full service life.

What affects lifespan the most

• Dryer airflow and heat control: clean the lint path regularly and avoid restricted venting
• Washer draining: prevent clogs and avoid running with a slow drain
• Load size: frequent overloading shortens belt, bearing, and motor life
• Leveling and vibration: an unlevel unit increases wear on bearings and suspension
• Moisture and corrosion: keep the area dry and address leaks quickly

Maintenance checklist (high impact, low effort)

• Clean the lint screen after every load; replace a damaged filter with the dryer lint filter 5304516871
• Inspect and clean the exhaust venting periodically; keep the run short and unobstructed
• Check the washer drain hose for kinks and slow draining; replace if cracked with the washer drain hose 134592700
• Run appropriate cycle settings and avoid consistently packing the drum tight
• Follow the care and maintenance schedule in the owner's manual

Typical lifespan by component (what usually wears first)

Component	Common wear sign	Typical fix
Drive belt	Slipping, burning rubber smell, no spin/agitate	Replace belt (model-specific part)
Drain pump	Won’t drain, grinding, leaks	Replace pump
Drum support parts	Squeal, thump, scraping	Replace bearing/glide/bracket
Heat safety parts	No heat, overheating shutdown	Replace thermostat/thermal limiter

Why it matters

Knowing the expected service life helps you decide whether to maintain, repair, or refresh key wear items. On a stacked laundry center like the Kenmore 41797912701, small airflow or drain problems can cascade into motor, bearing, and heater issues.

Last updated: March 2026

The Kenmore 41797912701 stacked laundry center uses a compact, apartment-style washer; most Kenmore 417-series washer tubs are typically around 3.0 to 3.2 cu. ft. capacity. For the exact rated capacity for your unit, check the specifications section in the 41797912701 owner's manual.

How to confirm capacity on your exact unit

We recommend using the model-specific documentation because “Kenmore 400 Series” can refer to multiple designs.

• Look for “Capacity”, “Washer specifications”, or “Features” in the manual
• Match the model number 41797912701 on your rating label to the manual
• If you are comparing machines, use cu. ft. (not “number of towels”) for accuracy
• If you are sizing loads, use the basket fill level guidance in the washing procedures section

Typical load sizing (practical guidance)

Capacity matters most for cleaning performance and spin-out.

Load type	Typical fill level	What to avoid
Small	1/4 to 1/3 full	Over-soaping
Medium	1/2 full	Packing items tight
Large	2/3 full	Filling to the top

Why it matters

Using the right load size helps your Kenmore laundry center agitate properly, rinse detergent out, and spin efficiently. Overloading commonly leads to poor cleaning, extra vibration, and longer dry times.

Related specs you may see in the documentation

The installation guide for this laundry center family calls out a 27-inch wide unit, which helps confirm you are working with a compact stacked laundry center format. For installation clearances and hookups, use the 41797912701 installation guide.

Last updated: February 2026
