Maytag
Freestanding Ice Maker

Model #MIM1555ZRS0 Maytag ice cube maker

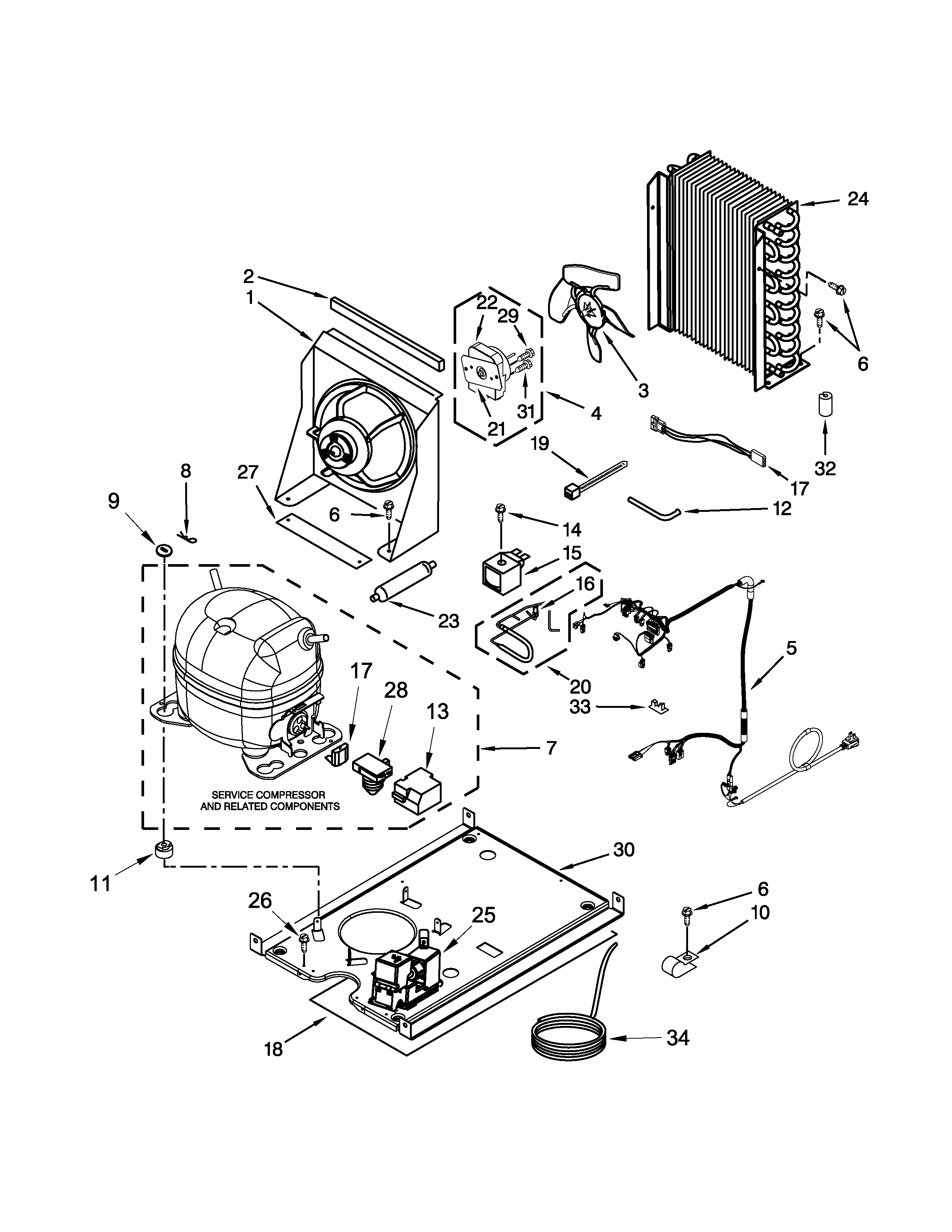

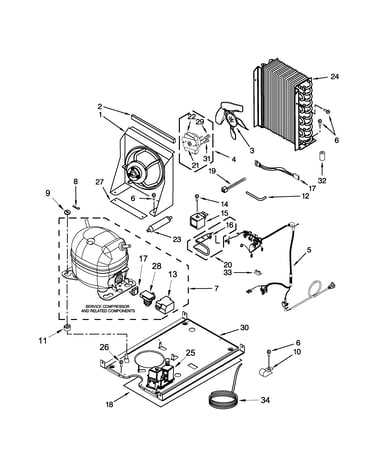

Here are the diagrams and repair parts for Maytag MIM1555ZRS0 ice cube maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 140 parts

    Whirlpool Refrigerator Water Filter#3

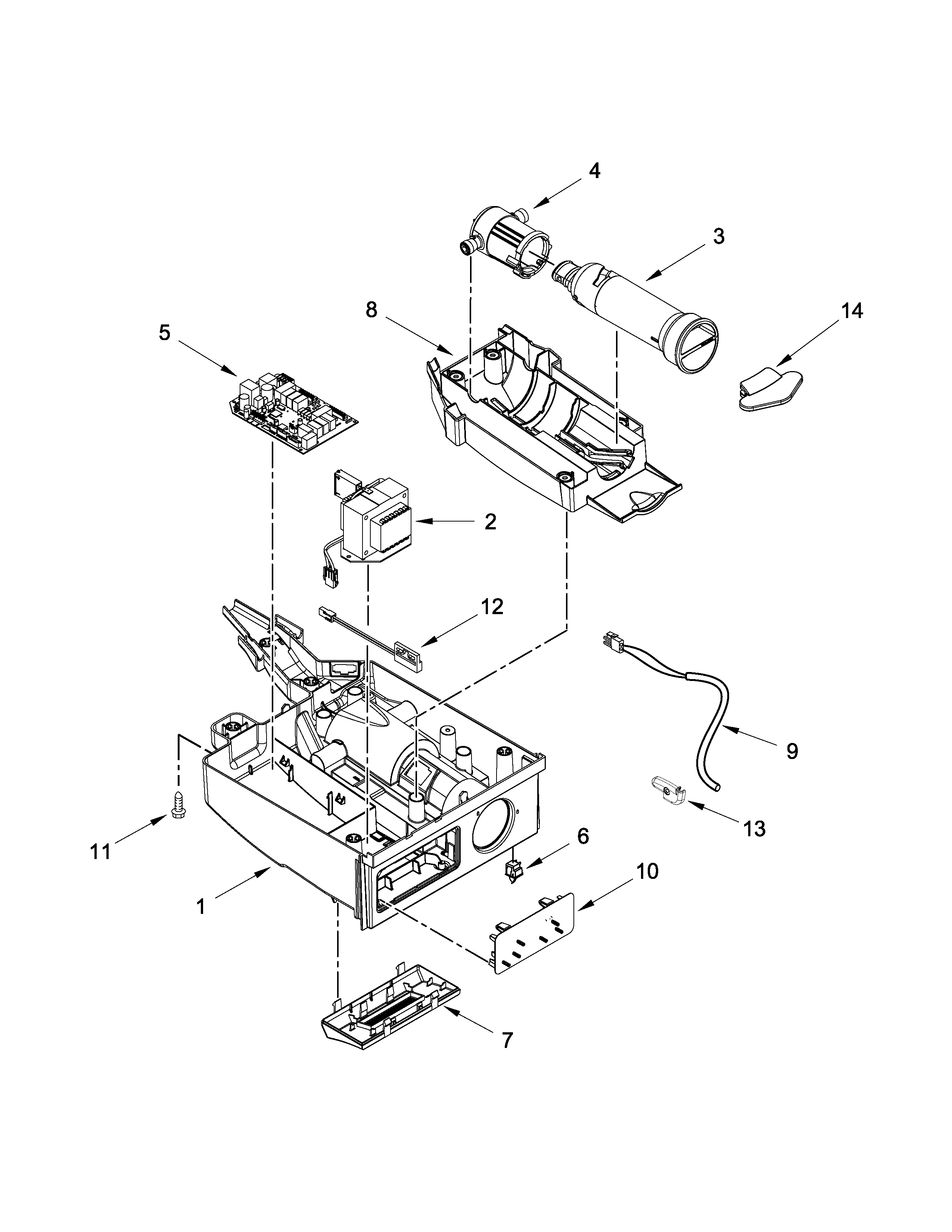

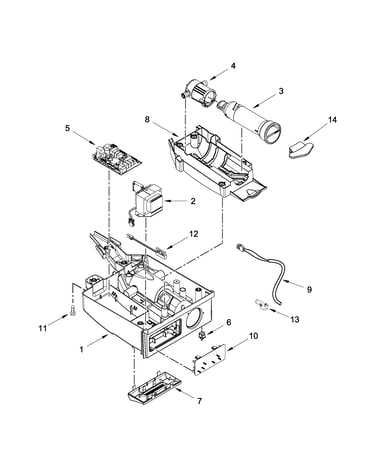

    Control panel parts Diagram

    Cartridge hood

    Part #W10480323
    Replaced by #F2WC9I1
    ?
    Manufacturer substitution
    This part replaces W10480323. Substitute parts can look different from the original.
    BEST SELLER

    Get free shipping with Automatic Reorder

    In Stock
    $49.99 |
    22% OFF
    MSRP: $64.00
    Ice Maker Water Inlet Valve#1

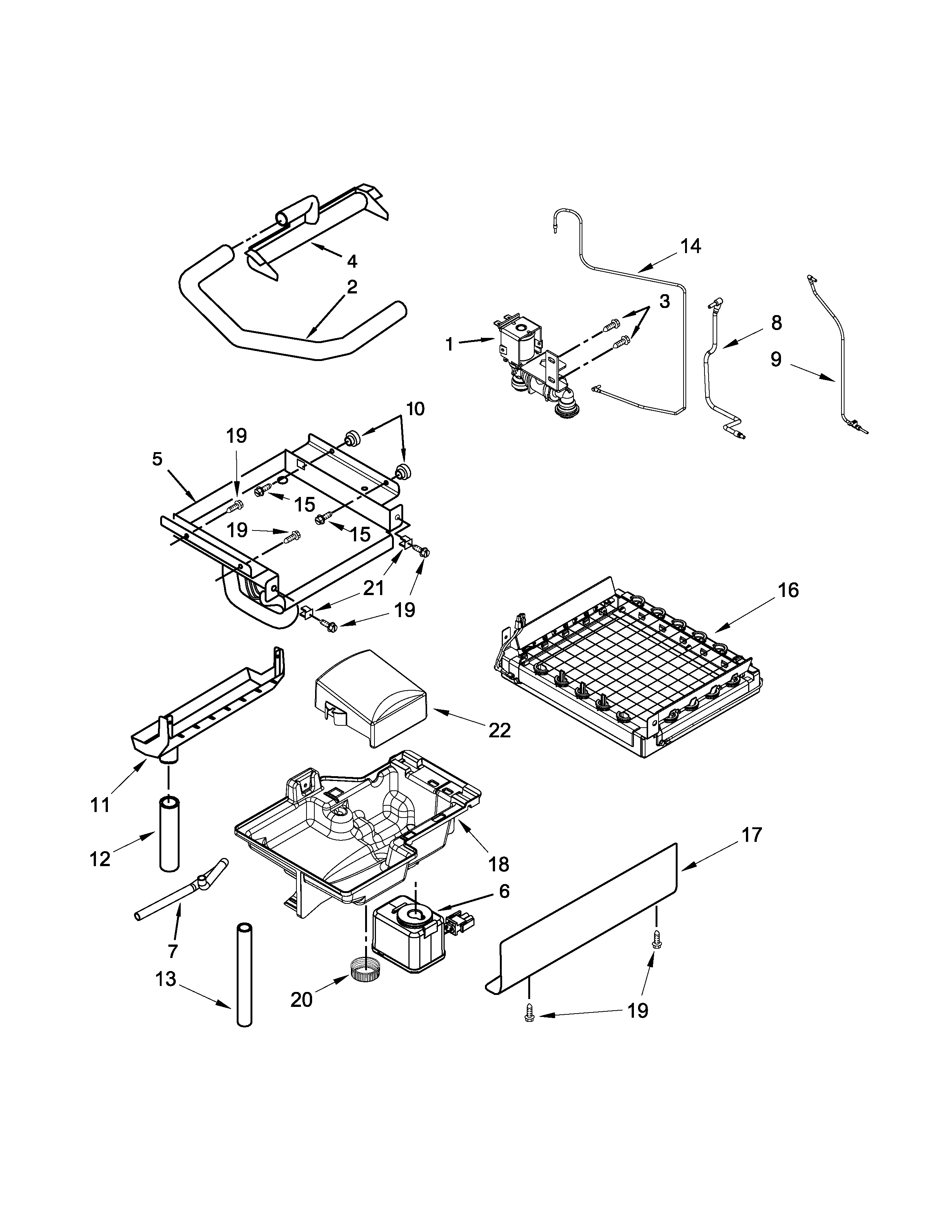

    Evaporator, grid, and water parts Diagram

    Ice maker water inlet valve

    Part #W10217918
    Replaced by #W10881366
    ?
    Manufacturer substitution
    This part replaces W10217918. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $98.89
    Ice Maker Ice Scoop#24

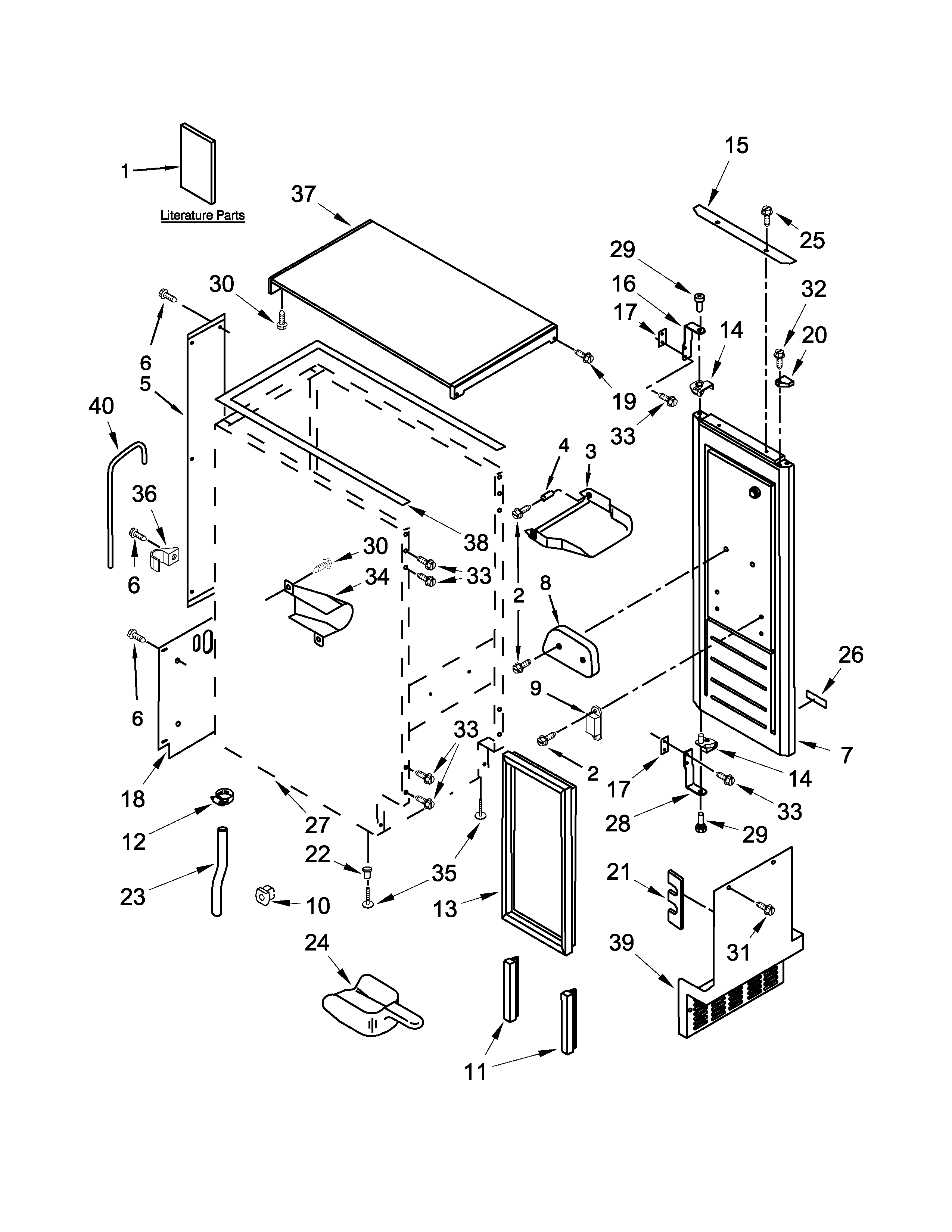

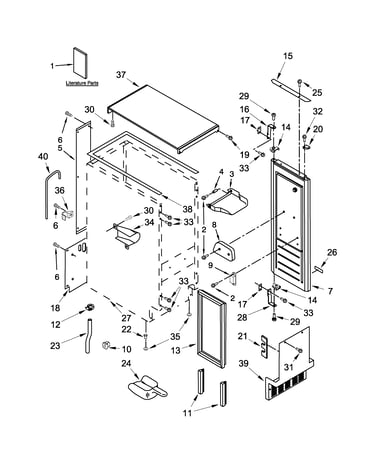

    Cabinet, door and liner parts Diagram

    Scoop

    Part #W10493422
    Replaced by #W11420408
    ?
    Manufacturer substitution
    This part replaces W10493422. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $12.74
    Appliance Touch-Up Paint, 0.6-oz (Black)#NI

    Optional parts (not included) Diagram

    Appliance touch-up paint, 0.6-oz (black)

    Part #72032
    BEST SELLER
    This item is not returnable
    In Stock
    $5.89 |
    16% OFF
    MSRP: $7.00
    Ice Maker Reservoir Drain Cap#20

    Evaporator, grid, and water parts Diagram

    Cap-drain

    Part #W10503850
    Replaced by #W11023835
    ?
    Manufacturer substitution
    This part replaces W10503850. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $17.99
    Appliance Touch-Up Paint, 0.6-oz (Biscuit)#NI

    Optional parts (not included) Diagram

    Appliance touch-up paint, 0.6-oz (biscuit)

    Part #4392899
    This item is not returnable
    In Stock
    $14.09
    Refrigerator Door Switch#6

    Control panel parts Diagram

    Refrigerator light switch

    Part #12466104
    Replaced by #W11291138
    ?
    Manufacturer substitution
    This part replaces 12466104. Substitute parts can look different from the original.
    In Stock
    $24.83
    Ice Maker Sensor#3

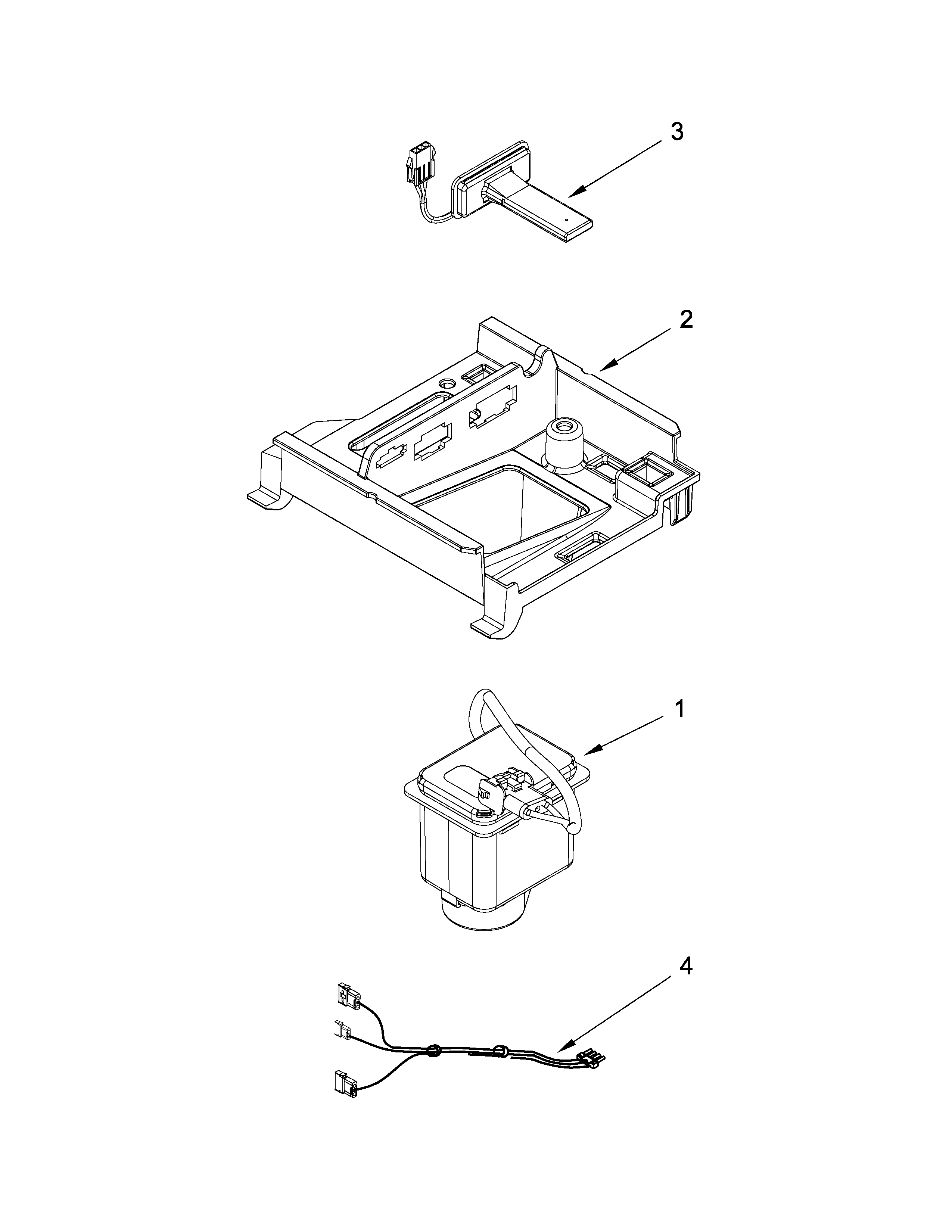

    Pump parts Diagram

    Ice maker water fill sensor

    Part #W10485962
    Replaced by #WPW10485962
    ?
    Manufacturer substitution
    This part replaces W10485962. Substitute parts can look different from the original.
    In Stock
    $89.99 |
    18% OFF
    MSRP: $110.00
    Ice Maker Electronic Control Board#5

    Control panel parts Diagram

    Ice maker electronic control board

    Part #W10485960
    Replaced by #W11034363
    ?
    Manufacturer substitution
    This part replaces W10485960. Substitute parts can look different from the original.
    In Stock
    $374.39
    Appliance Spray Paint (Black)#NI

    Optional parts (not included) Diagram

    Appliance spray paint (black)

    Part #285006
    This item is not returnable
    In Stock
    $28.89

    Symptoms common to all freestanding ice makers

    Choose a symptom to see related ice maker repairs.

    Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply problems, bad water valve
    Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cutting grid
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad evaporator thermistor
    Main causes: bad bin thermistor, condenser fan failure, faulty control board
    Main causes: wiring failure, broken cutting grid, faulty electronic control board
    Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, broken cutting grid
    Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin
    Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin

    Repair guides common to all freestanding ice makers

    These step-by-step repair guides will help you safely fix what’s broken on your ice maker.

    How to replace a freestanding ice maker cutter grid

    When the cutting grid is broken, ice cubes don’t drop into the ice bin. Use the steps in this repair guide to replace a broken cutter grid.

    Repair difficulty
    Time required
     15 minutes or less
    How to replace a freestanding ice maker electronic control board

    When the electronic control board won’t activate the ice maker components, follow these steps to install a new one.

    Repair difficulty
    Time required
     45 minutes or less
    How to replace a freestanding ice maker recirculation pump

    If your ice maker isn’t making ice, the pump could be the problem. Here’s how to replace it.

    Repair difficulty
    Time required
     45 minutes or less
