What is the standard size side by side fridge?
Most standard side-by-side refrigerators are about 30 to 36 inches wide, 67 to 70 inches tall, and 29 to 35 inches deep. For your Maytag MSD2652KGB, use the exact cabinet and hinge-cap measurements in the MSD2652KGB owner's manual before planning a tight opening.
These are the ranges we use most often when customers are comparing models or measuring a kitchen cutout:
- Width: 30 to 36 inches
- Height: 67 to 70 inches
- Depth: 29 to 35 inches (varies most with handles and door style)
- Capacity (common range): about 20 to 28 cu. ft.
| Measurement | Typical range | What changes it most |
|---|---|---|
| Width | 30 to 36 in. | Cabinet size, door thickness |
| Height | 67 to 70 in. | Hinge design, leveling feet |
| Depth | 29 to 35 in. | Handles, door bins, clearance needs |
The MSD2652KGB installation guidance calls for airflow clearance and notes that hinge-side wall placement can require extra room for door swing.
- Measure width, height, and depth of the opening in multiple spots
- Plan for about 1/2 inch at the top and 1/2 inch behind for air circulation
- If the hinge side is against a wall, allow extra space so the door can open wider
- If the refrigerator sits in a recess with the top covered, measure floor to top of hinge cap (not just the cabinet)
- Remember flooring (tile, carpet, rugs) can reduce the usable opening
A side-by-side refrigerator that is “standard size” can still bind in the opening if you do not account for hinge caps, door swing, and ventilation space. Proper clearance also helps the condenser and compressor run efficiently.
Last updated: February 2026
What is the best brand for a side-by-side refrigerator?
There is no single “best” brand for every kitchen, but for a side-by-side refrigerator we see the best long-term results when you prioritize proven cooling performance, easy-to-service parts, and a simpler dispenser setup. For your Maytag MSD2652KGB, using the care, cleaning, and operating guidance in the MSD2652KGB owner's manual helps you get the most reliability from the refrigerator you already own.
When we evaluate side-by-side refrigerators across brands, these factors matter most:
- Temperature stability: steady fresh food and freezer temps with minimal swings.
- Airflow design: strong evaporator fan performance and clear air passages.
- Ice and water design: fewer leaks and jams when the system is maintained.
- Parts availability: common wear items (fans, thermostats, switches) should be easy to source.
- Serviceability: straightforward access to components reduces repair time and cost.
External ice and water dispensers are convenient, but they add moving parts (motors, switches, control overlays, ice maker components) that can drive repairs over time. If you want maximum longevity, choose the simplest configuration that still meets your needs.
| System area | What fails most often | Example part for MSD2652KGB |
|---|---|---|

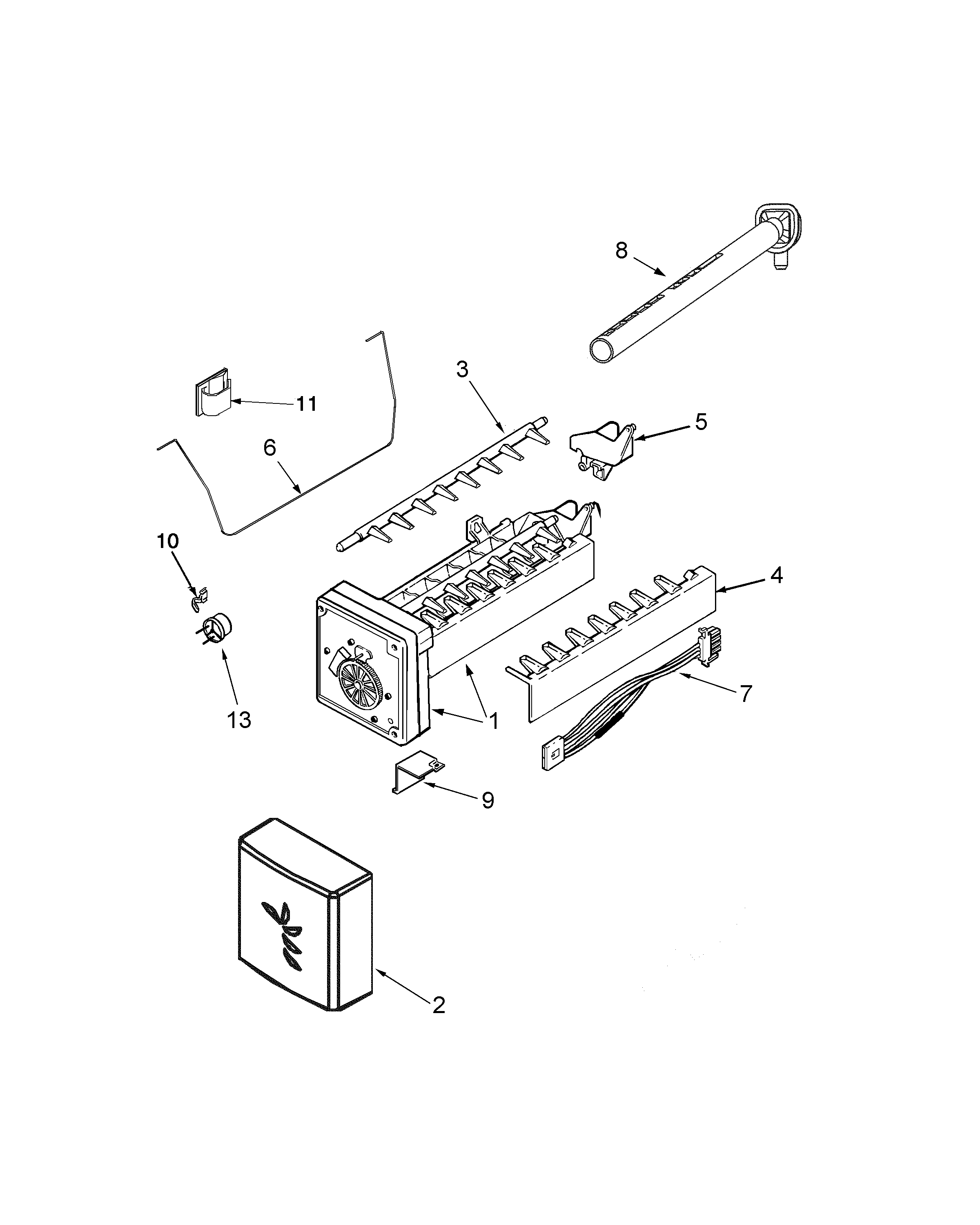

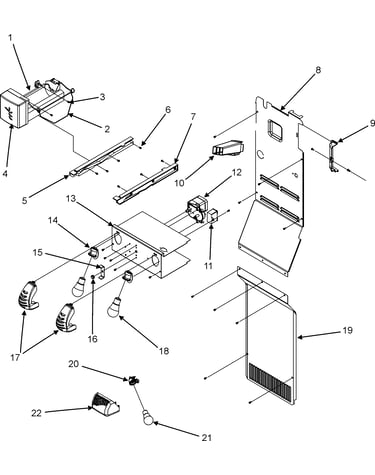

| Ice production | Ice maker stops cycling or won’t fill | Refrigerator ice maker D7824706Q |

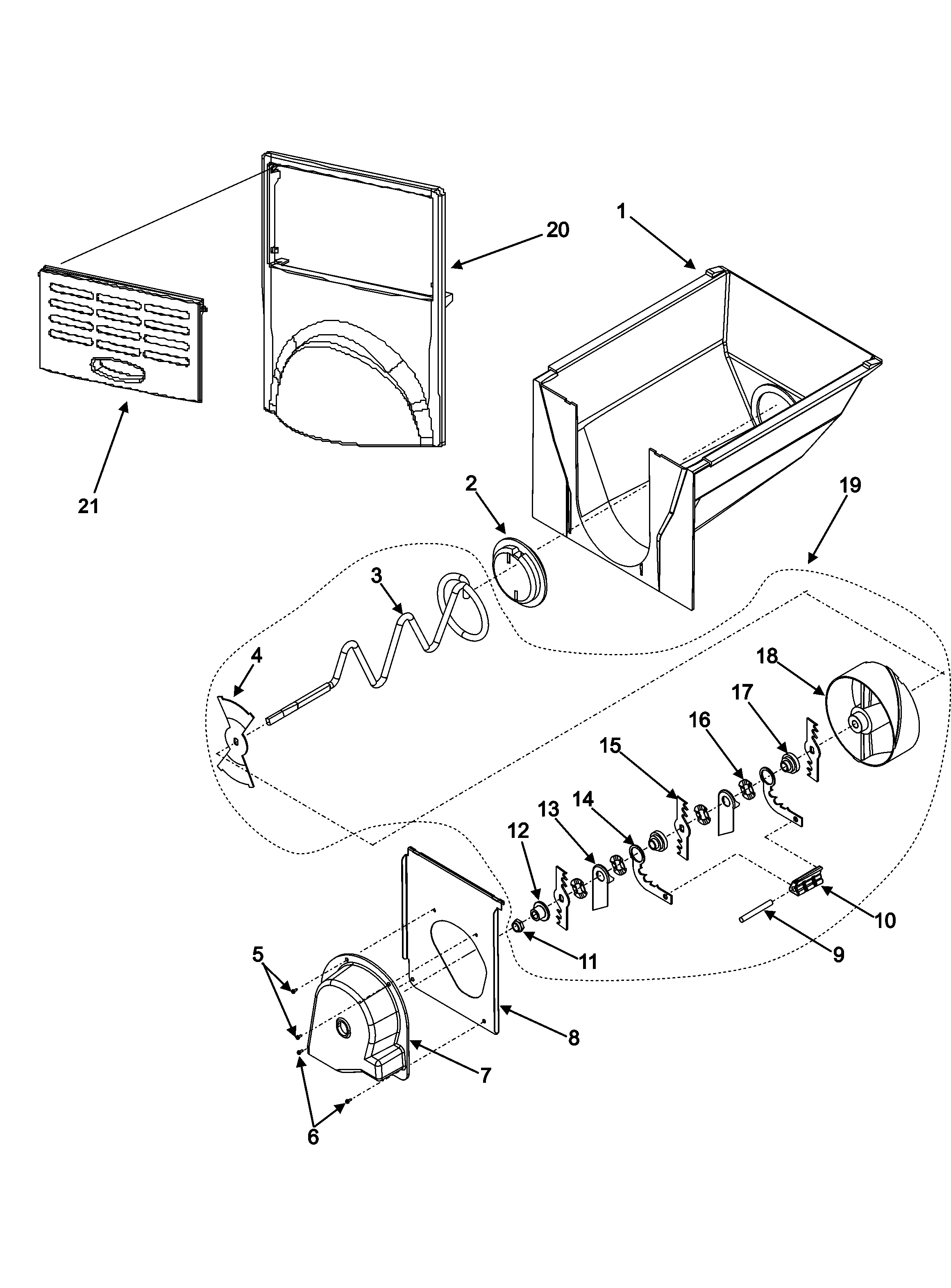

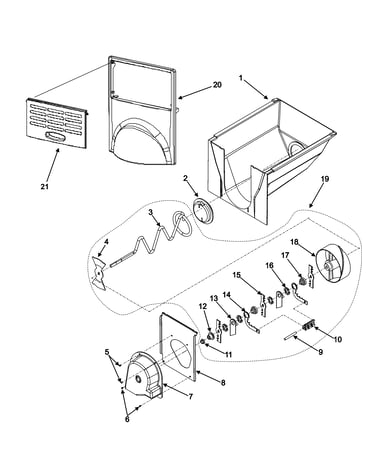

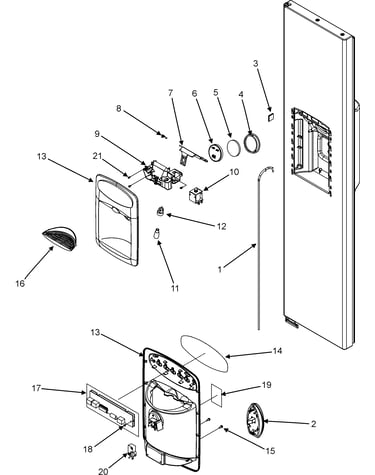

| Ice dispensing | Auger or drive issues, crushed ice problems | Crushed ice WP12740302 |

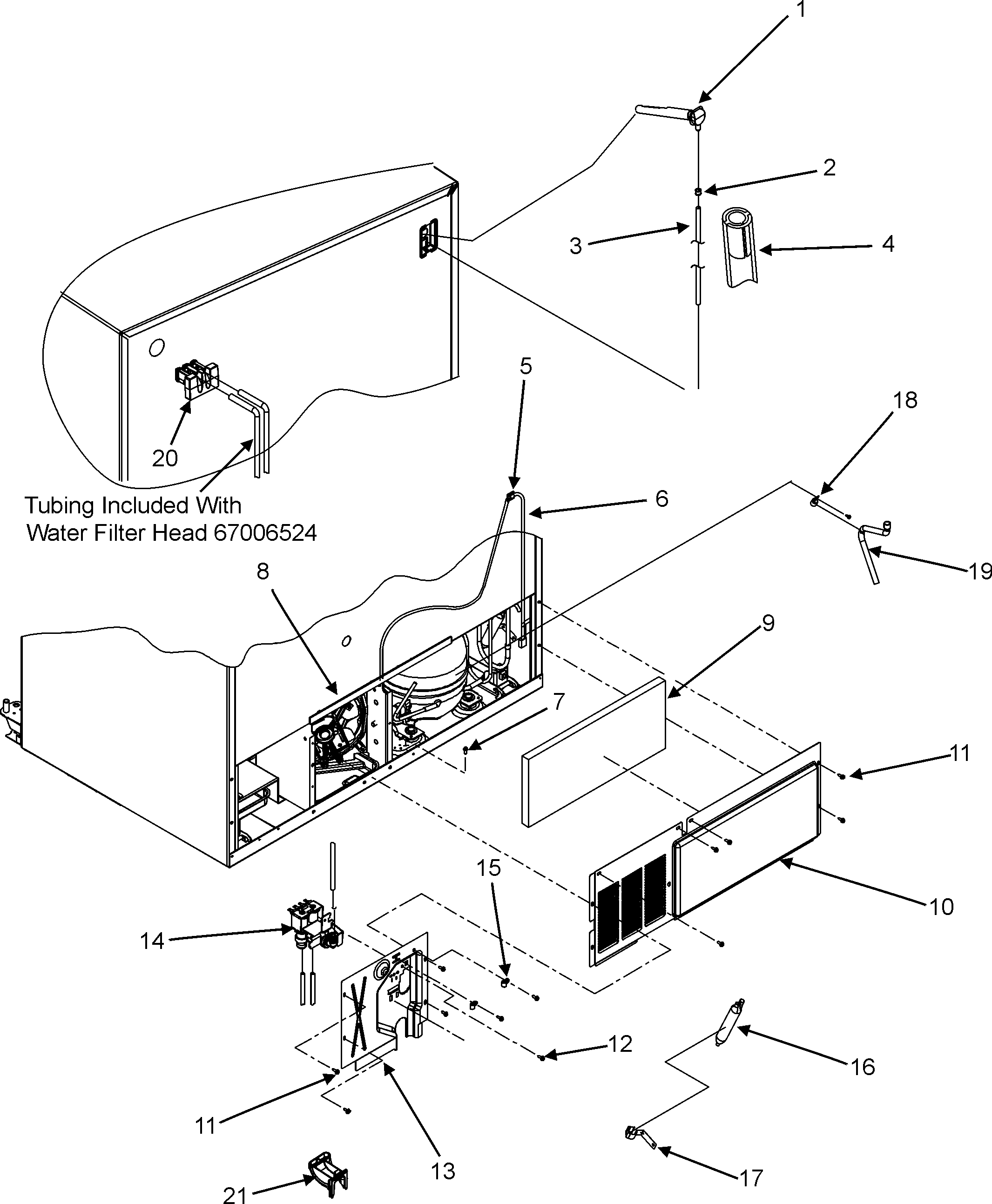

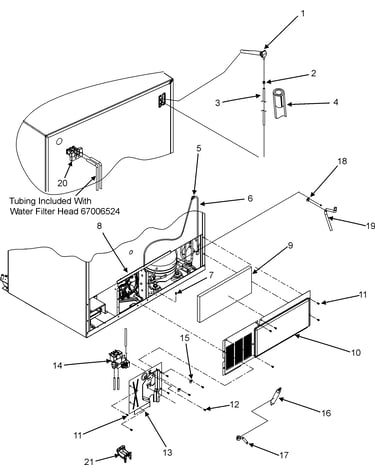

| Water filtration | Leaks or poor flow at the filter head | Refrigerator water filter head WP67006524 |
A “best brand” choice is really a “best total ownership” choice. Side-by-sides that hold temperature well, keep airflow unobstructed, and have fewer dispenser complications typically deliver fewer breakdowns and lower repair costs.
- Pick a model with good airflow and easy condenser cleaning access.
- Avoid paying extra for features you will not use daily.
- Plan on routine maintenance (filter changes, coil cleaning, door seal checks).
- When you need parts for MSD2652KGB, order from the parts list for this model or search by model number on Sears PartsDirect.
Last updated: February 2026
Does anyone make a 30 inch side-by-side refrigerator?
Yes. Several brands make 30-inch class side-by-side refrigerators, but the exact outside width and required cabinet opening vary by model and hinge clearance. For fit, we recommend confirming the cutout and clearance requirements in the MSD2652KGB owner's manual before you shop or measure your space.
Manufacturers often market a refrigerator as “30-inch” even when the actual cabinet width is slightly under or over 30 inches once doors and hinges are considered.
Use this checklist when comparing models:
- Measure the cabinet opening width, height, and depth (not just the old refrigerator).
- Plan for airflow clearance; many installations need space at the top and behind for circulation.
- If the hinge side sits against a wall, allow extra room so the door can open wider.
- Confirm the room temperature range where the refrigerator will sit (indoor household use).
- Verify you can move the unit through doorways and around corners before delivery.
Your Maytag MSD2652KGB installation guidance calls out leaving space at the top and behind the machine compartment cover for proper air circulation, and allowing extra hinge-side clearance when installed next to a wall.
| What you are measuring | What to include | Why it matters |
|---|---|---|
| Opening width | Cabinet-to-cabinet distance | Prevents binding and vibration |
| Door swing | Hinge and handle clearance | Ensures full access to bins and drawers |
| Ventilation | Space above and behind | Helps cooling performance and efficiency |
A side-by-side refrigerator that is even slightly too wide (or lacks hinge-side clearance) can cause poor door closure, restricted door swing, and reduced airflow, which can affect temperature control and energy use.
If your current MSD2652KGB is not cooling or has ice and water issues, repairing it is often faster than re-fitting cabinetry. Common repair items for this model include the refrigerator ice maker D7824706Q and the refrigerator start device W10613606. You can also search by model number on Sears PartsDirect if you are comparing repair costs.
Last updated: February 2026
How do you force defrost a Maytag side by side?
On a Maytag side-by-side like model MSD2652KGB, “forced defrost” is a service diagnostic function that depends on the exact control style. Use the diagnostic/defrost instructions in the MSD2652KGB owner's manual so the button sequence matches your refrigerator’s control panel.
Follow the model-specific steps in the manual, then confirm the defrost system is actually heating.
- Identify your control type (inside the fresh food section or on the dispenser, depending on configuration)
- Enter the service/diagnostic mode exactly as shown in the manual
- Select the forced defrost test or defrost heater test (wording varies by control)
- Listen for sizzling or hissing at the evaporator area as frost begins to melt
- Stop the test when instructed; allow the unit to return to normal cooling
Forced defrost is most useful for separating a “frosted evaporator” problem from a sealed-system cooling problem.
| What you observe | What it usually means | What to check next |
|---|---|---|
| Heater warms and frost melts | Defrost heater circuit can work | Look for why it is not defrosting automatically (timer/control, sensor, wiring) |
| No heat, frost stays solid | Defrost circuit failure | Test heater, thermostat/sensor, and wiring connections |
| Melt water overflows or leaks | Drain restriction | Clear the defrost drain and confirm proper flow to the drain pan |
If the refrigerator cools well right after a manual defrost but warms again as frost builds, these are the most common areas to focus on:

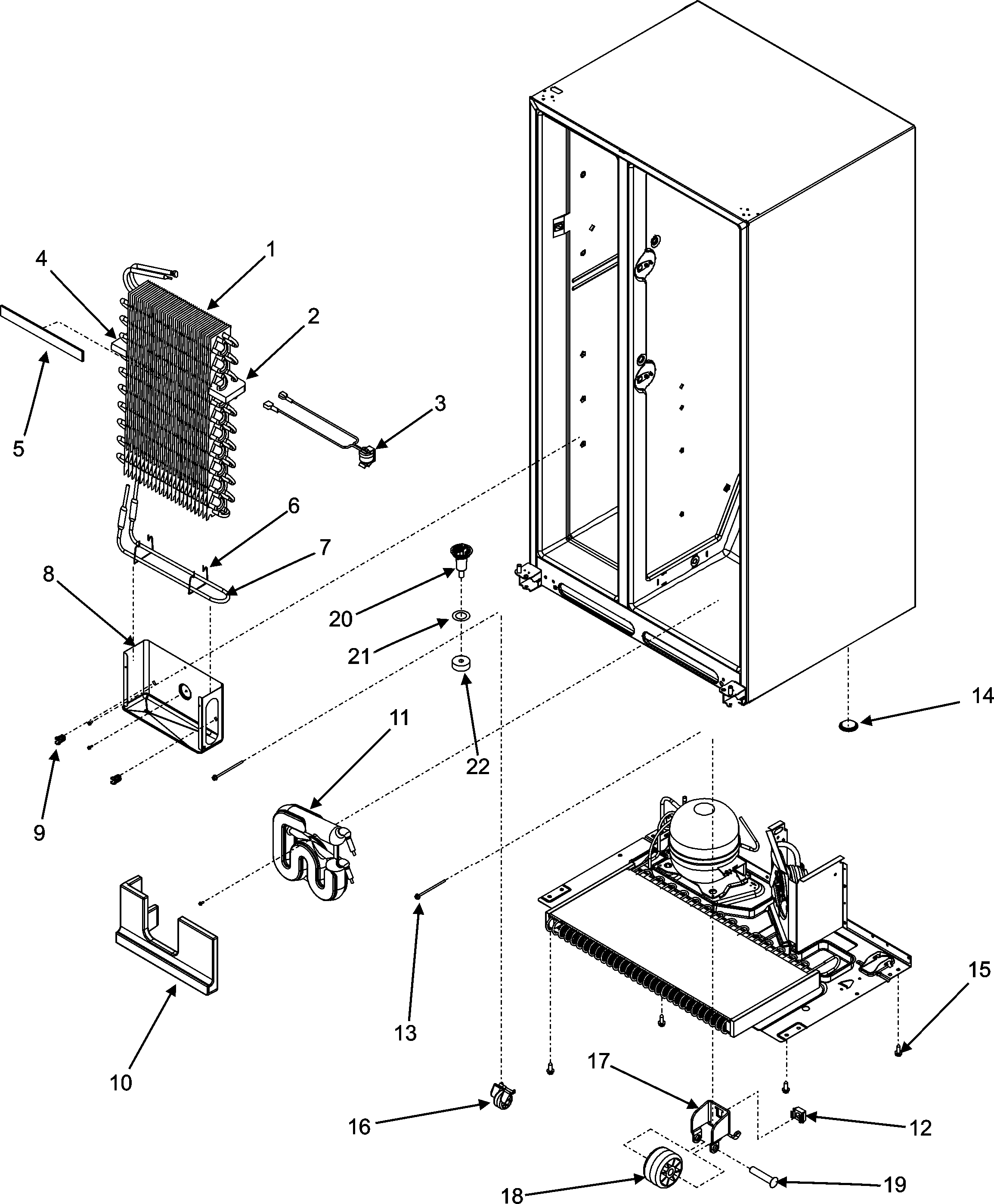

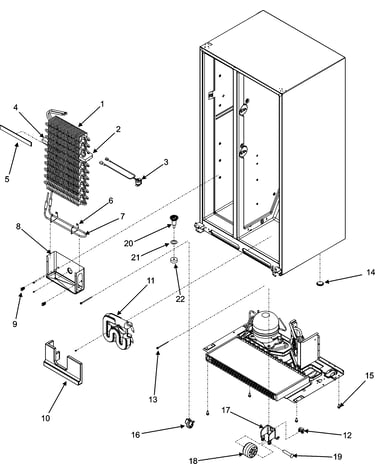

- Defrost heater: refrigerator defrost heater WP67004188

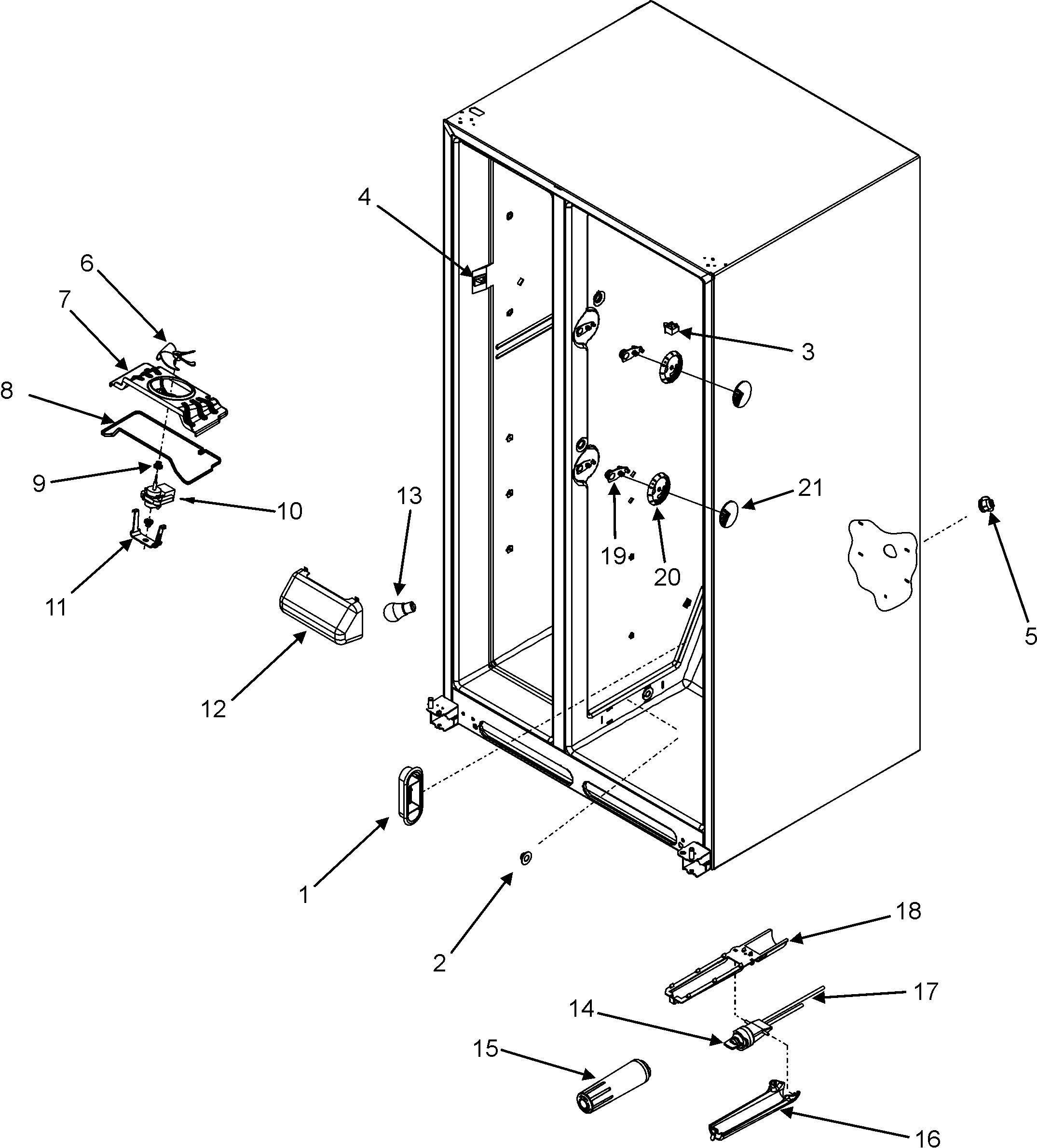

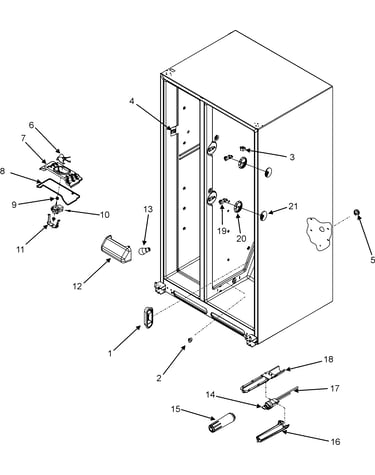

- Evaporator airflow: evaporator motor WPW10128551
- Fan blade damage or ice contact: evaporator fan blade WP2169142
A correct forced defrost test prevents guesswork. If the heater test works, we focus on the automatic defrost controls and airflow; if it does not, we focus on the heater circuit components.
If you need to order parts for MSD2652KGB, use the parts list for your model or search by model number on Sears PartsDirect.
Last updated: February 2026
