Craftsman 917295661 gas rear-tine tiller Parts
Here are the diagrams and repair parts for Craftsman 917295661 gas rear-tine tiller, as well as links to manuals and error code tables, if available.
By Schematic
By Part

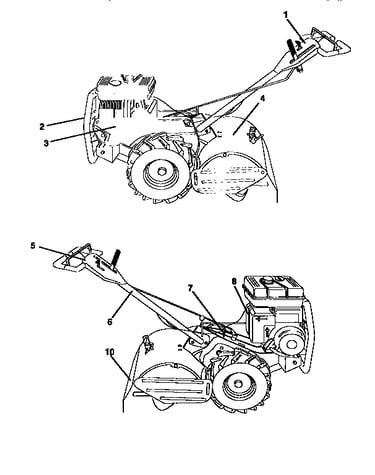

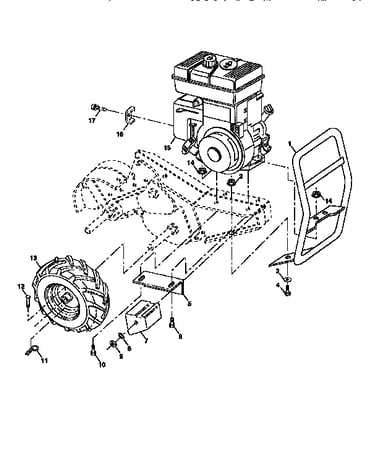

SELECT DIAGRAM
Browse Parts for 917295661 Tillers

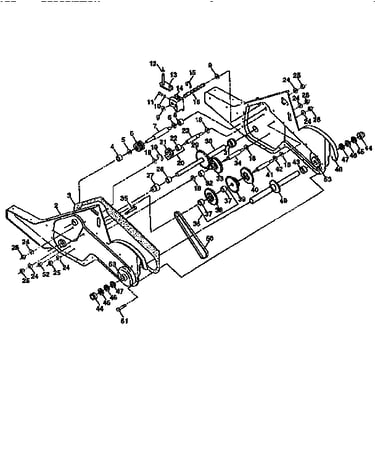

Transmission diagram
Tiller Spacer
Part #106390XReplaced by #532106390
Manufacturer substitutionThis part replaces 106390X. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26
Qty

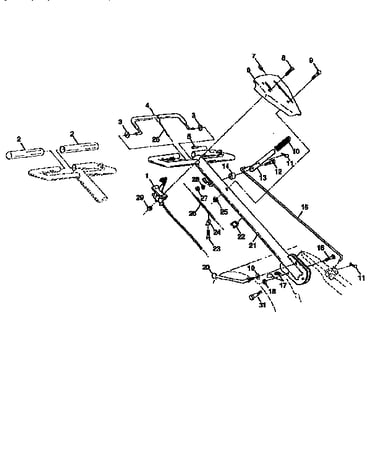

Handles diagram
Grip
Part #110646XReplaced by #532008206
Manufacturer substitutionThis part replaces 110646X. Substitute parts can look different from the original.In Stock$32.81QtyTransmission diagram
Rally Tiller Shift Fork
Part #8353JReplaced by #532008353
Manufacturer substitutionThis part replaces 8353J. Substitute parts can look different from the original.In Stock$54.46QtyHandles diagram
Rally Lawn & Garden Equipment Washer
Part #19131611Replaced by #597367401
Manufacturer substitutionThis part replaces 19131611. Substitute parts can look different from the original.This item is not returnableIn Stock$3.69QtyTransmission diagram
Needle
Part #5020JReplaced by #532005020
Manufacturer substitutionThis part replaces 5020J. Substitute parts can look different from the original.This item is not returnableIn Stock$31.2316% OFF Phone Price : $37.23

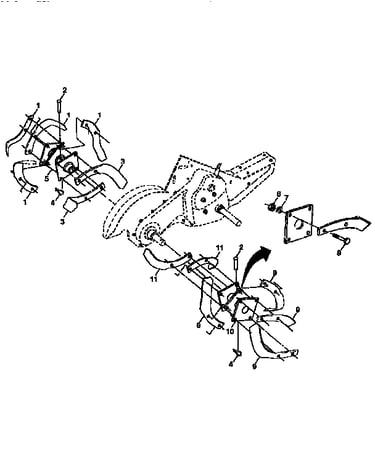

QtyTine assembly diagram
Spring Retainer
Part #STD624008Replaced by #532003146

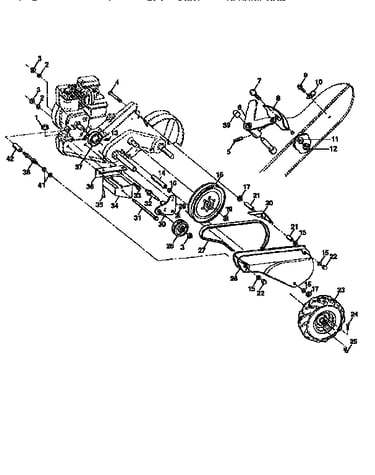

Manufacturer substitutionThis part replaces STD624008. Substitute parts can look different from the original.This item is not returnableIn Stock$5.3116% OFF Phone Price : $6.31QtyMainframe, left side diagram
Bolt
Part #102384XReplaced by #532102384

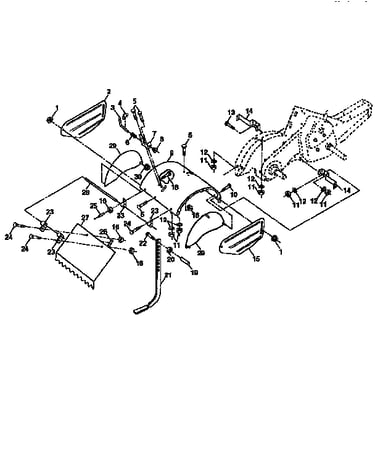

Manufacturer substitutionThis part replaces 102384X. Substitute parts can look different from the original.This item is not returnableIn Stock$14.83QtyTine shield diagram
Bracket
Part #8392J
The manufacturer no longer makes this part, and there's no substitute part
Transmission diagram
Sprocket Assembly
Part #154356
The manufacturer no longer makes this part, and there's no substitute part
Transmission diagram
Tiller Reverse Idler Gear And Bearing
Part #102114X
The manufacturer no longer makes this part, and there's no substitute part
